Type	Microwave oven with grill
Brand	Concept
Model	MT5523
External dimensions (W x D x H)	485 x 374 x 292.5 mm
Weight	14 kg
Voltage	230 V ~ 50 Hz
Total input power	1250 W
Microwave output power	800 W
Grill power	1000 W
Microwave frequency	2450 MHz
Internal volume	23 L
Turntable diameter	270 mm
Sound level	< 63 dB(A)
Functions	Microwave, Grill, Combined (C-1, C-2), Defrost by weight/time, Auto menu (8 programs), Quick start, Kitchen timer, Child lock
Control type	Digital display with selector knob and buttons
Clock	24-hour mode
Maximum cooking time	95 minutes
Material	Stainless steel / plastic
Cleaning	Wipe with damp cloth; do not use abrasive cleaners or steam cleaner
Safety features	Child lock, door interlock, grounding, automatic shut-off

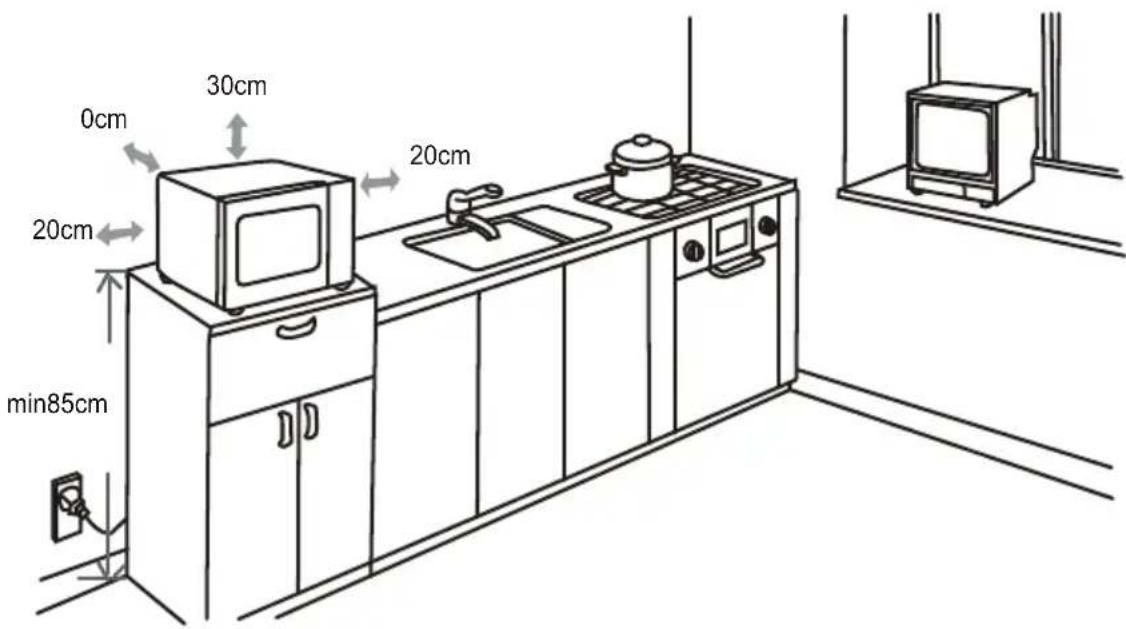

Installation	Free-standing; minimum clearance 30 cm above, 20 cm sides
Accessories included	Glass turntable, roller wheel, grill stand
Warranty	Manufacturer warranty; details in manual

Frequently Asked Questions - MT5523 Concept

How do I set the clock on the Concept MT5523 microwave?

Press the Timer/Clock button twice. The hour digits will flash. Turn the selector knob to set the hour (0-23). Press the button again to set minutes (0-59). Press the button to confirm. The clock will display the time.

Can I use metal containers in the microwave?

No, metal containers or any metal-trimmed dishes should not be used as they can cause sparking and damage the oven. Use only microwave-safe dishes.

How do I use the auto menu function?

Turn the selector knob right to select from menu A-1 to A-8. Press the Start/+30s button to confirm. Then turn the knob to select the weight as per the table in the manual. Press Start to begin cooking.

What should I do if the microwave does not start?

Check that the plug is firmly inserted, the door is fully closed, and the power cord is not damaged. Also ensure the socket is working. If still not starting, unplug for 10 seconds and try again. If the issue persists, contact an authorized service center.

How do I defrost food by weight?

Press the Defrost by weight button once to display 'dEF1'. Turn the selector knob to set the weight (100-2000 g). Press Start to begin defrosting. The time is automatically set based on weight.

Can I use the grill function with the microwave simultaneously?

Yes, the microwave has combined modes: C-1 (55% microwave + 45% grill) and C-2 (30% microwave + 70% grill). Select these by pressing the Microwave/Grill/Combined button repeatedly until 'C-1' or 'C-2' appears.

How do I activate the child lock?

When the microwave is idle, press and hold the Stop/Clear button for 3 seconds. A long beep sounds. The display shows the time or ':'. To unlock, press and hold the same button for 3 seconds again.

What is the maximum cooking time I can set?

The maximum cooking time for microwave, grill, or combined modes is 95 minutes. For defrost by time, the maximum is also 95 minutes.

How do I clean the microwave oven?

Unplug the oven and let it cool. Wipe the interior and exterior with a damp cloth. Wash removable parts (glass plate, roller wheel) in warm soapy water. Do not use abrasive cleaners, steel wool, or steam cleaners. To remove odors, boil a bowl of water with lemon juice for 5 minutes.

Why does the turntable make noise?

Noise can occur if the roller wheel or turntable is dirty. Clean the roller wheel with a damp cloth and ensure the glass plate is properly seated. Also check that nothing obstructs the rotation.

USER MANUAL MT5523 Concept

Concept microwave oven with digital display and control knob, labeled MT5523 (no text on device body)

PODĚKOVÁNÍ

Simple line drawing of a teapot with a handle and side legs, no text or symbols present

Simple line drawing of an oval shape with diagonal hatching and a small number 8 on the left (no text or symbols)

Simple line drawing of a boat-shaped object with handle and legs, no text or symbols present

INSTALACJA TALERZA OBROTOWEGO

Simple line drawing of a boat hull with handle and legs, no text or symbols present

Thank you for purchasing the Concept product. We want you to be satisfied with everything we make every day you use it.

Please read the instructions carefully before initial use. You should retain them for a future reference. Ensure that anyone using the warming drawer is familiarized with the instructions.

TABLE OF CONTENTS

Technical specifications

Important safety information

Product description

Control panel description

Individual functions

User manual

Basic functions

Suitable/unsuitable cookware for microwave heating

Advanced functions

Cleaning and maintenance

Installation of the appliance

Radio interference

Trouble shooting

Environmental protection

Technical specifications
Voltage 230 V ~ 50 Hz
Input power 1 250 W
Microwave energy output 800 W
Wave frequency 2 450 MHz
External dimensions (W x D x H) 485 x 374 x 292.5 mm
Internal volume 23 l
Weight 14 kg
Turntable plate diameter 270 mm
Sound performance level < 63 dB(A)
Grill power 1000 W

The manufacturer reserves the right to make potential technical changes, typographical errors and any differences in the representation without prior notice.

Follow the instructions for positioning the appliance. Pay special attention to the distance from flammable materials such as curtains, drapes, blankets, paper, clothing, etc.!

IMPORTANT SAFETY INFORMATION

• Use the unit only as described in this operating manual.
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses; bed and breakfast type environments.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance stall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. surface of a storage cabinet can get hot.
• Remove all the covering and marketing materials from the unit before the first use.
  • Make sure the mains voltage matches the value marked on the rating plate.
• Do not leave the unit unattended during operation.
• Make sure to place the unit on a stable heat-resistant surface, out of the reach of other heat sources. This surface shall have a sufficient load capacity to hold the unit with its contents.
• Do not cover the unit's openings. There is a risk of overheating.
• Do not remove the feet.
• Only use dishes designed for microwave ovens (non-metal, no metal prints or decorations). Plastic containers or packages can become heat-deformed or ignite, so watch them during preparation.
• Do not store anything inside the unit.
• Never touch the hot surface. Use the handles and buttons.
• Use potholders to handle hot accessories.
• Follow the building-in instructions for the unit. Make sure there is a safe distance between the unit and flammable materials, such as furniture, curtains, lace, blankets, paper, clothing etc.!

- Keep the unit clean. Do not let any objects enter the unit through the grille. Contaminants may short out the unit, causing dam-age or fire.

• These could cause a fire.

- Never pull the cord to disconnect the plug from the wall outlet; hold the plug instead.

- The appliance is not intended for and should not be accessible to children or people with reduced capabilities.

• Take extra care when using the unit near children.

- Do not use the appliance as a toy.

- Make sure the power cord does not hang over the working area, to prevent children from reaching it.

- The stovetop is intended for interior use only; do not expose it to moisture. Otherwise, a risk of electrical shock may occur.

- Use manufacturer-recommended accessories only.

- Never use the appliance if the supply cord or plug is damaged.

- Immediately refer to an authorised service centre for repair.

- Never pull the supply cord or use it to carry the unit.

- Keep the stovetop away from any other heat sources such as radiators, ovens etc. Do not expose the unit to direct sunlight or moisture.

- Never operate the appliance with wet hands.

- Turn off the unit and disconnect the plug from the mains outlet in case of any failure.

- Do not touch the moving parts during operation of the unit.

- The appliance is intended for domestic use only, not for commercial use.

- The unit is designed solely for cooking, heating or defrosting food.

- Do not use the unit to fry food. Hot oil can damage parts of the unit, or cause skin burns.

- Do not use the unit if the door or packing is damaged. Have the unit repaired in an authorised service centre.

- For the purpose of protection from microwave radiation no unauthorised person is allowed to perform any servicing or repair, e.g. removing the cover that protects against microwave radiation.

- Do not use the unit for preparing or heating food in sealed vessels, as they may explode.

- Do not try to repair the appliance; instead, refer to an authorised service centre.

- Do not attempt to operate this oven with the door open as this may result in harmful exposure to microwave energy. Do not attempt to break or tamper with security locks.

• If the appliance is not kept in good condition or is dirty, it may degrade the surface and affect the life of the appliance or lead directly to dangerous situations.
  • The appliance must not be cleaned with a steam cleaner.
• To avoid overheating, the appliance must not be installed in a cabinet behind a decorative door.
  • The appliance is intended for free-standing use.
• The rear wall of the appliance must be placed towards the wall.

Failure to follow the manufacturer's instructions may lead to refusal of warranty repair.

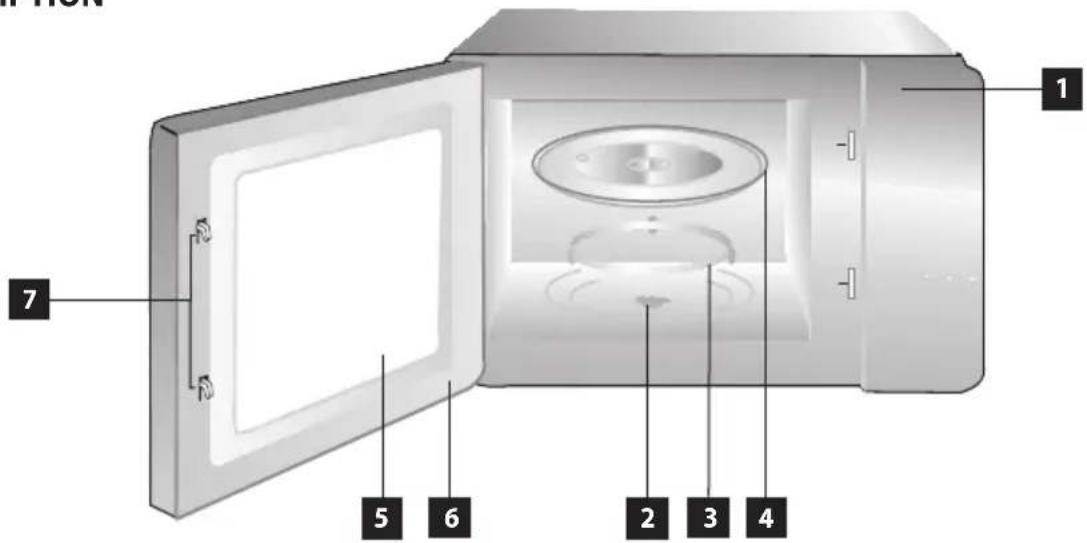

PRODUCT DESCRIPTION

1 Control panel
2 Pin of plate drive
3 Roller wheel
4 Glass plate
5 Oven door window
6 Door
7 Security lock
8 Grill stand

Warning: The grill stand must not be used with the microwave heating function. The grill stand is only intended for use with the GRILL function and requires placement on a glass plate.

Simple line drawing of an oval-shaped object with three legs and a side protrusion, labeled with number 8 (no text or symbols on the object itself)

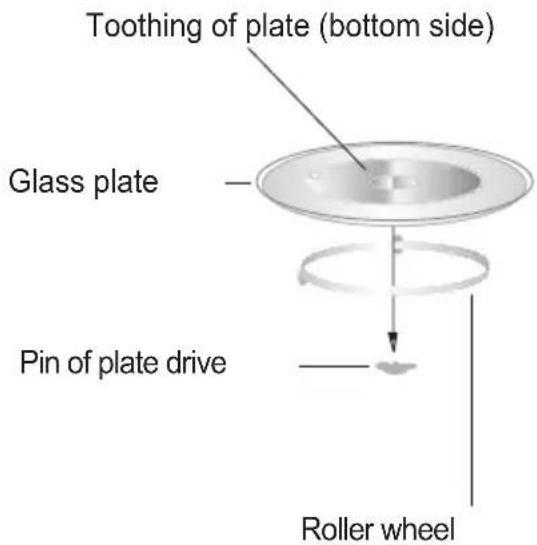

Installation of turntable plate

1. Never place the glass plate upside down. Nothing should prevent the glass plate from turning.
2. The turntable plate and roller wheel assembly must always be used during cooking.
3. All meals and food containers must always be placed on a glass plate.
4. If the glass plate or roller wheel breaks, contact the nearest authorized service centre.

DESCRIPTION OF CONTROL PANEL AND ITS FUNCTIONS

1 Microwave heating / Grill / Combined heating
2 Defrost by weight / Defrost by time
3 Timer / Clock
4 Stop / Clear
5 Start / +30 seconds / Confirm
6 Rotate left - Decrease / Step down in the menu
7 Rotate right - Increase / Step up in the menu
8 Selector knob

Time setting

As soon as you connect the microwave to the mains, "0:00" will appear on the display, the buzzer will beep once.

1. Press the button twice to select the clock function, then the hour digits will start flashing.
2. Turn to adjust the hour digits, the entered values should be in the range of 0 - 23.
3. Press the button, the minute digits will start flashing.
4. Turn to adjust the minute digits, the entered values should be in the range of 0 - 59.
5. Press the button to complete the time setting. The ":" sign will start flashing and the set time will be displayed

Note:

• The clock will not work unless it is set after connecting to the mains.
• If you press the button while setting the time, the oven will automatically return to the previous state.

Microwave heating

Press , "P100" will appear on the display. Next, press the button repeatedly or turn , to select the desired power "P100", "P80", "P50", "P30", "P10", "G", "C-1" or "C-2". Then press the button and turn to set the heating time from 0:05 min. to 95:00 min. Press the button again to start heating.

Example: If you want to use 80% of the microwave power for cooking for 20 minutes, you can set the oven by following these steps:

1. Press ☐ once, "P100" will appear on the display.
2. Press again or turn to select 80% microwave power.
3. Press to confirm and "P 80" will appear on the display.
4. Turn ,to set the cooking time until "20:00" appears on the display.
5. Press to start cooking.

Grill or combined heating

Press once, "P100" will appear on the display. Next, press the button repeatedly or turn, to select the desired power "P100", "P80", "P50", "P30", "P10", "G", "C-1" or "C-2". Then press the button and turn to set the heating time from 0:05 min. to 95:00 min. Press the button again to start heating.

Example: If you want to use 55 % of the microwave power and 45 % of the grill power (C-1) for cooking for 10 minutes, you can set the oven by following these steps:

1. Press ☐ once, "P100" will appear on the display.
2. Press again or turn to select combined mode number 1.
3. Press □ to confirm and "C-1" will appear on the display.
4. Turn, to set the cooking time until "10:00" appears on the display.
5. Press to start cooking.

Note: When half of the grilling time has elapsed, the buzzer will sound twice, which is normal. For a better grilling effect, you should turn the food over, close the door and then continue cooking by pressing ☐.

If you do not perform any action, the oven will continue to work.

Quick start

1. When the microwave is idle, press ☐ to start cooking at 100% power, each additional press will increase the cooking time by 30 seconds to 95 minutes.

2. In microwave, grill or combined mode of cooking or defrosting by time, each press of the

button can increase the cooking time by 30 seconds.

1. When the microwave is idle, turn to the left and set the cooking time at 100% microwave power, then press

to start cooking.

Defrost by weight

1. Press once, "dEF1" will appear on the oven display.

2. Turn to select the weight of the food from 100 to 2000 g.

3. Press the button to start defrosting.

Defrost by time

1. Press once, "dEF2" will appear on the oven display.
2. Turn to select the defrost time. The maximum time is 95 minutes.
3. Press the button to start defrosting. The defrost power is P30 and cannot be changed.

Kitchen timer

1. Press once, "00:00" will appear on the oven display.
2. Turn to set the timer. (The maximum cooking time is 95 minutes.)
3. Press the button to confirm the setting.
4. When the time expires, the clock indicator goes out. The buzzer will sound 5 times. If the clock is set (24-hour mode), the current time will appear on the display.

Auto menu

1. Turn to the right to select from the menu from "A-1" to "A-8".
2. Press to confirm.
3. Turn to select the default weight from the menu in the table.
4. Press to start cooking.

Example: If you want to use the "Auto Menu" function to cook fish weighing 350 g.

1. Turn clockwise until "A-6" is displayed.
2. Press to confirm.
3. Turn to select the weight of the fish "350".
4. Press to start cooking.

Table for Auto menu

Menu Weight Displayed
A-1 Pizza	200 g 200
	400 g 400
A-2 Meat	250 g 250
	350 g 350
	450 g 450
A-3 Vegetables	200 g 200
	300 g 300
	400 g 400
A-4 Pasta	50 g (with 450 ml of cold water) 50
	100 g (with 800 ml of cold water) 100

A-5 Potatoes	200 g 200
	400 g 400
	600 g 600
A-6 Fish	250 g 250
	350 g 350
	450 g 450
A-7 Drinks	1 cup (120 ml) 1
	2 cups (240 ml) 2
	3 cups (360 ml) 3
A-8 Popcorn	50 g 50
	85 g 85
	100 g 100

Multilevel cooking

A maximum of 2 levels can be set for cooking. In case of multilevel cooking including defrosting, the defrosting must be located in the first level.

Example: If you want to defrost food for 5 minutes and then cook at 80 % microwave power for 7 minutes, follow these steps:

1. Press twice, "dEF2" will appear on the oven display.
2. Turn to set the defrost time until "5:00" appears on the display.
3. Press once, "P100" will appear on the display.
4. Press again or turn to select 80% microwave power.
5. Press the button to confirm and "P 80" will appear on the display.
6. Turn to set the cooking time until "07:00" appears on the oven display.
7. Press to start cooking and the buzzer will alert you to the start of the first level, the defrost time will count down. The buzzer sounds again when entering the second cooking. An audible signal sounds five times when cooking is completed.

Information function

In the microwave, grill and combined cooking mode, press ,the current power will be displayed for 3 seconds.

After 3 seconds, the oven returns to its original state. When the microwave is cooking, press 📄, to display the time. The time will be displayed for 3 seconds.

Child lock function

Locking: When the microwave is idle, press the button for 3 seconds, a long beep will sound to indicate the entry into the child lock mode. The time is displayed if it is set, otherwise [ : ] . will appear on the display. Unlocking: When locked, press the button for 3 seconds, a long beep will sound to indicate that the lock has been released.

Installation

1. Remove all the covering and marketing materials from the unit before the first use. Do not remove the plastic foil on the inner side of the door.
2. Check the appliance and power cord for damage regularly. Never switch on a damaged appliance. There can be none of the following: door askew or damaged, door sealing damaged, broken or damaged hinges or damaged safety closing system.
3. Make sure to place the unit on a stable heat-resistant surface, out of the reach of other heat sources. This surface shall have a sufficient load capacity to hold the unit with its contents.
4. Do not switch the unit on without a properly mounted rolling wheel and rotating glass tray.
5. The supply cable plug has to be easily accessible so that it can be disconnected quickly, if need be.

NOTE

Prior to using a new unit, wipe the surface and the inside with a wet cloth for hygienic reasons. Wash all the removable parts in warm water with detergent.

WARNING!

Open the door slowly and carefully. When opening the door during operation, or after preparation, a large volume of steam is released, and condensed hot water may drip from the lower door edge. There is a risk of scalding.

Microwave oven cooking principles

Place the food evenly. Place thicker areas at the edges.

Watch the cooking time. Cook for the shortest of the prescribed times, and if necessary, for longer.

Overcooked food can ignite.

Cover the food when cooking. Covers prevent spattering and enable more even heating.

Turn around pieces of food such as chicken or hamburger when cooking. Big pieces, such as roast meat, must be turned more than once.

Move meatballs and similar food from the edge towards the centre and vice versa halfway through the cooking time.

Selection of dishes

Ideal dishes for microwave ovens are transparent, for microwaves. They allow the energy to penetrate the cover and food. Microwaves can't penetrate metal, which is why metal or metal-decorated dishes should not be used.

When cooking in a microwave oven, do not use containers/packaging made of recycled paper, as they may contain small metal particles that can cause sparking and subsequent ignition due to microwave radiation.

We recommend circular or oval dishes rather than square or rectangular ones, as the food in the corners tends to be overcooked.

If you are unsure of the suitability of your dishes for heating in a microwave, perform the following test:

1. Fill the microwave-safe container with 1 cup of cold water (250 ml). Put it in the microwave together with the empty dishes in question.

2. Cook at maximum power for 1 minute.

3. When done, touch the dishes carefully. If the empty dishes are warm, do not use them for microwave cooking.

Do not exceed 1 minute of cooking.

Dishes SUITABLE for heating food in a microwave oven

Dishes Description
Kneading bowl	Follow the manufacturer's instructions. The bottom of the kneading bowl must be at least 5 mm above the turntable plate. Improper use may cause the plate to break.
Ceramic dishes	Only intended for microwave use. Follow the manufacturer's instructions. Do not use cracked or battered dishes.
Glasses	Always remove the lid. Use only for heating the food, not boiling. Most glasses are not heat resistant and can break.
Glass dishes	Only heat resistant glass dishes. Make sure there is no metal rim on the dishes. Do not use cracked or battered dishes.
Oven bags	PFollow the manufacturer's instructions. Do not close the bags with a metal clip. Make holes in the bag to allow excess steam to escape.

Paper plates and cups	Use only for short-term cooking/heating. Do not leave the oven unattended during cooking.
Paper towels	Used to cover food for reheating and to absorb fat. Use only under supervision for short-term cooking.
Baking paper Used as a cover to prevent splashing or as a wrap for steam cooking.
Plastic dishes	Only intended for microwave use. Follow the manufacturer's instructions. The dishes should be labelled “Microwave Safe”. Some plastic containers soften when the food inside heats up. “Cooking bags” and tightly sealed plastic bags should be cut, punctured or otherwise altered as described on the packaging.
Plastic cover	POnly intended for microwave use. Used to cover food during cooking to maintain moisture. Do not allow the plastic cover to touch food.
Thermometers Microwave only (meat and candy thermometers).
VoWax paper Used as a cover to prevent splashing or as a wrap for steam cooking.

Dishes NOT SUITABLE for heating food in a microwave oven

Dishes Description
Aluminium tray May cause sparking. Put the food in the dishes designed for microwave use.
Food box with metal handle	May cause sparking. Put the food in the dishes designed for microwave use.
Metal clips, twisted metal cords	Metal prevents microwave energy from heating food. A metal rim may cause sparking.
Metal clips, twisted metal cords	May cause sparking, which may lead to fire in the oven.
Paper bags May cause fire in the oven.
Plastic foam, polystyrene	Upon exposure to high temperature, the plastic foam may melt or contaminate the liquid inside.
Wood When used in a microwave oven, the wood dries out and may split or crack.

WARNING!

If you remove the food before the preset time expires, or you aren't using the oven, always reset the current program.

CLEANING AND MAINTENANCE

Clean the unit after each use to prevent the accumulation of grease, burned-on remnants of food, and unpleasant smells.

Turn the unit off, unplug the power cord from the wall outlet, and let the unit cool before cleaning and after use.

Do not immerse the power cord, plug, or appliance into water or any other liquid.

Wash the replaceable parts in tepid water with detergent and rinse in clean water.

Clean the inner and outer surfaces and door sealing with a wet cloth. You can use a liquid cleaning agent. Do not use sponges, steel wool, abrasive cleaners or solvents (gasoline, thinners, etc.). You might damage the protective layer.

You can remove odors from the inside by pouring lemon juice and the skin from a lemon into a microwave bowl filled with water, and leaving the bowl for 5 minutes in the oven while operating. Dry the inside with a soft cloth afterwards. If you need to replace the inner light bulb, contact the distributor.

If you do not keep the unit clean, the surfaces can be damaged, which may lead to a shorter service life and dangerous situations.

Installation

1. To install the appliance, select a flat surface that provides enough free space for ventilation openings.

2. The minimum height for installation of the appliance is 85 cm.

3. The rear of the appliance must be placed against the wall. Leave a minimum distance of 30 ~cm above the top surface of the oven, a minimum distance of 20 ~cm is required between the oven and adjacent walls.
4. Do not remove the feet from the bottom of the oven.

5. Blocking the ventilation openings can damage the oven.

6. Plug the oven into a standard household socket. Make sure the voltage and frequency are the same as the voltage and frequency on the rating plate.

Warning: Do not install the oven on a hob or other heat-producing appliance. Installation near or above the heat source could damage the oven and void the warranty.

Freely accessible walls of the appliance may become hot during normal operation.

GROUNDING INSTRUCTIONS

This appliance has to be grounded. It is equipped with a supply cable with a grounding conductor and grounding plug. It must be connected to a socket that is correctly installed and grounded. In the case of a short circuit this grounding reduces the risk of electric shock. It is recommended to connect the unit to a separate electric circuit. The use of high voltage is dangerous, and any damage to the oven can cause a fire or other emergency.

WARNING!

Incorrect use of the protective conductor can cause the risk of electric shock.

Note: If you have any questions concerning the grounding or electrical connection, contact a qualified electrician or servicing technician. Neither the manufacturer nor the distributor is responsible for injury or damage caused by incorrect electric connection. The conductors in the supply cable are colored as follows:

Green and yellow - protective/grounding conductor

Blue - medium conductor

Brown/black - phase conductor

If an extension cord is required, use only a 3-wire extension cord.

The microwave oven is equipped with a short power cord to reduce the risk of tangling or tripping over a longer cord.

• When using a long cord set or extension cord, the following must be observed:
• The ratings of the electrical cords should be at least as large as the electrical ratings of the appliance.
• The extension cord must be a 3-wire cord with a grounding conductor.
• The long power cord should not hang over a worktop or table where children could pull on it or trip over it unintentionally.

RECEIVER SIGNAL INTERFERENCE

Operation of the appliance can cause interference with the signal of your radio receiver, TV receiver, or similar appliances. This interference may be reduced or eliminated by taking the following measures:

1. Clean the door and sealing surfaces of the oven.
2. Readjust the receiver antenna of the radio or TV.
3. Place the unit further from the receiver.
4. Plug the unit in a different socket to make sure other appliances are connected to different circuits.

TROUBLE SHOOTING

Problem Cause Solution
The appliance does not work.	The plug has been inserted into the socket incorrectly or insufficiently.	Check the plug connection.
	The socket is not supplied with electricity.	Check to make sure voltage is present, e.g. by using another appliance.
	The oven door is not closed properly.	Check the door. Remove all impurities and foreign objects.
Turning of the tray is noisy.	Dirty wheels of the turning mechanism.	Clean the wheels with a damp cloth.
The oven cannot be started	The power cord is not properly connected to the mains	Unplug the power cord from the electrical outlet and plug it in again after 10 seconds
	Electrical fuse blown or circuit breaker tripped	Replace the fuse or turn on the circuit breaker. Contact an authorized service centre
The oven does not heat	The door is not closed sufficiently	Close the door again and check that it is closed

Common phenomena
The microwave oven affects the TV reception	Radio and TV reception may be affected by the operation of the microwave oven. This is similar to the interference that occurs, for example, during the operation of blenders, vacuum cleaners and hair dryers. This is a normal phenomenon.
Light fades in the oven	At low microwave heating power, the light inside may fade slightly. This is a normal phenomenon.
Accumulation of steam on the door, hot air from the vents	During heating, a large amount of steam may be released from the food. Most of the steam is vented through vents, but some of it condenses in colder places such as the oven door
The oven was accidentally started without food inside	It is forbidden to start the oven without food inside. It is very dangerous, the oven may overheat

ENVIRONMENTAL PROTECTION

• Prefer recycling of packaging materials and old appliances.
  • Package materials may be disposed of as sorted waste.
• Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Appliance recycling at the end of its service life:

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The symbol on the product or its packaging indicates that this product may not be treated as household waste. It is necessary to take it to a container park for the recycling of electrical and electronic equipment. By ensuring the correct disposal of this appliance you will help prevent potential negative consequences for the environment and human health, which could otherwise result from inappropriate disposal of this product. Disposal must be performed in accordance to the regulations for waste disposal. For more detailed information about recycling of this appliance see the authorized local office or service for household waste disposal or the shop, where you purchased the appliance.

CONCEPT POLSKA sp. z o.o.
