Product Type	Cordless Cyclone Vacuum Cleaner
Brand	MPM
Model	MOD-33
Power Source	Rechargeable Lithium-ion battery
Battery Charging Time	4.5 to 5 hours
Runtime	Up to 30 minutes (low suction)
Suction Levels	2 (Low and High)
Dust Capacity	Dust canister with MAX fill line
Filtration System	Pre-filter and HEPA filter (washable)
Noise Level	79 dB
Included Accessories	Universal power brush with LED lamp, universal hard/soft flooring power brush, round brush tool, crevice tool, union piece, universal narrow swivel brush
Wand	Detachable wand with release button
Wall Mount	Included for storage
Battery	Removable, recharge only with supplied charger
Usage	Indoor dry surfaces only
Maintenance	Empty dust canister and clean filters after each use
Safety Features	Do not immerse in water; keep away from heat sources; use only recommended attachments

Frequently Asked Questions - MOD-33 MPM

How do I charge the battery?

You can charge the battery either using the battery dock or while installed in the vacuum cleaner. For dock charging: insert the battery into the dock, connect the charger cable to the dock, and plug into mains. The red LED stays on during charging and goes off when full. For on-board charging: plug the battery into the motor module, connect the charger cable to the power input port, and plug into mains. The power LED is solid red during charging and turns solid green when full. Charging takes about 4.5 to 5 hours.

How long does the battery last?

The fully charged battery provides up to 30 minutes of operation on the low suction power level. On high power, runtime is shorter. When the battery is low, the power LED flashes red and the vacuum cleaner will eventually stop; recharge to continue.

How do I empty the dust canister?

Stop the vacuum cleaner. Detach the dust canister and hold it over a dust bin. Release the lock on the bottom to swing open the lid and empty the contents. Close the lid securely before reattaching.

How do I clean the filters?

Empty the dust canister, then remove the pre-filter and HEPA filter casing. Rotate the handle counter-clockwise to separate them. Flush both filters in warm water and let them dry completely before reinstalling. Never install wet filters.

What accessories are included with the MOD-33?

The vacuum cleaner comes with: a universal power brush with LED lamp, a universal hard/soft flooring power brush, a round brush tool, a crevice tool, a union piece, a universal narrow swivel brush, a wand, a lithium-ion battery, a battery charger, a battery dock, and a wall mount.

Why is the suction power low?

Low suction can be caused by a clogged wand or tool, or a full dust canister. Check for blockages and empty the canister if needed. Also ensure filters are clean.

Can I use the vacuum cleaner on stairs?

Yes, but take extreme caution when cleaning stairs. Ensure the vacuum cleaner is stable and do not leave it unattended.

How do I assemble the vacuum cleaner?

First install the pre-filter and HEPA filter into the dust canister, then attach the dust canister lid and close the swing-open lid. Connect the battery to the motor module. Place the dust canister onto the motor module and secure it with the latch. Attach the wand or a tool to the wand port.

How do I park the vacuum cleaner in the wall mount?

Choose a wall location high enough so the vacuum cleaner with wand and brush rests on the ground. Attach the wall mount with screws (103 mm spacing, screw heads ~5 mm above surface). Park the vacuum cleaner with the wand downward into the mount.

What should I do if the vacuum cleaner stops working?

Check if the battery is discharged – recharge it. If the battery is charging, wait until complete. Also ensure the dust canister is not overfilled and that the wand/tools are not clogged. Refer to the troubleshooting section in the manual.

USER MANUAL MOD-33 MPM

Blue and silver compact vacuum cleaner with handle, no visible text or symbols

Black-and-white photo of a vacuum cleaner with attached circuit board and base (no visible text or symbols)

Abstract grayscale graphic with circular and triangular shapes, no text or symbols visible

Mechanical component diagram showing a cylindrical assembly with internal structure and directional arrows (no text or symbols)

PROBLEMY I SPOSÓB ICH USUWANIA

PROBLEM PRZYCZYNA SPOSÓB USUNIĘCIA

Read carefully this manual before using the appliance.

Always remove the plug from the power outlet when not used, or before cleaning the appliance.

Before the first use check if mains voltage conform with vacuum cleaner.

Do not hang the power cord over sharp edges and do not allow the power cord to touch hot surfaces.

Do not pull the cord to unplug the appliance.

Do not leave the operating vacuum cleaner unattended.

- Close supervision is necessary when using the appliance near children.

Do not allow the vacuum cleaner to go over the power cord in case it can damage its insulation.

Do not try to use the vacuum cleaner if you suspect any technical damage.

Do not use the appliance, also if the power cord or plug is damaged - return the appliance for repair to an authorized service centre.

To avoid the risk of damage, fire or injury, always use the attachments recommended by the manufacturer.

Take extreme caution when cleaning the stairs.

Do not immerse the appliance, its cord and plug in water or any other liquids, keep it dry at all times.

Do not use the vacuum cleaner to collect flammable and corrosive liquids, solvents, matches, ash, cigarette ends, oil, sharp items etc. It can cause damage or even fire! Do not vacuum-clean near flammable liquids and substances!

Because of the vacuum cleaner plastic housing keep the appliance away from any heat sources (heaters, stoves etc.)

Do not cover the vacuum cleaner outlet and inlet!

This vacuum cleaner is designed for domestic use only.

This appliance is not intended for use by children under 8 years of age and individuals with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be carried out by children without supervision.

Children should be supervised to ensure that they do not play with the appliance.

- Store the appliance and its cord out of reach of children under 8 years of age.

Do not vacuum-clean people or animals, take special care not to move suction nozzles near eyes and ears.

Turn off and disconnect the appliance from supply circuit before replacing accessories.

Do not vacuum without bag, filters and in case of damage.

Check the hose, wand and suction nozzles and remove any litter from them.
Use the vacuum cleaner only indoors and on dry surfaces. Dry the washed carpets before vacuum-cleaning.
Keep your children safe: do not leave any parts of the packaging readily accessible (i.e. plastic bags, cardboard boxes, polystyrene inserts, etc.).
WARNING! Never let children play with plastic film or bags. Choking/asphyxiation hazard!

SAFETY INSTRUCTIONS FOR THE BATTERY

The device contains a lithium-ion battery. Read the following tips carefully. Failure to comply with them may result in equipment damage, electric shock or fire.
Do not open the battery housing. Do not replace the battery cells.
- Protect the battery against moisture, sunlight and fire. Do not place the battery near other electrical and heating equipment.
Store and use the battery in a temperature range of 5-40 °C. Too high temperature may damage the battery. Low temperature reduces the capacity and lifetime of the battery.
▶ Always replace the same type of battery dedicated to the device. Do not use a different type of battery.
- Protect the battery from mechanical damage, do not allow the battery to shake or fall.
Do not charge the battery unattended. Charge only with the dedicated charger on the battery pack.
▶ After charging the battery, disconnect the charger from the mains.
Do not short circuit the battery contacts. Short-circuiting can cause battery damage and even fire. Keep the battery away from paper clips, nails, coins and other metal objects.
Charge the battery fully before using the device for the first time.

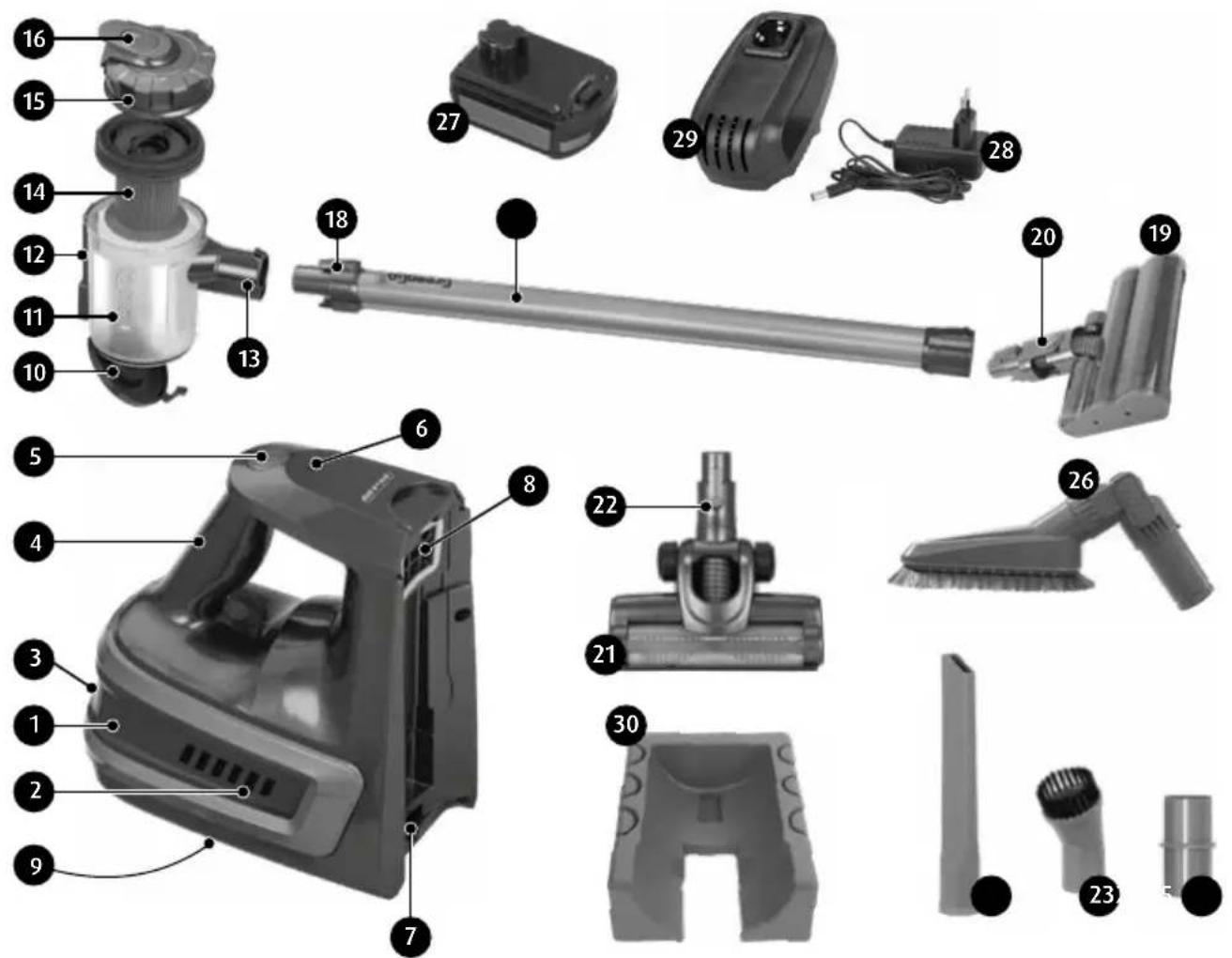

OVERVIEW

MOD-33 features the operating convenience of a cordless cyclone vacuum cleaner. The cyclone operation helps filter out the collected dust with a centrifugal effect and without any dust bags. The dust is collected into a canister, which is easily emptied to a dust bin. The lithium-ion battery features one of the highest capacity to mass ratio to make the vacuum cleaner light in weight and run for a long time before recharging. The vacuum cleaner has two suction power levels to choose from.

1. Motor module
2. Outlet grilles
3. Power input port
4. Handle
5. Power switch
6. Power LED
7. Latch
8. Air inlet
9. Battery receptacle
10. Swing-open lid
11. Dust canister
12. Stowing rail
13. Wand port
14. Pre-filter and HEPA filter
15. Dust canister lid

16. Dust canister lock button

17. Wand

18. Wand release button
19. Universal power brush with LED lamp
20. Power brush release button
21. Universal hard and soft flooring power brush
22. Small power brush release button
23. Round brush tool
24. Crevice tool
25. Union piece
26. Universal narrow swivel brush
27. Li-ion battery
28. Battery charger
29. Battery dock
30. Wall mount

BEFORE FIRST USE

1. Remove the vacuum cleaner from the cardboard box. Remove all stickers, shipping locks, plastic bags, and filling material.
2. Inspect the vacuum cleaner carefully for damage which may have occurred in transport. If damage is suspected, consult your reseller.
3. Assemble the vacuum cleaner (see Section "ASSEMBLING THE VACUUM CLEANER").
4. Charge the vacuum cleaner battery (see Section "CHARGING THE BATTERY").
5. Verify that your power mains match the nameplate ratings of the vacuum cleaner.

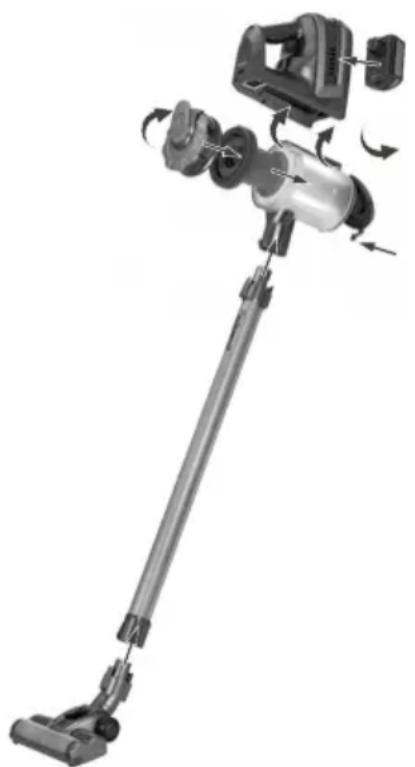

ASSEMBLING (AND DISASSEMBLING) THE VACUUM CLEANER

1. Install the pre-filter and HEPA filter casing (14) in the dust canister (11). Align the three bosses on the pre-filter and HEPA filter ring in the respective grooves in the dust canister (11).
2. Mount the dust canister lid (15) on the dust canister (11) and gently rotate the former (15) clockwise to lock it in position. The lid's three bosses will only fit the grooves in one orientation. The dust canister lid is removed by gently rotating it counter-clockwise.
3. Close the swing-open lid (10) inside the dust canister (11).
4. Connect the battery (27) to the battery receptacle (9). The battery can now be removed by pressing its release button on the rounded part of the battery housing.
5. Install the dust canister with its lid in the motor module (1). Secure the dust canister by the latch (7) in the lower part of the motor module and press the dust canister in position against the motor module. The

Mechanical device with clamped components and directional arrows indicating motion (no text or symbols)

Assembling the vacuum cleaner

dust canister lock button releases the dust canister (16) from the motor module.

1. Connect either the wand (17) or a suitable tool to the wand port (13). The wand / tool can now be removed by pressing the release button (18), (20) or (22), respectively.

2. The tools (23), (24) and (26) can be attached with the union piece (25).

CAUTION! Do not start the vacuum cleaner unassembled!

CHARGING THE BATTERY

The Li-ion battery features a very high energy density for a long operation between recharging and a low weight.
Charge the battery before the first use. The full battery recharge time is approx. 4.5 to 5 hours.
The battery can be recharged with the dock (29) or as installed in the vacuum cleaner.

Recharging with the battery dock:

1. Insert the battery (27) to the battery dock (29).
2. Connect the battery charger cable (28) to the battery dock (29). Plug the battery charger to a power outlet. The green LED is on, which means that the battery dock (29) is connected to the battery charger (28). The red LED stays on for the duration of recharging the battery (27).
3. The red LED goes off when the battery is full.
4. Unplug the battery charger (28) from the mains and install the recharged battery in the vacuum cleaner.

Recharging the battery plugged to the vacuum cleaner:

1. Plug the battery (27) to the motor module (1).

CAUTION! The vacuum cleaner will not run when the battery is recharged via the motor module!

1. Connect the battery charger cable (28) to the power input port (3). Plug the battery charger to a power outlet. The Power LED (6) goes on solid red for the duration of recharging the battery.
2. When the battery is full the Power LED (6) turns solid green.
3. Unplug the battery charger from the mains and its cable from the vacuum cleaner.

1. Make sure that the battery is fully recharged and installed in the vacuum cleaner.
2. Install the tools and accessories as required:

- Power brush with LED lamp (19): for cleaning all floor types of persistent dirt; the LED lamp provides better illumination for thorough cleaning.

- Universal power brush (21): a smaller tool which is perfect for hard floors and carpets in confined areas.

- Round brush tool (23): dedicated for roller blinds, lamp lenses, mirrors, and all surfaces which require gentle treatment.

- Slot adapter (24): for cleaning of corners, under furniture pieces and whenever access is too restricted for other tools.

- Universal narrow swivel brush (26): the design helps reach high and flat surfaces. Attach the tools either to the wand (17) or to the wand port (13).

1. Start the vacuum cleaner with the Power switch (5). The vacuum cleaner starts with the Low suction power level; the Power LED (6) is solid yellow-green.
2. Press the Power switch (5) again to choose the High suction power level; the Power LED (6) is solid green.
3. Check the dust canister level (11) while vacuum cleaning. Too much dust in the dust canister will reduce the suction power, increase the power consumption and clog the filters sooner.

CAUTION! Never overfill the dust canister! The dust must not reach above the MAX level.

CAUTION! If the suction power drops significantly, the wand or the tool is clogged and/or the dust canister is full. Unclog the wand / tool and/or empty the dust canister.

1. When the dust canister is full, empty it as follows:

2. Stop the vacuum cleaner with the Power switch (5).

3. Detach and hold the dust canister over a dust bin.

- Swing open the lid (10) by releasing the lock in the dust canister bottom and empty the dust canister.

• Close the swing-open lid (10).

• Power on the vacuum cleaner to continue.

• When done vacuum cleaning, stop the vacuum cleaner with the Power switch (5), empty the dust canister, and recharge the battery.

• The fully recharged battery lasts for up to 30 minutes of operation on the Low suction power level. When the battery is low, the Power LED (6) starts flashing red, and the vacuum cleaner

stops running after a while. Recharge the battery to continue.

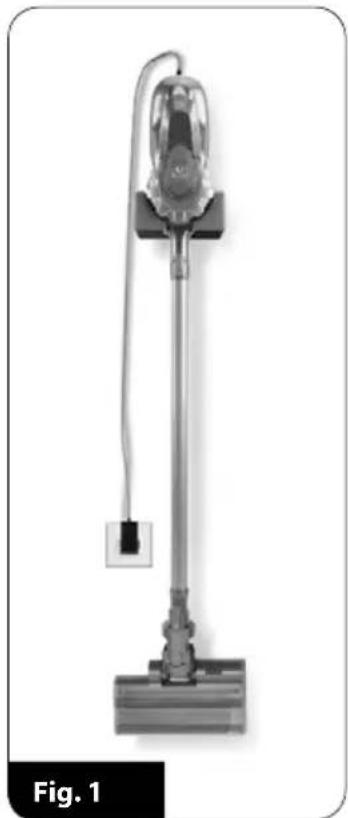

PARKING THE VACUUM CLEANER IN THE WALL MOUNT

The MOD-33 vacuum cleaner is delivered with a wall mount for storage while not in use. To park the vacuum cleaner in the wall mount:

1. Choose a place on a wall high enough above the floor so that the vacuum cleaner fi ts parked and with its telescopic wand and electric brush (the electric brush must rest on the ground). Make sure there is no wiring in the wall within the envelope of the wall parking mount.
2. Attach the wall mount with the two screws included to a wall, a piece of furniture, etc. The horizontal spacing of the screws shall be 103 mm. Fasten the wall mount with both screws level in the same plane. Do not drive the screws all the way into the substrate, the screw heads shall be approx. 5 mm above it.
3. Attach the wall mount (30) to the screws.
4. Park the vacuum cleaner in the wall mount with the wand downward (see Fig. 1).

Illustration of a vacuum cleaner with attached circuit board and base, labeled Fig. 1 (no text or symbols on the device itself)

CLEANING AND MAINTENANCE

CAUTION! Never immerse the vacuum cleaner, the battery charger, the battery or the battery dock in water!

CAUTION! Empty the dust canister and clean the filters after each use for the best performance.

CAUTION! Maintain the vacuum cleaner powered off and disconnected from the battery charger!

Abstract grayscale graphic with curved shapes and a central arrow, labeled 'Fig. 2' (no readable text or symbols)

1. Clean the outer surfaces of the vacuum cleaner with a damp cloth and wipe them dry. Use a bit of a neutral detergent to remove persistent dirt.
2. Empty the dust canister and remove the pre-filter and HEPA filter (14). Grasp the handle on the filter casing lid and rotate it counter-clockwise (see Fig. 2) while holding the filter casing with the other hand. Now, you will access and separate the pre-filter and the HEPA filter. Flush both filters clean in warm water and leave them to dry completely. Once dry,

Mechanical assembly diagram showing a cylindrical component with internal spiral structure and downward arrows indicating motion (no text or symbols)

reinstall both filters in place. Install the HEPA filter in the pre-filter with the bottom of the former inward inside the latter (see Fig. 3).

CAUTION! Do not install any filter when not dry: the vacuum cleaner can fail!

1. Recharge the battery after each use. Do not store the vacuum cleaner with the discharged battery. Use the supplied battery charger only. Do not short the battery poles. Use the identical battery type for replacement.

CAUTION! Do not dispose of used batteries with household waste. Dispose of batteries by returning them to an authorized waste collection point or the original reseller. Never throw batteries into fire!

1. Periodically clean the rotating rollers in the electric brush (19) and (21). In the electric brush (21) you can remove it by releasing the lock in the lower part of the electric brush and in the electric brush (19) by removing the transparent housing from the top. After cleaning the rollers, put them back in the electric brushes and replace the locks.

TROUBLESHOOTING

PROBLEM CAUSE SOLUTION
The vacuum cleaner fails to start.	Discharged battery. Recharge the battery.
	Battery charging in progress. Wait until complete.
Low suction power.	Clogged wand and/or tool. Unclog.
	Dust canister full. Empty the dust canister.
The vacuum cleaner blows out dust.	Clogged filters. Clean the filters.
	The dust canister is poorly installed. Install the dust canister properly.

TECHNICAL SPECIFICATION

See the product's nameplate for technical specifications. Maximum sound level: 79 dB

Note! MPM agd S.A. may introduce technical modifications to its products without notice.

Charger Vacuum cleaner

PROPER DISPOSAL OF THE PRODUCT (waste electrical and electronic equipment)

This symbol on the product indicates that the product, after its lifetime, should not be disposed with other household wastes. To avoid harmful influence on the environment and human health due to uncontrolled waste disposal, dispose the waste device to the service point of waste household appliances or report collecting it from home. In order to obtain detailed information about the location and how to dispose the waste electrical and electronic equipment in a safe way, contact your retailer or local Department of

Environmental Protection. Do not dispose the device with other municipal waste

Illustration of a vacuum cleaner with attached circuit board and base (no text or symbols)

Abstract grayscale graphic with circular and triangular shapes, no text or symbols present

Mechanical component diagram showing a cylindrical assembly with internal spiral structure and downward arrows indicating motion (no text or symbols)

Mechanical device with attached vacuum cleaner and control panel, showing internal components and motion arrows (no text or symbols)

Staubsaugermontage

Exterior view of a vacuum cleaner with attached circuit board (no text or symbols visible)

Abb. 1

Abstract grayscale graphic with curved shapes inside a circular frame, no text or symbols present

Mechanical component diagram showing a cylindrical assembly with internal structure and directional arrows (no text or symbols)

BESCHRIJVING VAN HET APPARAAT

Black-and-white photo of a vacuum cleaner with attached circuit board and base mount (no text or symbols visible)

Abstract grayscale graphic with curved shapes inside a circular frame, labeled 'Fig. 2' at bottom left (no other text or symbols)

Exploded view diagram of a mechanical component with arrows indicating motion (no text or symbols)

Exterior view of a vacuum cleaner with attached circuit board and power outlet (no text or symbols visible)

Abstract grayscale graphic with circular and triangular shapes, no text or symbols present

Mechanical component diagram showing a cylindrical assembly with arrows indicating motion or force direction (no text or symbols)

Mechanical device with motion arrows indicating rotational movement, labeled 'montáž vysávača' at bottom (no other text or symbols)

Exterior view of a vacuum cleaner with attached circuit board and base (no text or symbols visible)

Abstract grayscale graphic with circular and triangular shapes, no text or symbols present

Mechanical component diagram showing a presser with arrows indicating motion or assembly (no text or symbols)

We wish you satisfaction from using the product and invite you to check a wide range of other MPM appliances

Line drawing of a vacuum cleaner with a cat silhouette and bulb (no text or symbols)

MPM agd S.A.
