MOD-28 - Vacuum Cleaner MPM - Free user manual and instructions

Product Type	Vacuum Cleaner
Brand	MPM
Model	MOD-28
Color	Green
Power Cord Length	8.0 m
Operating Reach	11.0 m
Suction Power Levels	4 levels (curtains, upholstery, carpets, hard floors)
Dust Bag Full Indicator	Yes (red light)
Filter Clogging Indicator	Yes (for HEPA filter)
Motor Filter	Sponge filter, washable
HEPA Filter	HEPA 13, washable
Air Discharge Filter	Sponge and HEPA 13
Included Tools	Floor/carpet tool, parquet brush, turbo brush, small multifunctional brush with adapter, round brush, crevice tool
Telescopic Wand	Metal, adjustable length
Accessories Holder	Yes
Wheels	Rubber-tyred
Power Switch on Handle	Yes, with +/- suction control
Battery Requirement (Handle)	2 x AAA batteries (included)
Safety Features	Overheating protection, automatic shut-off if blocked
Maintenance	Clean HEPA filter monthly; wash sponge filters; replace dust bag when full

Frequently Asked Questions - MOD-28 MPM

How do I change the dust bag?

Turn off and unplug the vacuum. Press the upper cover opening button (9) to open the cover. Remove the dust bag support (15), take out the old bag, and insert a new one. Close the cover and reconnect the hose.

How do I clean the HEPA filter?

Disconnect the appliance. Remove the air discharge filter grill (16) and take out the HEPA filter (17) and sponge (18). Rinse the HEPA filter in cool water if heavily soiled. Ensure it is completely dry before reinstalling. Clean sponge filters under running water and dry thoroughly.

What should I do if suction power is low?

Check if the dust bag is full (indicator turns red) – replace if needed. Inspect the hose and wand for blockages and clear them. Clean or replace the filters if they are clogged.

Can I use the vacuum cleaner on hard floors?

Yes, use the parquet brush tool (26) or the floor/carpet tool with the brush mode engaged (press button on the tool to extend bristles). Avoid using the turbo brush on hard floors.

How do I use the turbo brush?

Attach the turbo brush (25) to the wand. It is designed for efficient cleaning of carpets and car pet flooring. Ensure it is not used on delicate surfaces.

What are the safety precautions?

Do not vacuum flammable liquids, hot ashes, or sharp objects. Keep away from heat sources. Do not use if cord or plug is damaged. Unplug when not in use. Supervise children and pets around the appliance.

How do I wind the power cord?

Hold the cord and press the cord winder button (2) on the vacuum. Allow the cord to retract slowly. Do not let it snap back to avoid damage.

Why does my vacuum generate static electricity?

Static electricity is common in low humidity. Discharge the appliance by touching a metal object with the metal wand. Increase room humidity or use anti-static products. This is normal and not a defect.

How do I install batteries in the handle?

Open the battery compartment cover on the suction hose handle (21). Insert two 1.5V AAA batteries (included) with correct polarity. Close the cover. Batteries power the handle controls.

How do I store the vacuum cleaner?

After use, wind the power cord. Use the guide (8) on the back of the vacuum to park the floor tool with the wand. Store in an upright position or as shown in the manual. Keep out of reach of children.

USER MANUAL MOD-28 MPM

Black and white photo of a green electric vacuum cleaner with coiled tubing (no visible text or symbols)

ODKURZACZ MOD-28 GreenGo

Vacuum cleaner/Пылесос/Staubsauger/Vysavač/

Vysávač

PRZED PIERWSZYM UŻYCIEM ZAPOZNAJ SIĘ Z INSTRUKCJĄ OBSŁUGI

PL INSTRUKCJA OBSŁUGI....3

GB USER MANUAL 10

RU ИНСТРУКЦИЯ ПО ОБСЛУЖИВАНИЮ....17

Read carefully this manual before using the appliance.

Always remove the plug from the power outlet when not used, or before cleaning the appliance.

Before the first use check if mains voltage conform with vacuum cleaner.

Do not hang the power cord over sharp edges and do not allow the power cord to touch hot surfaces.

Do not pull the cord to unplug the appliance.

Do not leave the operating vacuum cleaner unattended.

- Close supervision is necessary when using the appliance near children.

Do not allow the vacuum cleaner to go over the power cord in case it can damage its insulation.

Do not try to use the vacuum cleaner if you suspect any technical damage.

Do not use the appliance, also if the power cord or plug is damaged – return the appliance for repair to an authorized service centre.

To avoid the risk of damage, fire or injury, always use the attachments recommended by the manufacturer.

Take extreme caution when cleaning the stairs.

Do not immerse the appliance, its cord and plug in water or any other liquids, keep it dry at all times.

Do not use the vacuum cleaner to collect flammable and corrosive liquids, solvents, matches, ash, cigarette ends, oil, sharp items etc. It can cause damage or even fire! Do not vacuum-clean near flammable liquids and substances!

Because of the vacuum cleaner plastic housing keep the appliance away from any heat sources (heaters, stoves etc.)

Do not cover the vacuum cleaner outlet and inlet!

This vacuum cleaner is designed for domestic use only.

This appliance is not intended for use by children under 8 years of age and individuals with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be carried out by children without supervision.

Children should be supervised to ensure that they do not play with the appliance.

- Store the appliance and its cord out of reach of children under 8 years of age.

Do not vacuum-clean people or animals, take special care not to move suction nozzles near eyes and ears.

Turn off and disconnect the appliance from supply circuit before replacing accessories.

Do not vacuum without bag, filters and in case of damage.

Check the hose, wand and suction nozzles and remove any litter from them.

Use the vacuum cleaner only indoors and on dry surfaces. Dry the washed carpets before vacuum-cleaning.

Keep your children safe: do not leave any parts of the packaging readily accessible (i.e. plastic bags, cardboard boxes, polystyrene inserts, etc.).

WARNING! Never let children play with plastic film or bags. Choking/asphyxiation hazard!

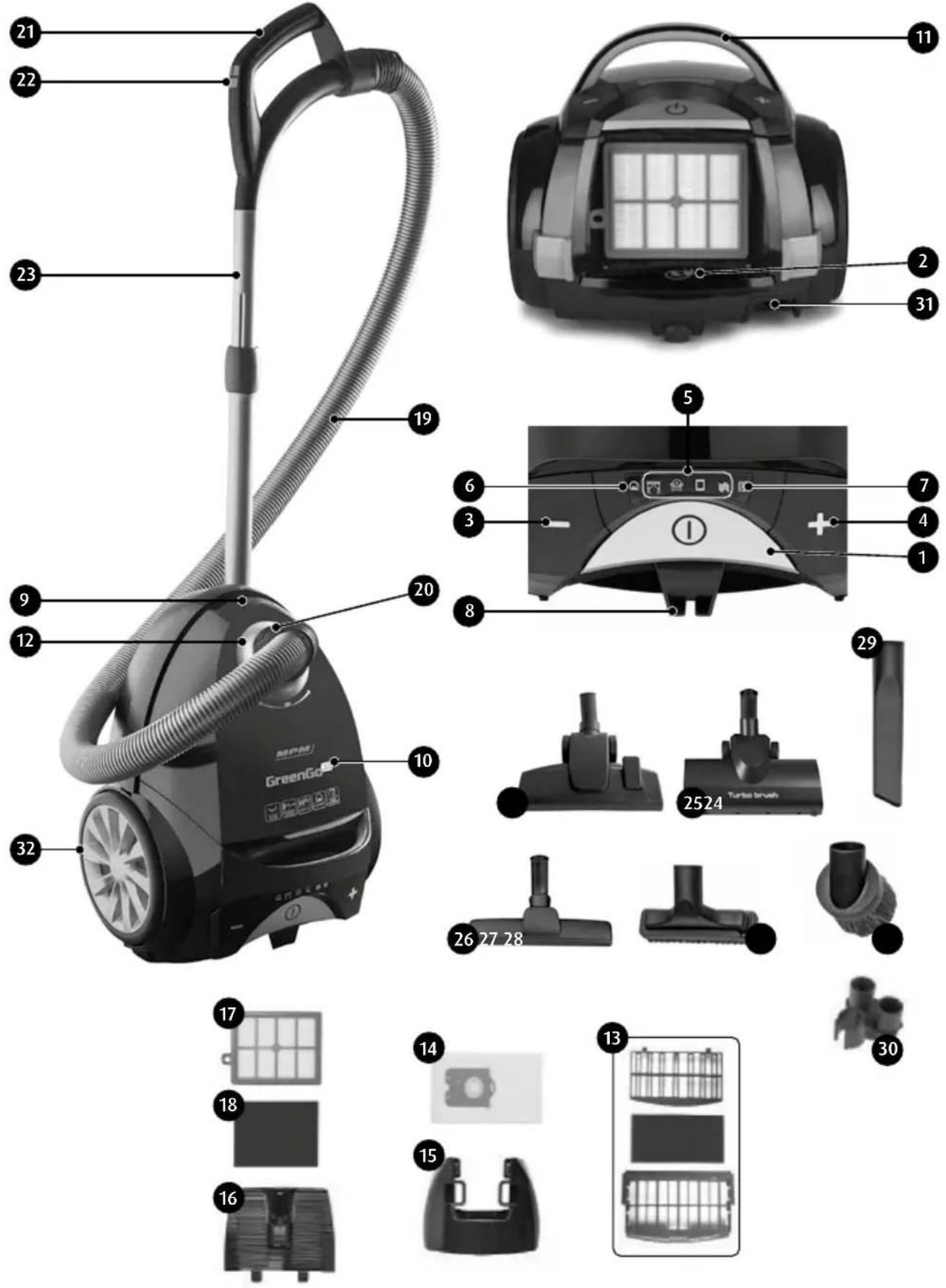

APPLIANCE OVERVIEW

1. On/off switch
2. Cord winder button
3. Suction force control (-)
4. Suction force control (+)
5. 4-step suction power indicator
6. Dust bag full indicator
7. Filter clogging indicator
8. Guide
9. Upper cover opening button
10. Upper cover
11. Carrying handle
12. Suction hose connection opening
13. Motor filter
14. Dust bag
15. Dust bag frame
16. Air discharge filter grill

17. HEPA 13 filter

18. Air discharge filter sponge

19. Suction hose
20. Suction hose mounting ring
21. Suction hose handle
22. Power switch and suction power controls (+/-) in the handle
23. Metal telescopic wand
24. Floor and carpet tool
25. Turbo-brush
26. Parquet brush tool
27. Small multifunctional brush with adapter
28. Round brush
29. Crevice tool
30. Accessories holder
31. Power cord
32. Rubber-tyred wheels

STATIC ELECTRICITY

Vacuum cleaning certain surfaces at a low air humidity may cause slight electrification of the appliance. This is natural, does not damage the appliance and does not constitute its defect. To minimise this phenomenon, it is recommended to:

• frequently discharge the appliance by touching items in the room with the metal pipe,
  ▶ increase air humidity in the room,
  use generally available anti-electrostatic products.

APPLIANCE ASSEMBLY

1. Press both latches on the suction hose mounting ring (20), insert the ring into the opening (12) and release the latches. To disassemble, press the latches again and remove the ring (20) from the opening (12).
2. Connect the wand (23) to the handle (21) on the other end of the suction (19). Install one of the tools, (24), (25), (26), (27), (28) or (29), on the end of the wand.
3. In the suction hose handle (21), pry open the battery container cover and install two 1.5V (AAA) batteries that are included with the vacuum cleaner.
4. The length of the telescopic suction pipe (23) can be changed by pressing the ring in the middle part of the suction pipe.

USING THE APPLIANCE

1. Before turning on the vacuum cleaner, unwind the power cord (31) to a suitable length and plug it into the mains socket. While unwinding the cord, do not press the cord winder button (2).
2. Press the switch (1) to turn on the vacuum cleaner.
3. To wind the power cord, press the cord winder button (2) with while holding the cord to prevent a sudden movement that could damage it.
   While using the vacuum cleaner, adjust the suction power with (3) and (4) buttons. There are 4 suction force level indicators on the vacuum cleaner which depict the recommended application of each level (5):

Drapes, curtains, and textiles

Upholstered furniture and pillows

Carpets and mats

Hard floors, heavily soiled carpets and mats

The indicators light up and go off when selected with (3) and (4) buttons.

CAUTION! In case of excessive soiling of the outlet filters, the HEPA filter indicator (7) will light up – clean the filters

CAUTION! If the suction pipe is blocked or the dust bag is full, the bag filling indicator (6) turns red. Replace the dust bag or remove the cause of suction pipe blocking.

1. You can turn the vacuum cleaner on and off and adjust the suction power on the panel (22) in the suction pipe holder.
2. To ensure optimum appliance setting upon the completion of work, use the guide (8) in the rear of the vacuum cleaner. Place the rail in the rear of the floor-carpet attachment with connected suction hose and telescopic pipe on the guide. The second guide that facilitates vacuum cleaner storage in the vertical position is under the bottom of the appliance.

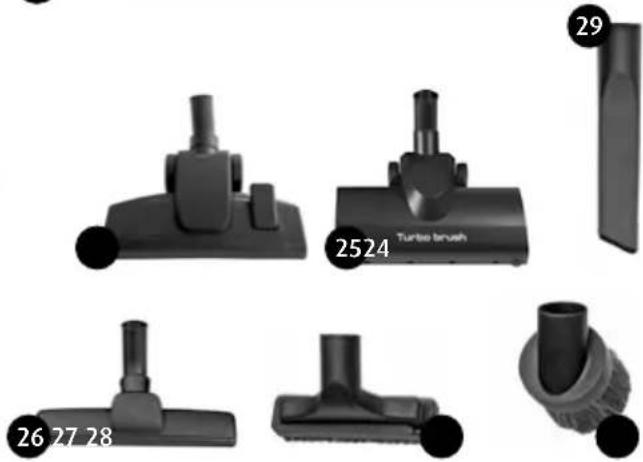

ACCESSORIES OVERVIEW

FLOOR-CARPET ATTACHMENT

Designed for cleaning large flat surfaces. It is equipped with castors that facilitate movement in difficult to access places and a flexible joint, connecting it with the suction hose, which allows directing at various angles. When you press the button on the upper attachment housing (switch it to the brush mode), a row of rigid bristles will appear on the bottom to facilitate cleaning hard floors.

PARQUET BRUSH TOOL

Intended for cleaning all surfaces prone to scratching, e.g. wooden floors, varnished parquet floors, or flooring panels.

SLIDE CREVICE TOOL

Used for cleaning difficult to access areas, such as in room corners, by and below pieces of furniture and in bends and slits. It is also perfect for cleaning computer keyboards, drawers, radiators or window frames.

TURBO BRUSH

Designed for efficient cleaning of surfaces such as carpets, car pet flooring.

SMALL MULTIFUNCTIONAL BRUSH WITH ADAPTER

Intended for cleaning flat surfaces, furniture, upholstery, and mattresses. The compact sizes make it perfect for cleaning hard to reach places and whenever the floor and carpet tool is too big. Install the brush on the adapter to easily clean blinds, furniture, soft surfaces (e.g. upholstered seats), upholstered chairs, creases and pleats on puffs, sofas, or couches, and fragile objects, e.g. lampshades.

ROUND BRUSH

Intended for removing dust from shelves, books, lamp shades, frames, decorative pieces, curtains, etc. Additionally, the bristle separates even the most resistant dirt from the surface.

REPLACING THE DUST BAG

To replace the dust bag, turn off the vacuum cleaner with the power switch (1) and disconnect it from the power source. Remove the suction pipe (19) and press the (9) button to open the upper cover (10). Remove the dust bag support (15), remove the old bag from the support and insert a new one. The support can be placed in the vacuum cleaner in one position only. Close the cover (10) and connect the suction pipe (19).

AIR FILTER CLEANING AND REPLACEMENT

Normal use of the vacuum cleaner requires periodical replacement or cleaning of the air filter, which protects the motor from the side of the dust bag, and the air outlet filter. For this purpose, disconnect the appliance from the power supply and detach the suction pipe.

1. Press button located on the cover (16) simultaneously, remove the cover and remove the sponge (18). Remove the HEPA filter (17) as well.
2. Remove the motor filter (13). You will access the filter by lifting the cover (10) and removing the dust bag (14). Lift the filter grate up. When removed, remove the filter sponge (13).
3. Clean the HEPA filter of dust. In the case of a considerable amount of dust, rinse the filter in cool water. The HEPA filter must be perfectly dry before installing it again. Wash filter cartridges (13 and 18) under running and cool water. Dry the filters thoroughly after washing.
4. Cartridges should be cleaned every month or more frequently (depending on the usage). If a cartridge is too contaminated or damaged, replace it with a new one.
5. When installing the filter elements, carefully align them in the housing and the vacuum cleaner.

CAUTION: The filter cartridge being mounted must be completely dry. Mounting a wet filter may cause an electric shock.

CLEANING AND MAINTENANCE

1. Periodically clean the vacuum cleaner housing and other external elements with a damp cloth. This will allow maintaining good appearance of the appliance.
2. For this purpose, do not use sharp objects or any strong detergents (e.g. solvents), as this will cause permanent damage to the vacuum cleaner housing.
3. For air filters and dust bag, follow the above instructions.
4. If the device is not going to be used for a prolonged period, please remove the batteries from the device in order to prevent the leaking of battery acid.

WARNING! Do not dispose of batteries in the domestic waste. Please return used batteries to the relevant collection points or the shop where they were bought. Never throw batteries into a fire. Different battery types or new and used batteries must not be used together.

IN CASE OF FAILURE

Failure type: Possible causes: Instructions:
front cover not thoroughly closed	dust bag not attached or attached improperly	attach the dust bag properly
vacuum cleaner housing overheating	a slight housing temperature increase is normal, but if the temperature increases considerably, immediately turn off the vacuum cleaner and contact the service
	strongly contaminated filters clean or replace the filters
low suction power	full dust bag replace the dust bag or empty the textile bag
	blocked hose or extension pipe remove all items blocking the hose or pipe

TECHNICAL DATA

Technical parameters are indicated on the product nameplate.

Length of power cord: 8,0 m

Reach of vacuum cleaner: 11,0m

Note! MPM agd S.A. reserves its right to modify the technical data.

PROPER DISPOSAL OF THE PRODUCT (waste electrical and electronic equipment)

This symbol on the product indicates that the product, after its lifetime, should not be disposed with other household wastes. To avoid harmful influence on the environment and human health due to uncontrolled waste disposal, dispose the waste device to the service point of waste household appliances or report collecting it from home. In order to obtain detailed information about the location and how to dispose the waste electrical and electronic equipment in a safe way, contact your retailer or local Department of

Environmental Protection. Do not dispose the device with other municipal waste

Product images of various vacuum cleaner components including a turtle brush and bulb, with no visible text or symbols.

Two grayscale rectangular shapes: a grid on the left and a solid gray rectangle on the right, both with no text or symbols.

Three rectangular metal grates with grid patterns, no text or symbols visible

ЭЛЕКТРОСТАТИКА

ELEKTROSTATIK

Product images of various vacuum cleaner components including a turtle brush and bulb, with no visible text or symbols.

Two grayscale rectangular shapes: a grid on top and a solid bottom, both with circular annotations labeled 17 and 18 (no text or symbols within shapes)

Three rectangular metal grates with grid patterns, no text or symbols visible

ELEKTROSTATIKA

We wish you satisfaction from using the product and invite you to check a wide range of other MPM appliances
