Product Type	Water Filter Vacuum Cleaner
Brand	MPM
Model	MOD-41
Filtration System	Water filtration + HEPA 13 filter
Technology	DWS (Dust and Mite Elimination)
Suitable for	Allergic and asthmatic people
Vacuuming Modes	Dry and wet vacuuming
Water Container Capacity	1.2 L (max water level)
Max Water Suction (Wet Mode)	2.7 L
Power Cord Length	5.5 m
Noise Level	L_WA = 78 dB
Controls	ON/OFF switch, power cord rewind button
Wheels	Rubberised (non-scratching)
Telescopic Tube	Metal telescopic tube
Accessories Included	Floor/carpet nozzle, crevice nozzle, round brush, narrow brush, small turbo brush, turbo brush, parquet brush, air refresher, accessories holder
Diffuser (Dry)	DWS diffuser
Floating Nozzle (Wet)	Floating nozzle for wet vacuuming
Filter Cleaning	Washable HEPA 13 and motor protection filter; replace every 6 months
Parking Clip	For hose storage on motor unit
Safety	Do not suck flammable liquids; keep away from heat sources; use original parts

Frequently Asked Questions - MOD-41 MPM

How does the water filter work in the MOD-41?

The vacuum cleaner uses a water container (1.2 L) to trap dust and allergens. Air passes through water and then a HEPA 13 filter for fine particles. The DWS technology ensures proper elimination of dust and mites.

Can I vacuum wet surfaces with this vacuum cleaner?

Yes, but only with the floating nozzle installed (replace the DWS diffuser). Do not suck in more than 2.7 L of water. Use only the narrow brush or crevice nozzle for wet vacuuming.

How often should I clean the HEPA filter?

Clean the HEPA 13 filter regularly under running water. Replace it when it loses its properties (typically after several months). The motor protection filter should be replaced every 6 months.

What is the maximum water level in the container?

The maximum water level is 1.2 L, marked with a line. Do not overfill or underfill, as it may damage the vacuum cleaner.

Is this vacuum cleaner suitable for allergy sufferers?

Yes, it is designed for allergic and asthmatic people. The water filtration and HEPA 13 filter trap dust mites and allergens, and the DWS technology ensures clean exhaust air.

How do I clean the water container after use?

After each use, empty and rinse the container with water. Dry it thoroughly. The lid and diffuser can be cleaned with mild detergent under running water. Do not use sharp objects or abrasive cleaners.

Can I use the vacuum cleaner without water?

For dry vacuuming, you must pour water into the container (up to 1.2 L). Without water, the filter system will not work properly and may damage the appliance.

What accessories are included with the MOD-41?

Accessories include: floor/carpet nozzle, crevice nozzle, round brush, narrow brush, small turbo brush, turbo brush, parquet brush, air refresher, and accessories holder.

How do I rewind the power cord?

Press the power cord rewind button (A2) on the motor unit. Always hold the plug to guide the cord and avoid whipping.

What should I do if suction power decreases?

Check for clogs in the hose, pipe, or diffuser. Unclog them as needed. Also ensure the water container is not overfilled and that the filters are clean.

USER MANUAL MOD-41 MPM

Suitable for allergic and asthmatic people – sucked air is filtered through water and HEPA 13 filter, and our patented DWS technology ensures proper elimination of dust and mites. When cleaning the floor you will clean the air in the whole room.

Easy to clean after finishing work – water container does not have any catches, latches, etc. It is closed only by the vacuum created during appliance operation.

Convenient and simple to use – it has only two buttons (ON/OFF switch + power cord rewinder). Just pour water in the container, switch on the appliance and start working.

Economical – no extra expenses for buying more bags and filters.

For dry and wet vacuuming – the vacuum cleaner can suck in the water after installing the floating nozzle.

НЕСКОЛЬКО ПОВОДОВ КУПИТЬ ПЫЛЕСОС MOD-41 С ВОДНЫМ ФИЛЬТРОМ

D. WYPOSAŻENIE DODATKOWE

Close-up of a black vacuum cleaner with visible circuit lines and a small electronic device (no text or symbols)

B1. Maksymalny po-

Product image showing a black cylindrical device above a transparent plastic cup labeled 'rys.2' (no text or symbols on the device itself)

Prior to use read this user manual carefully.
Always remove the plug from the mains socket when you do not use the vacuum cleaner, before you start cleaning it or performing any other maintenance work.
Before the first use check to make sure that the voltage in the mains socket is suitable for the vacuum cleaner.
Do not allow the power cord to hang over sharp edges and to contact with hot surfaces.
Never pull at the power cable to disconnect the vacuum cleaner from the mains.
- Never leave the vacuum cleaner unattended when it is turned on.
▶ Use special care when there are children nearby.
Do not allow the vacuum cleaner to move over the power cord as this may cause damage to the cable insulation.
Do not use the appliance when the power cord or the plug is damaged – in such case have the appliance repaired by an authorised service point.
Do not use the appliance after it has been dropped down and any of its parts has been damaged. In such case have the appliance repaired by an authorised service point.
Do not attempt to use the appliance when you have any suspicions that it has technical faults.

Do not use accessories that are not recommended by the manufacturer as this may cause damage to the appliance, injuries or fire.
▶ Use special care when vacuuming stairs.
If you see liquid leaking from the water container, turn off the appliance immediately.
Do not immerse the appliance, power cord and plug in water or any other liquid – the power cord and plug must always be dry.
Do not use the vacuum cleaner to clear away flammable and corrosive liquids, harmful dusts, solvents, matches, ashes, cigarette stubs, oils, sharp items and those of which the temperature exceeds 60°C, as this may lead to the serious explosion or fire hazard.
Do not vacuum in the vicinity of flammable liquids and substances.
As the housing of the vacuum cleaner is made of plastic, keep the appliance away from any heat sources (heaters, ovens, etc.).
Do not clog the appliance inlets and outlets.
Each time after using the appliance, it is necessary to empty, clean and dry the container. In order to dry the inside of the tubes and hose the appliance should suck in dry air for a moment. This will prevent the formation of unpleasant smells.

SAFETY PRECAUTIONS

This vacuum cleaner is intended for household use only.

This appliance is not intended for use by children under 8 years of age and individuals with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be carried out by children without supervision.

WARNING! Do not allow small children to play with the foil as there is a danger of suffocation!

In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

▶ Prevent children from playing with the appliance.

Store the appliance and its cord out of reach of children under 8 years of age.

Do not use the appliance outdoors.

Do not use the vacuum cleaner for vacuuming humans or animals. In particular, do not use suction ends in close proximity to eyes and ears.

Do not vacuum without filters or with application of the damaged filters.

Check the suction hose, pipes and nozzles. Remove the litters accumulated inside them.

Do not touch and do not connect the appliance to the mains with wet hands.

Do not use the appliance for purposes other than the intended use.

Do not place the appliance on hot surfaces.

Before the commencement of work, always check if all the parts of the appliance are properly installed.

The appliance is not intended for operation with external sleep timers or separate remote control system.

Before the replacement of accessories turn off the vacuum cleaner.

The vacuum cleaner can operate only in natural position, i.e. all wheels should have contact with surface on which it stays.

While using the vacuum cleaner, prevent the appliance from falling or becoming flooded with water.

Pull your vacuum cleaner carefully through thresholds and other irregularities of surface so as to prevent the occurrence of excessive wavy motion in water container. It could lead to spilling of a small amount water outside.

CAUTION! The water can be sucked in only after installing the floating nozzle. Do not suck in the water when the DWS diffuser is installed in the vacuum cleaner.

ELECTROSTATICS

While vacuuming certain surfaces in low air humidity conditions, the appliance can become slightly electrified. It is a natural phenomenon. It does not damage the appliance and does not form the defect of the appliance. In order to minimise this phenomenon, it is recommended to:

discharge the appliance by frequent touching of metal objects with pipe in a given room,

▶ increase the air humidity in the room,

▶ apply the publicly available antistatic agents

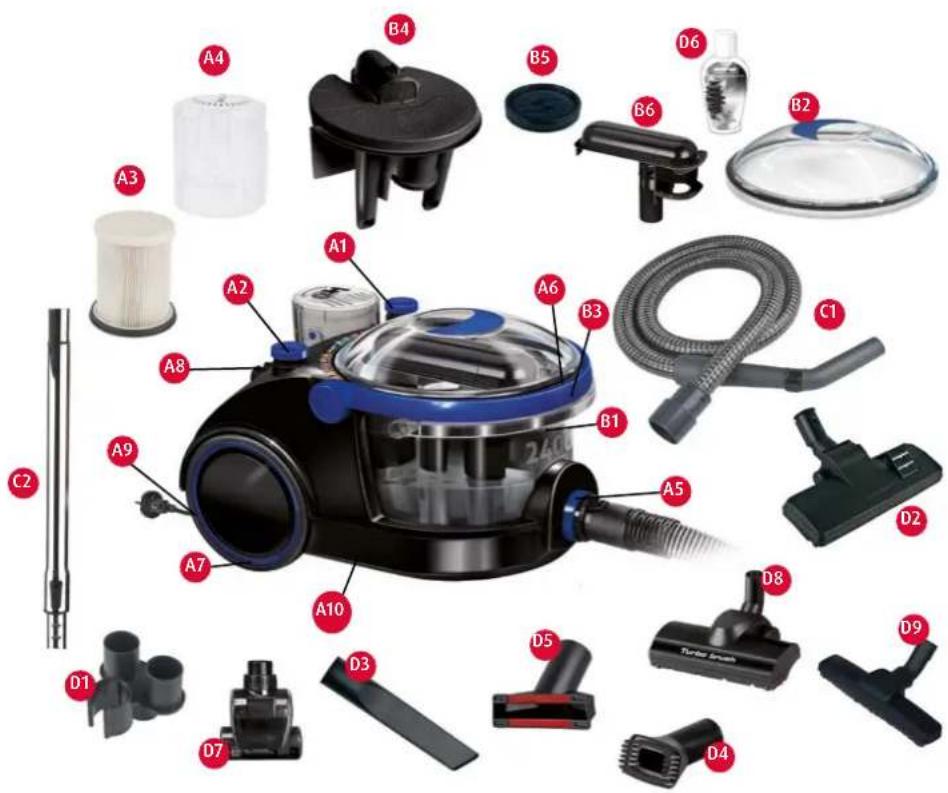

ACCESSORIES

A. MOTOR SET

The section encompasses the motor, ON/OFF switch and working elements. On top of this section there is a HEPA 13 filter used for separating dust residue and other tiny particles from exhaust air.

A1 ON/OFF switch button
A2 Power cord rewind button
A3 HEPA 13 filter
A4 HEPA 13 filter cover
A5 Air inlet
A6 Handle
A7 Rubberised wheels
A8 Parking clip
A9 Power cord with plug
A10 Housing

B. CONTAINER

The section encompasses the water filter container with components used for collecting impurities. The container is placed on the housing.

B1 Transparent water container - 1.2L
B2 Water container lid
B3 Water container handle
B4 DWS diffuser (for dry vacuuming only)
B5 Motor protection filter
B6 Floating nozzle (for wet vacuuming only)

C. HOSE

The section encompasses the suction hose with grip and suction pipes. The suction end is connected with the container section by inserting the hose into the suction inlet. The suction pipe is connected with the grip. The grip contains the suction power control. The hose can be placed on the motor set by means of the parking clip.

c1 Elastic suction hose
C2 Metal telescopic tube

D. ADDITIONAL ACCESSORIES

There are many available accessories for various cleaning needs:

D1 Accessories holder
D2 Floor and carpet nozzle
D3 Crevice nozzle
D4 Round brush
05 Narrow brush
D6 Air refresher
D7 Small turbo brush

D8 Turbo brush

D9 Parquet brush

PREPARATION FOR USE

CAUTION! Remove all bags, stickers, tapes and transport safety devices from the vacuum cleaner and its accessories before the first use.

CAUTION! If the suction power of the vacuum cleaner decreased significantly, then the pipe and/or suction end and/or diffuser port became clogged. Unclog the pipe and/or suction end and/or diffuser port.

CAUTION! Do not insert the plug into the mains socket until the appliance is completely ready for use

1. Raise the handle A6. Lift the container B1 holding its handle B3.
2. Remove the container lid B2. Take out the DWS diffuser B4.
3. Check the parts and accessories taken out from the container (against those shown in the user manual) to make sure that none is missing or damaged. The filter B5 must be properly installed on the motor air inlet (Fig. 1).
4. If you want to use the vacuum cleaner at once, pour water into the container 81. The maximum water level in the container is 1.2L and it is marked with a line.

Avoid filling the container below or above the required level because this can cause damage to the vacuum cleaner! While wet vacuuming DO NOT POUR the water into the container.

Black and white photo of a vacuum cleaner (no visible text or symbols)

Illustration of a black cylindrical object above a white container, labeled Fig.2 (no text or symbols on the object itself)

1. Sprinkle the HEPA 13 filter with a small amount of aromatic oil in order to have a pleasant smell in the room.
2. Place the diffuser B4 in the proper place in the water container B1 or install the B6 floating nozzle (while wet vacuuming) – Fig.2. Install the water container lid B2 back.
3. Then, place the container B1 onto the vacuum cleaner housing A10 and lower the handle A6.
4. Place the suction hose fixing clip C1 in the connection port A5. You will hear a click when the parts become blocked. In order to disassembly those parts press the buttons on the fixing clip and remove the suction hose from the connection port.

DRY VACUUMING

Install the DWS diffuser B1 in the water container B4 and pour the water avoiding to exceed the MAX 1.2l line marked in the container..

1. Choose the most suitable accessories to perform cleaning works. The vacuum cleaner is equipped with rubberised wheels to prevent the vacuumed surfaces from scratching. In order to obtain the effective cleaning, use the accessories in the following manner:

a. Floor and carpet nozzle D2 to vacuum carpets and hard surfaces, such as ceramic tiles and terracotta.
b. Crevice nozzle D3 to remove dust from hardly accessible places..
c. Narrow brush 05 to clean window shutters, stands, clothes, electrical equipment, lampshades furniture, etc.
d. Round brush D4 to clean curtains, upholstery, etc.
e. Telescopic tube C2 that is directly connected to the suction hose C1 should be used for cleaning large stains, such as residues, chips, etc.
f. Small turbo brush 07 to effectively clean such surfaces as sofa, armchairs, as well as car upholstery.

g. Turbo brush D8 to effectively clean such surfaces as carpets, floor coverings
h. Parquet brush 09 to vacuum surfaces sensitive to scratches, such as wooden floors, parquets and floor panels

1. Insert the vacuum cleaner plug into the mains socket and turn on the appliance by pressing (ON/OFF) switch button A1.

2. After finishing the vacuuming process, turn off the vacuum cleaner by pressing the (ON/OFF) switch button A1. Remove the plug A9 from the mains socket and rewind the power cord by pressing the cord rewind button A2.

3. Carry the vacuum cleaner by holding its handle A6. CAUTION: In the dry vacuuming mode vacuum dry surfaces only. If there is a foam in the container (e.g. as a result of sucking in foaming substances), turn off the appliance and change the water immediately.

WET VACUUMING

1. Install the floating nozzle B6 in your vacuum cleaner in the place of the diffuser B4 and do not pour the water into the container B1.
2. During wet vacuuming the vacuum cleaner can suck in the water. The suction of solid fractions should be limited because in this mode it is the suction of water, e.g. incidentally spilled on the floor or left after cleaning the floorings and floors, etc., that forms the priority for the vacuum cleaner.
3. For wet vacuuming use the narrow brush D5, after the prior removal of hair from it, or the crevice nozzle D3. Do not suck in the water with other nozzles.
4. After turning on the appliance, vacuum the wet surfaces. Suck in only the water with the application of the vacuum cleaner. Do not suck in other liquids.
5. After sucking in 2.7l of water the float will close the suction port and the water will cease to be sucked in. Turn off the vacuum cleaner in

such a situation, disconnect it from the mains and remove the water from the water container.

CAUTION! Do not suck in more than 2.7l of water. The excess water can lead to the failure of the appliance. Empty the water container regularly.

CLEANING AND MAINTENANCE

CAUTION! Do not use sharp items, abrasive pastes, solvents and other strong chemical agent for cleaning – their use can damage the appliance.

CAUTION! In order to achieve the best efficiency of the appliance, clean the filters and water container after each use.

CAUTION! Do not install wet filters – it forms the vacuum cleaner damage risk.

CAUTION! Prior to performing any maintenance or cleaning activities, always turn off the appliance and unplug it from the mains socket. Do not immerse the appliance in water!

1. After each use remove the water from the water container. Clean and dry the container.
2. Never leave the vacuum cleaner with dirty water inside the water container. Moisture and impurities can give rise to unpleasant smells inside the container and adversely affect further use of the appliance.
3. Remove the diffuser B4 and clean it under warm running water with detergent. Remember to clean the DWS diffuser ports thoroughly. Similarly clean the float nozzle B6.

4. Check the cleanliness of HEPA 13 filter regularly. The filter can be cleaned under running water. After a longer period of using, the filter loses its properties. Then, it is necessary to replace it with the new one.

5. Periodically remove the sponge silencer insert from the HEPA filter (option), rinse it clean in water and leave until completely dry. Next, reinstall it in the HEPA filter.

6. Periodically remove the motor protection filter B5 from the vacuum cleaner, rinse it in water and dry it. Replace it every 6 months.

7. To maintain the warranty rights, ensure the safety and satisfaction associated with using the appliance, use only original parts and accessories.

TECHNICAL DATA

Technical parameters are given on the data plate of the product.

Power cord length: 5.5 m

Maximum noise level: L_WA = 78dB

Note! MPM agd S.A. reserves the right to introduce technical changes.

PROPER DISPOSAL OF THE PRODUCT (waste electrical and electronic equipment)

This symbol on the product indicates that the product, after its lifetime, should not be disposed with other household wastes. To avoid harmful influence on the environment and human health due to uncontrolled waste disposal, dispose the waste device to the service point of waste household

appliances or report collecting it from home. In order to obtain detailed information about the location and how to dispose the waste electrical and electronic equipment in a safe way, contact your retailer or local Department of Environmental Protection. Do not dispose the device with other municipal waste

Black and white photo of a vacuum cleaner with visible circuit lines and a small building in the background (no text or symbols)

Illustration of a mechanical device above a plastic container (no text or symbols visible)

We wish you satisfaction from using the product and invite you to check a wide range of other MPM appliances
