MWO-01M - Frying Pan MPM - Free user manual and instructions

Product Type	Frying Pan
Brand	MPM
Model	MWO-01M
Diameter	28 cm (11 inches)
Height	5 cm (2 inches)
Weight	0.8 kg (1.8 lbs)
Material	Aluminum with non-stick coating
Handle Material	Bakelite (heat-resistant)
Compatible Hobs	Gas, electric, ceramic, induction
Oven Safe	Up to 180°C (356°F) without lid
Dishwasher Safe	Hand wash recommended
Non-Stick Coating	PTFE-free ceramic reinforced
Cleaning Instructions	Wash with soft sponge and mild detergent
Warranty	2 years
Included Accessories	User manual
Features	PFOA-free, riveted handle, suitable for all heat sources

Frequently Asked Questions - MWO-01M MPM

Can I use this pan on an induction hob?

Yes, the MPM MWO-01M is compatible with induction hobs due to its magnetic stainless steel base.

Is the pan oven safe?

Yes, it can be used in the oven up to 180°C (356°F) without the lid. Remove any plastic or silicone parts before placing in oven.

How do I clean the non-stick coating?

Hand wash with warm water, mild detergent, and a soft sponge. Avoid abrasive cleaners or metal utensils to preserve the coating.

Can I put it in the dishwasher?

Dishwasher use is not recommended as harsh detergents and high heat may damage the non-stick surface. Hand washing is advised.

What type of utensils should I use?

Use wooden, silicone, or plastic utensils to avoid scratching the non-stick coating. Metal utensils can cause damage.

Is the coating PFOA-free?

Yes, the non-stick coating is PFOA-free and safe for cooking at recommended temperatures.

What is the maximum heat limit?

Do not exceed medium heat. High heat can damage the non-stick coating and cause warping. Use low to medium heat for best results.

Does the pan come with a lid?

No, the MPM MWO-01M is sold as a single frying pan without a lid. Lids are sold separately.

How do I season the pan before first use?

Wash with warm soapy water, rinse, and dry. Lightly coat the interior with oil and heat for 2 minutes on low heat, then wipe off excess.

What should I do if food starts sticking?

Ensure you are using proper fat or oil. If sticking persists, the coating may be worn; consider replacing the pan. Avoid high heat and metal utensils.

USER MANUAL MWO-01M MPM

Exterior view of a modern MPM rice cooker with digital display and control buttons (no text or symbols on main body)

WOLNOWAR MWO-01M

Slow cooker/Medленноварка/Slow Cooker

PL INSTRUKCJA OBSŁUGI....3

EN USER MANUAL 9

RU ИНСТРУКЦИЯ ПО ОБСЛУЖИВАНИЮ....14

Before use thoroughly read the operation manual.
Do not touch the appliance with wet hands.
Extreme care is required in case of children presence in vicinity of the appliance!
Do not use the appliance for the purposes different than it was designed for.
Do not immerse the appliance, its cord and plug in water or any other fluids.
Do not leave the appliance without supervision in course of its operation.
▶ Always pull out the plug from the socket unless the appliance is used or before its cleaning.
Do not use the appliance in case of its damage, also if its cord or plug is damaged – in such case the appliance should be handed over to an authorized service shop for repair.
Do not use the appliance outdoors.
Do not hang the cord on any sharp edges and prevent any contact with hot surfaces.
The appliance should be connected into the socket with grounding pin.

Do not place the appliance on hot surfaces.

Do not place the appliance in vicinity of electric and gas cookers, burners, ovens, etc.

Place the appliance on a dry, flat and stable surface.

The device is intended for domestic use only.

Before use always make sure that all parts of the appliance are properly installed.

To avoid the risk of damage, fire or injury, always use the attachments recommended by the manufacturer.

This appliance is not intended for use by children under 8 years of age and individuals with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be carried out by children without supervision.

- Ensure that children do not play with the appliance.

- Store the appliance and its cord out of reach of children under 8 years of age.

Do not remove the plug from the mains by pulling by the cord.

The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Do not plug the power cord with wet hands.

In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING! Do not allow small children to play with the foil as there is a danger of suffocation!

▶ Always switch off the appliance before unplugging it.

Periodically inspect the power cord for damage.

The temperature of surfaces may be higher when the appliance is in use.
WARNING! Appliance damage and electrocution hazard. Do not cook anything directly in the stoneware dish heating chamber. Cook your food only in the stoneware dish included with the slow cooker. Do not pour anything into the stoneware dish heating chamber.

WARNING! Do not obstruct any holes in the slow cooker lid. Do not move cover the slow cooker when in use.

arning! Hot surface!

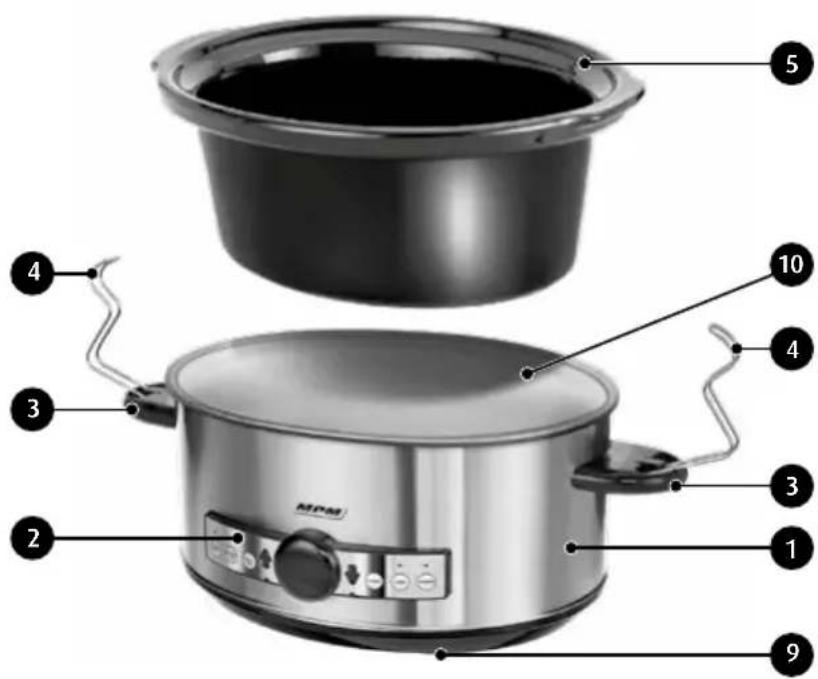

1. Stainless steel body

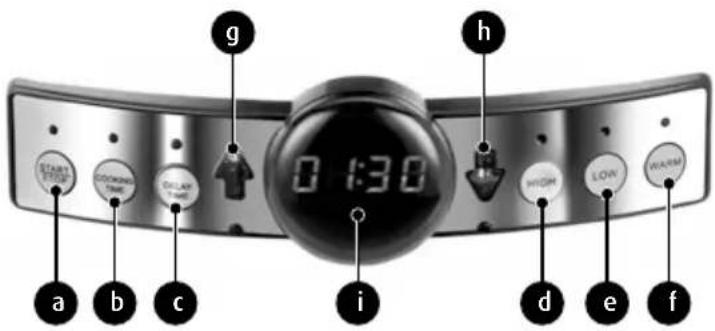

2. Control panel

a. START/STOP button and LED indicator
b. COOKING TIME setting button and LED indicator
c. DELAY TIME setting button and LED indicator
d. HIGH speed cooking mode button and LED indicator
e. LOW speed cooking mode button and LED indicator
f. WARM holding mode button and LED indicator
g. Adjust Time (+)
h. Adjust Time (-)
i. LED display

1. Handles
2. Lid lock clasps
3. 6.5-litre oven enamel stoneware dish
4. Lid
5. Lid unlock button
6. Lid lock clasp seats
7. Anti-slip feet
8. Slow cooker interior (stoneware dish heating chamber)

BEFORE FIRST USE

1. Remove the slow cooker from the box, discard any bags, stickers and polystyrene fillers.
2. Inspect the device for damage during transport and contact the seller when in doubt.
3. Verify that your power mains match the nameplate ratings of the slow cooker.
4. Handle the slow cooker by its handles (3) only and handle the stoneware dish (5) by the side handles.

ATTENTION! Relocating the appliance and stoneware dish should be done separately!

1. Remove the stoneware dish (5) from the slow cooker and wash it clean (see CLEANING AND MAINTENANCE)

REMOVING / INSTALLING THE STONEWARE DISH

CAUTION! Risk of burns. Remove the stoneware dish out of the slow cooker after cooking with heat-resistant kitchen mittens only.

CAUTION! Before removing or installing the stoneware dish, verify that the slow cooker is unplugged from power.

1. Press the lid unlock button (7). The lid lock clasps (4) will leave their seats (8).
2. Lift the lid (6) up and put it aside.
3. Grasp the stoneware dish (5) by the side handles and lift it out of the heating chamber. Put the stoneware dish aside.
4. The stoneware dish is installed in the reverse order. When the stoneware dish sits in the heating chamber and the lid is on the slow cooker, push down the lid lock clasps (4) into the seats (8) by hand until they are secured in place. The lid gasket must fit snugly on the stoneware dish.

CAUTION! Before installing the stoneware dish, verify that the heating chamber (10) is clean and dry, and the outer surface of the stoneware dish is perfectly dry.

1. Place the slow cooker on a level, stable, smooth and dry surface.
2. Put the food into the stoneware dish (5) installed in the slow cooker. The maximum volume of food is 6.5 litres. Never put less than 3.5 litres of food into the stoneware dish (the contents should be above the half of depth of the dish).
3. Put the lid (6) on the stoneware dish and secure the lid lock clasps (4) in the seats (8).
4. Plug the power cord to a power outlet.

CAUTION! Do not connect the slow cooker to power without the stoneware dish installed.

1. Power on the slow cooker by pressing START/STOP (2a). The START/STOP LED will go on. If you do not operate any button for over 1 minute, the slow cooker will power off and the START/STOP LED will go off.
2. Press COOKING TIME (2b). The COOKING TIME LED will flash slowly and the cooking time value will appear on the LED display (2i). Set the cooking time with the Adjust Time (+) and (-) buttons (2g, 2h). The time range is 30 minutes to 18 hours in 30-minute increments. If you do

not operate any button for over 1 minute or proceed to the next step of this instruction, the slow cooker will power off.

1. If you want to start cooking after a preset delay time, press DELAY TIME (2c). The DELAY TIME LED will flash slowly, and the delay time value will appear on the LED display (2i). Set the delay time with the Adjust Time (+) and (-) buttons (2g, 2h). The time range is 30 minutes to 18 hours in 30-minute increments. If you do not operate any button for over 1 minute or proceed to the next step of this instruction, the slow cooker will power off.
2. Start the cooking mode you want with HIGH (2d), LOW (2e) or WARM (2f):

HIGH: fast cooking at temperatures up to 98°C. This mode speeds up the cooking time.

LOW: slow cooking at temperatures up to 98°C. The target processing temperature is reached several hours later than in the HIGH mode.

WARM: holds the stoneware dish contents at up to 75°C. Can be used to reheat food.

The active cooking mode is indicated by its button LED indicator, and the LED display (2i) shows the time to complete the processing in the active cooking mode. If you have selected a delay time, the LED display will show the total of the set cooking and delay times (the maximum of which is 36 hours).

1. You can change the cooking mode any time during food processing by pressing HIGH (2d), LOW (2e) or WARM (2f).
2. Once the HIGH or LOW cooking mode is finished, the slow cooker will automatically switch to WARM to keep the food warm. The WARM mode continues for 5 hours and it is indicated with the WARM button LED indicator when on.
3. To stop any cooking mode in progress, press START/STOP (2a).
4. When done cooking or holding warm, unplug the slow cooker from power, remove the lid (6) and serve your food.

CAUTION! The lid, the body and the stoneware dish are very hot after cooking. Wear kitchen mittens.

1. Wait until the slow cooker cools down before cleaning.

USEFUL COOKING TIPS

1. The slow cooker can boil, roast or stew.
2. The HIGH cooking mode reduces the food processing time approximately by half of the LOW cooking mode time. As a rule of thumb, one hour of cooking on a stove or in an oven is approximately 4 hours in the HIGH cooking mode and 8 hours in the LOW cooking mode. The target temperature of 98^ C is actually reached only with certain types of food an meals.
3. The food processed in the slow cooker does not have to be checked as often as when cooking on a hob or in an oven. Check the food through the glass lid when processing. Do not remove the slow cooker lid during processing, unless you absolutely have to. Otherwise the stone cooker will loose much of its heat, which may significantly extend the time to finish cooking.
4. Once the cooking process has been finished, you can remove the stoneware dish with the contents and roast / bake it for a moment in an oven, if your recipe requires this.
5. The slow cooker processes food at temperatures much lower than in the oven or on a stove hob, and releases much less steam and aromas.
6. Note the following when preparing your food for processing:

Chop the meat for a stew or goulash into ca. 2–3 cm (0.8" to 1.2") cuts. Meat slices should be 1 cm (0.4") thick and slightly tenderized with a mallet before processing in the slow cooker.

Fry the onion for a stew or a goulash a bit before processing in the slow cooker.

• Add less water to process in the slow cooker than suggested in the recipes. The relatively low processing temperature of the slow cooker greatly reduces water evaporation ratio.
  ▶Always add milk and cream in the last hour of processing. All other ingredients, condiment and spices should be added when starting to process in the slow cooker.
  If you want to process meat with vegetables, dice the vegetables finely and first place them at the stoneware dish bottom and along its walls. Next, add the meat.
  ▶Bigos, long-stewed meat, stew, goulash, broth, chicken soup, jam or fruit preserves are perfect to make in the slow cooker because of their processing.

CLEANING AND MAINTENANCE

CAUTION! Unplug the power cord from the mains before cleaning or maintaining the slow cooker.

1. Wait until the slow cooker has completely cooled down.
2. Clean the body (1) and the stoneware dish heating chamber with a damp cloth and wipe dry.
   CAUTION! Do not immerse the appliance housing in water! Do not pour water inside of the appliance.
3. Wash the stoneware dish (5) and the slow cooker lid (6) in water with a detergent, then rinse clean and wipe dry. Do not use abrasive, corrosive or dedicated oven cleaning agents. The stoneware dish and the slow cooker lid are dishwasher safe.
4. Once it has been cleaned, reassemble the slow cooker and keep it in a dry place.

TECHNICAL SPECIFICATIONS

See the product's nameplate for technical specifications.

Power cord length: 0.95 m

CAUTION! MPM agd S.A. may change the technical features of the product without notice.

PROPER DISPOSAL OF THE PRODUCT (waste electrical and electronic equipment)

Poland

This symbol on the product indicates that the product, after its lifetime, should not be disposed with other household wastes. To avoid harmful influence on the environment and human health due to uncontrolled waste disposal, dispose the waste device to the service point of waste household appliances or report collecting it from home. In order to obtain detailed information about the location and how to dispose the waste electrical and electronic equipment in a safe way, contact your retailer or local Department of

Environmental Protection. Do not dispose the device with other municipal waste

We wish you satisfaction from using the product and invite you to check a wide range of other MPM appliances

Line drawing of a vacuum cleaner with a cat and bulb (no text or symbols)

MPM agd S.A.
