S500BK - Hand blender GORENJE - Free user manual and instructions

Product Type	Hand Blender
Brand	Gorenje
Model	S500BK
Power Source	Electric (mains powered)
Speed Control	Pulse operation (press and hold button)
Bowl Capacity	600 ml (max fill line)
Blade Material	Stainless steel (sharp)
Attachments Included	Chopping blade, whisking tool
Noise Level	Lc < 72 dB(A)
Safety Features	Motor unit splash-proof, lid secures bowl
Dishwasher Safe Parts	Bowl assembly (lid, bowl, attachments)
Motor Unit Cleaning	Wipe with damp cloth; never immerse
Cord Storage	Cord wrap with suction cup
Intended Use	Domestic indoor use only
Warranty	Refer to Gorenje Customer Care
Weight (estimated)	Approx. 0.8 kg (motor unit with bowl)
Dimensions (estimated)	400 x 150 x 150 mm (assembled)

Frequently Asked Questions - S500BK GORENJE

How do I assemble the hand blender?

With the appliance unplugged, place the bowl on a flat surface. Attach the chopping blade or whisking tool onto the spindle, holding it by the plastic part. Place the small cup on top, then the motor unit. To disassemble, reverse the steps.

What is the maximum capacity of the bowl?

The bowl has a maximum capacity of 600 ml. Do not exceed this mark to avoid spillage and ensure proper blending.

Can I blend hot liquids?

The manual does not specify blending hot liquids. It is generally not recommended for hand blenders. Allow liquids to cool before blending.

How do I clean the hand blender?

Unplug the appliance. The bowl, lid, and attachments are dishwasher safe or can be washed with mild detergent and water. Rinse and dry thoroughly. The motor unit should only be wiped with a slightly damp cloth; never immerse in water.

Is the blade removable?

Yes, the blade and whisking tool are removable for cleaning. Handle the blade with extreme care as it is very sharp.

What can I use this blender for?

It can chop, blend, and whisk. Use the blade for chopping and liquidising, and the whisk tool for blending and emulsifying. Suitable for soft to medium-hard foods.

Can I use it to crush ice?

The manual advises against processing hard foods like crunchy chocolate or cube sugar. Ice may damage the blade. Not recommended.

How do I store the appliance?

After use, wind the power cord and secure it with the suction cup. The lid can be placed on the bowl to store food in the refrigerator.

What safety precautions should I follow?

Always unplug before assembling or cleaning. Never immerse the motor unit. Keep cord away from children and heat sources. Do not open until blades stop. Handle blades carefully—they are extremely sharp.

Where can I get spare parts or service?

Contact the Gorenje Customer Care Centre in your country or an authorized service center. Do not attempt repairs yourself.

USER MANUAL S500BK GORENJE

Close-up of a gorenje blender with a black lid and white base, labeled S500BK (no other text or symbols visible)

Instructions for Use GB

PRVA UPORABA APARATA

Sestavljanje in razstavljanje aparata

VAŽNE SIGURNOSNE UPUTE

• Pažljivo pročitajte upute za uporabuprije prve uporabe Vašeg uređaja, te ih sačuvajte za uporabu u budućnosti
• Svako korištenje koje nije u skladu s ovim uputama ne povlači za sobom bilo kakovu odgovornost.
• Uvjerite se da Vaš uređaj je usklađen s električnom mrežom u Vašem domu.
• Vaš uređaj je namijenjen jedino za uporabu u domaćinstvu i nije za vanjsku uporabu.
• Isključite Vaš uređaj odmah po završetku uporabe, ta kada ga čistite.
• Isključite uređaj prije postavljanja ili vađenja pomičnih dijelova.
• Ne koristite uređaj ukoliko ne radi korektno, odnosno ukoliko je oštećen. U tim sličajevima, molimo Vas kontaktirajte ovlašteni servis.
• Ne otvarajte uređaj sve dok se nožići ne zaustave.
• Bilo kakva intervencija od strane kupca, osim čišćenja i održavanja, se ne preporuča, već će to obaviri ovlašteni servis.
• Nikada ne stavljajte uređaj, kabel ili utikač u vodu ili drugu tekućinu.
• Nikda nemojte dozvoliti da kabel visi na dohvat dijece.

• Kabel nikada ne smije biti u blizini ili u kontaktu s zagrijanim dijelovima Vašeg uređaja, odnosno u blizini izvora toplote i najzad, ne smije dodirivati oštre predmete.

• Ukoliko je kabel ili utikač oštećen, ne koristite uređaj. Da bi izbjegli bilo kakav rizik, kabel i utikač moraju biti pregledani i popravljeni u ovlaštenom servisu.

• Za Vašu sigurnost, koristite jedino opremu i dijelove koji su priloženi uz uređaj.
• Rukujte s nožićima uz veliki oprez : Ekstremno su oštri
• Nikada ne koristite nožiće izvan zdjelice.
• Aparat smiju upotrebljavati djeca starija od 8 godina i osobe s ograničenim fizičkim, osjetilnim ili mentalnim sposobnostima te nedostatnim iskustvom i znanjem u vezi sa sigurnom uporabom pećnice. U tom im slučaju treba omogućiti razumijevanje potencijalnih opasnosti. Nadzirite djecu kako biste osigurali da se ne igraju sa aparatom.
• Čišćenje i korisničko održavanje ne smiju provoditi djeca, osim ako imaju najmanje 8 godina te su pod strogim nadzorom.
  • Razina buke: Lc < 72 dB (A)

PRILIKOM PRVOG KORIŠTENJA VAŠEG UREĐAJA

SASTAVLJANJE I RASTAVLJANJE UREĐAJA

S isključenim uređajem - utikač nije uključen u utićnicu.

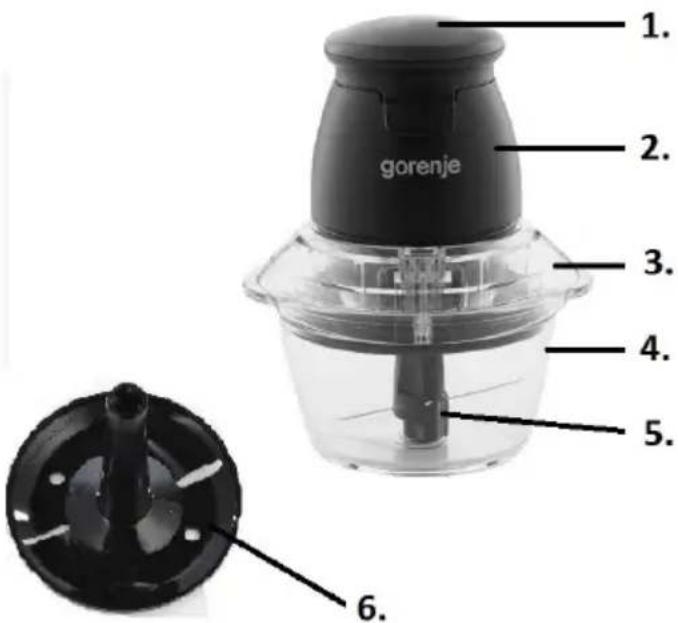

1. Operation Switch (Pulse)
2. Power Unit
3. Security lid
4. Bowl
5. Chopping blade
6. Whisking tool

IMPORTANT SAFETY INSTRUCTIONS

• Read the instructions for use carefully before using your appliance for the first time and retain them for future use: any use which does not conform to the instructions will absolve from any liability.
• Make sure the power rating of your appliance does in fact match that of your electrical system.
• Your appliance is intended only for domestic use, indoors.
• Unplug your appliance as soon as you have finished using it and when you are cleaning it.
• Unplug before inserting or removing parts.
• Do not use the appliance if it is not working correctly if it has been damaged. If this happens, please contact an approved service centre.
• Do not open until blade stop.
• Any intervention apart from normal cleaning and maintenance by customer must be performed by an approved service centre.
• Never put the appliance, the power cord or the plug into water or any other liquid.
• Never allow the power cord to hang down within reach of children.
• The power cord must never be close to or in contact with the hot parts of your appliance, close to a source of heat or rest on a sharp edge.
• If the power cord or the plug are damaged, do not use the appliance. To avoid any risk, these must be replaced by an approved service centre.

• For your own safety, use only the its accessories and spare parts which are suited to your appliance.

• All appliances are subjected to strict quality control. Practical user tests are performed with appliances selected at random, which explains any signs of use.

• Handle the blade with great care : It is extremely sharp.
• Never use the blade, out of the bowl.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and maintenance shall not be made by children unless they are older than 8 and supervised.
• Noise level: Lc < 72 dB(A)

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

USING YOUR APPLIANCE FOR THE FIRST TIME

ASSEMBLY AND DISASSEMBLY OF THE APPLIANCE

With the appliance unplugged.

• Place the bowl on the mat.
• Position the blade or the whisking attachment on the spindle of the bowl holding it by the plastic part.
• Place the small cup on top of the bowl.
• Put the motor unit on top of the small cup.
• To disassemble first unplug the motor unit then do the same in reverse.

USING YOUR APPLIANCE

• Before the first use, clean the bowl assembly in the dishwasher or with water and washing up liquid.
• Rinse and dry with care.
• Reassemble.

CHOPPING

With the blade:

• Put the ingredients in the bowl. Never exceed the 600 ml mark in the bowl.
• To achieve fine and consistent mincing, press the button in pulses. During preparation, separate the foods at regular intervals and spread them around the bowl using a spatula.

- The fineness of the finished product will depend on how long you run the appliance.

LIQUIDISING

With the blade

• Place the ingredients in the bowl. Never exceed the 600 ml mark in the bowl.
• Press button (1) to start the appliance and release it to stop.

BLENDING

With the whisking attachment

• Place the ingredients in the bowl. Never exceed the 600 ml mark in the bowl.
• Press the button (1) to start the appliance and release it to stop.

MAINTENANCE

• To protect the edges of the blade, do not process hards foods ( crunchy chocolate, cube sugar, etc.)
• Take great care when handling the blade: It is very sharp.
• Unplug the appliance.
• Clean the bowl assembly in the dishwasher, or in water and washing up liquid. Rinse and dry carefully.
• Do not use chlorinated products (bleachtype)
• Never place the motor unit (2) in water or under running water. Wipe it with a slightly damp cloth.

STORAGE

• After use, wind up the power cord and hold in place with the suction cup.
• The lid (3) can be placed on the bowl (4) to conserve food in fridge.

Environment

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Guarantee & service

If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances. For personal use only!

GORENJE WISHES YOU A LOT OF PLEASURE WHEN USING YOUR APPLIANCE

We reserve the right to any modifications!
