Product Type	Screw Anchor for Concrete
Brand	Hilti
Model	KH-EZ SS316
Material	Stainless Steel 316
Nominal Diameter	3/8 inch (9.53 mm)
Drill Bit Diameter	3/8 inch
Minimum Embedment Depth (h₁)	2-3/4 inch (70 mm) for 2-1/2 inch anchor
Anchor Lengths Available	2-1/2 inch, 3 inch, 4 inch, 5 inch
Fixture Thickness Range	0 to 1-3/4 inch

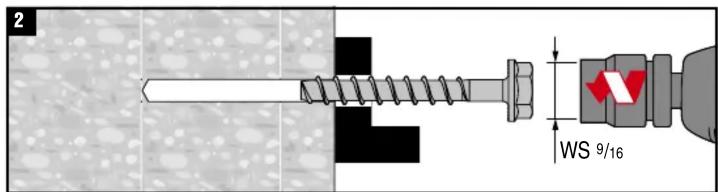

Installation Torque	Use WS 9/16 socket, torque to recommended value

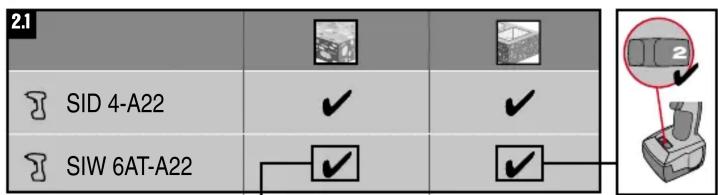

Installation Tools	Rotary hammer drill (SID 4-A22, SIW 6AT-A22 compatible)
Hole Cleaning	Non-hole cleaning installation acceptable if drilled deep enough
Corrosion Resistance	High (SS316 suitable for outdoor and harsh environments)
Application	Anchoring in cracked and uncracked concrete
Weight	Approx. 0.1-0.3 lb per anchor depending on length
Packaging	Sold individually or in bulk, check product listing

Frequently Asked Questions - KH-EZ SS316 HILTI

What is the Hilti KH-EZ SS316 anchor?

The Hilti KH-EZ SS316 is a stainless steel screw anchor designed for fastening in concrete. It features a 3/8-inch diameter and is suitable for outdoor and corrosive environments.

How do I install the KH-EZ SS316 anchor?

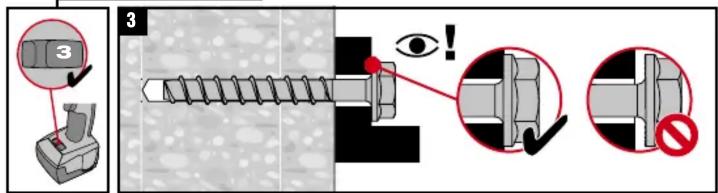

Drill a 3/8-inch hole to the required depth, clean the hole (or drill deeper to compensate for debris), and drive the anchor using a rotary hammer drill with a WS 9/16 socket until the head is flush.

What lengths are available for the KH-EZ SS316?

Available lengths include 2-1/2 inch, 3 inch, 4 inch, and 5 inch. Longer anchors provide deeper embedment for greater load capacity.

What is the minimum embedment depth for this anchor?

Minimum embedment depth (h₁) varies by length. For a 2-1/2 inch anchor, it is 2-3/4 inch. Refer to the manual for exact depths.

Can the KH-EZ SS316 be used in cracked concrete?

Yes, the KH-EZ SS316 is suitable for both cracked and uncracked concrete, providing reliable seismic and wind load resistance.

Do I need to clean the hole before installation?

Non-hole cleaning installation is acceptable if you drill deeper to account for debris. For best results, follow traditional cleaning methods.

What is the recommended torque for installation?

Use a torque tool with a WS 9/16 socket. The exact torque value depends on the anchor length and concrete strength; typical range is 30-60 ft-lb.

What is the load capacity of the KH-EZ SS316?

Load capacity varies by embedment depth and concrete strength. For example, with 2-3/4 inch embedment in 4000 psi concrete, tensile capacity is approx. 2,000-3,000 lb.

Is the KH-EZ SS316 corrosion resistant?

Yes, made from Stainless Steel 316, it offers excellent resistance to corrosion, making it ideal for marine, chemical, and outdoor applications.

Where can I download the manual for the KH-EZ SS316?

You can download the PDF manual for free from notice-facile.com or the Hilti website. The manual provides installation details and specifications.

USER MANUAL KH-EZ SS316 HILTI

KWIK HUS-EZ SS316	h_1^*	t_fix
^3/8 × 2^1/2	2^3/4 - t_fix	0...1/2
^3/8 × 3	3^1/4 - t_fix	0...1/2
^3/8 × 4	4^1/4 - t_fix	0...3/4
^3/8 × 5	5^1/4 - t_fix	0...1^3/4

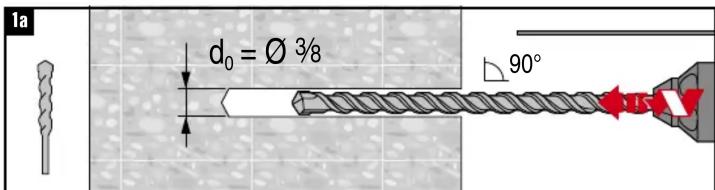

*For non-hole cleaning installation (steps 1a or 1b), make sure to drill deep enough to achieve h_1 , taking into account the depth of debris remaining in the hole.
