MS40BT - Microwave BLAUPUNKT - Free user manual and instructions

Product Type	Microwave Oven
Brand	Blaupunkt
Model	MS40BT
Capacity	40 liters
Dimensions (W x D x H)	520 x 420 x 310 mm
Net Weight	12.5 kg
Power Supply	230 V ~ 50 Hz
Power Consumption	1100 W (microwave)
Output Power	800 W
Frequency	2450 MHz
Control Type	Electronic with LED display
Functions	Defrost, Auto Cook, Timer, Clock
Interior Light	Yes
Turntable	Yes, 270 mm diameter
Child Lock	Yes
Door Opening	Left hinged with push-to-open
Material	Stainless steel exterior, enamel interior
Cleaning	Easy-clean interior, removable glass tray
Spare Parts	Glass tray, roller ring, fuse available
Repairability	Replaceable door seal, magnetron, and PCB
Safety Certifications	CE, RoHS

Frequently Asked Questions - MS40BT BLAUPUNKT

How do I set the clock on my Blaupunkt MS40BT microwave?

Press the Clock button, then use the number pad to enter the current time (24-hour format). Press Clock again to confirm.

Can I use metal containers in this microwave?

No, metal containers can cause sparks and damage the microwave. Only use microwave-safe glass, ceramic, or plastic containers.

How do I defrost food using the defrost function?

Press the Defrost button, then enter the weight of the food in grams. The microwave will automatically set the time and power level.

What is the maximum cooking time?

You can set up to 99 minutes and 99 seconds directly using the number pad.

How do I clean the microwave interior?

Wipe the interior with a damp cloth and mild detergent. Do not use abrasive cleaners. The glass turntable can be removed and washed with warm soapy water.

Why is my microwave not heating?

Check that the door is fully closed, the timer is set, and the power cord is plugged in. If it still doesn't heat, the magnetron or fuse may be defective.

How do I activate the child lock?

Press and hold the Stop/Clear button for 3 seconds until a lock icon appears on the display. Repeat to unlock.

Can I adjust the power level?

Yes. After setting the cooking time, press the Power button repeatedly to select from 10 levels (100% to 10%).

What does the auto cook function do?

The auto cook function lets you cook common foods (e.g., popcorn, pizza, beverage) by selecting the food type and weight. The microwave sets optimal time and power automatically.

How do I replace the interior light bulb?

The interior light is an LED and not user-replaceable. Contact Blaupunkt service if it fails.

USER MANUAL MS40BT BLAUPUNKT

Enjoy it.

Bluetooth CD-MP3 player with USB and FM

Thank you for purchasing our model. Please read and reference this manual carefully before operating the unit. Keep the manual for future reference.

What's in the packaging:

1 x main unit

2 x satellite speakers

1 x remote control

1 x 3.5mm to 3.5mm stereo audio cable

1 x FM pigtail antenna

1 x user manual

1 x warranty card

Please unpack the box carefully to avoid damaging the contents.

IMPORTANT SAFETY INSTRUCTIONS

Caution:

To reduce the risk of electric shock, do not dismantle the product and do not expose the apparatus to rain or moisture. No user-serviceable parts inside. Refer servicing to qualified personnel only.

Explanation of Graphical Symbols:

The lightning flash within an equilateral triangle is intended to alert you to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute an electric shock to a person or persons.

The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

This mark indicates this unit belongs to class 1 laser product. The laser beam may produce radiation harm to the directly touching human body

To achieve the utmost in enjoyment and performance, and in order to become familiar with its features, please read this manual carefully before attempting to operate this product. This will assure you years of trouble free performance and listening pleasure.

Important Notes

This safety and operating instruction should be retained for future reference.

a. The apparatus should not be exposed to dripping or splashing or placed in a humid atmosphere such as a bathroom.

b. Do not install the product in the following areas:

a). Places exposed to direct sunlight or close to radiators. b). On top of other stereo equipment that radiate too much heat. c). Blocking ventilation or in a dusty area. d). Areas where there is constant vibration. e). Humid or moist places.

c. Do not place near candles or other naked flames.

d. Operate the product only as instructed in this manual.

e. Before turning on the power for the first time, make sure the power adaptor is properly connected.

For safety reasons, do not remove any covers or attempt to gain access to the inside of the product. Refer any servicing to qualified personnel.

Do not attempt to remove any screws, or open the casing of the unit; there are no user serviceable parts inside. Refer all servicing to qualified service personnel.

SAFETY INSTRUCTIONS

1. Read Instructions - All the safety and operating instructions must be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be kept with the product for future reference.
3. Heed warnings - All warnings on the product and in the operating instructions should be adhered to.
4. Follow instructions - All operating and users' instructions should be followed.
5. Installation - Install in accordance with the manufacturer's instructions.
6. Power sources - This product should be operated only from the type of power source indicated by the marking adjacent to the power cord entry. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.
7. Grounding or polarization - the product is not required to be grounded. Ensure that the plug is fully inserted into the wall outlet or extension cord receptacle to prevent blade or pin exposure. Some versions of the product are equipped with a power cord fitted with a polarized alternating line plug (a plug having one blade wider than the other). This plug will fit onto the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. When using an extension power-supply cord or a power-supply cord other than that supplied with the appliance, it should be fitted with the appropriate molded plugs and carry safety approval appropriate to the country of use.
8. Power cord protection - Power-supply cords should be routed so that they are not likely to be walked on, kinked or pinched by items placed on or against them, paying particular attention to cords from plugs, receptacles and the point where they exit from the product.
9. Overloading - Do not overload wall outlets, extension cords, or multiple sockets, as this can result in a risk of fire or electric shock.
10. Ventilation - The product must be properly ventilated. Do not place the product on a bed, sofa, or other similar surface. Do not cover the product with any items such as tablecloths, newspapers, etc.
11. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products, including amplifiers that produce heat. No naked flame sources, such as lighted candles, should be placed on the apparatus.
12. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to rain, dripping, splashing or excessive moisture such as in a sauna or bathroom. Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool (or similar).
13. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. Do not place any object containing liquid on top of the product.
14. Cleaning - Unplug the product from the wall outlet before cleaning. Dust in the woofer may be cleaned with a dry cloth. If you wish to use an aerosol cleaning spray, do not spray directly on the cabinet; spray onto the cloth. Be careful not to damage the drive units.
15. Attachments - Do not use attachments not recommended by the product manufacturer, as they may cause hazards.
16. Accessories - Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer.
17. Moving the product - A product and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the product and cart combination to overturn.
18. Unused periods - The power cord of the appliance should be unplugged from the outlet during lightning storms or when the apparatus is left unused for a long period of time.
19. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
20. Please remove the power plug from the main power source or wall power source when not in use. When plugged in to a power source, the system is in standby mode, so the power is not entirely cut off.
21. Replacement parts - When replacement parts are required, ensure that the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
22. Mains fuses - For continued protection against fire hazard, use fuses only of the correct type and rating. The correct fuse specification for each voltage range is marked on the product.
23. Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speaker may be damaged when a peak level section is suddenly played.
24. The only means of completely disconnecting the product from the power supply is by removing the power cord from the wall outlet or the product. The wall outlet or the power cord entry to the product must remain freely accessible at all times while the product is in use.
25. Try to install the product near a wall socket or extension cord and shall be easily accessible.
26. The highest environmental temperature suitable for this product is 35°C.
27. ESD hints - The normal function of the product may be disturbed by strong Electro-Magnetic Interference. If so, simply reset the product to resume normal operation by following the instruction manual. In case the function could not resume, please use the product in other location.

28. Battery

1). The batteries must not be exposed to excessive heat such as sunshine, fire or the like.

2). The batteries should be drawn to the environmental aspects of battery disposal.

3). Battery usage CAUTION - to prevent battery leakage which may result in body injuries, property damage, or damage to the apparatus:

• Install all batteries correctly, + and - as marked on the apparatus.
• Do not mix batteries (old and new or carbon and alkaline, etc.)
• Remove batteries when the unit is not used for a long time.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by us is under license. Other trademarks and trade names are those of their respective owners.

ERP2 - (Energy Related Products) note

This product with ecodesign complies with the stage 2 requirements of Commission Regulation (EC) No. 1275/2008 implementing Directive 2009/125/EC regarding standby and off mode electric power consumption of electronic household and office equipment. After 30 minutes without any audio input, the device will automatically switch into standby mode. Follow the instruction manual to resume operation.

Important note:

This device is equipped with an energy saving mode: if no signal is given during 30 minutes the device will switch automatically into standby mode in order to save energy (ERP 2 standard). Please note that low volume setting in the audio source may be recognized as "no audio signal": this will affect the capability of signal detection from the device and can also originate an automatic switch into standby mode. If this happens please reactivate the audio signal transmission or increase the volume setting on the audio source player (MP3 player, etc.), in order to resume playback. Please contact the local service center if the problem remains.

Warning

This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

1. To prevent possible hearing damage, do not listen at high volume levels for long time periods respectively a sudden high volume level.

1. Never use the device unsupervised! Switch off the device whenever you are not using it, even if this only for a short while.
2. The appliance is not intended to be operated by means of an external timer or separate remote control system.
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
4. Before operating this system, check the voltage of this system to see if it is identical to the voltage of your local power supply.
5. The unit should not be impeded by covering the ventilation opening with items such as newspaper, table-cloths, curtains etc. Make sure that there are at least 20 cm of space above and at least 5 cm of space on each side of the unit.
6. The apparatus must not be exposed to dripping or splashing and that objects filled with liquids, such as vases, must not be placed on the apparatus.
7. To prevent fire or shock hazard, do not expose this equipment to hot places, rain, moisture or dust.
8. Do not locate this unit near any water sources e.g. taps, bathtubs, washing machines or swimming pools. Ensure that you place the unit on a dry, stable surface.
9. Do not place this unit close to a strong magnetic field.
10. Do not place the unit on a amplifier or receiver.
11. Do not place this unit in a damp area as the moisture will affect the life of electric components.
12. If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the player. If this occurs, the system will not operate properly. Please leave the system turned on for about an hour until the moisture evaporates.
13. Do not attempt to clean the unit with chemical solvents as this might damage the finish. Wipe with a clean, dry or slightly damp cloth.
14. When removing the power plug from the wall outlet, always pull directly on the plug, never pull on the cord.
15. The mains plug is used as the disconnect device, the disconnect device must remain readily operable.

COMPACT DISC MAINTENANCE

1. Always use a compact disc bearing the mark as shown.
2. Notes on handling discs

• Store discs in their case when not in use. - Do not touch the reflective recorded surface. • Do not stick paper or write anything on the surface.

• Store the disc in its case. - Do not expose discs to direct sunlight or high temperatures, high humidity or dusty

1. Cleaning a disc
2. Should the disc become soiled, wipe off dust, dirt and fingerprints with a soft cloth. • The disc should be cleaned by wiping in a straight line from the center to the edge.

FROM THE CENTRE TO THE EDGE

• Never use benzene, thinners, record cleaner fluid or anti-static spray. -Be sure to keep the CD compartment door closed when not in use to keep it clean from dust and other contaminants. -Do not touch the lens.

NOTICE

This product complies with the radio interference requirements of the European community.

Your products is designed an manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Please cat according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be dispose with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard(box), polystyrene

foam(buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a

Specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Recording and playback of material might require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.

Control locations

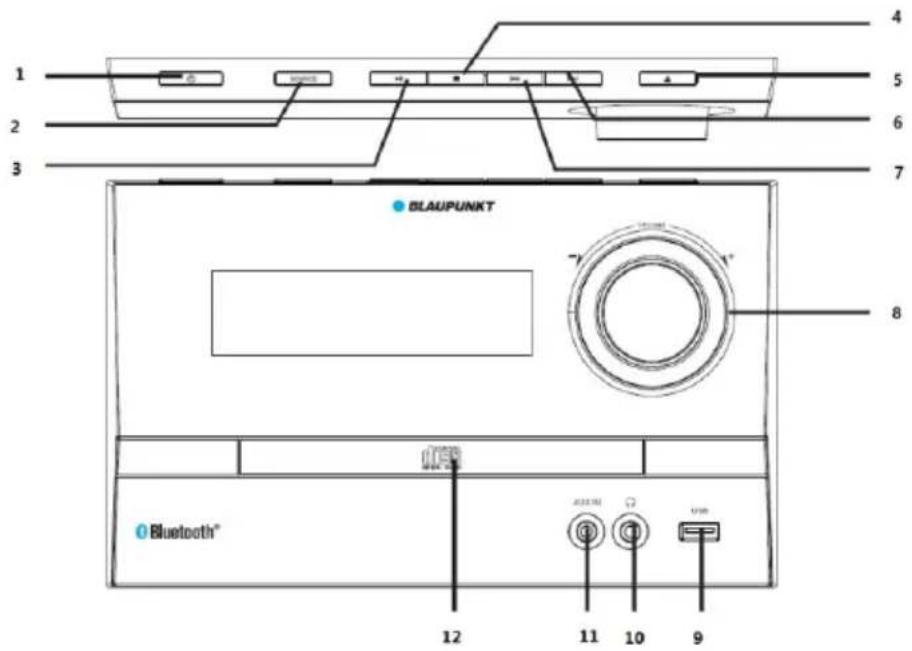

Main unit front & top panel

1-- standby on/off (power);

3-- play/pause;

5-- eject;

7-- previous;

9-- USB port;

11-- AUX IN;

2-- source.

4-- stop.

6-- next.

8-- volume control knob.

10-- headphone jack.

12--CD door.

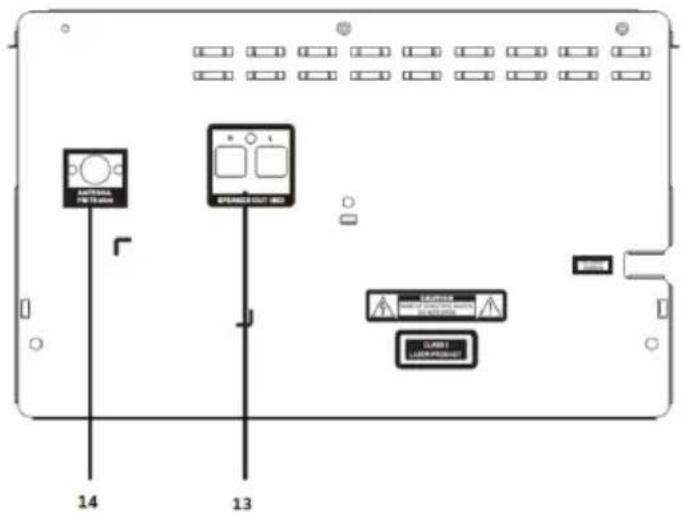

Rear panel

13--speaker out terminal;

14--FM antenna socket.

Remote control

1--Power/standby off & on;

3--Folder +/-;

5--Random;

7--mute, alarm;

12--Play/pause;

14--Repeat;

16--Volume +/-

2--Eject.

4, 11--Previous/Next, fast-forward/fast-rewind.

6--stop, auto scan.

8, 9, 10--play source, CD/USB/FM.

13--Program, memory.

15--Tune +/-, 10 +/-.

17--EQ (flat/classic/rock/POP/jazz), clock.

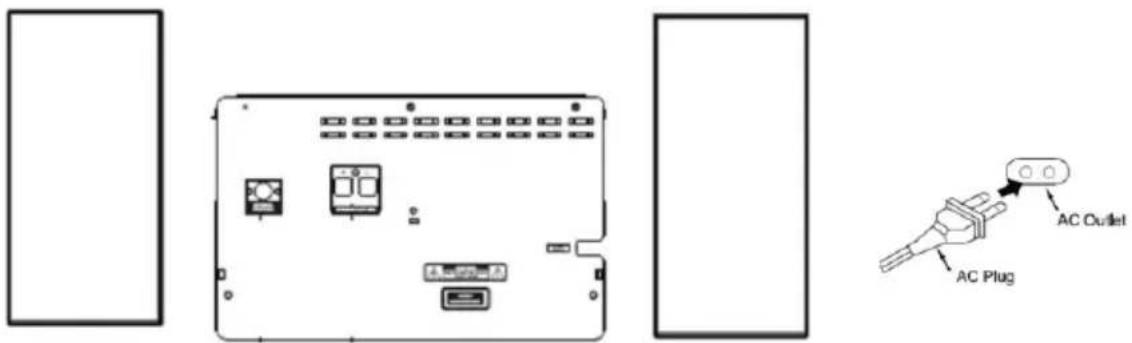

System and power setting

1. Using the attached speaker wire of the satellite speaker, connect it to the speaker output terminal of the main unit. Then connect another satellite speaker using the same method.
2. Using the supplied FM pigtail antenna, plug it into the FM socket on the rear panel of the main unit, and fully extend the FM antenna in order to get better reception.
3. Please check if the power source corresponds to the rated voltage specification located on the back panel of the main unit. If it does not match, please consult your dealer or service center.
4. Insert the attached AC power plug into the wall outlet to get power. The front panel power LED will light up in red when the power is ready.

Remote control battery installation

Open the battery door and insert 1 x AAA battery (included) into the compartment; please make sure the polarity of the battery corresponds to the positive and negative engraved symbols in the compartment. Then close the battery door.

Notes:

a. The best working distance of the remote control is within 7 meters without any obstacle in between. Please aim at the remote control sensor located on the left corner of the display during operation. b. The sensitivity of the remote control will become weak when the battery power is exhausted. Please replace it with a fresh one for operation. c. Please take out the battery in case of non-operation for a long time. d. Please dispose of the battery in an environmentally friendly way. Please reference the local government requirements for details.

General operation

1. Power on/off and standby: The red power LED will light up when you connect it to AC power successfully; please remove the AC plug for complete power off. Press the power button on the top panel or remote control to switch between standby and on.
2. Mute: Press the MUTE button on the remote control to silence the sound output; press it again to resume playback. You can also resume playback by pressing the volume +/- button.
3. Play mode selection: Press the SOURCE button repeatedly to switch the play mode between CD/USB/FM radio/AUX IN/Bluetooth. You can also enter CD/USB/FM mode directly by pressing the corresponding button on the remote control.
4. Volume adjustment: Press the VOL+/- button on the remote control or turn the volume knob on the front panel to increase or decrease the output volume.
5. Sound equalizer: Press the EQ button to switch the playing equalizer mode between Flat, Rock, Classic, POP, and Jazz.
6. Folder +/-, 10+/- button: Press the 10 +/- button to skip the playing track by increasing or decreasing by 10 tracks (if there are more than 10 tracks) for fast selection; press the Fold +/- button to switch the playing track by folder (if there are more than 2 folders). This function is available in CD and USB playback mode.
7. Play, pause, and stop: In CD/USB/Bluetooth mode, press the play/pause button to pause or resume playback; in CD and USB mode, press the stop button to stop playback, and press the play button to resume music playback.
8. Previous and next, fast-forward and fast-rewind: Short press to skip to the last or next track for playback; press and hold to fast-forward or fast-rewind the current playing track, and resume normal playback after releasing the button.
9. Repeat playback: In CD and USB mode, press the repeat button repeatedly to select repeat one, repeat all, repeat folder (if folders are present), and repeat off.
10. Random playback: Press the random button to toggle shuffle playback on and off.
11. CD disc eject: Press it to load a CD or close the CD door.

CD playback operation

This product includes CD playback function which can play CD discs in CD/CD-R-RW/MP3 audio format (DVD not included). Before starting CD playback, please check if there are any dirty spots or scratches on the CD disc; otherwise, the CD may not be read or may produce noise.

1. Press the source button repeatedly or the CD button to enter CD mode.
2. Press the eject button to open the CD door, and load the CD disc into the CD tray; press the eject button again to close the CD door. The unit will start to read and play the CD automatically.
3. Create your own playlist (max programmed 20 tracks for CD and MP3 discs, and up to 99 tracks for WMA discs).

a. In CD playback mode, press the stop button first, then press the program button to start the program operation. b. The display will show "PR_", press the previous/next or 10+/- button to select the track that you want to be programmed, and press the program button again to confirm. c. Then the display will show the programmed track and skip to the next program track setting. For example, "009 PR 06" means track number 9 was programmed as track number 06. d. Repeat the above steps b and c to set up the rest of the tracks until the display shows "FULL". e. Then press the play button to start the programmed playlist playing. f. To cancel and remove the programmed playlist, press the stop button twice, or eject the CD disc.

1. You can also achieve the play and pause, stop, mute, repeat and random, track selection, EQ, fast-forward and fast-rewind functions, etc. during CD playback. Please reference the general operation part of this manual.

FM radio operation

Before starting FM radio listening, please check if the FM antenna is plugged into the rear FM socket properly; fully extend the FM antenna or move the unit next to the window in order to get better FM reception.

1. Auto scan and preset radio stations: Press the source button repeatedly or the FM button on the remote control to enter FM radio mode; press and hold the auto scan or stop button for 2 seconds on the remote control or top panel to scan and save the available radio stations automatically. The unit can save up to 50 (max) preset stations.
2. Preset station picking up: In radio mode, press the previous and next buttons on the remote control or the top panel of the main unit to pick up the preset stations.
3. Manual tune or auto scan: Short press the tune +/- button to increase or decrease 0.05MHz frequency per step based on the current station; press and hold the button for 2 seconds to auto scan the available FM stations in upward or downward frequency, and it will stop and play the available station automatically.
4. Station memory manually: using the tune +/- button to tune the favorite station that you desire to save; press the memory button from the remote control first, then the preset station digits will flash on the display, press the previous and next button to switch the preset station location that you desire to save; then press the memory button to confirm it; and the current FM station will be saved. Please repeat the operation to save other stations.

Notes: the unit will show the available preset station only.

USB operation

The product includes USB playback function which can decode and play the music from a USB storage device. Before starting the operation, please copy the MP3 format music into a USB stick. The maximum supported USB stick device is up to 32 GB.

1. Before starting the USB playback, please make sure the USB stick was plugged properly into the USB port. Then switch to USB playback mode by pressing the source or USB button. Then the unit will decode and start to play the music automatically after a few seconds.
2. In USB mode, you can achieve the play and pause, stop, mute, repeat, track selection, EQ, fast-forward and fast-rewind functions, etc. Please reference the operation from the general operation part of this manual.

Notes:

a. Connecting the USB stick by a USB extension cable for playback is not recommended, which may produce noise or intermittent sound due to audio data loss during transfer.

b. Decoding and playback of all MP3 format music is not guaranteed.

c. The maximum supported USB device is 32GB.

d. Some USB sticks may take a little long time to playback; please kindly note this is not a malfunction.

Bluetooth operation

This product includes Bluetooth function which can wirelessly play music from other Bluetooth devices.

1. Press the source button repeatedly to enter Bluetooth mode; the display will show "BT" in Bluetooth mode. Enable the Bluetooth function and start to search for available devices on your Bluetooth device (please reference the device manual for operation), then check the available Bluetooth device list on your device.
2. Select "BP MS40BT" for pairing; a short notice sound will come out from the speaker after the Bluetooth pairing is successful.
3. Select and play the music from your Bluetooth device, then the music will output from the micro system.
4. Press the previous/next button to select the last and next track during playing. Press and hold the play/pause button for 5 seconds to disconnect and quit the unit with the current paired Bluetooth device.
5. In Bluetooth mode, you can achieve play/pause, mute, EQ, etc. functions. Please reference the operation from the general operation part of this manual.

Notices:

a. All Bluetooth devices are not guaranteed for successful pairing due to different designs and brands.

b. The best working distance of Bluetooth is within 10 meters without any obstacles in between.

c. The unit can only pair and work with one Bluetooth device at a time.

d. Please quit the current Bluetooth pairing before pairing with another device, otherwise the "BP MS40BT" will not appear on the device list.

AUX IN/line in/MP3 link and headphone operation

To play music from another player or source via wire, please follow the steps below.

1. Using the supplied audio cable (3.5mm to 3.5mm stereo connector), connect the AUX IN jack (3.5mm stereo type) on the front panel of the main unit, and connect the other 3.5mm stereo connector to the line-out or headphone jack of the external player.
2. Select the music and play it on your player, then the sound will be output from the micro system.
3. In AUX IN playback mode, the main control is on the external player side. However, you can also control the volume, EQ, and mute the sound on the micro system side.

Headphone: plug the headphone connector into the headphone jack on the front panel, then the sound will be silenced in the micro system but output from the headphone. Adjust the volume setting on the micro system or headphone to get a comfortable sound level for listening.

Clock time and alarm (playback wake up and auto play) setting

The unit includes clock time and alarm settings that allow you to enjoy entertainment based on a personal wake-up time, and the music will start to play automatically when the set time arrives.

1. Clock setting: in standby mode, press and hold the clock button for a few seconds on the remote control to start the setting, and the 24-hour time format will flash on the display; press the next and previous buttons to select the 12/24 time format, and press the clock button again to confirm your selection; then the hour digits will flash on the display; press the next and previous buttons to adjust the hour, and press the clock button again to confirm; then the minute digits will flash on the display, press next and previous to adjust the minute, then press the clock button again to confirm and finish the clock setting.
2. Playback wake-up (alarm) time setting: In the clock time interface, press and hold the alarm button on the remote control for a few seconds to start the setting. The "radio" will flash on the display. Press the previous and next buttons to switch the playback wake-up source between FM radio, CD, and USB. Press the alarm button again to confirm the selection. Then set up the wake-up hours, minutes, and playback volume using the next/previous and alarm buttons.

Notes:

a. The clock and alarm time setting is only available when the main power is maintained. Please re-set up the settings in case of a power interruption.

b. The "Alarm" will show on the display after the alarm time setting is successfully completed. Short press the alarm button in standby mode to turn off the alarm setting; short press it again to review the alarm setting.

c. When the alarm time is reached, the unit will playback (CD/FM radio/USB) automatically, and the volume will increase gradually until it reaches the set alarm volume. You can press the power button to turn off the playback.

Troubleshooting

1. Cannot power on the unit

a. Please check if the AC power cord is connected to the wall outlet properly. b. Please contact the service center if the problem persists.

1. No sound output.

a. Please try to adjust the volume. b. Please check if you selected the correct play mode. c. Please contact the service center if the problem persists.

1. The CD disc cannot be read, or there is intermittent sound during playback.

a. Please try to replace and play another CD disc with CD/CD-R-RW/MP3 format music.

b. Please try to clean the CD disc due to dirty spots or scratches.

c. Please contact the service center if the problem persists.

1. Background noise during FM playback.

a. Please fully extend the FM antenna and try adjusting its direction. b. Please move the unit closer to a window. c. Please switch to another station for listening.

1. Intermittent sound during Bluetooth playback.

a. Please try moving your Bluetooth device closer to the unit. b. Please try turning off the Bluetooth function and pairing it again.

1. The remote control does not work well.

a. Please aim the remote control directly at the remote sensor for operation. b. Please replace the battery with a fresh one if the battery power is weak.

Specifications

Power source: AC 230-240V, 50/60 Hz

CD compatible: CD/CD-R-RW/MP3

FM frequency: 87.5-108.0 MHz

USB rating: 5V, 500mA, 2.0 versions, supports up to 32GB storage devices

Bluetooth: V2.1+EDR, operating range within 10 meters.

RMS output power: 2 x 50W

Power consumption: 180W

Standby power consumption: < 0.5W

(Note: the above specification may be revised without prior notice.)

CLASS 1 LASER PRODUCT

HANDLE DISCS ONLY AS SHOWN

Notes:

FM frequency: 87.5–108.0 MHz

IMPORTANT SAFETY INSTRUCTIONS

DANGER OF ELECTRIC SHOCK! DO NOT OPEN!

Warning:

Notes:

CLASS 1 LASER PRODUCT

HANDLE DISCS ONLY AS SHOWN

1. Storage

DO NOT STORE DISCS NEAR HEAT

4. Cleaning the disc

HELYES

HELYTELEN A KÖZEPÉTÖL A SZÉLE FELÉ

Megjegyzések:

Competence Centre Audio

2N-Everpol Sp. z o.o.

ul. Puławska 403A

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems

please contact our service.

Tel. [phone]

E-mail: [e-mail]

All rights reserved. All brand names are registered trademarks of their

Respective owners. Specifications are subject to change without prior notice.

Enjoy it.
