OI 661 X - Range hood Mora - Free user manual and instructions

Product Type	Range hood
Brand	Mora
Model	OI 661 X
Color	Stainless steel
Installation Type	Built-in under cabinet
Width	600 mm (60 cm)
Depth	500 mm
Height	100 mm
Net Weight	12 kg
Motor Power	200 W
Max Airflow	650 m³/h
Noise Level (max speed)	65 dB(A)
Number of Speeds	3
Lighting	LED, 2 x 1.5 W
Energy Class	A
Annual Energy Consumption	50 kWh
Duct Diameter	150 mm
Power Supply	220-240 V, 50 Hz
Grease Filter	Aluminum, washable
Carbon Filter	Optional (charcoal)
Control Type	Electronic push-button
Extraction Type	Ducted or recirculation
Remote Control	Not included
Warranty	2 years
Included Accessories	Installation kit, user manual

Frequently Asked Questions - OI 661 X Mora

How do I install the Mora OI 661 X range hood?

Measure the cabinet opening, cut if necessary, secure the hood with screws, connect the duct for extraction or install carbon filter for recirculation, and connect to power.

How to clean the grease filter?

Remove the aluminum grease filter, wash it with warm water and mild detergent, let it dry completely, then reinstall. Do not use abrasive cleaners.

How often should the carbon filter be replaced?

Replace the carbon filter every 3 to 6 months depending on usage frequency and cooking habits to maintain performance.

Why is my range hood noisy?

Noise can result from improper installation, high fan speed, or blocked filters. Check that the hood is securely mounted and filters are clean.

How to change the LED lights?

LED lights should be replaced by a qualified technician. Refer to the manual for access. Use only LED bulbs specified for the model.

Can I use the hood without ducting?

Yes, it can operate in recirculation mode. You must install a carbon filter to trap odors before air is released back into the kitchen.

What is the maximum airflow?

The maximum airflow is 650 m³/h at highest speed, suitable for medium-sized kitchens.

How do I reset the filter alarm?

After cleaning or replacing filters, press and hold the filter reset button for about 3 seconds until the indicator turns off.

What should I do if the hood is not working?

Check power supply, ensure the plug is connected and circuit breaker is on. Inspect the fuse if accessible. Contact support if issue persists.

Where can I find spare parts?

Spare parts such as filters and bulbs are available from authorized Mora service centers or online retailers. Provide model number OI 661 X.

USER MANUAL OI 661 X Mora

E017FII1K42BN2BSB / OI661X

EN Instruction on mounting and use

Technical diagram illustrating the assembly of a device with labeled parts and a magnified view of internal components.

1

Technical diagram showing a mechanical assembly with three views of a device, no text or symbols present.

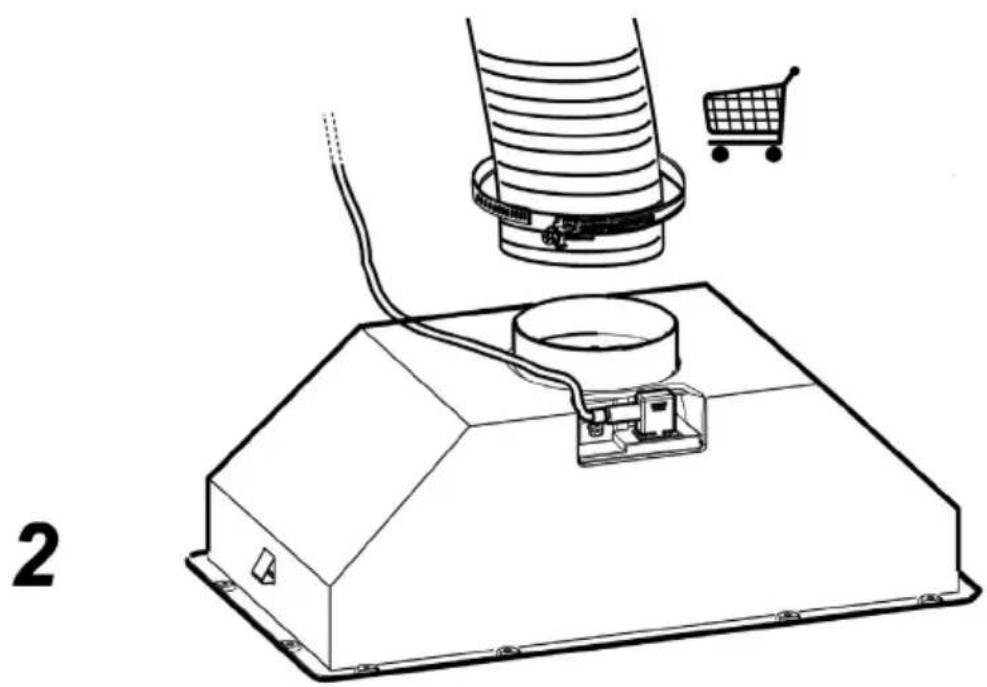

Technical line drawing of a mechanical device with a cart and a component, labeled '2' (no text or symbols on the diagram itself)

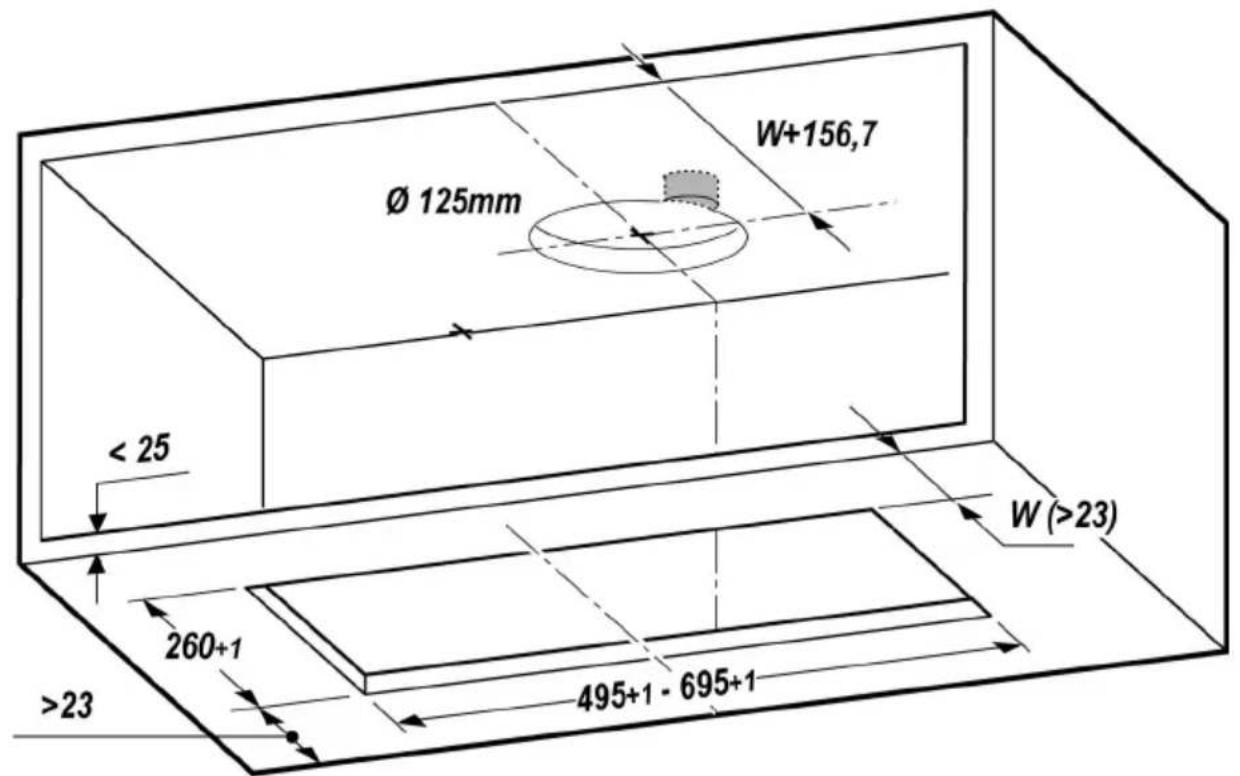

Ø 125mm W+156,7 < 25 W (>23) 260+1 495+1 - 695+1 >23

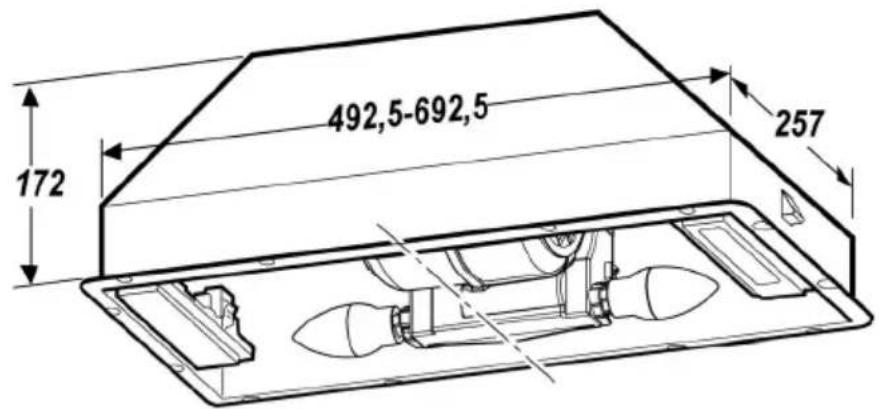

492,5-692,5 172 257

3

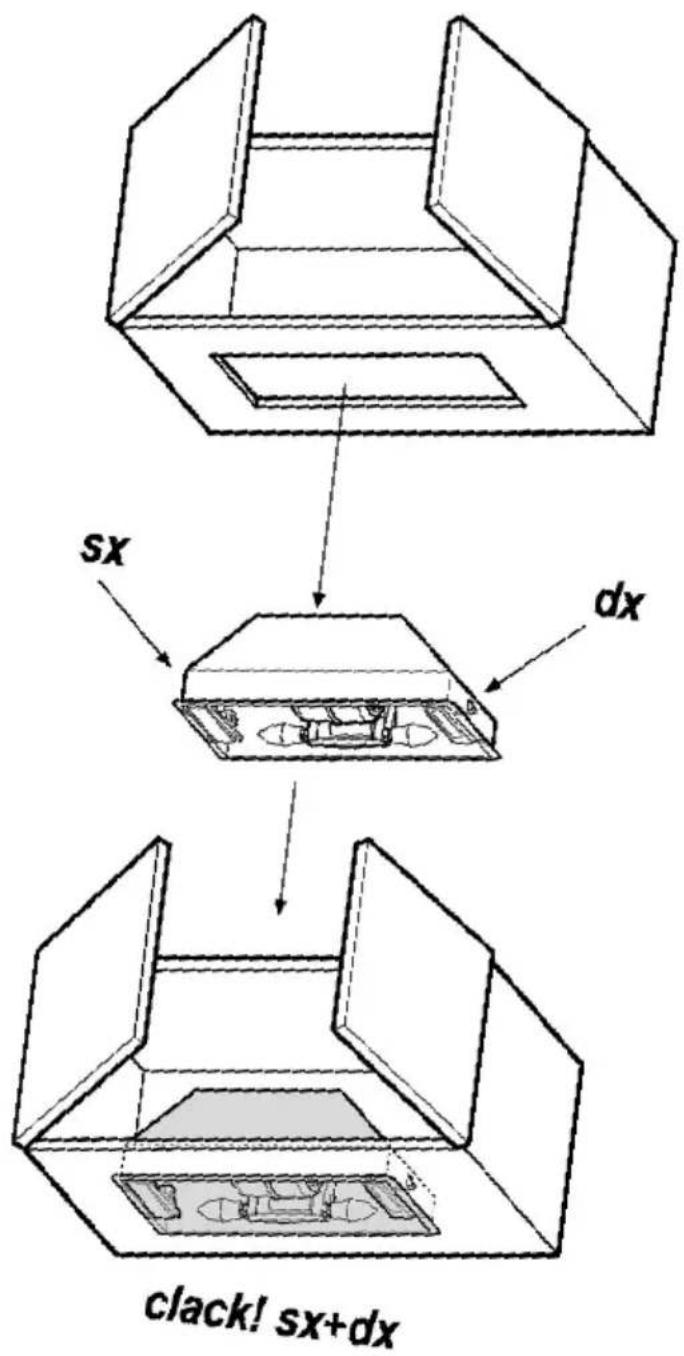


!OK

Technical line drawing of a mechanical device inside a transparent enclosure, showing internal components and alignment lines (no text or symbols)

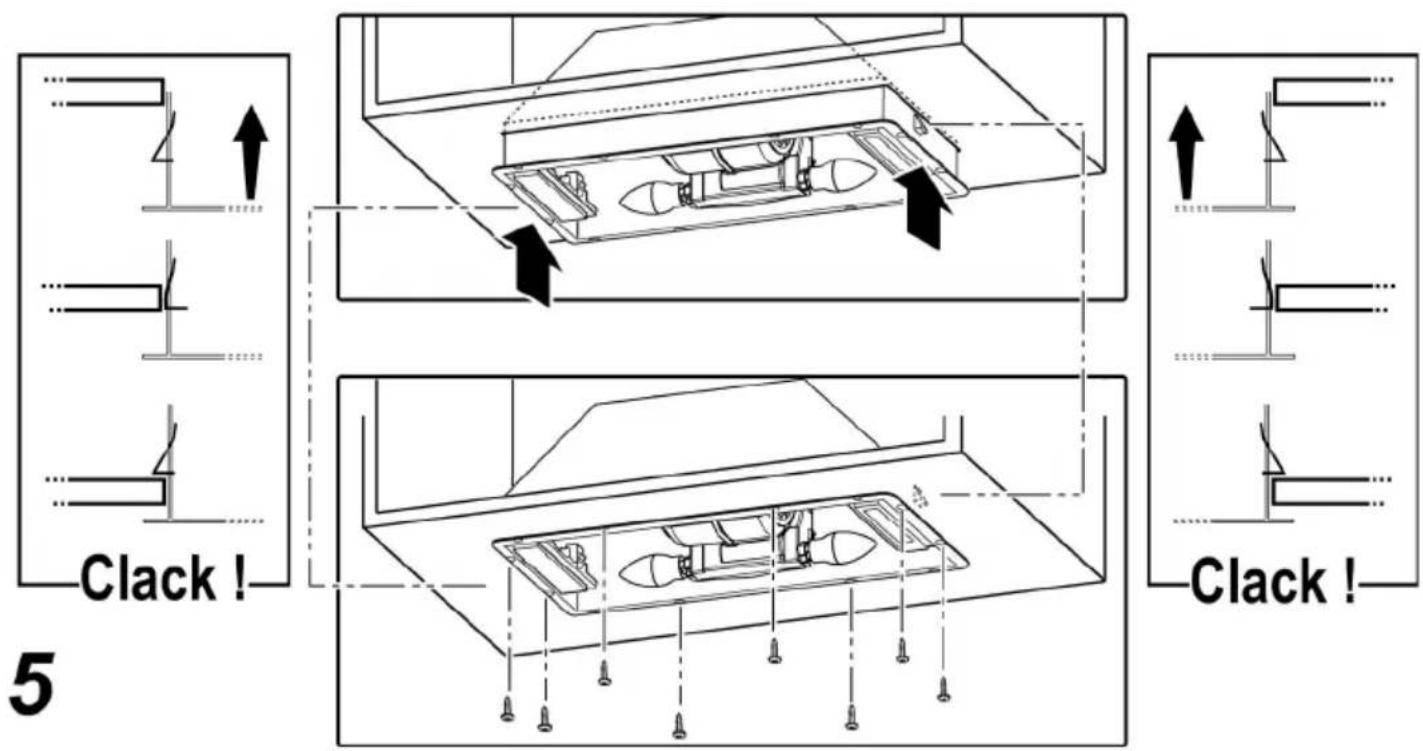

Clack! Clack!

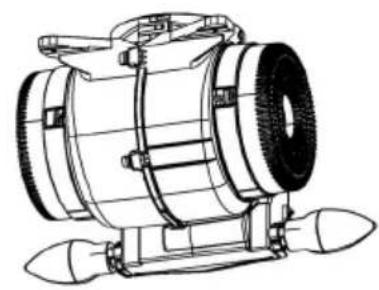

Technical line drawing of a mechanical pump or motor assembly (no text or symbols)

6

Technical line drawing of a device interior showing internal components and a magnified view (no text or symbols)

8

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar application such as: - staff kitchen areas in shop, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

• It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
• Read the instructions carefully: there is important information about installation, use and safety.
• Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
• Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

Note: The parts marked with the symbol “(*)” are optional accessories supplied only with some models or otherwise not supplied, but available for purchase.

Caution

• Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.
  • Always wear work gloves for all installation and maintenance operations.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not be allowed to tamper with the controls or play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

- The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or

other fuels.

• The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).
• This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions provided regarding the cleaning of the hood and filters will lead to the risk of fires.
• Do not flambé under the range hood.
• Do not remove filters during cooking.
• For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

• Do not connect the appliance to the mains until the installation is fully complete.
• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.
• The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.
• Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.
• Never use the hood without effectively mounted grids.
• The hood must NEVER be used as a support surface unless specifically indicated.
• Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.
• Use the correct length for the screws which are identified in the Installation Guide.
• In case of doubt, consult an authorized service assistance center or similar qualified person.

WARNING!

- Failure to install the screws or fixing device in

accordance with these instructions may result in electrical hazards.

- Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.

• This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE).
• By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

• The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.
• For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
  • Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.
• EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

Use

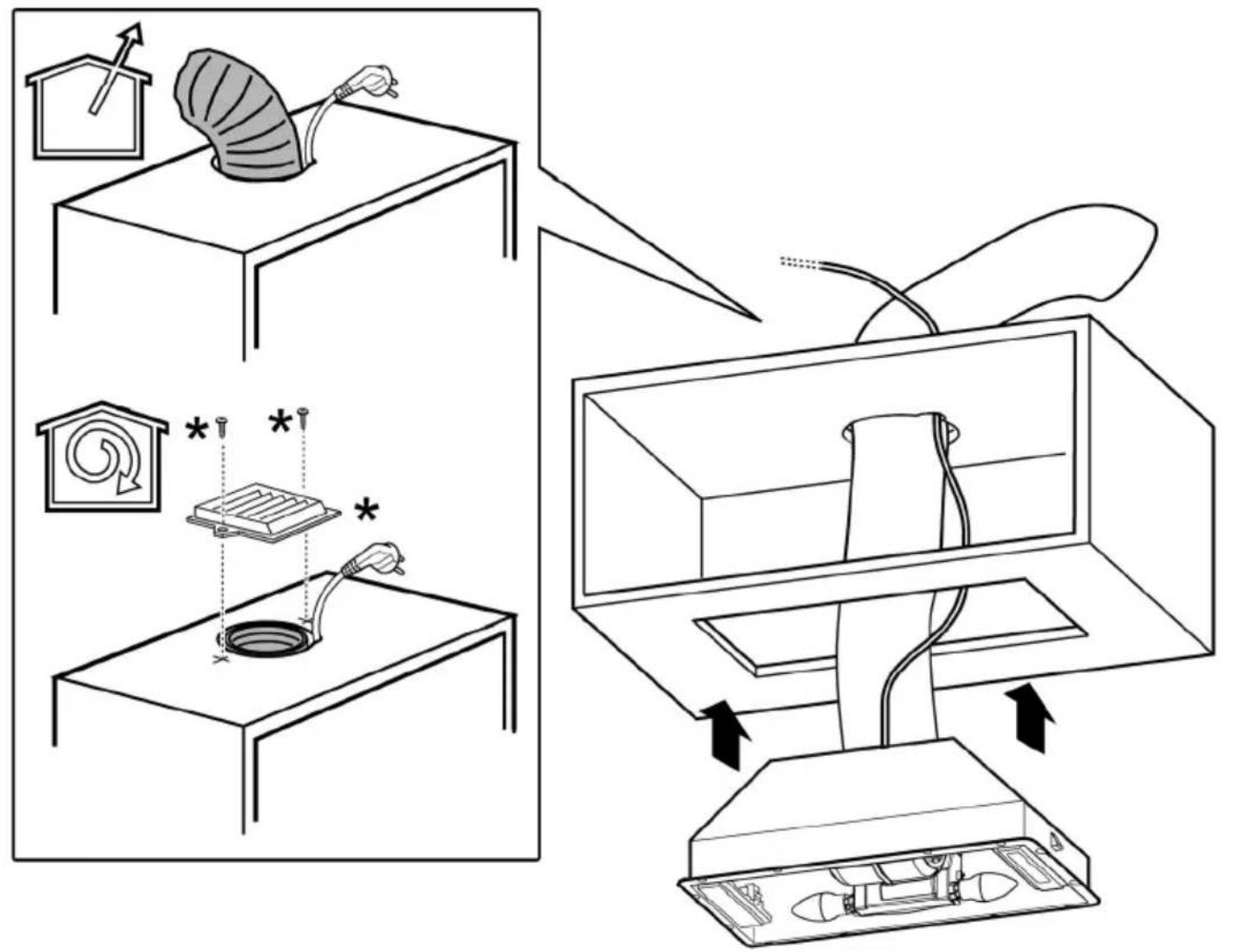

The hood is designed to be used either for exhausting

or filter version

Installation

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

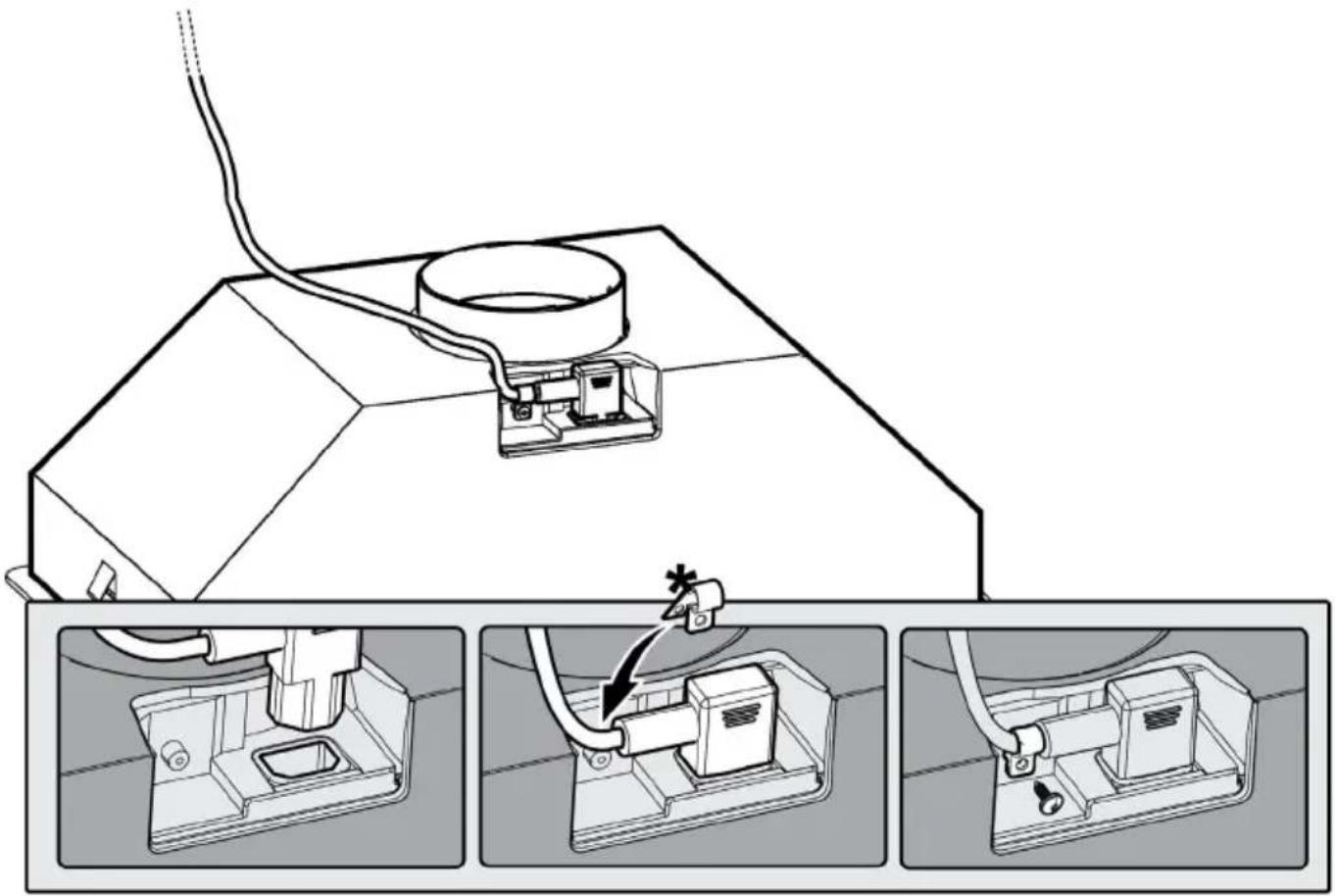

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

WARNING!

Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

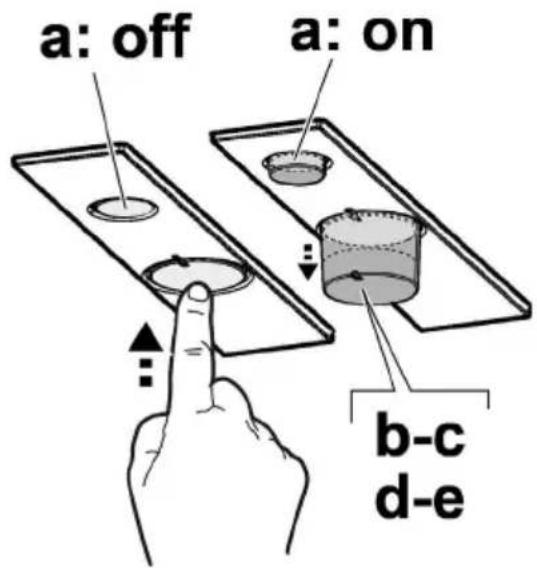

Operation

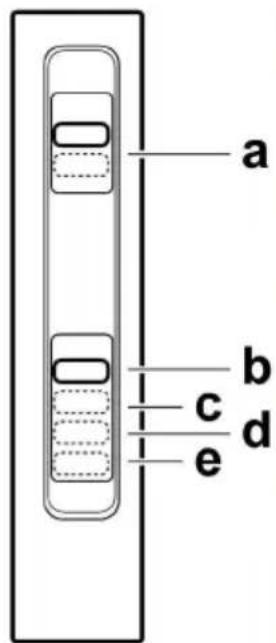

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

a b c d e

On some models ONLY:

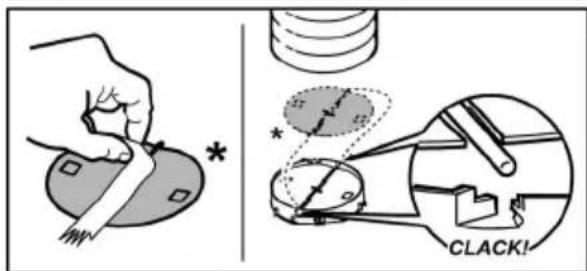

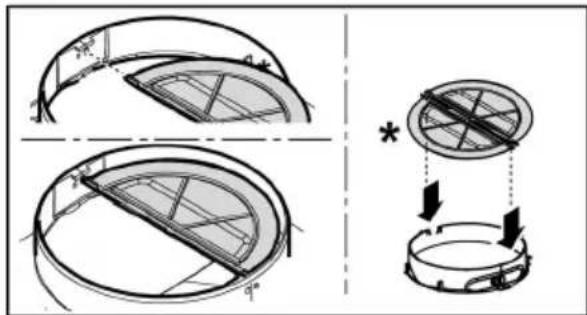

A Non Return Backdraft Damper is included in the supply, as optional accessory to be installed under certain installation conditions (i.e. if there is no protection against accidental backdraft of air from the outside). The damper must be installed inside the dedicated housing, inside of the Air Outlet Fitting, before installing the flue.

Technical diagram illustrating a mechanical assembly with cross-sectional views and component positioning, including dimension annotations.

Diagram illustrating a clamping technique with labeled components and tool path

Maintenance

Clean using ONLY a cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

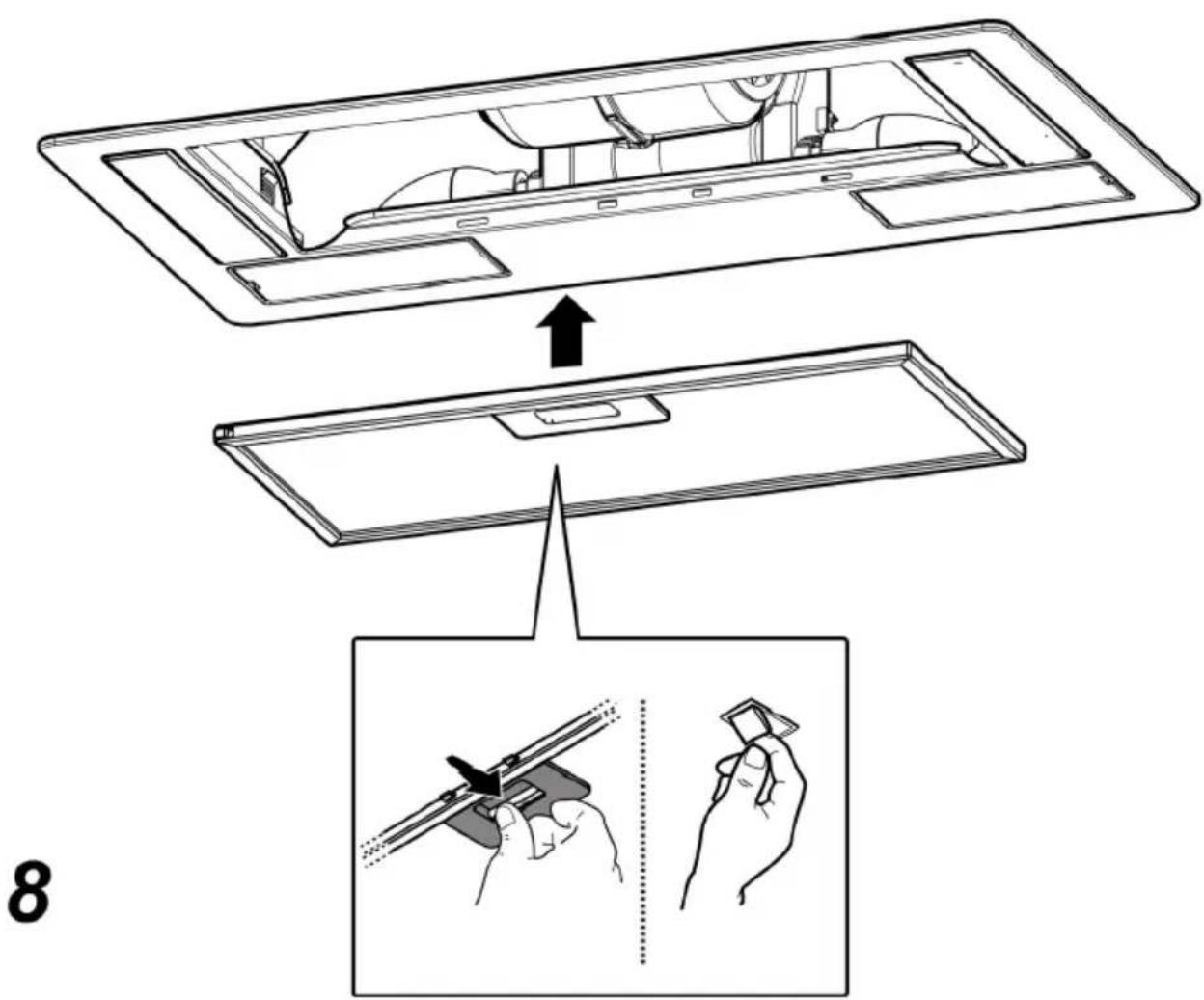

Grease filter

Fig. 1-7

The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolor slightly, but this does not affect its filtering capacity.

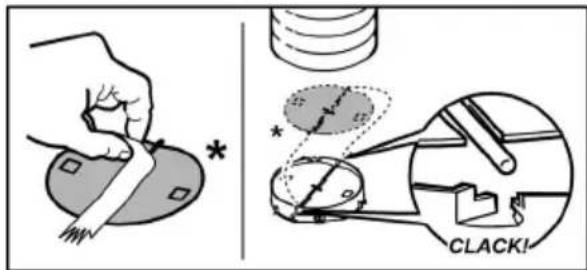

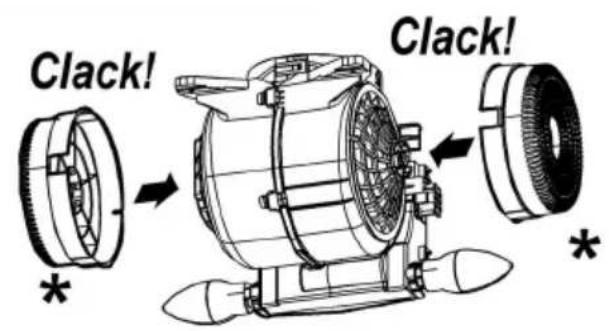

Charcoal filter (filter version only)

Fig. 5

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four months.

The charcoal filter may NOT be washed or regenerated.

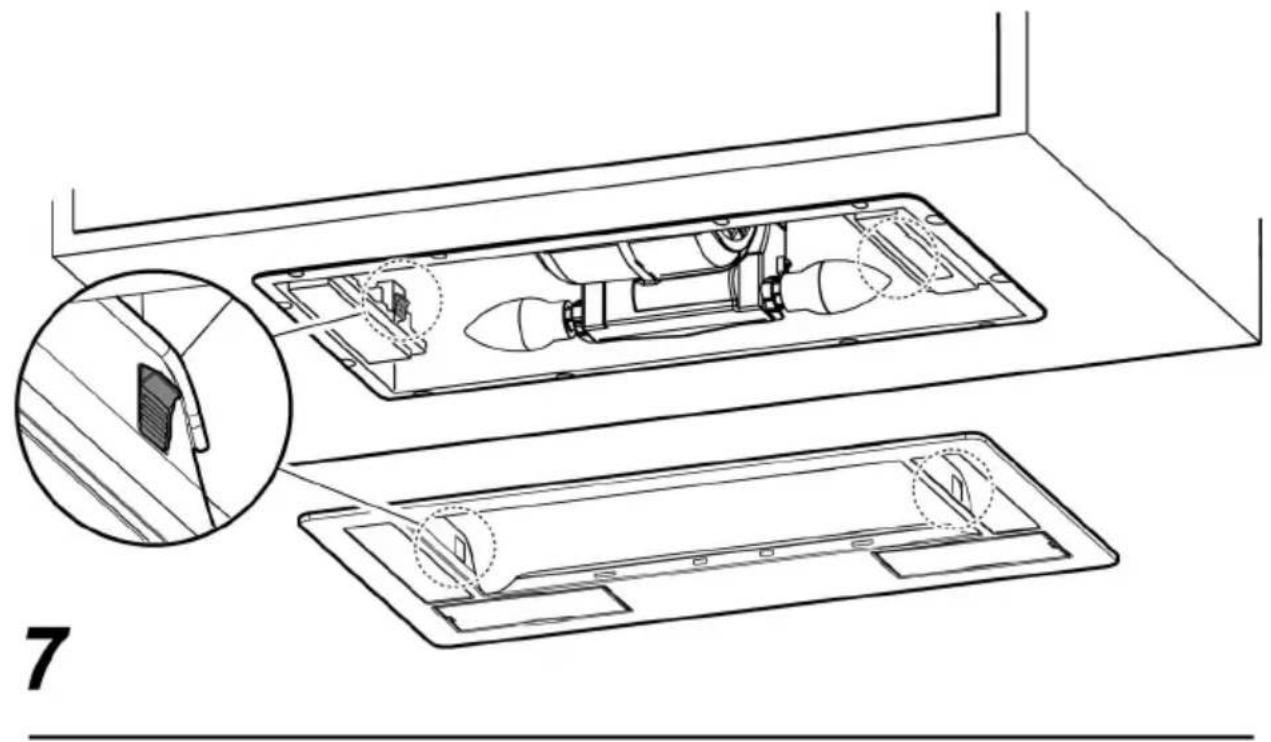

Replacing lamps

Fig.7

Disconnect the appliance from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

Remove the suction gril to access the lamp area.

Replace the damaged lamp.

Use E14 3W max LED lamps only. For more details, check enclosed leaflet "ILCOS D" (alfanumeric position "1d").

If the lights do not work, make sure that the lamps are fitted properly into their housings before you call for technical assistance.

Technical diagram illustrating a mechanical assembly process with labeled steps and annotations

Údržba

Technical diagram illustrating a mechanical assembly with cross-sectional views and component positioning, including a close-up view of the internal structure.

Diagram illustrating a hand using a tool to cut a circular object with a magnified view showing the clamping mechanism.

Údržba
