OP 630 BR - Range hood Mora - Free user manual and instructions

Product Type	Range hood
Brand	Mora
Model	OP 630 BR
Category	Under-cabinet range hood
Width	60 cm
Depth	50 cm
Height (min)	15 cm
Weight	12 kg
Maximum Airflow	650 m³/h
Noise Level (max)	65 dB(A)
Number of Speeds	3
Lighting	LED (2 x 3 W)
Grease Filter	Aluminum, washable
Charcoal Filter (optional)	For recirculation mode, replaceable
Control Type	Electronic push buttons
Energy Class	A+
Annual Energy Consumption	50 kWh
Voltage	220-240 V
Frequency	50/60 Hz
Power Consumption (max)	150 W
Installation Type	Under cabinet or wall-mounted
Duct Outlet Diameter	150 mm (top or back)
Recirculation Possible	Yes, with charcoal filter (not included)
Warranty	2 years

Frequently Asked Questions - OP 630 BR Mora

How do I install the Mora OP 630 BR range hood?

Refer to the user manual for detailed installation steps. Ensure the hood is securely mounted under a cabinet or on the wall, with proper ducting to the outside or set for recirculation. Electrical connections must comply with local regulations. We recommend professional installation.

How often should I clean the grease filters?

Clean the aluminum grease filters every 2-3 months, or more frequently with heavy usage. Remove them and wash in a dishwasher (low temperature cycle) or by hand in hot soapy water. Dry completely before reinstalling.

How do I replace the charcoal filter?

Charcoal filters are used for recirculation mode and must be replaced every 3-6 months. To replace, remove the grease filter, then slide out the old charcoal filter and insert a new one (Mora part #...). Reinstall the grease filter.

Why is my range hood making excessive noise?

Check if the duct is blocked or kinked, and ensure the dampers open freely. Also verify the fan impeller is clean. If noise persists, check for loose parts or contact customer service.

How do I connect the hood to the ductwork?

Use a rigid or flexible duct of the correct diameter (150 mm) and secure it to the duct outlet with clamps. Ensure all connections are airtight with aluminum tape. The duct should be as short and straight as possible to maintain efficiency.

What is the recommended installation height above the hob?

For gas hobs, install the hood 65-75 cm above the cooking surface. For electric hobs, 60-70 cm is recommended. Always follow local safety regulations and the manufacturer’s guidelines.

Can I use the hood in recirculation mode without a charcoal filter?

No, the hood will not filter odors and grease effectively in recirculation mode without a properly installed charcoal filter. Always use a compatible charcoal filter for recirculation.

How do I change the LED lights?

Turn off power to the hood. Pry off the lamp cover using a flat screwdriver. Replace the LED module with a new one (Mora part #...). Reattach the cover and restore power.

Why is the hood not extracting effectively?

Check that the grease filters are clean and the charcoal filter (if used) is not saturated. Ensure the duct is unobstructed and the fan speed is set appropriately. Also verify the dampers are opening.

How do I reset the filter alarm indicator?

Press and hold the speed decrease button for about 3 seconds until the indicator LED turns off. This resets the timer for both grease and charcoal filters. Refer to the manual for specific button sequences.

USER MANUAL OP 630 BR Mora

3D rendering of a laptop case with visible internal grid pattern and mounting points (no text or symbols)

• DIGESTOŘ 8-11
• ODSÁVAČ PARY 12-15
• OKAP KUCHENNY 16-19
• PÁRAELSZÍVÓ 20-23
• COOKER HOOD 24-27

OP 530..., 630...

OP 532..., 632...

OP 531..., 541...

OP 631..., 640...

OP 642...

Illustration of two overlapping gloves, one white and one black, with no text or symbols.

1

Symbol of a person crossed out with a diagonal line (no text or numbers present)

Two identical black-and-white human silhouettes of standing individuals (no text or symbols)

Pure mechanical diagram showing a piston-cranked mechanism without any text, numbers, or symbols

Mechanical assembly diagram showing a clamping mechanism with arrows indicating motion (no text or labels)

2

Isometric line drawing of a kitchen appliance assembly with a stove and a door, no text or symbols present

11

12

Technical line drawing of a mechanical assembly with a circular component and directional arrows (no text or symbols)

Technical diagram of a mechanical component with a red arrow indicating direction, showing internal structure and assembly (no text or symbols)

Architectural line drawing of a curved building facade with structural elements and a house icon, no text or symbols present.

Diagram showing a red arrow pointing upward through a circular structure with geometric lines, labeled '23' at bottom left (no text or symbols on diagram itself)

Diagram of a server rack with circular components and red directional arrows indicating flow or movement (no text or symbols)

Diagram of a folding or folding device with multiple compartments and directional arrows indicating movement (no text or symbols)

Mechanical assembly diagram showing two views of a mechanical component with no visible text or symbols

Diagram of a vehicle on a track with red arrows indicating motion direction, no text or symbols present

Diagram of a vehicle's track with red directional arrows indicating motion, no text or symbols present

Technical diagram of a mechanical assembly with two red-circled views showing structural components (no text or symbols)

Line drawing of a door frame with two compartments and directional arrows indicating movement (no text or symbols)

35

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The hood is conceived for the suction of cooking fumes and steam and is destined only for domestic use.

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
! Read the instructions carefully: there is important information about installation, use and safety.
! Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
! Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

Note: the elements marked with the symbol “(*)” are optional accessories supplied only with some models or elements to purchase, not supplied.

CAUTION

WARNING!

• Do not connect the appliance to the mains until the installation is fully complete.
• Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.
  • Always wear work gloves for all installation and maintenance operations.
• The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety.
• This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance.

• This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance.

• Never use the hood without effectively mounted grating!

• The hood must NEVER be used as a support surface unless specifically indicated.
• The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

- The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels.

- The flaming of foods beneath the hood itself is severely prohibited.

- The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

- Any frying must be done with care in order to make sure that the oil does not overheat and ignite. Accessible parts of the hood may become hot when used with cooking appliance.

- With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

- The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

- This must be completed in accordance with the maintenance instructions provided in this manual). Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires.

- Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

- We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the non-observance of the instructions included in this manual.

- This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
• Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; ISO 3741; EN 50564; IEC 62301.
- EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3.

Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapour and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odour reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

Additional Installation Specifications:

Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type. Use the correct length for the screws which are identified in the Installation Guide.

In case of doubt, consult an authorised service assistance centre or similar qualified person.

WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

USE

The hood is designed to be used either for ex-hausting or filter version.

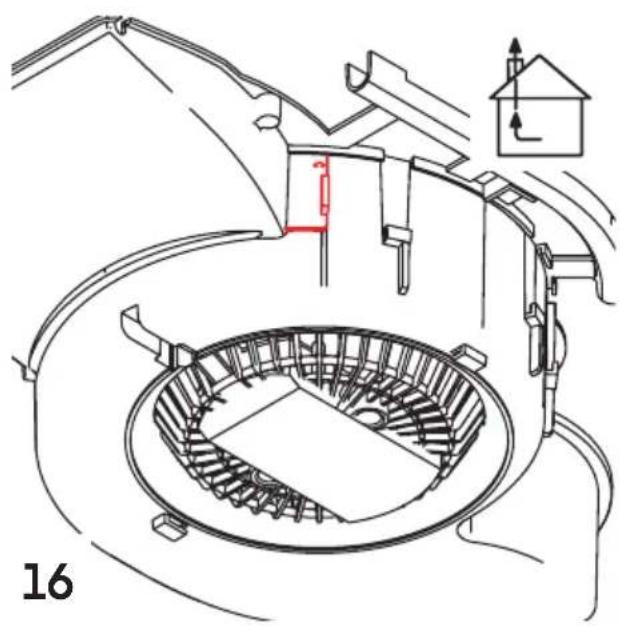

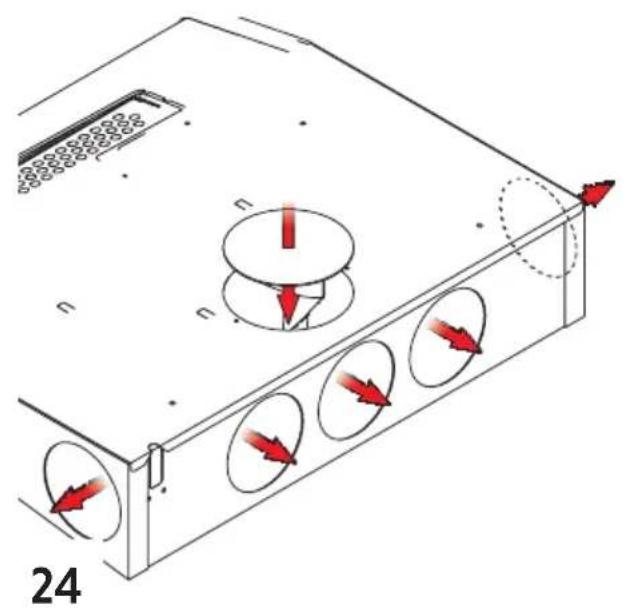

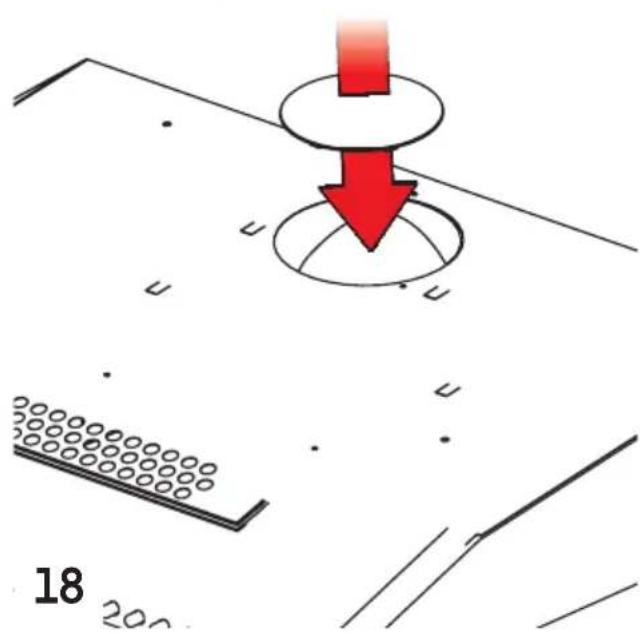

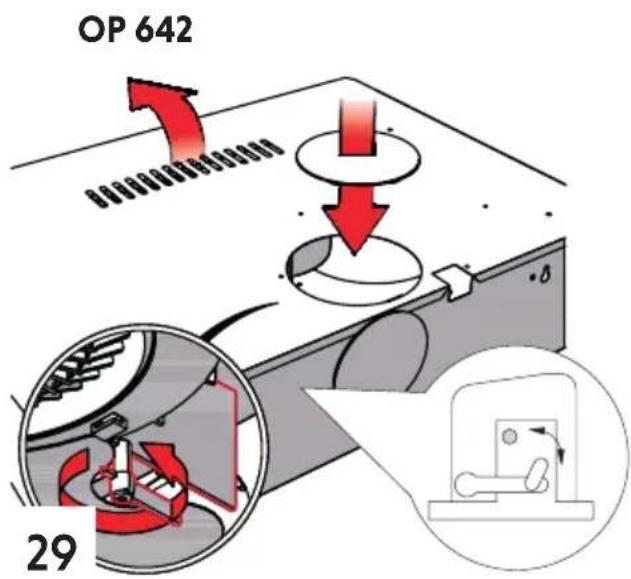

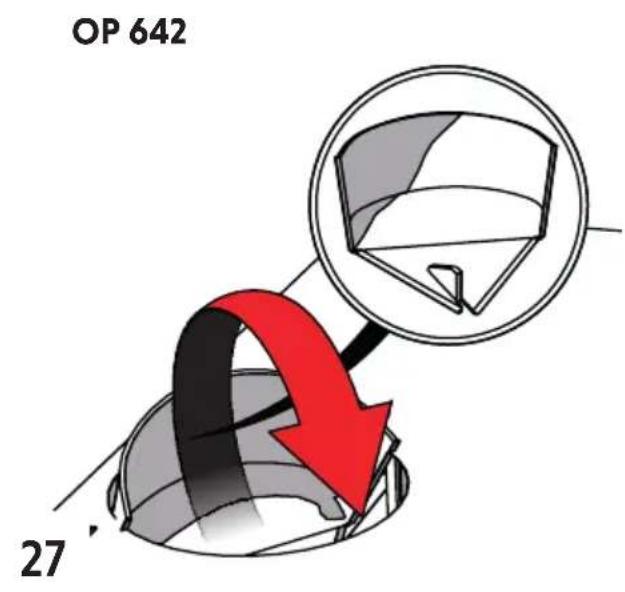

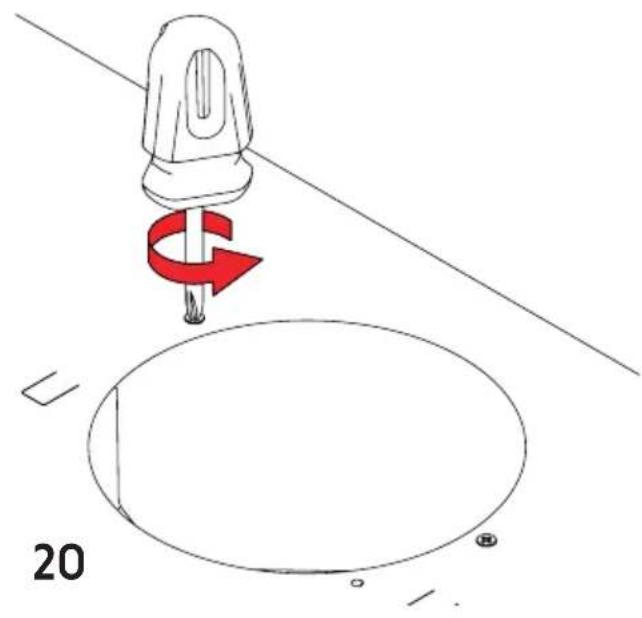

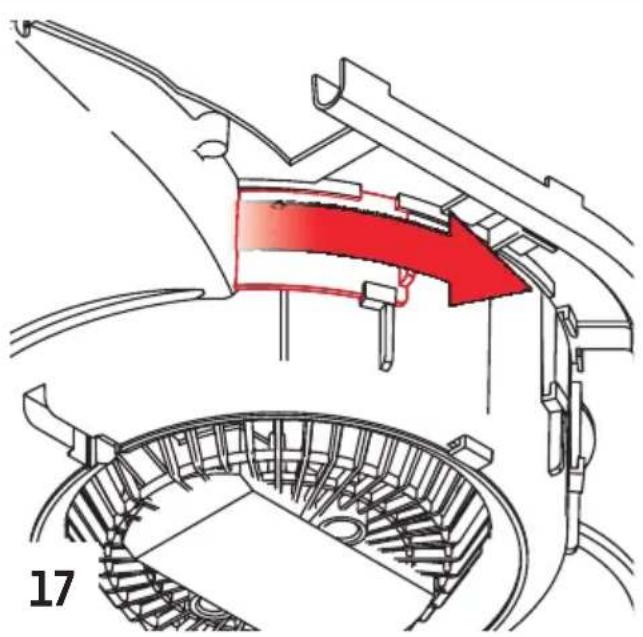

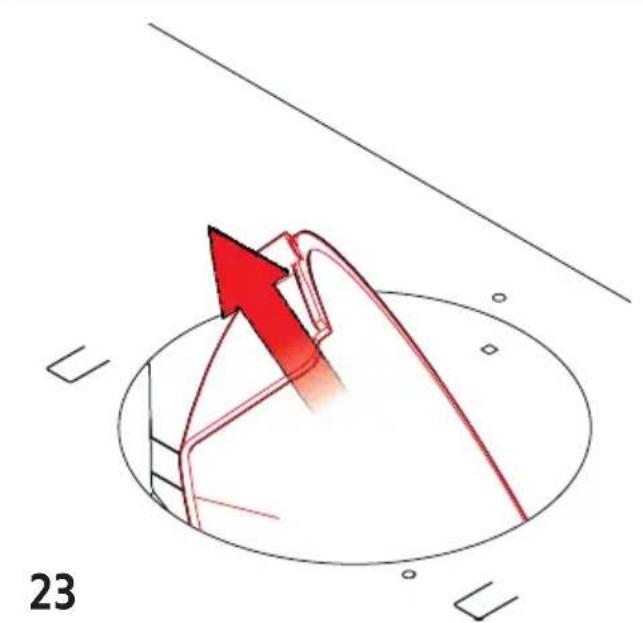

DUCTING VERSION

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

Attention! The exhausting pipe is not supplied and must be purchased apart. Diameter of the exhausting pipe must be equal to that of the connection ring.

In the horizontal runs the exhausting pipe must be slightly slanted (about 10^ ) and directed upwards to vent the air easily from the room to the outside. Attention! If the hood is supplied with active charcoal filter, then it must be removed.

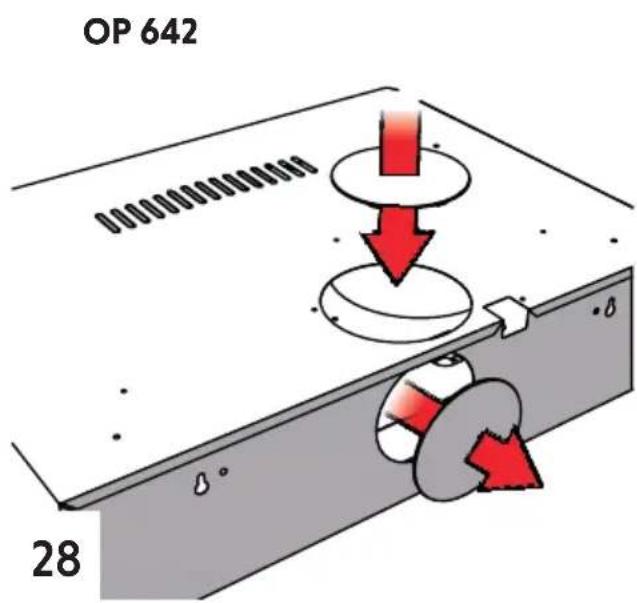

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

! Use a duct of the minimum indispensable length.
! Use a duct with as few elbows as possible (maximum elbow angle: 90°).

! Avoid drastic changes in the duct cross-section.

! Use a duct as smooth as possible inside.

! The duct must be made of certified material.

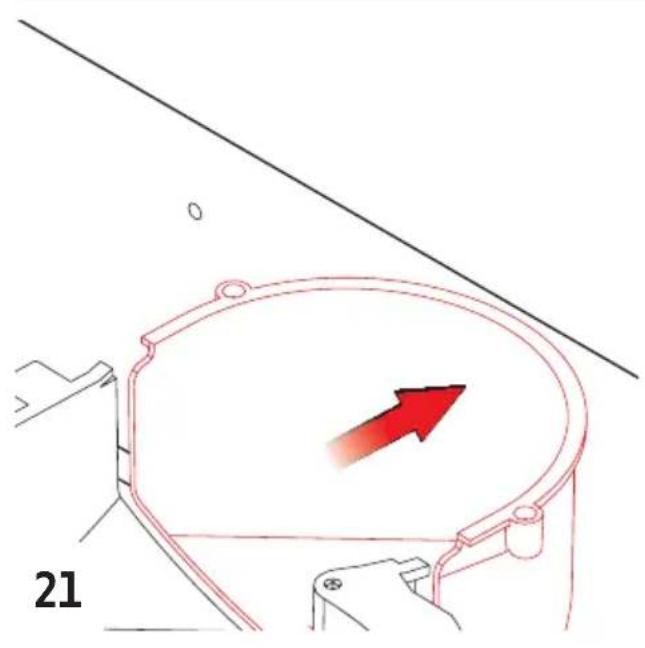

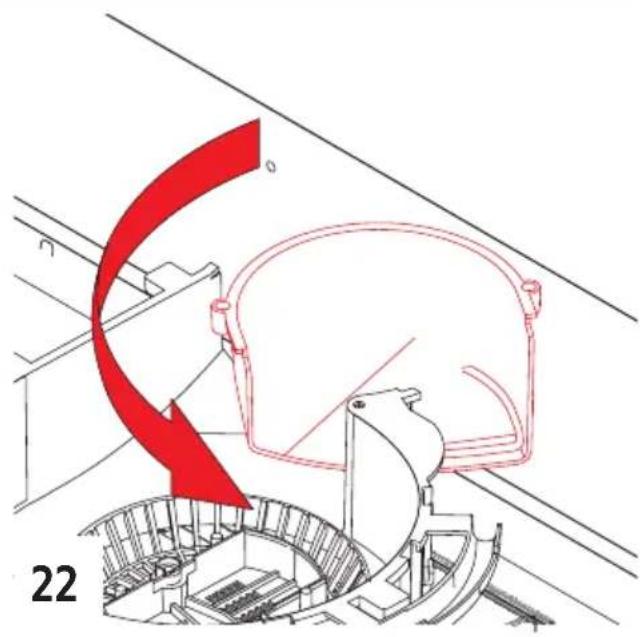

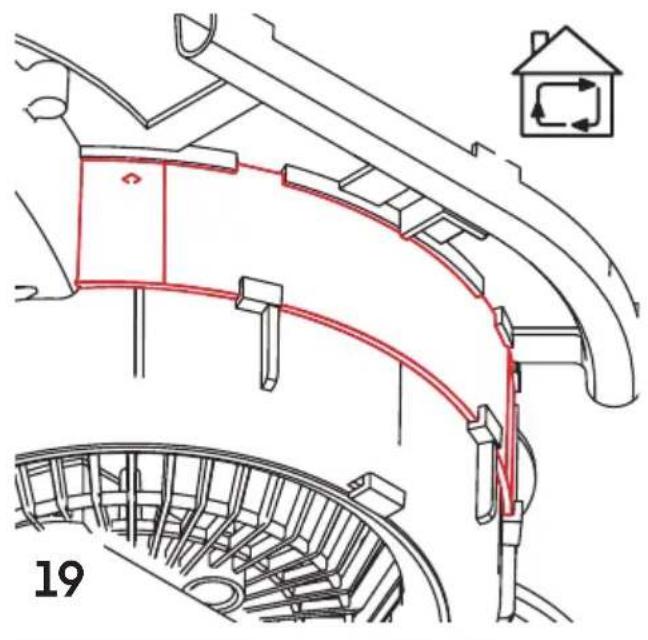

FILTER VERSION

One active charcoal filter is needed for this and can be obtained from your usual retailer.

The filter removes the grease and smells from the extracted air before sending it back into the room through the upper outlet grid.

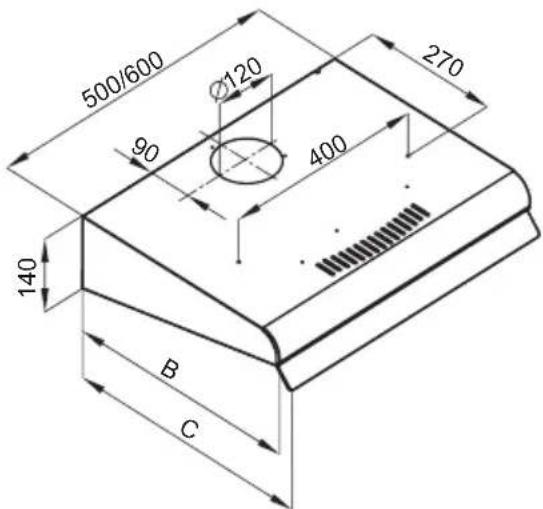

INSTALLATION

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50 cm from electric cookers and 65 cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

ELECTRICAL CONNECTION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The hood is provided with a special power cable; if the cable is damaged, request a new one from Technical Service.

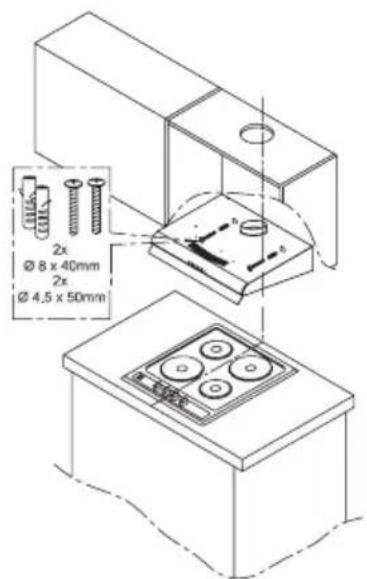

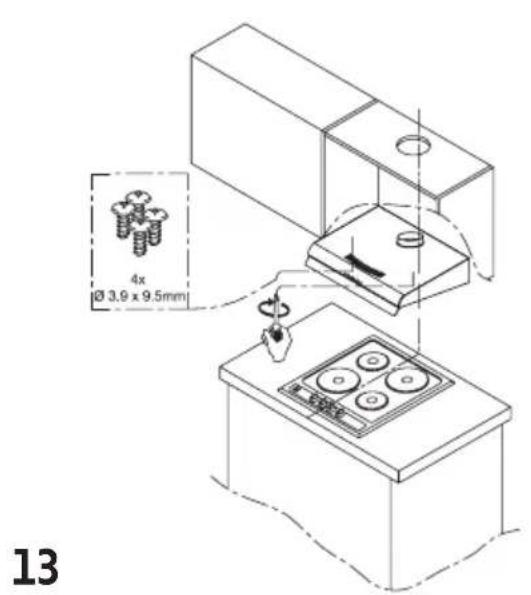

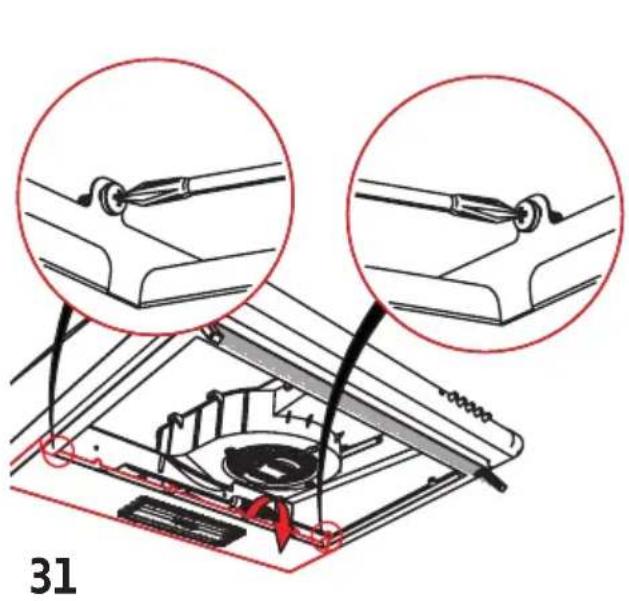

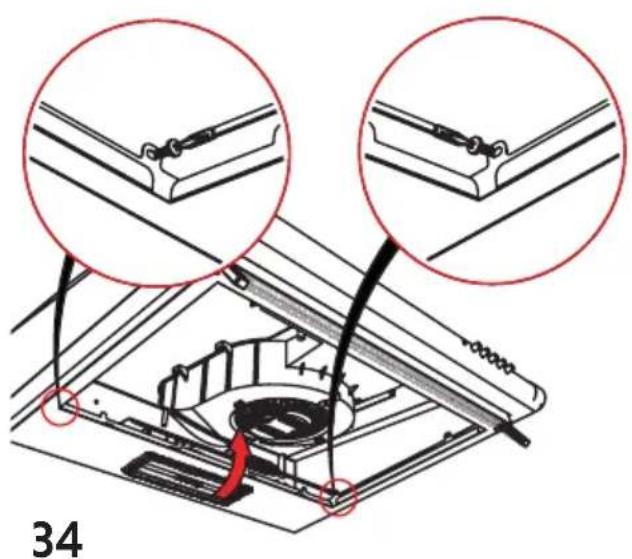

MOUNTING

Very heavy product; hood handling and installation must be carried out by at least two persons. Before beginning installation:

• Check that the product purchased is of a suitable size for the chosen installation area.
• Remove the charcoal (*) filter/s if supplied (see also relative paragraph). This/these is/are to be mounted only if you want lo use the hood in the filtering version.

- Check (for transport reasons) that there is no other supplied material inside the hood (e.g. packets with screws (*), guarantees (*), etc.), eventually removing them and keeping them.

- If possible, disconnect and move freestanding or slide-in range from cabinet opening to provide easier access to rear wall/ceiling. Otherwise put a thick, protective covering over countertop, cooktop or range to protect from damage and debris. Select a flat surface for assembling the unit. Cover that surface with a protective covering and place all canopy hood parts and hardware in it.

- In addition check whether near the installation area of the hood (in the area accessible also with the hood mounted) an electric socket is available and it is possible to connect a fumes discharge device to the outside (only suction version).

- Carry out all the masonry work necessary (e.g. installation of an electric socket and/or a hole for the passage of the discharge tube).

Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile, grout or silicone this appliance to the wall. Surface mounting only.

OPERATION

Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

1. ON/OFF motor

Speed 1:

Speed 2:

Speed 3:

2. ON / OFF light

1. OFF motor

Pressing the button during functioning, the hood turns OFF.

2. ON motor

Pressing the button the hood passes from the OFF state to speed 1.

Pressing the button (hood in ON state) the motor speed is increased from speed 1 to intensive.

Speed 1:

Speed 2:

Speed 3:

3. ON / OFF light

MAINTENANCE

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse.

Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.

CLEANING

The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

WARNING: Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend observing these instructions. The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

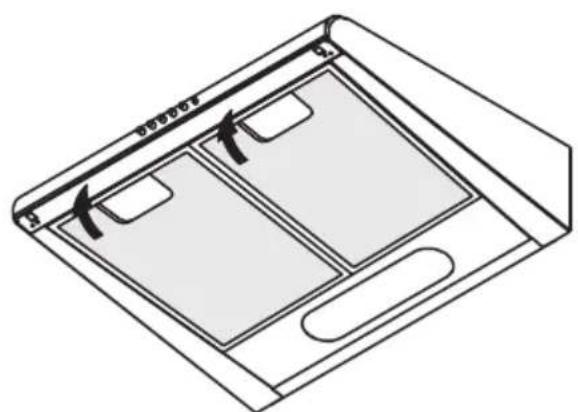

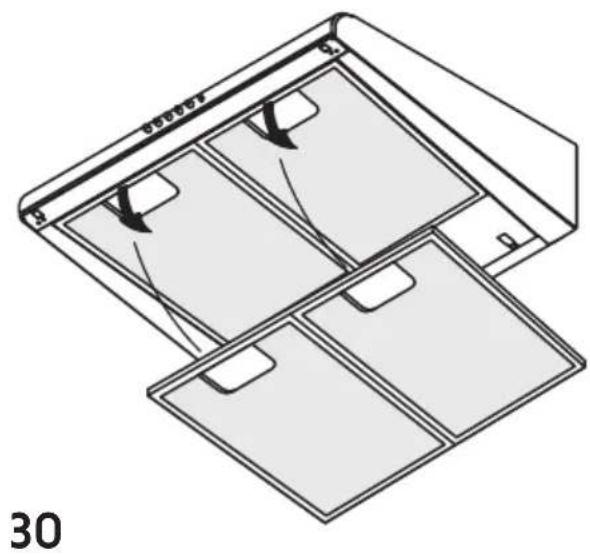

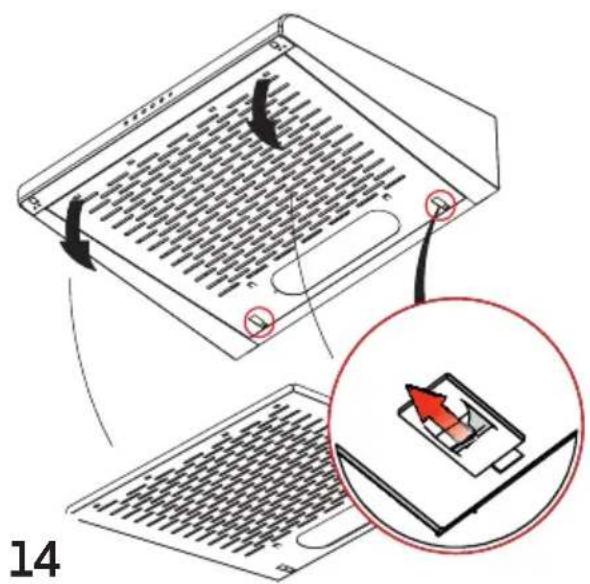

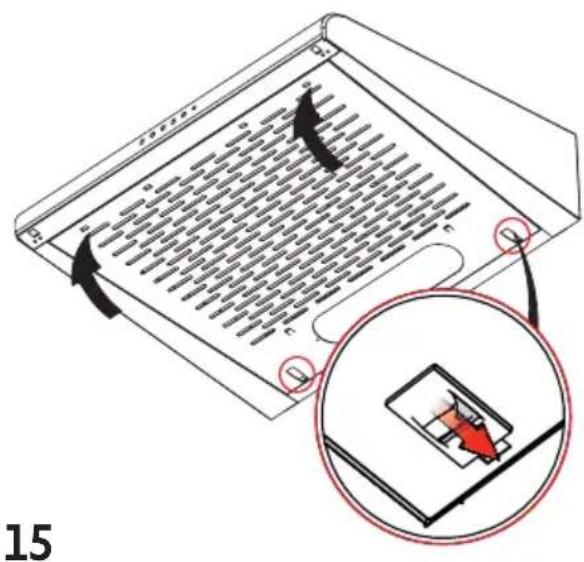

GREASE FILTER

Traps cooking grease particles. The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity. To remove the grease filter, press it and pull it down.

CHARCOAL FILTER

(filter version only)

It absorbs unpleasant odours caused by cooking. The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter. In any case it is necessary to replace the cartridge at least every four months. The charcoal filter may NOT be washed or regenerated.

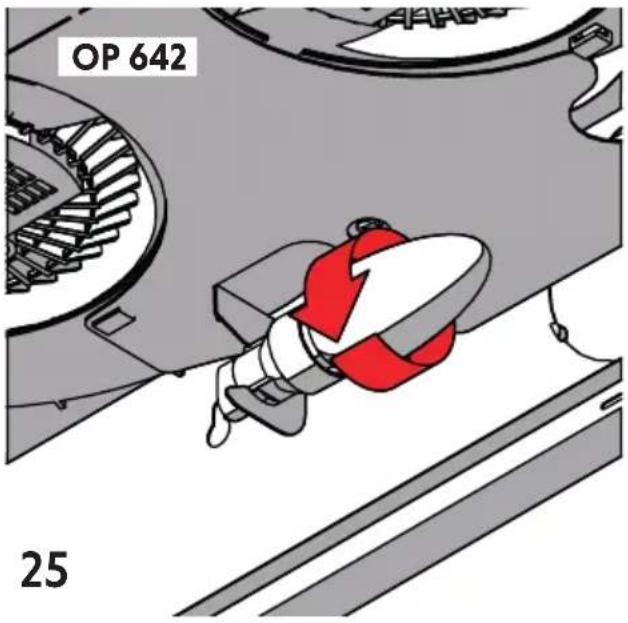

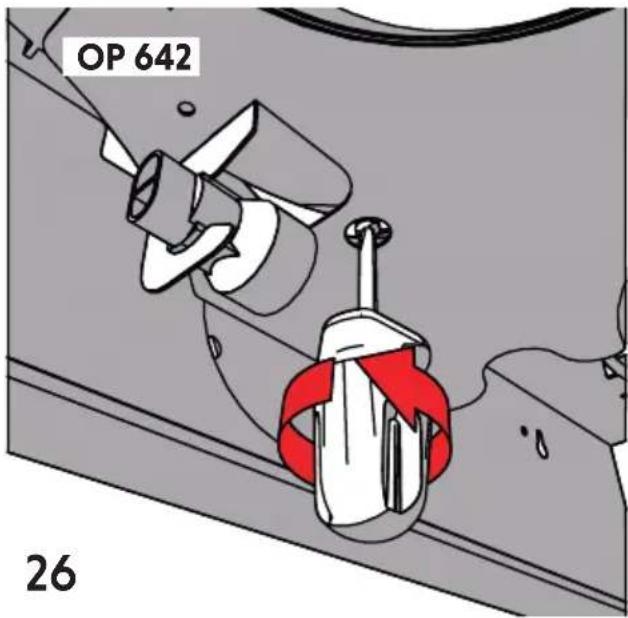

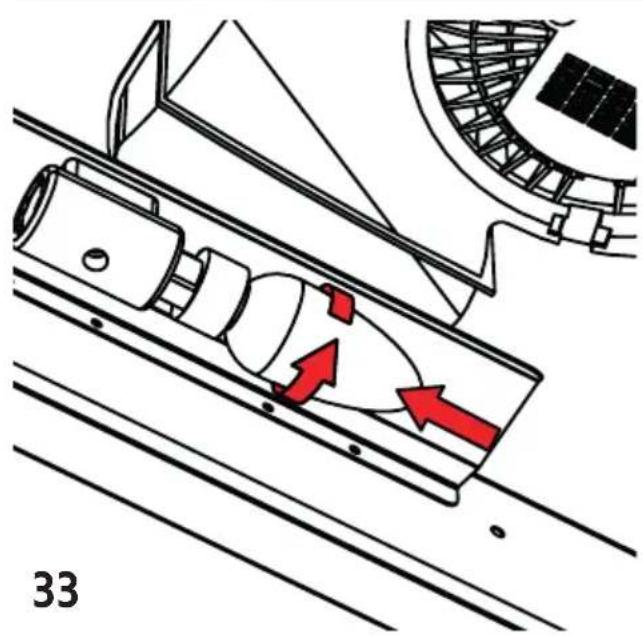

REPLACING LAMPS

Disconnect the hood from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

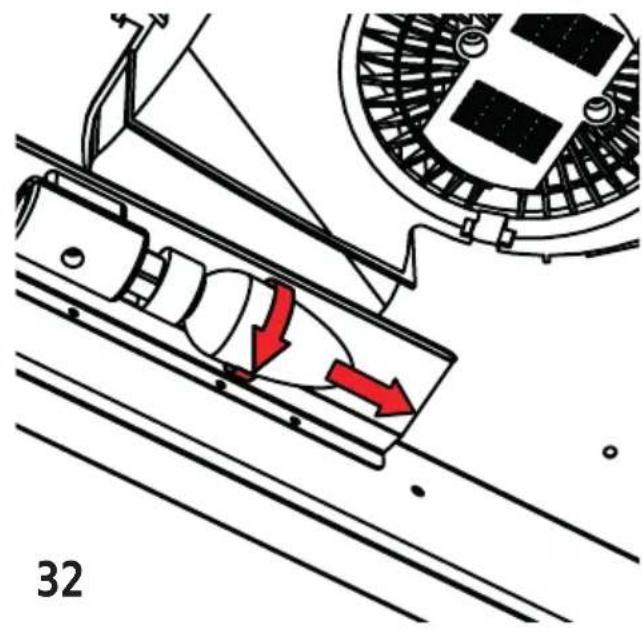

1. Using a flat head screwdriver, carefully loose the light cover.
2. Remove the damaged light and replace with a new 230 Volt, 4 Watt (Maximum) halogen light. Follow package directions and do not touch new light with bare hands.
3. Reinstall the light cover.

If the lights do not work, make sure that the lamps are fitted properly into their housings before you call for technical assistance.
