Product Type	Wine Cooler / Wine Cabinet
Model	ETA 9529 90010 (28-bottle variant: ETA952990010)
Bottle Capacity	28 standard wine bottles (max)
Dimensions (W x H x D)	43.0 cm x 84.0 cm x 45.0 cm
Weight	22.5 kg
Power Supply	220–240 V ~ 50 Hz, 85 W
Energy Consumption	0.518 kWh/24h (189 kWh/year)
Energy Class	B
Temperature Range	5 °C to 18 °C (adjustable by 1° increments)
Climatic Class	N (ambient +16°C to +32°C)
Noise Level	42 dB(A)
Refrigerant	R600a (isobutane, flammable)
Door Type	Tempered glass door with magnetic seal
Interior Light	LED (auto-off after 10 minutes)
Shelves	Adjustable wire shelves
Control Panel	Digital display with °C/°F toggle, lock function (automatic after 20s)
Installation	Free-standing only; 5 cm side clearance, 10 cm rear clearance
Cleaning	Use mild detergent or baking soda solution; do not use harsh chemicals
Defrosting	Manual defrost (unplug, remove frost with plastic scraper)
Safety	Child lock on panel; keep ventilation clear; do not damage refrigerant circuit
Spare Parts	Contact authorized service center; use only genuine parts
Warranty / Repair	Refer to service manual; do not attempt repairs yourself
Disposal	Do not discard with household waste; recycle per local regulations

Frequently Asked Questions - 9529 90010 Eta

How do I set the temperature on my Eta wine cooler?

Unlock the control panel by pressing the up and down buttons simultaneously for 2 seconds. Then use the up or down button to adjust the temperature in increments of 1 °C or 1 °F. The display shows the current internal temperature.

What is the recommended temperature for different wine types?

Red wine: 14 °C – 18 °C; Dry/White wine: 9 °C – 14 °C; Rosé/Sparkling wine: 5 °C – 8 °C.

Why is my wine cooler not cooling enough?

Check that the appliance has at least 5 cm side clearance and 10 cm rear clearance. Ensure the door is not opened too frequently or left open. Avoid placing hot items inside. Verify the ambient temperature is between 16°C and 32°C.

How do I clean the wine cooler?

Unplug the unit. Use a soft cloth with mild detergent or a baking soda solution (3 tablespoons per liter of water) for the interior. For the glass door, use glass cleaner. Rinse and dry thoroughly. Do not use abrasive cleaners.

What should I do if frost builds up inside the cooler?

Frost can form if the ambient temperature is too low or humidity is high. Unplug the appliance, remove all bottles, and let the frost melt naturally. Dry the interior and restart. Avoid opening the door frequently.

Is it normal for the wine cooler to make noise?

Yes, sounds from the compressor and refrigerant circulation are normal. If unusual noises occur, check that the cooler is level, not wobbling, and that no objects are vibrating inside.

Can I install the wine cooler built-in or inside a cabinet?

No, this appliance is designed for free-standing use only. It requires 5 cm clearance on sides and 10 cm at the back for adequate ventilation. Do not cover the front with a door.

How do I replace the interior light?

The interior light is an LED type. Its replacement requires a qualified technician. Do not attempt to replace it yourself to avoid electric shock.

Can I store food in the wine cooler?

The cooler is designed exclusively for wine storage. If you store food, ensure it is packaged and allow airflow. Do not store hot or spicy foods, as odors can transfer.

How do I save energy with my wine cooler?

Avoid opening the door too often or for long periods. Ensure proper ventilation around the unit. Set the temperature to an appropriate level (e.g., 12–14°C for serving). Remove drawers if you need more space, but maintain good airflow.

USER MANUAL 9529 90010 Eta

Line drawing of a stainless steel oven with internal rack and ventilation system (no text or symbols)

Line drawing of a multi-level refrigerator with wavy internal panels and top-mounted door (no text or symbols)

CZ I. VŠEOBECNÉ BEZPEČNOSTNÍ POKYNY 3

II. SPECIÁLNÍ BEZPEČNOSTNÍ POKYNY PRO TENTO PŘÍSTROJ 7

III. POPIS SPOTŘEBIČE 9

IV. POKYNY K POUŽITÍ 9

V. ČIŠTĚNÍ A ÚDRŽBA 10

VI. ODSTRAŇOVÁNÍ PORUCH 11

VII. TECHNICKÁ SPECIFIKACE 12

VIII. INFORMAČNÍ LIST 12

SK I. BEZPEČNOSTNÉ POKYNY 14

II. ŠPECIÁLNE BEZPEČNOSTNÉ POKYNY PRE TENTO PRÍSTROJ 18

III. POPIS SPOTREBIČA 20

IV. POKYNY NA POUŽITIE 20

V. ČISTENIE A ÚDRŽBA 21

VI. ODSTRAŇOVANIE PORÚCH 22

VII. TECHNICKÁ SPECIFIKÁCIE 23

VIII. INFORMAČNÍ LIST 23

GB I. GENERAL SAFETY INSTRUCTIONS

II. SPECIAL SAFETY INSTRUCTIONS FOR THIS UNIT 29

III. DESCRIPTION OF THE APPLIANCE 31

IV. INSTRUCTIONS FOR USE 31

V. CLEANING AND MAINTENANCE 32

VI. TROUBLESHOOTING 33

VII. TECHNICAL SPECIFICATIONS 34

VIII. INFORMATION SHEET 34

Pure graphical icons including gear, sun, and checkmark on dark background (no text or symbols)

Pure graphical icons including gear, sun, and checkmark on dark background (no text or symbols)

• In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.
• For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
  • Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

WARNING!

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

!

WARNING!

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

!

WARNING!

Do not damage the refrigerant circuit.

!

!

WARNING!

Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacture.

WARNING!

Do not touch the light bulb if it has been on for a long period of time because it could be very hot. ^1)

!

WARNING!

When positioning the appliance, ensure the supply cord is not trapped or damaged.

!

WARNING!

Do not locate multiple portable socket-outlets or portable power suppliers at the rear of the appliance.

!

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

• During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

• avoid open flames and sources of ignition

• thoroughly ventilate the room in which the appliance is situated

• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.
  • This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

!

WARNING!

Any electrical components(plug, power cord, compressor and etc.) must be replaced by a certified service agent or qualified service personnel.

!

WARNING!

The light bulb supplied with this appliance is a “special use lamp bulb” usable only with the appliance supplied. This “special use lamp” is not usable for domestic lighting. ^1)

1) If there is a light in the compartment.
2) If there is a freezer compartment.
3) If there is a fresh-food storage compartment.

• Power cord must not be lengthened.
- Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
• Make sure that you can come to the mains plug of the appliance.
- Do not pull the mains cable.
- If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
- You must not operate the appliance without the lamp. ^1)
• This appliance is heavy. Care should be taken when moving it.
- Do not remove nor touch items from the freezer compartment if you hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
- Avoid prolonged exposure of the appliance to direct sunlight.

Daily use

• Do not put hot on the plastic parts in the appliance.
• Do not place food products directly against the rear wall.
• Frozen food must not be re-frozen once it has been thawed out. 2)
• Store pre-packed frozen food in accordance with the frozen food, manufacture s instructions. 2)
• Appliance's manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance. ^2)
• Ice lollies can cause frost burns if consumed straight from the appliance. ^2)

To avoid contamination of food, please respect following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces, that can come into contact with food and accessible drainage systems.
• Clean water tanks, if they have not been used for 48 h, flush the water system connected to a water supply, if water has not been drawn for 5 days (if they are presented in the appliance).
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments (if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
  • One-, two- and three-star compartments (if they are presented in the
• Appliance) are not suitable for freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper. ^2)
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in te bottom of the appliance. ^3)

Installation

IMPORTANT!

For electrical connection carefully follow the instructions given in specific paragraphs.

• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, con-denser) to prevent possible burn.
  • The appliance must not be located close to radiators or cookers.
  • Make sure that the mains plug is accessible after the installation of the appliance.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

Energysaving

• Don't put hot food in the appliance;
• Don't pack food close together as this prevents air circulating;
• Make sure food don't touch the back of the compartment(s):
• If electricity goes off, don't open the door(s);
• Don't open the door(s) frequently:
• Don't keep the door(s) open for too long time;
• Don't set the thermostat on exceeding cold temperatures;
• Some accessories, such as drawers, can be removed to get larger storage volume and lower energy consumption.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger. The materials used on this appliance marked by the symbol are recyclable.

1) If there is a light in the compartment.
2) If there is a freezer compartment.
3) If there is a fresh-food storage compartment.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate

waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging materials

- The materials with the symbol are recyclable. Dispose the packaging in a suitable collection containers to recycle it.

Disposal of the appliance

1) Disconnect the mains plug from the mains socket.

2) Cut off the mains cable and discard it.

WARNING! During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color. It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor. Please be far away fire source during using, service and disposal.

II. SPECIAL SAFETY INSTRUCTIONS FOR THIS UNIT

- Ensure the cooler is unplugged before cleaning or if the cooler is not in use.

- It is not recommended to use this wine cooler with an extension cord or power board. Please ensure that the appliance is plugged directly into the electrical outlet.

- When positioning the wine cooler, ensure that there is at least a 5cm clearance at the sides and a 10 cm clearance at the back of the cooler as this is the main outlet for heat. This will allow for adequate ventilation.

- This cooler is designed to store wine bottles, however, if placing food inside, ensure that there is sufficient airflow between items. Only packet food can be put inside.

- Do not place hot food or drink into the wine cooler before it cools down to room temperature.

- Close the cooler door immediately after putting in any items so the inside temperature will not rise dramatically.

- Keep appliance away from any heat source or direct sunlight.

- To fix stably, the appliance must be placed on a flat and solid surface. It should not be laid on any soft material.

- Do not place any other appliance on top of the wine cooler.

- The Wine Cooler is an electrical appliance. To avoid injury or death from electrical shock do not operate the Wine Cooler with wet hands, while standing on a wet surface or while standing in water.

- Do not use outdoors or in wet conditions.

- When positioned or if moving the appliance ensure that it is not declined less than 45^ or turned upside down.

- Never lift or carry the Wine Cooler by the cord.

- Keep the cord away from heated surfaces.

- This appliance is intended to be used exclusively for the storage of wine.

- The range of storage temperature is from 5 °C to 18 °C, but the test condition for energy consumption is equal to 15 °C or higher at the ambient temperature 25 °C.

- This appliance is designed to be free standing only, and should not be recessed or built-in.

- This appliance is NOT designed to be installed inside of a cabinet where the front iscovered by any type of door.

Tips for Energy Savings

- Try not to open the door too often, especially when the weather is wet and hot. Once you open the door, close it as soon as possible.

- Every now and then check if the appliance is sufficiently ventilated (adequate air circulation around the appliance).

IMPORTANT

DANGER: Risk of child entrapment. Before you throw away your old refrigerator:

• Take off the door.

- Leave the shelves in place so that children may not easily climb inside.

- The appliance must be correctly connected to the power supply. (See: HOW TO INSTALL).

- Do not touch the cooled surfaces while the appliance operates, especially not with wet hands, because the skin may stick to the cold surfaces.

- Do not place power plug, microwave oven or other home appliance on the top of the refrigerator.

- Do not place refrigerator under the direct sun light, high temperature and high humidity.

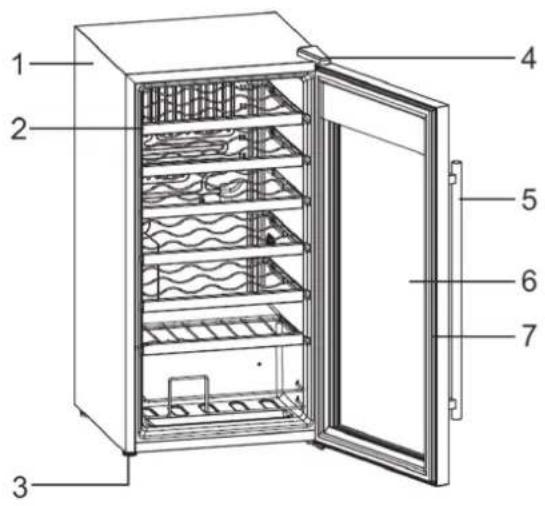

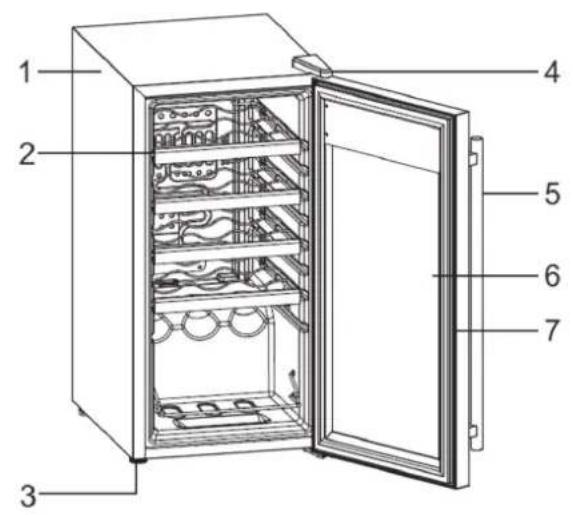

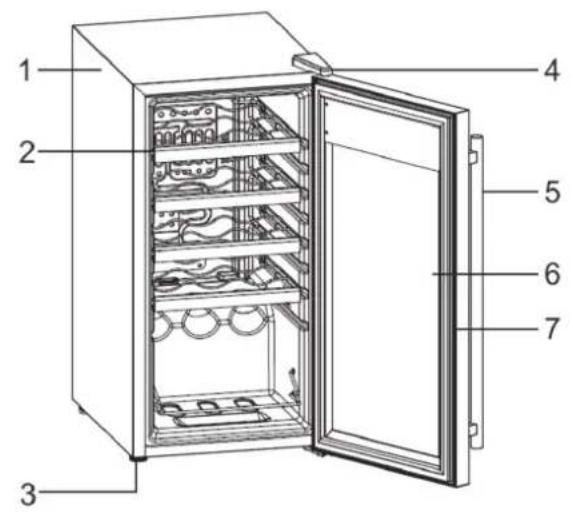

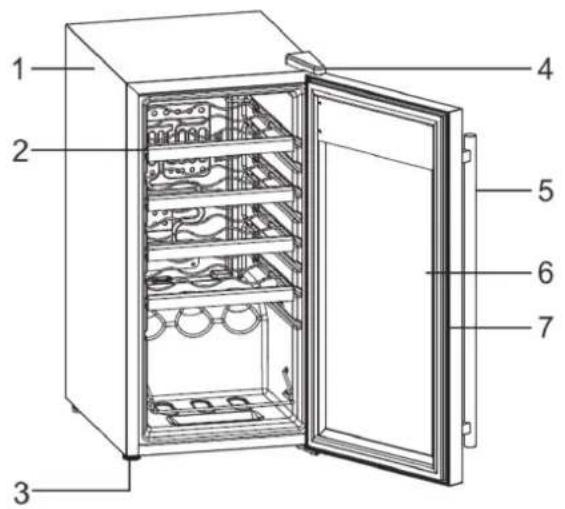

III. DESCRIPTION OF THE APPLIANCE

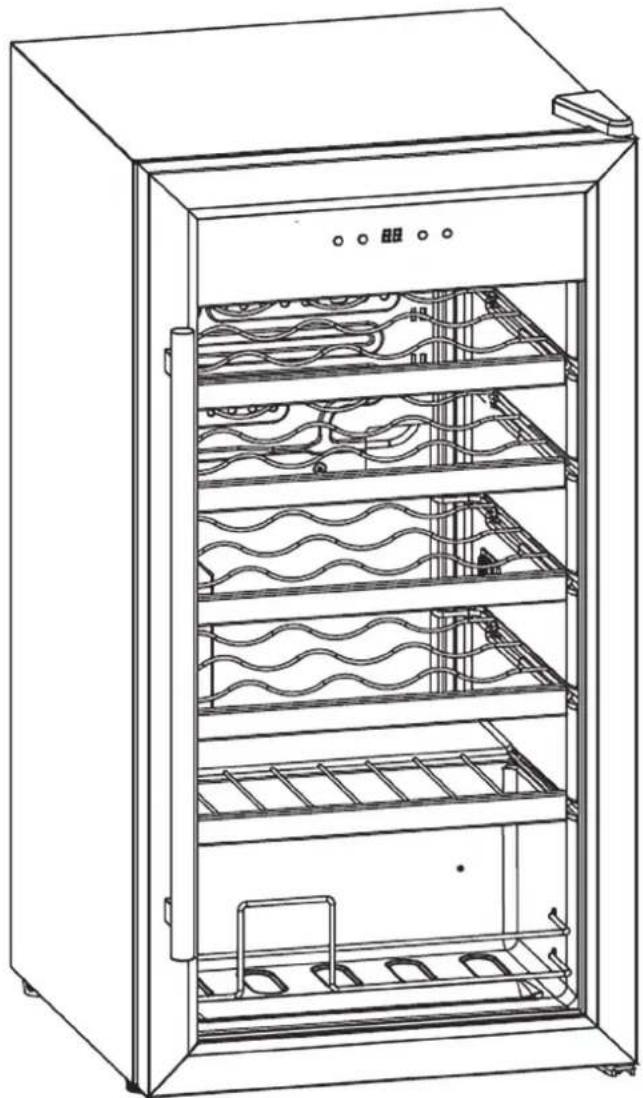

1. Cabinet
2. Shelf
3. Leveling legs
4. Upper Door Hinge w/ Cover
5. Handle
6. Glass Door
7. Gasket

IV. INSTRUCTIONS FOR USE

• Clean the appliance, and be thorough, especially in the interior (See HOW TO CLEAN).
• In case the interior accessories are not correctly placed, rearrange them as described in chapter DESCRIPTION OF THE APPLIANCE.

HOW TO INSTALL

• Install refrigerator in a convenient location away from extreme heat and cold. Allow sufficient clearance between the refrigerator and side wall so the door will open without obstruction. Refrigerator is not designed for recessed installation.
• Select a space with strong level floor.
• Allow 2 inches (5cm) of space between the refrigerators side & wall and 4 inches (10cm) between back & the wall.

Setting The Temperature Control

Pure graphical icons including gear, sun, and checkmark on dark background (no text or symbols)

Your wine cooler has been equipped with an „automatic“ control panel lock, that will activate 20 seconds after the last time a button has been touched.

Push button simultaneously for 2 seconds to unlock the control panel. You will hear a "BEEP" sound to after you that the control is now active.

You can select temperature display setting from Fahrenheit to Celsius degree by pushing button

for 2 second. The degrees will appear in blue color in the temperatura display window.

You can set the temperature as you desire by pushing button. The temperature that you desire to set will increase 1 °F or 1 °C if you push the button once.

You can set the temperature as you desire by pushing button. The temperature tha you desire to set will decrease 1 °F or 1 °C if you push the button once.

Interior Light

Press the button to turn ON or OFF the interior light.

NOTE: The light will turn off automatically if it remains ON for 10 minutes.

NOTE: If you turn on the wine-cooler for the first time (or after a long period of non-use), the display temperature will differ from the set temperature until the inside of the wine cellar and the stored bottles are cooled to the desired temperature (the display during cooling shows the actual temperature inside the wine-cooler, which may oscillate due to the ambient temperature, the frequency of opening the door or the amount of bottles inserted).

RECOMMENDED TEMPERATURE

Red Wine 14 °C - 18 °C
Dry / White Wine 9 °C - 14 °C
Rose / Sparkling Wine 5 °C - 8 °C

V. CLEANING AND MAINTENANCE

Remove the plug from the socket before cleaning.

To clean the cooler use only mild detergents or glass cleaning products.

Never use harsh detergents or solvents.

Exterior:

Wipe with damp, sudsy cloth, rinse and dry. For stubborn stains and for periodic waxing, use silicon wax.

Refrigeration Section:

Wash shelves and other removable parts in warm sudsy water, rinse and dry. Wash interior with baking soda solution (3 tablespoons to 1 liter of water) or warm sudsy water, rinse and dry.

Magnetic Door Seals:

Wash with warm sudsy water.

The Finishing Touch:

Replace all parts and return thermostat dial to desired setting.

WHAT TO DO...

When the refrigerator is not in use for a prolonged period of time:

• Remove the power plug from the power supply.
• Remove all contents from the refrigerator.
• Dry the Interior and leave the door open for a few days.

When you wish to move the refrigerator:

• Secure all movable parts and contents. (Package them separately if necessary.)
• Transport the refrigerator only in an upright position.

If the refrigerator seems too warm inside:

• Check that the door has not been opened too frequently or for a long period.
• Check that the interior circulation is not obstructed by having too many goods stored. (The refrigerator is overloaded)
  • Did you store anything hot, without first cooling it to room temperature?
  • Is there sufficient clearance around all sides and above the refrigerator?

If the refrigerator starts making any unusual noises:

• Is it wobbling? Re-level it and check if it now operates normally.
- Have any objects fallen behind the refrigerator? If so, remove them and check if operation is now normal.
- Are any containers inside the refrigerator vibrating or resonating? If so, rearrange them then check to see if operation has returned to normal.

Replace the lamp:

- The internal light is a LED type. To replace the lamp, please contact qualified technician.

VI. TROUBLESHOOTING

Symptoms Possible cause	Solutions
The wine cooler does not work.	There is a power failure.	Ensure the cooler is plugged in and the power socket is turned on.
	A house fuse has blown.	Replace the broken fuse in your meter box.
Wine cooler is not reaching the desired temperature.	The cooler is placed too close to a heat sources.	Keep the cooler away from sunshine or other heat source.
	No sufficient ventilation.	Place the wine cooler in good ventilation.
	The door is opened too frequently or for a long period of time.	Close the door tightly and do not open the door too frequently or for a long period of time.
Frost forming in the wine cooler.	Too much humidity.The ambient temperature is too low.	Unplug to defrost, plug again after the frost thaws.

IMPORTANT!

There are some sounds during normal use (compressor, refrigerant circulation). These sounds are not a reason for complaint!

VII. TECHNICAL SPECIFICATIONS

Model no. ETA952890010 E	TA952990010
Bottles capacity 15 28
Rated voltage 220–240 V 220–240 V
Rated frequency 50 Hz 50 Hz
Temperature range (°C) 5 °C - 18 °C 5 °C - 18 °C
Power consumption 85W 85W
Energy consumption (kWh / 24 h)	0.37 0.518
Dimension (cm) - WxHxV	34.5x45.0x68.5	43.0x45.0x84.0
Weight (kg)	18,5	22,5

Note: Test condition for energy consumption is equal to 15 °C or higher at the ambient temperature 25 °C .

VIII. INFORMATION SHEET

Brand	ETA	ETA
Model	ETA952890010	ETA952990010
Type of appliance3)	2	2
Energy class (A - low consumption, G - high consumption)	A	B
Consumption for 365 days1)	135	189
Net capacity total (l)	44	74
The lowest sustainable storage temperature (°C)	5	5
Climatic class2)	N	N
Noise level (dB(A))	42	42
This appliance is designed exclusively for the storage wine

1)

Consumption of energy in kWh/year, based on the results of the 24hrs-standard test. Real consumption depends on the way of use and on the allocation of the appliance. 2)

SN : surround. temp. from + 10°C to + 32°C

N : surround. temp. from + 16°C to + 32°C

ST : surround. temp. from + 16°C to + 38°C

T : surround. temp. from + 16°C to + 43°C

2 = winecooler

3 = fridge with low-temp. compartments

4 = fridge with low-temp. compartments (*)

5 = fridge with low-temp. compartments (**)

7 = fridge with low-temp. compartments ( ^** )

8 = freezer

9 = freezer

This refrigerator must be used in ambient temperature between +16 °C and +32 °C, if the refrigerator is located in ambient temperature out of the given range, may not function properly).

We reserve the right to change technical specifications.

WARNING: Do not use this product near water, in wet areas to avoid fire or injury of electric current. Always turn off the product when you don't use it or before a revision. There aren't any parts in this appliance which are reparable by consumer. Always appeal to a qualified authorized service. The product is under a dangerous tension.

Old electrical appliances, used batteries and accumulators disposal

This symbol appearing on the product, on the product accessories or on the product packing means that the product must not be disposed as household waste. When the product/ battery durability is over, please, deliver the product or battery (if it is enclosed) to the respective collection point, where the electrical appliances or batteries will be recycled. The places, where the used electrical appliances are collected, exist in the European Union and in other European countries as well. By proper disposal of the product you can prevent possible negative impact on environment and human health, which might otherwise occur as a consequence of improper manipulation with the product or battery/ accumulator. Recycling of materials contributes to protection of natural resources. Therefore, please, do not throw the old electrical appliances and batteries/ accumulators in the household waste. Information, where it is possible to leave the old electrical appliances for free, is provided at your local authority, at the store where you have bought the product. Information, where you can leave the batteries and accumulators for free, is provided to you at the store, at your local authority.

WARNINGS AND SYMBOLS USED ON THE APPLIANCE, PACKAGING OR IN THE INSTRUCTIONS MANUAL:

HOUSEHOLD USE ONLY; DO NOT IMMERSE IN WATER OR OTHER LIQUIDS;

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BED

Borhűtő

Pure graphical icons including gear, sun, and checkmark on dark background (no text or symbols)

Pure graphical icons including gear, sun, and checkmark on dark background (no text or symbols)
