USER MANUAL SB1 JAYBIRD

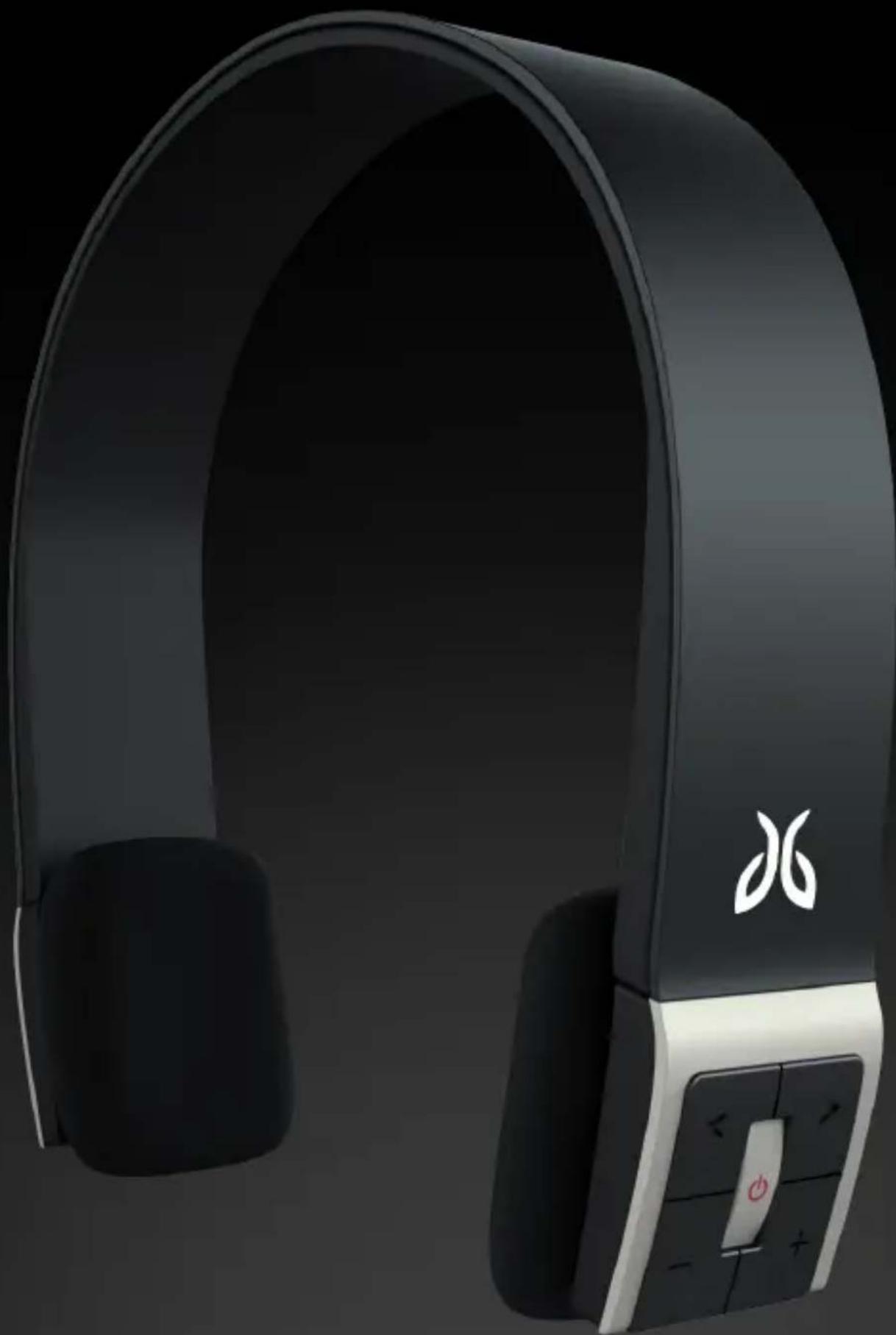

Sportsband Bluetooth headphones

Black and white photo of a modern black and white headband with earphones and control buttons (no visible text or symbols)

Sportsband Bluetooth headphones

Charging the headphones

Charging the battery before use is recommended but not required. The headphones ship pre-charged however initial charge will vary. Low battery is indicated by the status indicator blinking red with an audible tone every 20 seconds.

Charging the battery with USB cable

Connect charging cable with the charging port of headphones below the control panel of the right earpiece. Connect cable to the USB slot of any PC or Mac. The status indicator will be red while charging and will turn off when fully charged.

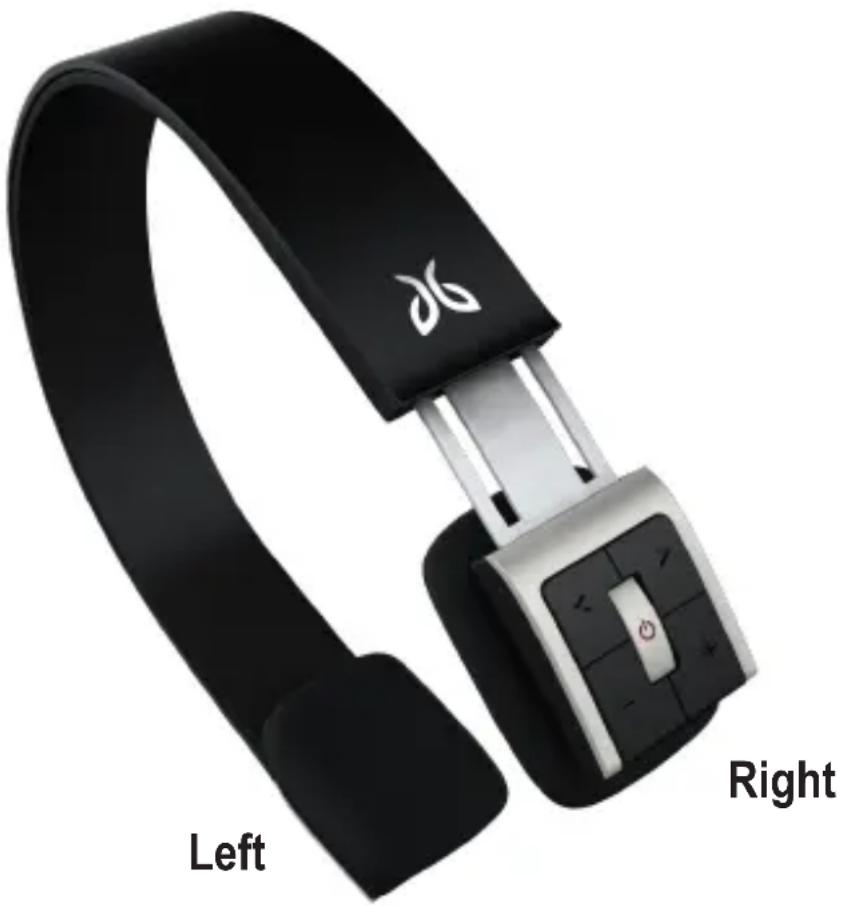

Wearing the headphones

Right: Controls Left: No controls

Black headband with white logo and 'Left' and 'Right' labels, showing a black strap and control buttons (no text or symbols on the device itself)

Sportsband Bluetooth headphones

Pair Mode

Pure electrical circuit symbol for a battery, no text or labels present

Two interlocked rings, one blue and one red, on a light blue background (no text or symbols)

Begin with SB1 powered off.

Push and hold multi-function button for 6 seconds until status light alternates red and blue. You are now in pair mode. See your phone/music device manual for pair instructions.

Power On/Off

Diagram with a blue rectangular block and directional arrows, possibly indicating movement or flow in a grid layout.

Simple electrical switch symbols (red and blue circles) on a light blue background, no text or labels present.

Need more words for pairing?

See next page if simple just isn't simple. Skip it if you've got it down.

Sportsband Bluetooth headphones

Pair Mode (step by step)

1. Keep the headset and mobile phone in the range of 1 meter when pairing.
2. Put the headphones into pairing mode by pushing the multi-function (center) button for 5-7 seconds.
3. Start the Bluetooth function of mobile phone and search the Bluetooth devices. After searched, select "SB1" in the Bluetooth device list.
4. Enter password or PIN No:"0000" on your mobile phone when prompted.
5. If required, after successful pairing, select "SB1" in the Bluetooth device list and press "connect".
6. After successful connecting, the blue light blinks twice every 4 seconds.

Note

• If the pairing is not successful, switch off headphones by pushing the multi-function (center) button for 3 seconds, and then re-pair according to the steps outlined above.
• After pairing is successful, paired devices will remember each other. Unless pairing information is deleted, so there is no need to pair again.
• The headphones will connect with the latest paired device. If you want to pair with other Bluetooth devices, switch off the Bluetooth function of the current Bluetooth device, and then pair and connect it with the new Bluetooth device according to steps outlined above.

Pairing with a Bluetooth Adapter for iPhone or iPod

1. Keep the Bluetooth adapter and headphones within 1 meter of each other when pairing.
2. Put the headphones into pair mode as outlined above.
3. Plug the Bluetooth adapter into the iPhone or iPod and play a song.
4. The headphones and adapter will pair automatically (passcode of adapter must be 0000)
5. After successful pairing and connecting, the blue (or red) light of headset blinks twice every 4 seconds.

Sportsband Bluetooth headphones

Pairing with several Bluetooth devices

The headphones can connect with two devices at most. A mobile phone with HFP profile; and a device with A2DP profiles. If you want to pair two Bluetooth devices, please refer to the following steps.

1. Firstly, pair the headphones with the Bluetooth adapter
2. Disconnect the Bluetooth adapter from the iPhone or iPod
3. Pair and connect the headphones with the mobile phone
4. Reconnect the Bluetooth adapter, it will connect with headphones automatically.

Note

Mobile phones that support HSP and A2DP profiles simultaneously may block the Bluetooth adapter from reconnecting to the headphones.

Sportsband Bluetooth headphones

Pure electrical circuit symbol for a battery, no text or labels present

Simple icon of a phone call with double arrow and signal symbol (no text or numbers)

Play

Pause

Answer Call

Abstract geometric diagram with blue and white blocks and a central arrow, no text or symbols present

Simple blue speaker icon with plus sign, no text or symbols present

Increase Volume

Abstract geometric diagram with blue and white blocks, no text or symbols present

Simple blue icon with speaker symbol and minus sign on light blue background (no text or symbols)

Decrease Volume

Abstract diagram with blue and white blocks and a vertical bar, no text or symbols present

Two blue left-pointing triangles on a light blue background (no text or symbols)

Previous Track

(iPhone does not support this feature)

< - +

Two blue right-pointing triangles on a light blue background (no text or symbols)

Next Track

(iPhone does not support this feature)

Diagram showing a blue rectangular object with directional arrows and symbols below and above, possibly indicating movement or polarity.

x --- 2

Reject Incoming Call

Voice Dial

(Use Voice dail with iPhone for next and previous track)

Making a call with the headphones (detailed operation)

Function	Status of headset	Operation	Indication
Voice dial	Standby mode	Press and hold the MFB for 2s, release the key till you hear indication sound	A short tone “DU”
Redial last number	Standby mode	press the MFB twice	A short tone “DU”
Turn up volume	Conversation mode	Short press or long press + key	Nothing
Turn down volume	Conversation mode	Short press or long press - key	Nothing
Answer calling	Ringing	Short press the MFB	A short tone “DU”
Reject calling	Ringing	Press and hold the MFB for 2s, and release the key till you hear the indication sound	A short tone “DU”
End calling	Conversation mode	Short press the MFB	A short tone “DI”
Switch conversation between headset and cell phone	Conversation mode	Press and hold the MFB for 2s, release the key till you hear the indication sound	A short tone “DU”
Microphone mute	Conversation mode	Quickly press the MFB twice	“Du”“Du” tone every 5s
Cancel mute	Conversation mute	Quickly press the MFB twice	Nothing

*Not all the mobile phones support all the functions listed above. Please refer to the instruction of your mobile phone. When the volume is adjusted to max or min, you will hear a indication sound of "Ding-Dong". For some mobile phones, when you accept a call on the phone, the call will be sent to the mobile phone. You can switch the call to headphones by using the accept call button on the headphones or through the phone. Please refer to the instruction of your mobile phone for further information.

Sportsband Bluetooth headphones

Playing Music (detailed operation)

Function	Status of headset	Operation	Indication
Volume up	Playing music	Short press or long press + key	nothing
Volume down	Playing music	Short press or long press - key	nothing
Pause	Playing music	Short press the MFB	A short tone “du”
Revert	Pause	Short press the MFB	A short tone “du”
Last song	Playing music	Short press < key	A short tone “du”
Next song	Playing music	Short press>key	A short tone “du”

*For some of mobile phones, when they are playing music, the music will transmit to the speaker of mobile phone, you have to choose “transmit the sound through Bluetooth” in the “setting” of music play interface, and then choose “SB1” in the device list. Please refer to the instruction of your mobile phone for further information. When the volume of headphones is adjusted to max or min, you will hear a “Ding-Dong” tone. Remote control the function of next track, previous track, etc require your mobile phone to support AVRCP. Please refer to the instruction of your mobile phone or Bluetooth transmitter for further information. As of March 2010 iPhone does not yet support AVRCP.

Sportsband Bluetooth headphones

Status Light

Charging

LED indicator	Status of headphones
Red light is on	Charging
Red light is off	Finish charging

Pairing with a Bluetooth Device

LED Indicator	Status of headset
Red and blue light blink alternately	Pairing mode
Blue light (blue light will turn red if low power) blinks twice every 2 seconds.	Standby mode (paired, but not connected with the Bluetooth device)
Blue light (blue light will turn red if low power,) blinks twice every 4 seconds	Standby mode(connected with the Bluetooth device)
Blue light blinks (blue light will turn red as low power,) 3 times every second	Ringing
Red light (blue light will turn red if low power) blinks 1 time every 2 seconds	Conversation mode

Tones

Tone indication	Status of headset
Two tones every 5 seconds	Conversation mode and microphone mute
A tone “DU” every 20 seconds	Low power

Sportsband Bluetooth headphones

Specifications

Bluetooth version	Compatibility Bluetooth V2.1
Bluetooth profile	Headset, Hands free, A2DP, AVRCP
Effective range	10m
Working time:	Music: Up to 8 hrsTalk: Up to 11hrs
Standby time:	Up to 250 hrs
Input voltage:	DC: +5.0±0.25VA
Charging time:	Approx 2.5 hrs
Dimension	162*153.5*32 mm
Weight	Approx. 103 g

Care and maintenance

Keep dry and do not store it in the dump place

Do not put the product in direct sunlight for extended periods of time or in hot areas.

High temperature will shorten the life of electronic device, destroy the battery, and distort certain plastic.

Do not expose the product to extreme cold.

Do not disassemble the product.

Do not drop the headphones.

Do not use chemicals or detergent to clean the product.

If the product fails to work please contact JayBird support at jaybirdgear.com

Compliance

This Bluetooth stereo headset complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This Bluetooth stereo headset may not cause harmful interference, and (2) it must accept any interference received, including interference that may cause undesired operation.

The battery is recycled. Do not dispose of the battery in fire, as it may cause explosion.

Sportsband Bluetooth headphones

Warranty Information

http://www.jaybirdgear.com/pdf/JayBird_Terms.pdf

jaybirdgear.com

+1.866.244.3399 | [e-mail]

WARNING: Due to the isolating characteristics of these earphones do not use while driving, riding a bike or where vehicular traffic is present, or in any other activity where failure to hear surrounding sounds could be dangerous. Use of these earphones at excessive volumes may cause permanent hearing damage. Always turn the volume down before use.

Copyright 2009 JayBird Gear LLC. All rights reserved. JayBird, and the JayBird logo are trademarks of JayBird Gear LLC. Bluetooth is a trademark owned by Bluetooth SIG, Inc. USA, and licensed to JayBird GearLLC. iPhone is a trademark of Apple, Inc., registered in the U.S. and other countries. Assembled in China
