Product Type	Refrigerator-freezer
Model	FK3356N.2DFX
Power Supply	AC 220-240 V, 50 Hz, 10 A
Climate Class	SN, N, ST, T (10°C to 43°C)
Refrigerant	Isobutane (R600a)
Freezer Star Rating	4 stars (freezes fresh food)
Control Type	Electronic with LED display
Fridge Temperature Range	2°C to 8°C (adjustable)
Freezer Temperature Range	-16°C to -24°C (adjustable)
Special Functions	SmartECO, Fast Cooling, Fast Freezing, Vacation Mode
Humidity Control	VitControl Plus adjustable humidity drawer
Defrosting (Fridge)	Automatic (auto-defrost)
Defrosting (Freezer)	Automatic (No Frost)
Alarms	Door open (3 min), freezer over-temp, sensor fault
Interior Light	Yes (type not specified)
Shelves	Adjustable glass shelves, door shelves
Drawers	Vegetable drawer (VitControl), freezer drawers (removable)
Safety Features	Child lock not mentioned; includes flammable refrigerant precautions
Warranty	As per warranty card (minimum per local regulations)
Spare Parts Availability	Minimum 7-10 years (per EU regulation)
Certification	CE, UKCA

Frequently Asked Questions - FK3356N.2DFX AMICA

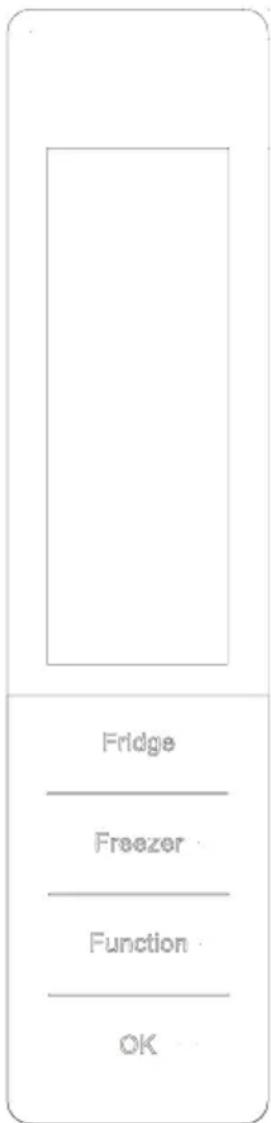

How do I set the temperature in the fridge and freezer?

Press the Fridge or Freezer button until the symbol flickers, then press repeatedly to cycle through temperatures. The setting activates after 5 seconds of no operation.

What is the SmartECO function?

SmartECO sets the fridge to 4°C and freezer to -18°C for optimal energy efficiency. Temperature changes are disabled. To activate, press Function until SmartECO flickers, then press OK.

How do I activate Fast Freezing?

Press Function until the Fast Freezing symbol flickers, then press OK. The freezer runs at maximum power for 26 hours then returns to previous temperature.

Why is water pooling at the bottom of the fridge?

The defrost drain may be clogged. Clean the drain opening using the cleaning plug (see manual). Ensure food does not block air circulation at the rear wall.

What do error codes like E0, E1 mean?

These indicate sensor faults. Contact service for repair. The appliance may still work, but temperature control is compromised.

How do I defrost the freezer?

The freezer is No Frost, so no manual defrosting is needed. If ice accumulates, check if the door seals properly. For manual defrost, turn off the appliance, remove food, and leave the door open.

Can I store fresh food in the freezer?

Yes, the freezer has a 4-star rating, suitable for freezing fresh food. However, do not exceed the maximum freezing capacity per day (see technical data in the manual).

How do I clean the refrigerator?

Unplug the appliance. Clean interior with mild detergent and lukewarm water. Wipe dry. Avoid water on control panel. Clean the door gasket with water only.

My refrigerator is making unusual noises. Is this normal?

Yes, sounds from the compressor, refrigerant flow, and thermal expansion are normal. Ensure the appliance is level and not touching furniture or other objects.

How long is the warranty?

The warranty period is specified on the warranty card. Typically, it is 2 years for parts and labor, but check local regulations and the warranty document.

USER MANUAL FK3356N.2DFX AMICA

Simple line drawing of a refrigerator with an asterisk on top (no text or symbols)

FK3706E.2DFZXC (D)

FK3706T.2DFZXC (D)

FK3706D.5DFXCM (D)

FK3706D.2DFWiC (C)

FK3706D.2DFXC (C)

FK3706D.5DFZXC (C)

FK3706D.5DFZXC (A)

PL - Spis treści

WSKAZÓWKI DOTYCZĄCE BEZPIECZEŃSTWA 10 INSTALACJA I WARUNKI PRACY URZĄDZENIA 15

INSTALACJA PRZED PIERWSZYM URUCHOMIENIEM 15

MINIMALNE ODLEGŁOŚCI OD ŻRÓDEŁ CIEPŁA 15

PODŁĄCZENIE ZASILANIA 16

ODŁĄCZENIE OD ZASILANIA 16

KLASA KLIMATYCZNA 16

ROZPAKOWANIE 17 USUWANIE ZUŻYTYCH URZĄ DZEŃ 18 STEROWANIE 19

STEROWANIE URZADZENIEM 19

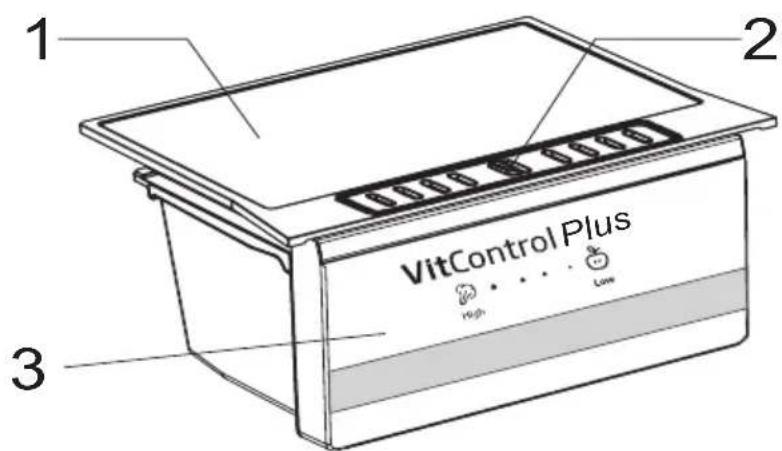

VITCONTROL PLUS / VITCONTROL 21

POJEMNIK VITCONTROL 21

REGULACJA POZIOMU WILGOTNOŚCI WEWNĄTRZ POJEMNIKA VITCONTROL PLUS /

VITCONTROL 21

OBSŁUGA I FUNKCJE 22

PRZECHOWYWANIE PRODUKTÓW W CHŁODZIARCE I ZAMRAŻARCE 22

ZAMRAŻANIE PRODUKTÓW** 22

JAK EKONOMICZNIE UŻYTKOWAĆ LODÓWKĘ 24

EN- Table of contents

GUIDELINES CONCERNING THE SAFETY OF USE 76

INSTALLATION AND OPERATING CONDITIONS OF THE APPLIANCE 81

INSTALLATION BEFORE USING THE APPLIANCE FOR THE FIRST TIME 81

MINIMUM DISTANCES FROM THE HEAT SOURCES 81

MAINS CONNECTION 82

DISCONNECTING THE MAINS 82

CLIMATE RANGE 82

UNPACKING 83

DISPOSAL OF OLD APPLIANCE 83

CONTROLS 84

APPLIANCE CONTROLS 84

VITCONTROL PLUS\* 86

VITCONTROL / VITCONTROL PLUS BOX 86

WASHING THE FRIDGE AND FREEZER CHAMBERS MANUALLY**** 92

TAKING OUT AND PUTTING IN THE SHELVES***** 92

TAKING OUT AND PUTTING IN THE DOOR SHELF***** 92

TROUBLE-SHOOTING 93

WARRANTY AND AFTER SALES SERVICE 95

WARRANTY 95

CS - Obsah

POKYNY TÝKAJÍCÍ SE BEZPEČNOSTI POUŽÍVÁNÍ 97 INSTALACE A PROVOZNÍ PODMINKY SPOTREBICE 102

INSTALACE PŘED PRVNÍM SPUŠTĚNÍM 102

MINIMÁLNÍ VZDÁLENOSTI OD TEPELNÝCH ZDROJŮ 102

PŘIPOJENÍ NAPÁJENÍ 103

ODPOJENÍ OD NAPÁJENÍ 103

KLIMATIČKÁ TŘÍDA 103

VYBALENÍ 104

LIKVIDAÇE OPOTŘEBOVANÝCH ZAŘÍZENÍ 104 OVLÁDÁNI 105

OVLÁDÁNÍ ZAŘÍZENÍ 105

ZÁSOBNÍKU VITCONTROL\* 107

ZÁSOBNÍKU VITCONTROL PLUS 107

REGULACE HLADINY VLHKOSTI UVNITŘ ZÁSOBNÍKU VITCONTROL PLUS 107

OBSLUHA A FUNKCE 108

UCHOVÁVÁNÍ POTRAVIN V CHLADNIČCE A MRAZNIČCE 108

ZMRAZOVÁNÍ VÝROBKŮ** 108

JAK EKONOMICKY POUŽIVAT CHLADNIČKU 110

PRAKTICKÉ PORADY 110

CO ZNAMENAJÍ HVĚZDIČKY? 110

ZÓNY V CHLADNIČCE 111

PRODUKTY, KTERÉ BY NEMĚLY BÝT PŘECHOVÁVANÉ V CHLADNIČCE 111

ODMRAZOVANI, MYTİ A ÜDRZBA 112

ODMRAZOVÁNÍ CHLADNIČKY*** 112

ODMRAZOVÁNÍ MRAZNIČKY** 112

PRO ODMRAZENÍ MRAZICÍHO PROSTORU MRAZNIČKY JE TŘEBA** 113

AUTOMATICKÉ ODMRAZOVÁNÍ CHLADNIČKY**** 113

AUTOMATICKÉ ODMRAZOVÁNÍ MRAZNIČKY**** 113

RUČNÍ MYTÍ MRAZICÍHO PROSTORU CHLADNIČKY A MRAZNIČKY**** 113

VYTAHOVÁNÍ A VKLÁDÁNÍ POLIC ***** 113

VYTAHOVÁNÍ A VKLÁDÁNÍ DVERNÍHO REGÁLU ***** 113

URCOVÁNÍ ZÁVAD 114 ZÁRUKA, POPRODEJNÍ SERVIS 116

ZÁRUKA 116

SK - Obsah

DÔLEŽITÉ BEZPEČNOSTNÉ PQKYNY 118

INSTALÁCIA A PREVÁDZKOVÉ PODMIENKY SPOTREBIČA 123

INSTALÁCIA PRED PRVÝM SPUSTENÍM 123

MINIMÁLNE VZDIALENOSTI OD TEPELNÝCH ZDROJOV 123

PRIPOJENIE NAPÁJANIA 124

ODPOJENIE OD NAPÁJANIA 124

KLIMATICKÁ TRIEDA 124

ROZBALENIE 125

LIKVIDÁCIA ZARIADENÍ 125

OVLÁDANIE 126

OVLÁDANIE ZARIADENIA 126

ZÁSOBNIKA VITCONTROL\* 128

ZÁSOBNÍKA VITCONTROL PLUS 128

REGULÁCIA HLADINY VLHKOSTI VO VNÚTRI ZÁSOBNÍKA VITCONTROL PLUS 128

OBSLUHA A FUNKCIE 129

UCHOVÁVANIE POTRAVÍN V CHLADNIČKE A MRAZNIČKE 129

ZMRAZOVANIE VÝROBKOV** 129

AKO EKONOMICKY POUŽIVAT CHLADNIČKU 131

PRAKTICKÉ RADY 131

ČO ZNAMENAJÚ HVIEZDIČKY? 131

ZÓNY V CHLADNIČKE 132

PRODUKTY, KTORÉ BY NEMALI BYŤ PRECHOVÁVANÉ V CHLADNIČKE 132

ODMRAZOVANIE, UMÝVANIE A ÚDRŽBA 133

ODMRAZOVANIE CHLADNIČKY*** 133

ODMRAZOVANIE MRAZNIČKY** 133

PRE ODMRAZENIE MRAZIACEHO PRIESTORU MRAZNIČKY JE POTREBA** 134

AUTOMATICKÉ ODMRAZOVANIE CHLADNIČKY**** 134

AUTOMATICKÉ ODMRAZOVANIE MRAZNIČKY**** 134

RUČNÉ UMÝVANIE KOMORY CHLADNIČKY A MRAZNIČKY**** 134

VYŤAHOVANIE A VKLADANIE POLÍC***** 134

VYTAHOVANIE A_VKLADANIE PRIEHRADKY***** 134

LQKALIZACIA ZAVAD 135

ZARUKA, POPREDAJNY SERVIS 137

ZÁRUKA 137

BG - съдържание

Simple line drawing of a three chasing recycling symbol (no text or labels)

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

URUCHOMIENIE

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

OPOZORILO: Nevarnost požara / vnetljivi materiali

Simple line drawing of a three chasing recycling symbol (no text or labels)

Symbol of a trash bin crossed with no visible text or labels

ZAGON

Regulacija nivoja vlažnosti znotraj predala VitControl

From now on, your daily housework will be easier than ever before. Your appliance Air*optionally easy to use and extremely efficient. After reading these Operating Instructions, operating the appliance will be easy.

Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.

Before using the appliance, please carefully read these Operating Instructions. By following these instructions carefully you will be able to avoid any problems in using the appliance. It is important to keep these Operating Instructions and store them in a safe place so that they can be consulted at any time.

Follow these instructions carefully in order to avoid possible accidents.

Sincerely,

Amica

GUIDELINES CONCERNING THE SAFETY OF USE

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments

• Farm houses and by clients in hotels, motels and other residential type environments
• Bed and breakfast type environments

• Catering and similar non-retail applications

• The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.

• Some provisions in this user manual are unified for refrigerating products of different types (for a refrigerator, refrigerator-freezer or freezer)
• The Manufacturer shall not be held liable for damage arising from the failure to observe the instructions contained in this manual.
• Keep this manual for future reference, or to pass it over to the next user.
• This appliance is not intended for use by persons (including children) with limited physical or mental capabilities and persons who lack experience or familiarity with the appliance.
• Do not allow children to use the appliance. Do not allow them to play with the appliance. They must not climb inside the drawers and swing on the doors.
• The appliance operates properly at the ambient temperature (see product fiche). Do not use it in the cellar, unheated summer cottage during autumn and winter.

• When placing, moving, lifting the appliance, do not hold the door handles, do not pull the condenser at the rear part of the refrigerator and do not touch the compressor unit.

• When transporting, moving or positioning the fridge-freezer do not tilt it by more than 40^ from the vertical position. Should such a situation occur, the appliance should be switched on after minimum 2 hours from its replacement in the right position (fig.2).

• Pull the plug out from the mains socket before each maintenance activity. Do not pull on the cord, but hold the body of the plug instead.

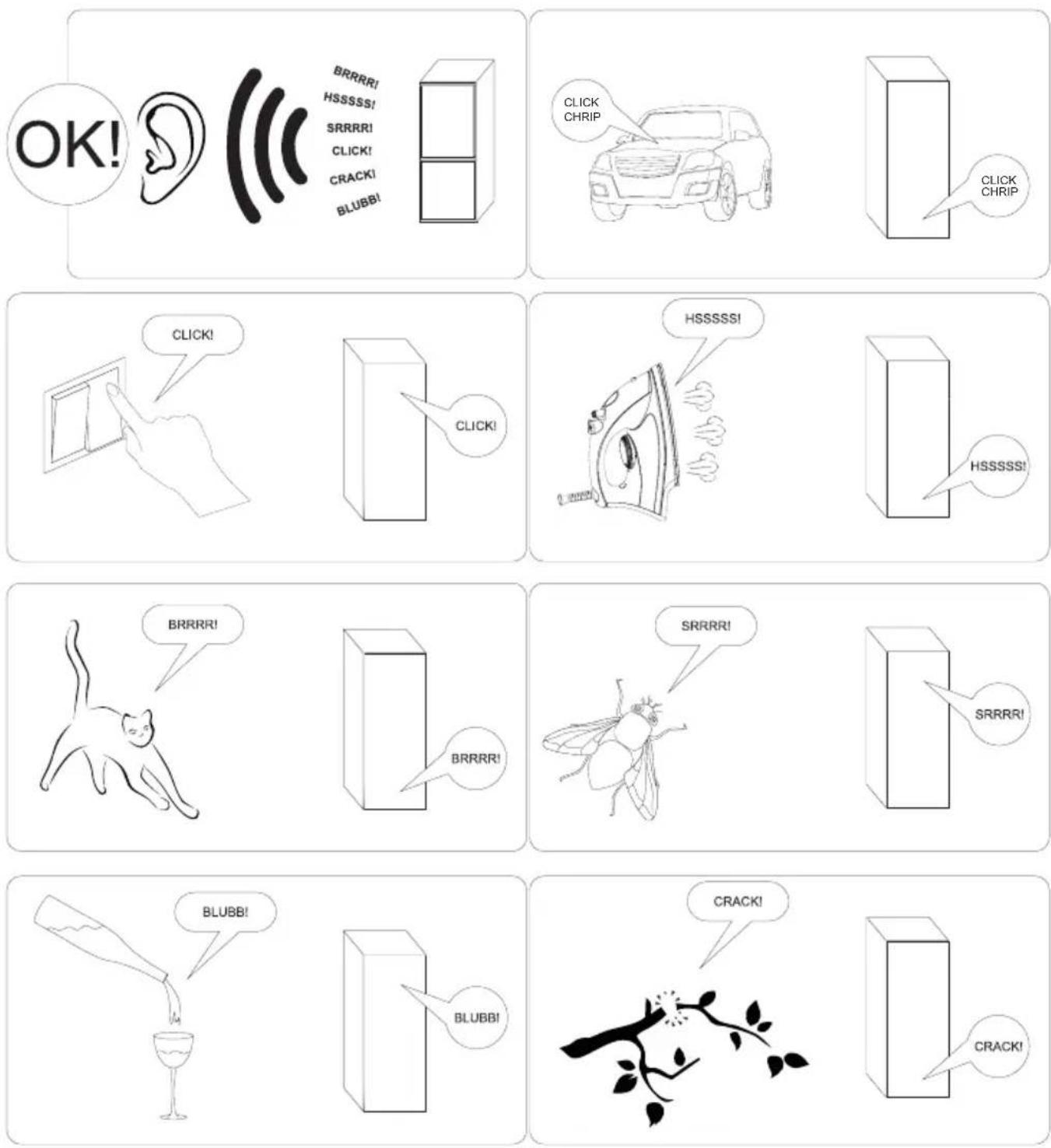

• The “cracking” sound, which the appliance may emit is caused by the expansion and contraction of parts as a result of temperature variations.
• For safety reasons do not repair the appliance yourself. Repairs carried out by persons who do not have the required qualifications may result in serious danger for the user of the appliance.
• Air the room in which the appliance is placed for a few minutes (the size of the room for a product containing isobuthane/R600a must be at least 4m ^3 ) to avoid damage to the cooling system.
• Do not refreeze partly thawed products.
• Do not store beverages in bottles and cans, especially carbonated beverages, in the freezer chamber. The cans and the bottles may explode.
• Do not put frozen products, taken out directly from the freezer (lollies, ice cubes, etc.) into your mouth, their low temperature may cause severe frostbite.
• Make sure you do not damage the cooling system, by puncturing the refrigerant pipes in the evaporator or breaking the pipes. The refrigerant is flammable. If the refrigerant makes contact with the eyes, rinse them with clean water and call for medical assistance immediately.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.
• This appliance is intended for food storage, do not use it for other purposes.
• When performing activities, such as cleaning, maintenance or moving, the appliance must be completely

disconnected from power supply (by pulling the plug out from the socket)

- This appliance can be used by children aged 8 years and older or by persons with physical, mental or sensory handicaps, or by those who are inexperienced or unfamiliar with the appliance, provided they are supervised or have been instructed how to safely use the appliance and are familiar with risks associated with the use of the appliance. Ensure that children do not play with the appliance. Cleaning and maintenance of the appliance should not be performed by children unless they are 8 years or older and are supervised by a competent person.

• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.
• In order to obtain more space in the freezer, you can remove the drawers and place the food directly on the shelves. This has no effect on the product mechanical properties and cooling performance. Declared freezer capacity was calculated with the drawers removed.
• WARNING: Do not damage the refrigerant circuit.
• This appliance is not intended for use at altitudes exceeding 2000 m.

WARNING: Risk of fire / flammable materials

• Children aged from 3 to 8 years are allowed to load

and unload refrigerating appliances.

- WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food
• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer

	Compartments TYPE	Target storage temp.[°C]	Appropriate food
1	Fridge +2≤+8		Eggs, cooked food, packaged food, fruits and vegetables, dairy products, cakes, drinks and other foods are not suitable for freezing.
2	Freezer ***	≤-18	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
3	Freezer ***	≤-18	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.
4	Freezer **	≤-12	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 2 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food
5	Freezer *	≤-6	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 1 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.
6	0-star compartment	-6≤0	Fresh pork, beef, fish, chicken, some packaged processed foods, etc. (Recommended to eat within the same day, preferably no more than 3 days). Partially encapsulated processed foods (non-freezable foods)
7	Chill 2≤+3		Fresh/frozen pork, beef, chicken, freshwater aquatic products, etc.(7 days below 0°C and above 0°C is recommended for consumption within that day, preferably no more than 2 days). Seafood (less than 0 for 15 days, it is not recommended to store above 0°C)
8	Fresh Food 0≤+4		Fresh pork, beef, fish, chicken, cooked food, etc. (Recommended to eat within the same day, preferably no more than 3 days)
9	Wine +5≤+20	red wine,white	wine,sparkling wine etc.

• Note: please store different foods according to the compartments or target storage temperature of your purchased products.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
• Water dispenser cleaning (special for water dispenser products): Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.
• Pursuant to Commission Regulation (EU) 2019/2019, the minimum availability period for spare parts necessary to repair the appliance is 7 or 10 years depending on the type and purpose of the spare part.
• The list of spare parts and the ordering procedure are available on the websites of the manufacturer, importer or an authorized representative.
• For more information about the product, please refer to the EU EPREL Product Database at https://eprel.ec.europa.eu. For more information, please use your mobile device to scan the QR code on the energy label or enter the product model listed on the energy label in the EPREL search engine https://eprel.ec.europa.eu/

INSTALLATION AND OPER- ATING CONDITIONS OF THE APPLIANCE

This refrigeration appliance is not intended for built-in installation.

Installation before using the appliance for the first time

• Take the product out of the package, remove the scotch tape protecting the door and the equipment. Any remaining adhesive stains may be removed with a mild washing agent.
• Do not throw away the polystyrene elements of the packaging. If it is necessary to transport the fridge-freezer, pack it in the polystyrene elements and film as well as protecting it with scotch tape
• Clean the interior surface of the fridge- freezer and the elements of the equipment with a washing agent dissolved in lukewarm water, then wipe it dry.
• Place the fridge-freezer on an even, flat and stable surface, in dry, aired and shaded room, far from the heat sources such as: oven, hob, central heating radiators, central heating pipes, hot water installation, etc.
• On the exterior surface of the product may be a protective foil, this foils should be removed.
• Make sure the appliance is placed in a horizontal position by screwing in the 2 adjustable front legs (fig. 3)
• To ensure that the door opens freely, the distance between the side of the appliance (on door hinges side) and the wall is shown on figure 5.*
• Ensure adequate ventilation of the room and free air circulation from all sides of the appliance (fig. 6).*

Minimum distances from the heat sources

• from the electric gas and other ovens - 30 mm,
• from oil or coal fired ovens - 300 mm,
• from built-in ovens - 50 mm

If there is no possibility of ensuring the above-mentioned distances, provide an appropriate insulation board.

Warning:

• The rear wall of the refrigerator, in particular, the condenser and other elements of the cooling system must not contact other elements, which may damage them, (e.g. central heating pipes and the water supply pipes).
• It is forbidden to readjust or modify any parts of the unit. It is crucial not to damage the capillary tube visible in the compressor recess. The tube may not be bent, straightened or wound.
• If the capillary tube is damaged by the user the guarantee will be void (fig. 8).
• In some models the handle is put into the appliance, You should screw it with Your own screwdriver,
• Do not damage the refrigerant circuit

Mains connection

To ensure your safety and reduce the risk of injury or electric shock, follow all precautions listed below.

• Prior to connection, it is recommended to set the temperature control knob to an "OFF" or other position that disconnects the appliance from the power supply (See page with the control description).
• Prior to connection, it is recommended to set the temperature control knob to an „OFF“ or other position that disconnects the appliance from the power supply (See page with the control description).
• This appliance should be connected to AC 220-240V '50Hz supply socket. The socket must be fitted properly, and must be supplied with an earthing conduit and a 10A fuse.
• It is a legal requirement that the appliance is properly earthed. The manufacturer will not be held liable for any damage or injury which may result from the failure to fulfil this requirement.
• Do not use adapters, multiple sockets and two-wire extension leads. If it is necessary to use the extension lead, it must be equipped with a protection ring and a single socket and must have a VDE/GS safety certificate.
• If an extension lead is used (with a protection ring and safety certificate), its socket must be located at a safe distance, away from the sinks, and must not be in a place where it could be flooded by water or waste water.
• See the type plate at the lower part of the internal wall of the appliance for detailed specifications**.
• Make sure the plug is easily accessible to disconnect from the mains.

Disconnecting the mains

Make sure the appliance can be easily disconnected from the mains, either by pulling the plug out of the mains socket, or by switching the two-pole switch off (fig. 9).

Climate range

The information about the climate range of the appliance is provided on the rated plate. It indicates at which ambient temperature (that is, room temperature, in which the appliance is working) the operation of the appliance is optimal (proper).

Climate class Allowable ambient temperature

SN Extended Temperate	This refrigeration appliance is intended for use at an ambient temperature ranging between 10°C and 32°C
N Temperate	This refrigeration appliance is intended for use at an ambient temperature ranging between 16 °C and 32°C
ST Subtropical	This refrigeration appliance is intended for use at an ambient temperature ranging between 16 °C and 38 °C
T Tropical	This refrigeration appliance is intended for use at an ambient temperature ranging between 16 °C and 43 °C

* Only free-standing appliances
** According to the model

UNPACKING

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment. All materials used for

packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol. Important! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

DISPOSAL OF OLD APPLIANCE

Symbol of a trash bin crossed with no visible text or labels

In accordance with European Directive 2012/19/EU and local legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used. The user is obliged to hand it

over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes. Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

CONTROLS

Appliance controls

The control panel is shown in figure 10. For reference it is also shown below:

START

1. Clean the parts of the refrigerator with lukewarm water containing a little neutral detergent and with clear water, and wipe them dry.
   Notes: Electric parts of the refrigerator can only be wiped by dry cloth.
2. Turn on electricity. The compressor begin to work.
3. Open the door 30 minutes later, if the temperature in the refrigerator decreased obviously, it shows that the refrigerator system works well. When the refrigerator operates for a period of time, the temperature controller will automatically set the temperature within limits it opens.

The display is located in the middle of the refrigerator door. Please refer to the below figure for the layout.

INTRODUCTION OF THE BUTTONS

1 Fridge: to set the refrigerator temperature
2 Freezer: to set the freezer temperature
3 Function: to choose functions of fast cooling, fast freezing, SmartECO and vacation
4 OK: to enter or to quit the existing function Function setting

Appliance connected to power at the first time

When the appliance is connected to power at the first time, the display will be lit for 2 seconds before going normal and the appliance runs with SmartECO function.

DISPLAY CONTROL

When the refrigerator door is closed and there is no button operation in 3 minutes, the display light goes off.

When the display light is off, open the refrigerator door or click any button to light it up.

TEMPERATURE SETTING

1) Click the "refrigerator" or "freezer" button and when it flickers in the symbol, temperatures can be set; each time when the button is clicked, the temperature changes accordingly (the display shows the temperature accordingly). (Temperatures cannot be set under functions of fast cooling, fast freezing, SmartECO and vacation,)
2) Under temperature setting, if there is no button operation in 5 seconds, the button stops flickering and the set temperature comes into effect.
3) Temperature cycle
Refrigerator: 2^ 3^ 4^ 5^ 6^ 7^ 8^ OFF 2^ Freezer: -24^ -23^ -22^ -21^ -20^ -19^ -18^ -17^ -16^ -24^

SMARTECO

Under SmartECO, it is 4°C in the refrigerator and -18°C in the freezer.

Temperatures cannot be changed and you can click the temperature zone button to check the temperature.

1). To enter SmartECO

Click "option" until it flickers and then click "OK" to enter this function.

2) To quit SmartECO

Under SmartECO, click "option" until it goes to SmartECO, click "OK" to quit this function and the light goes off.

Temperatures of each chamber go back to the value before SmartECO function.

FAST COOLING

Under fast cooling, it is 2^ C in the refrigerator and the refrigerator temperature cannot be changed.

1) To enter fast cooling

Click "option" until it flickers in "fast cooling" and then click "OK" to enter this function.

2) To quit fast cooling

Under fast cooling, click "option" until it goes to "fast cooling" and then click "OK" to quit this function.

The light in fast cooling goes off and the refrigerator temperature goes back to the value before fast cooling.

FAST FREEZING

Under fast freezing, refrigerator temperature can be set but not for the freezer temperature.

1) To enter fast freezing

Click "option" until it flickers in "fast freezing" and then click "OK" to enter this function.

2) To quit fast cooling.

Under fast freezing, click "option" until it goes to "fast freezing" and then click "OK" to quit this function.

The light in fast freezing goes off and the freezer temperature goes back to the value before fast freezing.

When fast freezing time is up (26 hours), it quits automatically.

When it goes to SmartECO, fast freezing stops.

VACATION

Under vacation, it is 14°C in the refrigerator and the temperatures in this chamber cannot be changed.

1) To enter vacation

Click "option" until it flickers in "fast freezing" and then click "OK" to enter this function.

2) To quite vacation

Under vacation, click "option" until it goes to "vacation" and then click "OK" to quit this function.

The light in vacation goes off and the refrigerator temperature goes back to the value before vacation.

Vacation quits under functions of SmartECO and fast cooling.

POWER OFF MEMORY

With this design, the refrigerator can automatically keep all the setting in case of power off. When the unit is plugged in again, the refrigerator will run with the setting before power off.

POWER-ON DELAY

To prevent harm to the refrigerator in case of sudden power cut and power on, the unit does not start immediately if the power off time is less than 5 minutes.

FREEZER OVER-TEMPERATURE ALARM (ONLY IN CASE OF POWER ON)

When the freezer temperature is higher than 10^ C at the first time connected to power, the symbol light of the freezer chamber goes on and the number representing temperature flickers.

Press any button or wait for 5 seconds, flickering stops and it goes back to the temperature that was set.

REFRIGERATOR DOOR OPENING ALARM

When the refrigerator is open over 3 minutes, the buzzer will buzz. Close the door or press any button to stop the alarm, but for the latter, the alarm will go off again after 3 minutes.

Sensor fault alarm

When it shows “E0”, “E1”, “E2” or other abnormal symbols, it means sensor faults and the refrigerator needs repair.

VITCONTROL PLUS\*

VitControl / VitControl Plus box

The VitControl Plus box is shown in figure 19. For reference it is also shown below:

Adjust the humidity level inside the VitControl / VitControl Plus box

Various products, such as fruit or vegetables, require a suitable level of humidity in order to stay fresh longer. VitControl box is equipped with a slider (Fig. 19), so the box can be supplied with more air, which will change the humidity level inside the box.

1. Box cover
2. Air supply adjusting slider
3. Vegetable box front

Fruits require lower humidity level, therefore air supply must be closed with a slider. With vegetables it is the other way round, to keep them fresh longer, you should open the air flow with a slider. The exact slider position depends on your own preferences.

OPERATION AND FUNCTIONS

Storage of food in the fridge-freezer

• The products should be placed on plates, in containers or packed in food wrap. Distribute them evenly over the shelves.
• If the food contacts the rear wall, it may cause frosting or wetting of the products.
• Do not put dishes with hot food into the fridge
• Products which absorb flavours easily such as butter, milk, white cheese and products with intense flavour, such as fish, smoked meat, hard cheese must be placed on shelves, packed in food wrap or in tightly sealed containers.
• The storage of vegetables containing significant quantities of water will cause the deposition of condensation on the vegetable containers, it does not impact on the proper functioning of the fridge.
• Before putting the vegetables into the fridge, dry them well.
• Excessive moisture shortens the shelf life of vegetables, especially the leafed vegetables.
• Do not wash the vegetables before storing in the refrigerator. Washing removes the natural protection, therefore it is better to wash the vegetables directly before consumption.

• It is recommended to place the products in freezer drawers 1, 2, 3* up to natural loading capacity (Fig. 11a / 11b).**

• Packed products

• Shelf
• Natural loading capacity

• * * * *

• Stacking of products on the freezer shelves is acceptable.*

• It is acceptable to place products beyond the natural loading capacity by 20-30 mm.**
• In order to increase the loading capacity of the freezer chamber and allow the stacking of products on the freezer evaporator wire shelves up to maximum height it is possible to remove drawers 1 and 2.*

Freezing food\*\*

• Practically all the food products, except for vegetables consumed raw, such as lettuce can be frozen.
• Only food products of the highest quality, divided into small portions for single use, should be frozen.
• Products should be packed in materials that are odourless, resistant to air and moisture penetration, and not susceptible to fat. Plastic bags, polyethylene and aluminium sheets are the best wrapping materials.
• The packaging should be tight and should stick to the frozen products. Do not use glass containers.
• Keep fresh and warm foodstuff at ambient temperature away from the products, which have already been frozen.

• We advise you not to place more of fresh food at a time to the freezer per day (see table witch technical specification).

• In order to maintain optimum quality of the frozen food, reorganise the food that is in the middle of the freezer, so that it does not touch the products that are not yet frozen.

• It is recommended that you move the already frozen products to one side and place the fresh products that are to be frozen on the opposite side, as close to the rear and side walls as possible.
  • To freezing products, use space marked * * * * :
• Bear in mind that the temperature in the freezer is affected by several factors, including the ambient temperature and the quantity of food products in the chamber, the frequency of opening the door, the amount of frost in the freezer, and the thermostat setting.
• If you cannot open the freezer door immediately after closing it, allow 1-2 minutes for the negative pressure to compensate, and try again to open the door.

The storage time for frozen products depends on their quality before freezing when fresh, and on the storage temperature. The following storage periods are recommended when the temperature of -18^ or lower is maintained:

Products Months

Beef 6-8
Veal 3-6
Giblets 1-2
Pork 3-6
Poultry 6-8
Eggs 3-6
Fish 3-6
Vegetables	10-12
Fruit 10-12

Do not store frozen food in rapid cooling chamber. Ice cubes can be prepared and stored in this chamber.

Note: If the appliance does not have a freezer compartment ( ^ ^** ), it is not suitable for freezing foodstuffs.

USING THE REFRIGERATOR EFFICIENTLY

Practical everyday tips

• Do not place fridges or freezers next to radiators, heaters, stoves or in direct sunlight.
• Make sure that air vents are not covered up and clean the dust off them once or twice a year.
• Select the right temperature: 6 to 8°C in your refrigerator and -18°C in your freezer is sufficient.
• When on holiday, turn up the temperature in your fridge.
• Only open your fridge or freezer when necessary. It helps if you know what food each contains and where it is located. Return food to the fridge or freezer as soon as possible after you have used it so that it does not warm up too much.
• Wipe the inside of your fridge regularly with a cloth soaked in a mild detergent. Appliances which are not self-defrosting will require regular defrosting. Do not allow frost layers thicker than 10 mm to form.
• Keep the seal around the door clean, otherwise it will not shut properly. Always replace broken seals.

Understanding the stars

Temperature is at least -6^ ; sufficient to store frozen food for about a week. Drawers or compartments marked with one star used to be a feature of (mostly) cheaper fridges.

Food can be stored at -12^ C or below for 1-2 weeks without losing its taste. Not suitable for freezing food.

This rating is mainly used to store foods at -18°C or below. Can also be used to freeze up to 1 kilogram of fresh food.

This appliance is suitable for storing foods at -18^ C or below and freezing larger quantities of fresh foods.

Practical tips

Due to the natural circulation of the air in the appliance, there are different temperature zones in the refrigerator chamber.

• The coldest area is directly above the vegetables drawers. Use this area for all delicate and highly perishable food e.g.:
• Fish, meat, poultry
• Sausage products, ready meals
• Dishes or baked goods containing eggs or cream
• Fresh dough, cake mixtures
• Pre-packed vegetable and other fresh food with a label stating it should be kept at a temperature of approx 4°C.
• The warmest area is in the top section of the door. Use this for storing butter and cheese.

Food that should not be stored in a refrigerator

- Not all food is suitable for storing in the refrigerator, particularly:

- Fruit and vegetables which are sensitive to cold, such as bananas, avocado, papaya, passion fruit, aubergines, peppers, tomatoes and cucumbers.

- Fruit which is not yet ripe

- Potatoes

Warning:

Example of storing the food - see figure 12.

To achieve the most effective food preservation for the longest possible time and to avoid wasting any food, position the products as shown in Figure 12. In addition, this figure illustrates the layout of drawers, baskets and shelves, which allows the most efficient use of energy.

Optimal temperature and storage conditions will extend product shelf life and optimize electricity consumption. Optimal storage temperature range should be stated on the food product packaging.

DEFROSTING, WASHING AND MAINTENANCE

Never clean the product's casing or plastic parts using solvents or strong, abrasive detergents (e.g. washing powders or creams)! Use mild liquid detergents and soft cloths only. Do not use sponges.

External surfaces made of plastic should be cleaned with a microfiber cloth, otherwise irreversible micro scratches will appear.

Defrosting the fridge\*\*\*

• Frost settles on the rear wall of the fridge chamber. It is removed automatically. During the defrosting, the condensate, which contains contaminants may clog the opening in the through. Should it occur, carefully unclog the opening with the cleaning plug (fig. 13).
• The appliance operates in cycles: it refrigerates (then the frost set-tles on the rear wall), and defrosts (water flows down the rear wall)
• Disconnect the appliance from the mains before cleaning by removing the plug from the mains socket or switching off the fuse. Prevent water from penetrating the control panel or the light.
• Do not use defrosting aerosols. They may cause the formation of an explosive mixture, or contain solvents which may damage the plastic components of the appliance and even be harmful to health.
• Make sure the water used for cleaning does not flow into the evaporation container through the discharge opening.
• The whole appliance, except for the door gasket must be cleaned with a mild cleaning detergent. The door gasket should be cleaned with water and wiped dry.
• Wash all the accessories (vegetable containers, door shelves, glass shelves, etc.).
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than thode recommended by the manufacturer

Defrosting the freezer\*\*

• It is recommended to combine defrosting the appliance with washing it.
• Excessive accumulation of ice on the freezing areas impairs the appliance's freezing capacity and increases the energy consumption.
• Defrost the appliance at least once or twice a year. In case of a higher ice build-up, defrosting must be carried out more frequently.
• If there is food in the freezer, set the knob to the max. position about 4 hours before the planned defrosting. This will ensure the possibility of storing the food at the ambient temperature for a longer time.
• After taking the food out of the freezer, put it in a container, wrap it with several layers of paper, a blanket and store it at a cool place.
• The defrosting operation should last as short as possible. Long storage of food at the ambient temperature shortens their shelf life.

Defrost the freezer chamber following steps:\*\*

• Switch of the appliance using the control panel and pull the plug out from the socket..
• Open the door and remove the food from the freezer.
• Depending on the model, pull out the drainage tube located in the bottom of the freezer compartment and place a suitable vessel underneath.
• Leave the door open, this will speed up the defrost process. Additionally, a pot with hot water (not boiling) may be placed inside the freezer compartment.
• Wash the interior of the freezer and wipe it dry.
• Switch on the appliance as per the relevant point in the manual.

Automatic fridge defrosting\*\*\*\*

The fridge chamber has been equipped with an automatic defrosting function. However, frost may settle on the rear wall of the fridge chamber. This happens usually, when large quantities of fresh food products are stored in the fridge.

Automatic fridge defrosting\*\*\*\*

The freezer chamber has been equipped with an automatic defrosting function (no-frost). The food is frozen in the cooled circulation air, and the moisture from the freezer chamber is discharged outside. As a result, no ice and frost is produced in the freezer and the products do not freeze on each other.

Washing the fridge and freezer chambers manually\*\*\*\*

It is recommended to wash the fridge and freezer chambers at least once a year. This prevents the formation of bacteria and bad odours. Switch off the appliance, using button (1), remove the food from the chambers and wash them using water with a mild detergent. Then, wipe the chambers dry with a cloth.

Taking out and putting in the shelves\*\*\*\*\*

Slide the shelf out, then slide it in as much as possible so that its clamp could fit the guide groove (fig. 15).

Taking out and putting in the door shelf\*\*\*\*\*

Lift the door shelf, remove it and put it back from the top into its required position (fig. 16).

WARNING! You must not put an electric heater, a heating fan or a hair dryer into the freezer by any means.

TROUBLE-SHOOTING

Problems Possible causes Remedies

The appliance does not work	The electric circuit is disrupted	- check whether the plug is properly inserted into the socket- check whether the power cable of the appliance is not damaged- check whether there is voltage in the socket, by plugging another appliance, e.g. a night lamp- check whether the appliance is switched on by setting the thermostat to a position above 0.
The lighting inside the chamber does not work	The bulb is loose or fused (only appliances with bulb lightning type)	- fit the bulb correctly or replace it (see section above "Replacing the interior light bulb)
The appliance works continuously	Incorrect setting of the adjustment knob	- reset the knob to a lower position
	See. "Temperature inside the appliance is not low enough for description of other possible causes	See. "Temperature inside the appliance is not low enough for description of other possible remedies
Water collects in the lower part of the appliance	The water discharge opening is clogged (depending on the model)	- clean the discharge opening (see the operating manual - chapter entitled "Defrosting the fridge")
	Internal air circulation obstructed	- place the food and containers in such a way as that they do not touch the rear wall of the fridge
The appliance generates unusual noise	Incorrect levelling of the appliance	- level the appliance properly
	The appliance is touching furniture and/or other objects	- place the appliance at a location that ensures proper clearances around it

Problems Possible causes Remedies

Temperature inside the appliance is not low enough or too high	Incorrect setting of the adjustment knob	- reset the knob to a higher position
	The ambient temperature is higher or lower than the climate range from table with technical specification	- the appliance is adapted to operation in the climate range from table with technical specification.
	The appliance is located in a sunlit place or near heat sources	- move the appliance to another place. Observe the guidelines contained in the manual
	Too much warm food loaded at a time	- wait 72 hours until the food becomes cool and the required temperature is reached inside the chamber
	Internal air circulation obstructed	- place the food and containers in such a way that they do not touch the rear wall of the fridge
	The air circulation at the back of the appliance is obstructed	- move the appliance min. 30 mm away from the wall
	The door of the fridge is opened too often and/or remains open for too long	- reduce the frequency of opening the door and/or shorten the time when door remains open
	The door does not close completely	- place the food and containers so that they would not interfere with door closed
	The compressor is switched on too rarely	- check whether the ambient temperature is not lower than climate class
	Door gasket inserted incorrectly	- press the gasket in

Certain sounds can be heard during normal use of the refrigerator, which do not affect its correct operation.

Sounds, which can be easily prevented:

• noise caused by the appliance which is not level - adjust the position with the adjustable turn-in front feet. Alternatively, place pads made of soft material under the rear rollers, especially when the appliance is placed on tiles.
• touching the adjacent piece of furniture - move the refrigerator away.
• creaking of the drawers or shelves - take out and put back the drawer or shelf.
• sounds of clinking bottles - move bottles apart.

Sounds heard during normal use are mainly due to operation of the thermostat, compressor (switching on) and cooling system (thermal expansion and contraction of the radiator caused by flow of the cooling agent).

WARRANTY AND AFTER SALES SERVICE

Warranty

The manufacturer shall not be held liable for any damage caused by improper use of the product.

Service

• The manufacturer recommends that all repairs and adjustments be carried out by the Factory Service Technician or the Manufacturer's Authorized Service Point. For safety reasons, repairs should be referred to professionals.
• Repairs carried out by unqualified persons may seriously endanger the appliance user.
• The minimum warranty period for the appliance offered by the manufacturer, importer or authorized representative is given in the warranty card.
• The warranty shall be void if you make any independent adaptations or alterations, tamper with seals or other appliance safety devices or its parts or interfere with the appliance contrary to operating instructions.

In the event of appliance malfunction, request assistance or repair.

If your appliance needs repair, please contact the service centre. Please see website for address and contact details of our service centre. Before contacting us, please have ready the appliance serial number, which can be found on the identification sticker: For your convenience, please write it down below:

Certifi cate of compliance CE and UKCA

The Manufacturer hereby declares that this product complies with the general requirements pursuant to the following European Directives and analogous UK requirements:

• The Low Voltage Directive 2014/35/EC / Electrical Equipment (Safety) Regulations 2016.
  • Electromagnetic Compatibility Directive 2014/30/EC / Electromagnetic Compatibility Regulations 2016.
• ErP Directive 2009/125/EC / The Ecodesign for Energy-related Products Regulations 2010 (as amended) for the applicable implementing measures which apply in Great Britain and Northern Ireland, respectively.

and therefore the product has been marked with C€ and UK symbols and the Declaration of Conformity, the Manufacturer has drawn up the declaration and is available to the competent authorities regulating the market.

Vážený kliente,

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

UVEDENÍ DO PROVOZU

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with diagonal lines and a horizontal bar below (no text or labels)

UVEDENIE DO PREVÁDZKY

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with a diagonal line, representing waste sorting or disposal (no text or labels)

ВКЛЮЧВАНЕ

12

Illustration of an open refrigerator with multiple doors and side drawers (no text or symbols visible)

Technical illustration showing a cable connector assembly and a mounted device with bolts (no text or symbols)

Mechanical assembly diagram showing a bracket with mounting holes and a handle, no visible text or symbols

Illustration of a kitchen appliance with a digital display and internal components (no text or symbols)

Illustration of a refrigerator with open doors and shelves (no text or symbols)

Technical illustration of a mechanical assembly with exploded view and directional arrows (no text or symbols)

Technical illustration of a mechanical assembly with bolts and a clamp, no visible text or symbols

Mechanical component diagram showing a left-side view of a metal bracket with multiple circular features and a right-side view of a yellow button-like component (no text or symbols)

Illustration of a refrigerator with open door and side shelves (no text or symbols)

Pure electrical circuit lines without any symbols

Diagram showing two identical mechanical components with red arrows indicating connection or movement, no text or symbols present.

3D mechanical assembly diagram showing a component with a red arrow indicating a specific part, no text or symbols present

3D diagram of a device panel with a red arrow pointing to a component, no text or symbols present

Diagram showing a cable installation with connectors and a magnified inset of the cable (no text or symbols)

Mechanical assembly diagram showing a component with mounting holes and wiring, no text or symbols present

Illustration of an open refrigerator with doors open, showing internal compartments and ventilation grilles (no text or symbols)

Amica S.A.

ul . Mickiewicza 52 / 64-510 Wronki tel. [phone] / fax [phone]

www.amica.pl

Amica International GmbH

Lüdinghauser Str. 52

D-59387 Ascheberg

Tel: 0 25 93 - 95 67-0

www.amica-group.de
