Product Type	Telephoto Zoom Lens
Brand	Fujifilm
Model	GF100-200mmF5.6 R LM OIS WR
Focal Length	100-200mm
Maximum Aperture	f/5.6 (constant)
Minimum Aperture	f/32
Lens Mount	Fujifilm G Mount
Format Compatibility	Medium Format (GFX Series)
Optical Construction	20 Elements in 13 Groups (1 Aspherical, 2 ED Elements)
Aperture Blades	9 (Rounded)
Minimum Focus Distance	1.6 m (5.25 ft)
Maximum Magnification	0.2x
Filter Size	82 mm
Dimensions (Diameter x Length)	89.5 mm x 183 mm (3.5 x 7.2 in)
Weight	1050 g (37 oz)
Image Stabilization	Optical (OIS), Up to 5 Stops
Autofocus Motor	Linear Motor
Weather Sealing	Yes (WR - Weather Resistant)
Included Accessories	Front Cap 82 mm, Rear Cap, Lens Hood, Lens Pouch
Lens Type	Telephoto Zoom with Constant Aperture

Frequently Asked Questions - GF100-200mmF5.6 R LM OIS WR FUJIFILM

How do I mount the GF100-200mmF5.6 lens on my GFX camera?

Align the red dot on the lens with the red dot on the camera mount, then rotate the lens clockwise until it clicks into place. Ensure the lens lock is engaged.

How do I activate the optical image stabilization (OIS)?

Slide the OIS switch on the lens barrel to the ON position. The OIS operates when the shutter is half-pressed or during continuous shooting.

What does WR mean in the lens name?

WR stands for Weather Resistant. The lens is sealed against dust and moisture, allowing use in light rain or dusty conditions.

What is the filter thread size?

The filter thread size is 82 mm. You can attach standard 82 mm filters or step-up/down rings.

Can I use teleconverters with this lens?

Yes, Fujifilm teleconverters (GF1.4X TC WR and GF2X TC WR) are compatible. The 1.4x converter gives a 140-280mm f/8 lens, and the 2x gives 200-400mm f/11.

Is the lens compatible with all Fujifilm GFX cameras?

Yes, the lens is designed for the G mount system and works with all GFX series cameras (GFX 50S, GFX 50R, GFX 100, etc.).

How do I use the focus ring?

The focus ring is electronic. Turn it to adjust focus. With the lens set to M (manual focus), you have full control. In AF mode, turning the ring may enable manual override if supported by the camera.

How should I clean and maintain the lens?

Use a blower to remove dust, then a lens cleaning cloth with a small amount of lens cleaner for smudges. Avoid harsh chemicals. Store in a dry place with silica gel.

Does this lens have a tripod collar?

No, the GF100-200mmF5.6 does not come with a tripod collar. It relies on the camera's tripod mount. For heavier setups, consider a third-party collar.

What is the warranty period for Fujifilm lenses?

Fujifilm typically offers a one-year limited warranty for lenses. Check with your local dealer for specific terms.

USER MANUAL GF100-200mmF5.6 R LM OIS WR FUJIFILM

GF100-200mmF5.6 R LM OIS WR

OWNER'S MANUAL

日本語

ENGLISH

FRANÇAIS

DEUTSCH

ESPAÑOL

NEDERLANDS

SVENSKA

NORSK

SUOMI

РУССКИЙ

ITALIANO

DANSK

POLSKI

中文简

中文繁體

한글

お取り扱いにご注意ください

ご使用前に必ずお読みください

安全上のご注意

GF100-200mmF5.6 R LM OIS WR

JA-5

レンズフードの取り付け方

レンズフードの取り外し方

日本語

PL フィルターの使い方

Diagram showing a mechanical component being inserted into a housing, with no visible text or symbols.

Cross-sectional diagram of a mechanical component with internal channels and arrows indicating flow direction (no text or symbols)

撮影距離範囲切り換えスイッチの使い方

オートフォーカスの駆動範囲を選べます。

Be sure to read these notes before use

Safety Notes

Thank you for your purchase of this product. For repair, inspection, and internal testing, contact your Fujifi lm dealer.

• Make sure that you use the lens correctly. Read these safety notes and the camera Owner's Manual carefully before use.
• After reading these safety notes, store them in a safe place.

About the Icons

The icons shown below are used in this document to indicate the severity of the injury or damage that can result if the formation indicated by the icon is ignored and the product is used incorrectly as a result.

	This icon indicates that death or serious injury can result if the information is ignored.
	This icon indicates that personal injury or material damage can result if the information is ignored.

The icons shown below are used to indicate the nature of the instructions which are to be observed.

	Triangular icons tell you that this information requires attention ("Important").
	Circular icons with a diagonal bar tell you that the action indicated is prohibited ("Prohibited").
	Filled circles with an exclamation mark indicate an action t be performed ("Required").

WARNING
Do not use in the bathroom or shower	Do not immerse in or expose to water.Failure to observe this precaution can cause a fi re or electric shock.
Do not disassemble	Do not disassemble (do not open the case).Failure to observe this precaution can cause fi re, electric shock, or injury due t malfunction.
Do not touch internal parts must	Should the case break open as the result of a fall or other accident, do not touch the exposed parts.Failure to observe this precaution could result in electric shock or in injury from touching the damaged parts.Remove the camera battery immediately, taking care to avoid injury or electric shock, and take the product to the point of purchase for consultation.
	Do not place on unstable surfaces.The product may fall, causing injury.

WARNING

Do not view the sun through the lens or camera viewf nders. Failure to observe this precaution can cause permanent visual impairment.

CAUTION

Do not use or store in locations that are exposed to steam, or smoke or are very humid or extremely dusty. Failure to observe this precaution can cause fire or electric shock.

Do not leave in direct sunlight or in locations subject to very high temperatures, such as in a closed vehicle on a sunny day. Failure to observe this precaution can cause fi re.

Keep out of the reach of small children. This product could cause injury in the hands of a child.

Do not handle with wet hands. Fail ure to observe this precaution can cause electric shock.

CAUTION

Keep the sun out of the frame when shooting backlit subjects. Sunlight focused into the camera when the sun is in or close to the frame can cause fire or burns.

When the product is not in use, replace the lens caps and store out of direct sunlight. Sunlight focused by the lens can cause fire or burns.

Do not carry the camera or lens while they are attached to a tripod. The product can fall or strike other objects, causing injury.

Do not rapidly rotate the camera while holding the grip. Your hand could strike the tripod or tripod collar foot, causing injury.

Before handling the camera, fully tighten or loosen the tripod collar lock screw according to whether the camera will be used in a fixed orientation or rotated. If the screw is only partially tightened, the camera may move unexpectedly, causing injury.

For Customers in the U.S.A.

Tested To Comply With FCC Standards FOR HOME OR OFFICE USE

FCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.

EN-2ENGLI

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• You are cautioned that any changes or modifications not expressly approved in this manual could void the user's authority to operate the equipment.

Notes on the Grant: To comply with Part 15 of the FCC Rules, this product must be used with a Fujifi Im-specific ed ferrite-core A/V cable, USB cable, and DC supply cord.

For Customers in Canada

CAN ICES-3 (B)/NMB-3(B)

CAUTION: This Class B digital apparatus complies with Canadian ICES-003.

IMPORTANT SAFETY INSTRUCTIONS

• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water (excluding waterproof products).
• Clean only with a dry cloth.

• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personal. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Disposal of Electrical and Electronic Equipment in Private Households

In the European Union, Norway, Iceland and Liechtenstein: This symbol on the product, or in the manual and in the warranty, and/or on its packaging indicates that this product shall not be treated as household waste. Instead it should be taken to an applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The recycling of materials will help to conserve natural resources. For more detailed information about recycling this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

In Countries Outside the European Union, Norway, Iceland and Liechtenstein: If you wish to discard this product, including the batteries or accumulators, please contact your local authorities and ask for the correct way of disposal.

Australian RCM

EN-3 ENGLISH

Before Using This Product

The lens may not perform as expected and some features may not be available with older versions of the camera fi rmware. Be sure to update the camera fi rmware to the latest version. Instructions on viewing the camera fi rmware version and updating camera fi rmware are available from the following website:

http://www.fujifilm.com/support/digital_cameras/software/#firmware

If you do not have access to a computer, support is available from the local distributor listed in the "FUJIFILM Worldwide Network" material provided with your camera.

Product Care

• When using a lens hood, do not pick up or hold the camera using only the hood.
• Keep the lens signal contacts clean.
• Use a blower to remove dust and lint from the

glass surfaces of the lens or fi lter. To remove smudges and fi ingerprints, apply a small amount of lens cleaner to a soft, clean cotton cloth or lens-cleaning tissue and clean from the center outwards using a circular motion, taking care not to leave smears or touch the glass with your fi ngers.

• Never use organic solvents such as paint thinner or benzene to clean the lens.
• Attach the front and rear caps when the lens is not in use.
• Store the lens and fi Iter in cool, dry locations to prevent mold and rust. Do not store in direct sunlight or with naphtha or camphor moth balls.
• Keep the lens dry. Rusting can cause irreparable damage. Wipe off rain and water droplets.
  • Leaving the lens in extremely hot locations could cause damage or warping.
• Note that depending on the positions of the camera and tripod, the hand holding the camera grip may contact the tripod or tripod collar foot when the camera is rotated.

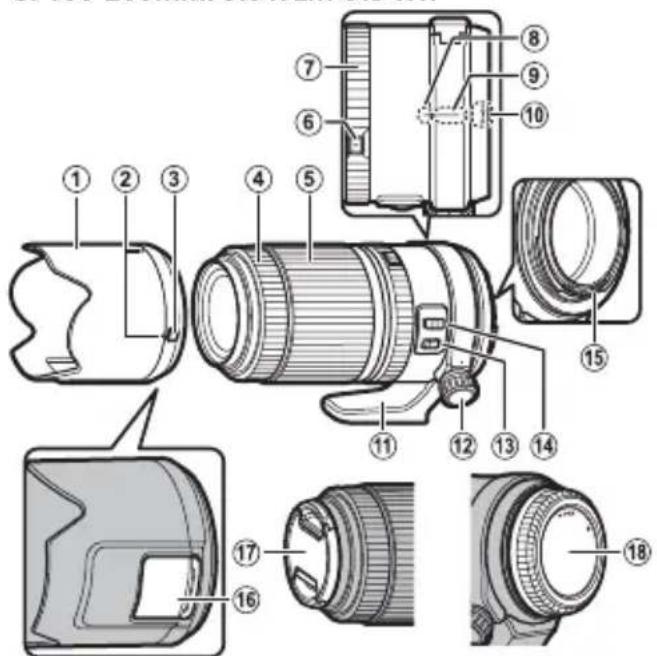

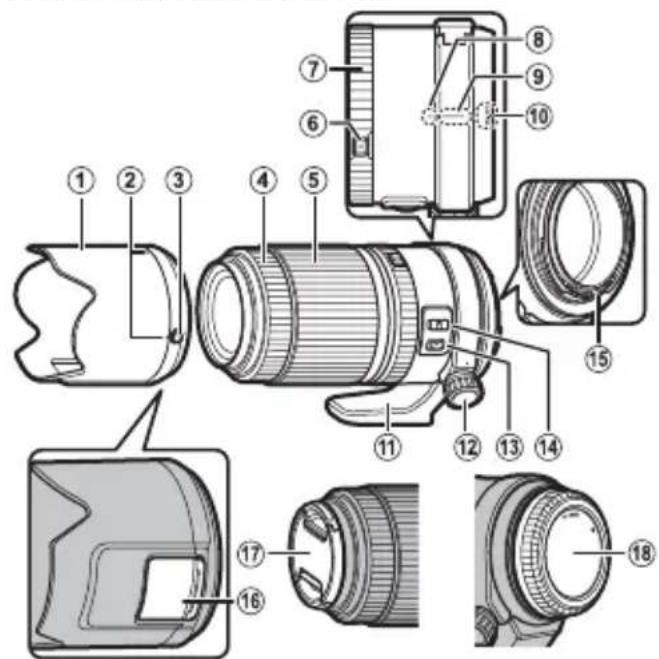

Parts of the Lens

GF100-200mmF5.6 R LM OIS WR

① The lens mount includes a rubber ring to ensure that the lens remains dust- and splash-proof. The ring can be replaced for a fee at any Fujifi Im service center.

① Lens hood
② Mounting marks
③ Hood latch release
④ Focus ring
⑤ Zoom ring
⑥ Aperture ring lock release
⑦ Aperture ring
⑧ Orientation index (on lens)
⑨ Tripod collar reference index (on collar)
⑩ Mounting marks (focal length)
⑪ Tripod collar foot
⑫ Lock knob
⑬ O.I.S. switch
⑭ Focus range selector
⑮ Lens signal contacts
⑯ Filter access port
⑰ Front lens cap
⑱ Rear lens cap

Supplied Accessories

- Front lens cap

- Lens pouch

- Rear lens cap

- Tripod collar foot

- Lens hood

Attaching the Lens

See the camera manual for information on attaching and removing lenses.

①This lens is for use exclusively with FUJIFILM G mounts and can not be used with X mounts.

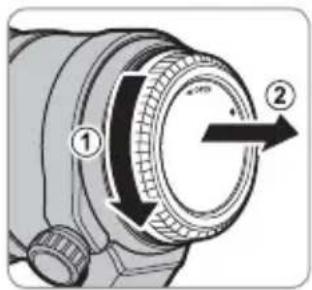

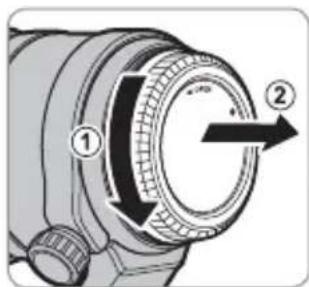

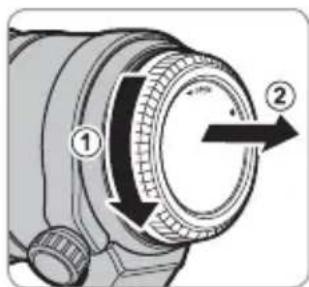

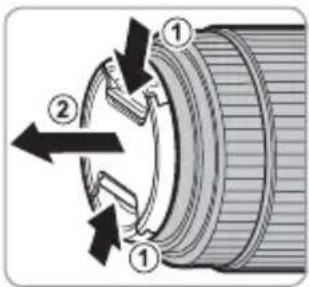

Removing the Caps

Remove the caps as shown.

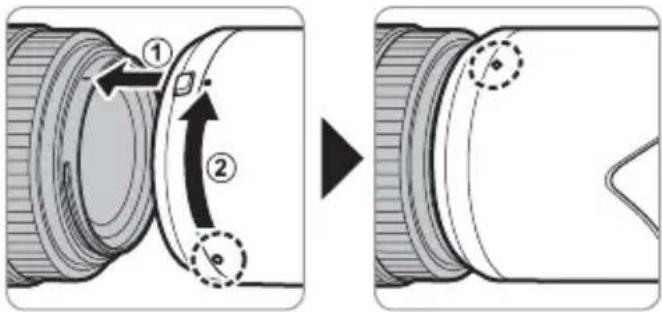

Attaching the Hood

When attached, lens hoods reduce glare and protect the front lens element.

Removing the Hood

To remove the hood, press and hold the hood latch release while rotating the hood counterclockwise.

EN-6ENGLI:

The Polarizing Filter

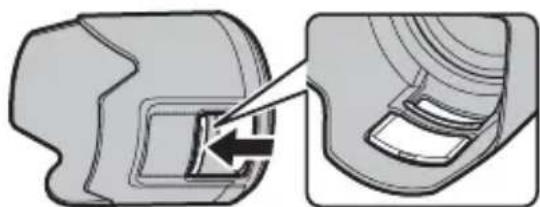

To access the polarizing fi Iter, open the fi Iter access port cover.

Diagram showing a mechanical component being cut with an arrow, no text or symbols present

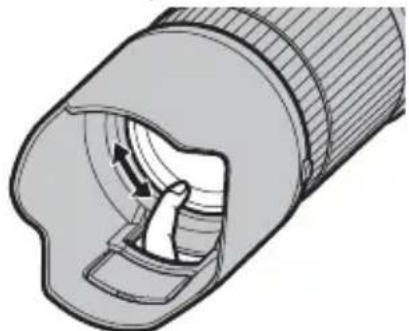

The filter can be rotated by inserting a finger through the access port.

Cross-sectional diagram of a mechanical component with internal flow arrows (no text or symbols)

EN-7 ENGLISH

The Focus Range Selector

Choose the focus range for autofocus.

• FULL: Focus on subjects at any distance.
- 5m–∞: Focus on subjects at distances of 5 m or more. Focus is faster than when FULL is selected.

Optical Image Stabilization (OIS)

To use optical image stabilization, slide the O.I.S. switch to ON.

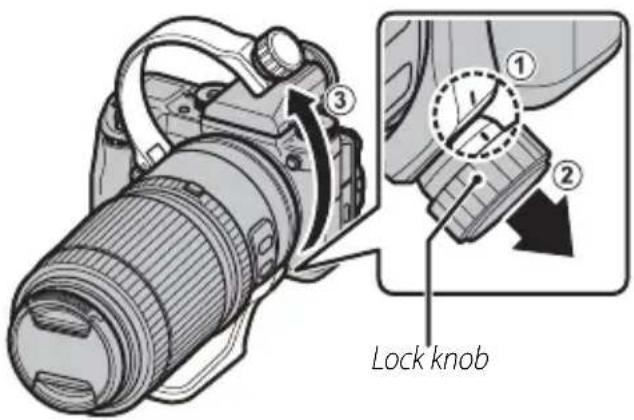

Removing the Tripod Collar

Align the marks on the lock knob and collar (①). Pull the knob (2) and lift the collar (③) as shown.

To reattach the collar, position the collar in the channel and securely tighten the lock knob.

Zoom

Rotate the zoom ring left to zo reducing magnifi ca- tion and increasing the area visible in the frame. Rotate the ring right to zoom in, increasing magnifi ca- tion so that the sub- ject occupies more of the frame.

Zoom out

① Using the zoom ring while the lens is wet makes it easier for water to find its way inside the lens. Wipe any water from the lens before using the zoom ring.

Specifications

Type GF100-200mmF5.6 R LM OIS WR
Lens construction	20 elements in 13 groups (including 1 aspherical elementand 2 super extra-low-dispersion elements)
Focal length (35 mm format equivalent)	f=100–200 mm (79–158 mm)
Angle of view 30.6°–15.6°
Max. aperture f/5.6
Min. aperture f/32
Aperture control
Number of blades	9 (rounded diaphragm opening)
Stop size	13 EV (16 stops)
Focus range (measured from focal plane)	W: 0.6 m–infinity T: 1.6 m–infinity
Max. magnification W: 0.2 ×
External dimensions: Diameter × Length* (approx.) * distance from front of lens to lens mount fl ange	∅89.5 × 183 mm
Weight* (approx.) * excluding caps, hoods, and tripod collar feet	1050 g
Filter size	∅67 mm

① Improvements may result in unannounced changes to specifications and appearance.
① Owing to how this lens is constructed, the "Distance indicator" displayed by the camera may in some cases differ from the actual focus distance. Use the "Distance indicator" as a guide only.

Turn the camera off before removing the lens. Turning the camera off locks the internal parts of the lens.

To reduce blurring due to vibration from the mechanical shutter, enable E-FRONT CURTAIN SHUTTER in the camera menus.

Pour votre sécurité

http://www.fujifilm.com/support/digital_cameras/software/#firmware

GF100-200mmF5.6 R LM OIS WR

FR-6 FRANÇAIS

Diagram showing a mechanical component being inserted into a housing, with no visible text or symbols.

Cross-sectional diagram of a mechanical component with internal channels and arrows indicating flow direction (no text or symbols)

http://www.fujifilm.com/support/digital_cameras/software/#firmware

GF100-200mmF5.6 R LM OIS WR

Abnehmen der Haube

Der Polfi Iter

Diagram showing two views of a mechanical component with an arrow pointing to a specific part (no text or symbols present)

Cross-sectional diagram of a mechanical component with internal channels and arrows indicating flow direction (no text or symbols)

http://www.fujifilm.com/support/digital_cameras/software/#firmware

GF100-200mmF5.6 R LM OIS WR

Diagram showing a mechanical component being inserted into a housing, with no visible text or symbols.

Cross-sectional diagram of a mechanical component with internal channels and arrows indicating flow direction (no text or symbols)

El selector de rango de enfoque

http://www.fujifilm.com/support/digital_cameras/software/#firmware

GF100-200mmF5.6 R LM OIS WR

De zonnekap bevestigen

NL-6NEDER

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Cross-sectional diagram of a mechanical component with internal channels and directional arrows (no text or symbols)

NL-7 NEDERLANDS

Optical Image Stabilization (OIS)

http://www.fujifilm.com/support/digital_cameras/software/#firmware

GF100-200mmF5.6 R LM OIS WR

SV-6 SVENSKA

Polariseringsfi Itret

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Cross-sectional diagram of a mechanical component with internal channels and arrows indicating flow direction (no text or symbols)

http://www.fujifilm.com/support/digital_cameras/software/#firmware

GF100-200mmF5.6 R LM OIS WR

▶

Technical line drawing of a mechanical component with no visible text or symbols

Fjerne solblenderen

NO-6NORSH

Diagram showing a mechanical component being inserted into a housing, with no visible text or symbols.

Cross-sectional diagram of a mechanical component with internal flow arrows (no text or symbols)

NO-7 NORSK

Fokusområdevelgeren

Velg fokusområde for autofokus.

• FULL: Fokuser på motiver uansett avstand.
- 5m–∞: Fokuser på motiver som er 5 m unna eller mer. Fokus er raskere enn när FULL er valgt.

Optisk bildestabilisering (OIS)

http://www.fujifilm.com/support/digital_cameras/software/#firmware

GF100-200mmF5.6 R LM OIS WR

FI-6 SUOMI

Polarisaatiosuodin

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Cross-sectional diagram of a mechanical component with internal flow arrows (no text or symbols)

GF100-200mmF5.6 R LM OIS WR

Установка бленды

Снятие бленды

Diagram showing a mechanical component being inserted into a housing, with no visible text or symbols.

Cross-sectional diagram of a mechanical component with internal flow arrows (no text or symbols)

RU-7 РУССКИЙ

http://www.fujifilm.com/support/digital_cameras/software/#firmware

GF100-200mmF5.6 R LM OIS WR

IT-6 ITALIANO

Montaggio paraluce

Diagram showing a mechanical component being cut with an arrow, no text or symbols present

Cross-sectional diagram of a mechanical component with internal flow arrows (no text or symbols)
