Tactical - Keyboard Ozone - Free user manual and instructions

Product Type	Mechanical Keyboard (Gaming)
Connectivity	Wired USB 2.0 and Bluetooth 5.0
Operating Systems Supported	Windows, Mac OS, iOS, Linux, Android
Bluetooth Pairing Capacity	Up to 5 devices, stored on Q/W/E/R/T keys
Backlight	Yes, with adjustable brightness and effect speed (via FN + mode/color selectors)
Macro Recording	Up to 3 macros on Z/X/C keys, recordable via FN+Z/X/C
Windows/Mac OS Mode Switch	FN+A for Windows, FN+S for Mac OS
Numbers/Functions Key Toggle	FN+left Control to switch between number row and function keys
Software Support	Ozone software (Windows only, 200MB disk space, internet required for download)
Power Source (Wireless Mode)	Rechargeable internal battery (details not specified in manual)
Cleaning Instructions	Clean with damp cloth, avoid abrasive or corrosive detergents; do not clean while connected to power
Safety Warnings	Keep away from water, avoid use by persons with impaired capacities without supervision, not for outdoor use
Warranty	3 years from purchase date (subject to local laws, valid for original purchaser only)
Certifications	CE (EU Directive 2014/30/EU), RoHS

Frequently Asked Questions - Tactical Ozone

How do I switch to Bluetooth mode?

Use the switch on the back of the keyboard to select Bluetooth mode. Then press FN+Q/W/E/R/T for 3 seconds to enter pairing mode. The key will flash continuously during pairing.

Can I connect the keyboard wirelessly to multiple devices?

Yes, you can pair up to 5 devices via Bluetooth and switch between them using FN + Q/W/E/R/T. Each key corresponds to a stored device.

How do I record a macro?

Press FN + (clipboard key) to enable macro recording mode. Then press and hold FN + Z/X/C for 3 seconds to start recording. Press the keys you want to store, then press FN + Z/X/C briefly to stop recording.

How do I adjust the backlight brightness?

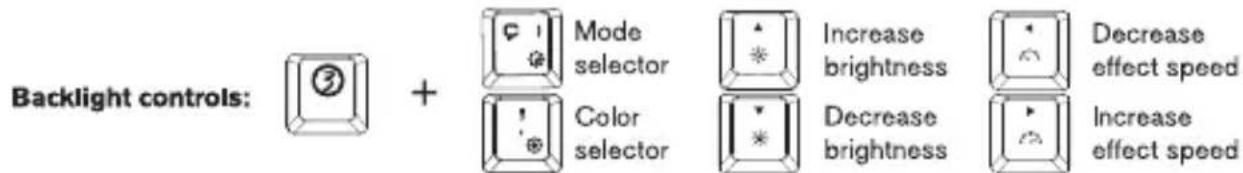

Use FN + brightness up/down keys to adjust brightness. To change effect speed, use FN + speed up/down keys. The backlight mode can be cycled with the mode selector.

Does the keyboard work with a PS4 or Xbox?

The manual does not specify console compatibility. It supports Windows, Mac, iOS, Linux, and Android. For other platforms, try wired mode via a USB adapter, but functionality is not guaranteed.

How do I switch between Windows and Mac key layouts?

Press FN + A for Windows mode or FN + S for Mac OS mode. The keyboard will remap modifier keys accordingly.

What should I do if the keyboard is not responding?

First, check the switch on the back (wired/Bluetooth). For wired mode, ensure the USB cable is properly connected. For Bluetooth, try re-pairing: delete the device from your system and pair again. If issues persist, restart your device or contact support.

How long is the warranty?

The warranty is 3 years from the date of purchase, valid only for the original purchaser. It does not cover damage from misuse, modification, or normal wear.

Can I clean the keyboard with water?

No, do not use water directly. Use a slightly damp cloth with mild detergent, then dry with a soft cloth. Avoid abrasive cleaners or sponges.

Is there software to customize the keyboard?

Yes, Ozone offers software for Windows (200MB hard disk space) to customize settings such as backlight effects and macros. Download from the Ozone website.

USER MANUAL Tactical Ozone

1. Operating Systems Windows, Mac, IOS, Linux or Android.
2. Free USB 2.0 port or Bluetooth 5.0 device.
3. Internet connection for downloading the software and 200 Mb of hard disk to install it (Only Windows supported).

INSTALLATION INSTRUCTIONS

Select the connection type (wired or bluetooth) with the switch located in the back side of the keyboard.

Wired Mode. If you selected the wired mode:

1. Plug the USB into you PC.

2. Wait until your system recognize and install the new device.

3. Enjoy playing with Ozone Tactical.

Bluetooth Mode. If you selected the BT mode, you can store up to 5 devices paired with the keyboard and change between them easily. The devices icons are located in the Q, W, E, R and T keys.

Pairing mode:

1. Press ③ + Q, W, E, R, T to select the key to store the BT device. The key will flash twice quickly.
2. Press ③ + Q, W, E, R, T for 3 seconds, the key will flash continuously, the keyboard has entered in pairing mode.
3. Search the keyboard in your bluetooth device, select it and complete the pairing. The selected key will stop flashing. Pairing is done.
4. Repeat the process up to 5 times if you want to pair up to 5 devices.

OTHER FUNCTIONS

Macro recording. You can record up to 3 macros in the Z, X, C keys of the keyboard.

1. Press ③ + 📋 to enable / disable macro keys.
2. Press ③ + Z, X, C for 3 seconds to start recording.
3. Press all the keys you want to store in the macro.
4. Press ③ + Z, X, C shortly to stop recording.

Windows and Mac OS modes. Press ③ + A for Windows mode. Press ③ + S for Mac OS mode.

	Windows	Mac OS		Windows	Mac OS		Windows	Mac OS		Windows	Mac OS
Fn+1	F1	※	Fn+4	F4	###	Fn+7	F7	↔	Fn+10	F10	↔
Fn+2	F2	※	Fn+5	F5	—	Fn+8	F8	↔	Fn+11	F11	↔
Fn+3	F3	###	Fn+6	F6	—	Fn+9	F9	↔	Fn+12	F12	↔

Press ③ + CONTROL (left) for Numbers / Functions keys switching.

All safety warnings give specific details of the potential danger/warning present and indicate how to reduce risk of injury, damage resulting from improper use of the product.

Carefully observe the following instructions:

• Installation and maintenance must be carried out by a qualified technician, in compliance with the manufacturer's instructions and local safety regulations.
• Do not repair or replace any part of the appliance unless specifically stated in the user manual.
• The appliance must be disconnected from the power supply before carrying out any installation work
• Do not touch the appliance with any wet part of the body and do not operate it when barefoot
• The product is not intended for use by persons (including children) with any physical, sensory or mental impairment, or without experience and knowledge of the appliance, unless supervised or previously instructed in its use by those responsible for their safety.
• Children must be supervised to ensure they do not play with the product.
• This product is not suitable for outdoor use.

GENERAL RECOMMENDATIONS:

Before use:

Remove cardboard protection pieces, protective film and adhesive labels from accessories. Children must be supervised during the process to avoid any risk of suffocation.

Check the appliance for any transport damage.

During use:

To avoid any damage do not place any weights on the appliance.

Do not expose the appliance to atmospheric agents.

CLEANING:

IMPORTANT:

Do not use corrosive or abrasive detergents. If any of these products accidentally comes into contact with the appliance, clean immediately with a damp cloth. Do not clean or open the product while when any power cables are attached.

Clean the surfaces with a damp cloth. Finish off with a dry cloth.

IMPORTANT:

Do not use abrasive sponges or metallic scrapers or scourers. Over time, these can ruin the surface.

TATEMENT OF COMPLIANCE WITH EUROPEAN UNION DIRECTIVES

Ozone declares that this product is in compliance with the essential requirements and other relevant provisions from the following Directive: 2014/30/EU, as applicable. The technical documentation required by the Conformity Evaluation process is in Ozone's possession and can be requested through [e-mail]

AL OF BATTERIES AND ELECTRICAL OR ELECTRONIC EQUIPMENT WASTE

The existence of this symbol on the product, batteries or respective packaging, signifies that this product and the contained batteries can not be disposed as domestic waste.

It is the user's responsibility to deliver this product at a batteries, electrical or electronic recycling pick-up point.

The pick-up and separate recycling contributes for the preservation of natural resources and suppresses potential negative consequences for the human health and the environment resultant of inadequate disposal of dangerous substances contained in batteries and electrical or electronic equipment.

For additional informations regarding batteries, electrical or electronic recycling pick-up points, please contact your local municipal services.

WARNINGS FOR WIRELESS PRODUCTS USAGE

Radio waves from this product may negatively affect the operation of medical electronic equipment, causing them to malfunction. When using this product inside medical facilities or near medical equipment, follow directions from the authorized personnel representing the medical facilities, and follow all posted warnings and directions on the medical equipment.

Radio waves from this product may negatively affect the operation of automatically controlled devices such as automatic doors or fire alarms, and could lead to accidents due to malfunction. When using this product near automatically controlled devices, follow all posted warnings and directions on these devices.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televisión reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient and relocate the receiving antenna
- Increase the separation between the equipment and receiver
- Connect the equipment to an electrical outlet on a different circuit to that which the receiver is connected.

This product, liek other radio devices, emits radio frequency electromagnetic energy and operate within the guidelines found in radio frequency safety standards and recommendations.

WARRANTY:

Who does the warranty protect:

This warranty is valid for the original purchaser only.

What does the warranty protect:

For warranty claims, please contact Ozone's overseas distribution partners in your country. Find the distribution partner list at www.ozonegaming.com

Warranty: 3 years from the date of purchase (from January 2022 and depending on the laws of each country)

What does not the warranty cover:

1. Any product, on which the serial number has been defaced, modified or removed.
2. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.
3. Repair or attempted repair by anyone not authorized by Ozone Gaming.
4. Damage to or loss of any programs, data or removable storage media.
5. Software or data loss occurring during repair or replacement.
6. Any damage of the product due to shipment.
7. Removal or installation of the product.
8. External causes, such as electric power fluctuations or failure.
9. Use of supplies or parts not meeting Ozone Gaming's specifications.
10. Normal wear and tear.
11. Any other cause which does not relate to a product defect.

If you have any questions regarding technical problems, please contact us via our website: www.ozonegaming.com

Ozone reserves the right for any modifications in text and/or images.

Ozone Gaming registered trademark of Atlas Informática S.L. - B92492032 - Calle Punta Alta, 33, 29006 - Málaga - Spain. [e-mail]
