Product Type	Kitchen faucet
Model	INSJÖN
Brand	IKEA

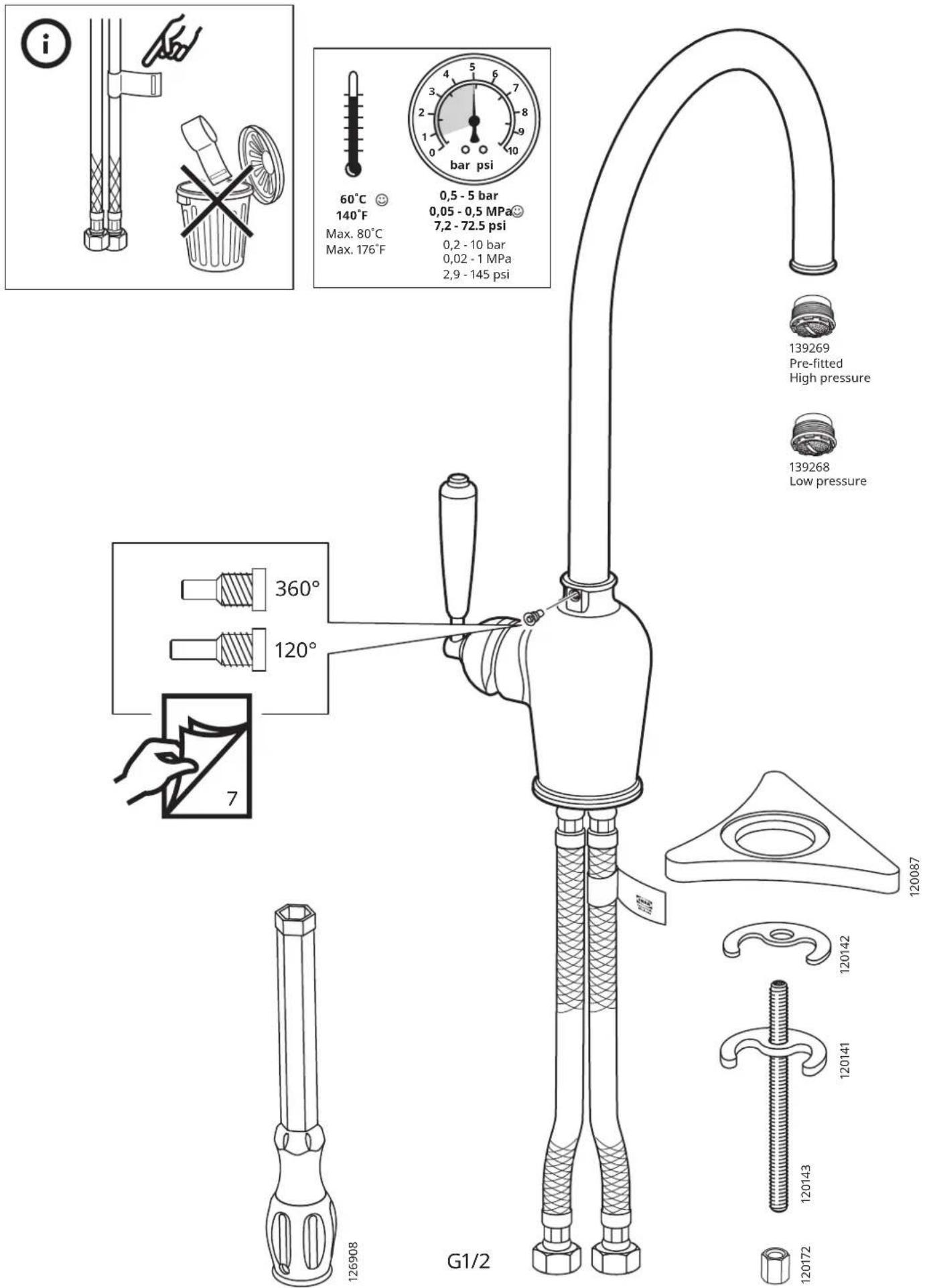

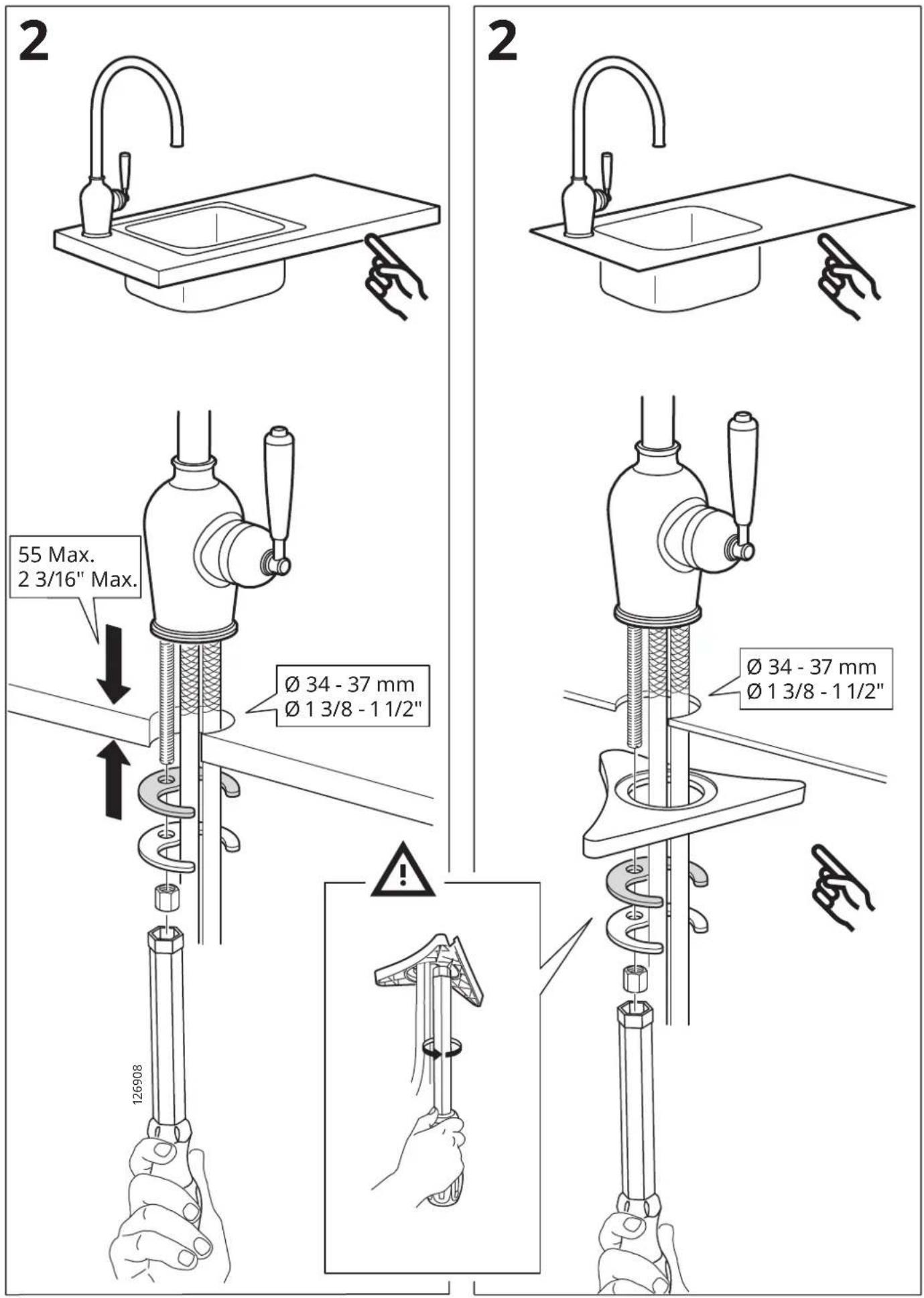

Max Installation Height	55 mm (2 3/16 in)
Mounting Hole Diameter	34-37 mm (1 3/8-1 1/2 in)
Max Water Temperature	80 °C (176 °F), recommended 60 °C (140 °F)
Working Pressure (Recommended)	0.5-5 bar (0.05-0.5 MPa, 7.2-72.5 psi)
Maximum Test Pressure	10 bar (1 MPa, 145 psi)
Connection Thread	G1/2

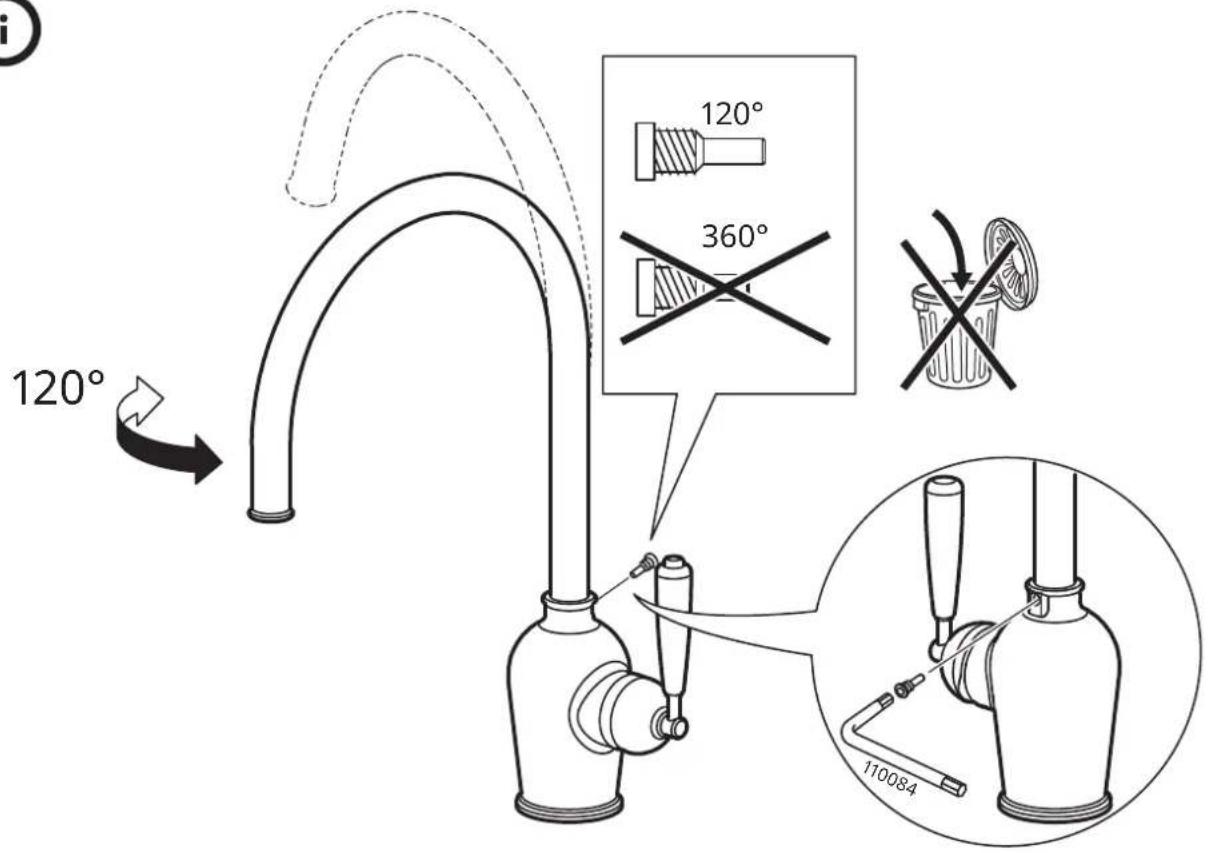

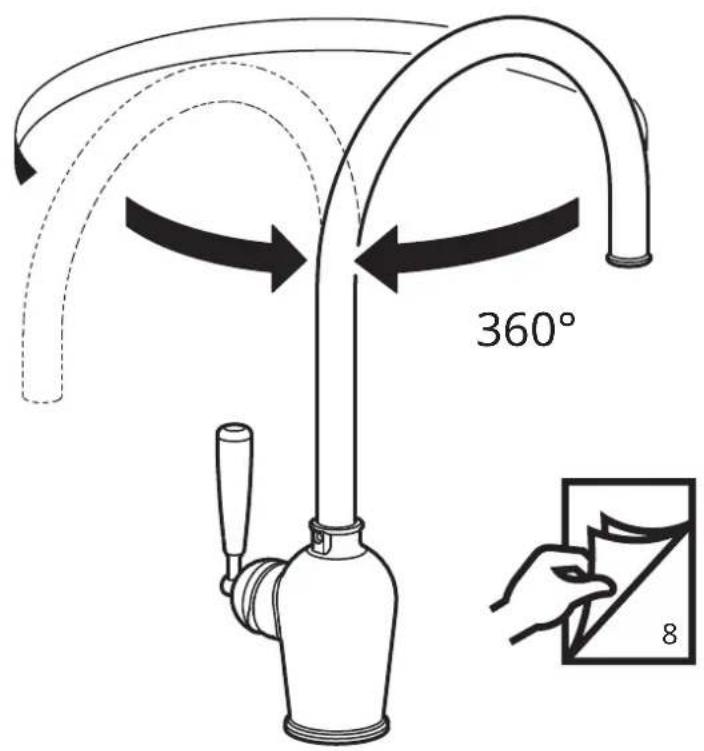

Swivel Range	360°

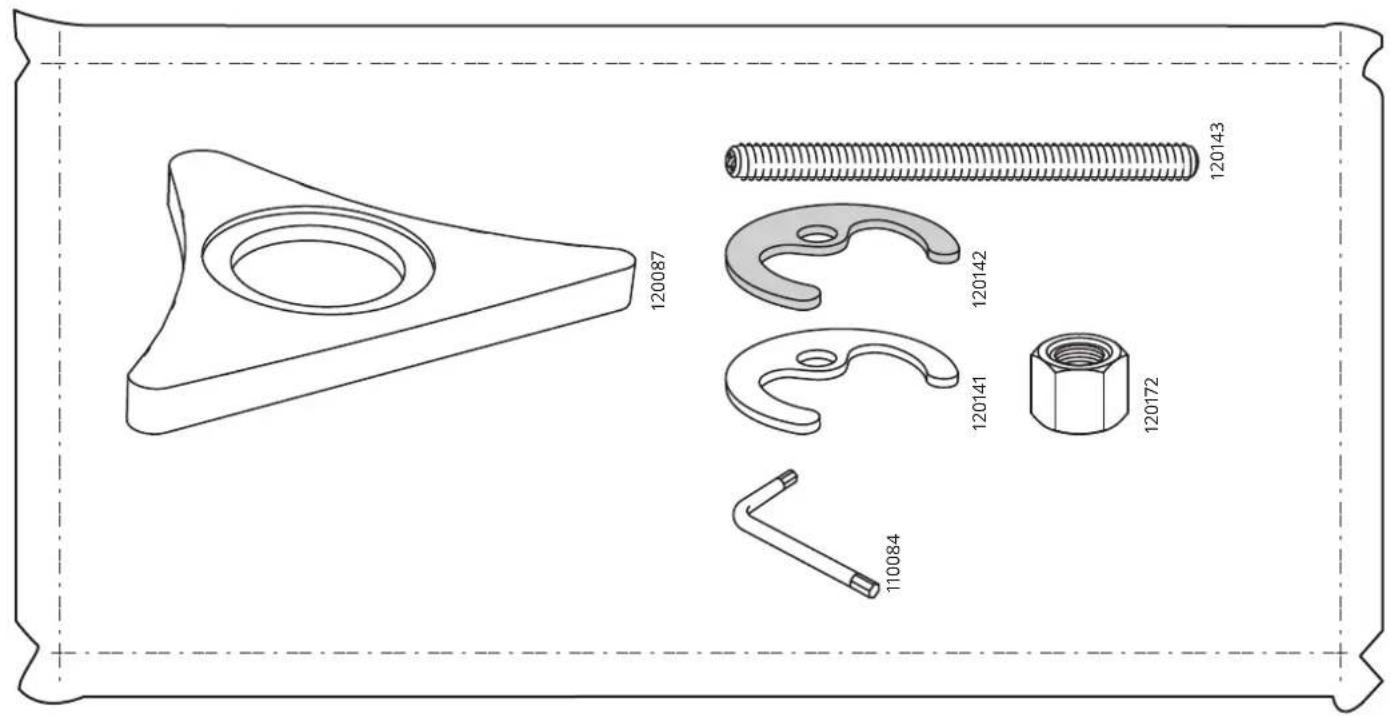

Included Article Numbers	120087, 120143, 120142, 120141, 120172, 110084, 139269, 139268
Pre-fitted Check Valves	Yes (high and low pressure)
Installation Requirement	Compliance with local plumbing regulations, seal open surfaces with silicone
Maintenance	Check regularly for leaks; clean aerator as needed
First Use	Unscrew aerator with coin, flush water for a few minutes, then reattach
UK Water Regulations Note	Inlet hoses must be light-excluded, balanced pressure from common source, or fit check valves

Frequently Asked Questions - INSJÖN IKEA

What is the recommended maximum water temperature for the INSJÖN faucet?

The recommended maximum water temperature is 80 °C (176 °F). However, a continuous temperature of 60 °C (140 °F) is suggested for everyday use.

What is the required mounting hole diameter for installation?

The mounting hole diameter must be between 34 mm and 37 mm (1 3/8 to 1 1/2 inches).

How do I connect the hoses?

Use the supplied G1/2 connection. Do not overtighten the hoses to avoid damage to the washers. Ensure the hot and cold supplies are connected appropriately.

Do I need to check valves?

The faucet comes pre-fitted with check valves for both high and low pressure. No additional check valves are required unless local regulations demand otherwise.

How should I seal the faucet to prevent water damage?

After installation, seal the open surfaces around the faucet with silicone (not included) to prevent water from penetrating the worktop in case of leaks.

What is the first step after installing the faucet?

Before using the faucet, unscrew the aerator/flow guide with a coin and run water for a few minutes to flush out any debris. Then reattach the aerator, but do not overtighten.

How often should I inspect the faucet for leaks?

Check at regular intervals to make sure the installation is not leaking. This helps prevent water damage and ensures long-lasting performance.

What are the UK water regulations for this faucet?

Inlet supply hoses must be installed where light is excluded. Water supplies should be at reasonably balanced pressures from a common source. If supplies are unbalanced, fit an approved single check valve upstream of both inlets.

Can the faucet be installed on a 2-hole sink?

The INSJÖN is designed for a single hole with a diameter of 34-37 mm. It is not suitable for 2-hole installations without modification.

What is the maximum installation height above the sink?

The maximum installation height is 55 mm (2 3/16 inches) from the base of the faucet to the worktop surface.

USER MANUAL INSJÖN IKEA

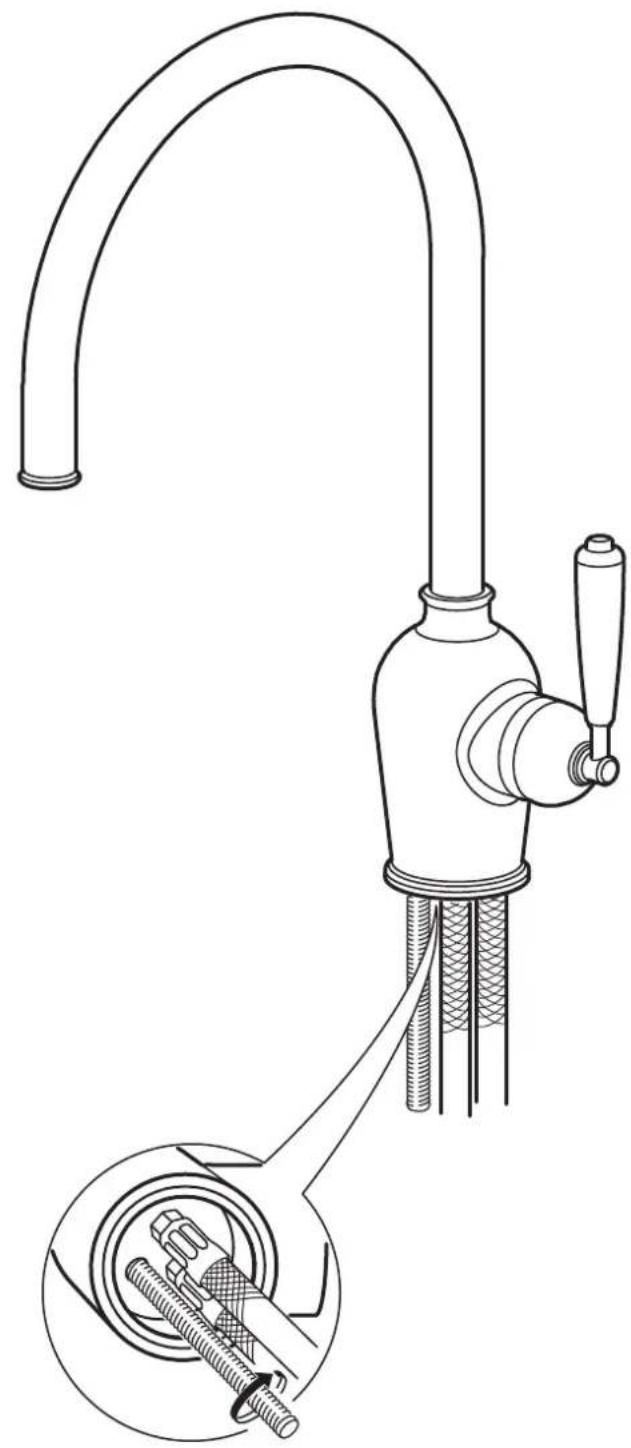

Line drawing of a standard kitchen faucet with an arched handle and side knob (no text or symbols)

English

Installation must be performed in compliance with current local construction and plumbing regulations. If in doubt, contact a professional.

English

Switch off main shut-off valve before changing mixer tap.

1

Line drawing of a kitchen sink with a curved handle and internal tubing (no text or symbols)

English

Seal the open surfaces with silicone to prevent water from penetrating the worktop upon any leaks. Silicone is not included.

i

i

English

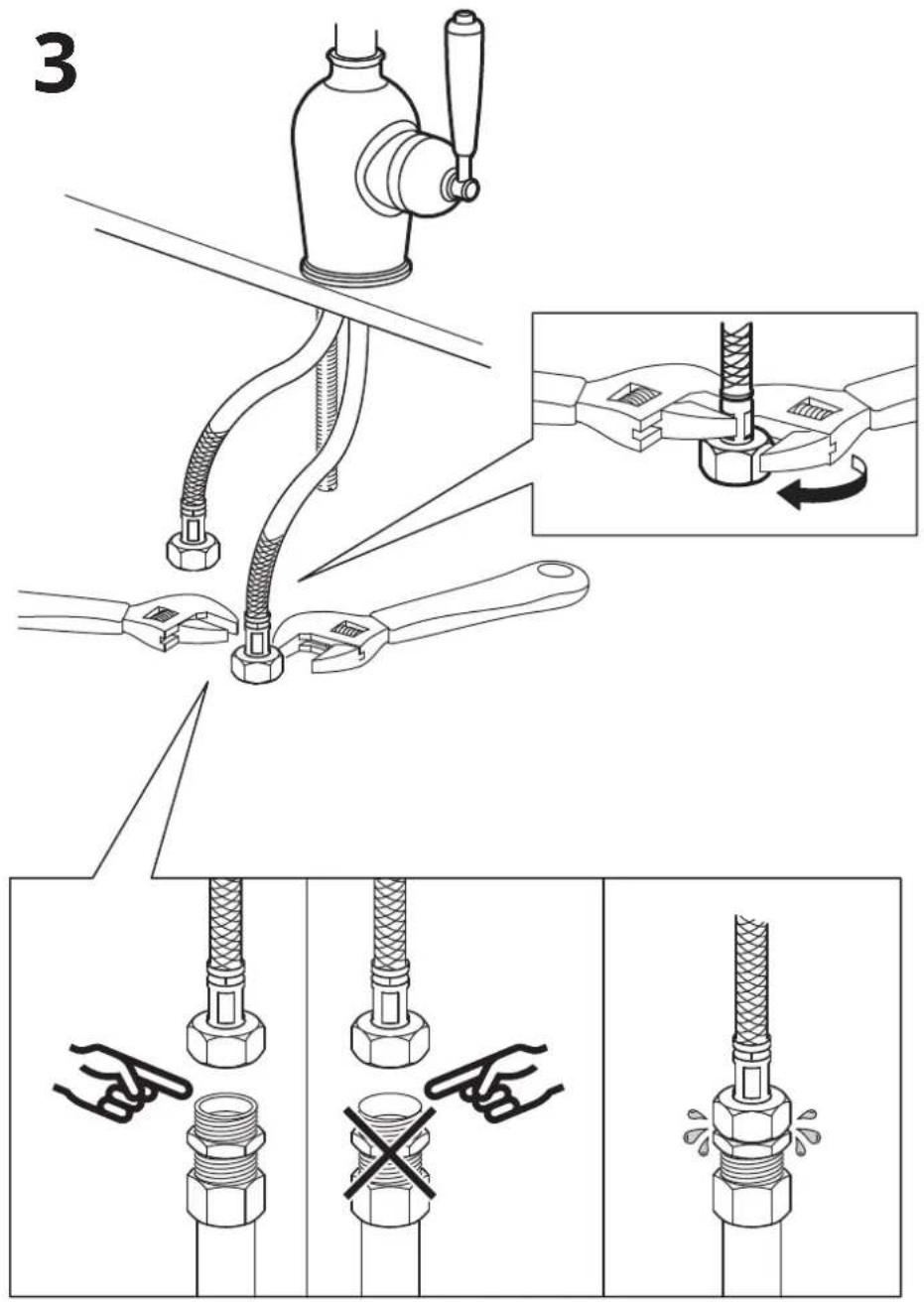

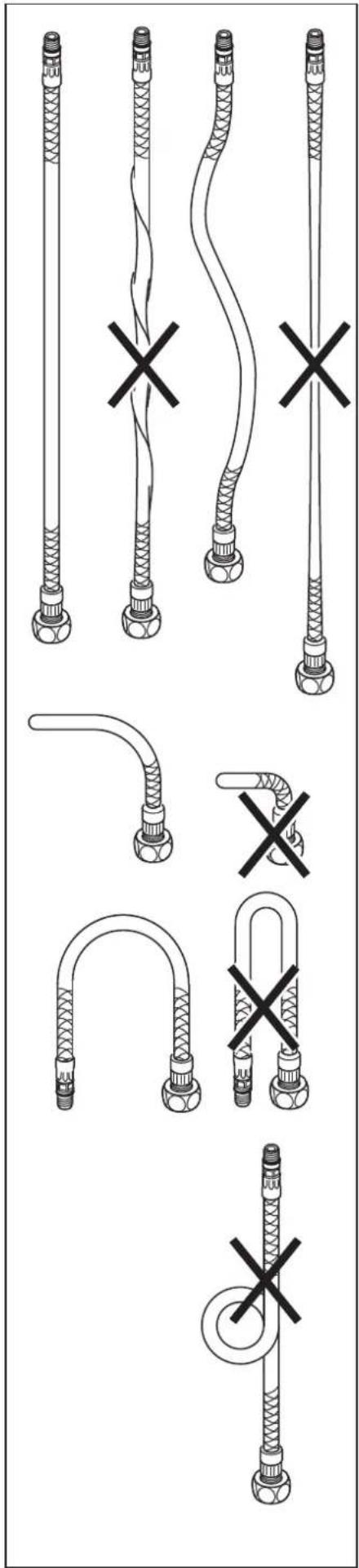

IMPORTANT! Do not tighten too hard: this can damage hoses/pipes and washers.

Line drawing of a vintage-style kitchen sink with a circular pipe and handle (no text or symbols)

Illustration of a hand holding a tool interacting with a pipe fitting (no text or symbols present)

139269

Pre-fitted

High pressure

139268

Low pressure

English

Before use: Unscrew the Aerator/Flow Guide with a coin and allow the water to run freely for a few minutes. Then screw the Aerator/Flow Guide back in place up to the stop DO NOT OVER TIGHTEN.

English

Check at regular intervals to make sure that the installation is not leaking.

English

To comply with UK water regulations, this product shall be installed in accordance with the following:

Inlet supply hoses shall be installed where light is excluded.

Water supplies shall be at reasonably balanced pressures from a common source (e.g. hot and cold supplies both from the same storage or both from a supply pipe). Where the fitting is supplied from unbalanced supplies (e.g. hot and cold supplies from separate sources) an 'Approved' single check valve or some other no less effective backflow prevention device shall be fitted immediately upstream of both hot and cold water inlets.
