Product Name	ÄLMAREN
Product Type	Kitchen Faucet / Mixer Tap
Intended Use	Kitchen sink
Water Supply Connections	2 (hot and cold) with flexible hoses
Connection Size	G1/2
Installation Hole Diameter	34 - 37 mm (1 3/8 - 1 1/2 in)
Maximum Worktop Thickness	65 mm (2 9/16 in)

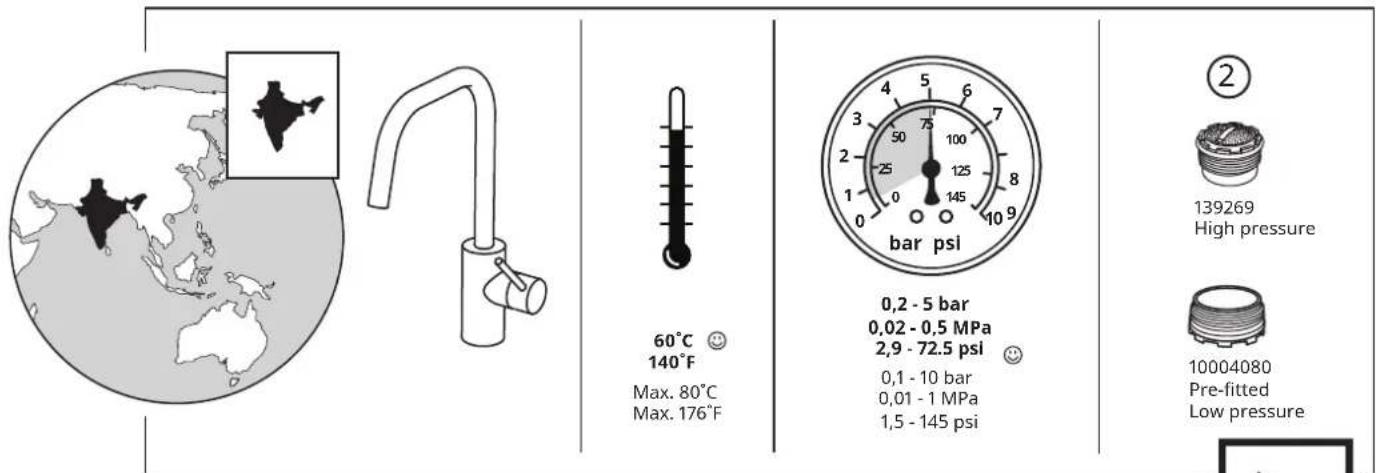

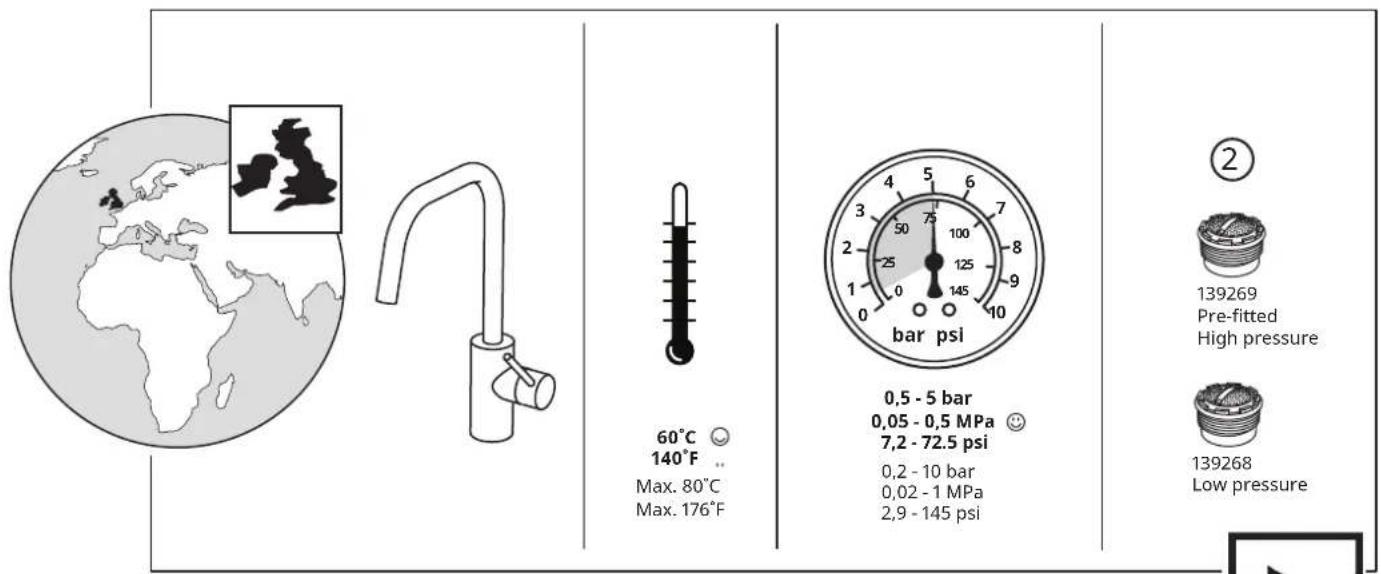

Maximum Water Temperature	80°C (176°F)
Recommended Water Temperature	60°C (140°F)
Working Pressure (High Pressure Model)	0.5 - 5 bar (0.05 - 0.5 MPa, 7.2 - 72.5 psi)
Working Pressure (Low Pressure Model)	0.2 - 5 bar (0.02 - 0.5 MPa, 2.9 - 72.5 psi)
Maximum Static Pressure	10 bar (1 MPa, 145 psi)

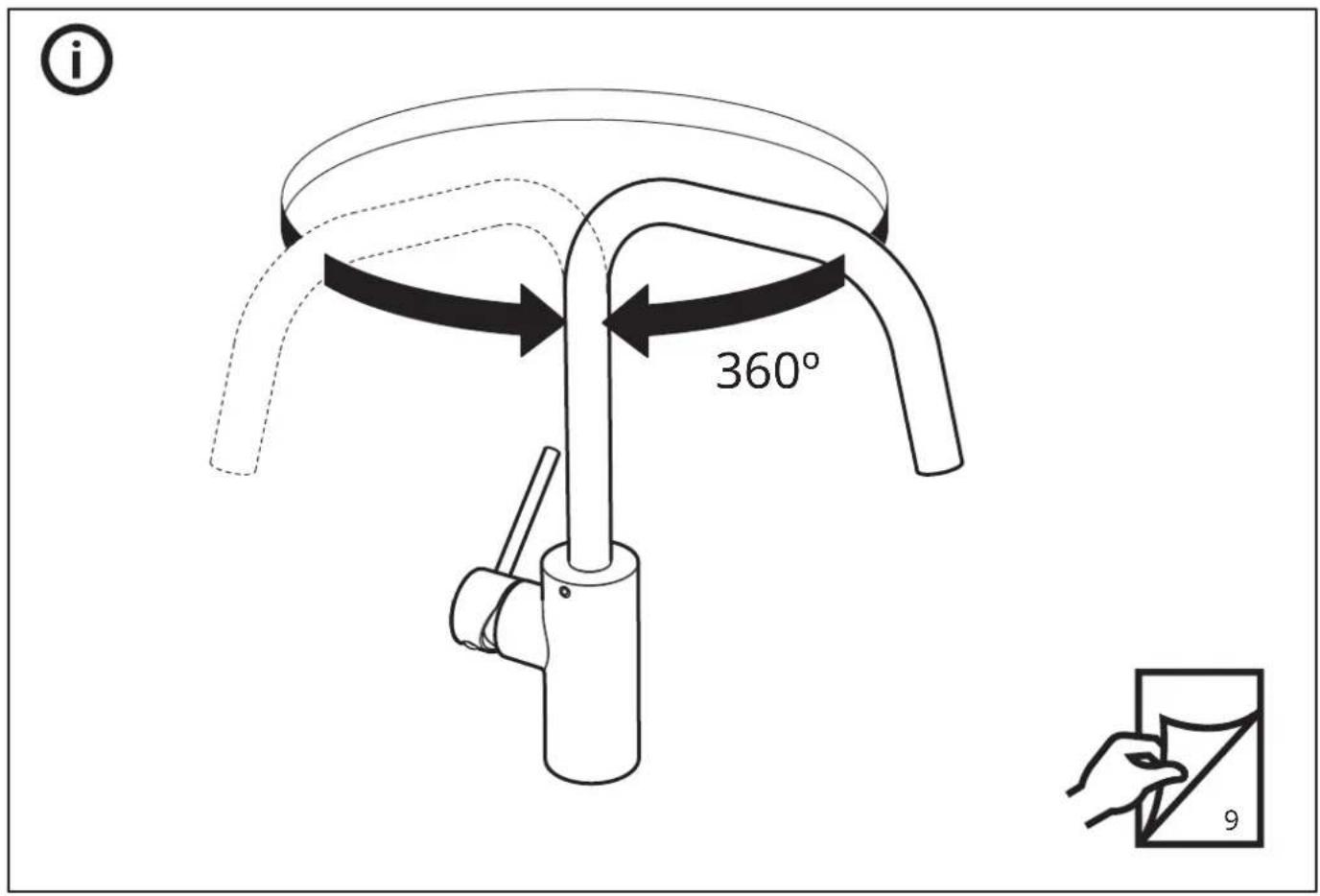

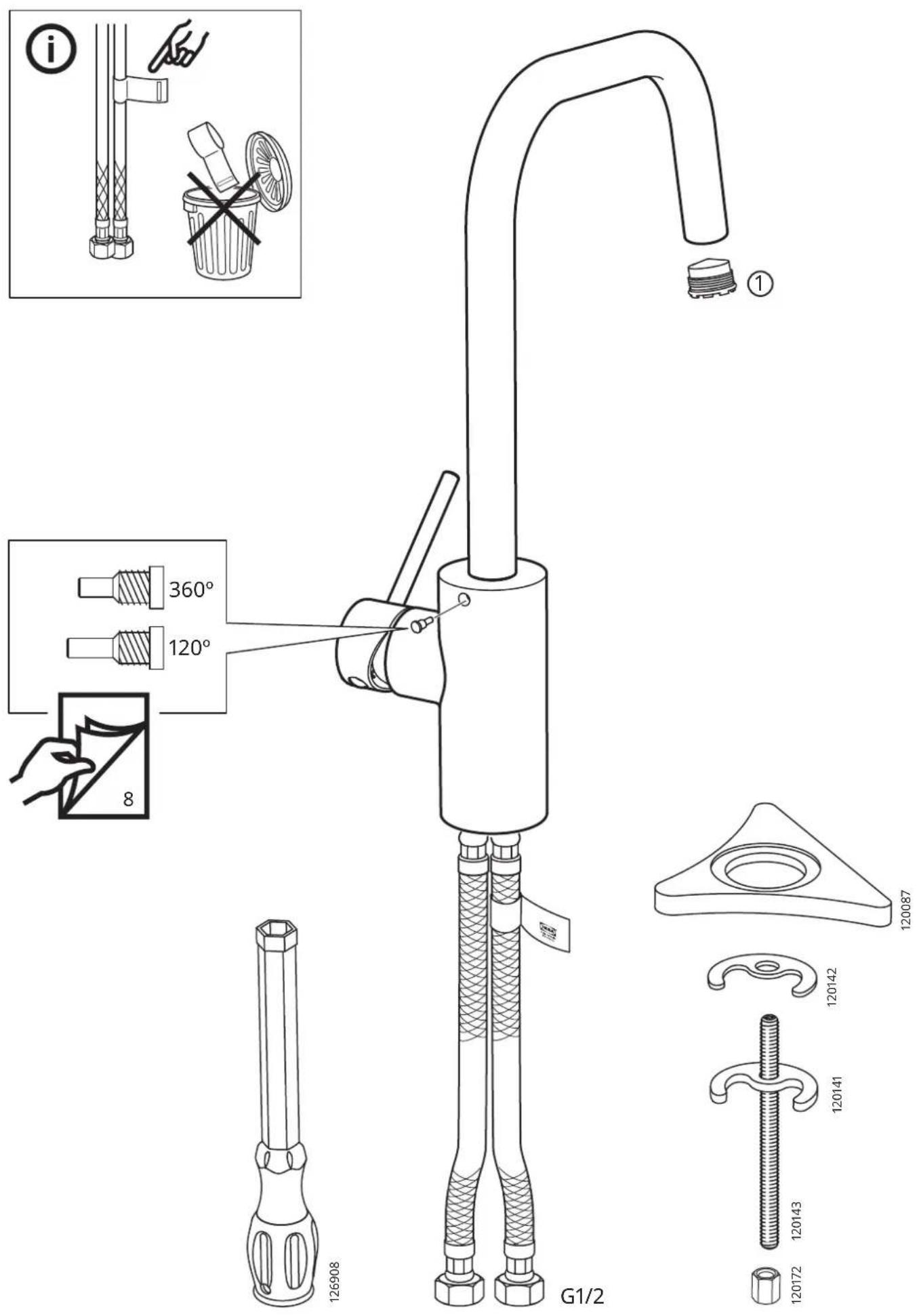

Swivel Range	360°
Spout Rotation Range	120°
Aerator / Flow Guide	Included, removable for cleaning
Installation Sealing	Required with silicone (not included)
Water Regulations Compliance	Local plumbing codes, UK water regulations
Maintenance	Periodic leak check; flush before first use

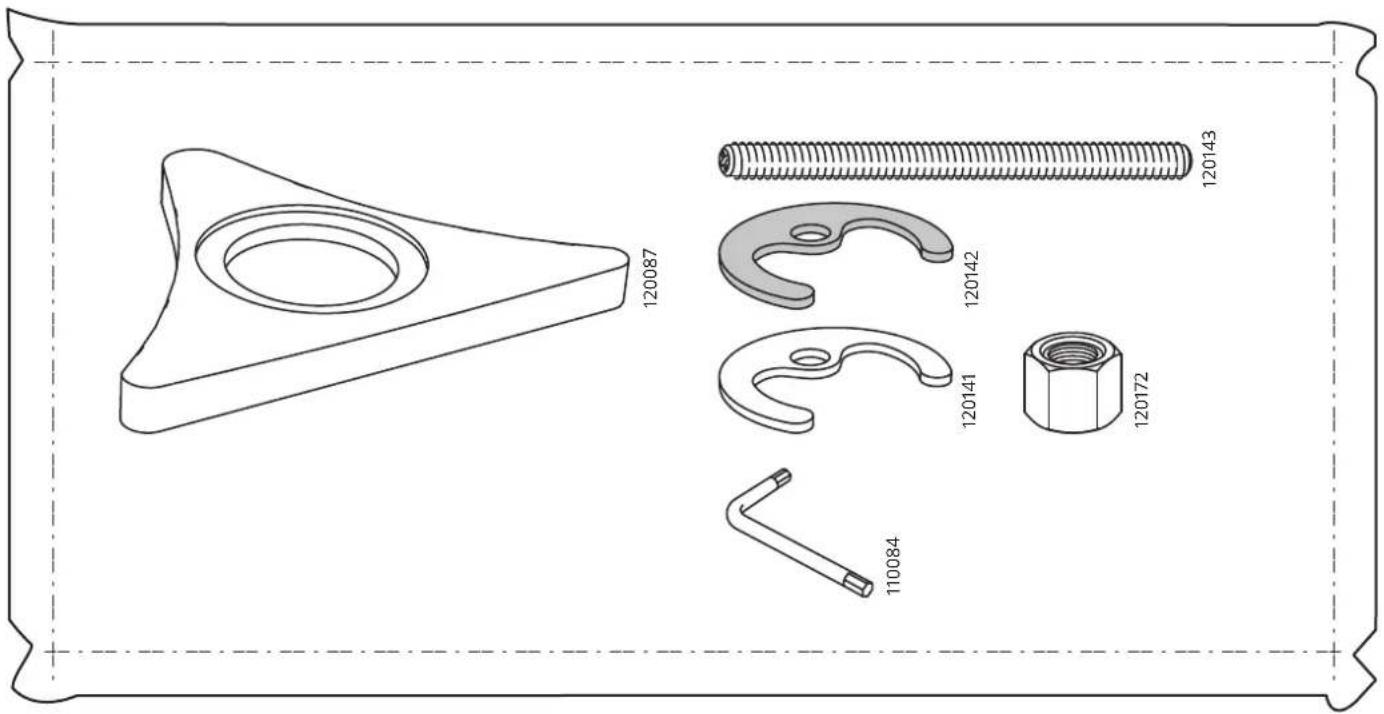

Model Reference Numbers	120087, 120143, 120142, 120141, 120172, 110084

Frequently Asked Questions - ÄLMAREN IKEA

What is the maximum water temperature for the ÄLMAREN faucet?

The maximum water temperature is 80°C (176°F). Do not exceed this limit.

What is the recommended water temperature for daily use?

The recommended water temperature is 60°C (140°F).

What water pressure range is required for the faucet?

For high pressure models: 0.5-5 bar (7.2-72.5 psi). For low pressure models: 0.2-5 bar (2.9-72.5 psi). Static pressure up to 10 bar (145 psi).

How do I install the ÄLMAREN faucet?

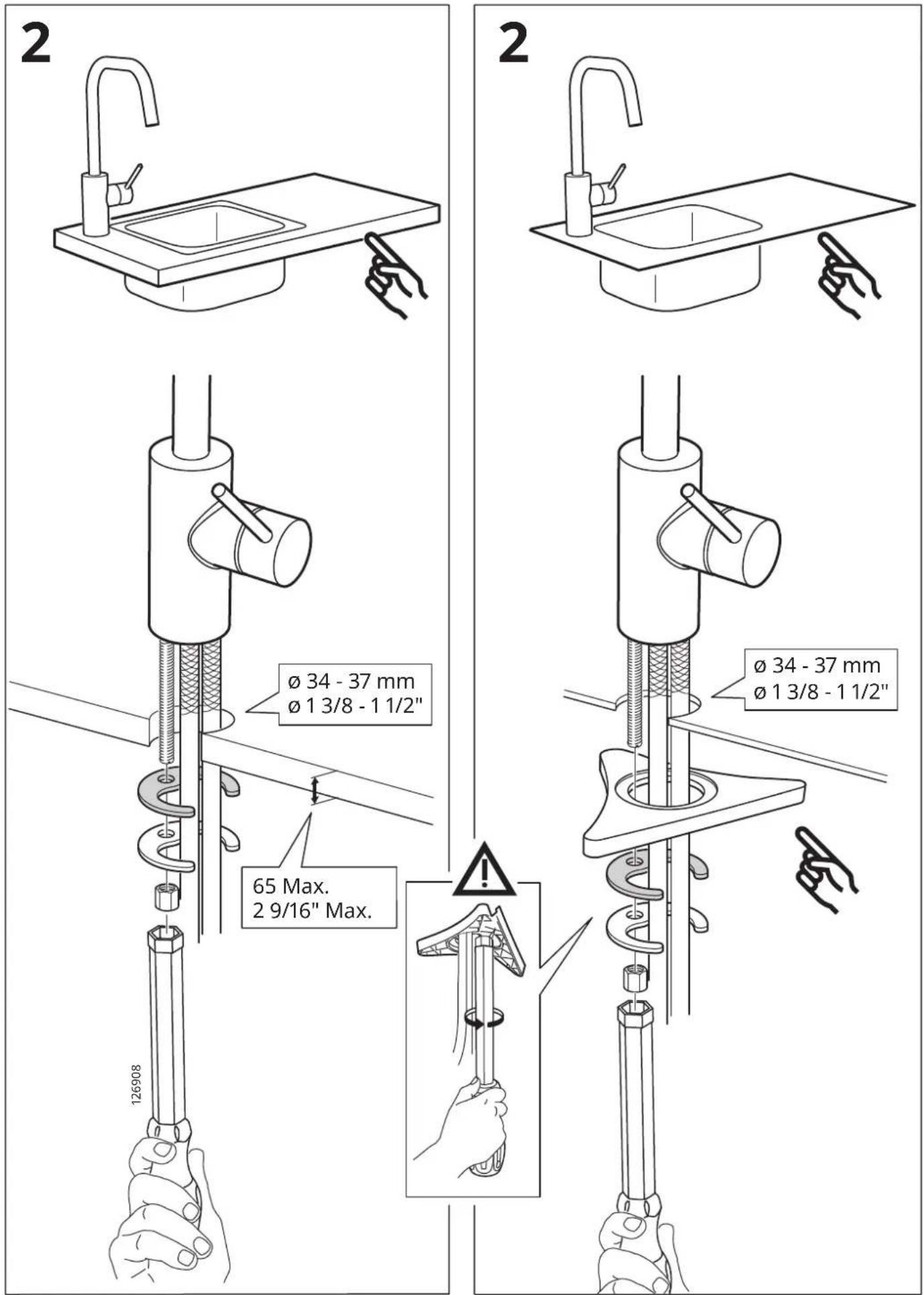

Turn off the main water supply. Drill a hole 34-37 mm in diameter and up to 65 mm thick. Connect the flexible hoses using G1/2 connections. Seal the base with silicone to prevent water damage.

Do I need to seal the faucet base with silicone?

Yes, seal the open surfaces with silicone to prevent water from penetrating the worktop if leaks occur. Silicone is not included.

How to clean the aerator/flow guide?

Unscrew the aerator/flow guide with a coin. Let water run freely for a few minutes to flush debris. Screw it back up to the stop without overtightening.

What hole size is needed for installation?

The installation hole must be 34 to 37 mm (1 3/8 to 1 1/2 inches) in diameter.

Can the spout rotate?

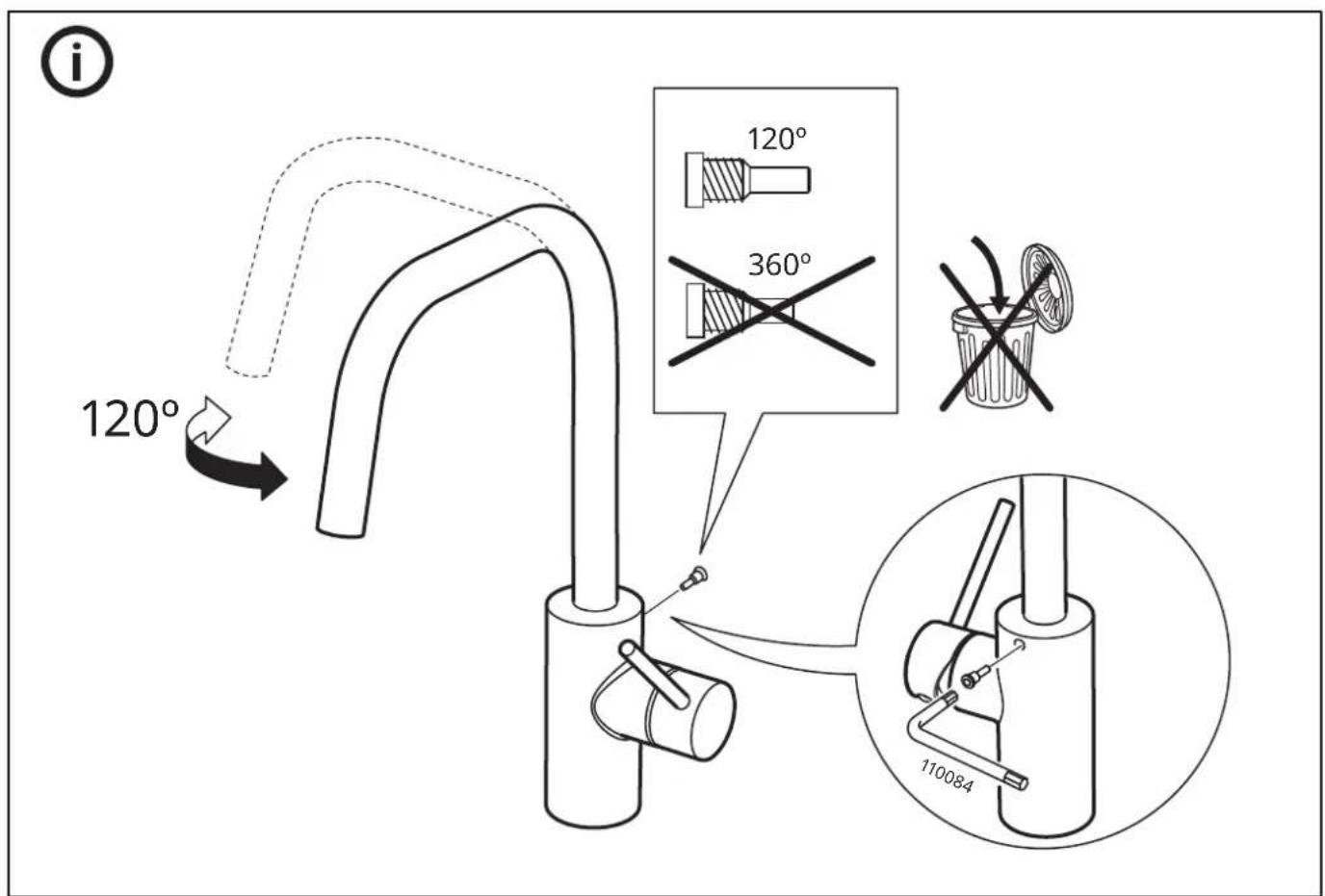

Yes, the spout rotates 360° freely, and the handles can rotate 120°.

Is the faucet compatible with low pressure water systems?

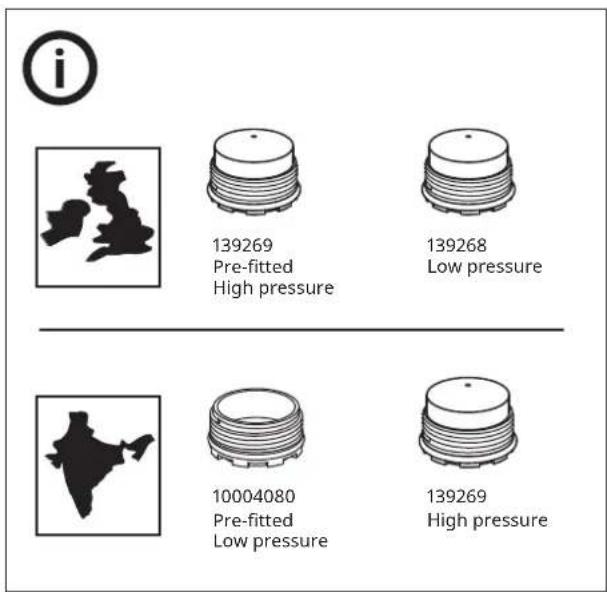

Yes, the faucet comes in both high pressure and low pressure models. Check the label on your unit to determine the appropriate pressure range.

How to prevent leaks after installation?

Regularly check all connections for leaks. Do not overtighten hoses or the aerator. Follow local plumbing regulations and ensure balanced water supply pressures.

USER MANUAL ÄLMAREN IKEA

Line drawing of a kitchen faucet with a curved handle and cylindrical base (no text or symbols)

English

Installation must be performed in compliance with current local construction and plumbing regulations. If in doubt, contact a professional.

English

Switch off main shut-off valve before changing mixer tap.

Simple line drawing of a hand holding a document with a diagonal line and the number 10, no text or symbols present.

Simple line drawing of a hand holding a document with a diagonal line and the number 10 (no text or symbols)

1

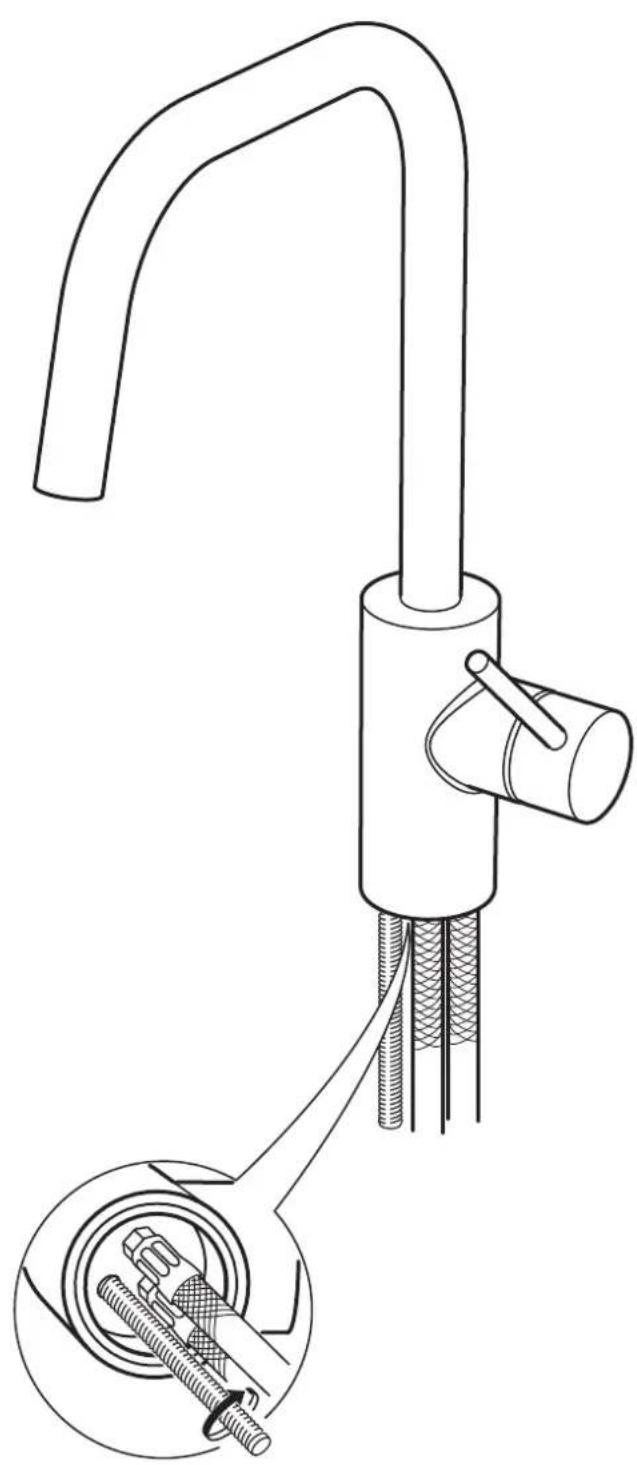

Technical line drawing of a mechanical device with a curved handle and internal components, showing no text or symbols.

English

Seal the open surfaces with silicone to prevent water from penetrating the worktop upon any leaks. Silicone is not included.

Technical illustration of a mechanical assembly with a hand pointing to a threaded component (no text or symbols present)

English

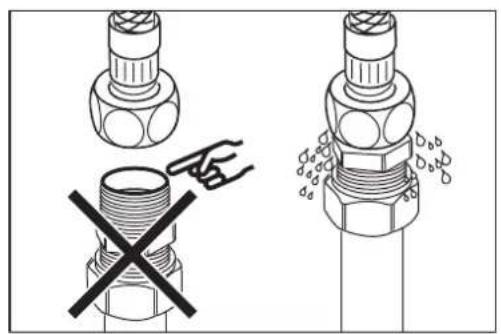

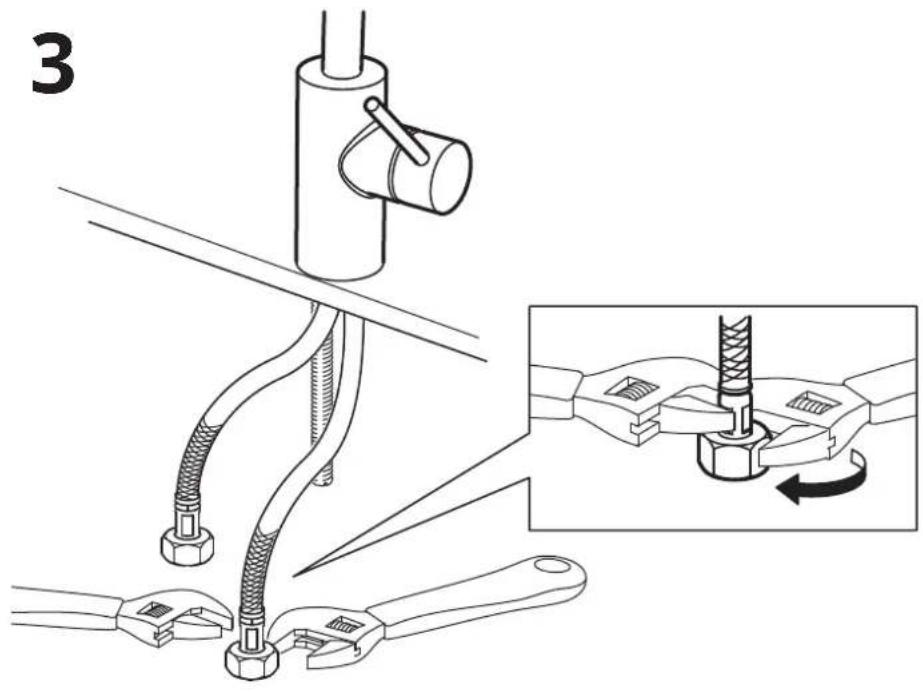

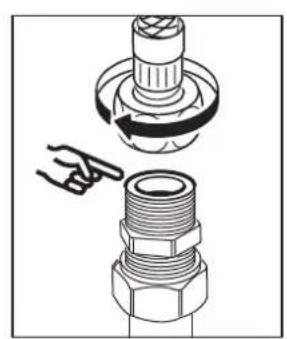

IMPORTANT! Do not tighten too hard: this can damage hoses/pipes and washers.

English

To comply with UK water regulations, this product shall be installed in accordance with the following:

Inlet supply hoses shall be installed where light is excluded.

Water supplies shall be at reasonably balanced pressures from a common source (e.g. hot and cold supplies both from the same storage or both from a supply pipe). Where the fitting is supplied from unbalanced supplies (e.g. hot and cold supplies from separate sources) an 'Approved' single check valve or some other no less effective backflow prevention device shall be fitted immediately upstream of both hot and cold water inlets.

English

Check at regular intervals to make sure that the installation is not leaking.

English

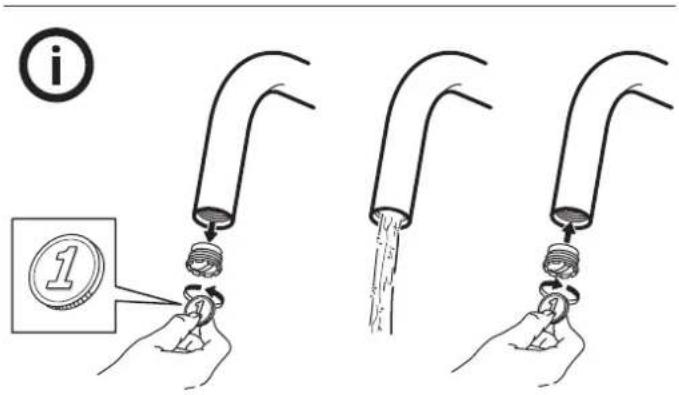

Before use: Unscrew the Aerator/Flow Guide with a coin and allow the water to run freely for a few minutes. Then screw the Aerator/Flow Guide back in place up to the stop DO NOT OVER TIGHTEN.
