UTRUSTA 702.272.36 - Bin IKEA - Free user manual and instructions

Product type	Trash can
Brand	IKEA
Model	UTRUSTA 702.272.36
Dimensions (H x W x D)	60 cm x 40 cm x 50 cm
Weight	5 kg
Material	Painted steel
Color	White
Capacity	40 L
Number of compartments	2 (sorting)
Opening type	Hinged lid
Installation	Built into a kitchen cabinet (mounting kit included)
Maintenance	Clean with a damp cloth and mild detergent
Cleaning	Wipe dry with a cloth after cleaning
Safety	Built-in anti-tip device
Recommended use	Household waste, recycling
Warranty	2 years
Spare parts available	Lid, inner bucket, mounting kit
Repairability	Spare parts available at IKEA stores
Country of manufacture	China

Frequently Asked Questions - UTRUSTA 702.272.36 IKEA

How to install the UTRUSTA 702.272.36 trash can?

Attach the provided mounting kit to the kitchen cabinet, then hang the trash can. Make sure the balance is correct.

What is the capacity of the trash can?

The trash can has a total capacity of 40 litres, divided into two compartments of 20 litres each.

Can I use the trash can for sorting waste?

Yes, it has two separate compartments, perfect for separating recyclable waste from household trash.

How to clean the trash can?

Remove the inner buckets and wash them with soapy water. Wipe the exterior with a damp cloth and mild detergent.

Is the trash can stable?

Yes, it is equipped with an anti-tip device that keeps it in place even when full.

What are the dimensions of the trash can?

Height: 60 cm, Width: 40 cm, Depth: 50 cm. It fits into a standard kitchen space.

Can I buy spare parts?

Yes, IKEA offers spare parts such as the lid, inner buckets, and mounting kit. Visit a store or online.

Is the trash can easy to open?

Yes, the lid opens with a simple press on the hinge or via a pedal depending on the model.

What type of waste not to put in the trash can?

Avoid too heavy or sharp waste that could damage the plastic. Use a suitable bag.

Where to find the complete manual?

Download the manual in PDF format from notice-facile.com or the official IKEA website.

USER MANUAL UTRUSTA 702.272.36 IKEA

Warning signs and danger symbols

WARNING indicates a danger that could lead to death or serious injury if not heeded.

NOTE indicates information that should be followed.

Safety

UTRUSTA complies with current safety standards. Nevertheless, there are certain operational risks involved if the instructions in this leaflet are not followed. Please be aware that IKEA is not responsible for incidental or consequential damages that may arise due to non-compliance with this instruction leaflet.

General

WARNING

• The device may only be connected to a power supply that corresponds to the type and frequency listed on the serial tag (see power supply unit).
• The main plug and the power supply unit must be easily accessible.
• Neither the power supply unit nor any cabling should come into contact with moving parts.
• A safety distance of 30 mm must be maintained for air circulation; otherwise, there is a risk that the power supply unit could overheat.
• Do not cover the power supply units with towels or other items due to danger of overheating.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance.
• Cleaning and user maintenance must not be carried out by children without supervision.
• Japan: This appliance is not intended for use by persons (including children) who require assistance, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Intended use

UTRUSTA supports the opening of drawers and may only be used under the following conditions:

• In dry, enclosed rooms. - In combination with pull-out systems from within permitted technical specifications. - The furniture must be firmly secured to the wall so that it cannot topple over.

IKEA is not liable for any other use.

Operation

NOTE

Premature wear of UTRUSTA due to improper use.

• Do not press/pull with force against the movement direction when opening the drawer.
• Please make sure that the distance bumper is attached to the front.
• To ensure that drawers cannot be activated unintentionally, we recommend connecting the power supply unit to a switched outlet.

Structural changes and spare parts

WARNING

• Structural changes and replacement parts not approved by the manufacturer affect the safety and functionality UTRUSTA and are, therefore, not allowed.
• The product as supplied to customer may not be changed.
• Only use original spare parts.

Children

WARNING

Opening drawers may pose a risk of injury to children.

• Children should be properly supervised when in the room so that they do not play with the device. - To ensure that UTRUSTA is not triggered unintentionally, the outlet paired to a switch should be turned off.

Cabinet care and cleaning

WARNING

There is a danger of electric shock if fluids penetrate the power supply unit.

• Before cleaning the front, turn off the switched outlet to which the power supply unit is connected.
• Before cleaning the drive unit and/or power supply unit, disconnect the power supply unit from the power.
• Make sure that no water or strong cleaning agent comes in contact with the drive unit or power supply unit – use a moist cloth.
• Never open a power supply unit or drive unit.
• Any cabling damage should be immediately repaired by a qualified specialist.
• Examine the appliance frequently for signs of wear or damage. If there are such signs or if the appliance has been misused or does not work, contact the supplier for further information.

UTRUSTA

Product overview

1. Attachment bracket
2. Drive unit
3. Transport protection
4. Protection against dripping water
5. Power supply unit including cable
6. Assembly device
7. Distance bumper

Electrical opening function

When the front and/or handle of the drawer (A) is pulled or pressed, the eject lever of the drive unit (B) swivels forward and opens the drawer a short distance.

Leaning protection

The electrical opening function is only triggered by a brief touch or pull. Leaning on the drawer, for example, will not open it.

UTRUSTA Power supply unit

The power supply unit provides power to the drive unit. A LED light indicates whether the power supply unit is in operating mode.

1. Operating mode indicator LED 1

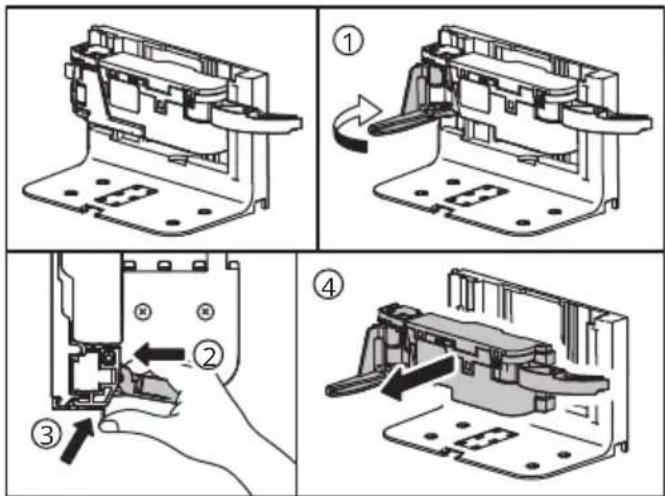

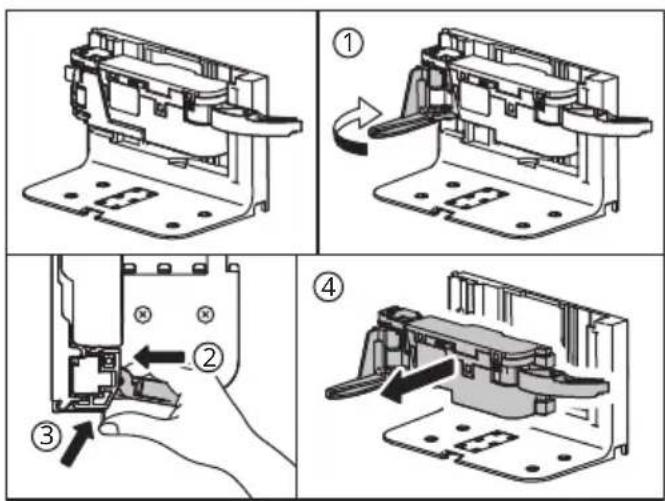

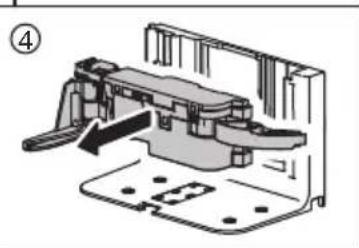

UTRUSTA Drive unit removal

Problems Possible cause Remedy
UTRUSTA will neither work by pulling nor pushing.	Power supply unit is not connected to the outlet.	Insert the power supply unit to the outlet.
	Power supply interrupted. Check the	circuit breaker/fuse box.
		If necessary, contact an authorised electrician.
	Power supply unit is defective.Cabling is defective.	Replace the power supply unit.
	Max. fill height of drawer has been exceeded.	Open the drawer manually.
		Remove the items that are too high from the drawer.
	Drive unit is defective. Replace the drive unit.
UTRUSTA will only work when pulling - not when pushing.	Object is obstructing path. Remove the obstruction.
	Distance bumper is missing or defective.	Attach or replace the distance bumper.

Technical data

Should only be used in dry, enclosed rooms.

Rated voltage: 100-240 V AC / 50-60 Hz

Rated current: 2.0 A

Power consumption in standby mode: ≤ 0.15 W (front closed)

Operating mode: S3 5 % (max. 10 movements/10 min.)

Emission sound pressure level: ≤ 70 dB(A)

Transport /Storage: -30 to +70 °C / 0 to 90 % RH

Operation: 0 to +40°C / 5 to 80% RH non-condensing

Maximum altitude: 2000 m (at an ambient temperature of 25 °C)

Protection class: IP20

Disposing of electrical and electronic appliances:

Electrical and electronic appliances must not be disposed of with household waste at the end of their service life. Ask your local authority for information on how to proceed. UTRUSTA meet the requirements of the WEEE Directive 2012/19/EU. Electrical and electronic appliances are collected separately, which enables old appliances to be reused or recycled, and their materials to be reused. This is intended to prevent any hazardous materials that may be contained in the appliances from damaging the environment and health during disposal. In most cases, the entire appliance does not need to be disposed of according to the WEEE guidelines, but only the part that is equipped with electrical components. Please refer to the disassembly instructions for information on this.

There are free collection points for returning electrical and electronic appliances in your area. You will find further information on this on the IKEA web page. SIMPLIFIED EU DECLARATION OF CONFORMITY IKEA hereby declares that UTRUSTA is in compliance with the directives 2006/42/EC, 2014/30/EU and 2011/65/EU.

The full text of the EU declaration of conformity is available at the IKEA web page.

Compliance

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

EAC

Supplier's Declaration of Conformity

47 CFR § 2.1077 Compliance Information

Unique identifier

Product-types: UTRUSTA

Responsible party – U.S. contact information

Blum Inc.

7733 Old Plank Rd.

Stanley, North Carolina

28164

Mr. Christopher Muck

Email: [e-mail]

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules.

Operations is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

German

Stanley, North Carolina

28164

Mr. Christopher Muck

Email: [e-mail]

B

Stanley, North Carolina

28164

M. Christopher Muck

Email: [e-mail]

Nominal current: 2.0 A

Stanley, North Carolina

28164

Mr. Christopher Muck

E-mail: [e-mail]

FCC compliance statement

Stanley, North Carolina

28164

Mr. Christopher Muck

E-mail: [e-mail]

FCC Declaration of Conformity

Stanley, North Carolina

28164

Mr. Christopher Muck

Email: [e-mail]

FCC Declaration of Conformity

1. Mounting bracket
2. Driver
3. Transport protection
4. Protection against dripping water
5. Power supply unit including cable
6. Mounting unit
7. Spacer

1. Operating mode - indicator LED 1

Nominal current: 2.0 A

Power consumption in standby mode: ≤ 0.15 W (closed front mode)

Operating mode: S3 5% (max 10 movements/10 min.)

Blum Inc. 7733 Old Plank Rd. Stanley, North Carolina 28164

Mr. Christopher Muck

Email: [e-mail]

Stanley, North Carolina

28164

Mr. Christopher Muck

Email: [e-mail]

Stanley, North Carolina

28164

Christopher Muck

Email: [e-mail]

Rated current: 2.0 A

Mr. Christopher Muck

Email: [e-mail]

Stanley, North Carolina

28164

Mr. Christopher Muck

Email: [e-mail]

Stanley, North Carolina

28164

Mr. Christopher Muck

Email: [e-mail]

Blum Inc. 7733 Old Plank Rd. Stanley, North Carolina 28164

Mr. Christopher Muck

E-mail: [e-mail]

Stanley, North Carolina

28164

Mr. Christopher Muck

Email address: [e-mail]

Stanley, North Carolina

28164

Mr. Christopher Muck (Kristofers Maks)

Email address: [e-mail]

1. LED 1 operating mode indicator

Mr. Christopher Muck

Email: [e-mail]

B

Rated current: 2.0 A

Stanley, North Carolina

28164

Mr. Christopher Muck

Email: [e-mail]

Stanley, North Carolina

28164

Mr. Christopher Muck

Email: [e-mail]

1. Mounting bracket
2. Drive unit
3. Transport protection
4. Drip protection
5. Power supply unit, including cable
6. Assembly tool
7. Buffer

Electric opening function

When the front panel and/or drawer handle (A) is pulled or pressed, the eject lever of the drive unit (B) rotates forward and opens the drawer a short distance.

Anti-tilt protection

The electric opening function is activated only by a brief touch or pull. Leaning on the drawer, for example, will not open it.

UTRUSTA Power supply unit

1. LED operating mode indicator

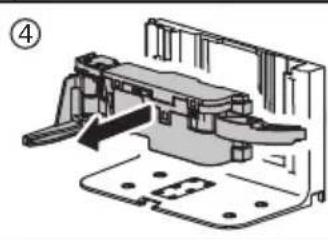

Removing the drive unit

Problemi Mogući uzroci Popravak
UTRUSTA ne radi ni pri izvlačenju, ni pri zatvaranju.	Jedinica napajanja nije uključena u utičnicu.	Uključiti jedinicu napajanja u utičnicu.
	Prekinuto je napajanje. Provjeriti kutiju s prekidačima/osiguračima.
	Jedinica napajanja nije ispravna. Kablovi nisu ispravni.	Zamijeniti jedinicu napajanja.
	Prekoračena je maks. dozvoljena visina pri punjenju ladice.	Ručno otvoriti ladicu.
		Iz ladice ukloniti sve predmete koji su previsoki.
	Pogonska jedinica nije ispravna. Zamijeniti pogonsku jedinicu.
UTRUSTA radi samo pri izvlačenju, ne pri zatvaranju.	Predmet kao prepreka. Ukloniti prepreke.
	Odbojnik nedostaje ili je oštećen. Pričvrstiti ili zamijeniti odbojnik.

Technical data

For indoor dry locations only.

Rated voltage: 100 V - 240 V AC / 50 - 60 Hz

Rated current: 2.0 A

Power consumption in standby: ≤ 0.15 W (front closed)

Operating mode: S3 5% (max. 10 cycles / 10 min.)

Stanley, North Carolina

28164

Christopher Muck

Email: [e-mail]

FCC Declaration of Conformity

Stanley, North Carolina

28164

Mr. Christopher Muck

Email: [e-mail]

FCC Compliance Statement

B

1. Mounting bracket
2. Drive unit
3. Transport protection
4. Drip protection
5. Power supply and cable
6. Assembly device
7. Limit stop

Electric opening function

When the front and/or drawer handle (A) is pulled or pressed, the lever of the drive unit (B) rotates forward and slightly opens the drawer.

Anti-rest protection

The electric opening function is activated only by a light touch or pull. Leaning against the drawer, for example, will not open it.

UTRUSTA power supply unit

1. LED 1 operating mode indicator

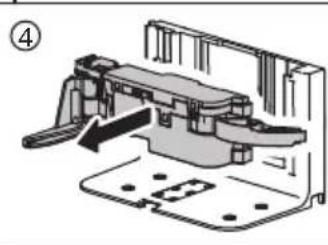

UTRUSTA drive unit removal

Stanley, North Carolina

28164

Christopher Muck

Email: [e-mail]

Stanley, North Carolina

28164

Mr. Christopher Muck

Email: [e-mail]

FCC Compliance Statement

1. Operating mode indicator LED 1

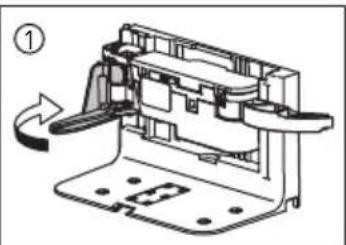

UTRUSTA drive unit removal

Blum Inc. 7733 Old Plank Rd. Stanley, North Carolina 28164

Mr. Christopher Muck

1. Operating mode indicator LED 1

UTRUSTA drive removal

Stanley, North Carolina

28164

Mr. Christopher Muck

1. Operating mode indicator LED 1

Stanley, North Carolina

28164

Mr. Christopher Muck

1. Operating mode indicator LED 1

Stanley, North Carolina

28164

Mr. Christopher Muck

Email: [e-mail]

FCC Declaration of Conformity

1. LED operating mode indicator 1

Stanley, North Carolina

28164

Mr. Christopher Muck

Email: [e-mail]

1. LED operating mode indicator 1

Stanley, North Carolina

28164

Mr. Christopher Muck

Email: [e-mail]

Stanley, North Carolina

28164

Mr. Christopher Muck

Stanley, North Carolina

28164

Mr. Christopher Muck
