USER MANUAL DVR-SK12D PIONEER

Operating instructions

Mode d'emploi

Bedienungsanleitung

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated 'dangerous voltage' within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER OR BACK.NO USER-SERVICEABLE PARTS INSIDE,REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. H002.En

IMPORTANT

This product complies with the Low Voltage Directive (73/23/EEC), EMC Directives (89/336/EEC, 92/31/EEC) and CE Marking Directive (93/68/EEC).

FOR FRANCE

This product contains a laser diode of higher class than 1. To ensure continued safety, do not remove any covers or attempt to gain access to the inside of the product.

Refer all servicing to qualified personnel.

The following caution label appears on your unit.

Location: Bottom of the unit

H018A_En

ATTENTION

CLASS 1 LASER PRODUCT LASER KLASSE 1

H018A_Du

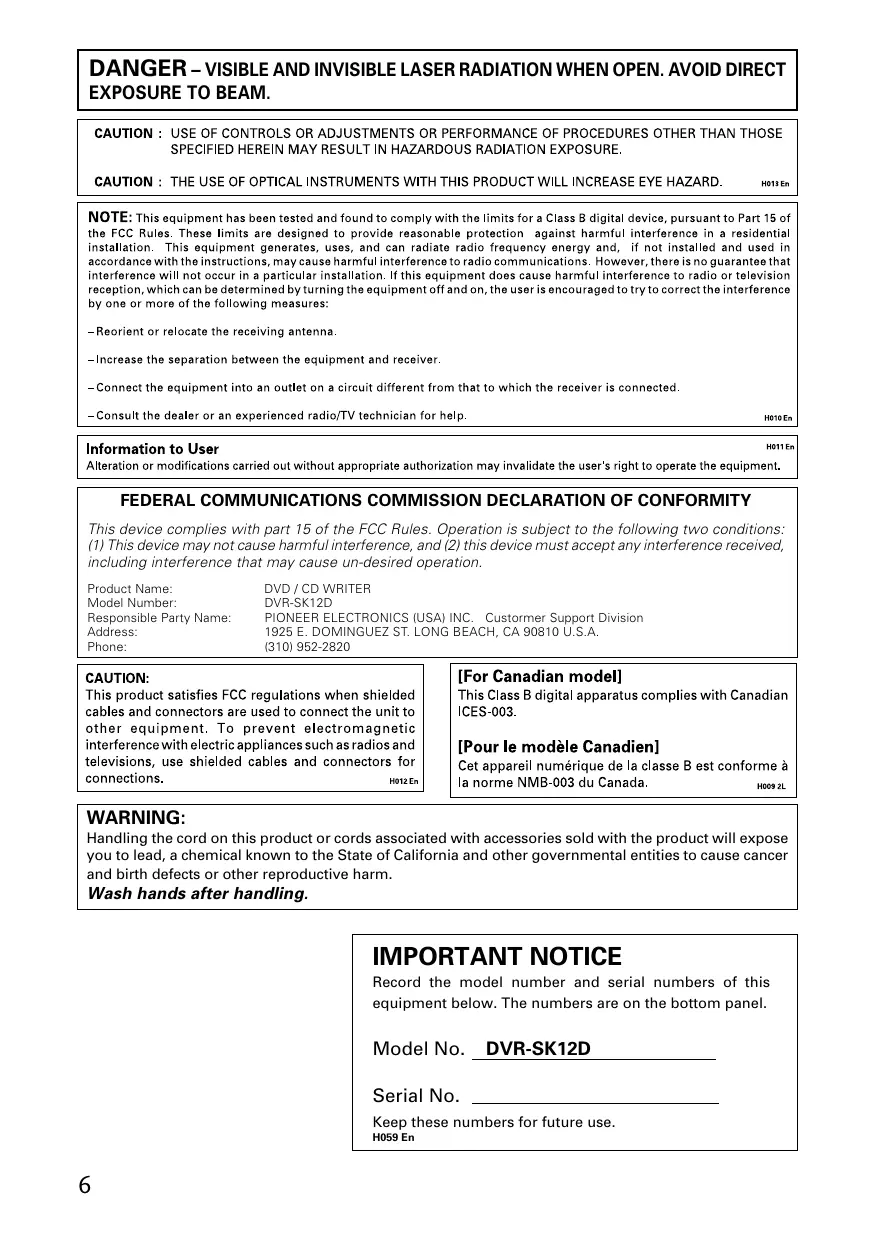

DANGER - VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID DIRECT EXPOSURE TO BEAM.

CAUTION : USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION : THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD.

H013 En

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Information to User

H011En

Alteration or modifications carried out without appropriate authorization may invalidate the user's right to operate the equipment.

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause un-desired operation.

Product Name: DVD / CD WRITER

Model Number: DVR-SK12D

Responsible Party Name: PIONEER ELECTRONICS (USA) INC. Customer Support Division

Address: 1925 E. DOMINGUEZ ST. LONG BEACH, CA 90810 U.S.A.

Phone: [phone]

CAUTION:

This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors for connections. H012 En

[For Canadian model]

This Class B digital apparatus complies with Canadian ICES-003.

Handling the cord on this product or cords associated with accessories sold with the product will expose you to lead, a chemical known to the State of California and other governmental entities to cause cancer and birth defects or other reproductive harm.

Wash hands after handling.

IMPORTANT NOTICE

Record the model number and serial numbers of this equipment below. The numbers are on the bottom panel.

Model No. DVR-SK12D

Serial No.

Keep these numbers for future use. H059 En

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference.

WARNING: THE APPARATUS IS NOT WATERPROOFS, TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE AND DO NOT PUT ANY WATER SOURCE NEAR THIS APPARATUS, SUCH AS VASE, FLOWER POT, COSMETICS CONTAINER AND MEDICINE BOTTLE ETC. H001BEn

Operating Environment

H045 En

Operating environment temperature and humidity:

+5°C – +35°C (+41°F – +95°F); less than 85%RH (cooling vents not blocked)

Do not install in the following locations

• Location exposed to direct sunlight or strong artificial light
• Location exposed to high humidity, or poorly ventilated location

Precautions Regarding Use

Pioneer may not be held liable for the loss of any data or any other direct or indirect damage suffered as the result of the use or breakdown of this product. It is strongly recommended that regular backups be taken of all critical data.
- Care must be taken not to infringe copyright restrictions under the laws of each country. If this device is used to record copyrighted materials, approval must be obtained from the respective copyright holders. The recording of copyrighted materials without the express approval of the respective copyright holders may result in legal penalties. Pioneer disclaims any and all responsibility for any legal damages resulting from the use of this device in the unauthorized copying of copyrighted materials.
All names of corporations, products, and systems listed herein, even when the (^TM) or () symbols are omitted, should be considered the registered trademarks of their respective owners.

[FOR NORTH AMERICA MODELS]

CONSULT WITH THE COMPANY SALES REPRESENTATIVE. "USE ONLY ULLISTED AND CANADIAN CERTIFIED POWER SUPPLY CORD." A POWER SUPPLY CORD TYPE SPT-2, 18 AWG MINIMUM, 2-WIRE SHALL BE USED WITH THIS EQUIPMENT.

[FOR EUROPEAN MODELS]

CONSULT WITH THE COMPANY SALES REPRESENTATIVE. "USE ONLY SAFETY LICENSED POWER SUPPLY CORD." A CERTIFIED POWER SUPPLY CORD IS TO BE USED WITH THIS EQUIPMENT. FOR A RATED CURRENT UP TO 6 A, A TYPE NOT LIGHTER THAN H03VV-F 2X 0.75 mm² OR H03VVH2-F 2X 0.75 mm² SHALL BE USED.

For pluggable equipment the socket-outlet shall be installed near the equipment and shall be easily accessible.

1. READ INSTRUCTIONS - All the safety and operating instructions should be read before the appliance is operated.
2. RETAIN INSTRUCTIONS - The safety and operating instructions should be retained for future reference.
3. HEED WARNING - All warnings on the appliance and in the operating instructions should be adhered to.
4. FOLLOW INSTRUCTIONS - All operating and use instructions should be followed.
5. CLEANING - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
6. WATER AND MOISTURE - Do not use this product near water.
7. ACCESSORIES - Do not place this product on an unstable cart, stand, or table. The product may fall and be seriously damaged.
8. VENTILATION - Slots and openings in the cabinet and back or bottom are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. They should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed in a built-in installation unless proper ventilation is provided.
9. POWER SOURCES - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.
10. PLUG - This product is equipped with a wired grounding-type plug (a plug having a third (grounding) pin). This plug will only fit into a grounding type power outlet. This is a safety feature. If you are unable to insert the plug fully into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding type plug.
11. POWER-CORD PROTECTION - When unplugging the apparatus, pull on the plug - not on the cord. Do not handle the cord on plug with wet hands. Doing so could cause an electric short or shock. Do not allow anything to rest on the power cord. Do not locate this product where persons will walk on the cord.
12. OVERLOADING - Do not overload wall outlets and extension cords as this can result in fire or electric shock.
13. OBJECT AND LIQUID ENTRY – Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
14. CONDENSATION - Moisture will form in the operating section of the product and the product's performance will be impaired if the product is brought from cool surroundings into a warm room or if the room temperature rises suddenly. To prevent this, let the product stand in its new surroundings for about an hour or two before switching it on, or ensure that the room temperature rises gradually.
15. SERVICING - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
16. DAMAGE REQUIRING SERVICE - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the video product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally when the operating instructions are followed. Adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.
e. If the product has been dropped or the cabinet has been damaged.
f. When the product exhibits a distinct change in performance – this indicates a need for service.

Caution Regarding Main Unit

1. While main unit is operating:

2. Do not subject the unit to vibration or impact.

3. Do not turn off the power switch or disconnect cables.

4. Do not leave the unit with the disc tray in the open position, since dust may enter the unit causing malfunctions.

5. During use of the component if noise is produced in nearby radios or televisions, separate the radios/television from the component by at least 2 meters (6.5 feet), or try using different power outlets/circuits for the components.
6. When not using the unit for extended periods, turn off the power, and disconnect the AC power cord from its outlet.

Recommended Discs

• For stable recording and playback, always use recommended disc media.
• For information regarding recommended media, consult your dealer.

About Supplied Application Software

• For information regarding use of furnished software applications, or in the event of trouble with them, consult the customer service representatives of the respective software companies.

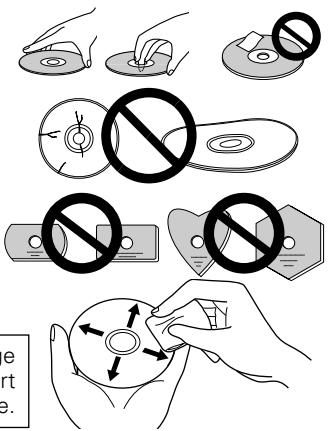

• Avoid touching or scratching the signal surface (shiny side) of the disc.

• Hold the disc by the edges or by the center hold and one edge.
• Do not affix paper or labels to the disc.
• Discard warped or cracked discs as they may cause damage to the drive.
• Avoid specially shaped discs such as hearts or polygons.
• Remove dust or lint from the disc with a soft cloth by wiping from the inside to the outside edge rather than in a circular motion.
• Do not use record-cleaning or anti-static agents as the solutions may cause damage to a disc.

Always be sure to store your discs in proper DVD-R storage cases when not in use, and always be sure to check for dirt or dust on discs (especially on the recording side) before use.

ABOUT REGION CODES

The region code can be changed ONLY 5 times, including the 1st setting. Please be aware the 5th change will be PERMANENT, therefore, please pay attention when changing region codes.

• Region codes are part of the DVD Standard. However, Region codes on DVD discs are optional. DVD discs with no specified Region code can be played on all players.

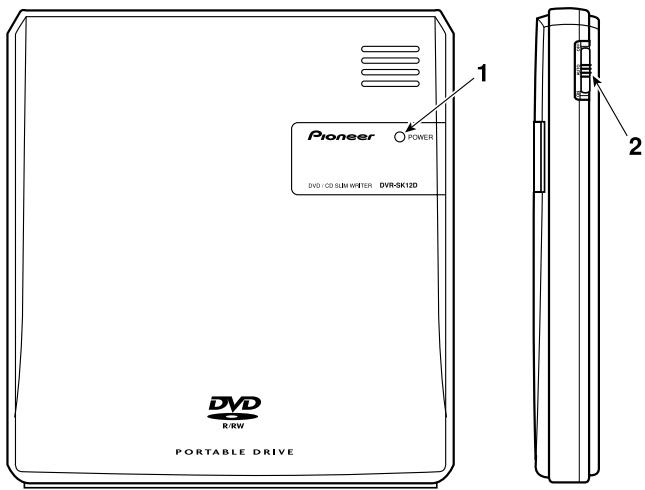

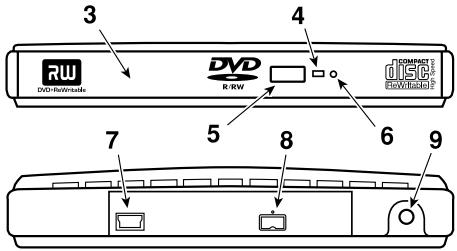

1 Power Indicator

Lights when the unit is on.

Lights green when a USB 1.1 connection is used.

Lights blue when a USB 2.0 connection is used.

Lights orange when an IEEE1394 connection is used.

2 Power Switch

Use to turn power ON/AUTO/OFF.

When set to AUTO, the component turns on automatically in linkage with the ON/OFF of the computer.

3 Disc Tray

To open the tray, either press the eject button, or execute the appropriate computer command. The tray may be closed by pressing its front edge in until it stops.

Do not attempt to pull out the disc tray forcibly.

4 Busy Indicator

Lights during read/write operations.

5 Eject Button

Press to open the disc tray.

6 Forced Ejection Hole

Insert a stiff rod into the hole and push to eject the tray when the tray doesn't unload by pressing the Eject button. In the normal operation, the eject button should be used to unload the tray.

Make sure the power of the drive is turned off and wait more than one minute till the disc rotation is stopped when access the eject hole.

7 USB 2.0 Connector

Type mini-B USB connector. Connects USB 2.0 I/O connector.

8 IEEE 1394 Connector

Connects 4-pin IEEE 1394.a I/O connector.

9 DC IN

Connects supplied AC adapter.

Use only supplied AC adapter.

Suggested Operating Environment

The following conditions are general recommendations, and do not represent conditions for guaranteed performance.

• Operating System: Windows 98SE, Windows 2000, Windows ME, Windows XP.
  CPU: Pentium III (500 MHz or greater recommended)
• Memory: 128 MB or more (256 MB or more recommended).
• Hard disk space available: 20 GB recommended.
• Drive C space: 1 GB or more
• Monitor resolution: 1024 × 768,32 bit color recommended.
• Connections: USB 2.0 (USB 1.1*) or IEEE1394

• In order to perform video editing, the appropriate video input device (VCR deck, camcorder, etc.) and capture card must be furnished by the user.

• When a USB 1.1 port is used for the connection, the unit will operate as a USB 1.1 component.
  Under a USB 1.1 environment, optimal transmission speed cannot be achieved, with the result that the drive will not demonstrate its best performance. During DVD video playback, frame dropout and sound interruption may occur.

• Direct any questions regarding application software to the customer support centers of the respective software company.

Manual ejection of discs

Use the manual eject hole to remove discs in the following situations.

• Do as follows if the unit malfunctions and pressing the Eject button fails to open the disc tray.

• Shut down the computer and make sure that the disc stops spinning.

• Insert a stiff rod in the manual eject hole and press it in hard.
• When the disc tray protrudes by 5 to 10mm , take hold of the tray, open it and remove the disc.

Notes:

• Do not force the disc tray open when the disc is still spinning to prevent injury and damage to the unit.
• Do not place objects within an area less than 13 cm away from the front panel.

Connect the unit to the supplied AC adapter and connect the USB or IEEE 1394 cable.

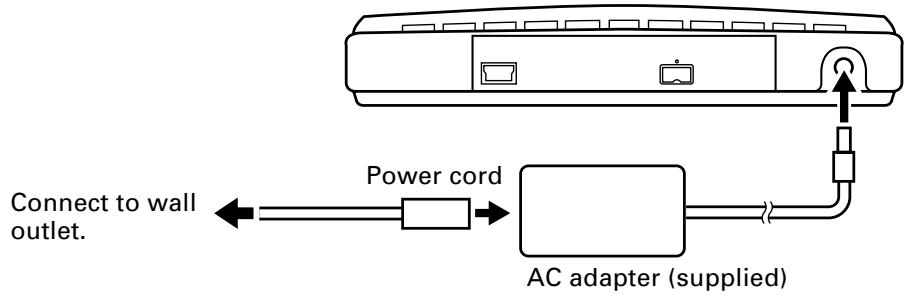

AC adapter connection

Connect the AC adapter plug to the DC IN connector on the rear panel of the unit and use the power cord to connect the AC adapter to a wall outlet.

Do not use other than the supplied AC adapter.

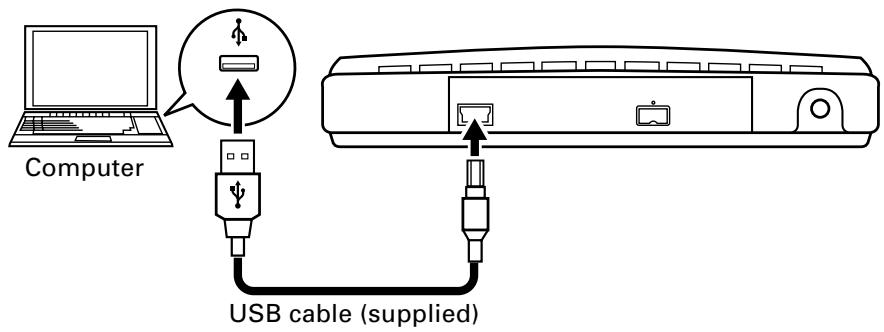

USB Cable Connection

This is a hot plug unit.

1. Turn on the unit.
2. Turn on the computer and start up Windows.
3. Connect the USB connector on the rear of the unit to the computer using the supplied USB cable.
4. Purchase a USB 2.0 board for computers without such a port. (Although connection to a USB 1.1 port is possible, the unit will then not yield specified optimum performance.)

Turn on the unit before connecting it to the computer.

Be sure not to disconnect it during data transfers.

Note: Do not connect the unit using both the IEEE 1394 cable and the USB cable.

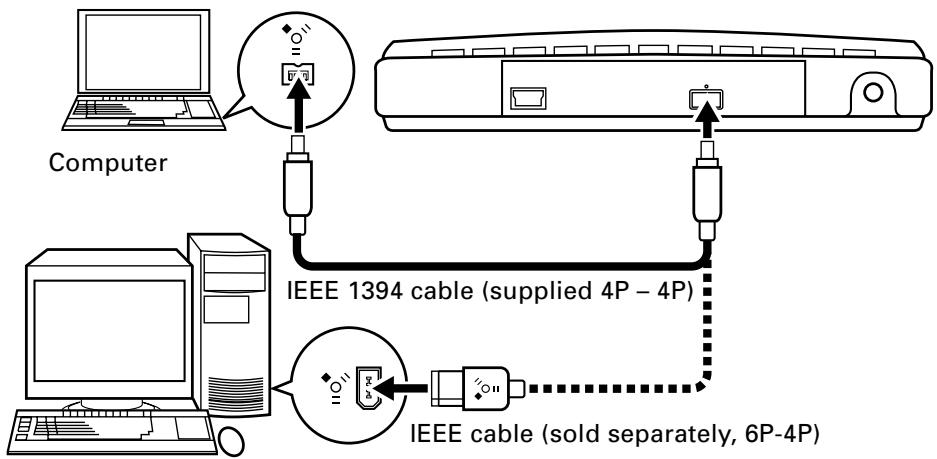

IEEE 1394 cable connection

This is a hot plug unit.

1. Turn on the unit.
2. Turn on the computer and start up Windows.
3. Connect the IEEE 1394 connector on the rear of the unit to the computer using the supplied IEEE 1394 cable.

Purchase an IEEE 1394 board for computers without such a port.

Turn on the unit before connecting it to the computer. Be sure not to disconnect it during data transfers.

Note: Do not connect the unit using both the IEEE 1394 cable and the USB cable.

OPERATION

The DVD/CD writing system is composed of the computer and the DVD/CD writer. To operate the DVD/CD writer, it is necessary to install the furnished application software program on your computer (the computer and its operating system must be compatible with the software or proper operation will not be possible). Please confirm your computer model and its operating environment.

• For instructions regarding installation of the application software, and operations for disc recording/playback, consult the instruction manuals and help screens provided with the various software programs.

What may at first seem like a malfunction may only be a simple operation error. Check the list below before doing anything else.

If the problem still persists, contact your dealer or the local Pioneer Service Station.

Contact the software manufacturer for software problems.

The computer or software does not recognize the unit.

• The USB cable, IEEE 1394 cable or power connector is not correctly plugged in.
  Check cable connection.
• The operating system does not support the unit.
  Use an operating system that supports the unit. (See page 11 for a list of supported operating systems.)

[DVD-R/RW and CD-R/RW Discs]

Data cannot be recorded/errors occur during recording

• Check whether the discs used are the recommended type.
• Check whether there is enough free space on the disc.
• Check whether the required software is installed.
• Check whether the operating environment satisfies software requirements.
• The DVD-R disc can only be recorded at 2 × speeds.

Check whether the disc is a 2x speed disc.

• Check whether the disc has been finalized (to prevent further recording).
• Check whether the disc is inserted with the label side up and the recording side facing down.
• Check whether the disc is dirty or damaged.

Failure to read recorded discs

• Check whether used disc is the recommended type.
• Check whether the disc is inserted with the label side up.
• Check whether the disc is an unrecorded disc.
• Check whether the disc is dirty or damaged.
• Check whether the required software is installed.
• Check whether the unit is on a level surface.

• Condensation may have occurred on the optical components. Turn off the unit and wait awhile before trying again.

• For details on how to record discs, see the Help function or the instruction manual supplied with the software.

[Installation Type]

Horizontal or vertical mount

• When using vertical installation, use the accessory vertical stand and install so the power switch is upwards.

[Interface]

USB 2.0 (USB1.1) or IEEE 1394.a

[Disc Size]

12 cm (4.72") / 8 cm (3.15")*

• 12 cm conversion adapters cannot be used.

[Loading Method]

Manual insertion, power eject.

[Buffer Memory Size]

2 MBytes (Write/Read)

[Write Speed]

DVD-R: CLV 1X and 2X

DVD-RW: CLV 1X and 2X

+R: CLV 2.4X

+RW: CLV 2.4X

CD-R: CLV 4X and 8X, Zone CLV 12X and 16X

CD-RW: CLV 4X

High-Speed CD-RW: CLV 4X and 10X

[Maximum Read Speed]

DVD-ROM (single): CAV 8X

DVD-ROM (dual): CAV 6X

DVD-R: CAV 4X

DVD-RW: CAV 4X

+R: CAV 4X

+RW: CAV 4X

DVD Video play: CAV 4X

CD-ROM: CAV 24X

CD-R: CAV 24X

CD-RW: CAV 24X

CD-DA: CAV 24X

CD-Audio play: CAV 10X

Video CD: CAV 10X

[Access Time]

Random average : DVD-ROM 150 ms

CD-ROM 130 ms

[Disc Format (Read/Write)]

DVD single layer/dual layer /120 mm disc/80 mm disc
DVD-R (In case of write, 650nm disc for General only.)
DVD-RW (Version 1.0 and 1.1)
- +R (Version 1.0 and 1.1)
+RW (Version 1.1)
- CD-ROM Mode 1
- CD-ROM XA Mode2 (form 1, form2)
- Photo CD (single and multiple session)
Video CD
CD-DA
- CD-Extra (CD PLUS)

CD-R
- CD-Text
- CD-RW
High-Speed CD-RW

• Does not support DVD-RAM.
  **Applications used must support the above formats.

[Recording Method]

DVD-R:	Disc at Once, Incremental Recording, Multi-Border Recording
DVD-RW:	Restricted Overwriting
+R:	Incremental Recording
+RW:	Random Recording
CD-R/RW:	Disc at Once, Track at Once, Session at Once, Packet Writing

[Other]

LCD tilt construction; supports buffer overrun-free.

[Power Supply]

AC adapter (supplied): DC+5 V / 2.0 A

[AC Adapter]

Power source: AC100 - 240 V, 50 / 60 Hz

[Power Consumption]

When playing DVD-ROM: 8 W

Standby: 0.1 W

[Other]

Dimensions:	138 (W) x 22 (H) x 162 (D) mm
	(5-7/16 (W) x 7/8 (H) x 6-3/8 (D) in.)
Weight:	490 g (1.08 lb)
Operation temperature:	+5 °C to +35 °C (41 °F to 95 °F)
Operation humidity:	5% to 85% (no condensation)
Storage temperature:	-40 °C to +60 °C (-40 °F to 140)
Storage humidity:	5% to 90% (no condensation)

[Accessories]

AC adapter:	1
USB cable:	1
IEEE 1394 cable:	1
Vertical stand:	1

Operating instructions (this manual): 1

NOTE:

• Performance specifications are during use of USB 2.0 or IEEE1394 connectinors. The unit will not demonstrate its full performance when using a USB 1.1 connection.
• Specifications and design subject to possible modifications without notice, due to improvements.

[POUR MODELES EUROPEENS]

CONSULTEZ LE REPRESENTANT DES VENTES DE L'ENTRPRESE. "UTILISZE UNIQUÉMENT UN CORDON D'ALIMENTATION DON'T LA SECURTE EST GARANTIE." UN CORDON D'ALIMENTATION CERTIFÉ DOIT ÉTRE UTILISÉ AVEC CET APPAREIL. POUR UN COURANT NOMINAL DE 6 AMPÈRES MAXIMUM, UN TYPE D'AU-MOINS H03VV-F2X ET 0,75 mm² OU DE H03VVH2-F2X ET 0,75 mm² DOIT ÉTRE UTILISÉ.

AC adapter (supplied): CC de +5 V / 2,0 A

[Disc Format (Read/Write)]

CD-R/RW: Disc at Once, Track at Once, Session at Once,

Copyright © 2003 Pioneer Corporation.

AFTER-SALES SERVICE FOR PIONEER PRODUCTS

Please contact the dealer or distributor from where you purchased the product for its after-sales service (including warranty conditions) or any other information. In case the necessary information is not available, please contact the Pioneer's subsidiaries (regional service headquarters) listed below:

PLEASE DO NOT SHIP YOUR PRODUCT TO THE COMPANIES at the addresses listed below for repair without advance contact, for these companies are not repair locations.

AMERICA

PIONEER ELECTRONICS (USA) INC.

CUSTOMER SUPPORT DIVISION

P.O. BOX 1760, LONG BEACH, CA 90801-1760, U.S.A.

EUROPE

PIONEER EUROPE NV

EUROPEAN SERVICE DIVISION

HAVEN 1087, KEETBERGLAAN 1, B-9120 MELSELE, BELGIUM

ASEAN

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

SERVICE DEPARTMENT

253, ALEXANDRA ROAD #04-01 SINGAPORE 159936

JAPAN AND OTHERS

PIONEER CORPORATION (HEAD OFFICE)

CUSTOMER SUPPORT CENTER

Published by Pioneer Corporation.

Copyright © 2003 Pioneer Corporation.

All rights reserved.

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC.

Multimedia and Mass Storage Division:

2265 East 220th Street, Long Beach, CA 90810, U.S.A. TEL:800-444-OPTI (6784)

Customer Support Division:

1925 East Dominguez St. Long Beach, CA 90810, U.S.A. TEL: [phone]

PIONEER EUROPE NV

Multimedia Division:

PIONEER House, Hollybush Hill STOKE POGES, SLOUGH SL2 4QP U.K. TEL: [phone]

PIONEER ELECTRONICS OF CANADA, INC.

Industrial Products Department:

300 Allstate Parkway, Markham, Ontario L3R OP2, Canada TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

178-184 Boundary Road, Braeside, Victoria 3195, Australia TEL:[phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: [phone]
