Product Type	Smartwatch
Brand	Sigma
Model	iD.Free
Display	1.3-inch color TFT LCD
Touchscreen	Yes
Connectivity	Bluetooth 5.0
Compatibility	iOS 10+ / Android 6+
Sensors	Heart rate monitor, accelerometer, step counter
Battery Capacity	200 mAh
Battery Life	Up to 7 days (typical usage)
Charging Method	Magnetic charging cable
Water Resistance	5 ATM (50 meters)
Weight	Approx. 50 g
Dimensions	45 x 38 x 11 mm
Functions	Notifications, activity tracking, sleep monitoring, music control, remote camera
Operating System	Proprietary RTOS
Case Material	Plastic
Strap Material	Silicone
Languages	Multi-language support
Warranty	2 years
Cleaning Instructions	Wipe with a dry, soft cloth. Avoid solvents.

Frequently Asked Questions - iD.Free SIGMA

How do I pair my Sigma iD.Free smartwatch with my phone?

Download the Sigma Fit app from the App Store or Google Play. Enable Bluetooth on your phone, open the app, and follow the on-screen instructions to pair your watch. Make sure the watch is charged and near your phone.

How do I charge the smartwatch?

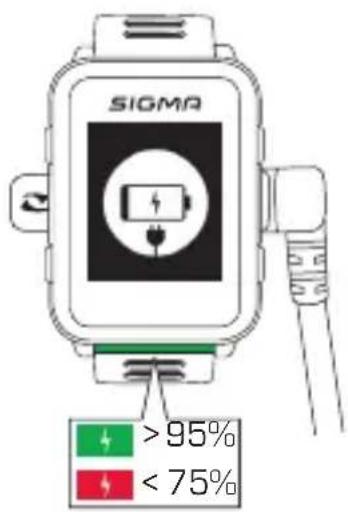

Use the included magnetic charging cable. Attach the charger to the contacts on the back of the watch. Connect the USB end to a power adapter or computer. The screen will show the charging status. A full charge takes approximately 2 hours.

How do I reset the Sigma iD.Free to factory settings?

Go to Settings on the watch, scroll to Reset, and confirm. Alternatively, press and hold the side button for 10 seconds until the watch vibrates. This will erase all data and restore factory defaults.

Is the Sigma iD.Free waterproof?

The watch has a 5 ATM water resistance rating, meaning it can withstand pressures equivalent to 50 meters depth. It is suitable for swimming and showering, but not for diving or high-speed water activities.

How long does the battery last?

With typical use including notifications and occasional heart rate monitoring, the battery lasts up to 7 days. Heavy use with continuous GPS or frequent screen activation may reduce battery life to 3–4 days.

Can I receive notifications from my phone?

Yes, once paired, you can receive call, message, email, and app notifications directly on your watch. Ensure notifications are enabled in the Sigma Fit app for each app you want to receive alerts from.

Does the watch track sleep automatically?

Yes, the iD.Free automatically tracks your sleep duration and quality when worn to bed. Data is synced to the Sigma Fit app each morning. You can view detailed sleep stages and trends.

What phones are compatible with the Sigma iD.Free?

The watch is compatible with iOS 10 or later and Android 6.0 or later with Bluetooth 4.0 or higher. Check the Sigma Fit app availability in your app store.

Can I replace the strap?

Yes, the strap is detachable using a quick-release pin. You can purchase replacement straps from Sigma or third-party vendors. Ensure the strap width is 20 mm.

What is the warranty period?

The Sigma iD.Free comes with a 2-year limited warranty against manufacturing defects. Warranty does not cover damage from improper use, water damage beyond rated limits, or normal wear and tear.

USER MANUAL iD.Free SIGMA

iD.FREE / iD.TRI

USER GUIDE

SIGMA®

GERMANY

www.sigmasport.com

Contents / Verpackungsinhalt / Contenido del paquete / Contenuto della confezione / Contenu de l'emballage / Verpakkingsinhoud / Obsah balení / Zawartość opakowania

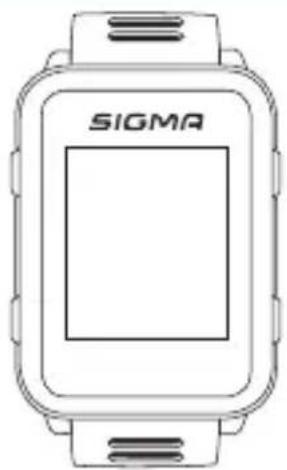

Line drawing of a Sigma smartwatch with no visible text or symbols on the device itself

ID.FREE / ID.TRI

Line drawing of a rectangular electronic device with a central circular component and two curved ports (no text or symbols)

SNAP ON BIKE MOUNT

Pure diagram of a USB cable with connector port (no text or symbols)

CHARGER / DATA CABLE

Line drawing of a sigma ball connector with sensor and battery components (no text or symbols)

R2 DUO CAD+SPEED R1 DUO COMFORTEX HEARTRATE

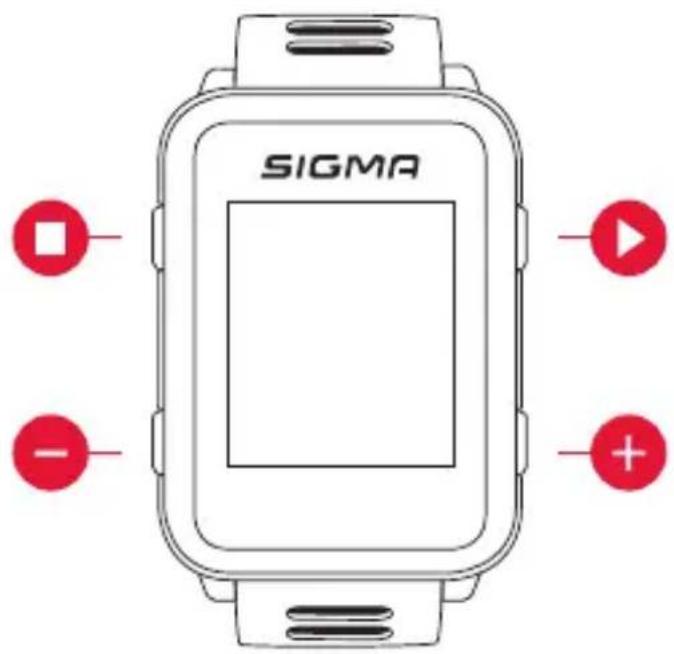

Button functions / Tastenbelegung / Funciones de las teclas/ Assegnazione pulsanti/Affectation des touches / Knoppenfuncties / Obsazení tlačítek / Funkcje przycisków

Start / OK Workout (iD.TRI): next phase Competition (iD.TRI): Transition Training: Lap Start / OK Workout (iD.TRI): nächste Phase Competition (iD.TRI): Wechselzone Training: Lap Démarrer / OK Workout (iD.TRI) : phase suivante Compétition (iD.TRI) : zone de transition Entraînement : tour Start / OK Workout (iD.TRI): fase successiva Gara (iD.TRI): zona cambio Allenamento: giro

Inicio / OK Ejercicio (iD.TRI): fase siguiente Competicion (iD.TRI): zona de cambio Entrenamiento: vuelta Start / OK Workout (iD.TRI): volgende fase Competition (iD.TRI): wisselzone Training: Lap Start / OK Trening (iD.TRI): następny etap Rywalizacja (iD.TRI): strefa zmian Trening: okrażenie Start / OK Workout (iD.TRI): další fáze Závod (iD.TRI): zóna předávky Trénink: okruh

Stop / Back / Stop / Zurück / Arrêt / Retour / Stop / Indietro / Stop / atrás / Stop / Terug / Stop / Wstecz / Stop / Zpět

+ / next / vor / Suivant / avanti / Adelante / voor / przed / dále long press during training: quick menu / langer Druck im Training: Schnellmenü / Pression longue pendant l'entraînement : menu rapide / tener premuto il pulsante allenamento: menu rapido / Presión larga en el entrenamiento: menu rápido / langer druk in training: snelmenu / długie przyciśnięcie podczas treningu: szybkie menu / dlouhé stisknutí v režimu Trénink: rychlé menu

- /previous /zurück /Précédent /indietro /Atrás /terug /wstecz /zpět

+ Backlight / Hintergrundbeleuchtung / Rétro-éclairage / Retroilluminazione / Retroiluminación / Achtergrondverlichting / Podświetlenie wyświetlacza / Podsvícení

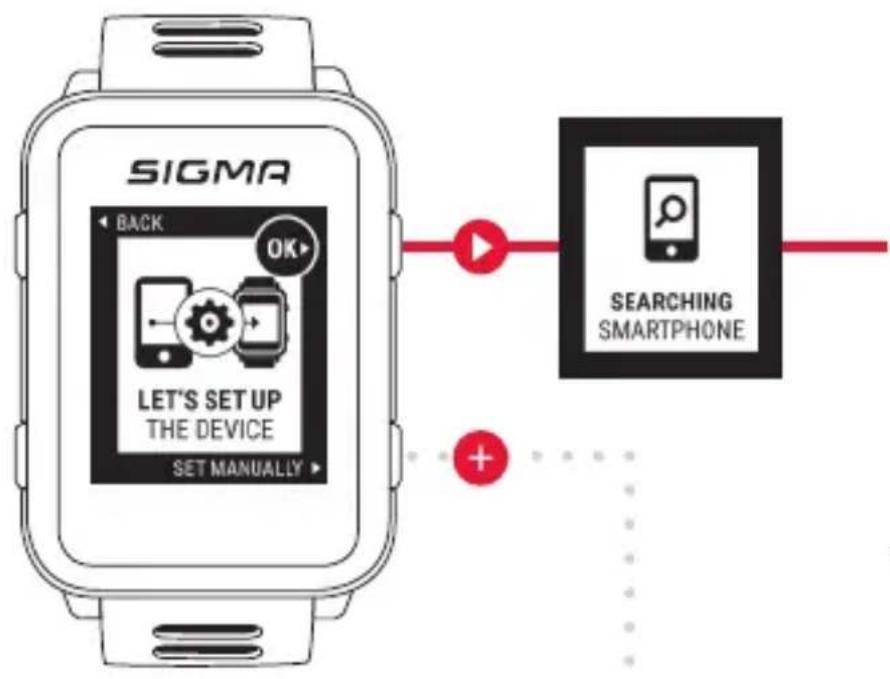

First Start


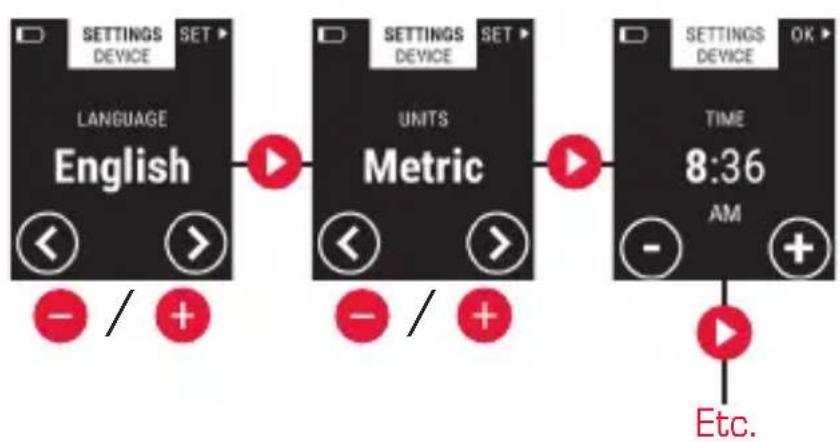

Manual Setting / Manuelle Einstellung / Réglage manuel / Impostazioni manuali / Configuración manual / Handmatige instelling / Ustawienie ręczne / Manuální nastavení

WORKS BEST

WITH

GET IT ON

Google Play

Download on the

App Store

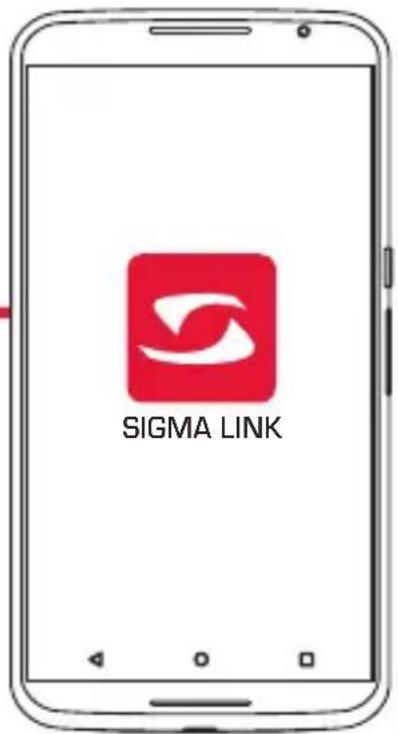

Follow instructions in SIGMA LINK APP

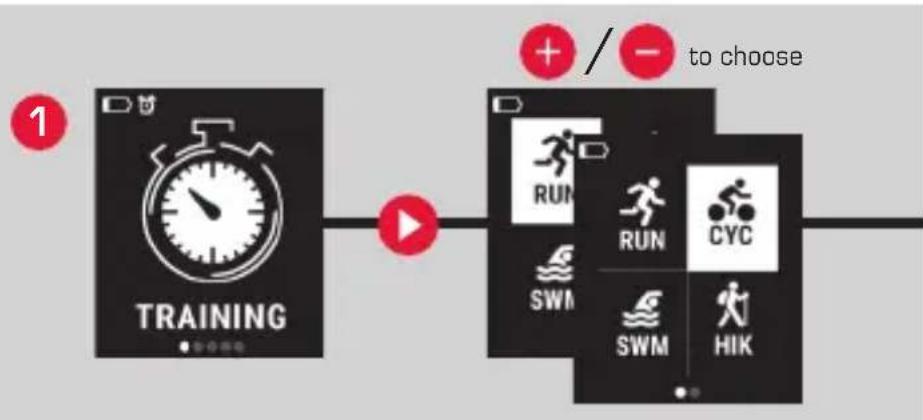

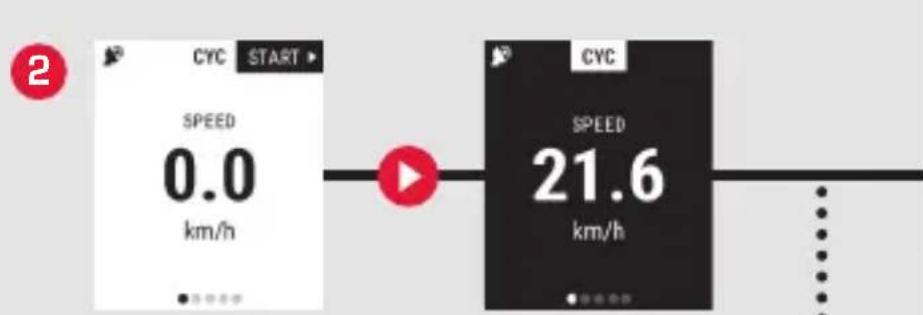

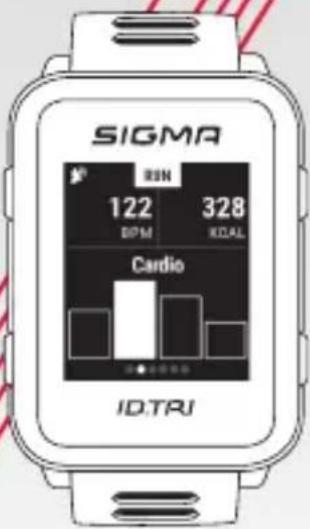

Training session / Training durchführen / Démarrer l'entraînement / Eseguire l'allenamento / Ejercer entrenamiento / Training uitvoeren / Przeprowadź trening / Spustit trénink

Quickmenu:

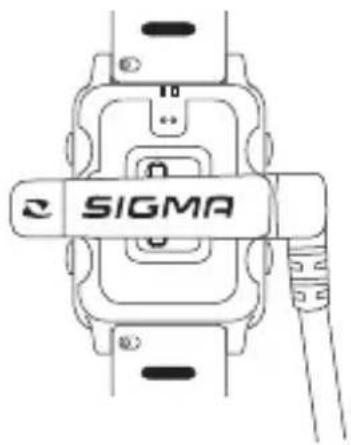

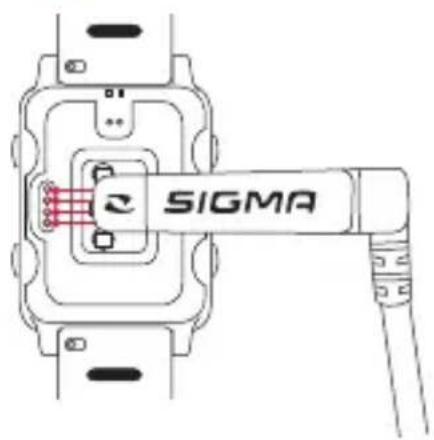

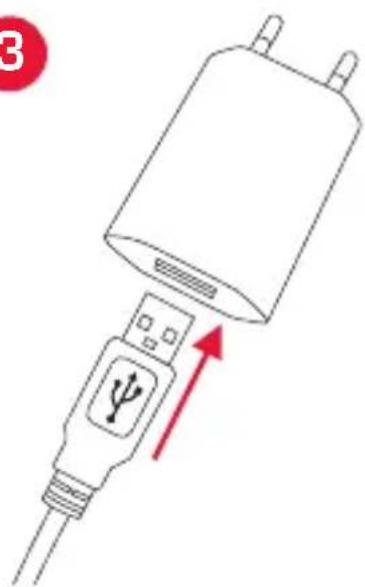

Technical line drawing of a smartwatch and USB cable connector (no text or symbols)

2

3

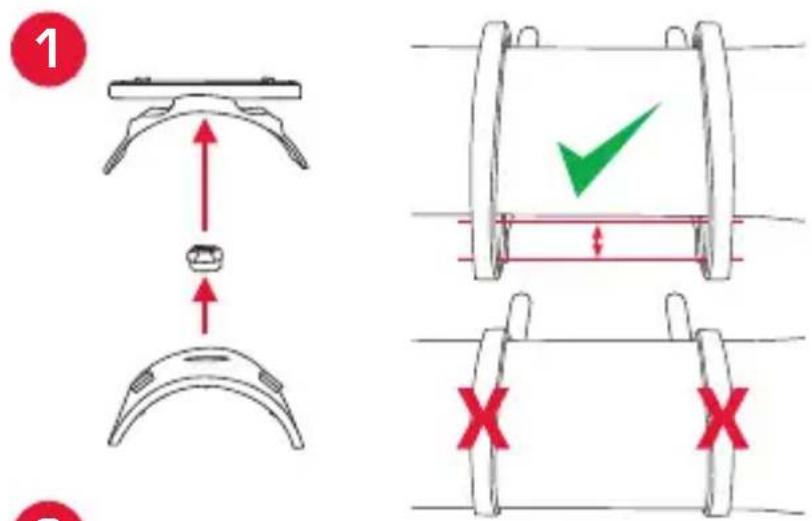

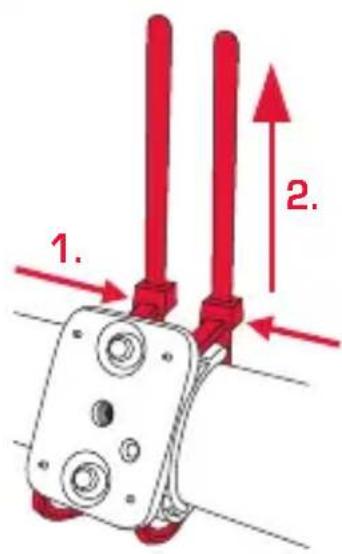

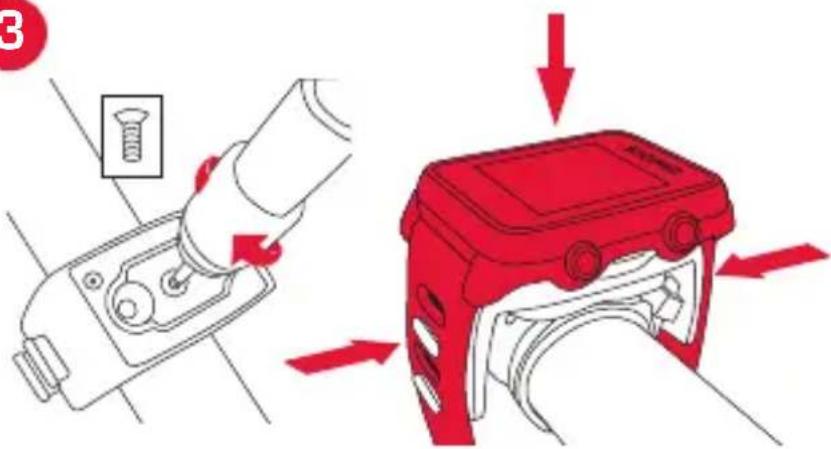

Mounting Instructions / Montagehinweise / Consignes de montage / Istruzioni per il montaggio / Indicaciones de montaje / Montage-instructie / Wskazówki montażowe / Pokyny k montáži /

2

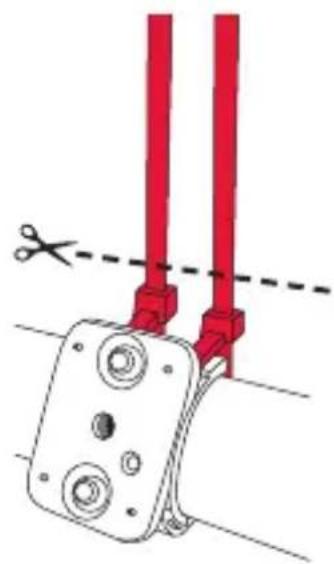

Technical diagram of a mechanical assembly with red rods and a cutting tool, no visible text or symbols

3

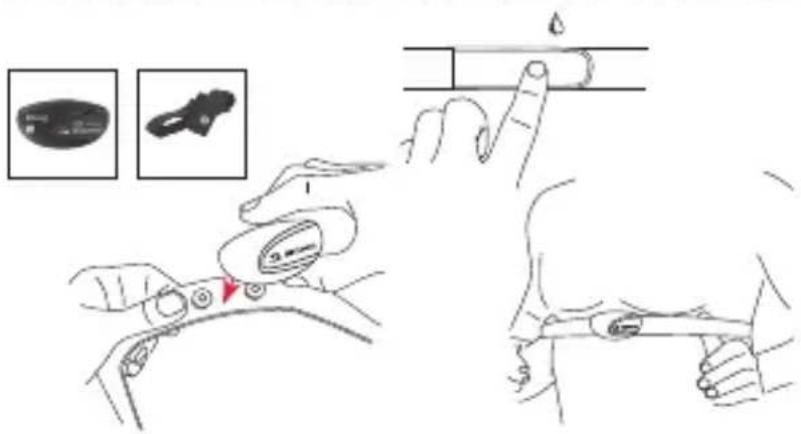

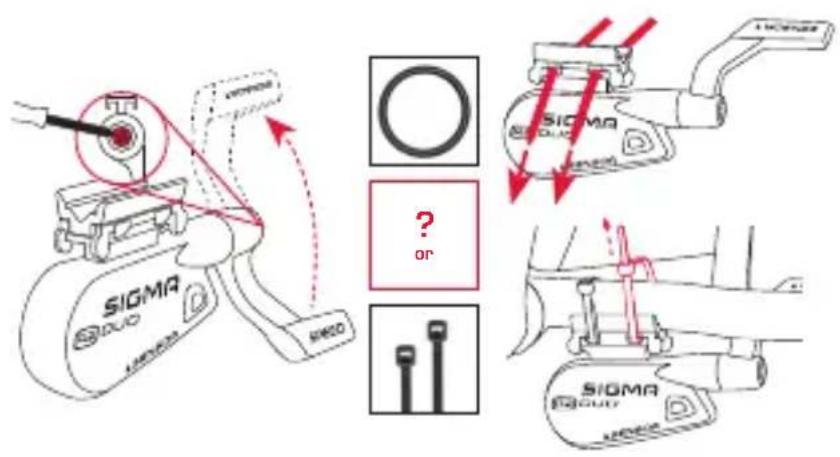

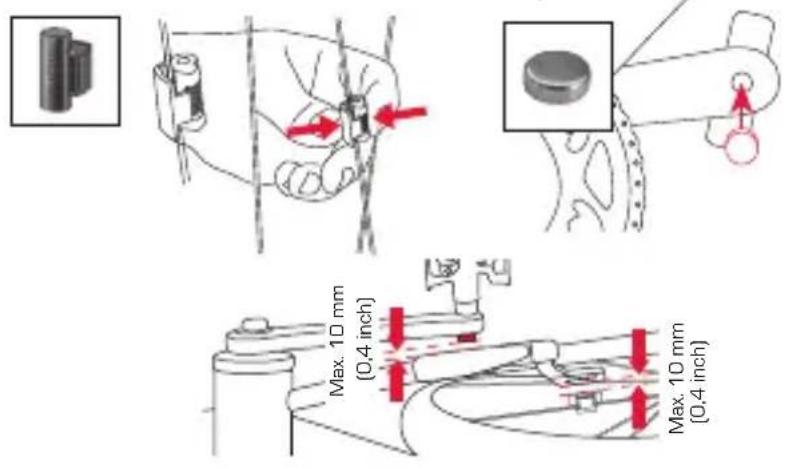

Sensor assembly / Sensor Montage / Montage du capteur / Montaggio sensore / Montaje del sensor / Sensormontage / Montaž czujnika / Montáž čidla

Only included in the iD.TRI Set / Nur im Komplettset iD.TRI enthalten: / Contenu uniquement dans le kit iD.TRI complet: / Incluso solo nel set completo iD.TRI: / Solamente contenido en el juego completo de iD.TRI: / Zit alleen in de complete set iD.TRI: / Dostępny tylko w kompletnym zestawie iD.TRI: / Obsaženo pouze v kompletní sadě iD.TRI:

Further information / Mehr Informationen / Plus amples informations / Maggiori informazioni / Más información / Meer informatie / Więcej informacji / Další informace

More information can be found here: www.sigma-qr.com

Specification / Spezifikationen / Spécifications / Specifiche / Especificaciones / Specificaties / Dane techniczne / Specifikace

RF Interface F	Frequenzy Range	Maximum RF output power	Number of Channels
BLE 2402 - 2480 Mhz 4 dBm 39
ANT+ 2457 MHz 0 dBm 1
GPS 1575.42 MHz N/A 1
R1 ANT+ / BLE	2.4 GHz / 2.4 GHz	-6.31 dBm / 3.04 dBm	N/A
R2 ANT+ / BLE	2.4 GHz / 2.4 GHz	0.85 dBm / 3.81 dBm	N/A

Temperature Range
	iD.FREE / iD.TRI	R1 Duo R2 Duo
Operating Temperature:	-10°C - +50°C -5°C	- +50°C -10°C	- +60°C
Charging Temperature:	0°C - +45°C

Water Resistance iD.FREE / iD. TRI = 5 ATM

SIGMA-ELEKTRO GmbH hereby declares that the iD.FREE and iD.TRI comply with the fundamental requirements and other relevant regulations of Directive 2014/53/EU. You can find the CE declaration at: ce.sigmasport.com/idfree ce.sigmasport.com/idtri

Garantiebedingungen

The guarantee for SIGMA-ELEKTRO GmbH products is valid for 24 months from the date of invoice and covers mechanical or technical problems (display defects, data transfer problems, mounting, optical defects). The guarantee applies only if the SIGMA SPORT products are used with accessories supplied or recommended by SIGMA SPORT. The guarantee does not apply to batteries, rechargeable batteries and wear parts (wrist straps, rubber straps, chest straps, etc.) as well as deliberate damage and defects caused by incorrect application.

SIGMA-ELEKTRO GmbH

You can find a complaints form on our website: claim.sigmasport.com

Disposal

Batteries must not be disposed of in household waste (Battery Law - BattG)! Please take the batteries to an official collection point or to the retailer for disposal.

LI = Lithium Ionen

Electronic devices must not be disposed of in household waste. Please take the device to an official waste collection point.

You can find the CE declaration at: ce.sigmasport.com/idfree ce.sigmasport.com/idtri

ce.sigmasport.com/idfree

ce.sigmasport.com/idtri

Federal Communication Commission Interference Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

[1] This device may not cause harmful interference, and [2] this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution:

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Radiation Exposure Statement:

The product comply with the FCC portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available.

Industry Canada statement

This device complies with ISED's licence-exempt RSSs. Operation is subject to the following two conditions:

[1] This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.

Do not disassemble, modify or repair this product, as this may cause a fire, electric shock or product damage. Any modification will void the warranty of this product.

This Class B digital apparatus complies with Canadian CAN ICES-3 (B)/NMB-3 (B).

Radiation Exposure Statement:

The product comply with the Canada portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available.
