Product Type	Electric Storage Water Heater
Model	EWH 80 C
Brand	Teka
Capacity	80 liters
Dimensions (H x W x D)	Approximately 45 x 45 x 90 cm
Weight (empty)	Approximately 25 kg
Power Supply	220-240 V, 50 Hz
Rated Power	2000 W
Temperature Range	30°C to 75°C
Safety Features	Thermostat, Thermal Cut-off, Pressure Relief Valve
Installation Type	Vertical Wall Mounting
Tank Material	Enameled Steel
Insulation	Polyurethane Foam
Heating Element	Copper or Stainless Steel
Control Type	Mechanical Thermostat
Energy Efficiency	Class B or C (typical)
Warranty	2 years (check local terms)
Maintenance	Annual descaling and anode rod inspection
Connection	1/2 inch or 3/4 inch water inlet/outlet
Protection Rating	IP24 (splash proof)

Frequently Asked Questions - EWH 80 C TEKA

How do I adjust the temperature on my Teka EWH 80 C water heater?

Locate the thermostat knob on the front of the unit. Turn it to your desired temperature, typically between 30°C and 75°C. Allow time for the water to heat up.

What safety features does the EWH 80 C have?

The water heater includes a thermostat to regulate temperature, a thermal cut-off to prevent overheating, and a pressure relief valve to release excess pressure.

How do I install the water heater?

Installation should be done by a qualified professional. The unit must be mounted vertically on a wall capable of supporting its weight (approx. 25 kg empty). Ensure proper plumbing and electrical connections as per the manual.

What maintenance does the water heater require?

Annual maintenance is recommended: descaling the tank to remove limescale and inspecting the anode rod. Replace the anode rod if heavily corroded to extend tank life.

Why is my water heater not heating water?

Check if the power supply is on and the circuit breaker hasn't tripped. If the thermostat is set too low, increase it. If still not heating, the heating element or thermostat may be faulty.

How do I reset the thermal cut-off?

Turn off the power to the unit. Locate the reset button on the thermostat (often behind a cover). Press it firmly. If it trips again, there may be an underlying issue and you should contact a technician.

What is the capacity of the EWH 80 C?

The EWH 80 C has a capacity of 80 liters, suitable for a small family or medium usage.

How long does it take to heat the water?

With a 2000W heating element, heating 80L from cold to 60°C takes approximately 2-3 hours. Time varies depending on incoming water temperature.

Can I use the water heater with a timer?

Yes, you can install an external timer to schedule heating during off-peak hours. Ensure the timer is rated for the heater's load (2000W).

What should I do if the pressure relief valve is leaking?

A small leak during heating is normal. If it leaks continuously, the valve may be faulty or the tank pressure is too high. Turn off the heater and contact a plumber to replace the valve.

USER MANUAL EWH 80 C TEKA

Modern kitchen interior with glossy wooden cabinets and stainless steel ovens, featuring a 'TEKA' logo in the top-right corner (no other text or symbols visible)

User Manual

Technical drawing of a mechanical assembly with cross-sectional and top views (no text or symbols)

(Fig.2)

Modern kitchen interior with glossy wooden cabinets and built-in appliances, featuring a 'TEKA' logo in the top-right corner (no other text or symbols)

User Manual

Technical drawing of a mechanical assembly with cross-sectional and top views (no text or symbols)

(Fig.2)

Modern kitchen interior with glossy wood cabinets and stainless steel ovens, featuring a 'TEKA' logo in the top-right corner (no other text or symbols visible)

User Manual

Sealed Storage Electric Water Heater

EWH 15 C

EWH 30 C

EWH 50 C

EWH 80 C

EWH 100 C

Read the Manual before the and installing

We would like to sincerely thank you for selecting our electric water heater. Please read this manual carefully before use and the methods for the installation and use of this electric water heater, to make full use of its excellent performances.

WARNING

• Before installing this water heater, check and confirm the earth electrode on the socket is reliably grounded, without electricity. Otherwise, the electric water heater can not be installed or used.
• Do not use mobile sockets.
  • Incorrect installation and use of this electric water heater may result in serious injuries to human bodies and losses of property.

Contents

• Performance characteristics.... (1)
- Specifications.... (2)
- Brief introduction of product structure.... (2)
- Methods of installation.... (3)
- Methods of use.... (5)
- Cautions.... (6)
- Maintenance.... (7)
- Failures and treatment.... (9)
- Wiring diagram.... (9)

Performance characteristics

1. Total automatic control: automatic addition of cold water, automatic heating.
2. Three-fold safety protection: multiple safety protection devices, such as dry heating protection, extra-temperature protection, high hydraulic pressure protection, etc., safe and reliable.
3. Sapphire enamel inner container: manufactured by using advanced electro-ostatic dry method enamel technique, antirust, corrosion-proof, incrustation-resistant, leak-prevention, with longer lifetime.
4. Heating pipes designed with low thermal load: safe and reliable, with longer lifetime.
5. Equipped with corrosion-proof and incrustation-retardant equipment: durable products.
6. Thickened urethane integral foaming: good thermal insulation effect, energy efficient and electricity saving.
7. Imported temperature controller: accurate and reliable control of temperature.
8. Adjustable range of water temperature from 30 to 75°C.
9. Simple operation and easy use.

Specifications

Model	Volume (L)	Rated Power (W)	Rated Voltage (ACV)	Rated Pressure (MPa)	Max Of Water Temperature (°C)	Protection Class	Waterproof Grade
EWH 15 C	15	1500	220-240	0.75	75	I	IPX4
EWH 30 C	30	1500	220-240	0.75	75	I	IPX4
EWH 50 C	50	1500	220-240	0.75	75	I	IPX4
EWH 80 C		1500				I	IPX4750.75220-24
EWH 100 C		1500				I	IPX4750.75220-24

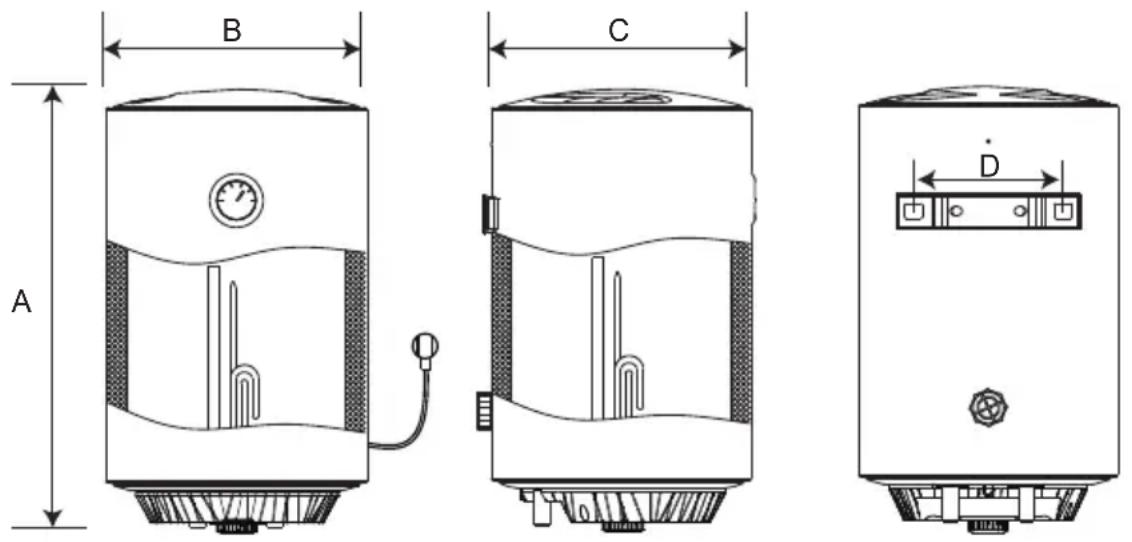

Brief introduction of product structure

	EWH 15 C	EWH 30 C	EWH 50 C	EWH 80 C	EWH 100 C
A	395	605	770	805	970
B	340	340	385	450	450
C	340	340	385	450	450
D	200	200	200	200	200

(Fig.1)

Methods of installation

Note: Please make sure to use the accessories provided by our company to install this electric water heater. This electric water heater can not be hung on the support until it has been checked that it is firm and reliable. Otherwise, the electric water heater may face from the wall, resulting in damage of the heater, even serious accidents or injuries to people. When determining the locations of the bolt holes, it shall be ensured that there is a clearance not less than 0.2m on the right side of the electric heater, to facilitate the maintenance of the heater, if necessary.

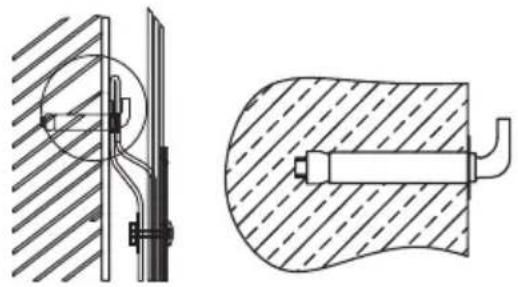

1. Installation of the main machine

1. This electric water heater should be installed in a solid wall. If the strength of the wall can't bear theweight equalling twice. The total weight of the heater fully filled with water, it will be necessary to install a special support.
2. After selecting a proper location, determine the positions of the two installation holes used for expansion bolts with hook (determined according to the specification of the product you select). Make two holes in the wall with the right depth by drilling the correct size matching the expansion bolts attached, insert the screws, place the hook upwards, tighten the nuts so that they are firmly fixed, and then hang the electric water heater on it (see Fig.2).

Technical drawing of a mechanical assembly with cross-sectional and top views (no text or symbols)

(Fig.2)

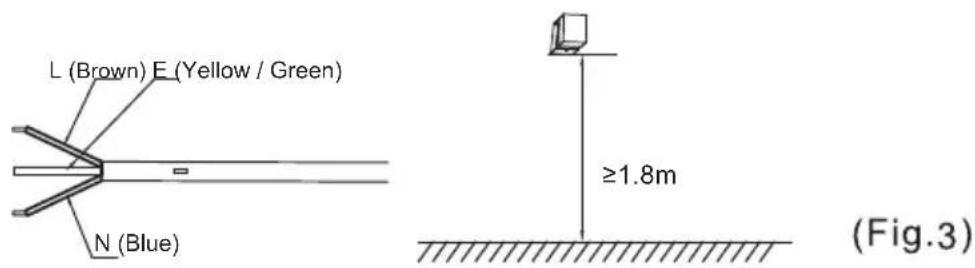

1. Install the supply socket in the wall. The requirements for the socket are as follows: 250V/10A, single phase, three electrodes. It is recommended to place the socket on the right above the heater. The height from the socket to the ground shall not be less than 1.8m (see Fig.3).

1. The heater can be installed, anywhere in the house not exposed to direct sunlight or rain. However, in order to reduce the pipeline heat losses, the installation position of the heater shall be closed to the location for use of water as near as possible.

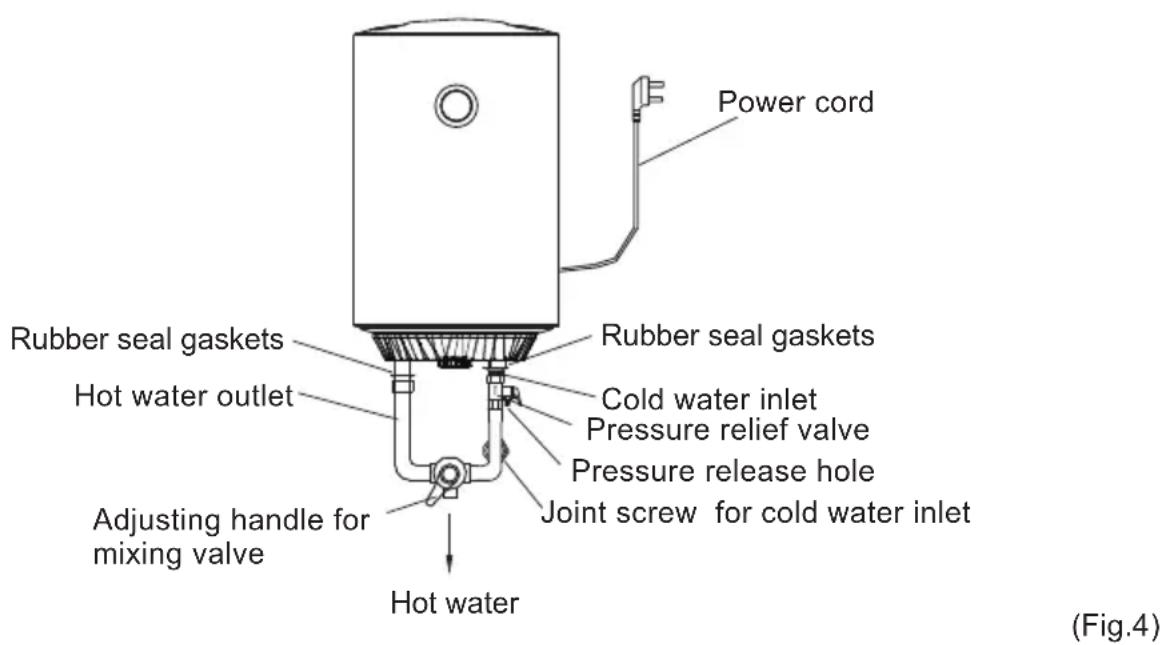

2. Connection of pipelines

1. The dimension of each pipe part is G1/2.
2. Connection of one-way safety valve: install the one-way safety valve attached with the machine at the water inlet of the main machine.(Pay attention to keep the installed drainage flexible pipes of the safety valve sloping downwards and connected with the atmosphere.)
3. In order to avoid leakage when connecting the pipelines, the rubber seal gaskets provided with the machine must be added at the end of the threads (see Fig.4).

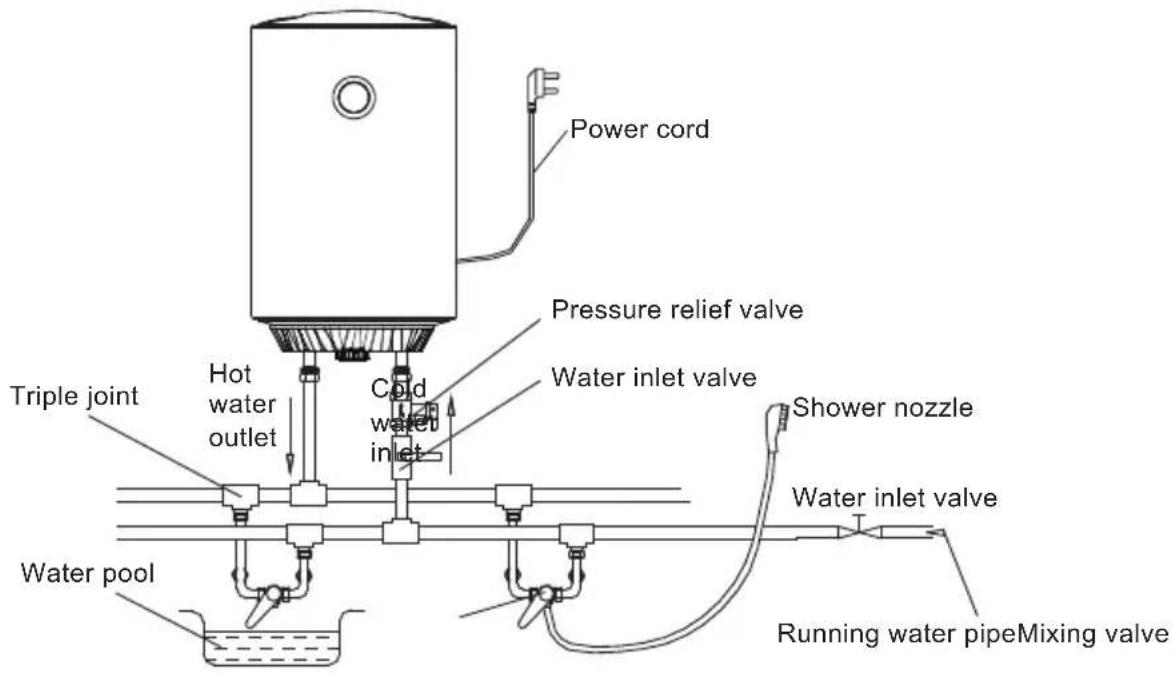

1. If the users want to make a multi-way supply system, refer to the method shown in Fig.5 for connection of the pipelines.

Methods of use

1. First, open any of the outlet valves at the outlet of the water heater, then, open the inlet valve. The electric water heater begins to be filled with water. When there is water coming out of the outlet valve normally, it implies that the heater has been fully filled with water, and the outlet valve can be closed.

Note: During normal operation, the inlet valve shall be set in the status of "open".

1. Insert the supply plug into the socket, the two indicator lights will be on at the same time..

2. This machine can automatically control the temperature. When the water temperature inside the machine has reached the set temperature (It is set to 75^ ), it will be turned off automatically, and step into the status of thermal insulation; when the water temperature is decreased to a certain point, it will be turned on automatically to restore the heating, and the use of hot water will not be interrupted. When the heater is switched off automatically, the heating indicator will turn off.

Cautions

1. The supply socket must be earthed reliably. The rated current of the socket shall not be lower than 10A. The socket and plug shall be kept dry to prevent electric leakage. Inspect frequently whether the plugs are well plugged in the socket. Inspect method is as follows: insert the power supply plug into the socket, after using for half an hour, shut down the unit and pull the plug out, and inspect the plug in case it scalds your hand. If tempeature is over 50°C, please plug in another socket. to avoid the plug being damaged, fire or other personnel accidents result from badcontact.

2. For the places or the wall where the water may splash, the installation height of the socket shall not be lower than 1.8m.

3. The wall in which the electric water heater is installed shall be able to bear the weight equalling twice the weight of the heater fully filled with water without distortion or cracks. Otherwise, other strengthening measures should be adopted.

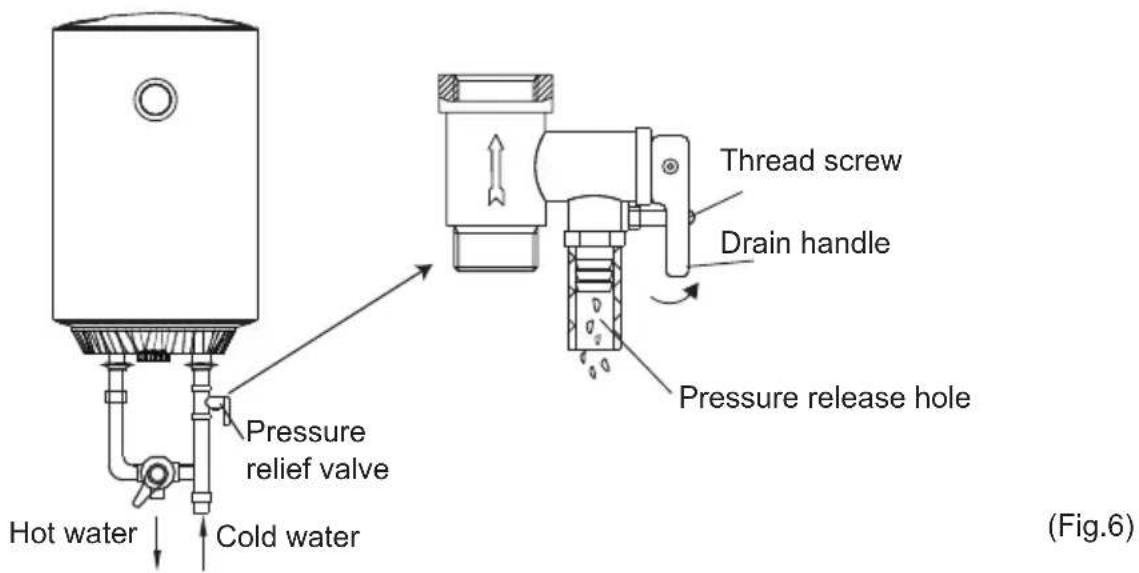

4. The one-way safety valve attached to the machine must be installed to the cold water inlet of this machine (see Fig.6).

5. For the first use (or the first use after maintenance or cleaning), the heater can not be switched on until it has been (fully) filled with water. When filling with water, at least one of the outlet valves at the outlet of the heater must be opened to release the air. This valve can be closed after the heater has been (fully) filled with water.

6. During the heating, there may be drops of water dripping from the pressure release hole of the one-way safety valve. This is a normal phenomenon. If there is a large amount of water leaking, please contact the professional maintenance personnel for repair. This pressure release hole shall, under no circumstances, be blocked; otherwise, the heater may be damaged, even resulting in safety accidents.

1. The drainage pipe connected to the pressure release hole must be kept sloping downwards.
2. Since the water temperature inside the heater can reach up to 75^ C, the hot water must not be exposed to people when it is initially used. Adjust the water to a reasonable temperature to avoid scalding..
3. In order to drain off the water inside the inner container, it can be drained off from the exit port (Twist the thread screw of the exit port), and it can also be drained off from the one-way safety valve (Twist the thread screw off the one-way safety valve, and lift the drain handle upwards).
4. If the flexible power supply cord is damaged, the special supply cord provided by the manufacturer must be used, and replaced by the professional maintenance personnel.
5. If any parts or components of this electric water heater are damaged, please contact the professional maintenance personnel for repair, and use the special spare parts and components provided by our company.

Maintenance

1. Check the power supply plug and socket frequently to make sure that they have good, reliable contact and are well grounded without overheating.

2. If the heater is not going to be used for a long time, especially in the regions with low temperatures (lower than 0^ C ), in order to prevent the heater being damaged due to the freezing of water in the inner container, the water inside the heater shall be drained away (refer to Item 9, Cautions of this manual for the method to drain away the water inside the inner container).

3. The recommended water hardness for an optimum working performance of the water heater should not exceed 120 mg/l of CaCo3 (Calcium Carbonate). In case of exceeding this quantity, it is recommended to use alternative decalcifying systems (You can check your local water hardness in the Water Board of you local Town Hall.) Should there be any failures due to the deposits originated by the water quality, will not be covered by the guarantee.

4. To guarantee the long-term durability and efficiency of your water heater, it is recommended to clean its inner tank and the deposits in the heating components on a regular basis.
5. It is also recommended to check the magnesium anode periodically (minimum once a year or every six months depending on the water hardness).
6. If the magnesium anode of your water tank is worn out due to the deposits originated by the water quality, the After Sales Service will have to replace it by a new one. The cost of the materials of the replacement of the magnesium anode will be covered within the guarantee period, however, the cost of the workforce or services for this replacement will not be included.
7. It is recommended to clean the surface of the water heater with soapy water, never use abrasive products or solvents.
8. During the guarantee period, the maintenance will be done by Teka's Official After Sales Service. Any services undertaken by non-Teka Official After Sales services will be excluded from the guarantee.

Types of water	mg/l	°fH	°dH	°eH
Soft water	≤17	≤1.7	≤0.95	≤1.19
Slightly hard water	≤60	≤6.0	≤3.35	≤4.20
Moderately hard water	≤120	≤12.0	≤6.70	≤8.39
Hard water	≤180	≤18.0	≤10.05	≤12.59
Very hard water	>180	>18.0	>10.05	>12.59

Failures and treatment

Failures	Reasons	Treatment
The heating indicator light is off.	Failures of the temperature controller.	Contact with professional staff for repair.
No water coming out of the hot water outlet.	1. The running water supply is cut off.2. The hydraulic pressure is too low.3. The inlet valve running water is not open.	1. Wait for restoration of running water supply.2. Use the heater again when the hydraulic pressure is increased.3. Open the inlet valve running water.
The water temperature is too high.	Failures of the temperature control system.	Contact with professional staff for repair.
Water leak	Seal problem of the joint of each pipe.	Seal up the joints.

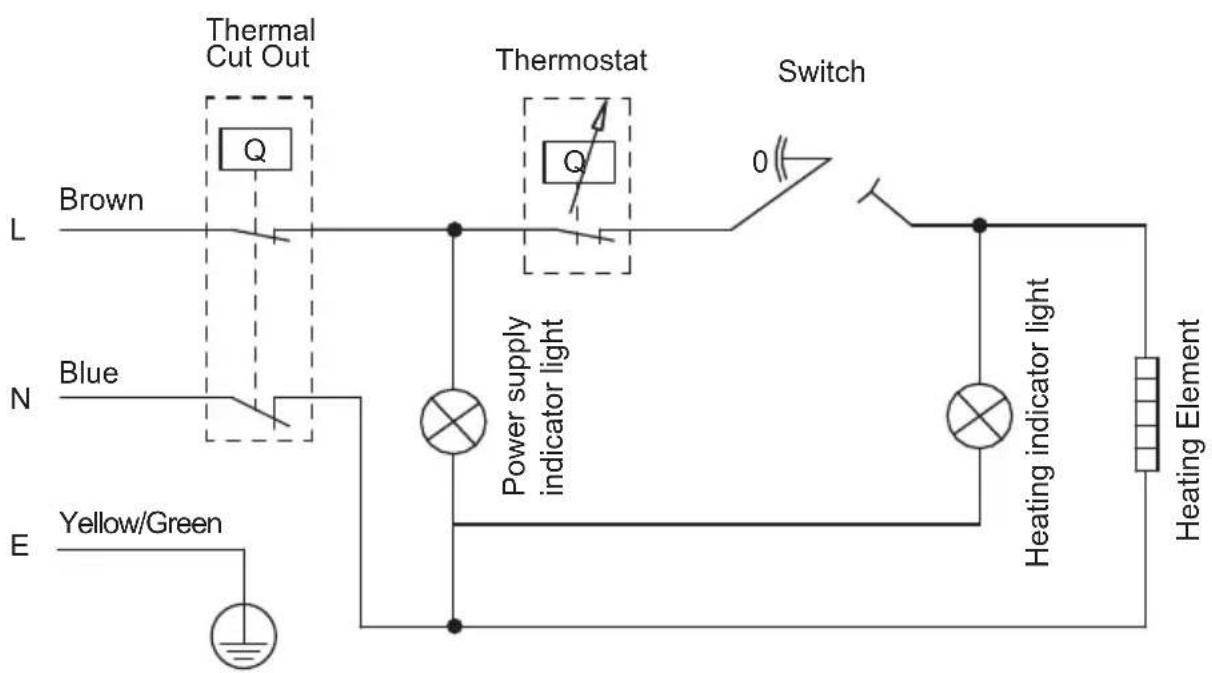

Wiring diagram

Produce information with EU regulation

The electrical storage water heater EWH 15 C of the company Teka Industrial, S.A. was tested with a declared load profile of the size "XXS"

The product fulfills and corresponds to the requirements of the commission regulatory standards (No 814/2013) for electrical storage water heater and achieved a wa heating energy efficiency of _wh=34.0%

that correspond to the water heating efficiency class B"

In accordance with Annex II Enercy Efficiency Classes article 1 of the commission regulation (No 812/2013)

The evaluation of the result of this report in respect of conformity with the related commission regulation (No 812/2013 and 814/2019) is only a part of the conformity assessment to achieve the ErP-Label.

Electricity consumption Q_elec , water heating energy efficiency _wh and mixed water at 40°C (V40)

Description Parameter Value Unit
k-Value	k	0.23
Smart control compliance	smart	0
Smart control factor	SCF	0
Conversion coefficient	CC	2.5
Ambient correction term	Q_cor kWh	-0.277
Referenct energy	Q_ef	2.1	kWh
Useful energy content	Q_H2O	2.926	kWh
Correction ratio of reference and useful energy	Q_ref/Q_H2O	0.718	kWh
Daily electricity consumption (measured)	Q_test\_elec	3.524	kWh
Water temperature at the beginning of the 24h measurement cycle	T3	78.9	°C
Water temperature at the end of the 24h measurement cycle	T5	74.7	°C
Storage volume	M_act	15.2	kg
Storage volume	C_act	15.2	L
Daily electricity consumption (corrected)	Q_elec	2.582	kWh
Water heating energy efficiency	n_wh	34.0	%
Annual Electricity Consumption	AEC	543	kWh
Water heating energy efficiency class		B
Description Parameter Value Unit
Water temperature without tapping	T_set	77.8	°C
Average water temperature of inlet cold water	_c	11.3	°C
Normalised value of the average temperature	_p	66.5	°C
Calculated volume that delivered hot water of at least 40 C	V_40	26	L

The electrical storage water heater EWH 30 C of the company Teka Industrial, S.A. was tested with a declared load profile of the size "S"

The product fulfills and corresponds to the requirements of the commission regulatory standards (No 814/2013) for electrical storage water heater and achieved a wa heating energy efficiency of _wh=32.0%

that correspond to the water heating efficiency class"

In accordance with Annex II Enercy Efficiency Classes article 1 of the commission regulation (No 812/2013)

The evaluation of the result of this report in respect of conformity with the related commission regulation (No 812/2013 and 814/2019) is only a part of the conformity assessment to achieve the ErP-Label.

Electricity consumption Q_elec , water heating energy efficiency _wh and mixed water at 40°C (V40)

Description Parameter Value Unit

k-Value	k	0.23
Smart control compliance	smart	0
Smart control factor	SCF	0
Conversion coefficient	CC	2.5
Ambient correction term	Q_cor kWh	-0.394
Referenct energy	Q_ref	2.1	kWh
Useful energy content	Q_H2O	2.137	kWh
Correction ratio of reference and useful energy	Q_ref/Q_H2O kWh	0.983
Daily electricity consumption (measured)	Q_test\_elec	2.886	kWh
Water temperature at the beginning of the 24h measurement cycle	T3	75.8	°C
Water temperature at the end of the 24h measurement cycle	T5	77.3	°C
Storage volume	M_act	30.1	kg
Storage volume	C_act	30.1	L
Daily electricity consumption (corrected)	Q_elec	2.784	kWh
Water heating energy efficiency	n_wh	32.0	%
Annual Electricity Consumption	AEC	577	kWh
Water heating energy efficiency class		C

Description Parameter Value Unit

Water temperature without tapping	T_set	75	°C
Average water temperature of inlet cold water	_c	10.4	°C
Normalised value of the average temperature	_p	71.2	°C
Calculated volume that delivered hot water of at least 40°C	V_40	47	L

The electrical storage water heater EWH 50 C of the company Teka Industrial, S.A. was tested with a declared load profile of the size "M"

The product fulfills and corresponds to the requirements of the commission regulation standards (No 814/2013) for electrical storage water heater and achieved a wa heating energy efficiency of _wh=36.6%

that correspond to the water heating efficiency class"

In accordance with Annex II Enercy Efficiency Classes article 1 of the commission regulation (No 812/2013)

The evaluation of the result of this report is in respect of conformity with the related commission regulation (No 812/2013 and 814/2019) is only a part of the conformity assessment to achieve the ErP-Label.

Electricity consumption Q_elec , water heating energy efficiency _wh and mixed water at 40°C (V40)

Description Parameter Value Unit
k-Value	k	0.23
Smart control compliance	smart	0
Smart control factor	SCF	0
Conversion coefficient	CC	2.5
Ambient correction term	Q_cor kWh	-0.470
Referenct energy	Q_ref	5.845	kWh
Useful energy content	Q_H2O	5.944	kWh
Correction ratio of reference and useful energy	Q_ref/Q_H2O kWh	0.983
Daily electricity consumption (measured)	Q_test\_elec	6.804	kWh
Water temperature at the beginning of the 24h measurement cycle	T3	74.1	°C
Water temperature at the end of the 24h measurement cycle	T5	74.6	°C
Storage volume	M_act	50.1	kg
Storage volume	C_act	50.1	L
Daily electricity consumption (corrected)	Q_elec	6.662	kWh
Water heating energy efficiency	n_wh	36.1	%
Annual Electricity Consumption	AEC	1422	kWh
Water heating energy efficiency class		C
Description Parameter Value Unit
Water temperature without tapping	T_set	74	°C
Average water temperature of inlet cold water	_c	10.4	°C
Normalised value of the average temperature	_p	67.2	°C
Calculated volume that delivered hot water of at least 40°C	V_40	76	L

The electrical storage water heater EWH 80 C of the company Teka Industrial, S.A. was tested with a declared load profile of the size "M"

The product fulfills and corresponds to the requirements of the commission regulation standards (No 814/2013) for electrical storage water heater and achieved a water heating energy efficiency _wh = 36.2%

that correspond to the water heating efficiency class"

In accordance with Annex II Enercy Efficiency Classes article 1 of the commission regulation (No 812/2013)

The evaluation of the result of this report in respect of conformity with the related commission regulation (No 812/2013 and 814/2019) is only a part of the conformity assessment to achieve the ErP-Label.

Electricity consumption Q_elec , water heating energy efficiency _wh and mixed water at 40°C (V40)

Description Parameter Value Unit
k-Value	k	0.23
Smart control compliance	smart	0
Smart control factor	SCF	0
Conversion coefficient	CC	2.5
Ambient correction term	Q_cor kWh	-0.464
Referent energy	Q_ref	5.845	kWh
Useful energy content	Q_H2O	5.948	kWh
Correction ratio of reference and useful energy	Q_ref/Q_H2O kWh	0.983
Daily electricity consumption (measured)	Q_test\_elec	6.806	kWh
Water temperature at the beginning of the 24h measurement cycle	T3	57.9	°C
Water temperature at the end of the 24h measurement cycle	T5	58.3	°C
Storage volume	M_act	80.1	kg
Storage volume	C_act	80.1	L
Daily electricity consumption (corrected)	Q_elec	6.652	kWh
Water heating energy efficiency	n_wh	36.2	%
Annual Electricity Consumption	AEC	1420	kWh
Water heating energy efficiency class		C
Description Parameter Value Unit
Water temperature without tapping	T_set	58	°C
Average water temperature of inlet cold water	_c	10.4	°C
Normalised value of the average temperature	_p	58.1	°C
Calculated volume that delivered hot water of at least 40°C	V_40	90	L

The electrical storage water heater EWH 100 C of the company Teka Industrial, S.A. was tested with a declared load profile of the size "M"

The product fulfills and corresponds to the requirements of the commission regulation standards (No 814/2013) for electrical storage water heater and achieved a water heating energy efficiency _wh = 36.0%

that correspond to the water heating efficiency class"

In accordance with Annex II Enercy Efficiency Classes article 1 of the commission regulation (No 812/2013)

The evaluation of the result of this report in respect of conformity with the related commission regulation (No 812/2013 and 814/2019) is only a part of the conformity assessment to achieve the ErP-Label.

Electricity consumption Q_elec , water heating energy efficiency _wh and mixed water at 40°C (V40)

Description Parameter Value Unit
k-Value	k	0.23
Smart control compliance	smart	0
Smart control factor	SCF	0
Conversion coefficient	CC	2.5
Ambient correction term	Q_cor kWh	-0.489
Referent energy	Q_ref	5.845	kWh
Useful energy content	Q_H2O	5.951	kWh
Correction ratio of reference and useful energy	Q_ref/Q_H2O kWh	0.982
Daily electricity consumption (measured)	Q_test\_elec	6.945	kWh
Water temperature at the beginning of the 24h measurement cycle	T3	58.4	°C
Water temperature at the end of the 24h measurement cycle	T5	59.5	°C
Storage volume	M_act	100.8	kg
Storage volume	C_act	100.8	L
Daily electricity consumption (corrected)	Q_elec	6.695	kWh
Water heating energy efficiency	n_wh	36.0	%
Annual Electricity Consumption	AEC	1427	kWh
Water heating energy efficiency class		C
Description Parameter Value Unit
Water temperature without tapping	T_set	58	°C
Average water temperature of inlet cold water	_c	10.3	°C
Normalised value of the average temperature	_p	55.8	°C
Calculated volume that delivered hot water of at least 40°C	V_40	110	L

DESCRIPTION TO ANNEX I

(1)supplier's name or trade mark
(2) supplier's model identifier
(3) the declared load profile, expressed by the appropriate letter and typical usage in accordance with Table 3 of Annex VII
(4) the water heating energy efficiency class of the model, determined in accordance with point 1 of Annex II
(5) the water heating energy efficiency in %, rounded to the nearest integer
(6) the annual electricity consumption in KWh in terms of final energy and/or the annual fuel consumption in GJ in terms of GCV, rounded to the nearest integer and calculated in accordance with point 4 of Annex VIII
(7) the thermostat temperature settings of the water heater, as placed on the market
(8) the daily electricity consumption Q elec in KWh, rounded to three decimal places
(9) the declared load profile, expressed by the appropriate letter in accordance with Table 1 of this Annex
(10) the mixed water at 40^ C V40 in litres, rounded to the nearest integer
(11) maximum temperature of the thermostat
(12) 'out of the box-mode' is the standard operating condition, setting or mode set by the manufacturer at factory level, to be active immediately after the appliance installation, suitable for normal use by the end-user according to the water tapping pattern for which the product has been designed and placed on the market
(13) the water heating energy efficiency in %, rounded to one decimal place
(14) All specific precautions for assembly, installation and maintenance are described in the operating and installation instructions. Read and follow the operating and installation instructions.
(15) All of the data that is included in the product information was determined by applying the specifications of the relevant European directives. Differences to product information listed elsewhere may result in different test conditions. Only the data that is contained in this product information is applicable and valid.

Country Subsidiary	Address City Phone
AustriaKüppersbusch Austria	Eitnergasse, 13	1231 Wien	[phone]
BelgiumKüppersbusch Belgium S.P.R.L.	Doomveld Industrie, Asse 3, No. 11 - Boite 7	1731 Zellik	[phone]
BulgariaTeka Bulgaria EOOD	Blvd. “Tsarigradsko Shosse” 135	1784 Sofia	[phone]
ChileTeka Chile S.A.	Avd El Retiro Parque los Maitenes, 1237. Parque Enea	Pudahuel, Santiago de Chile	[phone]
ChinaTeka International Trading (Shanghai) Co. Ltd.	No.1506, Shengyuan Henghua Bldg. No.200 Wending Rd.	Xuhui, Dist. 200030 Shanghai	[phone]
Czech RepublicTeka CZ S.R.O.	V Holesovickách, 593	182 00 Praha 8 - Liben	[phone]
EcuadorTeka Ecuador S.A.	Parque Ind. California 2, Via a Daule Km 12	Guayaquil	[phone]
GreeceTeka Hellas A.E.	Thesi Roupaki - Aspropyrgos	193 00 Athens	[phone]
HungaryTeka Magyarország Zrt.	Terv u. 92	9200 Mosonmagyaróvár	[phone]
IndonesiaPT Teka Buana	Jalan Menteng Raya, Kantor Taman A9 Unit A3	12950 Jakarta	[phone]
MalaysiaTeka Küchentechnik (Malaysia) Sdn Bhd	10 Jalan Kartunis U1/47, Temasya Park, Off Glenmarie	40150 Shah Alam, Selangor Darul Ehsan	[phone]
MexicoTeka Mexicana S.A. de C.V.	Blvd Manuel A. Camacho 126, Piso 3 Col. Chapultepec	11000 Mexico D.F.	[phone]
MoroccoTeka Maroc S.A.	73, Bd. Slimane, Depôt 33, Route de Ain Sebaa	Casablanca	[phone]
PeruTeka Küchentechnik Perú S.A.	Av. El Polo 670 local A 201, CC El polo, Surco	Lima	[phone]
PolandTeka Polska Sp. Z0.0.	ul. 3-go Maja 8 / A2	05-800 Pruszkow	[phone]
PortugalTeka Portugal S.A.	Estrada da Mota - Apdo 533	3834-909 Ilhavo, Aveiro	[phone]
RomaniaS.C. Teka Küchentechnik Romania S.R.L.	Sevastopol str., no 24, 5th floor, of. 15	010992 Bucharest Sector 1	[phone]
Russia/Teka Rus LLC/000 "Teka Pyc"	Neverovskogo 9, Office 417, 121170, Moscow, Russia	121087 Россия, Москва	[phone]
SingaporeTeka Singapore PTE Ltd	Clemenceau Avenue, 83, 01-33/34 UE Square	239920 Singapore	[phone]
SpainTeka Industrial, S.A.	C/ Cajo,17	39011 Santander	[phone]
ThailandTeka (Thailand) Co. Ltd.	364/8 Sri-Ayuttaya Road, Phayathai, Ratchatavee	10400 Bangkok	[phone]
TurkeyTeka Teknik Mutfak Aletleri Sanayi Ve	Büyükdere Cad. 24/13	80290 Mecidiyeköy, Istanbul	[phone]
UkraineTeka Ukranie LLC	86-e, Bozhenko Str .2nd floor,4th entrance	03150 Kyiv	[phone]
United ArabTeka Middle East Fze	Building LOB 16, Office 417	P.O. Box 18251 Dubai	[phone]
EmiratesTeka Küchentechnik U.A.E LLC	Bin Khedia Centre	P.O. Box 35142 Dubai	[phone]
United ArabTeka Andina S.A.	Ctra. Petare-Santa Lucia, km 3 (El Limoncito)	1070 Caracas	[phone]
EmiratesTEKA Vietnam Co., Ltd.	803, Fl 8th, Daiminh Convention Center, 77, Hoang Van	Thai, Tan Phu Ward, District 7, Ho Chi Minh	[phone]

Venezuela

Vietnam

'TEKA

TEKA
