USER MANUAL Airline AHX SAMSON

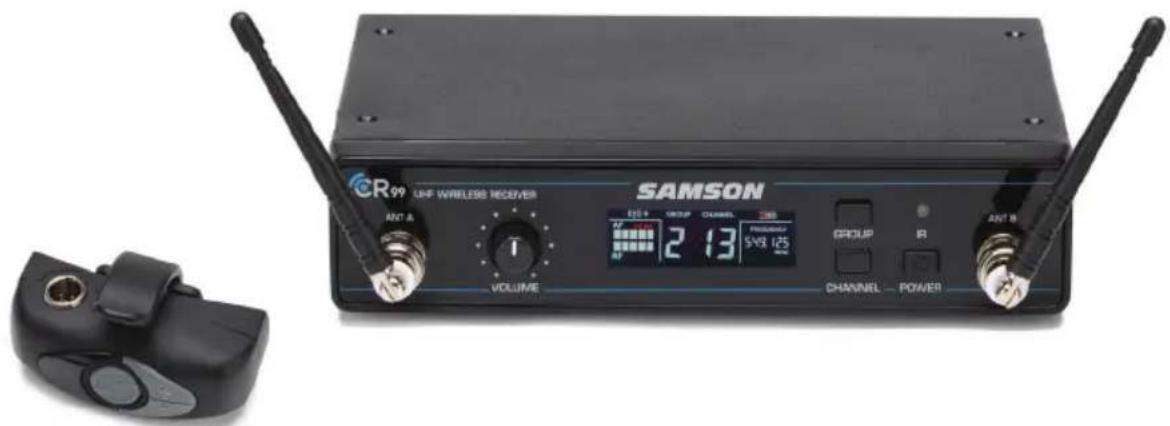

Micro Wireless System

CR99 UHF WIRELESS RECEIVER ANT A T VOLUME SAMSON 2 13 R PRODUCER 5V8:125 GROUP R ANT B CHANNEL POWER

OWNER'S MANUAL

Copyright 2018, Samson Technologies Corp. v4.1

Samson Technologies Corp.

278-B Duffy Ave

Hicksville, NY 11801

www.samsontech.com

Important Safety Information

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

ATTENTION RISQUE D'ÉLECTROCUTION ! NE PAS OUVRIR !

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING

TO PREVENT FIRE OR SHOCK HAZARD. DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD. DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. TO PREVENT ELECTRICAL SHOCK, MATCH WIDE BLADE PLUG TO WIDE SLOT AND FULLY INSERT.

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Private household in the 28 member states of the EU, in Switzerland and

Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one).

For Countries not mentioned above, please contact your local authorities for a correct method of disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

Important Safety Information

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles, and at the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid

injury from tip-over.

1. Unplug the apparatus during lightening storms, or when unused for long periods of time.

2. Refer all servicing to qualified personnel. Service is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

3. This appliance shall not be exposed to dripping or splashing water and that no object filled with liquid such as vases shall be placed on the apparatus.

4. Caution-to prevent electrical shock, match wide blade plug wide slot fully insert.

5. Please keep a good ventilation environment around the entire unit.

6. The direct plug-in adapter is used as disconnect device, the disconnect device shall remain readily operable.

7. Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Silhouette of a person climbing a ladder inside a circular frame (no text or symbols)

Important Safety Information

FCC Rules and Regulations

Samson wireless receivers are certified under FCC Rules part 15 and transmitters are certified under FCC Rules part 74.

Licensing of Samson equipment is the user's responsibility and licensability depends on the user's classification, application and frequency selected.

This device complies with Part 15 of the FCC rules Class B and RSS-210 of Industry & Science Canada.

Operation is subject to the following two conditions:

(1) This device must not cause harmful interference, and
(2) This device must accept any interference received including interference that may cause undesired operation. Suitable for home or office use.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced Radio/TV technician for help.

WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment is intended for use in wireless microphone applications.

Equipment is intended for sale in: AT, BE, CH, CY, CZ*, DK, EE, FI*, FR*, DE*, GR*, HU, IE, IS, IT, LV, LT*, LU, MT*, NL, NO*, PL* PT, RO, SK, SI, ES, SE, UK *Subject to license. Please contact your national frequency authority for information on available legal use in your area. Any changes or modifications not expressly approved by Samson Technologies Corp. could void your authority to operate the equipment.

Hereby, Samson Technologies Corp., declares that this CR99 and ATX is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be consulted at:

http://www.samsontech.com/site_media/support/manuals/AirLineATX_DOC.pdf

CE

Introduction

Congratulations on purchasing the Samson AirLine ATX Wireless System. The AirLine ATX is the smallest, frequency agile microphone transmitter on the market. Ideal solution for the active performer who needs a reliable, great sounding system without the inconvenience of a large transmitter.

With the included CR99 received, which features a large backlit LCD display, simple operation with auto-scan channel selection, and infrared set for syncing the transmitter and receiver channel, the AirLine ATX is simple and easy to set up and operate. The AirLine ATX system ensures clear, interruption-free performance by utilizing a True RF Diversity design with a pilot tone-key and auto-mute function. This configuration provides maximum operating distance along with eliminating any background noise when the transmitter is out of range or powered off.

The AirLine ATX comes in three configurations. The AHX Headset System can be configured with either the DE5 or Qe headset microphone, ALX Lavalier System with the LM8 lavalier microphone, and the AWX Wind Instrument System with HM60 wind instrument microphone. The AirLine ATX includes a standard 19" rackmount kit for permanent installations or transporting in a mobile rack.

In these pages, you'll find a detailed description of the features of the AirLine ATX Wireless System, as well as step-by-step instructions for its setup and use. If your wireless system was purchased in the United States, you'll also find a registration card enclosed—don't forget to follow the instructions so that you can receive online technical support and so that we can send you updated information about this and other Samson products in the future. Also, be sure to check out our website www.samsontech.com for complete information about our full product line.

We recommend you keep the following records for reference, as well as a copy of your sales receipt:

Receiver Serial number: ____

Transmitter Serial number: ____

Date of purchase: ____

If you have any questions or comments regarding the AirLine ATX Wireless Microphone System or any other products from Samson, do no hesitate to contact us at

[e-mail].

With proper care and maintenance, your AirLine ATX Wireless System will operate trouble-free for many years. Should your AirLine ATX Wireless System ever require servicing, a Return Authorization (RA) number must be obtained before shipping your unit to Samson. Without this number, the unit will not be accepted. Please visit www.samsontech.com/ra for an RA number prior to shipping your unit. Please retain the original packing materials and, if possible, return the unit in its original carton. If your AirLine ATX Wireless System was purchased outside of the United States, contact your local distributor for warranty details and service information.

Quick Start

In order for your wireless system to work correctly, both the receiver and transmitter must be set to the same channel. Follow this basic procedure for setting up and using your AirLine ATX Wireless System:

1. Physically place the CR99 receiver where it will be used, and extend the antennas vertically. The general rule of thumb is to maintain "line of sight" between the receiver and transmitter so that the person using or wearing the transmitter can see the receiver.

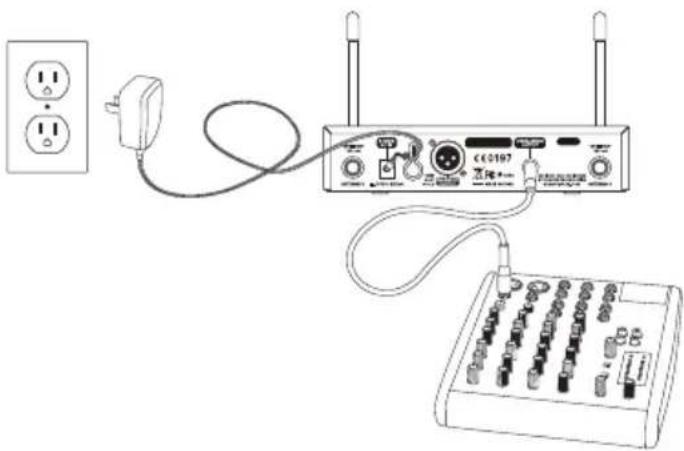

2. With the CR99 powered off, connect the included power adapter. Turn the CR99 on momentarily to confirm that the unit is receiving power. Then turn the CR99 power off.
3. With your amplifier or mixer off and volume control all the way down, connect the CR99 receiver output jack to the mic or line level input of a mixer or amplifier using the balanced XLR output or unbalanced 14 " line level output. Turn the Level knob on the CR99 completely counterclockwise, then turn its power on.

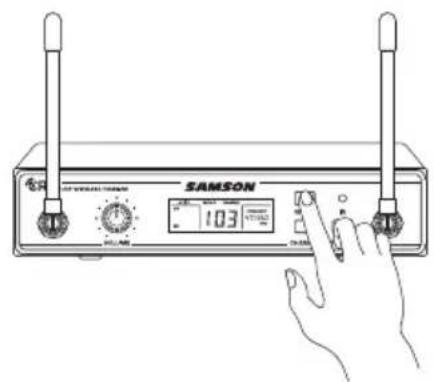

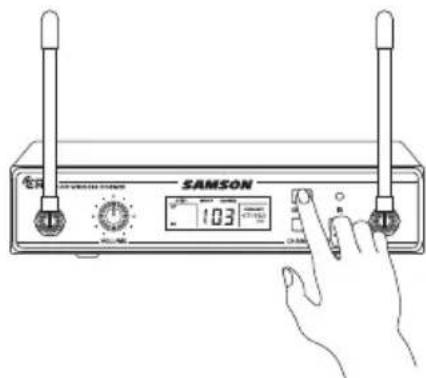

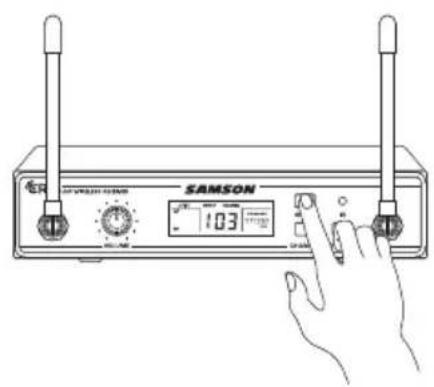

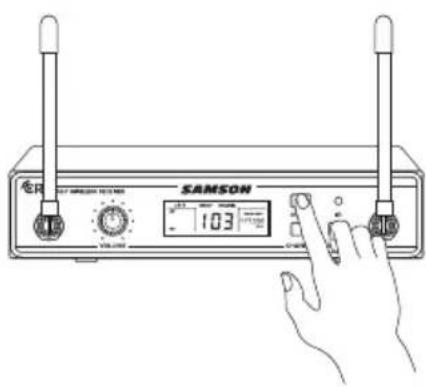

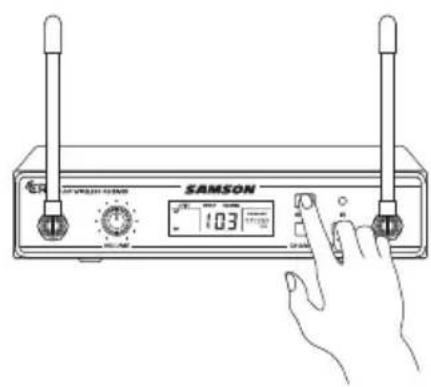

4. Press and hold the GROUP button on the front of the CR99 receiver to scan for an available channel within the selected group.

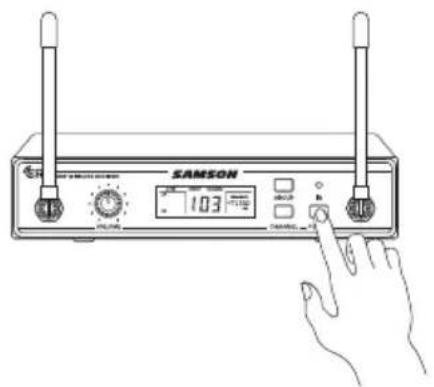

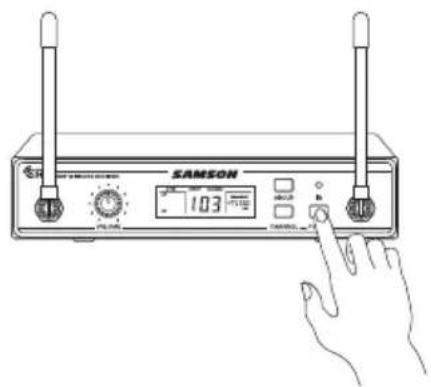

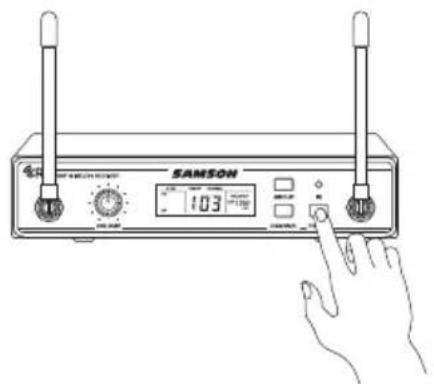

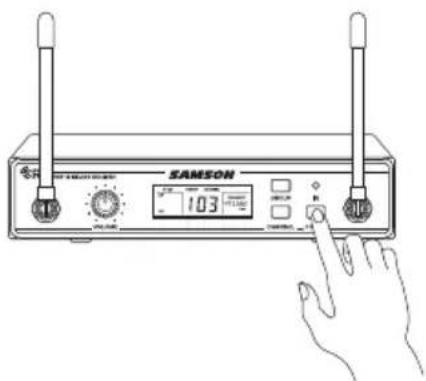

5. Press and hold the CR99 CHANNEL button to execute an IR Set which synchronizes the transmitter to the same channel as the receiver via infrared transmission.

Line drawing of a wireless router connected to an electronic device with power outlet and cable (no text or symbols visible)

SAMSON 103

SAMSON 103

Quick Start

1. Position the ATX transmitter about 6-12" (15-30 cm) from the front of the CR99 with the transmitter's IR window facing the IR transmitter on the front panel of the CR99 receiver.

2. Make sure the ATX transmitter is fully charged (see section Charging the ATX Transmitter) Turn on the power to the transmitter by pressing and holding the Power button for 3 seconds; the indicator LED will light yellow when the button is pressed and turns green when released and the ATX is powered on.

3. When the transmission is complete, the CR99 will receive RF signal and the tone key from the transmitter. The RF meter on the CR99 will light indicating that it is receiving wireless signal from the transmitter.

Note: The ATX will only accept infrared transmission from the receiver for the first 10 seconds after the ATX is powered on. If you need to change the operating channel, the ATX must be first powered off, then powered on again to receive the new channel.

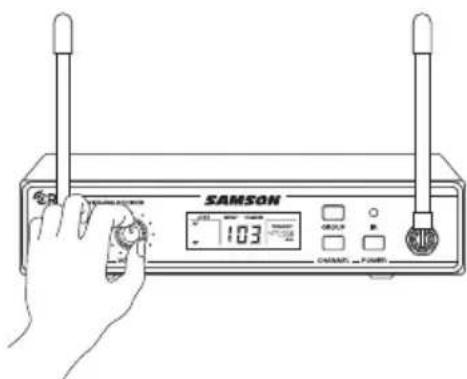

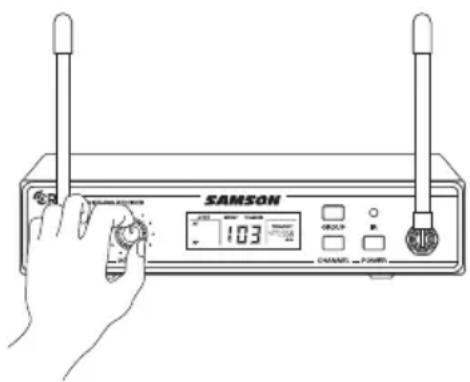

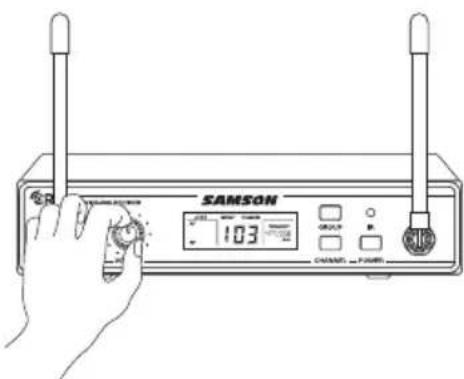

1. Turn on your connected amplifier or mixer, but keep the volume all the way down. Set the Volume knob on the CR99 fully clockwise (to its "10" setting). This is unity gain.

Line drawing of a hand pressing a button on a device (no text or symbols)

Diagram showing a device with two antennas connected to a screen displaying a circular dial with pointer and control buttons.

SAMSON 103

1. Plug the microphone into the ATX transmitter. Speak, sing or play your instrument into the microphone at normal performance level. Slowly raise the volume of your amplifier or mixer until the desired level is reached.

2. Walk around the performance area to ensure the coverage is consistent throughout. If you find the system has noticeable dropouts, reduced overall working range, or unexpected noise bursts, change the operating channel of the system using the steps above.

When using multiple systems, each system must be set to a different operating channel. Set all additional transmitters and receivers to the same Group in order to maximize the number of compatible channels. Perform a channel scan for each transmitter to select the optimal channel.

Charging the ATX Transmitter

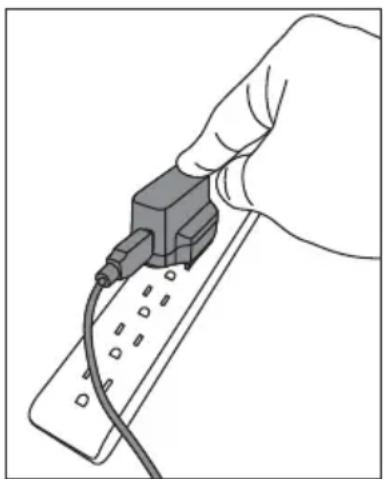

1. Snap in place the appropriate mains connector plug into the adapter.
2. Insert the magnetic power cable to the included USB AC plug (or any 5-volt DC adapter that has a USB port). Insert the AC plug into an electrical outlet.
3. Place the ATX transmitter on a flat surface.

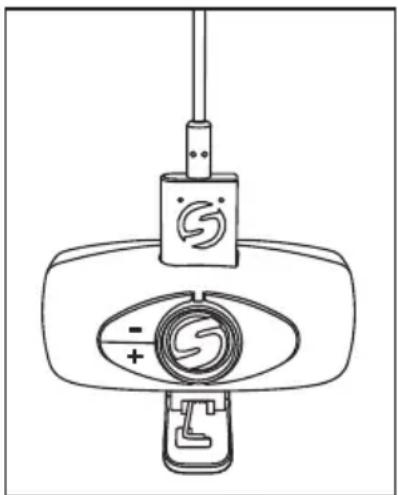

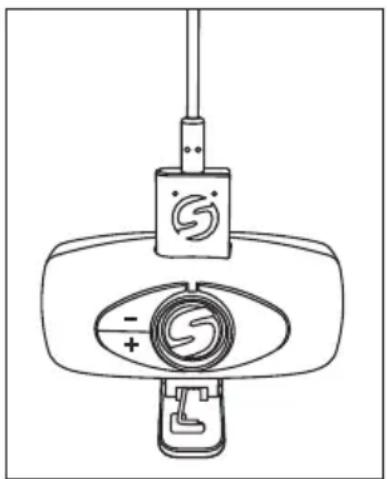

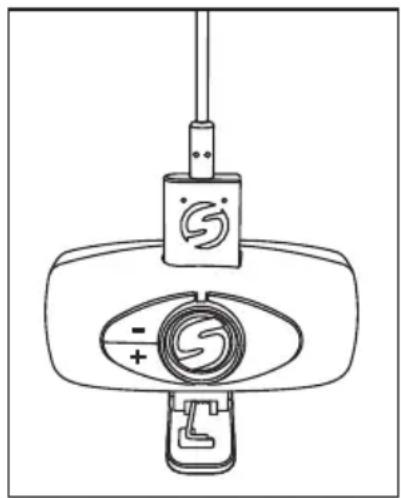

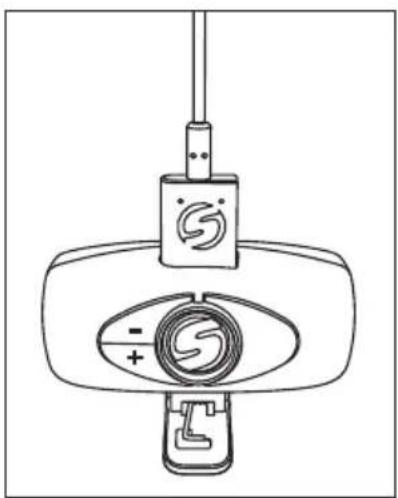

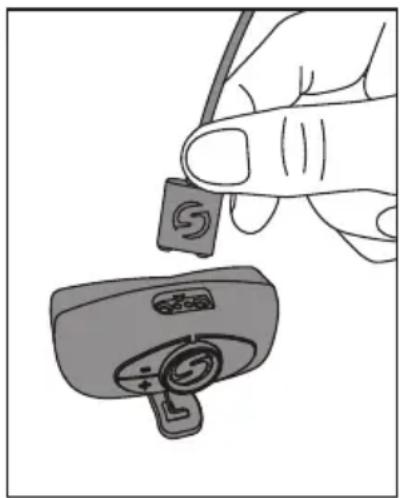

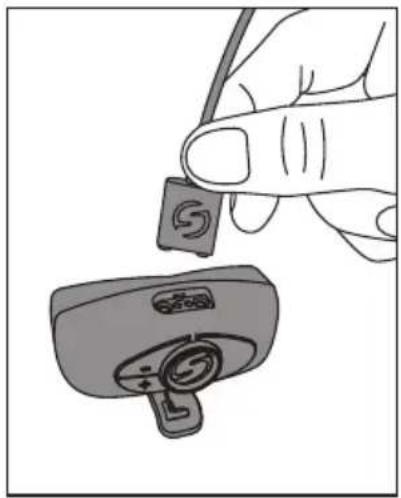

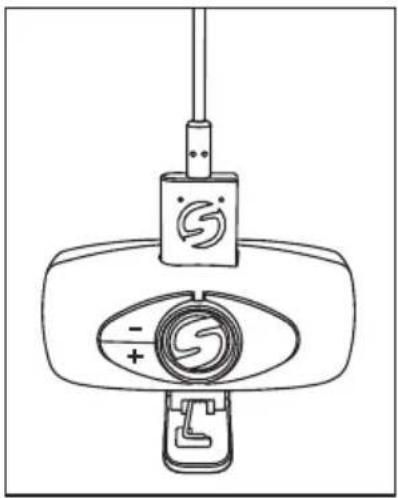

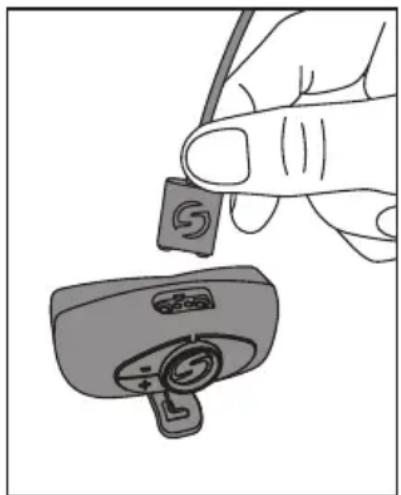

4. Attach the magnetic connector to the gold contact power port on the bottom of the ATX transmitter. The cable attaches to the port magnetically.
   The magnetic connector is keyed so it will only connect in one direction.
   Note: Transmission is disabled during charging.

5. Look at the indicator light on the ATX transmitter to determine when the transmitter has finished charging. When the light is flashing red, the ATX is charging. When the red light stops flashing it indicates that the ATX is fully charged.

6. Disconnect the magnetic power cable from the ATX when the unit is fully charged.

If you notice your ATX battery life is becoming shorter after a full charge, you can order a user replaceable battery from your local Samson distributer.

Hand inserting a power strip into a remote control panel (no text or symbols visible)

Illustration of a hand holding a small electronic device with a cable, next to a close-up of its internal components (no text or symbols visible)

Line drawing of a mechanical device with a central circular component and a suspended handle (no text or symbols)

Getting the most out of the rechargeable battery:

• Completely charge the batteries before first use
- Fully charge the battery before it will be used.
- After the battery is charged, unplug the charger from the outlet or remove the battery from the charger.
- The optimal temperature range for using and storing the battery is 50^ F - 86^ F ( 30^ C - 50^ C). The battery performance and operation may decrease in temperatures below 50^ F ( 30^ C).

A warning that batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Attention should be drawn to the environmental aspects of battery disposal

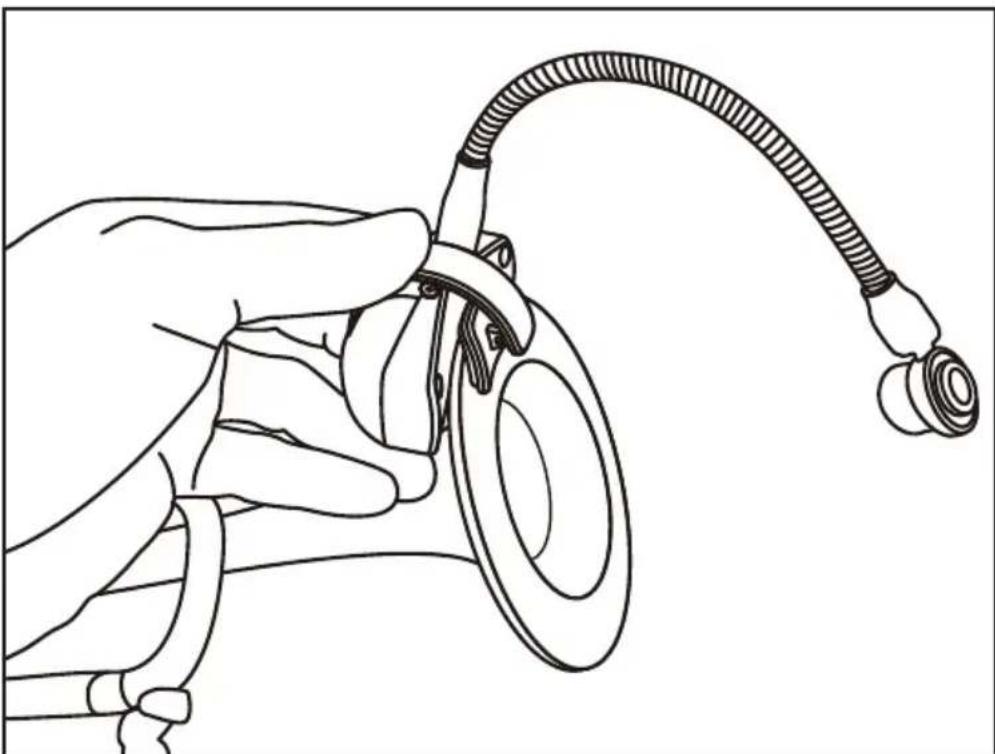

Positioning the HM60 Wind Instrument Mic

Line drawing of a hand holding a medical device with a coiled cable (no text or symbols)

When positioning the HM60 wind instrument microphone, there are some general rules that you should follow. Always position the microphone as close to the sound source as possible. This is easy with the HM60 since the integrated gooseneck guarantees the mic element is close to the source. Also, keep in mind that in order to minimize feedback problems you want to position the microphone, (and if necessary yourself), behind the main PA speakers. Be aware of a phenomenon called the proximity effect, which causes a noticeable increase in low frequencies (bass response) when a microphone is close to the audio source. This means that by making slight adjustments to the distance of the mic element, you can get a change in the tonal quality of your sound. Keep in mind that your sound is as personal as your playing style, therefore, you may find changing the microphone position gets you just the sound you looking for. As with everything, experience is the best teacher, so plug in and turn up and listen.

Here are some starting points to help you along the way.

Saxophone – Use the built-in clip to attach the ATX transmitter to the bell of the instrument and position the HM60 mic about 1”–2” from the center of the bell. You can move the mic out a little to get some extra edginess, or closer for some extra warmth.

Trumpet – Use the built-in clip to attach the ATX transmitter to the bottom of the bell on the instrument. Aim the HM60 microphone towards the center of the bell, but since the trumpet is capable of producing some of the highest SPL levels, start with the mic element positioned away from the bell. Try bringing the microphone element in closer to the bell for better isolation and more low frequency response.

Trombone – Attach the ATX clip to the bottom of the bell and position the HM60 microphone directly into the center. In this position you will get the maximum isolation with full frequency response.

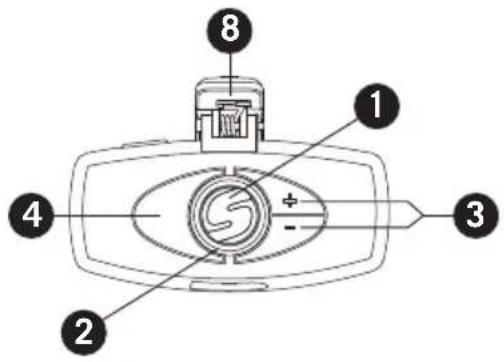

ATX Transmitter Callouts

8 1 4 2 3

5

Technical diagram of a mechanical device with numbered parts labeled 6 and 7

1. Power/Mute Button - Press and hold for 3 seconds to turn the unit on or off. A quick press and release will mute or unmute the transmitter when the transmitter is on.

2. Status Indicator - This LED displays the operation mode, low battery and recharge status of the transmitter. The chart below defines the LED colors for each function.

GREEN Normal	Operation
AMBER Mute
Flashing RED	Low Battery
	Charging
RED Fully Charged

1. Volume +/- Buttons - Press and hold either Volume button to adjust the volume. Pressing the + or - button increases or decrease the level by one step with each push of the button. There is a total 9 volume levels. The Status Indicator light will flash faster for each increased step and slower for each decrease.

2. IR Lens - This window is used to capture the infrared signal sent from the receiver during the IR SET to channelize the transmitter. The IR Lens is only active for the first 10 seconds when the transmitter is powered on.

3. Charging Connector - Connect the supplied magnetic charging cable to this sealed, gold contact charging connector to recharge the internal Lithium Ion battery. The ATX can be recharged by connecting the cable to a USB connector on a computer USB port, or any 5-volt DC adapter that has a USB output. NOTE: The included adapter will charge the ATX faster than a computer USB port.

4. Input Connector - Connect the input device via the mini-XLR connector. The ATX is supplied with either a lavalier, headset or instrument microphone.

5. Spring Clip - Use this clip to fasten the ATX transmitter to a belt, waist band or instrument bell.

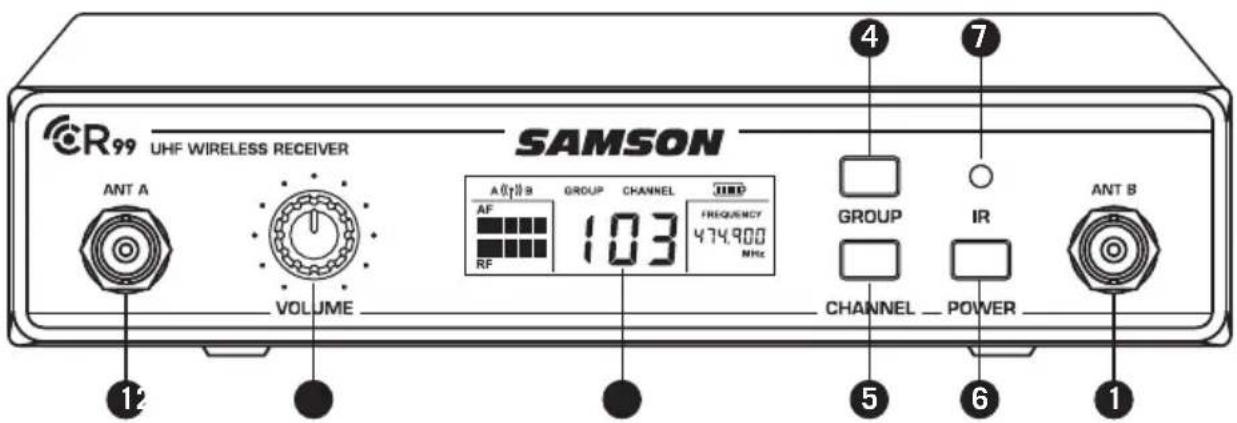

CR99 Receiver - Front Callouts

CR99 UHF WIRELESS RECEIVER ANT A VOLUME SAMSON A 1/1/8 B GROUP CHANNEL JEEP AF 103 FREQUENCY RF 474.900 MHz GROUP IR CHANNEL POWER ANT B 12 5 6 1

1. Antenna Jacks - The front BNC antenna jacks allow full rotation for optimum placement. In normal operation, both antennas should be placed in a vertical position.
2. VOLUME Control - This knob sets the level of the audio signal being output through both the balanced and unbalanced output jacks on the rear panel. Reference level is obtained when the knob is turned fully clockwise (to its "10" setting).
3. LCD Display - Displays transmitter and receiver settings.
4. GROUP Button - Press and release button to cycle through the available groups. Press and hold button to scan for available channels within the selected group.
5. CHANNEL Button - Press and release to cycle through available channels within a group. Press and hold button to enter IR Set which is used to set the operating channel of the transmitter.
6. POWER Button - Press and hold to turn the CR99 power on and off.
7. IR Transmitter - During "IR SET" an infrared light is used to set the transmitter channel.

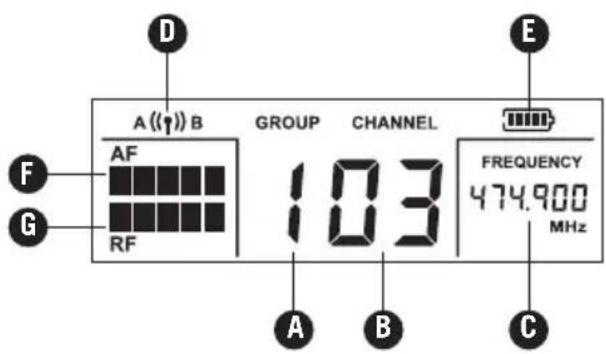

Receiver Display

A (F) B AF RF GROUP CHANNEL 103 F G A B C FREQUENCY 474.900 MHz

A. Group - Displays the selected group
B. Channel - Displays the selected channel
C. Frequency - Indicates the operating frequency of the selected Group and Channel.
D. Antenna Indicator - Indicates the active antenna (A or B).
E. Transmitter Battery Level - Indicates the battery level of the transmitter.
F. Audio Meter - Indicates the strength of the incoming audio signal.
G. RF Signal Meter - Indicates the strength of the incoming radio signal.

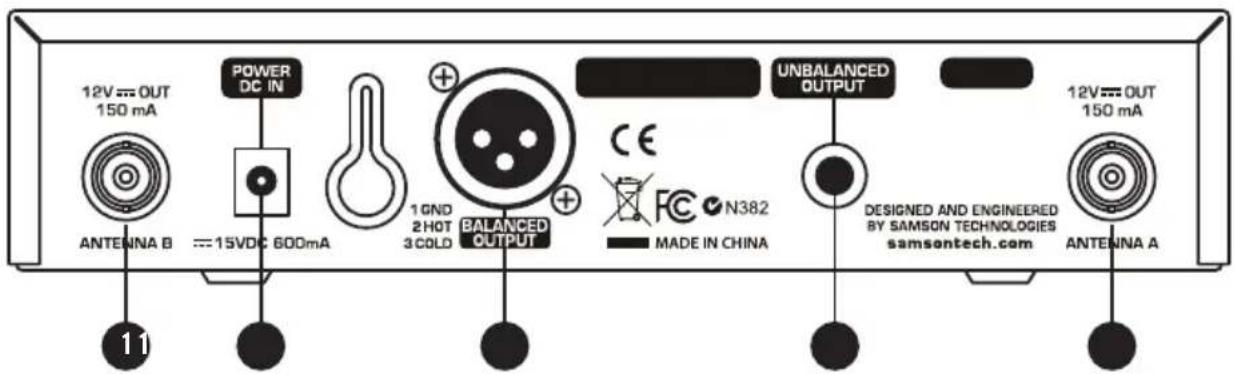

CR99 Receiver - Rear Callouts

12V OUT 150 mA POWER DC IN ANTENNA B 15VDC 600mA 1GND 2HOT 3COLD BALANCED OUTPUT UNBALANCED OUTPUT CE N382 FE MADE IN CHINA DESIGNED AND ENGINEERED BY SAMSON TECHNOLOGIES samsontech.com 12V OUT 150 mA ANTENNA A 11

1. Antenna Jacks - The rear BNC antenna jacks allow full rotation for optimum placement. In normal operation, both antennas should be placed in a vertical position.

2. DC Input - Connect the supplied power adapter here, using the strain relief as shown in the illustration below. WARNING: Do not substitute any other kind of power adapter. Doing so can cause severe damage to the CR99 and will void your warranty.

3. BALANCED OUTPUT - Use this electronically balanced low impedance (600 Ohm) XLR jack when connecting the CR99 to professional (+4dBu) audio equipment. Pin wiring is as follows: Pin 1 ground, Pin 2 high (hot), and Pin 3 low (cold).

4. UNBALANCED OUTPUT - Use this unbalanced high impedance (5K Ohm) 14 " jack when connecting the CR99 to consumer (-10dBV) audio equipment. Wiring is as follows: tip hot, sleeve ground.

POWER DC IN

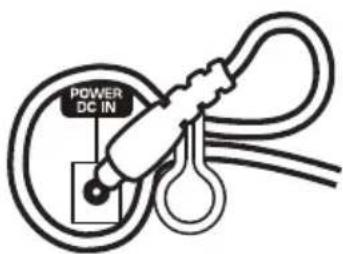

Using the strain relief: Gather up a loop of wire and pass it through the strain relief, then pass the adapter plug through the loop in order to create a knot.

Rack Mounting

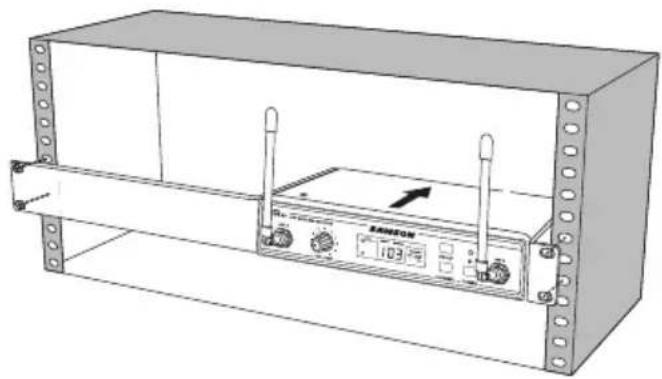

The CR99 receiver can be installed into a standard 19" rack for transport or permanent installation using the included rack ears. Follow the simple steps below to mount the CR99:

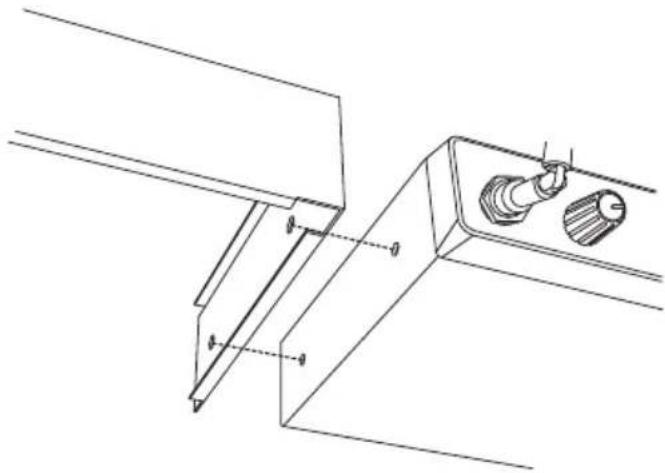

Attach the included rack ears by screwing each rack ear into either side of the CR99.

Position the CR99 receiver into an available rack space and slide in until the rack ears are touching the rails of the rack case and are aligned with the rack rail holes.

Mount the receiver into the rack using the appropriate size rack screws (not included). To ensure equal tension and balance when installing the receiver, you should secure screws in a crisscross pattern of opposite corners: top left -> bottom right -> top right -> bottom left.

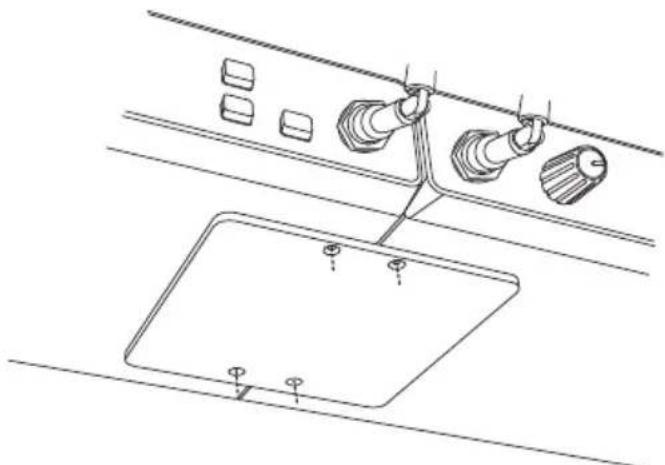

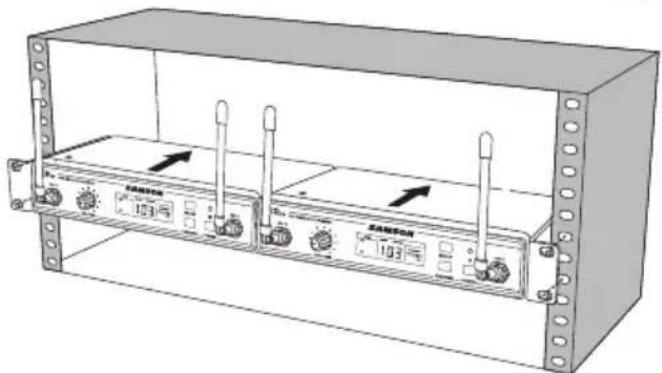

In order to mount two CR99 receivers in one rack space, the system includes a center connection piece. Screw the center connection piece into bottom of each receiver and attach the short rack ears to each receiver.

Mount the receivers into the rack using the crisscross pattern described above.

Technical line drawing of a mechanical bracket assembly with no visible text or symbols

Technical line drawing of a device enclosure with two speakers and a central control unit (no text or symbols)

Line drawing of a kitchen sink with three switches and a piping fixture (no text or symbols)

Technical line drawing of a rack-mounted electronic device with two main modules and two side connectors, enclosed in a transparent enclosure (no text or symbols visible)

Channel Plans

Group K 470-494MHz
	Channel
Group	00 01 02 03	04 05 06 07
0 47	3.050 474.4	25 474.900	480.475 4	84.075 486	975 487.97	5 492.425
1 47	0.125 471.5	00 471.975	477.550 4	81.150 484	050 485.05	0 489.500
2 47	0.525 471.9	00 472.375	477.950 4	81.550 484	450 485.45	0 489.900
3 47	1.075 472.4	50 472.925	478.500 4	82.100 485	000 486.00	0 490.450
4 47	1.475 472.8	50 473.325	478.900 4	82.500 485	400 486.40	0 490.850
5 47	2.025 473.4	00 473.875	479.450 4	83.050 485	950 486.95	0 491.400
6 47	2.425 473.8	00 474.275	479.850 4	83.450 486	350 487.35	0 491.800
7 47	3.375 474.7	50 475.225	480.800 4	84.400 487	300 488.30	0 492.750
8 47	3.925 475.3	00 475.775	481.350 4	84.950 487	850 488.85	0 493.300
9 47	4.325 475.7	00 476.175	481.750 4	85.350 488	250 489.25	0 493.700

Group D** 542–566MHz
	Channel
Group	00 01 02 03 04 05 06 07
0 54	5.050 546.4	25 546.900	552.475 5	56.075 558	975 559.97	5 564.425
1 54	2.125 543.5	00 543.975	549.550 5	53.150 556	050 557.05	0 561.500
2 54	2.525 543.9	00 544.375	549.950 5	53.550 556	450 557.45	0 561.900
3 54	3.075 544.4	50 544.925	550.500 5	54.100 557	000 558.00	0 562.450
4 54	3.475 544.8	50 545.325	550.900 5	54.500 557	400 558.40	0 562.850
5 54	4.025 545.4	00 545.875	551.450 5	55.050 557	950 558.95	0 563.400
6 54	4.425 545.8	00 546.275	551.850 5	55.450 558	350 559.35	0 563.800
7 54	5.375 546.7	50 547.225	552.800 5	56.400 559	300 560.30	0 564.750
8 54	5.925 547.3	00 547.775	553.350 5	56.950 559	850 560.85	0 565.300
9 54	6.325 547.7	00 548.175	553.750 5	57.350 560	250 561.25	0 565.700

Group G* 863–865MHz
	Channel
Group	00 01 02 03	04 05 06 07
0 86	3.050 863.5	50 863.750	864.050 864.250 864	550 864.750	864.950
1 86	3.100 863.6	00 863.800	864.100 864.300 864	600 864.800	863.300
2 86	3.150 863.6	50 863.850	864.150 864.350 864	650 864.850	863.350
3 86	3.200 863.7	00 863.900	864.200 864.400 864	700 864.900	863.400

* Not for use in the USA and Canada.
** Not for use in the EU.
For questions regarding available channels in your area contact your local Samson distributor.

Specifications

System

Working Range 300' (100m) line of sight

Audio Frequency Response 50 Hz - 15 kHz

T.H.D. (Overall) <1% (@AF 1 kHz, RF 46 dBu)

Dynamic Range >100 dB A-weighted

Signal to Noise >95 dB

Operating Temperature -10^ ( 14^ ) to +60^ (+ 140^ )

Tone Key Frequency 32.768 kHz

ATX Microphone Transmitter

Input Connector Mini-XLR (P3)

Input Impedance 3kΩ

Input Gain Range 20dB

RF Power 10mW EIRP

Power Requirements 3.6V 500mAh

Lithium Ion rechargeable battery

Battery Life 8 hours

Dimensions (LxWxH) 5.9" x 6.7" x 3.9"

Weight 0.13lb / 60g

CR99 Receiver

Audio Output Level - Unbalanced +14 dBu

Audio Output Level - Balanced +9 dBu

Audio Output Impedance - Unbalanced 810 Ohms

Audio Output Impedance - Balanced 240 Ohms

Sensitivity -100 dBm / 30 dB sinad

Image Rejection >50 dB

Operating Voltage 15 VDC 200mA

Dimensions (LxWxH) 7.87" x 5.9" x 1.6"

200mm x 150mm x 42mm

Weight 2.08lb / 0.946kg

At Samson, we are continually improving our products, therefore specifications and images are subject to change without notice.

Symbolic illustration of a person climbing a ladder inside a circle (no text or symbols)

Line drawing of a wireless network device connected to an electrical terminal with power outlet (no text or symbols visible)

SAMSON 103

SAMSON 103 100V 100A 100W 100A 100W 100A 100W 100A 100W 100A 100W 100A 100W 100A 100W 100A 100W 100A 100W 100A 100W 100A 100 W 100 A 100 B 100 C 100 D 100 E 100 F 100 G 100 H 100 I 100 J 100 K 100 L 100 M 100 N 100 O 100 P 100 Q 100 R 100 S 100 T 100 U 100 V 100 W 100 X 100 Y 100 Z 100 A 100 W 100 C 100 D 100 E 100 F 100 G 100 H 100 I 100 J 100 K 100 L 100 M 100 N 100 O 100 P 100 Q 100 R 100 S 100 T 100 U 100 W 100 W

Démarrage rapide

Line drawing of a hand pressing a button on a device (no text or symbols)

Diagram showing a device connected to a screen with a rotary knob, labeled in English.

SAMSON 103 GROUP CHINA P-2000

Hand inserting a small electronic device into a remote control panel (no text or symbols visible)

Illustration of a hand holding a small electronic device with a screen and indicator lights (no text or symbols visible)

Line drawing of a smart speaker with a circular ear and antenna (no text or symbols)

Line drawing of a hand holding a flexible hose and bulb, no text or symbols present

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Technical line drawing of a device enclosure with two sensors and a central control panel (no text or symbols)

Line drawing of a kitchen sink with hanging fixtures and a horizontal shelf (no text or symbols)

Technical line drawing of a rack-mounted electronic device with two main modules and two side connectors (no text or symbols visible)

Plans des canaux

Groupe K 470-494 MHz
	Canal
Groupe 0	0 01 02 03 04 05 06 07
0 473	,050 474,425 474,900	480,475 484,075 486,975 487,975	492,425
1 470	,125 471,500 471,975	477,550 481,150 484,050 485,050	489,500
2 470	,525 471,900 472,375	477,950 481,550 484,450 485,450	489,900
3 471	,075 472,450 472,925	478,500 482,100 485,000 486,000	490,450
4 471	,475 472,850 473,325	478,900 482,500 485,400 486,400	490,850
5 472	,025 473,400 473,875	479,450 483,050 485,950 486,950	491,400
6 472	,425 473,800 474,275	479,850 483,450 486,350 487,350	491,800
7 473	,375 474,750 475,225	480,800 484,400 487,300 488,300	492,750
8 473	,925 475,300 475,775	481,350 484,950 487,850 488,850	493,300
9 474	,325 475,700 476,175	481,750 485,350 488,250 489,250	493,700

Groupe D** 542–566 MHz
	Canal
Groupe 00 01 02 03 04 05 06 07
0 545,050 546,425 546,900			552,475 556,075 558,975 559,975			564,425
1 542,125 543,500 543,975			549,550 553,150 556,050 557,050			561,500
2 542,525 543,900 544,375			549,950 553,550 556,450 557,450			561,900
3 543,075 544,450 544,925			550,500 554,100 557,000 558,000			562,450
4 543,475 544,850 545,325			550,900 554,500 557,400 558,400			562,850
5 544,025 545,400 545,875			551,450 555,050 557,950 558,950			563,400
6 544,425 545,800 546,275			551,850 555,450 558,350 559,350			563,800
7 545,375 546,750 547,225			552,800 556,400 559,300 560,300			564,750
8 545,925 547,300 547,775			553,350 556,950 559,850 560,850			565,300
9 546,325 547,700 548,175			553,750 557,350 560,250 561,250			565,700

Groupe G* 863-865 MHz
	Canal
Groupe 00 01 02 03 04 05 06 07
0 863,050 863,550 863,750			864,050 864,250 864,550 864,750			864,950
1 863,100 863,600 863,800			864,100 864,300 864,600 864,800			863,300
2 863,150 863,650 863,850			864,150 864,350 864,650 864,850			863,350
3 863,200 863,700 863,900			864,200 864,400 864,700 864,900			863,400

Batterie rechargeable au lithium lon

5,9" × 6,7" × 3,9"

150 mm x 170 mm x 100 mm

0,13 lb / 60 g

Récepteur CR99

Silhouette of a person climbing a ladder inside a circular frame (no text or symbols)

Line drawing of an electronic device connected to a power outlet and a multi-pin control panel (no text or symbols visible)

SAMSON 103

SAMSON 103 R12 R13 R14 R15 R16 R17 R18 R19 R20 R21 R22 R23 R24 R25 R26 R27 R28 R29 R30 R31 R32 R33 R34 R35 R36 R37 R38 R39 R40 R41 R42 R43 R44 R45 R46 R47 R48 R49 R50 R51 R52 R53 R54 R55 R56 R57 R58 R59 R60 R61 R62 R63 R64 R65 R66 R67 R68 R69 R70 R71 R72 R73 R74 R75 R76 R77 R78 R79 R80 R81 R82 R83 R84 R85 R86 R87 R88 R89 R90 R91 R92 R93 R94 R95 R96 R97 R98 R99 SAMSCH

Kurzanleitung

Line drawing of a hand pressing a button on a device (no text or symbols)

Diagram showing a device connected to a circular dial with a sensor, including a digital display and control buttons.

SAMSON 103

Hand inserting a plug into a remote control panel (no text or symbols visible)

Illustration of a hand holding a small electronic device with a circular button, next to a smaller analog device (no text or symbols visible)

Line drawing of a smart speaker with an ear and antenna (no text or symbols)

Line drawing of a hand holding a flexible hose and connector to a circular device (no text or symbols)

Technical line drawing of a mechanical bracket assembly with labeled parts (no text or symbols present)

Technical line drawing of a device enclosure with two sensors and a central control unit (no text or symbols)

Line drawing of a kitchen sink with hanging fixtures and a drain (no text or symbols)

Illustration of a rack-mounted electronic device with two main modules and two side connectors, enclosed in a transparent enclosure (no text or symbols visible)

Kanalbelegungsplan

Gruppe K 470–494 MHz
	Kanal
Gruppe 00 01 02 03 04 05 06 07
0 473,050 474,425 474,900			480,475 484,075 486,975 487,975			492,425
1 470,125 471,500 471,975			477,550 481,150 484,050 485,050			489,500
2 470,525 471,900 472,375			477,950 481,550 484,450 485,450			489,900
3 471,075 472,450 472,925			478,500 482,100 485,000 486,000			490,450
4 471,475 472,850 473,325			478,900 482,500 485,400 486,400			490,850
5 472,025 473,400 473,875			479,450 483,050 485,950 486,950			491,400
6 472,425 473,800 474,275			479,850 483,450 486,350 487,350			491,800
7 473,375 474,750 475,225			480,800 484,400 487,300 488,300			492,750
8 473,925 475,300 475,775			481,350 484,950 487,850 488,850			493,300
9 474,325 475,700 476,175			481,750 485,350 488,250 489,250			493,700

Gruppe D** 542–566 MHz
	Kanal
Gruppe 00 01 02 03 04 05 06 07
0 545,050 546,425 546,900			552,475 556,075 558,975 559,975			564,425
1 542,125 543,500 543,975			549,550 553,150 556,050 557,050			561,500
2 542,525 543,900 544,375			549,950 553,550 556,450 557,450			561,900
3 543,075 544,450 544,925			550,500 554,100 557,000 558,000			562,450
4 543,475 544,850 545,325			550,900 554,500 557,400 558,400			562,850
5 544,025 545,400 545,875			551,450 555,050 557,950 558,950			563,400
6 544,425 545,800 546,275			551,850 555,450 558,350 559,350			563,800
7 545,375 546,750 547,225			552,800 556,400 559,300 560,300			564,750
8 545,925 547,300 547,775			553,350 556,950 559,850 560,850			565,300
9 546,325 547,700 548,175			553,750 557,350 560,250 561,250			565,700

Gruppe G* 863–865 MHz
	Kanal
Gruppe 00 01 02 03 04 05 06 07
0 863,050 863,550 863,750			864,050 864,250 864,550 864,750			864,950
1 863,100 863,600 863,800			864,100 864,300 864,600 864,800			863,300
2 863,150 863,650 863,850			864,150 864,350 864,650 864,850			863,350
3 863,200 863,700 863,900			864,200 864,400 864,700 864,900			863,400

Silhouette of a person climbing a ladder inside a circular frame (no text or symbols)

Line drawing of a wireless device with two connected ports and a control panel (no text or symbols visible)

SAMSON 103

SAMSON 103

Inicio rápido

Line drawing of a hand pressing a button on a device (no text or symbols)

Diagram showing a device connected to a screen with a dial indicator and a close-up of its internal components.

SAMSON 103 GND POWER

Carga del transmisor ATX

Hand inserting a small electronic device into a remote control panel (no text or symbols visible)

Hand holding a small electronic device with a screen and indicator lights (no text or symbols visible)

Line drawing of a smart speaker with a suspended sensor and earpiece (no text or symbols)

Line drawing of a hand holding a flexible hose and bulb, no text or symbols present

Technical line drawing of a mechanical bracket assembly with mounting holes and internal components (no text or symbols)

Technical line drawing of a device enclosure with two ports and a central control unit (no text or symbols)

Line drawing of a kitchen sink with hanging fixtures and a horizontal shelf (no text or symbols)

Technical line drawing of a rack-mounted device enclosure with two main modules and three side sensors (no text or symbols)

Planes de canal

Grupo K 470-494MHz
	Canal
Grupo 00 01 02 03 04 05 06 07
0 473.050 474.425 474.900			480.475 484.075 486.975 487.975			492.425
1 470.125 471.500 471.975			477.550 481.150 484.050 485.050			489.500
2 470.525 471.900 472.375			477.950 481.550 484.450 485.450			489.900
3 471.075 472.450 472.925			478.500 482.100 485.000 486.000			490.450
4 471.475 472.850 473.325			478.900 482.500 485.400 486.400			490.850
5 472.025 473.400 473.875			479.450 483.050 485.950 486.950			491.400
6 472.425 473.800 474.275			479.850 483.450 486.350 487.350			491.800
7 473.375 474.750 475.225			480.800 484.400 487.300 488.300			492.750
8 473.925 475.300 475.775			481.350 484.950 487.850 488.850			493.300
9 474.325 475.700 476.175			481.750 485.350 488.250 489.250			493.700

Grupo D** 542-566MHz
	Canal
Grupo 00 01 02 03 04 05 06 07
0 545.050 546.425 546.900			552.475 556.075 558.975 559.975 564.425
1 542.125 543.500 543.975			549.550 553.150 556.050 557.050 561.500
2 542.525 543.900 544.375			549.950 553.550 556.450 557.450 561.900
3 543.075 544.450 544.925			550.500 554.100 557.000 558.000 562.450
4 543.475 544.850 545.325			550.900 554.500 557.400 558.400 562.850
5 544.025 545.400 545.875			551.450 555.050 557.950 558.950 563.400
6 544.425 545.800 546.275			551.850 555.450 558.350 559.350 563.800
7 545.375 546.750 547.225			552.800 556.400 559.300 560.300 564.750
8 545.925 547.300 547.775			553.350 556.950 559.850 560.850 565.300
9 546.325 547.700 548.175			553.750 557.350 560.250 561.250 565.700

Grupo G* 863–865MHz
	Canal
Grupo 00 01 02 03 04 05 06 07
0 863.050 863.5	50 863.750	864.050 864.250 864.5	50 864.750	864.950
1 863.100 863.6	00 863.800	864.100 864.300 864.6	00 864.800	863.300
2 863.150 863.6	50 863.850	864.150 864.350 864.6	50 864.850	863.350
3 863.200 863.7	00 863.900	864.200 864.400 864.7	00 864.900	863.400

Silhouette of a person climbing a ladder inside a circle (no text or symbols)

Line drawing of an electronic device with power outlet, cable, and terminal block (no text or symbols)

SAMSON 103

SAMSON 103

Avvio rapido

Avvio rapido

Line drawing of a hand pressing a button on a device (no text or symbols)

Diagram showing a device with two antennas connected to a circular dial, with a magnified view of the dial's internal structure.

SAMSON 103 GROUP CAMSUNG POWER

Hand inserting a cable into a remote control panel (no text or symbols visible)

Illustration of a hand holding a small electronic device with a circular button, next to a smaller device with a display (no text or symbols visible)

Line drawing of a smart speaker with a suspended device and earpiece (no text or symbols)

Line drawing of a hand holding a medical device with a coiled cable (no text or symbols)

Technical line drawing of a mechanical bracket assembly with mounting holes and internal components (no text or symbols)

Technical line drawing of a rectangular electronic device with two side-mounted sensors and a central control panel (no text or symbols visible)

Line drawing of a kitchen sink with hanging fixtures and a horizontal shelf (no text or symbols)

Technical line drawing of a rack-mounted device enclosure with two main modules and three side sensors (no text or symbols)

Piani canale

Gruppo K 470-494 MHz
	Canale
Gruppo 00 01 02 03 04 05 06 07
0 473.050 474.425 474.900			480.475 484.075 486.975 487.975			492.425
1 470.125 471.500 471.975			477.550 481.150 484.050 485.050			489.500
2 470.525 471.900 472.375			477.950 481.550 484.450 485.450			489.900
3 471.075 472.450 472.925			478.500 482.100 485.000 486.000			490.450
4 471.475 472.850 473.325			478.900 482.500 485.400 486.400			490.850
5 472.025 473.400 473.875			479.450 483.050 485.950 486.950			491.400
6 472.425 473.800 474.275			479.850 483.450 486.350 487.350			491.800
7 473.375 474.750 475.225			480.800 484.400 487.300 488.300			492.750
8 473.925 475.300 475.775			481.350 484.950 487.850 488.850			493.300
9 474.325 475.700 476.175			481.750 485.350 488.250 489.250			493.700

Gruppo D** 542-566MHz
	Canale
Gruppo 00 01 02 03 04 05 06 07
0 545.050 546.425 546.900			552.475 556.075 558.975 559.975			564.425
1 542.125 543.500 543.975			549.550 553.150 556.050 557.050			561.500
2 542.525 543.900 544.375			549.950 553.550 556.450 557.450			561.900
3 543.075 544.450 544.925			550.500 554.100 557.000 558.000			562.450
4 543.475 544.850 545.325			550.900 554.500 557.400 558.400			562.850
5 544.025 545.400 545.875			551.450 555.050 557.950 558.950			563.400
6 544.425 545.800 546.275			551.850 555.450 558.350 559.350			563.800
7 545.375 546.750 547.225			552.800 556.400 559.300 560.300			564.750
8 545.925 547.300 547.775			553.350 556.950 559.850 560.850			565.300
9 546.325 547.700 548.175			553.750 557.350 560.250 561.250			565.700

Gruppo G* 863–865 MHz
	Canale
Gruppo 00 01 02 03 04 05 06 07
0 863.050 863.5	50 863.750	864.050 864.250 864.5	50 864.750	864.950
1 863.100 863.6	00 863.800	864.100 864.300 864.6	00 864.800	863.300
2 863.150 863.6	50 863.850	864.150 864.350 864.6	50 864.850	863.350
3 863.200 863.7	00 863.900	864.200 864.400 864.7	00 864.900	863.400
