| Product Type | RGB & Fan Controller |
| Brand | NZXT |
| Model | RGB & Fan Controller |
| Dimensions | Approx. 100 x 70 x 20 mm |
| Weight | Approx. 100 g |
| Power Input | SATA power connector |
| USB Connection | Internal USB 2.0 header |
| RGB Channels | 6 |
| RGB LED Limit | 40 LEDs per channel, 120 total |
| Fan Channels | 3 |
| Max Fans | Up to 9 (using included splitters) |
| Fan Type Support | 4-pin PWM and 3-pin fans (do not mix on same channel) |
| Mounting | Magnetic back or included Velcro tape |
| Software | NZXT CAM (download from nzxt.com/software/cam) |
| Warranty | 2 years (lighting/accessories) |
| Compatibility | All NZXT RGB lighting products |
| Box Contents | Controller, 3 fan splitter cables (1-to-3), Velcro tape |
Frequently Asked Questions - RGB & Fan Controller NZXT
User questions about RGB & Fan Controller NZXT
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Lighting in PDF format for free! Find your manual RGB & Fan Controller - NZXT and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. RGB & Fan Controller by NZXT.
USER MANUAL RGB & Fan Controller NZXT
Diagram of a portable electronic device with a grid base and connector, no text or symbols presentC. 3M Velcro
×2
B. Fan splitter cables (1 to 3 split)
×3
2. HARDWARE INTRODUCTION
Installation - Controller Mounting 10
3.1 INSTALLATION - NZXT RGB & FAN CONTROLLER

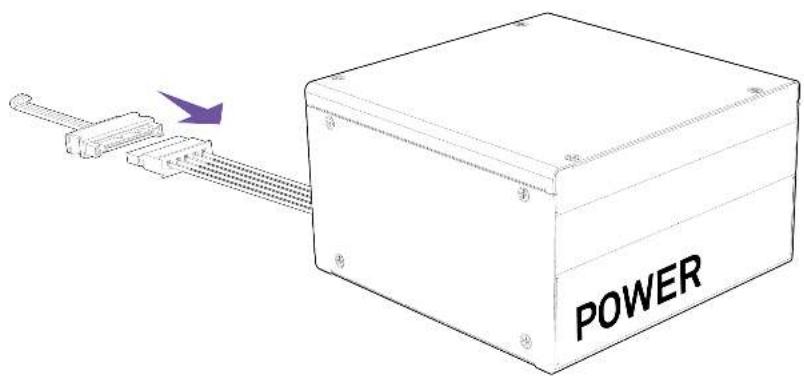

Ensure your PC is turned off. Connect the controller SATA power cable to the power connector. The LED on the front side of the fan controller should light up.


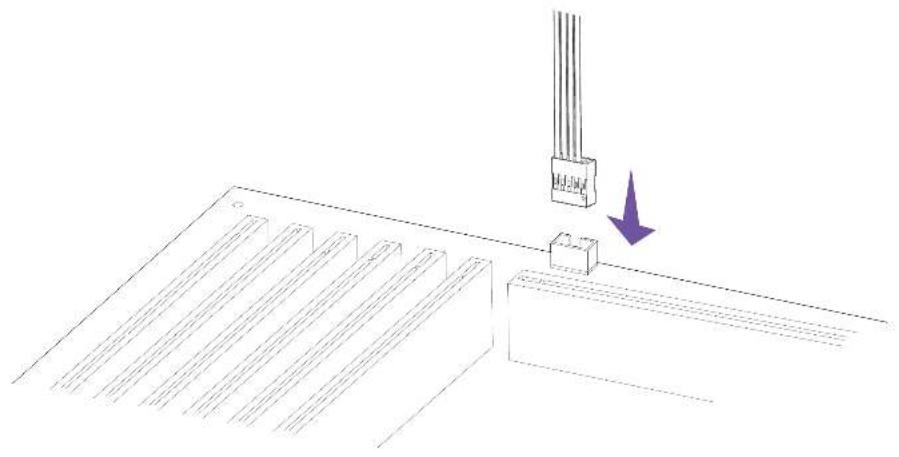

Connect the USB Cable to an available internal USB 2.0 port on the motherboard.


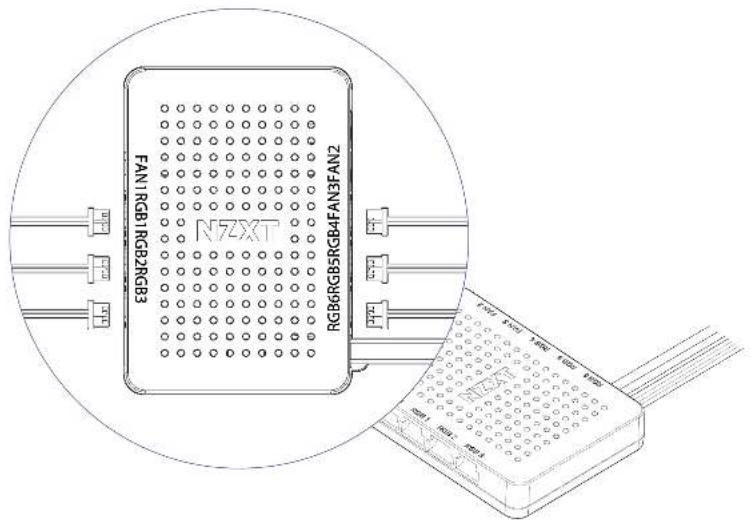

For RGB lighting accessories, connect the RGB lighting header to an RGB channel in the controller.


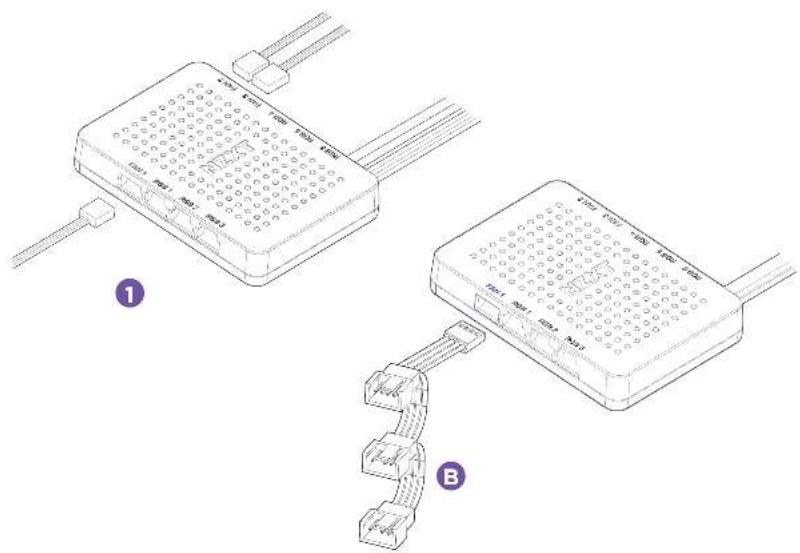

Connect up to three fans directly to the three channels using the connections from the fans. To connect more than three fans, use the included fan splitters. The first fan connector with 4-pins on the fan splitter will be the primary fan.
NOTE
* Do not mix 4-pin PWM fans with 3-pin fans on one channel.
* The LED on the controller's front side will blink if the SATA cable is not connected, and the USB cable is connected.
* The fans will run at maximum speed if the USB cable is not connected, and the SATA cable is connected.
3.2 INSTALLATION - CONTROLLER MOUNTING
The controller has built-in magnets on the rear side. Place this side close to a magnetic surface to attach it.


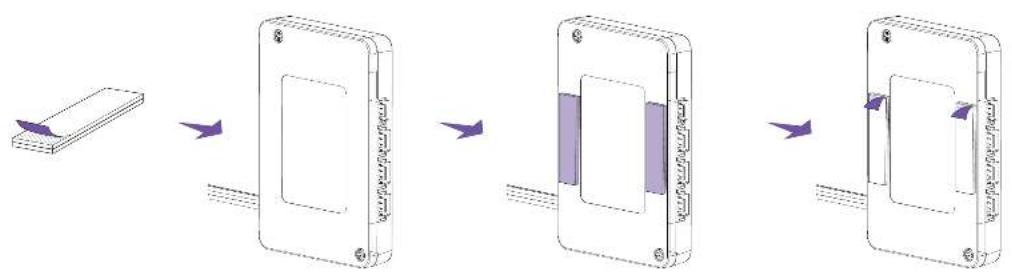

Remove the backing from one side of the Velcro tape and apply to the rear side of the controller. Remove the backing from the other side, and press the controller to the surface you are mounting it to. The Velcro tape is intended for a one-time application. Removing and reapplying it is not recommended.
4. COMPATIBILITY WARNING
* The NZXT RGB and Fan Controller is compatible with all NZXT RGB lighting products. NZXT RGB accessories can be mixed and matched with the restriction of up to a maximum of 40 LEDs per channel and 120 LEDs combined total for All 6 channels.
* Different types of lighting accessories (i.e., F-series RGB Fans, Aer RGB Fans, LED strip, etc.) can not be mixed within a channel.
5. SOFTWARE SETUP
To enable control of the NZXT RGB & Fan Controller, download and install NZXT CAM from nzxt.com/software/cam.
6.1 NZXT Global Warranty Policy....A-2 6.2 Support and Service ....A-8
6.3 Regulatory Notices....A-11 6.4 Revision History ....A-12
6.1 NZXT GLOBAL WARRANTY POLICY
This NZXT Global Warranty Policy governs the sale of products by NZXT to you.
I. WARRANTY LENGTH
Any replacement product will be covered under warranty for the remainder of the warranty period or thirty days, whichever is longer. Proof of purchase is required for warranty service.
II. WHO IS PROTECTED
The Warranty covers only NZXT products purchased by the original consumer.
NEW NZXT PRODUCT WARRANTY LENGTH FOR PARTS
| Computer Cases 2 Years |
| Temperature Meters 2 Years |
Fans 2 Years
Lighting 2 Years
Accessories 2 Years
Kraken M Coolers 3 Years
Headset/Headphone 2 Years
| Headset/Headphone Storage | 2 Years |
| Mixer | 2 Years |
| Motherboards | 3 Years |
| Power Supply | 10 Years |
| Kraken X/Z Coolers | 6 Years |
Mini ITX Case with PSU, AIO, and Riser Card
3-year warranty on case, riser card, and AIO. 10-year warranty on PSU.
REFURBISHED NZXT PRODUCT
All NZXT Certified Refurbished Products
WARRANTY LENGTH FOR PARTS
1 Years
III. WHAT IS AND IS NOT COVERED
Please note that our warranty is not an unconditional guarantee. If the product, in NZXT's reasonable opinion, malfunctions within the warranty period, NZXT will provide you at its sole discretion with a repaired or replacement product, either new or refurbished, with a similar function that is equal or greater in value depending on supply.
Our warranty does not cover the following:
a. any product or serial number/warranty sticker modification applied without permission from NZXT;
b. any damage that is not a manufacturing defect;
c. damage, deterioration or malfunction resulting from: accident, abuse, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification or failure to follow instructions included with the product;
d. improper installation, unauthorized alterations or modifications, or repair or attempted repair by anyone not authorized by NZXT;
e. shipping or transport damage (claims must be made with the carrier);
f. normal wear and tear.
NZXT does not warrant that this product will meet your requirements. It is your responsibility to determine the suitability of this product for your purpose. For NZXT Store orders, we cover two way return shipping for all exchanges and returns. For all other authorized dealers, NZXT Support does not cover return shipping and only covers one way shipping from NZXT back to the end user for exchanges. Two way expedited shipping is provided for all PSUs covered under the Less Than Three program, indiscriminate of purchase location, provided the location is an approved NZXT reseller.
IV. EXCLUSION OF DAMAGES (DISCLAIMER)
NZXT's sole obligation and liability under this warranty is limited to the repair or replacement of a defective product with either a new or refurbished product with a similar function that is equal or greater in value at our option. NZXT shall not, in any event, be liable for any incidental or consequential damage, including but not limited to damages resulting from interruption of service and loss of data, business, or for liability in tort relating to this product or resulting from its use or possession.
6.1 NZXT GLOBAL WARRANTY POLICY
V. LIMITATIONS OF IMPLIED WARRANTYEST
Here are no other warranties, expressed or implied, including but not limited to those of merchantability or fitness for a particular purpose. The duration of implied warranties is limited to the warranty length specified in Paragraph I.
VI. TO OBTAIN TECHNICAL SUPPORT
If you have already referenced your product owner's manual and still need help, you may contact us by phone at +1 (800) 228-9395, by email at service@nzxt.com, or visit the NZXT Support site at nzxt.com/customer-support.
VII. HOW TO OBTAIN A WARRANTY SERVICE FROM NZXT
To receive a warranty service for your product when purchased directly from NZXT, you must submit a request via the NZXT Support site outlining the problem. If a technician deems the product defective or requiring testing, you will be required to provide a copy of your proof of purchase, which will enable you to submit a Return Merchandise Authorization "RMA" request.
Once approved, you'll receive an RMA number, upon which you will be asked to ship the defective item back to NZXT with the RMA number clearly marked or labelled on the package. NZXT recommends that appropriate measures are taken to safeguard the product from damage during shipping.
VIII. APPLICABLE LAW AND ADDITIONAL LEGAL RIGHTS FOR CONSUMERS
This warranty gives you specific legal rights. These conditions are governed and construed in accordance with the laws of California (with exception of its conflict of law provisions), and the application of the United Nations Convention of Contracts for the International Sale of Goods is expressly excluded. The non-exclusive jurisdiction of the courts of California is agreed, which means that you may bring a claim to enforce your consumer protection rights in connection with this Global Warranty in the country which you have your habitual residence where you may have additional rights. These rights may vary.
For original consumers who are covered by consumer protection laws or regulations in their country, state, or province of purchase or, if different, their country, state, or province of residence, the benefits conferred by this warranty are in addition to all rights and remedies conveyed by such consumer protection laws and regulations. To the extent that liability under such consumer laws can be limited, NZXT's liability is limited, and its sole option, to repair or replacement, either new or refurbished, with a similar function that is equal or greater in value depending on supply.
In the United Kingdom:
a. For NZXT products sold to customers in the UK, during the expected lifespan of your product your legal rights entitle you to the following:
Up to 30 days: if your goods are faulty, then you can get an immediate refund.
Up to six months: if your goods can't be repaired or replaced, then you're entitled to a full refund, in most cases.
Up to six years: if your goods do not last a reasonable length of time you may be entitled to some money back.
b. If the person seeking to rely on the guarantee is not the original consumer, the NZXT Warranty will cover the product in relation to that person provided that they are able to provide proof of the transfer of the benefit of the guarantee from the original consumer.
c. The implied warranties under the Consumer Rights Act 2015 says that your goods must be as described, fit for all purposes for which such goods are usually supplied, and of satisfactory quality.
In the EU:
d. If you are a consumer and have your habitual residence in the EU, you additionally enjoy the protection afforded to you by provisions that cannot be derogated from by agreement by virtue of the law where you have your habitual residence.
IX. WARRANTY SERVICE FROM RESELLERS
In the event that a warranty service is sought, you must provide proof of purchase (store receipt or invoice) in order to receive the service and if deemed necessary, repair or replacement product.
In North America:
Within the first 60 days after purchase, please return your product (or for power supplies installed within our enclosures, just the failed power supply) to your dealer or reseller for a replacement. If the product is still within warranty and you can no longer return it to your dealer, please contact NZXT Customer Support (see above) for assistance and instructions. NZXT will not accept returns without prior approval and an RMA number.
In Europe:
Within the first year after purchase, please return your product (or for power supplies installed within our enclosures, just the failed power supply) to your dealer or reseller for a replacement. If the product is still within warranty and you can no longer return it to your dealer, please contact NZXT Customer Support (see above) for assistance and instructions. NZXT will not accept returns without prior approval.
In Australasia:
Within the first two years after purchase, please return your product (or for power supplies installed within our enclosures, just the failed power supply) to your dealer or reseller for a replacement. If the product is still within warranty and you can no longer return it to your dealer, please contact NZXT Customer Support (see above) for assistance and instructions. NZXT will not accept returns without prior approval.
The cost of shipping will be borne at the first instance by you; however, if the purchased item is defective, NZXT will reimburse reasonable postage or transportation of costs.
Outside North America, Europe, and Australasia:
If your product needs to be returned within the warranty period, please contact the retailer or distributor from whom you purchased the product.
6.1 NZXT GLOBAL WARRANTY POLICY
X. NZXT.COM STORE RETURNS/EXCHANGE POLICY
Eligible products under this NZXT Warranty qualify for a full refund or exchange only with an authorized RMA number and if the item is returned to the NZXT.com store inventory within 30 days of purchase. Returns are not allowed beyond 30 days of the purchase date. The NZXT.com Store reserves the right to deny any return or exchange. Refunds will be credited to the original method of payment. To initiate a return, simply submit a request via NZXT support site.
NZXT, Inc./ 15736 E Valley Blvd, City of Industry, CA 91744, USA NZXT Europe GmbH/ Industriering Ost 66 | 47906 Kempen | Germany +1 (800) 228-9395 / service@nzxt.com / NZXT.com
Visit nzxt.com/warranty and support.nzxt.com for information on warranty coverage and service.
Visite el sitio Web nzxt.com/warranty y support.nzxt.com para obtener información sobre la cobertura y el servicio de la garantía.
Visitez nzxt.com/warranty et support.nzxt.com pour les informations de la couverture de la garantie et du service.
Informationen zu Geltungsbereich und Service der Garantie finden Sie unter support.nzxt.com und nzxt.com/warranty.
Visitare il sito nzxt.com/warranty e support.nzxt.com per informazioni sulla copertura e sul servizio della garanzia.
Visite nzxt.com/warranty e support.nzxt.com para obter informações sobre a cobertura da garantia e assistência.
Подробную информацию об условиях гарантийного обслуживания см. на веб-сайте nzxt.com/warranty и support.nzxt.com.
제품 보증 범위와 서비스 정보를 확인하시려면 nzxt.com/warranty 또는 support.nzxt.com을 방문해 주시기 바랍니다.
保証範囲およびサービスに関する情報については、support.nzxt.com と nzxt.com/warranty にアクセスしてください。
请造访 nzxt.com/warranty 和 support.nzxt.com 了解保修范围和服务的信息。
請訪問 nzxt.com/warranty 和 support.nzxt.com 了解產品保固範圍和更多服務訊息。
6.2 SUPPORT AND SERVICE
If you have any questions or problems with the NZXT product you purchased, please don't hesitate to contact us using our support system. support.nzxt.com
Please include a detailed explanation of your problem and your proof of purchase. For comments and suggestions, you can e-mail our design team, designer@nzxt.com. Lastly we would like to thank you for your support by purchasing this product.
For more information about NZXT, please visit us online. NZXT Website: NZXT.com
SOPORTE Y SERVICIO
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Comply with CAN ICES-3 (B) / NMB-3 (B)
