Product Type	Monitor Arm (Single)
Weight Capacity	Up to 8 kg (17.6 lbs)
VESA Compatibility	75x75mm / 100x100mm
Arm Reach	Up to 600 mm (23.6 in)
Height Adjustment	300 mm (11.8 in) range
Tilt Range	-45° to +45°
Swivel Range	±90°
Rotation	360° (portrait/landscape)
Mounting Type	Clamp (up to 75mm thick) or Grommet
Cable Management	Integrated cable channels
Material	Aluminum alloy and steel
Color	Matte Black
Weight (Arm Only)	2.5 kg (5.5 lbs)
Package Dimensions	60 x 25 x 10 cm (23.6 x 9.8 x 3.9 in)
Warranty	3 years
Screen Size Supported	Up to 32 inches
Gas Spring Mechanism	Yes, built-in
Mounting Hardware Included	Yes (screws, spacers, wrench)
Cleaning	Wipe with a soft, dry cloth; avoid solvents
Safety Standards	TÜV/CE/UL certified

Frequently Asked Questions - Monitor Arm NZXT

How do I install the NZXT Monitor Arm?

First, choose between clamp or grommet mounting. For clamp, attach the clamp to your desk edge (max 75mm thick) and tighten. Attach the VESA plate to your monitor, then slide it onto the arm until it clicks. Adjust tension using the included hex wrench for optimal balance.

Does the arm support vertical orientation (portrait mode)?

Yes, the arm allows 360-degree rotation, so you can rotate your monitor 90° to portrait mode. Ensure the VESA plate is properly attached before rotating.

What is the weight limit for this monitor arm?

The NZXT Monitor Arm supports monitors up to 8 kg (17.6 lbs). Exceeding this may cause instability or damage.

Can I use this arm with an ultrawide monitor?

It depends on the monitor's weight and VESA pattern. The arm is designed for monitors up to 32 inches and 8 kg. For ultrawides, check that the VESA pattern is 75x75mm or 100x100mm and the weight is under 8 kg.

How do I adjust the tension of the gas spring?

Use the included hex wrench to turn the tension screw on the pivot joint. Turn clockwise to increase tension (for heavier monitors) and counterclockwise to decrease. Adjust until the arm stays in the desired position without drifting.

Is the mount compatible with curved monitors?

Yes, as long as the VESA pattern is standard (75x75mm or 100x100mm) and the weight is within the 8 kg limit. Curved monitors may require additional spacers (included) if they have a recessed mounting area.

Can I use the arm on a glass desk?

It is not recommended for glass desks due to the clamp pressure. If you must use it, place a protective pad under the clamp and ensure the glass thickness is at least 10 mm. However, grommet mounting is safer for glass desks.

How do I manage cables with this arm?

The arm has integrated cable channels. Route your monitor cables along the arm and clip them into the channels. This keeps cables tidy and out of the way.

What tools are needed for installation?

No special tools are required; all necessary hardware (screws, spacers, and a hex wrench for tension adjustment) are included. A standard screwdriver may help for the clamp.

Does the arm come with a warranty?

Yes, the NZXT Monitor Arm comes with a 3-year limited warranty. Defects in materials or workmanship are covered. For claims, contact NZXT support with proof of purchase.

USER MANUAL Monitor Arm NZXT

Technical line drawing of a dual-arm robotic arm with articulated joints and mounting feet (no text or symbols)

MONITOR ARM

SINGLE MONITOR SUPPORT|DUAL MONITOR SUPPORT

TABLE OF CONTENTS

VERSION 1.0

1. PACKAGE CONTENTS 02

2. ADJUSTMENT 09

3. INSTALLATION 04

4. APPENDIX ...... A-1

1. PACKAGE CONTENTS

MONITOR ARM

A. Monitor Arm

SINGLE ARM x1 I DUAL ARM x2

B. Swivel Arm

SINGLE ARM x1 | DUAL ARM x2

C. Base

×1

D. Clamp L Bracket

SINGLE ARM x1

DUAL ARM x1

E. Clamp Screw Assembly

SINGLE ARM x1

DUAL ARM x1

F. Base pad

SINGLE ARM x1

DUAL ARM x1

G. Pole

×1

H. Clamp Screw

SINGLE ARM x2

I DUAL ARM x4

1. PACKAGE CONTENTS

MONITOR ARM

I. 5mm Hex Key

×1

J. Socket Set Screw

×3

K. Cable Manager

×1

L. Collar

×1

M. 2.5mm Hex Key

x1

N. M4 x 16mm VESA Screw

SINGLE ARM x4 I DUAL ARM x8

O. M4 x 6mm Screw

SINGLE ARM x1 I DUAL ARM x2

P. Base Screws

×4

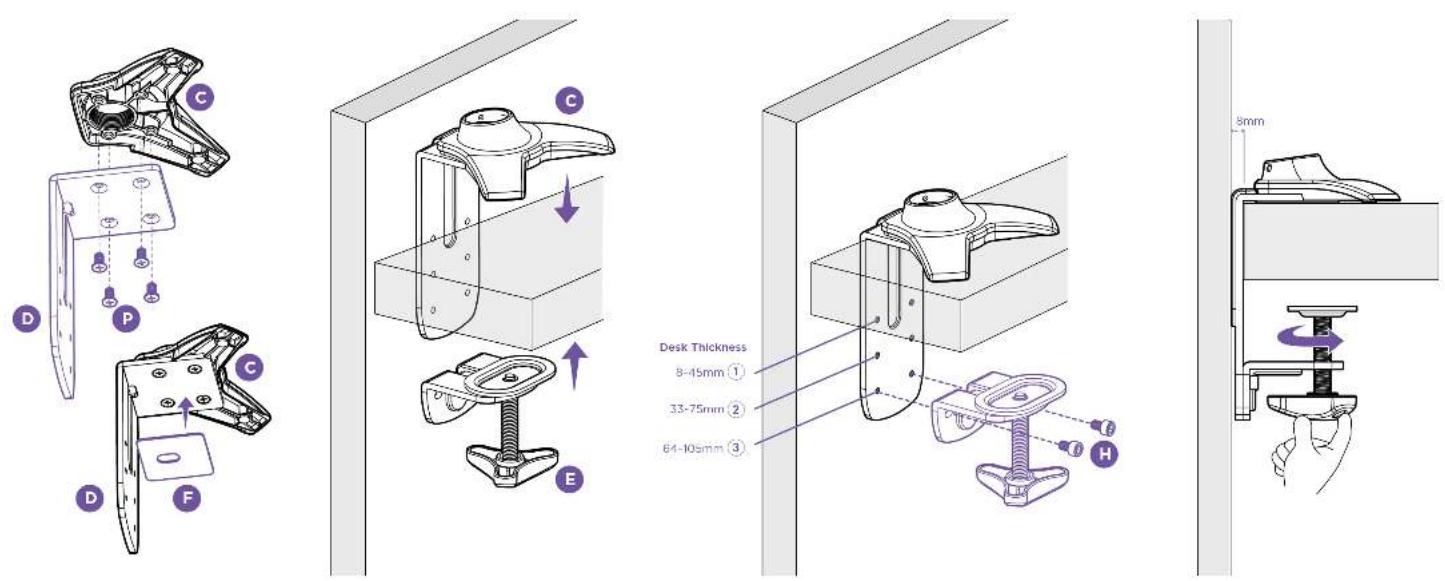

2. INSTALLATION

MONITOR ARM

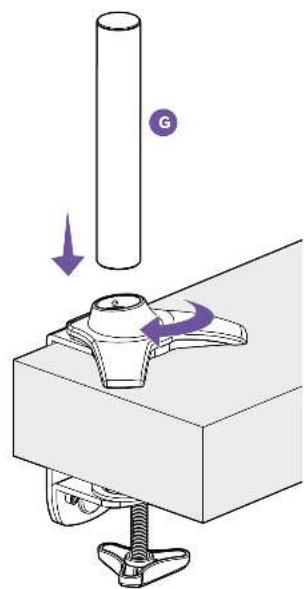

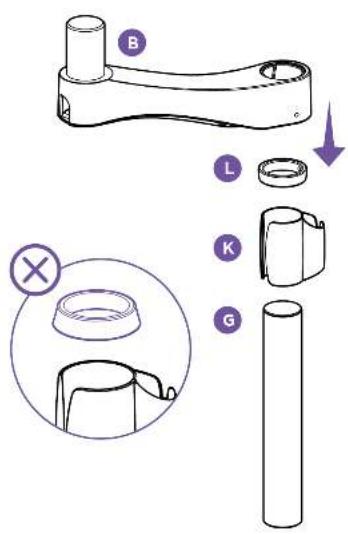

Mechanical assembly diagram showing a cylindrical component being adjusted to a base with a clamp, no text or symbols present

SINGLE ARM D

SINGLE ARM D

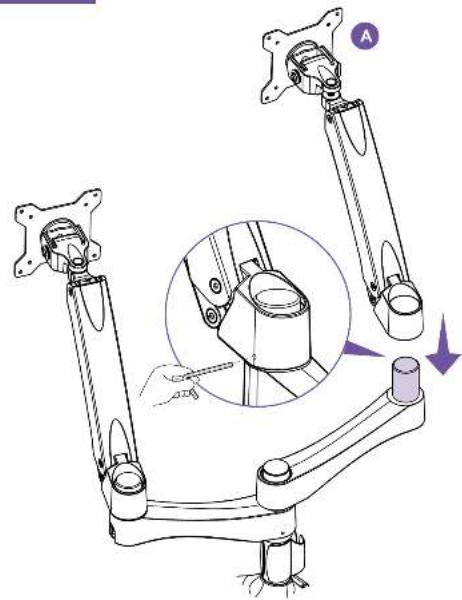

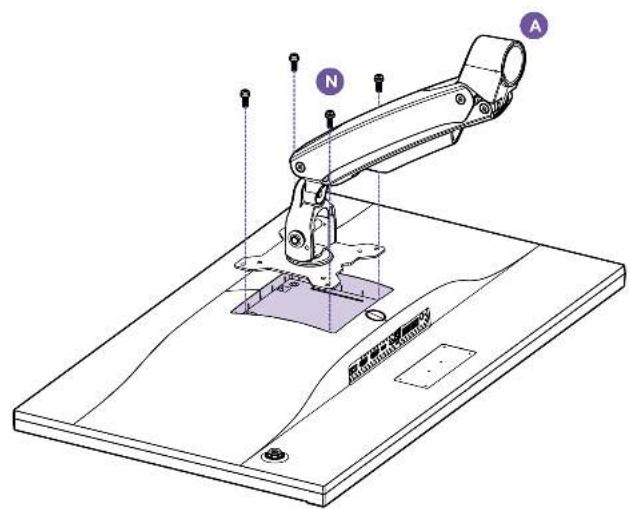

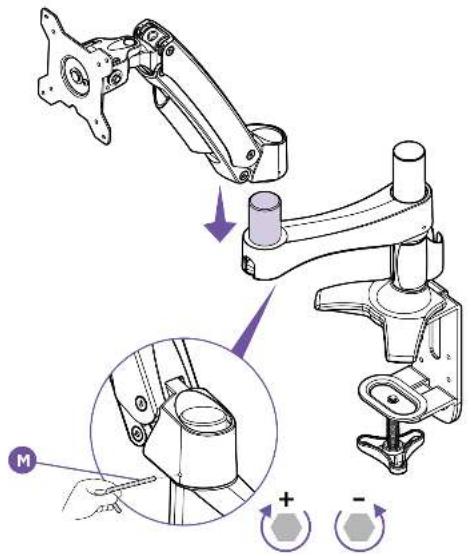

Mechanical linkage diagram showing a mechanical assembly with a magnified inset of a cylindrical component (no text or labels)

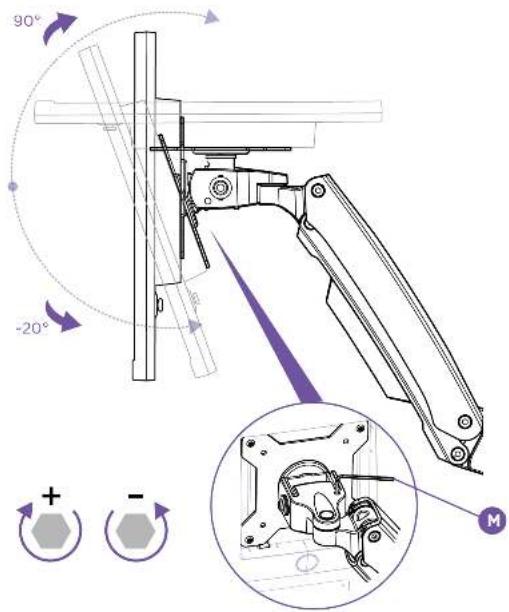

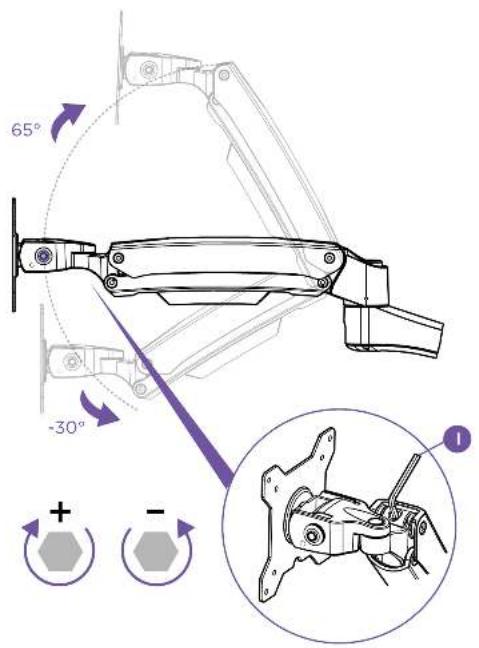

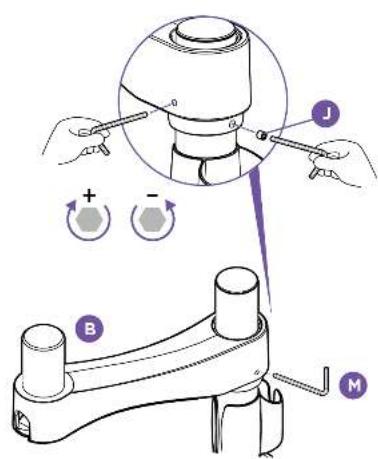

3. ADJUSTMENT

MONITOR ARM

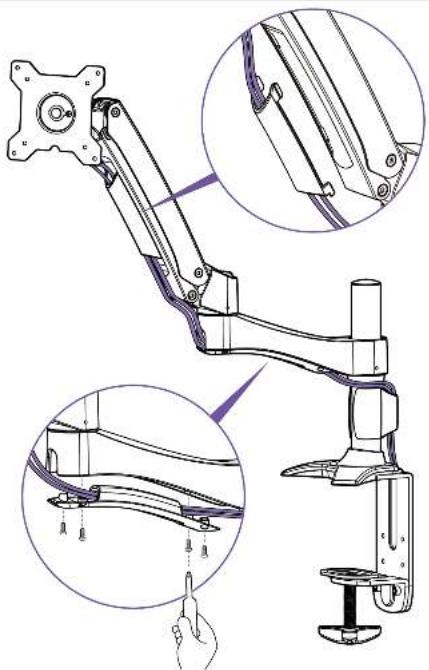

NOTE

- DO NOT overtighten the fastener, it may result in monitor arm damage.

NOTE

- DO NOT overtighten the fastener, it may result in monitor arm damage.

ADJUSTMENT

MONITOR ARM

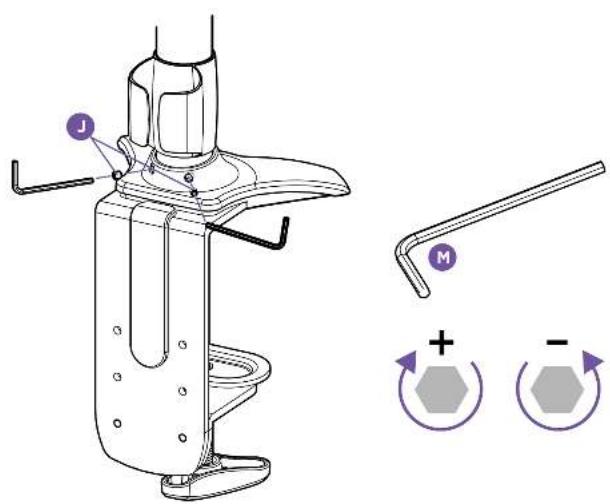

Technical line drawing of a mechanical arm with multiple views and a finger pointing to the base (no text or symbols present)

4. APPENDIX

MONITOR ARM

A-2

4.2 NZXT Global Warranty Policy....A-3

4.5 Revision History ...... A-13

4.3 Support and Service....A-9

4.1 SUPPORT

MONITOR ARM

If you have an issue and you need further help to resolve, please contact us via email at: [e-mail]

4.2 NZXT GLOBAL WARRANTY POLICY

MONITOR ARM

This NZXT Global Warranty Policy governs the sale of products by NZXT to you.

I. WARRANTY LENGTH

Any replacement product will be covered under warranty for the remainder of the warranty period or thirty days, whichever is longer. Proof of purchase is required for warranty service.

II. WHO IS PROTECTED

The Warranty covers only NZXT products purchased by the original consumer.

NEW NZXT PRODUCT WARRANTY LENGTH FOR PARTS

Computer Cases 2 Years

Temperature Meters 2 Years

Fans 2 Years
Lighting 2 Years

Accessories 2 Years
Kraken M Coolers 3 Years
NZXT Keyboard/Mouse 2 Years

Headset/Headphone Storage	2 Years
USB Microphone	2 Years
Motherboards	3 Years
Gold Power Supply	10 Years
Kraken X/X RGB/Z Coolers	6 Years

Mini ITX Case with PSU, AIO, and Riser Card
3-year warranty on case, riser card, and AIO. 10-year warranty on PSU.

REFURBISHED NZXT PRODUCT

All NZXT Certified Refurbished Products

WARRANTY LENGTH FOR PARTS

1 Years

III. WHAT IS AND IS NOT COVERED

Please note that our warranty is not an unconditional guarantee. If the product, in NZXT's reasonable opinion, malfunctions within the warranty period, NZXT will provide you at its sole discretion with a repaired or replacement product, either new or refurbished, with a similar function that is equal or greater in value depending on supply.

Our warranty does not cover the following:

• any product or serial number/warranty sticker modification applied without permission from NZXT;
• any damage that is not a manufacturing defect;
• damage, deterioration or malfunction resulting from: accident, abuse, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification or failure to follow instructions included with the product;
• improper installation, unauthorized alterations or modifications, or repair or attempted repair by anyone not authorized by NZXT;
• shipping or transport damage (claims must be made with the carrier);
  • normal wear and tear.

NZXT does not warrant that this product will meet your requirements. It is your responsibility to determine the suitability of this product for your purpose. For NZXT Store orders, we cover two way return shipping for all exchanges and returns. For all other authorized dealers, NZXT Support does not cover return shipping and only covers one way shipping from NZXT back to the end user for exchanges. Two way expedited shipping is provided for all PSUs covered under the Less Than Three program, indiscriminate of purchase location, provided the location is an approved NZXT reseller.

IV. EXCLUSION OF DAMAGES (DISCLAIMER)

NZXT's sole obligation and liability under this warranty is limited to the repair or replacement of a defective product with either a new or refurbished product with a similar function that is equal or greater in value at our option. NZXT shall not, in any event, be liable for any incidental or consequential damage, including but not limited to damages resulting from interruption of service and loss of data, business, or for liability in tort relating to this product or resulting from its use or possession.

4.2 NZXT GLOBAL WARRANTY POLICY

MONITOR ARM

V. LIMITATIONS OF IMPLIED WARRANTYEST

Here are no other warranties, expressed or implied, including but not limited to those of merchantability or fitness for a particular purpose. The duration of implied warranties is limited to the warranty length specified in Paragraph I.

VI. TO OBTAIN TECHNICAL SUPPORT

If you have already referenced your product owner's manual and still need help, you may contact us by phone at [phone], by email at [e-mail], or visit the NZXT Support site at nzxt.com/customer-support.

VII. HOW TO OBTAIN A WARRANTY SERVICE FROM NZXT

To receive a warranty service for your product when purchased

directly from NZXT, you must submit a request via the NZXT Support site outlining the problem. If a technician deems the product defective or requiring testing, you will be required to provide a copy of your proof of purchase, which will enable you to submit a Return Merchandise Authorization "RMA" request.

Once approved, you'll receive an RMA number, upon which you will be asked to ship the defective item back to NZXT with the RMA number clearly marked or labelled on the package. NZXT recommends that appropriate measures are taken to safeguard the product from damage during shipping.

VIII. APPLICABLE LAW AND ADDITIONAL LEGAL RIGHTS FOR CONSUMERS

This warranty gives you specific legal rights. These conditions are governed and construed in accordance with the laws of California (with exception of its conflict of law provisions), and the application of the United Nations Convention of Contracts for the International Sale of Goods is expressly excluded. The non-exclusive jurisdiction of the courts of California is agreed, which means that you may bring a claim to enforce your consumer protection rights in connection with this Global Warranty in the country which you have your habitual residence where you may have additional rights. These rights may vary.

For original consumers who are covered by consumer protection laws or regulations in their country, state, or province of purchase or, if different, their country, state, or province of residence, the benefits conferred by this warranty are in addition to all rights and remedies conveyed by such consumer protection laws and regulations. To the extent that liability under such consumer laws can be limited, NZXT's liability is limited, and its sole option, to repair or replacement, either new or refurbished, with a similar function that is equal or greater in value depending on supply.

In the United Kingdom:

• For NZXT products sold to customers in the UK, during the expected lifespan of your product your legal rights entitle you to the following:

  Up to 30 days: if your goods are faulty, then you can get an immediate refund.
  Up to six months: if your goods can't be repaired or replaced, then you're entitled to a full refund, in most cases.
  Up to six years: if your goods do not last a reasonable length of time you may be entitled to some money back.

• If the person seeking to rely on the guarantee is not the original consumer, the NZXT Warranty will cover the product in relation to that person provided that they are able to provide proof of the transfer of the benefit of the guarantee from the original consumer.

• The implied warranties under the Consumer Rights Act 2015 says that your goods must be as described, fit for all purposes for which such goods are usually supplied, and of satisfactory quality.

In the EU:

- If you are a consumer and have your habitual residence in the EU, you additionally enjoy the protection afforded to you by provisions that cannot be derogated from by agreement by virtue of the law where you have your habitual residence.

IX. WARRANTY SERVICE FROM RESELLERS

In the event that a warranty service is sought, you must provide proof of purchase (store receipt or invoice) in order to receive the service and if deemed necessary, repair or replacement product.

In North America:

Within the first 60 days after purchase, please return your product (or for power supplies installed within our enclosures, just the failed power supply) to your dealer or reseller for a replacement. If the product is still within warranty and you can no longer return it to your dealer, please contact NZXT Customer Support (see above) for assistance and instructions. NZXT will not accept returns without prior approval and an RMA number.

In Europe:

Within the first year after purchase, please return your product (or for power supplies installed within our enclosures, just the failed power supply) to your dealer or reseller for a replacement. If the product is still within warranty and you can no longer return it to your dealer, please contact NZXT Customer Support (see above) for assistance and instructions. NZXT will not accept returns without prior approval.

In Australasia:

Within the first two years after purchase, please return your product (or for power supplies installed within our enclosures, just the failed power supply) to your dealer or reseller for a replacement. If the product is still within warranty and you can no longer return it to your dealer, please contact NZXT Customer Support (see above) for assistance and instructions. NZXT will not accept returns without prior approval.

The cost of shipping will be borne at the first instance by you; however, if the purchased item is defective, NZXT will reimburse reasonable postage or transportation of costs.

Outside North America, Europe, and Australasia:

If your product needs to be returned within the warranty period, please contact the retailer or distributor from whom you purchased the product.

4.2 NZXT GLOBAL WARRANTY POLICY

MONITOR ARM

X. NZXT.COM STORE RETURNS/EXCHANGE POLICY

Eligible products under this NZXT Warranty qualify for a full refund or exchange only with an authorized RMA number and if the item is returned to the NZXT.com store inventory within 30 days of purchase. Returns are not allowed beyond 30 days of the purchase date. The NZXT.com Store reserves the right to deny any return or exchange. Refunds will be credited to the original method of payment. To initiate a return, simply submit a request via NZXT support site.

NZXT, Inc./ 15736 E. Valley Blvd, City of Industry, CA 91744, USA NZXT Europe GmbH/ Industriering Ost 66 | 47906 Kempen | Germany [phone] / [e-mail] / [e-mail] / NZXT.com

Visit nzxt.com/warranty and support.nzxt.com for information on warranty coverage and service.
Visite el sitio Web nzxt.com/warranty y support.nzxt.com para obtener información sobre la cobertura y el servicio de la garantía.
Visitez nzxt.com/warranty et support.nzxt.com pour les informations de la couverture de la garantie et du service.
Informationen zu Geltungsbereich und Service der Garantie finden Sie unter support.nzxt.com und nzxt.com/warranty.
Visitare il sito nzxt.com/warranty e support.nzxt.com per informazioni sulla copertura e sul servizio della garanzia.
Visite nzxt.com/warranty e support.nzxt.com para obter informações sobre a cobertura da garantia e assistência.
Подробную информацию об условиях гарантийного обслуживания см. на веб-сайте nzxt.com/warranty и support.nzxt.com.
제품 보증 범위와 서비스 정보를 확인하시려면 nzxt.com/warranty 또는 support.nzxt.com을 방문해 주시기 바랍니다.
保証範囲およびサービスに関する情報については、support.nzxt.comとnzxt.com/warrantyにアクセスしてください。
请造访 nzxt.com/warranty 和 support.nzxt.com 了解保修范围和服务的信息，
請訪問 nzxt.com/warranty 和 support.nzxt.com 了解產品保固範圍和更多服務訊息。

4.3 SUPPORT AND SERVICE

MONITOR ARM

SUPPORT AND SERVICE

If you have any questions or problems with the NZXT product you purchased, please don't hesitate to contact us using our support system. nzxt.com/customer-support

Please include a detailed explanation of your problem and your proof of purchase. For comments and suggestions, you can e-mail our design team, [e-mail]. Lastly we would like to thank you for your support by purchasing this product.

For more information about NZXT, please visit us online. NZXT Website: NZXT.com
