Product Type	CPU Air Cooler
Model	NZXT T120
Compatible Sockets	Intel LGA 1700/1200/115X, AMD AM5/AM4
Dimensions (with fan)	154 x 120 x 75 mm
Weight	760 g
Material	Aluminum fins, Copper heatpipes, Nickel-plated base
Heat Pipes	4 x 6 mm
Fan Dimension	120 x 120 x 25 mm
Fan Speed	500 - 1800 RPM (PWM)
Airflow	62 CFM
Noise Level	18 - 30 dBA
Power Consumption	1.2 W (fan only)
Control Method	4-pin PWM
TPD Rating	≤ 200 W
RGB Lighting	No
Installation	Direct contact heat pipes, push-pin or backplate
Maintenance	Dust cleaning with compressed air; fan replacement
Safety Features	Fan guard, anti-vibration pads
Warranty	6 years

Frequently Asked Questions - T120 NZXT

How do I install the NZXT T120 cooler?

First, apply thermal paste on the CPU. Mount the backplate, install the mounting brackets, place the cooler, and secure it with screws. Finally, connect the fan to the motherboard header.

Which CPU sockets are compatible with the NZXT T120?

The NZXT T120 supports Intel LGA 1700, 1200, and 115X, as well as AMD AM5 and AM4 sockets.

Does the NZXT T120 fit in my case?

Check your case's CPU cooler clearance. The cooler is 154 mm tall. Ensure your case has at least 160 mm width clearance for proper installation.

What is the TDP rating of the NZXT T120?

The NZXT T120 can handle CPUs with a TDP up to 200W, making it suitable for mid-range to high-end processors.

Does the NZXT T120 include thermal paste?

Yes, a small tube of thermal paste is included in the package. If you need better performance, you can use a high-quality aftermarket paste.

How do I clean the NZXT T120?

Use compressed air to blow dust off the fins and fan. Avoid using water or solvents. Clean every 3-6 months for optimal performance.

What is the noise level of the NZXT T120?

The fan noise ranges from 18 dBA at low speed to 30 dBA at full speed. The cooler is designed to be quiet under normal loads.

Can I replace the fan on the NZXT T120?

Yes, the fan is a standard 120mm model with a 4-pin PWM connector. You can replace it with any aftermarket fan of similar specs.

Does the NZXT T120 support RGB?

No, the NZXT T120 does not have RGB lighting. It is designed for pure cooling performance without lighting.

How do I control the fan speed?

Connect the fan to a 4-pin PWM header on your motherboard. You can control speed via BIOS or software like NZXT CAM (if supported) or third-party tools.

USER MANUAL T120 NZXT

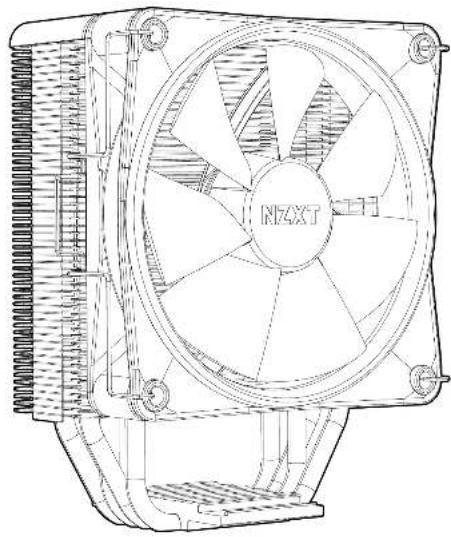

Technical line drawing of a computer fan with visible blades and cooling fins (no text or symbols)

Technical line drawing of a CPU fan with heatsink and cooling fins (no text or symbols)

T120 | T120RGB

REFRIGERADOR DE AR PARA CPU |

REFRIGERADOR DE AR PARA CPU COM RGB

ÍNDICE

VERSION 1.0

1. LISTA DE COMPONENTES....02
2. APÊNDICE A-1
3. INSTALAÇÃO 04
4. DOWNLOAD DO NZXT CAM 10

PASSO 1. (AMD)

Isometric technical diagram of a mechanical assembly with directional arrows and base plate (no text or symbols)

2. INSTALAÇÃO

T120 & T120RGB

PASSO 2. (INTEL)

Pré-instalado

PASSO 2. (AMD)

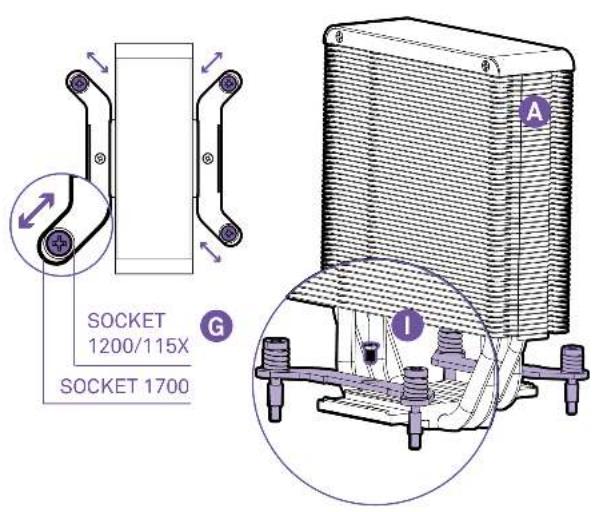

Technical diagram of a mechanical device with labeled components (A, H, I), showing cross-sectional and exploded views without any readable text or symbols.

2. INSTALAÇÃO

T120 & T120RGB

PASSO 3. PASSO 4.

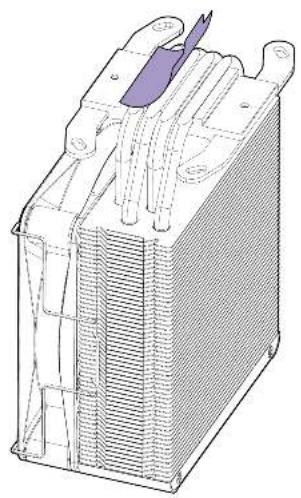

Remover o autocolante protetor da superfície de contacto do CPU.

Technical line drawing of a heat exchanger or cooling unit (no text or symbols visible)

Illustration of a hand using a pipette to apply purple liquid onto a circuit board (no text or symbols)

2. INSTALAÇÃO

T120 & T120RGB

PASSO 5. (INTEL)

Technical line drawing of a heat exchanger or cooling unit with cooling fins and cooling pipes (no text or symbols)

PASSO 5. (AMD)

2. INSTALAÇÃO

T120 & T120RGB

PASSO 6.

Technical line drawing of a computer cooling unit with fan and cooling tower (no text or symbols)

PASSO 7.

OPTION 1 NZXT RGB lighting channel on the motherboard.

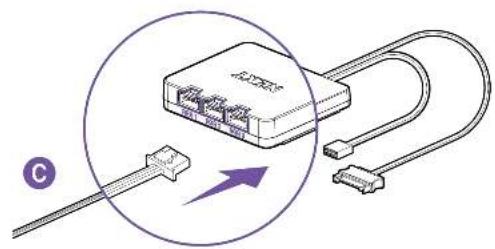

OPTION 2 NZXT RGB lighting channel on your lighting controller.

Diagram of a USB cable connector with a circular inset showing connection point (no text or symbols)

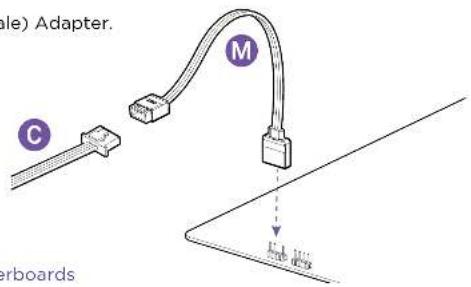

OPTION 3 5V ARGB (Female) to NZXT RGB (Male) Adapter.

WARNING Do not connect to 12V RGB on motherboards

3. DOWNLOAD DO NZXT CAM

T120 & T120RGB

NZXT CAM

To enable control of your RGB Fans, download and install CAM from nzxt.com/software/cam.

3.1 NZXT Global Warranty Policy....A-2 3.3 Regulations ....A-11

3.2 Support and Service....A-8 3.4 Revision History ....A-12

3.1 NZXT GLOBAL WARRANTY POLICY

T120 & T120RGB

This NZXT Global Warranty Policy governs the sale of products by NZXT to you.

I. WARRANTY LENGTH

Any replacement product will be covered under warranty for the remainder of the warranty period or thirty days, whichever is longer. Proof of purchase is required for warranty service.

II. WHO IS PROTECTED

The Warranty covers only NZXT products purchased by the original consumer.

NEW NZXT PRODUCT WARRANTY LENGTH FOR PARTS
Computer Cases 2 Years
Temperature Meters 2 Years
Fans 2 Years
Lighting 2 Years
Accessories 2 Years
Air Coolers 2 Years
Mixer 2 Years

Headset/Headphone	2 Years
dset/Headphone Storage	2 Years
Kraken 120	3 Years
Motherboards	4 Years
Kraken X/Z Coolers	6 Years
Power Supply	10 Years

REFURBISHED NZXT PRODUCT
WARRANTY LENGTH FOR PARTS
All NZXT Certified Refurbished Products
1 Years

III. WHAT IS AND IS NOT COVERED

Please note that our warranty is not an unconditional guarantee. If the product, in NZXT's reasonable opinion, malfunctions within the warranty period, NZXT will provide you at its sole discretion with a repaired or replacement product, either new or refurbished, with a similar function that is equal or greater in value depending on supply.

Our warranty does not cover the following:

• any product or serial number/warranty sticker modification applied without permission from NZXT;
• any damage that is not a manufacturing defect;
• damage, deterioration or malfunction resulting from: accident, abuse, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification or failure to follow instructions included with the product;
• improper installation, unauthorized alterations or modifications, or repair or attempted repair by anyone not authorized by NZXT;
• shipping or transport damage (claims must be made with the carrier);
  • normal wear and tear.

NZXT does not warrant that this product will meet your requirements. It is your responsibility to determine the suitability of this product for your purpose. For NZXT Store orders, we cover two way return shipping for all exchanges and returns. For all other authorized dealers, NZXT Support does not cover return shipping and only covers one way shipping from NZXT back to the end user for exchanges. Two way expedited shipping is provided for all PSUs covered under the Less Than Three program, indiscriminate of purchase location, provided the location is an approved NZXT reseller.

IV. EXCLUSION OF DAMAGES (DISCLAIMER)

NZXT's sole obligation and liability under this warranty is limited to the repair or replacement of a defective product with either a new or refurbished product with a similar function that is equal or greater in value at our option. NZXT shall not, in any event, be liable for any incidental or consequential damage, including but not limited to damages resulting from interruption of service and loss of data, business, or for liability in tort relating to this product or resulting from its use or possession.

3.1 NZXT GLOBAL WARRANTY POLICY

T120 & T120RGB

V. LIMITATIONS OF IMPLIED WARRANTYEST

Here are no other warranties, expressed or implied, including but not limited to those of merchantability or fitness for a particular purpose. The duration of implied warranties is limited to the warranty length specified in Paragraph I.

VI. TO OBTAIN TECHNICAL SUPPORT

If you have already referenced your product owner's manual and still need help, you may contact us by phone at [phone], by email at [e-mail], or visit the NZXT Support site at nzxt.com/customer-support.

VII. HOW TO OBTAIN A WARRANTY SERVICE FROM NZXT

To receive a warranty service for your product when purchased directly from NZXT, you must submit a request via the NZXT Support site outlining the problem. If a technician deems the product defective or requiring testing, you will be required to provide a copy of your proof of purchase, which will enable you to submit a Return Merchandise Authorization "RMA" request.

Once approved, you'll receive an RMA number, upon which you will be asked to ship the defective item back to NZXT with the RMA number clearly marked or labelled on the package. NZXT recommends that appropriate measures are taken to safeguard the product from damage during shipping.

VIII. APPLICABLE LAW AND ADDITIONAL LEGAL RIGHTS FOR CONSUMERS

This warranty gives you specific legal rights. These conditions are governed and construed in accordance with the laws of California (with exception of its conflict of law provisions), and the application of the United Nations Convention of Contracts for the International Sale of Goods is expressly excluded. The non-exclusive jurisdiction of the courts of California is agreed, which means that you may bring a claim to enforce your consumer protection rights in connection with this Global Warranty in the country which you have your habitual residence where you may have additional rights. These rights may vary.

For original consumers who are covered by consumer protection laws or regulations in their country, state, or province of purchase or, if different, their country, state, or province of residence, the benefits conferred by this warranty are in addition to all rights and remedies conveyed by such consumer protection laws and regulations. To the extent that liability under such consumer laws can be limited, NZXT's liability is limited, and its sole option, to repair or replacement, either new or refurbished, with a similar function that is equal or greater in value depending on supply.

In the United Kingdom:

• For NZXT products sold to customers in the UK, during the expected lifespan of your product your legal rights entitle you to the following:

  Up to 30 days: if your goods are faulty, then you can get an immediate refund.
  Up to six months: if your goods can't be repaired or replaced, then you're entitled to a full refund, in most cases.
  Up to six years: if your goods do not last a reasonable length of time you may be entitled to some money back.

• If the person seeking to rely on the guarantee is not the original consumer, the NZXT Warranty will cover the product in relation to that person provided that they are able to provide proof of the transfer of the benefit of the guarantee from the original consumer.
• The implied warranties under the Consumer Rights Act 2015 says that your goods must be as described, fit for all purposes for which such goods are usually supplied, and of satisfactory quality.

In the EU:

- If you are a consumer and have your habitual residence in the EU, you additionally enjoy the protection afforded to you by provisions that cannot be derogated from by agreement by virtue of the law where you have your habitual residence.

IX. WARRANTY SERVICE FROM RESELLERS

In the event that a warranty service is sought, you must provide proof of purchase (store receipt or invoice) in order to receive the service and if deemed necessary, repair or replacement product.

In North America:

Within the first 60 days after purchase, please return your product (or for power supplies installed within our enclosures, just the failed power supply) to your dealer or reseller for a replacement. If the product is still within warranty and you can no longer return it to your dealer, please contact NZXT Customer Support (see above) for assistance and instructions. NZXT will not accept returns without prior approval and an RMA number.

In Europe:

Within the first year after purchase, please return your product (or for power supplies installed within our enclosures, just the failed power supply) to your dealer or reseller for a replacement. If the product is still within warranty and you can no longer return it to your dealer, please contact NZXT Customer Support (see above) for assistance and instructions. NZXT will not accept returns without prior approval.

In Australasia:

Within the first two years after purchase, please return your product (or for power supplies installed within our enclosures, just the failed power supply) to your dealer or reseller for a replacement. If the product is still within warranty and you can no longer return it to your dealer, please contact NZXT Customer Support (see above) for assistance and instructions. NZXT will not accept returns without prior approval.

The cost of shipping will be borne at the first instance by you; however, if the purchased item is defective, NZXT will reimburse reasonable postage or transportation of costs.

Outside North America, Europe, and Australasia:

If your product needs to be returned within the warranty period, please contact the retailer or distributor from whom you purchased the product.

3.1 NZXT GLOBAL WARRANTY POLICY

T120 & T120RGB

X. NZXT.COM STORE RETURNS/EXCHANGE POLICY

Eligible products under this NZXT Warranty qualify for a full refund or exchange only with an authorized RMA number and if the item is returned to the NZXT.com store inventory within 30 days of purchase. Returns are not allowed beyond 30 days of the purchase date. The NZXT.com Store reserves the right to deny any return or exchange. Refunds will be credited to the original method of payment. To initiate a return, simply submit a request via NZXT support site.

NZXT, Inc./ 15736 E Valley Blvd, City of Industry, CA 91744, USA

NZXT Europe GmbH/ Industriering Ost 66 | 47906 Kempen | Germany [phone] / [e-mail] / NZXT.com

Visit nzxt.com/warranty and support.nzxt.com for information on warranty coverage and service.
Visite el sitio Web nzxt.com/warranty y support.nzxt.com para obtener información sobre la cobertura y el servicio de la garantía.
Visitez nzxt.com/warranty et support.nzxt.com pour les informations de la couverture de la garantie et du service.
Informationen zu Geltungsbereich und Service der Garantie finden Sie unter support.nzxt.com und nzxt.com/warranty.
Visitare il sito nzxt.com/warranty e support.nzxt.com per informazioni sulla copertura e sul servizio della garanzia.
Visite nzxt.com/warranty e support.nzxt.com para obter informações sobre a cobertura da garantia e assistência.
Подробную информацию об условиях гарантийного обслуживания см. на веб-сайте nzxt.com/warranty и support.nzxt.com.
제품 보증 범위와 서비스 정보를 확인하시려면 nzxt.com/warranty 또는 support. nzxt.com 을 방문해 주시기 바랍니다.
保証範囲およびサービスに関する情報については、support.nzxt.com と nzxt.com/warranty にアクセスしてください。
请造访 nzxt.com/warranty 和 support.nzxt.com 了解保修范围和服务的信息。
請訪問 nzxt.com/warranty 和 support.nzxt.com 了解產品保固範圍和更多服務訊息。

3.2 SUPPORT AND SERVICE

T120 & T120RGB

SUPPORT AND SERVICE

If you have any questions or problems with the NZXT product you purchased, please don't hesitate to contact us using our support system. support.nzxt.com

Please include a detailed explanation of your problem and your proof of purchase. For comments and suggestions, you can e-mail our design team, [e-mail]. Lastly we would like to thank you for your support by purchasing this product.

For more information about NZXT, please visit us online. NZXT Website: NZXT.com

SOPORTE Y SERVICIO

This lighting kit is tested to comply with FCC standard, Australian standard and EU EMC Directive (2014/30/EU)

WARNING

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

3.4 REVISION HISTORY

T120 & T120RGB

Version 1.0, 2022/07/29
