USER MANUAL CKB-4040-CS Connect IT

USER MANUAL BENUTZERHANDBUCH PODREÇZNIK UŽYTKOWNIKA UŽIVATELSKÝ MANUÁL UŽÍVATELŠKÝ MANUÁL

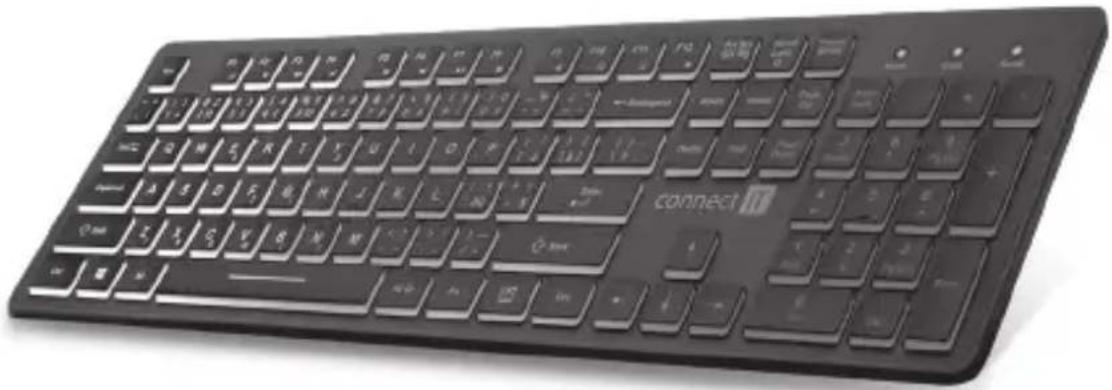

Black wired keyboard with standard keys and a 'connect' button (no visible text or symbols beyond the label)

KEYBOARD FOR HOME AND PROFESSIONAL USE TASTATUR FÜR DEN PRIVATEN UND BERUFLICHEN GEBRAUCH KLAWIATURA DO UŻYTKU DOMOWEGO I PROFESJONALNEGO KLÁVESNICE PRO DOMÁCÍ A PROFESIONÁLNÍ POUŽITÍ KLÁVESNICE PRE DOMÁCE A PROFESIONÁLNE POUŽITIE

CKB-4040-CS

Before putting this product into operation, please read carefully all the instructions, even if you are already familiar with using similar products. Use the product only as described in this manual. Keep this manual in case you need it for future reference.

The electronic version of this user manual can be downloaded on the website www.connectit-europe.com.

We recommend keeping the original packaging of the product, invoice and warranty certificate at least for the time the warranty is valid. When shipping the product, we recommend using the original packaging that the product was delivered in that will provide the best protection for it from being damaged during transport.

1 Specification

Properties:

■ LED illumination (Press scroll key to turn off or turn on led backlight)

■ Drainage holes to prevent damage by spilling
■ Standard keyboard layout
■ Easy Plug & Play installation

Technical Specifications:

■ Cable length: 150 cm
■ Interface: USB 1.1 and higher

Compatibility:

■ Operating system: Microsoft Windows XP/Vista/7/8/10 and Mac OS

This product is compatible with Mac OS although some features unsupported by Mac OS may not work properly.

2 Installation

Plug the USB cable into an available USB port on your computer and wait for the drivers to install.

3 Overview

Function keycaps

■ Activate function keycaps with key shortcuts in combination with the Fn key.

1. Media Player
2. Volume Down
3. Volume Up
4. Mute
5. Previous Track
6. Next Track
7. Play/Pause
8. Stop
9. Web home
10. Email
11. My computer
12. Favorite

F1 F2 F3 F4 12 56

4 Troubleshooting

■ We recommend connecting this device straight to a USB port on your computer.
If this device is plugged in to a USB hub, make sure that the USB hub and the USB port to which it is connected can provide this device and other devices connected to the same USB hub with enough power.
■ Alternatively, we recommend using an external power source with the USB hub (if the USB hub supports such functionality).

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING

Dispose of packaging material at a public waste disposal site.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this product at your applicable collection point for the recycling of electrical & electronic equipment waste. Alternatively in some states of the European Union or other European states you may return your products to your local retailer when buying an equivalent new product. The correct disposal of this product will help save valuable natural resources and help in preventing the potential negative impact on the environment and human health, which could be caused as a result of improper liquidation of waste. Please ask your local authorities or the nearest waste collection center for further details. The improper disposal of this type of waste may fall subject to national regulations for fines.

For business entities in the European Union

If you wish to dispose of an electrical or electronic device, request the necessary information from your seller or supplier.

Disposal in other countries outside the European Union

If you wish to dispose of this product, request the necessary information about the correct disposal method from local government departments or from your seller.

This product meets all the basic EU regulation requirements that relate to it. EU declaration of conformity is available on www.connectit-europe.com.
