32 H04T2S2 - TV ECG - Free user manual and instructions

Product Type	Television
Brand	ECG
Model	32 H04T2S2
Screen Size	32 inches (81 cm)
Display Resolution	HD (1366 x 768 pixels)
Display Technology	LED
Refresh Rate	60 Hz
Aspect Ratio	16:9
Connectivity	2x HDMI, 1x USB 2.0, 1x AV, 1x RF Input
Audio Output	3.5 mm Jack, Optical
Built-in Tuner	DVB-T2/T/C, DVB-S2
Power Supply	AC 100-240 V, 50/60 Hz
Power Consumption (Typical)	50 W
Standby Power Consumption	< 0.5 W
Energy Efficiency Class	A+
Dimensions without Stand (W x H x D)	732 x 436 x 82 mm
Dimensions with Stand (W x H x D)	732 x 480 x 200 mm
Weight without Stand	4.3 kg
Weight with Stand	4.5 kg
VESA Mount	100 x 100 mm
Remote Control	Included
Operating System	Not smart TV (basic interface)
Cleaning Instructions	Dry soft cloth; avoid liquids
Safety Features	Automatic shutdown, overload protection
Spare Parts Availability	Contact manufacturer
Repairability Index	7/10 (estimated)

Frequently Asked Questions - 32 H04T2S2 ECG

How do I connect my TV to a cable or satellite box?

Use an HDMI cable to connect the box to one of the HDMI ports on the TV. Then select the corresponding HDMI input using the Source button on the remote.

How can I change the input source?

Press the "Source" or "Input" button on the remote control. A list of available inputs will appear. Use the arrow keys to select the desired source and press OK.

Why is there no picture or sound?

Check that the TV is plugged in and turned on. Ensure the correct input source is selected. If using external devices, verify they are powered on and connected properly.

How do I clean the TV screen?

Use a soft, dry microfiber cloth. Do not spray liquids directly onto the screen. For stubborn marks, slightly dampen the cloth with water, then wipe gently.

Can I mount this TV on a wall?

Yes, it supports VESA 100x100 mm wall mounts. Use appropriate screws and ensure the wall mount is rated for the TV's weight (approx. 4.5 kg).

How do I perform a factory reset?

Go to the Settings menu (press the Menu button), navigate to System or Setup, then select Factory Reset. Confirm the action. Note that this will erase all settings and saved channels.

How can I update the TV's firmware?

This model may not support firmware updates via USB. Check the manual for instructions. Typically, updates are not needed for basic models.

Why does the TV turn off by itself?

The TV may have an automatic shutdown feature if no signal is detected for a certain time. Also check the sleep timer settings. If the problem persists, it might be a hardware issue.

How do I scan for channels?

Press the Menu button, go to Channel Settings or Tuning, select Auto Scan, and choose your region. The TV will search for digital and analog channels.

What is the warranty period?

Warranty information is typically provided with the product. Contact ECG customer support or refer to the warranty card in the box. Usually, it's 1-2 years.

USER MANUAL 32 H04T2S2 ECG

Black ECG TV displaying a flat-screen monitor with visible 'ECG' branding on the front screen (no additional text or symbols)

24 H02T2S2 32 H04T2S2 40 F01T2S2

LED TVs

INSTRUCTION MANUAL

LED TV

BEDIENUNGSANLEITUNG

LED TV

NÁVOD K OBSLUZE

LED TV

NÁVOD NA OBSLUHU

TV INSTALLATION AND CONNECTION....6

Instructions for assembling the stand....6

Positioning....6

Antenna and power connection....6

DESCRIPTION 7

TV and interface buttons....7

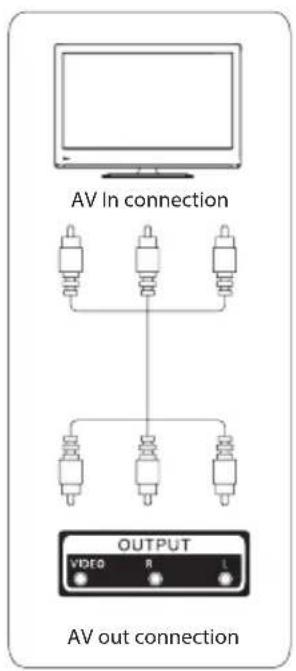

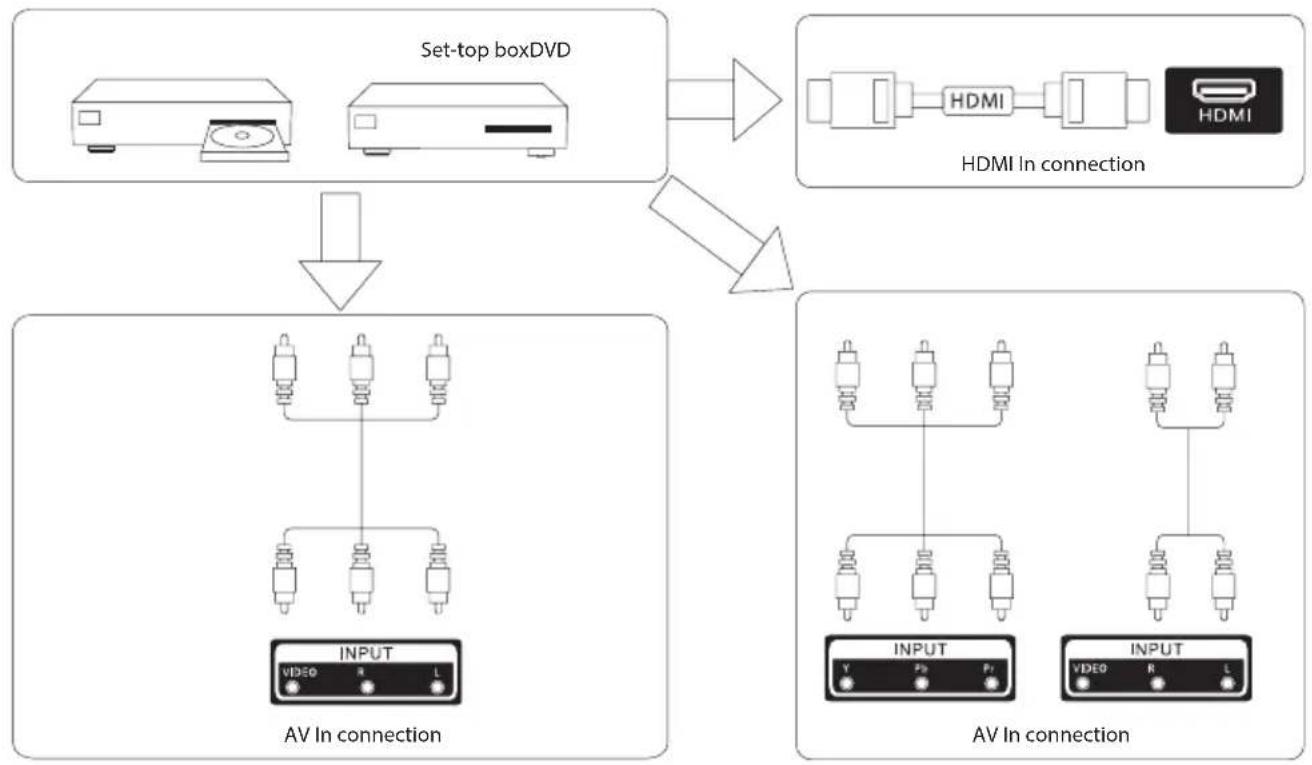

Installation diagram for external devices....11

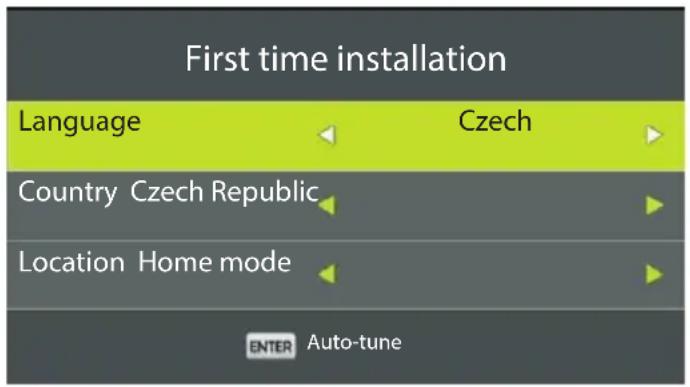

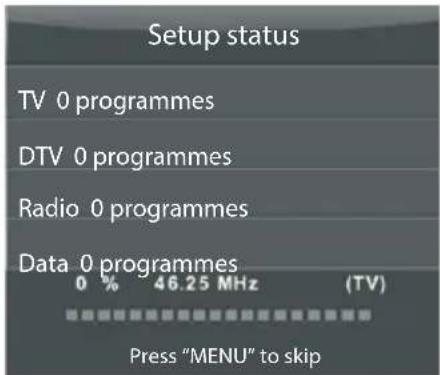

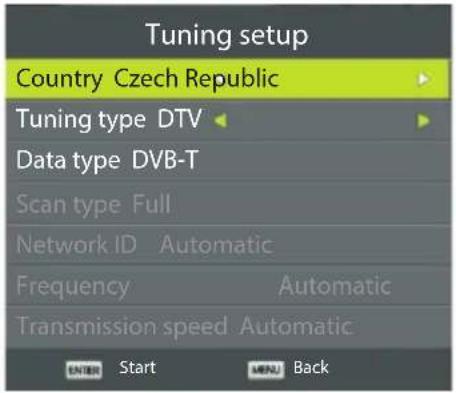

FIRST INSTALLATION....12

TELEVISION CONTROLS 15

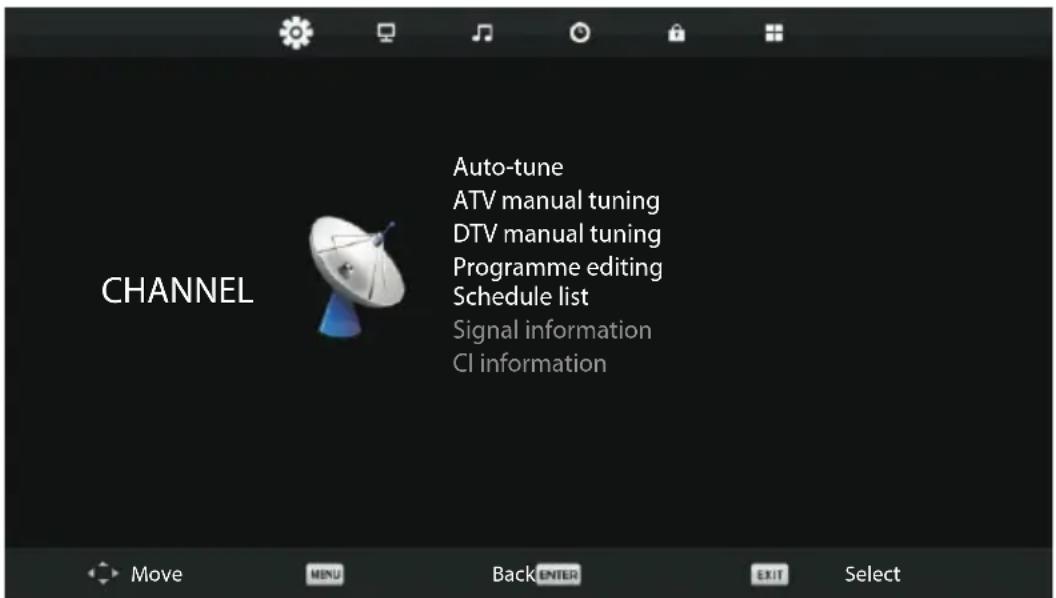

Channel menu....15

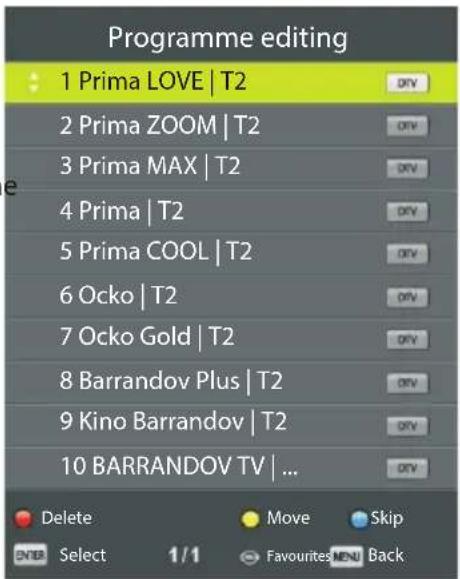

Programs editing....16

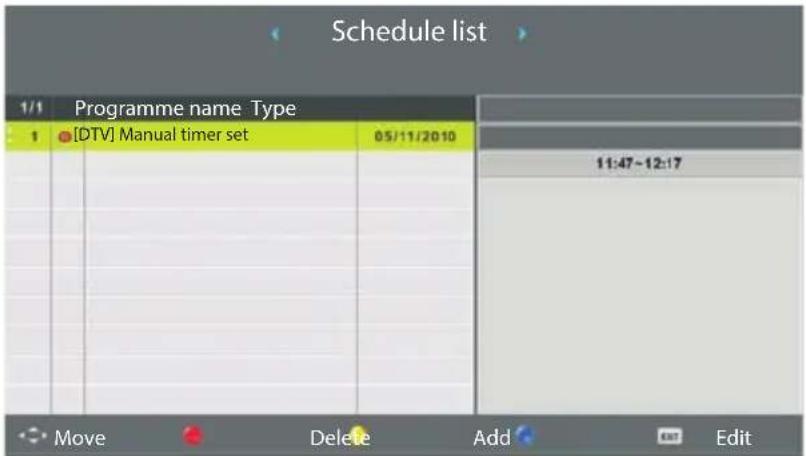

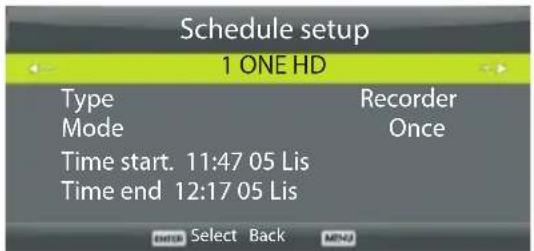

Programming schedule (overview of programmed events)....16

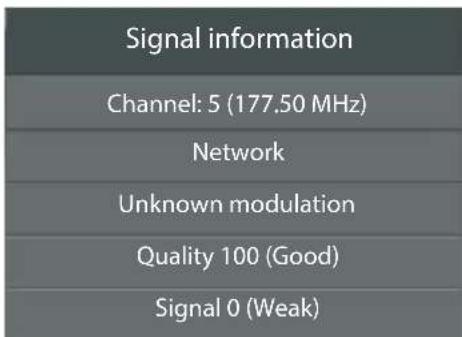

Signal information 17

CI information (requires CA module input) 17

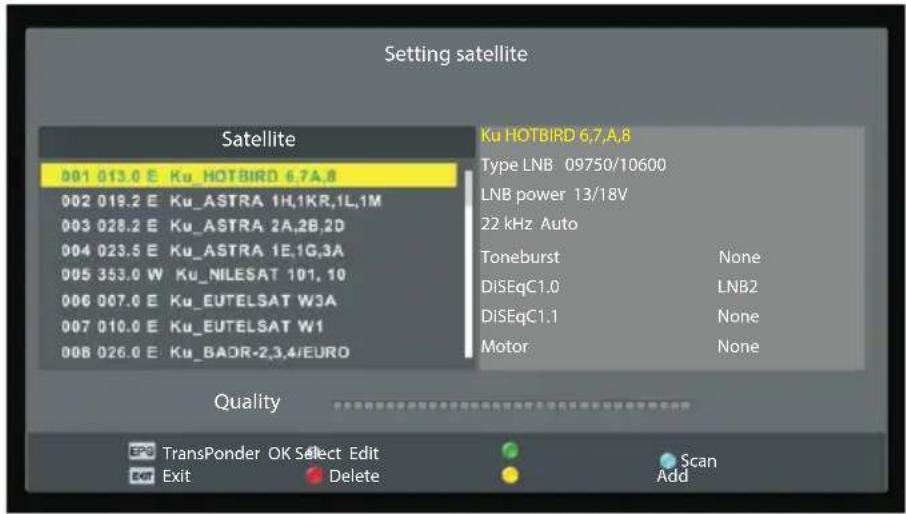

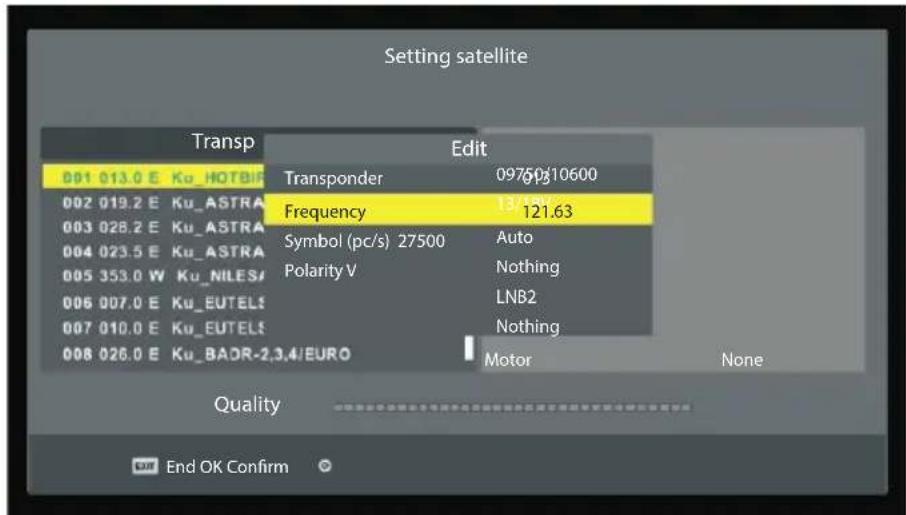

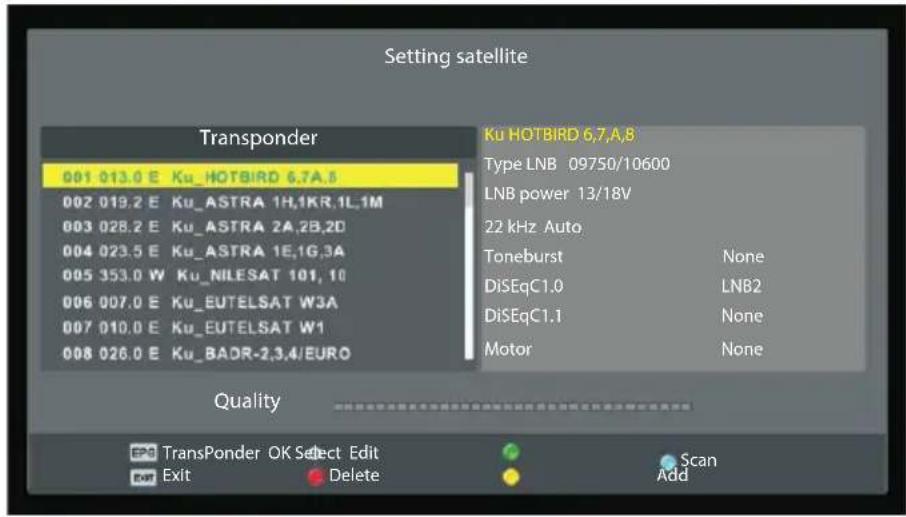

Setting satellite ....17

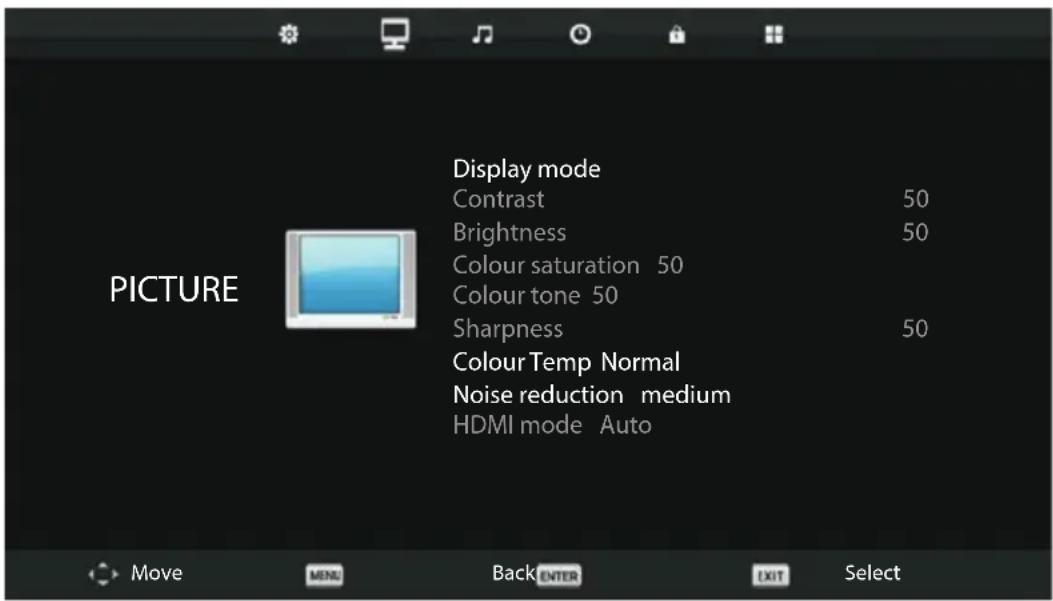

Picture menu....19

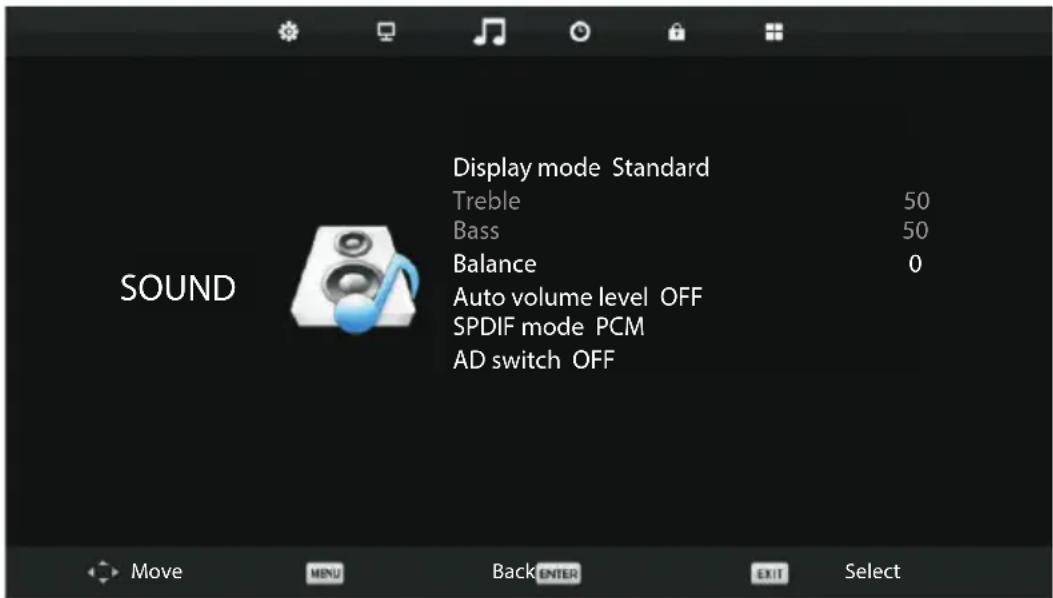

Audio menu....21

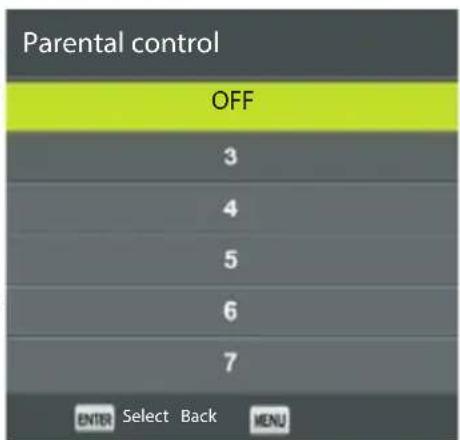

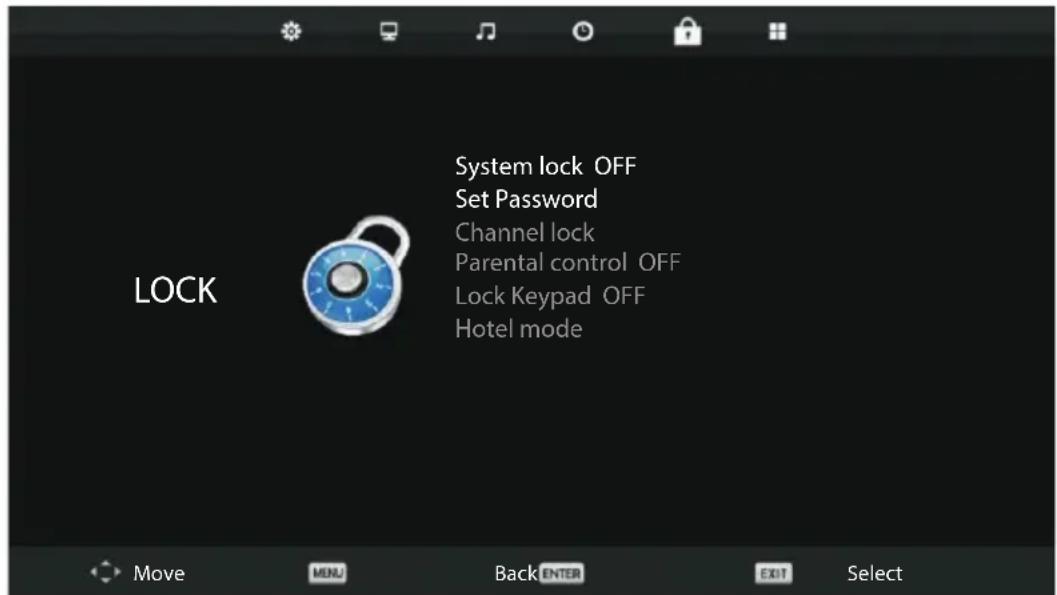

System lock menu....23

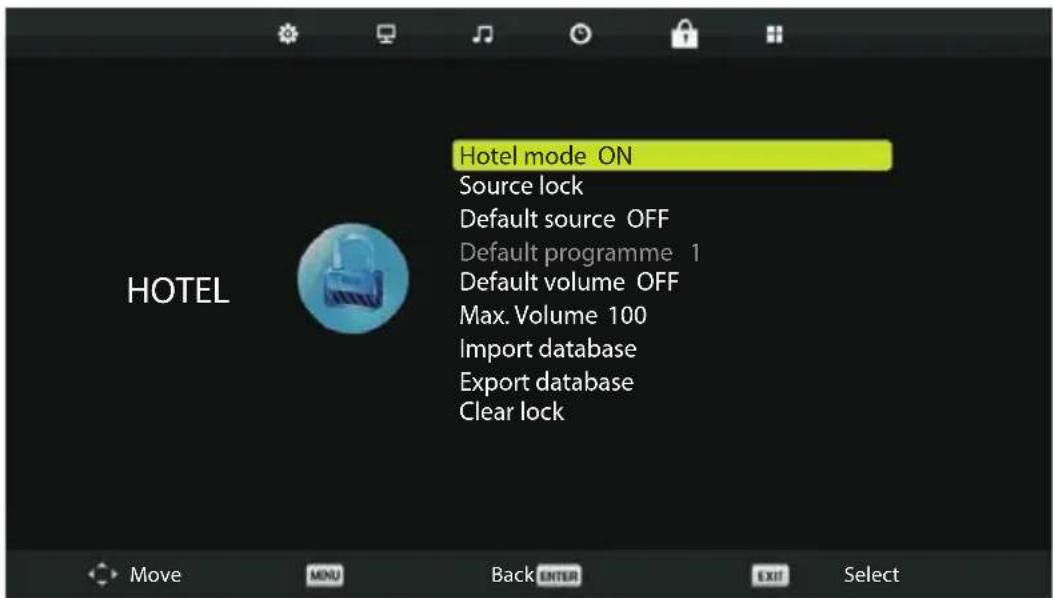

Hotel mode (requires support)....25

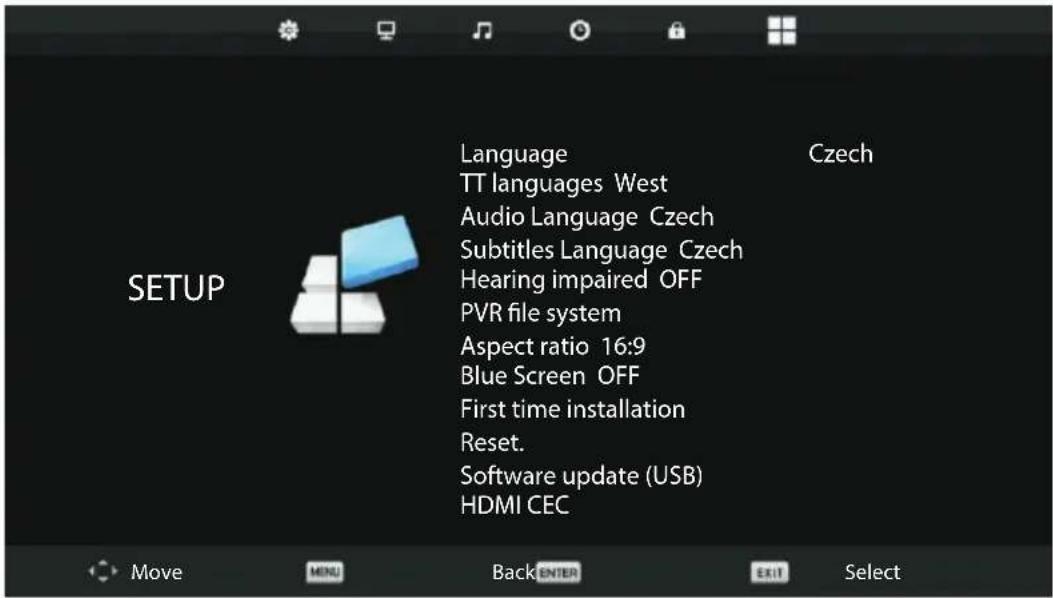

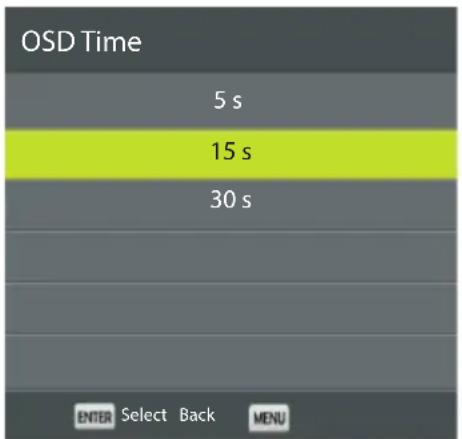

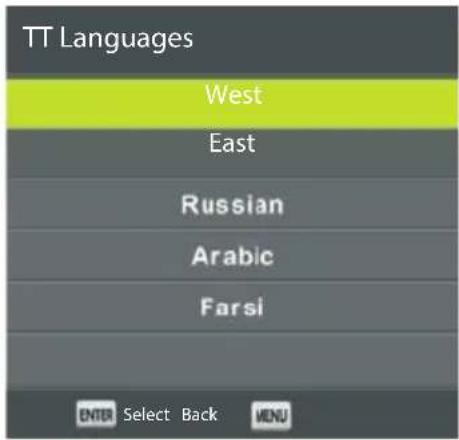

SETUP MENU 26

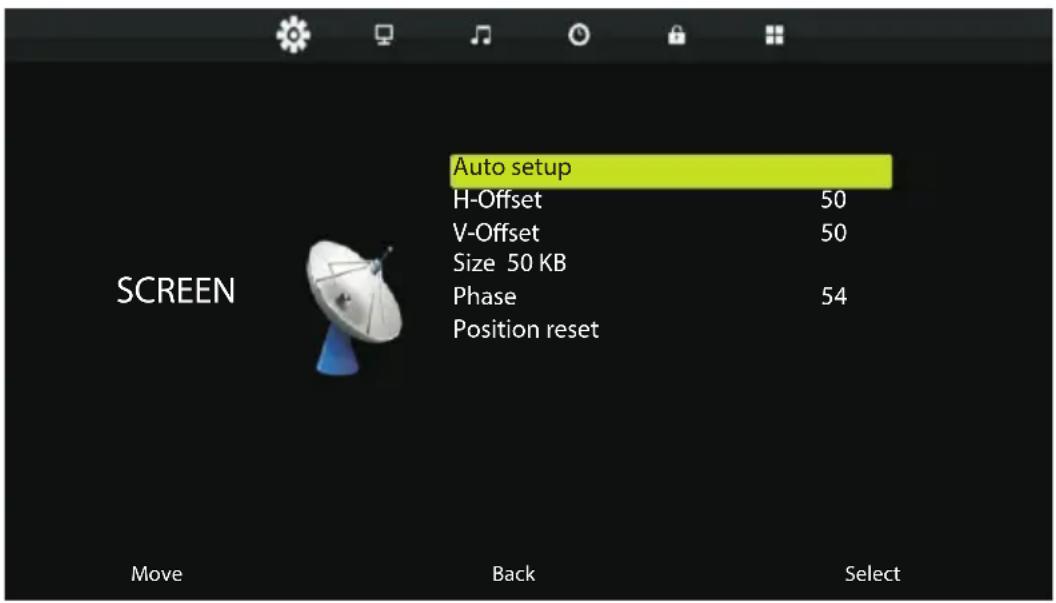

Screen menu....28

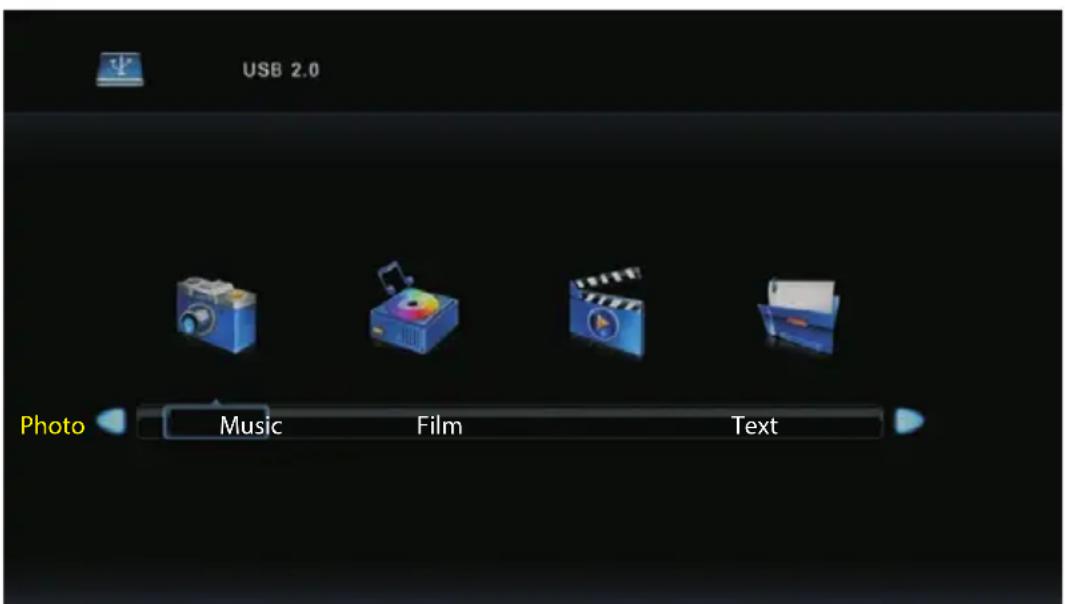

CONTROL MEDIA....29

Photo menu....30

Music menu....31

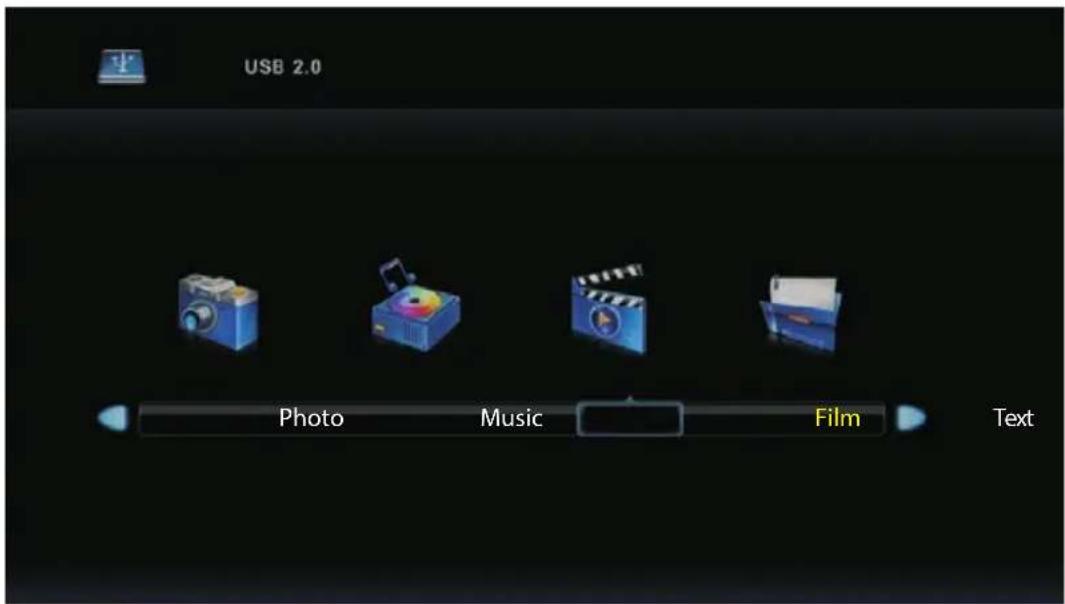

Film menu 32

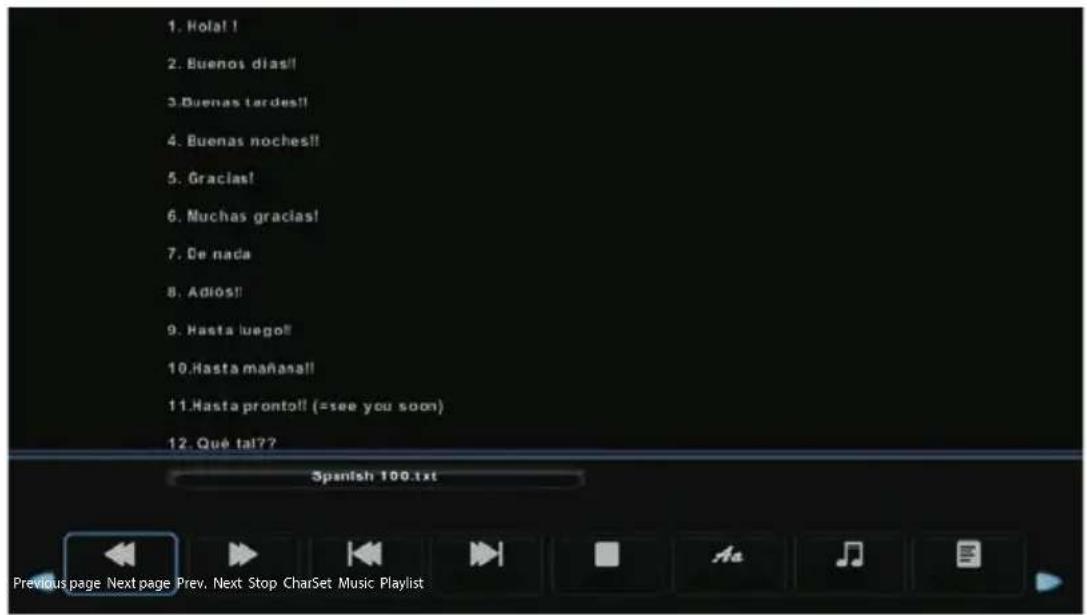

Text menu 33

TROUBLESHOOTING 34

TECHNICAL SHEET 35

SAFETY INSTRUCTIONS

Please read carefully and keep for future reference.

Warning: The safety measures and instructions contained in this manual do not include all potential conditions and scenarios. The user must understand that common sense, caution and care are factors that cannot be integrated into a product. Therefore, the user is responsible for these factors when using and operating this appliance. We are not liable for any damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

To protect against the risk of fire or electric shock, basic precautions must be taken while using electrical appliances, including the following:

ATTENTION

RISK OF ELECTRIC SHOCK, DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT OPEN THE COVER OR BACK PANEL OF THE DEVICE. THERE ARE NO COMPONENTS INSIDE THAT THE USER SHOULD REPAIR THEMSELVES. ALWAYS CONTACT TRAINED SERVICE EMPLOYEES.

A lightning arrow symbol inside a triangle warns the user of uninsulated "dangerous voltage" inside the device that can be strong enough to cause injury by electric current.

An exclamation point inside a triangle informs the user that there are important instructions for operating the device and maintenance (or service) that can be found in the manual.

1. Read all of the instructions carefully.
2. Keep the instructions for future use.
3. Pay attention to reminders found in the manual.
4. Follow all instructions.
5. Do not use the device near water.
6. Clean only with a dry cloth.
7. Do not block exhaust vents. Install the device according to the manufacturer's instructions.
8. Do not install near heating sources, such as radiators, heating units, stoves, or other appliances (including amplifiers) that generate heat.
9. Do not bypass the safety function of a grounded outlet. The power cord plug has two pins and one ground contact, to ensure your safety. If your socket does not match the power cord of this TV, ask an electrician to replace the old socket.
10. Protect the power cord, do not step on it, prevent against tangling the cord, particularly near the plug and the area where the cord exits the device.
11. Use only accessories and optional accessories recommended by the manufacturer.
12. Disconnect the power cord from the socket during thunderstorms or if the device will not be used for a long time.
13. Contact qualified service staff regarding all necessary repairs. The device will need servicing if it is damaged in any way. For example, if the power cord or plug is damaged, liquid or a foreign object gets inside the device or the device is exposed to rain or moisture, falls, or does not function as usual.
14. The socket that the TV is connected to is used to disconnect the device from the power network and must be easy to access at all times.
15. Ventilation holes must not be covered by objects such as newspapers, tablecloths, curtains etc., because this prevents the ventilation of the device.

16. Do not place any naked flame on the device, for example burning candles.

17. Respect the ecological disposal of batteries.

18. The device is designed for operation in mild climates.
19. Prevent water dripping on the device and getting into the device. Do not place any objects filled with liquid on the device, e.g. a vase with flowers.
20. Electrical discharge can lead to failure of the device functions. The functions can be manually restored by turning the device on and off again.

WARNING:

Do not expose the device to rain or moisture; this increases the risk of fire or electric shock.

WARNING:

Protect the batteries against exposure to high temperatures, e.g. direct sunlight. Do not throw the batteries into a fire.

This symbol indicates the device is classified as a class II device, with double insulation between dangerous voltage and user access parts. Only use identical spare parts when carrying out service work.

Warning

This television receiver uses high voltage for operation. Do not remove the back cover of the device. All service operations must be carried out by qualified technicians.

Reminder

Make sure the power cord does not get caught under the TV.

Warning

Do not expose the device to rain or moisture; this increases the risk of fire or electric shock.

Reminder

Do not lean against the TV, tilt or push the device. Pay close attention to the presence of children. A falling device could cause serious injury.

Warning

Prevent foreign objects getting through the ventilation holes of the device. Protect the TV against liquid spills.

Reminder

Do not install the TV on unstable stands, shelves or tables. A fall could damage the device or cause injury.

Reminder

Do not cover the ventilation holes on the back cover of the device. Sufficient ventilation is necessary for the full functioning of the electrical components.

Reminder

Minimum spacing distances must be respected if the TV is installed in an entertainment centre compartment or other enclosed area. Overheating can shorten the service life of the device and can also be dangerous.

Reminder

If the device will not be used for a long time, we recommend to disconnect the power cord from the socket.

INTRODUCTION

Thank you for purchasing this television. In order to use this device to its full potential from the very start, read this manual carefully and keep for future use.

ATTENTION

Do not tamper with any internal components and do not make any adjustments that are not defined in this manual. LED TVs use high voltage. When cleaning dust or drops off the display or device case, first unplug the power cord from the socket and then wipe the device with a dry towel. To prevent damaging the TV, disconnect the power cord and antenna during a thunderstorm. Contact a qualified service centre for all necessary repairs.

TV INSTALLATION AND CONNECTION

Instructions for assembling the stand

1. Open the carton and remove the TV and scattered accessories and base (some models without base).
2. To avoid the damage of the TV, covered with a soft mattress, put it in the table face down on a soft mattress.

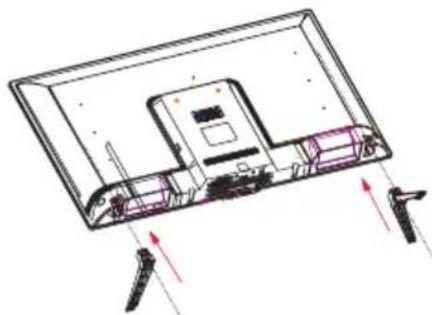

3. Clip base on card slot as the direction of arrow shown.
4. The installation is completed.

Diagram of a flat-screen monitor with internal components and directional arrows indicating movement (no text or symbols)

Positioning

• Place the unit within the room so that the display is not exposed to direct sunlight.
• Complete darkness or reflections on the screen can cause eye fatigue. Soft indirect light is recommended for comfortable viewing.
• Leave enough space between the TV and wall to allow sufficient air circulation.
• Stay away from excessively warm areas to prevent damaging the TV frame or the premature ageing of components.
• Do not cover ventilation holes.

10cm 10cm 10cm

Antenna and power connection

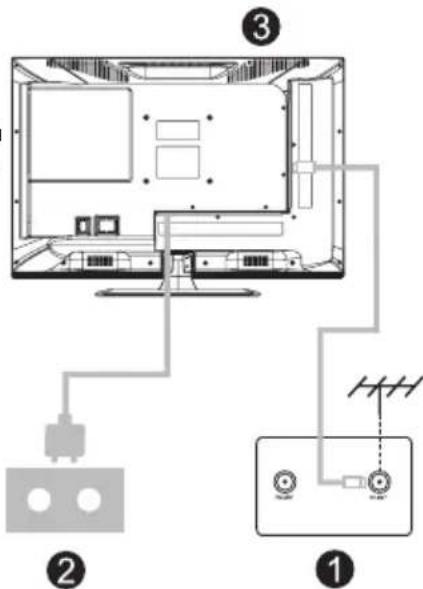

1. Connect the antenna cable to the antenna connector on the back of the TV.
2. Plug the power cord into the electric socket.
3. Switch the TV on.
   Press the On/Off switch on the TV. The indicator will turn green. When the TV is in standby mode (red indicator), the TV can be turned on by pressing a button on the remote controller.

Diagram of a home computer setup with labeled components and connections, including TV, audio, and antenna connections.

DESCRIPTION

TV and interface buttons

VARIANT A

TV buttons menu

You can call up the TV buttons menu by pressing multifunction button. If you press it briefly, the on-screen menu appears on the screen. Press again briefly to move the highlight one position to the right in the loop. The menu is automatically hidden after 5 seconds of inactivity. Press and hold the button to select the highlighted function, see below.

POWER : Power On/Off

SOURCE : External signal source

MENU : Displaying the main menu and confirming the selected items

/CH+/- : Channel selection

/ VOL +/- : Volume control

VARIANT B

Buttons on the TV

Note: The following description only represents a functional diagram. The actual position and layout can differ for various models.

VOL+ VOL - CH+ CH- MENU SOURCE

Power On/Off

SOURCE : External signal source

MENU : Displays the main menu and confirms selected items

CH+/- : Channel selection

VOL +/- : Volume control

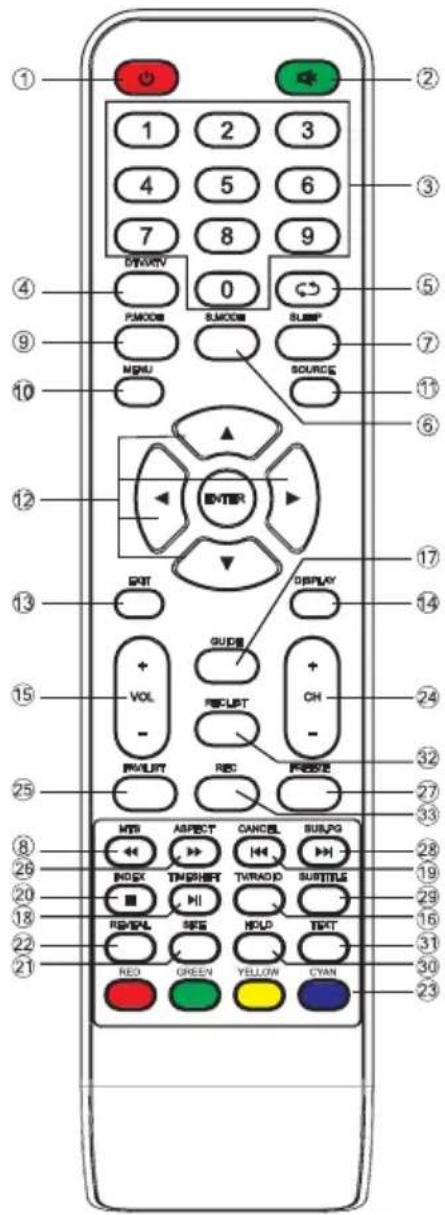

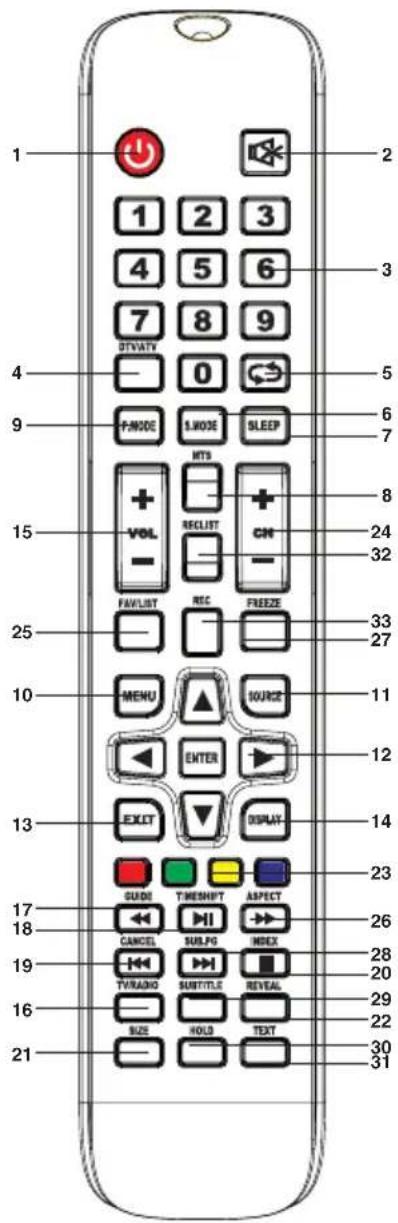

Buttons on the remote controller VARIANT A

Diagram of a remote control with labeled buttons, function keys, and numeric keypad

1. ⏻: Turn the TV on or off into standby mode.

2. ☐: Audio on/off toggle.

3. NUMERICAL BUTTONS: Direct channel entry.

4. DTV: Switch between analogue and digital TV.

5. : Return to the last monitored channel.

6. S.MODE: Switch between various sound settings.

7. SLEEP: Set the time for auto power off.

8. MTS: Sound option.

9. P.MODE: Switch between various settings.

10. MENU: Display the main menu on the screen.

11. SOURCE: Press to display the available video sources and selection.

12. ARROWS: Menu controls. / ENTER: Confirm selection.

13. EXIT: Return to the previous menu or exit the menu.

14. DISPLAY: Display channel information.

15. VOL +/-: Volume control.

16. TV/RADIO: Switch between TV And radio stations.

17. GUIDE: (a) Call up EPG (Programme guide) (b) Fast move back in PVR mode and media player.

18. TIME SHIFT: (a) Time shift for DTV channels (b) Playing in PVR mode or media player.

19. CANCEL: (a) Return from teletext mode to video mode (b) Previous chapter in PVR mode or media player.

20. INDEX: (a) Content of teletext (b) Leave the reproduction in PVR mode or media player.

21. SIZE: Change the teletext text size.

22. REVEAL: Display or hide text information.

23. Colour buttons: Controls the function indicated on the screen

24. CH-/CH+: Switch to previous or next channel.

25. FAV/LIST: Access the list of favourite channels.

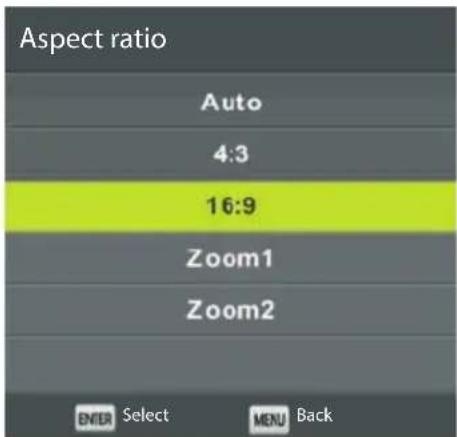

26. ASPECT: (a) Call up the display format (b) Fast move back in PVR mode or media player.

27. FREEZE: Freeze the display on the screen.

28. SUB PG: (a) Access to sub-pages (b) Next chapter in PVR regime or media player.

29. SUBTITLE: Display and set the subtitle language.

30. HOLD: Stop teletext on the current page.

31. TEXT: Open teletext.

32. RECLIST: List of recordings.*

33. REC: Press to start recording in PVR mode.*

VARIANT B

1 2 3 4 5 6 7 8 9 0 STVATY - 0 5 6 T-NODE S-NODE SLEEP 7 15 + - VOL RECLIST CN - FAVLIST REC FREEZE 33 27 10 MENU SOURCE 11 ENTER 12 EXIT DISPLAY 14 GUIDE TIMESHIFT ASPECT 23 17 CANCEL SUBPG INDEX 26 18 TV-RADIO SUBTITLE REVEAL 28 20 19 SIZE HOLD TEXT 29 22 30 31

1. ⏻: Turn the TV on or off into standby mode.
2. ☐: Audio on/off toggle.
3. NUMERICAL BUTTONS: Direct channel entry.
4. DTV: Switch between analogue and digital TV.
5. : Return to the last monitored channel.
6. S.MODE: Switch between various sound settings.
7. SLEEP: Set the time for auto power off.
8. MTS: Sound option.
9. P.MODE: Switch between various settings.
10. MENU: Display the main menu on the screen.
11. SOURCE: Press to display the available video sources and selection.
12. ARROWS: Menu controls. / ENTER: Confirm selection.
13. EXIT: Return to the previous menu or exit the menu.
14. DISPLAY: Display channel information.
15. VOL +/-: Volume control.
16. TV/RADIO: Switch between TV And radio stations.
17. GUIDE: (a) Call up EPG (Programme guide) (b) Fast move back in PVR mode and media player.
18. TIME SHIFT: (a) Time shift for DTV channels (b) Playing in PVR mode or media player.
19. CANCEL: (a) Return from teletext mode to video mode (b) Previous chapter in PVR mode or media player.
20. INDEX: (a) Content of teletext (b) Leave the reproduction in PVR mode or media player.
21. SIZE: Change the teletext text size.
22. REVEAL: Display or hide text information.
23. Colour buttons: Controls the function indicated on the screen
24. CH-/CH+: Switch to previous or next channel.
25. FAV/LIST: Access the list of favourite channels.
26. ASPECT: (a) Call up the display format (b) Fast move back in PVR mode or media player.
27. FREEZE: Freeze the display on the screen.
28. SUB PG: (a) Access to sub-pages (b) Next chapter in PVR regime or media player.
29. SUBTITLE: Display and set the subtitle language.
30. HOLD: Stop teletext on the current page.
31. TEXT: Open teletext.
32. RECLIST: List of recordings.*
33. REC: Press to start recording in PVR mode.*

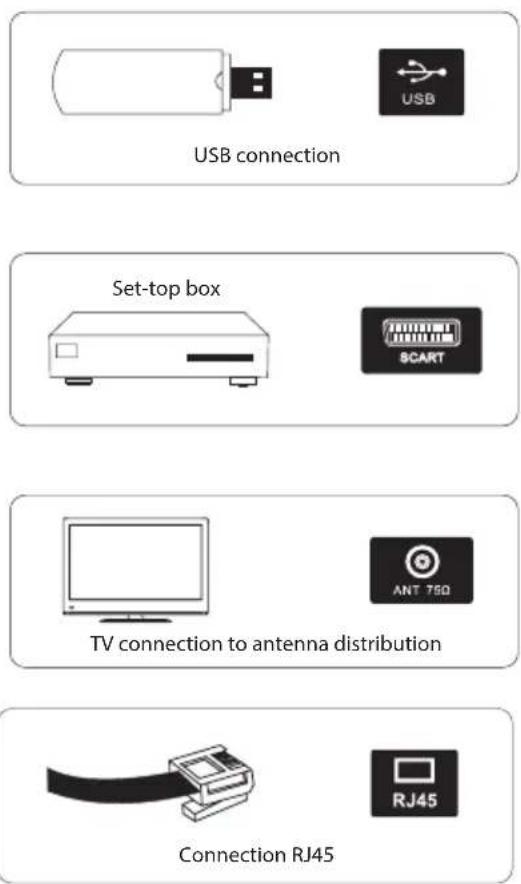

Interface

Note: The following table provides an overview of various interfaces. The actual position, type, layout and number of interfaces can differ for various models.

	AV inExternal video and audio signal In (left and right channel).
	CI slotThis slot supports cards for viewing paid TV channels.
	Y Pb Pr InComposite video signal connection from DVD/VCR.*
	HDMI InDigital signal input via HDMI connector.
	ANT 75Antenna In connection (75/VHF/UHF).

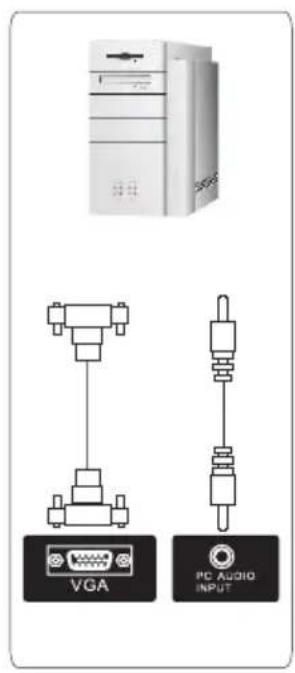

	VGA InAnalogue video from PC In.
	PC audio InAudio signal from PC with VGA video signal connection.
	Headphone jackSound is automatically muted from the TV speakers when headphones are connected.

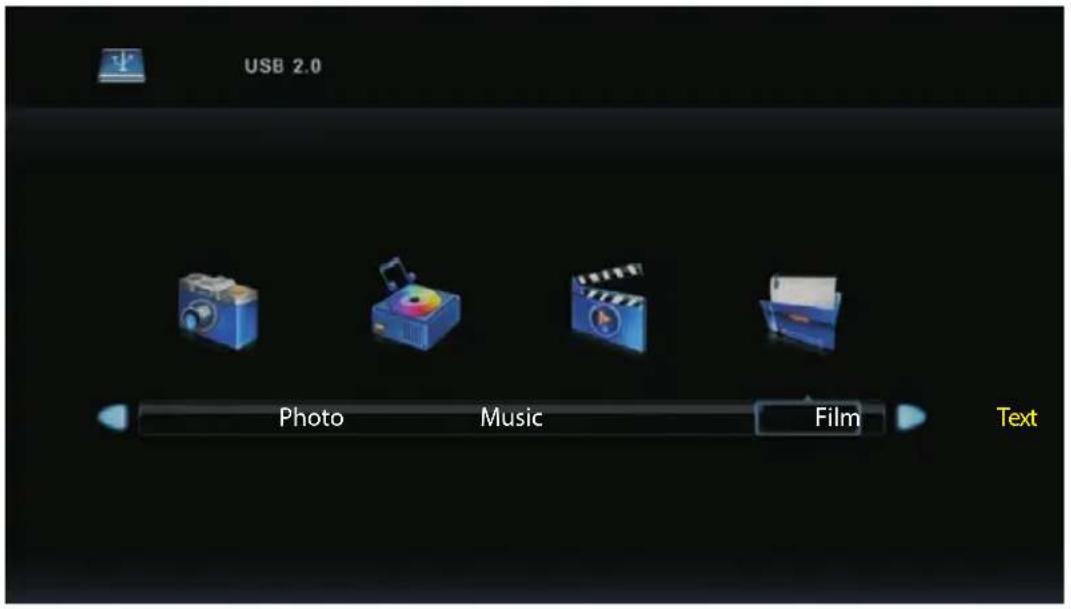

	USB INConnect a USB device and play media files or record programmes to USB.
	SCART InComposite and RGB signal input supported as a standard.(Some models are not equipped with this interface)
	COAXIALSupports the connection of an SPDIF receiver.

* Some models are not equipped with this interface

Installation diagram for external devices

VGA PC AUDIO INPUT

AV In connection OUTPUT VIDEO R L AV out connection

USB connection Set-top box SCART TV connection to antenna distribution Connection RJ45

FIRST INSTALLATION

Connect the coaxial cable to the terrestrial TV input marked ANT 75 Ω with signal from terrestrial TV broadcast or from cable system. If you receive satellite broadcasting, connect the satellite dish cable to the input marked ANT 75 Ω (S2).

Plug the electric cable of the TV set in the outlet and switch on the TV. The menu First installation appears on the screen:

First time installation Language Czech Country Czech Republic Location Home mode ENTER Auto-tune

Selection of language, country and location

Use the buttons ◀/▶ to select the language to be used for menu and messages on the screen.

Use the ◀/▶ buttons to select the required country.

Use the buttons ◀/▶ to select is the TV set will be operated at home (Home mode) or shown in the store (Comercial mode).

To continue press the button ENTER.

Select the method of automatic tuning

Use ◀/▶ to select if you want to tune analog (ATV) programs, digital programs (DTV) or noth (ATV + DTV).

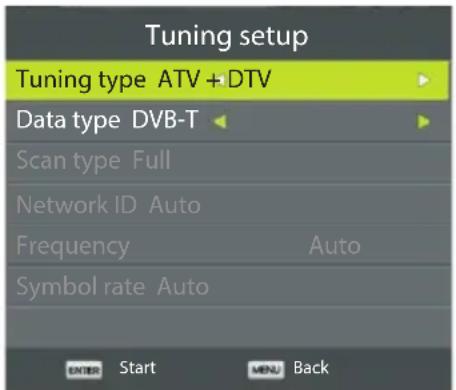

Tuning setup Tuning type ATV +DTV Data type DVB-T Scan type Full Network ID Auto Frequency Auto Symbol rate Auto ENTER Start MENU Back

Select in the item Data type modulation for the digital programs: DVB-T (terrestrial broadcast), DVB-C (cable TV) or Satellite (satellite reception DVB-S/S2).

Auto-tuning of digital terrestrial broadcasting (DVB-T / T2)

Tuning setup Country Czech Republic Tuning type DTV Data type DVB-T Scan type Full Network ID Automatic Frequency Automatic Transmission speed Automatic ENTER Start MENU Back

As Data type select DVB-T and to start the automatic search press the button ENTER.

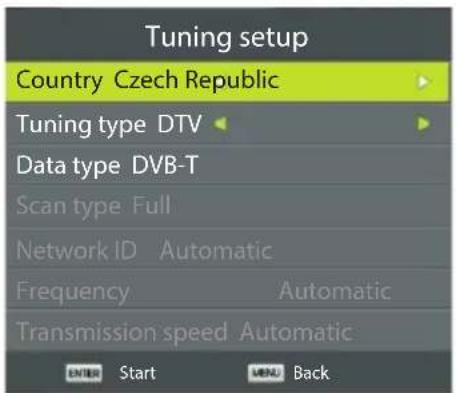

Auto-tuning of digital cable television (DVB-C)

Tuning setup Country Czech Republic Tuning type DTV Data type DVB-T Scan type Full Network ID Automatic Frequency Automatic Transmission speed Automatic ENTER Start MENU Back

As Data type select DVB-C. Select in the item Scan type whether the receiver should tune through the entire frequency band (option Full) or load the multiplexes from the NIT table of the provider (option Network search). You can set other parameters (Inetwork ID, Frequency and Transmission speed), which have the default status Automatic according to your cable TV provider's instructions. To start auto-search press the button ENTER.

If you selected ATV + DTV and want to skip the analog tuning, press MENU and then confirm Yes by pressing ◀.

Setup status TV 0 programmes DTV 0 programmes Radio 0 programmes Data 0 programmes 0 % 46.25 MHz (TV) Press "MENU" to skip

Do you want to skip ATV tuning? Yes No

The Tv will continue to scan digital programs(DTV).. Press MENU to end the tuning any time.

Setup status TV 0 programmes DTV 0 programmes Radio 0 programmes Data 0 programmes 50 % VHF CH 1 (DTV) Press "MENU" to exit

Do you want to exit tuning Yes No

Even if you interrupt or end the tuning, the programs found so far will be saved.

Auto-tuning of digital satellite broadcasting (DVB-S/S2)

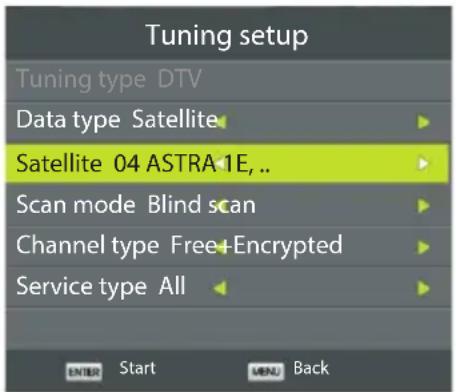

Tuning setup Tuning type DTV Data type Satellite Satellite 04 ASTRA-1E, .. Scan mode Blind scan Channel type Free+Encrypted Service type All ENTER Start MENU Back

Select as Data type Satellite. Select in the item Satellite the satellite from which you will receive programs, e.g. ASTRA 1E, 1G, 3A (position 23.5° E). Select in the item Scan mode whether the receiver should scan the entire frequency band (option Blind scan), search for programs preset in the TV set or load the transponders from the NIT table broadcast by the satellite by the provider (option Network). If you select Channel you can limit the search to free (Free), encrypted (Encrypted) or all programs. You can specify in the item Service type whether to search for all services (All) or just TV (DTV) or radio programs (RADIO). To start auto-search press the button ENTER.

TELEVISION CONTROLS

Press MENU to bring up the main TV control menu.

Channel menu

Use the buttons ◀/▶ to select the menu CHANNEL in the main menu.

CHANNEL Auto-tune ATV manual tuning DTV manual tuning Programme editing Schedule list Signal information CI information Move MENU Back ENTER EXIT Select

1. Use the buttons ▼/▲ to select the required function.
2. Press ENTER to bring up the selected function.
3. Pro uložení změn a návrat do předchozí nabídky Press the button MENU to save any changes and return to previous menu, to exit the menu entirely, press EXIT.

Auto-tune

Auto-tuning is described in the section FIRST INSTALLATION. If you want to tune satellite programs, the TV input must be switched to satellite (button SOURCE).

Manual analog tuning

Channel:

Preset number

Colour system:

Colour standard (AUTO/PAL/SECAM)

Sound System:

Sound standard (BG/I/DK/L)

Fine tuning:

Precise Channel Frequency Tuning

Search:

Using the buttons ◀/▶ start the search up or down

Frequency:

TV channel frequency

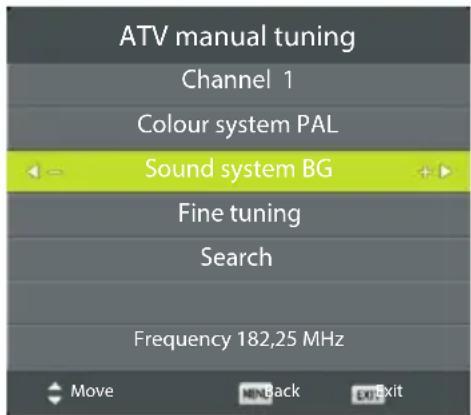

ATV manual tuning Channel 1 Colour system PAL Sound system BG Fine tuning Search Frequency 182,25 MHz Move MINBack Exit

Manual digital tuning

Press repeatedly ◀/▶ or select directly using the buttons 0-9 enter the channel number of the TV multiplex. If a signal has been found, its level appears on the scale. Start the program tuning by pressing the button ENTER. The number of programs found will be displayed after a while.

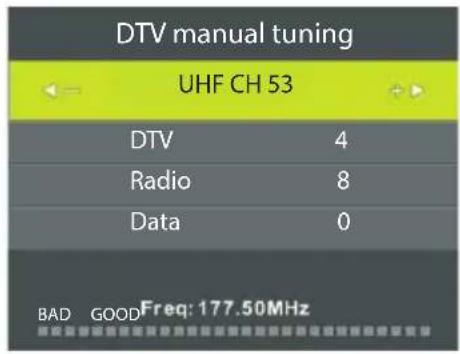

DTV manual tuning UHF CH 53 DTV 4 Radio 8 Data 0 BAD GOODFreq: 177.50MHz

Programs editing

Press ▼/▲ to select the preset which you want to edit.

Delete the selection by pressing the red button.
You can change the order of the programs using the yellow button.
Set skipping of a selected program using the blue button. The marked channel will be skipped when browsing channels using the buttons CH+/-.

Press FAV to add the selected preset to the list of your favourite programs, press again to remove it from the list.

Programme editing 1 Prima LOVE | T2 2 Prima ZOOM | T2 3 Prima MAX | T2 4 Prima | T2 5 Prima COOL | T2 6 Ocko | T2 7 Ocko Gold | T2 8 Barrandov Plus | T2 9 Kino Barrandov | T2 10 BARRANDOV TV | ...

Programming schedule (overview of programmed events)

Schedule list 1/1 Programme name Type 1 [DTV] Manual timer set 05/11/2010 11:47~12:17 Move Delete Add Edit

Add a new event by pressing the yellow button . A table for specifying the entered parameters appears on the screen:

Schedule setup 1 ONE HD Type Recorder Mode Once Time start. 11:47 05 Lis Time end 12:17 05 Lis ENTER Select Back MENU

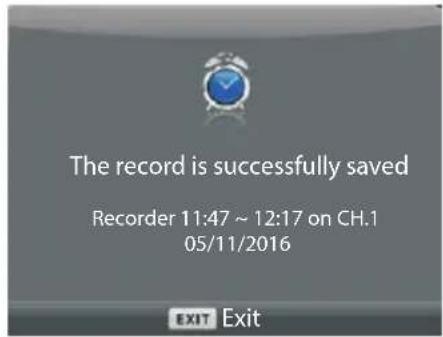

The record is successfully saved Recorder 11:47 ~ 12:17 on CH.1 05/11/2016 EXIT Exit

If a set time conflict occurs, a warning message appears.

Signal information

You can view information about the received signal in this menu. This function is not accessible for an analog reception.

Signal information Channel: 5 (177.50 MHz) Network Unknown modulation Quality 100 (Good) Signal 0 (Weak)

CI information (requires CA module input)

With this feature you can call up and configure the information about the inserted CA module.

Setting satellite

You can access this menu if you select Satellite as your signal source. Here you can select, add, delete and edit satellites and their transponders. You can also start automatic tuning of one or more satellites or transponders from this menu.

Setting satellite Satellite 001 013.0 E Ku HOTBIRD 6.7A,8 002 019.2 E Ku_ASTRA 1H,1KR,1L,1M 003 028.2 E Ku_ASTRA 2A,2B,2D 004 023.5 E Ku_ASTRA 1E,1G,3A 005 353.0 W Ku_NILESAT 101,10 006 007.0 E Ku_EUTELSAT W3A 007 010.0 E Ku_EUTELSAT W1 008 026.0 E Ku_BADR-2,3,4/EURO Ku HOTBIRD 6.7,A,8 Type LNB 09750/10600 LNB power 13/18V 22 kHz Auto Toneburst None DiSEqC1.0 LNB2 DiSEqC1.1 None Motor None Quality TransPonder OK Select Edit Exit Delete Scan Add

The left table shows an overview of pre-loaded satellites. If you mark one or more satellites by pressing OK, you can start their auto-tuning by pressing the blue button Scan.

Parameters for switching polarizations and LNC bands or for switching multiple LNCs among each other are set in the table on the right.

When you press the button GUIDE you call up the list of transponders of the selected satellite where you can select, add, delete and edit. A transponder overview is displayed in the table on the left, and on the right you can set parameters to switch polarizations and LNC bands or to switch multiple LNCs among each other.

Setting satellite Transponder 001 013.0 E Ku_HOTBIRD 6.7A.8 002 019.2 E Ku_ASTRA 1H,1KR,1L,1M 003 028.2 E Ku_ASTRA 2A,2B,2D 004 023.5 E Ku_ASTRA 1E,1G,3A 005 353.0 W Ku_NILESAT 101, 10 006 007.0 E Ku_EUTELSAT W3A 007 010.0 E Ku_EUTELSAT W1 008 026.0 E Ku_BADR-2,3,4/EURO Ku HOTBIRD 6.7,A,8 Type LNB 09750/10600 LNB power 13/18V 22 kHz Auto Toneburst None DiSEqC1.0 LNB2 DiSEqC1.1 None Motor None Quality TransPonder OK Select Edit Exit Delete Scan Add

You can add transponders by pressing the yellow button Add and delete transponders by pressing the red button delete. If you mark one or more transponders by pressing OK, you can start their auto-tuning by pressing the blue button Scan. The signal quality of the selected transponder is displayed on the scale in the middle.

Setting satellite Transp Edit 001 013.0 E Ku_HOTBIR Transponder 09760210600 002 019.2 E Ku_ASTRA Frequency 13/18V 003 028.2 E Ku_ASTRA Symbol (pc/s) 27500 Auto 004 023.5 E Ku_ASTRA Polarity V Nothing 005 353.0 W Ku_NILESI LNB2 006 007.0 E Ku_EUTELS Nothing 007 010.0 E Ku_EUTELS 008 026.0 E Ku_BADR-2.3.4/EURO Motor None Quality End OK Confirm

You can edit frequency, symbol speed and polarization of the selected transponder when you press the green button Edit. Save the changes by pressing rhe button OK.

Picture menu

Press MENU to display the main menu.

Use buttons ◀/▶ to select the Picture item in the main menu.

PICTURE Display mode Contrast 50 Brightness 50 Colour saturation 50 Colour tone 50 Sharpness 50 Colour Temp Normal Noise reduction medium HDMI mode Auto

1. Select the option you wish to configure in the PICTURE menu via ▼/▲.
2. Press ENTER to set.
3. When you have finished with the configuration, press MENU to save the changes and return to the previous menu.

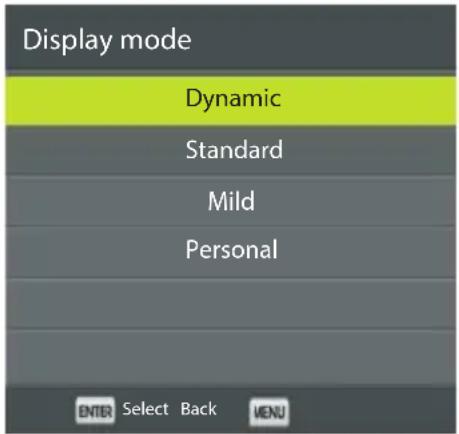

Display mode

Press ▼/▲ to select the Picture mode and then press ENTER to enter the sub-menu.

In the Personal mode you can edit the value of the contrast, brightness, saturation and colour tone.

Tip: Press PMODE to directly set the screen mode.

Display mode Dynamic Standard Mild Personal ENTER Select Back MENU

Brightness/Contrast/Sharpness/Tint/Hue

Press ▼/▲ to make your selection and adjust via ◀/▶.

Brightness Brightness settings.

Contrast Contrast settings.

Sharpness Sharpness settings

Saturation Colour saturation settings.

Tone Colour hue settings. For signal in NTSC format only.

Colour temperature

Changes the overall colour of the picture.

Press ▼/▲ to select Colour Temp and choose between Standard, Warm and Cold via the ◀/▶ buttons.

Normal Creates a vivid and crisp picture

Warm The picture is tuned to warm red tints

Cold The picture is tuned to cold blue tints

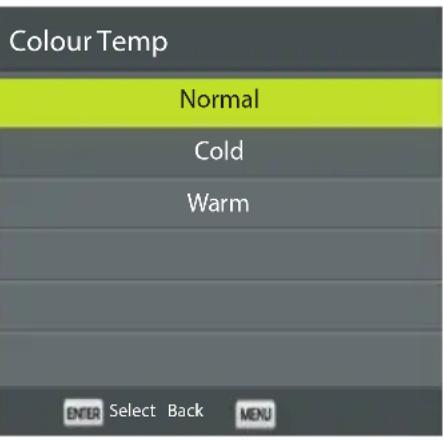

Colour Temp Normal Cold Warm ENTER Select Back MENU

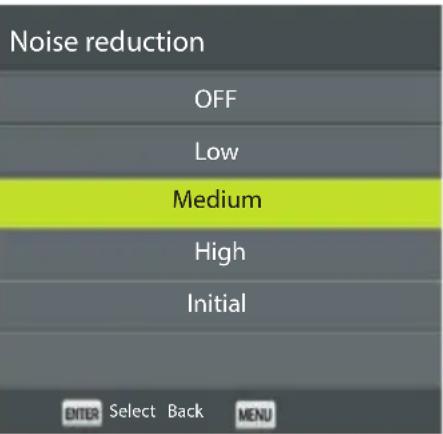

Noise reduction

Enables to filter image noise and enhance the quality of the picture.

Press ▼/▲ to select Noise reduction and then press ENTER to enter the sub-menu.

Off Noise reduction off

Low Low rate of reduction

Medium Medium rate of reduction

High High rate of reduction

Initial Default noise reduction

Noise reduction OFF Low Medium High Initial ENTER Select Back MENU

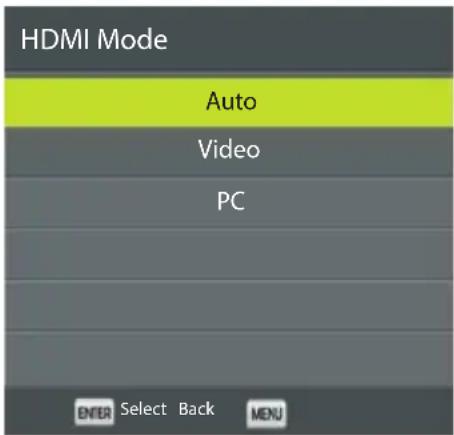

HDMI mode

Press ▼/▲ to select the EDMI mode and then press ENTER to enter the sub-menu.

Using the arrows, select the requested mode (Auto, Video, PC).

HDMI Mode Auto Video PC ENTER Select Back MENU

Audio menu

Press MENU to display the main menu.

Use buttons ◀/▶ to select in the main menu the item SOUND and press ENTER to enter the menu.

Display mode Standard Treble 50 Bass 50 Balance 0 Auto volume level OFF SPDIF mode PCM AD switch OFF

1. Select the option you wish to configure in the AUDIO menu via ▼/▲.
2. Press ENTER to set.
3. When you have finished with the configuration, press ENTER to save the changes and return to the previous menu.

Audio mode

Press ▼/▲ to select the item Sound mode and press ENTER to enter the sun-menu and use buttons ▼/▲ to select the requested mode.

In the Personal mode you may set any level of bass and treble.

Tip: Press SMODE to directly set the sound mode.

Standard Balanced sound for all environments.

Music Keeps the original sound. Recommended for music broadcasts.

Movie Boosts the treble and bass for a rich sound experience.

Sport Boosts the frequency of the commentary.

Personal Enables to set your own sound.

Audio mode

Standard

Music

Movie

Sport

Personal

Balance

Press ▼/▲ to make your selection and adjust via ◀/▶.

Auto volume level

Press ▼/▲ to select option and use buttons ◀/▶ to select ON or OFF.

Digital out

Press ▼/▲ to select option and use buttons ◀/▶ to select ON / PMC / OFF.

AD switch

Press ▼/▲ to select option and use buttons ◀/▶ to select ON or OFF.

Note:

Balance: This item enables to set the balance of the left and right speakers so it optimally corresponds to your listening position.

Automatic volume: For restricting the differences in the volume between individual channels.

Menu Time

Press MENU to display the main menu.

Use buttons ◀/▶ to select in the main menu the item TIME and press ENTER to enter the menu.

Clock -- --- Time zone Berlin GTM+1 Sleep Timer OFF Auto standby 4H OSD time 15 s TIME

1. Use buttons ▼/▲ to select TIME in the menu for the option you want to set.
2. Press ENTER to set.
3. When you have finished with the configuration, press ENTER to save the changes and return to the previous menu.

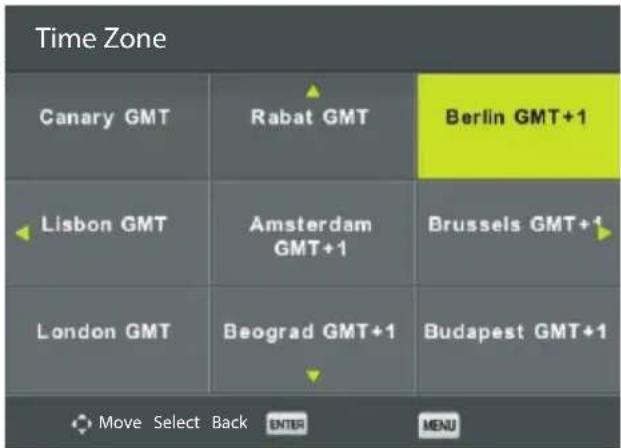

Time zone

Press ▼/▲ to select the Time zone and then press ENTER to enter the sub-menu.

Use buttons ▼/▲/◄/►, to select the time zone.

Time Zone Canary GMT Rabat GMT Berlin GMT+1 Lisbon GMT Amsterdam GMT+1 Brussels GMT+1 London GMT Beograd GMT+1 Budapest GMT+1 Move Select Back ENTER MENU

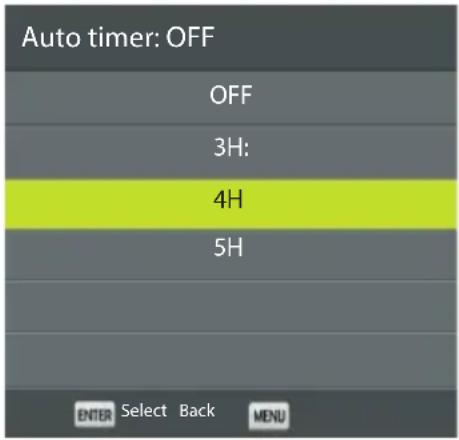

Sleep Timer

Press ▼/▲ to select the item Sleep timer and press ENTER to enter the sub-menu.

Use buttons ▼/▲ to set select timer.

Use buttons ▼/▲ to select the time up to automatic disconnection.

Auto timer: OFF OFF 3H: 4H 5H ENTER Select Back MENU

OSD display time

Press ▼/▲ to select OSD time and press ENTER to enter the sub-menu. Use buttons ▼/▲ to select the time on the menu on the screen.

OSD Time 5 s 15 s 30 s ENTER Select Back MENU

System lock menu

Press MENU to display the main menu.

Use buttons ◀/▶ to select in the main menu the item system lock and press ENTER to enter the menu.

System lock OFF Set Password Channel lock Parental control OFF Lock Keypad OFF Hotel mode LOCK Move MENU Back ENTER EXIT Select

1. Use buttons ▼/▲ to select in the LOCK menu the option you want to set.
2. Press ENTER/◄/► to set.
3. When you have finished with the configuration, press MENU to save the changes and return to the previous menu.

Blocking system

Press ▼/▲ to select the item System lock and then press ENTER to enter the sub-menu.

The default password is 0000. Should you forget your password, contact a repair shop.

Please enter password Clear Cancel

Set Password

Press ▼/▲ to select the item Set password and then press ENTER to enter the sub-menu for setting a new password.

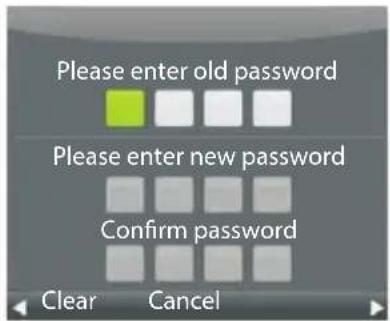

Please enter old password Please enter new password Confirm password Clear Cancel

Channel Locks

Press ▼/▲ to select the item Channel lock and press ENTER to enter the sub-menu. Use the green button to activate or deactivate the channel lock.

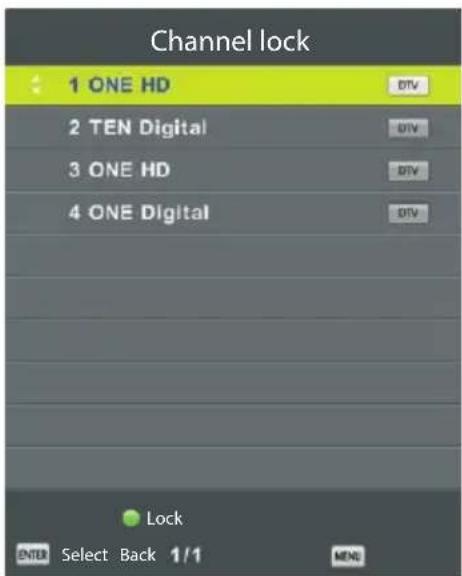

Channel lock 1 ONE HD 2 TEN Digital 3 ONE HD 4 ONE Digital Lock ENTO Select Back 1/1 DTV DTV DTV DTV DTE

Parental guidance

Press ▼/▲ to select Parental guidance, press ENTER to enter the sub-menu and select the requested level of protection according to the age of the children.

Parental control OFF 3 4 5 6 7 ENTER Select Back MENU

Lock Keypad

By activating this option, you can prevent undesirable use, for example, by children.

Press ▼/▲ to select the item Key lock and use buttons ◀/▶ to set ON or OFF.

Hotel mode (requires support)

Hotel mode ON Source lock Default source OFF Default programme 1 Default volume OFF Max. Volume 100 Import database Export database Clear lock

1. Use buttons ▼/▲ to select in the LOCK menu the option Motel mode.
2. Press ENTER to enter the sub-menu.
3. When you have finished with the configuration, press MENU to save the changes and return to the previous menu.

Hotel mode

Press ▼/▲ to select the item Hotel mode and use buttons ◀/▶ select ON or OFF.

Source lock

Use ▼/▲ to press the item Source lock and then press ENTER to enter the sub-menu.

Default source

Use ▼/▲ to select the item Default source and then press ENTER to enter the sub-menu.

Default programme

Press ▼/▲ to select the item Default prog and set using buttons ◀/▶.

Maximum volume

Press ▼/▲ to select the item Max volume and set using buttons ◀/▶.

Cancel lock

Press ▼/▲ to select Cancel lock and then press ENTER to delete previous setting.

SETUP MENU

Press MENU to display the main menu.

Use buttons ◀/▶ to select SETUP in the main menu.

Language TT languages West Audio Language Czech Subtitles Language Czech Hearing impaired OFF PVR file system Aspect ratio 16:9 Blue Screen OFF First time installation Reset. Software update (USB) HDMI CEC Czech SETUP Move MENU Back ENTER EXIT Select

1. Use buttons ▼/▲ to select in the SETUP menu the option you want to set.
2. Press ENTER to set.
3. When you have finished with the configuration, press ENTER to save the changes and return to the previous menu.

OSD menu language

Press ▼/▲ to select the OSD Language and choose the desired language via ▼/▲/◄/►. Set English as the default language.

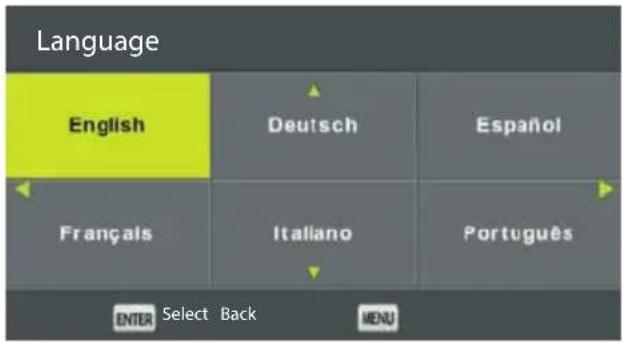

Language English Deutsch Español Français Italiano Português ENTER Select Back MENU

Teletext language

Press ▼/▲ to select TT languages via ▼/▲/◄/► to select the group of languages to display the text.

TT Languages West East Russian Arabic Farsi ENTER Select Back MENU

* only available for 50 F02T2S2

Audio Languages

Press ▼/▲ to select Audio Languages and then press ENTER to enter the sub-menu.

Use ▼/▲/◄/► to select Primary sound language and Secondary sound language.

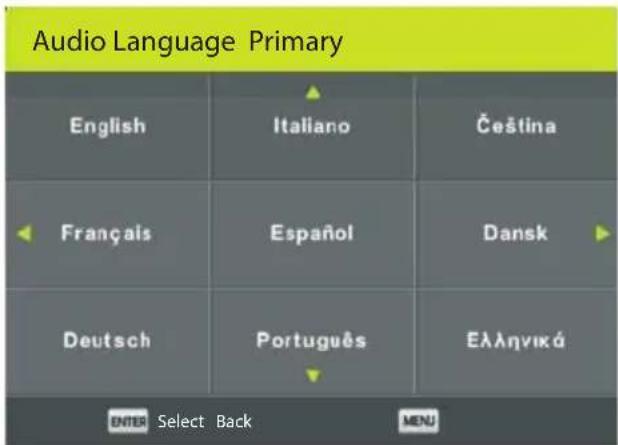

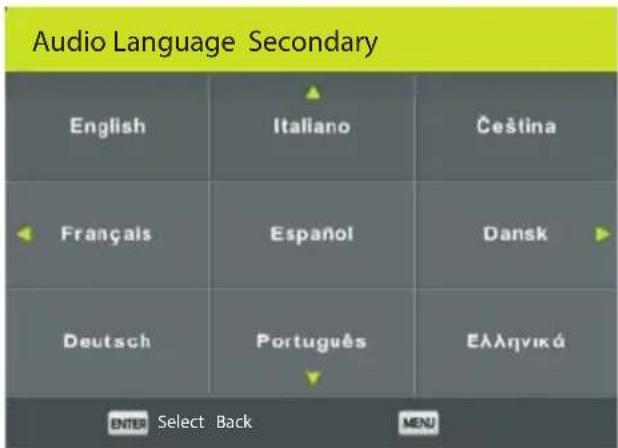

Audio Language Primary English Italiano Čeština Français Español Dansk Deutsch Português Ελληνικά ENTER Select Back MENU

Subtitle language

Press ▼/▲ to select Subtitle Languages and then press ENTER to enter the sub-menu.

Use ▼/▲/◄/► to select Primary language subtitles and Secondary language subtitles.

Audio Language Secondary English Italiano Čeština Français Español Dansk Deutsch Português Ελληνικά ENTER Select Back MENU

PVR file system\*

Press ▼/▲ to select PVR file system and then press ENTER to enter the sub-menu.

Press ▼/▲ to select Check PVR file system and then press ENTER to enter the sub-menu. The UBS speed is checked.

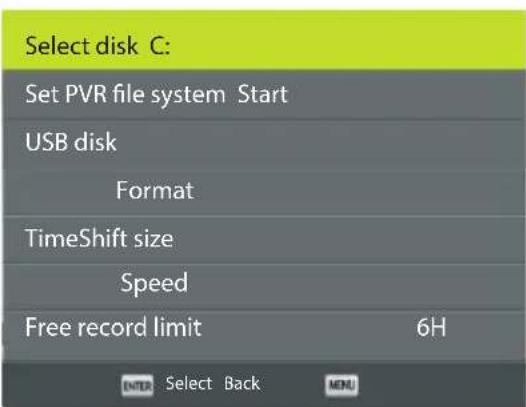

Select disk C: Set PVR file system Start USB disk Format TimeShift size Speed Free record limit 6H ENTER Select Back MENU

Aspect ratio

Press ▼/▲ to select the Aspect ratio and then press ENTER to enter the sub-menu.

Press ▼/▲ to select the aspect ratio.

Available settings are: Auto, 4:3, 16:9, Zoom1, Zoom2.

Aspect ratio Auto 4:3 16:9 Zoom1 Zoom2 ENTER Select MENU Back

Accessibility for those with impaired hearing

Press ▼/▲ to select the item Hearing impaired and press the button b/B to set ON or OFF.

Blue Screen

Press ▼/▲ to select the item Hearing impaired and press the button b/B to set ON or OFF.

Blue Screen

First installation

Press ▼/▲ to select the First installation and run the installation by pressing the ENTER button.

Restore the default factory settings

Press ▼/▲ to select Restore the default settings Press ENTER to access the sub-menu.

Software update (USB)

Press ▼/▲ to select Software update (USB), connect USB into the USB port memory device with updated file and press ENTER to run the update.

Screen menu

Press MENU to display the main menu.

Press buttons ◀/▶ to select SCREEN in the main menu.

Auto setup H-Offset 50 V-Offset 50 Size 50 KB Phase 54 Position reset Screen Move Back Select

1. Press ▼/▲ to select in the SCREEN menu the option you want to set.
2. Press ENTER to set.
3. When you have finished with the configuration, press ENTER to save the changes and return to the previous menu.

Auto setup

Press ENTER run the automatic setting of horizontal and vertical positions, sizes and phases of picture.

H Offset

Set the horizontal position of the picture

Press ▼/▲ to select H-Offset and then press ENTER to enter the sub-menu.

V Offset

Set the vertical position of the picture

Press ▼/▲ to select V-Offset and then press ENTER to enter the sub-menu.

Size

Display dimensions setting

Press ▼/▲ to select Size and then press ENTER to enter the sub-menu.

Phase

Set the horizontal frequency of the picture

Press ▼/▲ to select Phase and then press ENTER to enter the sub-menu.

Position reset

Press ▼/▲ to select the item Reset position and press ENTER to reset the default setting of the picture position.

CONTROL MEDIA

Note:

- Prior to navigating through the Media menu, plug in the USB device to the TV and press INPUT to switch the TV to Media.

Use ▼/▲ to select Media from the input source menu and press ENTER to enter the menu.

USB 2.0 Photo Music Film Text

Use ◀/▶ to select the item you wish to set from the Media menu and press ENTER to enter the menu.

Photo menu

Press ◀/▶ to select from the menu the option Photo and press ENTER to enter. Press EXIT to return to the previous menu and exit the actual menu.

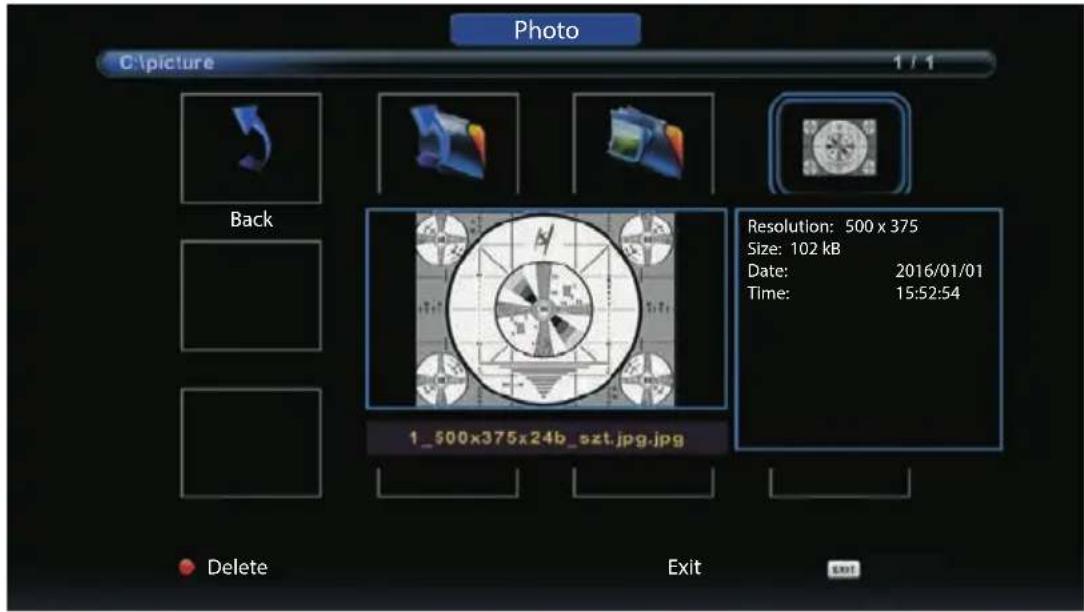

Photo C:\picture 1 / 1 Back Resolution: 500 x 375 Size: 102 kB Date: 2016/01/01 Time: 15:52:54 1_500x375x24b_szt.jpg.jpg Delete Exit

Press ◀/▶ to select the file from the menu you want to display and press ▶II to display it. After highlighting the required file, information about the file is displayed on the right side of the screen and in the middle of the screen, there is view of the picture.

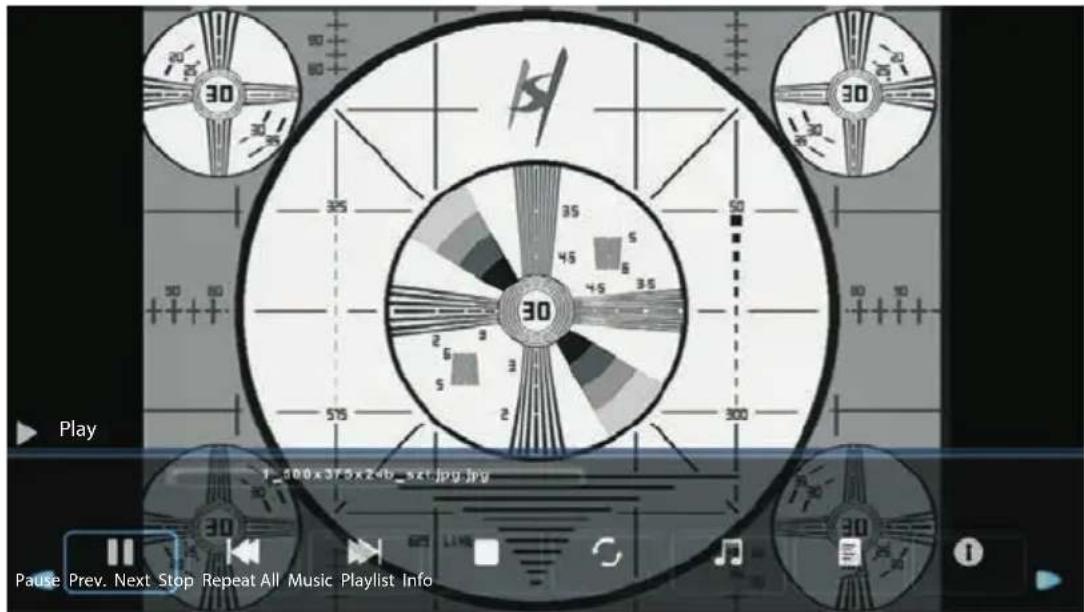

Play 1_300x375x24b_sxt.jpg.jpg Pause Prev. Next Stop Repeat All Music Playlist Info

Music menu

Press ◀/▶ to select from the menu the option Music and press ENTER to enter. Press EXIT to return to the previous menu and exit the actual menu.

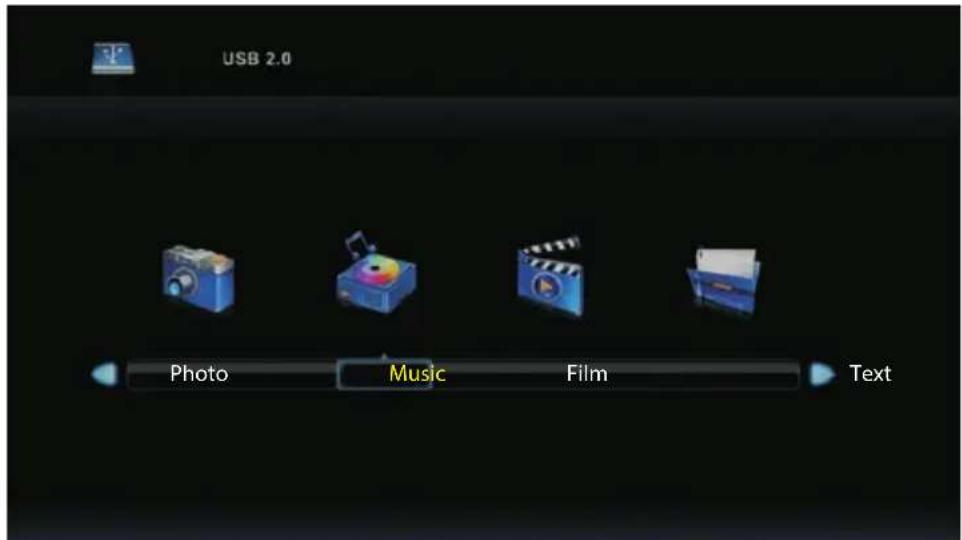

USB 2.0 Photo Music Film Text

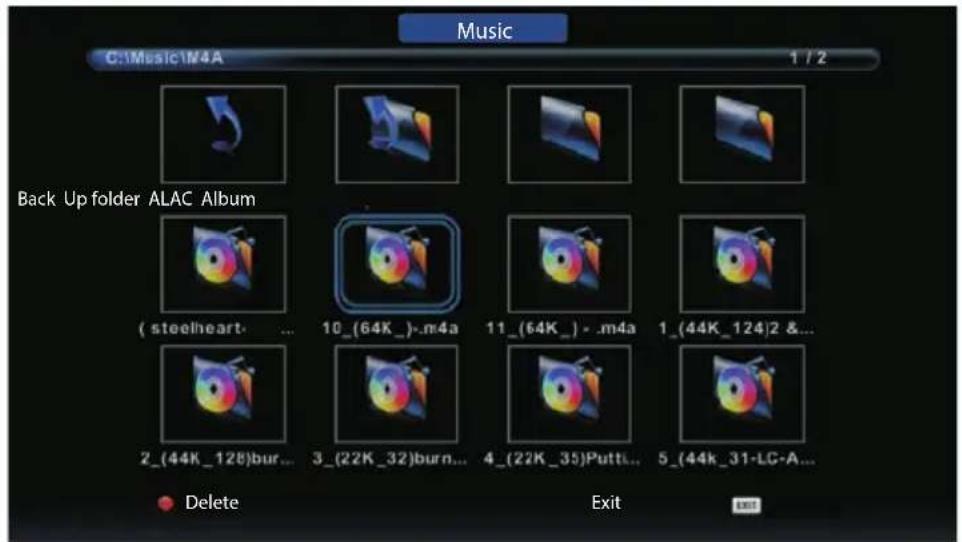

Music C:\Music\M4A 1 / 2 Back Up folder ALAC Album ( steelheart- ... 10_(64K_)-.m4a 11_(64K_) - .m4a 1_(44K_124)2 &... 2_(44K_128)bur... 3_(22K_32)burn... 4_(22K_35)Puttl... 5_(44k_31-LG-A... Delete Exit

Press ◀/▶ to select the disk you want play and press and ENTER to start playing. To return to the previous menu, use ◀/▶ to select the option Back.

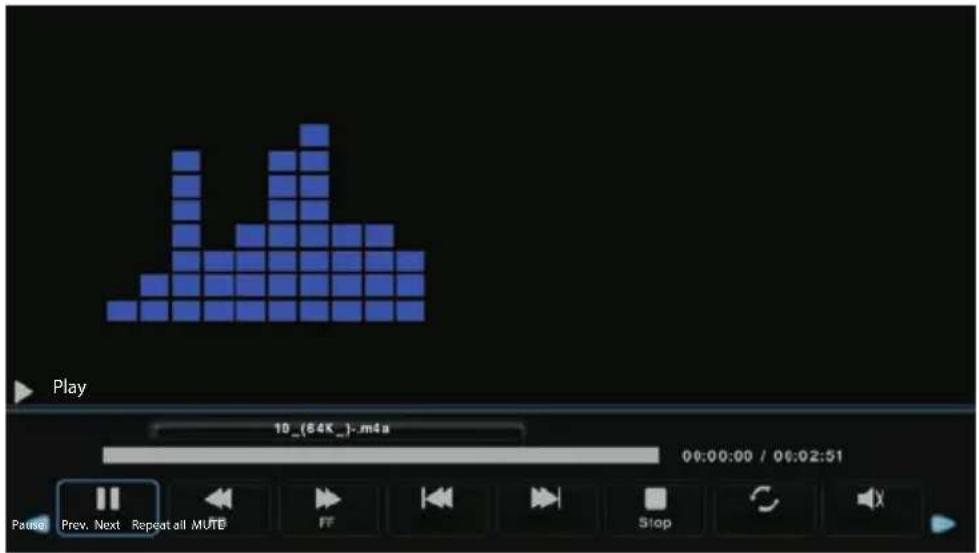

Play 10_(64K_).m3a 00:00:00 / 00:02:51 Pause Prev. Next Repeat all MUTE FF Stop

Film menu

Press ◀/▶ to select from the menu the option Film and press ENTER to enter. Press EXIT to return to the previous menu and exit the actual menu.

USB 2.0 Photo Music Film Text

Press ◀/▶ to select disk and press ENTER to enter.

Press ▶■ button to play the selected film.

Press DISPLAY button to select the control menu in the lower part of the screen, select the button for the requested function and press ENTER to execute the command.

Press EXIT to return to the previous menu and exit the actual menu.

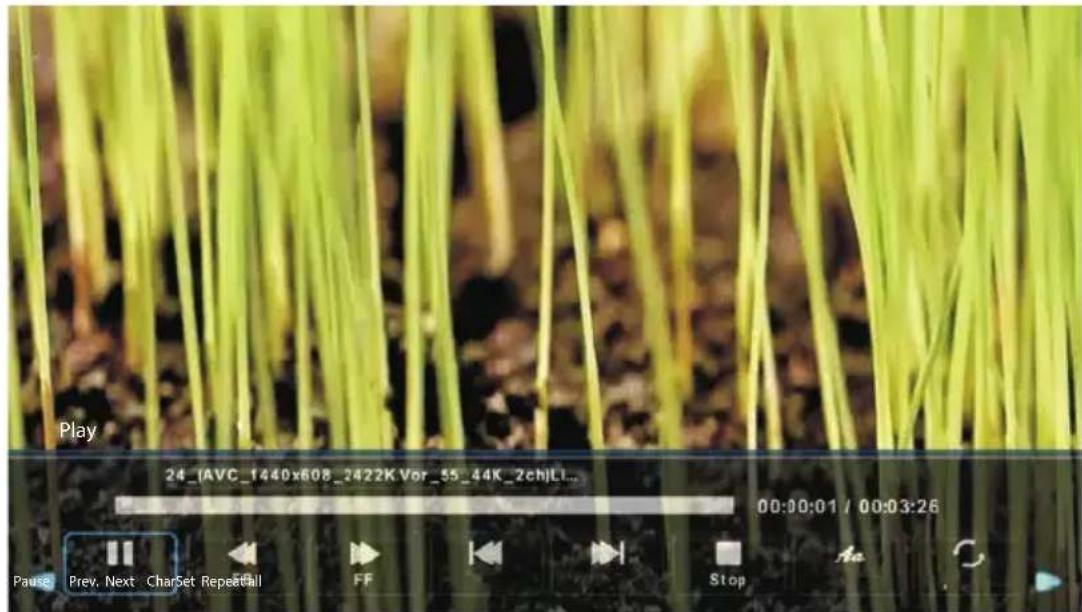

Play 24_(AVC_1440x608_2422K_Vor_55_44K_2ch)LI... 00:00:01 / 00:03:26 Pause Prev. Next CharSet RepeatCall FF Stop Aa

Text menu

Press ◀/▶ to select from the menu the option Text and press ENTER to enter. Press EXIT to return to the previous menu and exit the current menu.

USB 2.0 Photo Music Film Text

Press ◀/▶ to select disk and press ENTER to enter. Press ◀/▶ to select return to the previous menu.

1. Holaf ! 2. Buenos días!! 3. Buenas tardes!! 4. Buenas noches!! 5. Gracias! 6. Muchas gracias! 7. De nada 8. Adiós!! 9. Hasta luego!! 10. Hasta mañasal! 11. Hasta pronto! (=see you soon) 12. Qué tal?? Spanish 100.txt Previous page Next page Prev. Next Stop CharSet Music Playlist

TROUBLESHOOTING

Problem Solution
No power • Make sure the power cord plug is plugged into the electric socket. Unplug the TV from the power supply, wait about 60 seconds and then plug the TV in again and power on.
Bad signal reception • High buildings or hills can lead to analogue signal reflection and shadows. Changing the antenna orientation can improve picture quality.• If you use an inside antenna, reception can be worse under certain circumstances. Try changing the antenna positioning to improve reception. If the picture does not improve, use an outdoor antenna.
No image • Make sure the antenna is correctly connected to the TV.• Try changing to a different channel to verify the issue is not your receiver.
The picture is fine, but no sound • Increase the volume.• Make sure the sound on the TV is not muted. Press the mute button again to restore the previous volume.
The sound is fine, but there is no picture or the colours are incorrect	• Increase the contrast and brightness.
Snowy picture, noise or picture freezes • Make sure the antenna connection is correct.
Interfering horizontal stripes through the picture	• Interference caused by electric appliances, such as hair dryers or vacuum cleaners. Switch off appliances used near the TV.
The TV does not respond to the remote control	• Aim the remote control towards the remote control sensor on the TV.• Remove any obstacles between the remote control and the TV sensor.• Make sure the batteries in the remote control are not dead.
No picture in PC mode • Make sure the video cable connection to the VGA connector is intact.• Makes sure the format of the picture from the PC is compatible with this TV.
Vertical vibration (in PC mode) • Adjust the display frequency for the picture from the PC.
The picture in PC mode is too light or dark	• Adjust the brightness and contrast.

If the instructions above do not eliminate the issue, unplug the TV from the power supply for about 60 seconds and then plug the TV in again. Should the issue persist, refer to a qualified repair shop. Do not attempt to repair the appliance yourself.

Do not leave the TV with a static picture for a long time (video pause, display of menu, etc.). There could be permanent burning of the static picture and damage to the display.

TECHNICAL SHEET

MODEL 24 H02T2S2 32 H04T2	S2 40 F01T2S2
Screen
Panel size 24" (61 cm) 32" (81 cm) 40" (101 cm)
Aspect ratio 16:09 16:09 16:09
Resolution 1366*768 1366*768	1920*1080
Dynamic contrast 3000:1 3000:1	5000:1
Tuner
Digital tuner	DVB-T, T2 H265 MPEG2/4 HD DVB-T MPEG2/4	DVB-T, T2 H265 MPEG2/4 HD DVB-T MPEG2/4	DVB-T, T2 H265 MPEG2/4 HD DVB-T MPEG2/4
Satellite tuner DVB-S2	DVB-S2	DVB-S2
Electronic Programme Guide EPG	YES	YES	YES
PVR recording to USB NO	NO	NO
Timeshift	NO	NO	NO
Channel list	YES	YES	YES
Video system DVB-T2 PAL SECAM	DVB-T2 PAL SECAM	DVB-T2 PAL SECAM
Progressive Scan	yes	yes	yes
Comb filter	yes	yes	yes
Noise reduction	yes	yes	yes
OSD menu	yes	yes	yes
Sound
Sound output	2×3 W	2×8 W	2×8 W
Pitch correction	Equalizer	Equalizer	Equalizer
Stereo sound	NICAM	NICAM	NICAM
Connectivity
USB	1	1	1
Supported formats	See separate table
HDMI	1	3	3
Component YPbPr	1	1	1
VGA (D-Sub5 pin)	1	1	1
PC audio in	1	1	1
Headphone jack	1	1	1
RF IN	1	1	1
CI slot	CI +	CI +	CI +
General specifications
Parent lock	yes	yes	yes
Power
Max. power	36	56	70
Power consumption in the standby mode	≤0,5 W ≤0,5 W ≤0	5 W
Power input OFF ≤0,5 W ≤0,5 W	≤0,5 W
Energy class A A A+
Main power switch no no no
Dimensions and weight
Dimensions with stand (w × h × d) mm	551 × 366 × 181 729 × 469 × 168 909 × 565 × 212
Unit dimensions without the stand (w × h × d) mm	551 × 346 × 100 729 × 469 × 90 909 × 515 × 85
Weight (kg) 3.2 5.4 10
Wall suspension VESA 100×100	VESA 100×100 VESA 200×200

Supported formats

Media	File type	Video	Audio	Max. values
MOVIE	.mpg	MPEG-1, MPEG-2	MP3	Resolution: 1,920*1,080
			AAC	Data speed: 40 Mbps
	.avi	Xvid, MJPEG	PMC	Resolution: 1,920*1,080
	TS	MPEG-4 SP/ASP, H.263/H.264	ion: 720*576	Data speed: 20 Mbps
		MPEG-2, H.264, HEVC
	.mov/.mkv	MPEG-4 SP/ASP,H.263/H.264, HEVC
	.dat	CR-1
	.mp4	MPEG-4 SP/ASP,
		H.263/H.264,
		HEVC
		MPEG-1, MPEG-2 Resolution
	.vob	CR-2		Data speed: 40 Mbps
		RV30/RV40	COOK, MP2	Resolution: 1,920*1,080
MUSIC	.mp3	--	MP3	Sampling frequency 8K~48KHz
				Bit rate 32K~320Kbps
				Channels Mono/Stereo
	.m4a/.aac	--	AAC	Sampling frequency 16K~48KHz
				Bit rate 32K~442Kbps
				Channels Mono/Stereo

PHOTO.jpg	Progressive JPEG Resolution: 1024*768
	.jpeg Baseline JPEG Resolution: 15360*8640
	.bmp BMP		Resolution: 9600*6400
			Pixel. depth: 1/4/8/16/24/32 bpp
	.png	Non-Interlaced Resolution: 9600*6400
		Interlaced Resolution: 1280*800
SUBTITLES	.srt SubRip
	.ssa/.ass SubStation Alpha
	.smi SAMI
	.sub	SubViewer, MicroDVD, DVSubtitleSystem, SubIdx(VobSub)	Only SubViewer 1.0 & 2.0
	TXT: TMPlayer

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

Hereby, K+B Progres, a.s. declares that the radio equipment type ECG 24 H02T2S2, 32 H04T2S2 and 40 F01T2S2 is in compliance with Directive 2014/53/EU.

08/05

The full text of the EU declaration of conformity is available at the following internet address: www.ecg-electro.eu.

Changes in text and technical parameters reserved.

INHALT

ZU BEGINN 41

INSTALLATION UND ANSCHLIESSEN DES FERNSEHERS....41

Technical line drawing of a flat-screen monitor with ventilation slots and indicator lights (no text or symbols)

10cm 10cm 10cm

Diagram of a TV setup with labeled components and connections, including audio input, antenna, and power outlet.

BESCHREIBUNG

Diagram of a remote control with labeled buttons, function keys, and function labels in Chinese.

Farbnorm (AUTO/PAL/SECAM)

Sound System:

Tonnorm (BG/I/DK/L)

Feine Nachstimmung:

Technical line drawing of a flat-screen monitor with internal components and directional arrows indicating movement (no text or symbols)

Umístění televizoru

10cm 10cm 10cm

Diagram of a TV setup with labeled components including an antenna, power connector, and antenna connection.

POPIS

Diagram of a remote control with labeled buttons, function keys, and function keys in Chinese.

Technical line drawing of a flat-screen monitor with internal components and directional arrows indicating movement (no text or symbols)

10cm 10cm 10cm

Pripojenie antény a napájania

Diagram of a TV setup with labeled components and connection points, including a power outlet, switch, and antenna.

POPIS

Diagram of a remote control with labeled buttons, function keys, and function labels in Chinese.

Prehrat 24_(AVC_1440x608_2422K_Vor_55_44K_2ch)LI... 00:00:01 / 00:03:26 Pauza Pred. Dalisi CharSet RepeatFall FF Stop Aa

Ponuka Text
