USER MANUAL ERS 21780 NIXA+ ECG

Warning sign depicting a flame symbol in yellow and black, indicating hazardous risk.

VÝSTRAHA: NEBEZPEČÍ OHNĚ / HOŘLAVÉ MATERIÁLY

Technical diagram of a multi-chamber refrigerator with numbered components for identification.

Diagram showing a mechanical device with two rotating components labeled 1 and 2, and an external view of the device's internal structure.

Vyrovnání dveří

Line drawing of two hands holding a rectangular box with arrows indicating direction (no text or symbols)

Warning sign depicting a flame symbol in yellow and black, indicating hazardous risk.

VÝSTRAHA: NEBEZPEČENSTVO OHŇA/HORĽAVÉ MATERIÁLY

Technical diagram of a multi-level refrigerator with numbered components for identification

Diagram showing a mechanical device with two rotating components labeled 1 and 2, and an external view of the device's internal structure.

Vyrovnanie dverí

Illustration of two hands holding a rectangular box with arrows indicating direction (no text or symbols)

Warning sign depicting a flame symbol in yellow and black on a white background

WARNUNG: BRANDGEFAHR / BRENNBARE STOFFE

Diagram showing a mechanical device with two labeled components and directional arrows indicating motion or assembly.

Ausgleichen der Tür

Line drawing of hands holding a rectangular object with arrows indicating direction (no text or symbols)

DE

Read carefully and keep for future use!

Warning: The safety measures and instructions contained in this manual do not include all conditions and potential situations. The user must be aware that common sense, caution, and care are factors that cannot be integrated into a product. These factors must be therefore secured by the user/users using and operating this device. We are not liable for any damages caused during shipping, by incorrect use, voltage fl ectuation or the modification or adjustment of any part of the appliance. To protect against the risk of fire or electric shock, basic precautions must be taken while using electrical appliances, including the following:

1. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is correctly grounded. The outlet must be installed in accordance with applicable electrical codes according to EN.
2. Do not operate the device if the cord is damaged. All repairs or adjustments including cord replacements must be carried out by a professional service centre! Do not remove the protective covers from the appliance; there is a risk of electric shock!
3. The appliance must not come into direct contact with water or other liquids in order to prevent a potential electric shock. Do not immerse the cord or the plug in water!
4. Do not use the appliance in places, where a gas leak or a contact with an explosive atmosphere could occur. Do not touch the cord or the device with wet hands. There is a risk of electric shock.
5. The power cord must remain accessible once the device is installed. Do not shorten the cable or use adapters in electrical outlets. Do not allow the cord to touch hot surfaces or place the cord over sharp edges.
6. Do not turn the appliance on or off by plugging or unplugging the power cord. Do not remove the power cord from the outlet

by yanking the cord. Unplug the power cord from the outlet by grasping the plug.

1. Do not insert any objects into the device or place any objects on the device (e.g. vases, cups, etc.). Never cover the ventilation openings!
2. Do not use in the appliance other electrical devices and refrigeration equipment.
3. If this appliance is replacing an old product equipped with a lock, destroy the lock of the old appliance, so that children would not lock themselves in (e.g. during a play).
4. Do not use mechanical devices or other artificial means to speed up defrosting. Do not use electrical appliances in the space designed to store foods. Protect the cooling circuit of the appliance against damage.
5. Do not allow children to play with the appliance. Also, they may not sit on the shelves and hang on the door of the appliance.
6. Do not use sharp metal objects to remove the ice from the refrigerator, because they may damage the refrigerating circuits and cause irreparable damage to the appliance. If necessary, use a plastic scraper.
7. Do not store explosive substances in the appliance, e.g. sprays with propellant gas.
8. Do not place containers with liquids (glass jars or tin cans) in the freezer. The container could burst.
9. When you store bottles containing liquids with high content of alcohol, they must be properly closed and in vertical position.
10. Do not expose the appliance to direct sunlight, do not use it outside and do not expose it to rain.
11. Do not touch the cooling surfaces with wet hands. Risk of injury.
12. Do not eat the ice removed from the freezer.

13. This appliance is intended for household use and similar areas, such as:

14. kitchenettes in shops, offices, and other workplaces

15. appliances used in the agricultural industry
16. by guests in hotels, motels, and other residential areas

- in bed and breakfast establishments

1. This appliance may be used by children under 8 years of age and older and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if supervised or instructed to use the appliance in a safe manner and understand the potential hazards. Children may not play with the appliance. Cleaning and maintenance operations performed by the user shall not be carried out by children without supervision.

2. Children aged 3 to 8 years can insert and remove food from refrigerating appliances.

3. Child supervision is essential to prevent them from playing with the appliance.
4. The manufacturer is not liable for any damage caused by improper grounding/use.

To prevent food contamination, please follow these recommendations:

• Opening the door for a long time can cause a significant increase in the temperature inside the appliance.
• Regularly clean surfaces and accessible drainage systems that may come into contact with food.
• Clean water containers if not used for 48 h; flush the water system connected to the water supply if the water has not flowed for 5 days.
• Store raw meat and fish in the refrigerator in suitable containers so that they do not come into contact with or drip into other foodstuff s.
• Two-star freezing compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for freezing fresh food.
• If the refrigerating appliance is left empty for a long time, turn it off, defrost, clean, dry and leave the door open to prevent mold formation inside the appliance.

RISK OF FIRE!

Yellow triangular warning sign with black flame symbol indicating explosion risk

WARNING: RISK OF FIRE/FLAMMABLE MATERIALS

GB

This appliance contains R600a (the coolant isobutane), natural gas which is very environmentally friendly but flammable. When transporting and installing the equipment it is necessary to make sure that no part of the cooling circuit is damaged. In the case of damage, reduce the flame and ventilate the premises where the appliance is located for a few minutes.

When replacing the interior lighting of the refrigerator, always unplug the refrigerator - otherwise there is a risk of electric shock. • If the replacement of the interior lighting is too complicated for you, contact your service representative. • If the products are equipped with LEDs, do not remove the lighting cover and LED yourself. – contact your service representatives.

REPLACING THE LED BULB: Do not remove the indicator cover or indicator yourself when the internal or external LEDs no longer operate. Contact the service representatives.

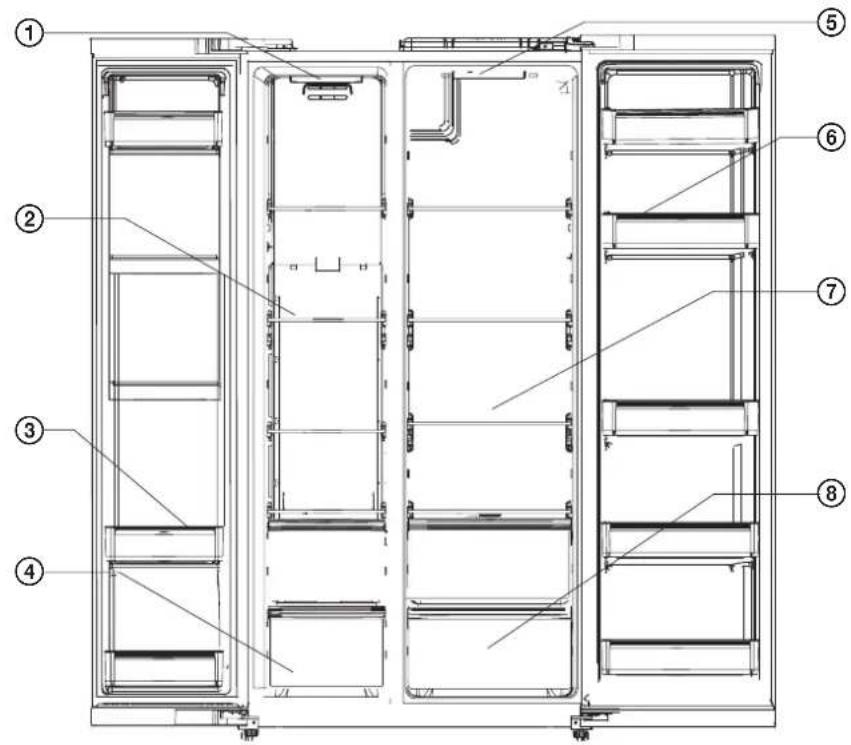

DESCRIPTION

This description only applies to information regarding the components for the appliance. Individual parts may differ according to the particular appliance model.

Freezer part Cooler part

Technical diagram of a multi-level refrigerator with numbered components for identification

1. LED lighting

2. Glass shelves

3. Door compartments

4. Outlet

5. LED lighting

6. Door compartments

7. Glass shelves

8. Drawer for storing fresh fruit and vegetables

INSTALLATION AND TURNING ON THE APPLIANCE

• You can contact the service technicians to install and turn on the device properly.
• Before connecting the electricity, make sure that the voltage stated on the label corresponds to the voltage in the socket / voltage for the electricity system in the building.
• The outlet must be accessible after installing the appliance.

Location

• Place the refrigerator away from any sources of heat and in a well-ventilated position. The refrigerator should be located a minimum of 50 cm away from radiators, gas stoves and other heat sources, and 5 cm away from electric stoves. Do not place the refrigerator in direct sunlight or in a damp or wet place.
• Leave a gap above the appliance of a minimum of 30 cm; there must be a gap around the appliance of a minimum of 10 cm.
• Do not place heavy items on the refrigerator.
  • The refrigerator must stand firmly in a horizontal position. Use the two adjustable front feet for levelling.

Climatic classes Surrounding

T 16 up to 43 °C

ST 16 up to 38 °C

N 16 up to 32 °C

SN 10 up to 32 °C

TRANSPORT AND RELOCATION

Transport and relocation

• Store the original packaging and foam polystyrene (PS) if they are needed.
• When transporting the appliance, secure with a wide strap or strong rope and follow the instructions on the package.
• Before transport or relocation secure or remove all movable items (i.e. shelves, drawer for fresh fruit and vegetables....).

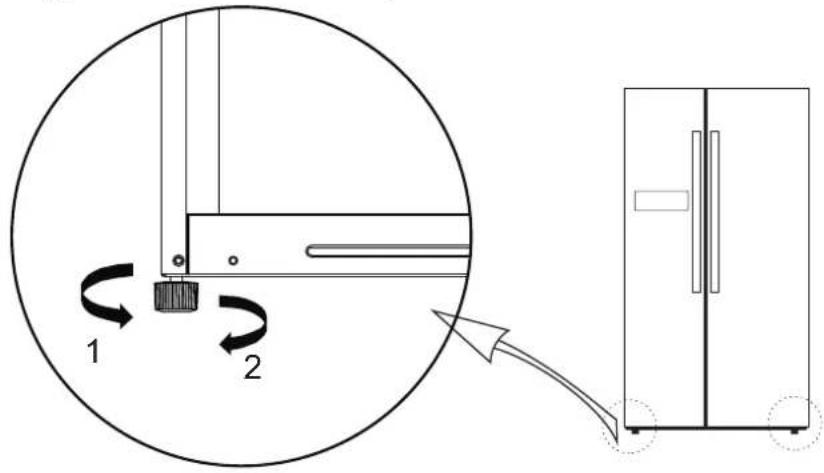

Levelling position

• Before levelling the position, make sure that the refrigerator is disconnected from the supply network. Read and follow the safety instructions to prevent any accidents.
• Use a spirit level to check that the appliance is placed vertically. If necessary, adjust the height by turning the front legs. When turning in direction 1 the appliance is lowered at the place of the leg; when turning in direction 2 the leg is extended and the appliance is moved upward at the place of the leg. Use the left and right leg to set the appliance into the horizontal position.

Diagram showing a mechanical device with two rotating components labeled 1 and 2, and an adjacent view of a refrigerator unit.

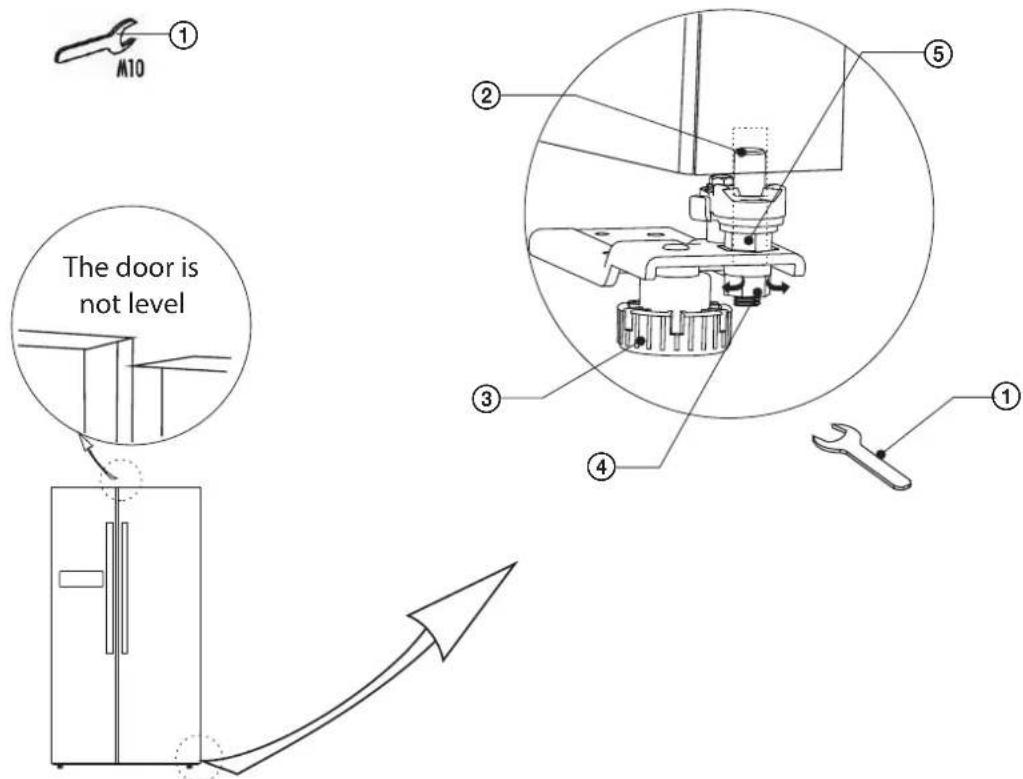

Levelling the door

- Before levelling the position, make sure that the refrigerator is disconnected from the supply network. Read and follow the safety instructions to prevent any accidents.

GB

M10 The door is not level

1. French key size 10

2. Securing nut

3. Fixed axis

4. Adjusting nut

5. Adjustable leg

- The door is too low: open the door, use the French key to loosen the securing nut then turn the adjustment nut anti-clockwise (1) until the door is lifted to the correct height. Then tighten the securing nut in an anti-clockwise direction.

- The door is too high: open the door, use the French key to loosen the securing nut then turn the adjustment nut clockwise (2) until the door is lowered to the correct height. Then tighten the securing nut in an anti-clockwise direction.

Before switching on

- Leave the product to rest for at least 12 hour from the time it was transported to your home.

- You may detect a slight odour when you first switch it on. This odour will disappear once the appliance starts to cool.

• After first switching on, leave the refrigerator active for 2-3 hours before placing food inside (in the case of hot weather in the summer then leave for 4 hours).

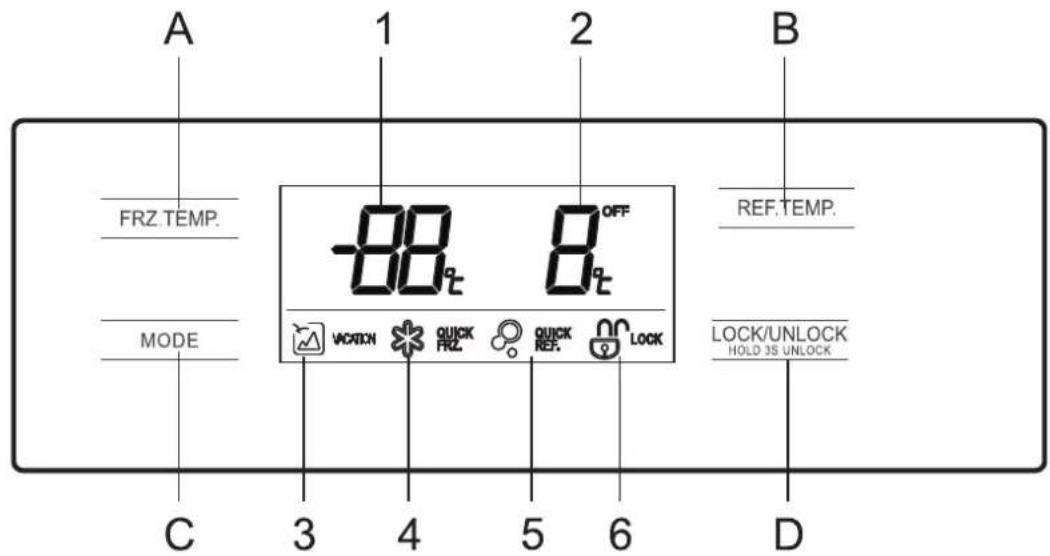

USE AND FUNCTIONS

A FRZ. TEMP. MODE C 1 -88 t 2 8 OFF VACATION QUICK FRZ. QUICK REF. LOCK B REF. TEMP. LOCK/UNLOCK HOLD 3S UNLOCK D

GB

Display

1. Temperature in freezer part
2. Temperature in cooler part

3. Vacation symbol

4. Fast freezing symbol

5. Fast cooling symbol
6. Lock symbol

Buttons

A. Button for setting the temperature in the freezer part
B. Button for setting the temperature in the cooler part
C. Button for changing the mode / setting
D. Control for locking / unlocking

Use

1. Locking 🔒/ unlocking 🔒
   If the control panel of the refrigerator is unlocked ☑, the control panel can be locked by pressing the button LOCK/UNLOCK for 3 seconds ☑. If the control panel of the refrigerator is locked ☑, the control panel can be unlocked by pressing the button LOCK/UNLOCK for 3 seconds ☑
   All the following functions can only be set and used when the panel is unlocked.

2. Vacation mode

Repeatedly press the button MODE to set the Vacation mode; the symbol lights up. The Vacation mode starts after locking the control panel. The cooler part is disconnected; in the freezer part the temperature is set for -18 °C.

1. Fast cooling mode

Repeatedly press the button MODE to set the Fast cooling mode; the symbol lights up. Fast cooling in the cooling part starts after locking the control panel.

1. Fast freezing mode

Repeatedly press the button MODE to set the Fast freezing mode; the symbol ✦ lights up. Fast freezing starts in the freezer part after locking the control panel.

1. Setting the temperature in the cooler part B

Press the button .TEMP to start setting the temperature in the cooling part; the temperature indicator in the cooling part will start to flash. Repeatedly press the button .TEMP to set the required temperature. The setting range is 2^ to 8^ ; after each press of .TEMP , the adjusted temperature is changed by 1^ . After setting the temperature, the temperature indicator for the cooler part will flash for 5 seconds. Lock the control panel to finish setting the temperature.

1. Setting the temperature in the freezer part

Press the button FRZ.TEMP. to start setting the temperature in the freezer part; the temperature indicator in the cooler part will start to flash. Repeatedly press the button FRZ.TEMP. to set the required temperature. The setting range is -16 °C to -24 °C; after each press of FRZ.TEMP. the adjusted temperature is changed by 1 °C. After setting the temperature, the temperature indicator for the freezer part will flash for 5 seconds. Lock the control panel to finish setting the temperature.

1. Power outage

In the case of a power outage, all settings remain kept up to the restoration of the electricity supply.

1. Notification of open door / alarm

After opening the door, the open door melody plays. If the door is not closed within 2 minutes, the open door alarm is activated – a beep with one-second intervals. The alarm is active while the door is open. The alarm can be disconnected by pressing any button.

1. Indication of defects

Error messages in the following table are shown on the display in the case of a failure of the refrigerator. Although cooling may continue to work, it is necessary to contact the service to ensure the optimal operation of the appliance.

Error code Problem
E1 Error in	the temperature sensor in the cooler part.
E2 Error in	the temperature sensor in the freezer part.
E5 Error in	the icing sensor circuit.
E6 Communication error.
E7 Error in	the temperature sensor in the room.

STORING FOOD

Cooling compartment

• To reduce humidity and consequent increase the frost, never put liquids in unsealed containers into the refrigerator. Frost tends to concentrate in the coldest parts of the evaporator. Storing uncovered liquids results in a more frequent need for defrosting.
• Never put warm foods in the refrigerator. These should cool down at room temperature and then be placed in the refrigerator to ensure adequate air circulation.
• Foods or food containers should not touch the back wall of the refrigerator because they could freeze to the wall. Do not keep regularly opening the door of the refrigerator.
• Meat and clean fish (packed in a package or plastic foil) can be placed in the refrigerator, which can be used in 1–2 days.
• Fruit and vegetables without packaging can be placed in the part designated for fresh fruit and vegetables.

Freezer compartment

• The freezer is designated for the storage of food frozen at very low temperature, long-term storage of frozen food, and for the production of ice.
• Only use the shelves in the door of the freezer to store frozen food, not for storing hot food designated for freezing.
  • Do not put fresh and frozen food next to each other. The frozen food may thaw.
• When freezing fresh food (such as meat, fish or chopped meat), cut them into parts that can be used at the same time.
• Storing frozen food: instructions are usually stated on the packages, which must be followed. If there is no information on the packaging, food should not be stored for longer than three months from the date of purchase.

• When purchasing frozen food, make sure that it was frozen at a suitable temperature and that the packaging is not damaged.

• Frozen food should be kept in suitable packages to retain the quality and should be returned to the freezer compartment as soon as possible.

• If a package of frozen food shows moisture or abnormal bulging, it is probable that it was stored at the wrong temperature and the content is spoiled.
• The storage period for frozen food depends on the room temperature, the thermostat setting, the frequency of opening the door of the freezer, the type of food and the time of transporting the product from the shop to the household. Always follow the instructions printed on the packaging and never exceed the maximum storage time stated on the package.

CLEANING AND MAINTENANCE

• Before cleaning, disconnect the appliance from the electricity socket.
• Do not clean the appliance with water.
• The refrigerator and the freezer should be periodically cleaned using a lukewarm water solution and edible soda.
• Clean accessories separately using soapy water. Do not use a washing machine.
• Do not use abrasive products, detergents, and soaps. After washing, rinse with clean water and dry thoroughly. After cleaning, use dry hands to plug the appliance into the electricity socket.
• Clean the condenser (the back part of the appliance) using a brush a minimum of once a year. This will increase productivity and save energy.

Recommendation

If not using the appliance for a long time (e.g. during holidays), activate the Vacation mode, clean the cooler part, and leave the door of the cooler part open. This will prevent the origination of mould and odour.

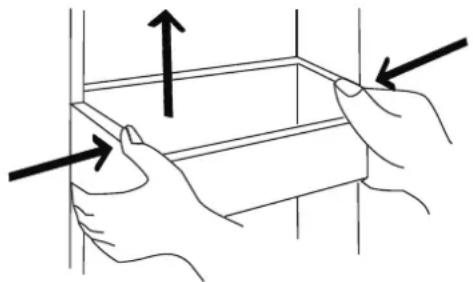

Cleaning the shelves in the door

• The shelves in the door can be cleaned according to the Fig. below; lift them up and wash.
  • After washing, put them back using the opposite procedure.

Illustration of hands holding a rectangular object with arrows indicating direction (no text or symbols)

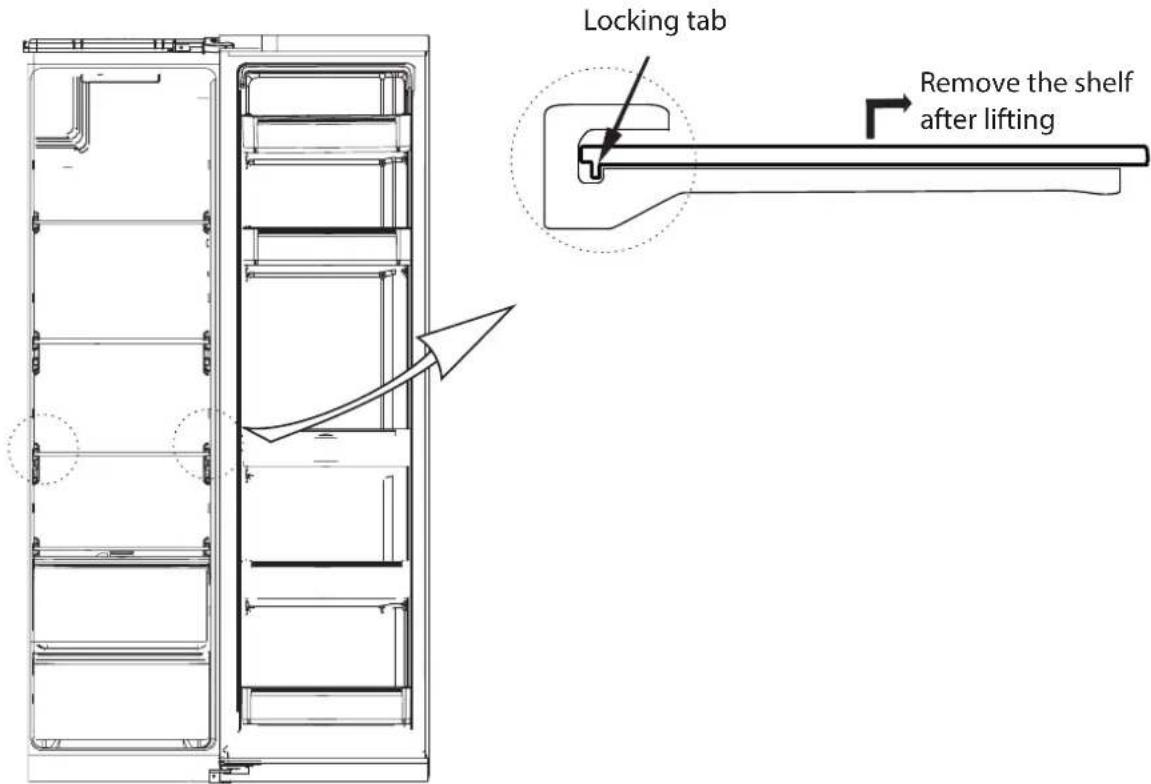

Cleaning the glass shelves

• Shelves in the door can be removed according to the Fig. below; lift the locking tab at the rear and remove the shelves.
  • After washing, put them back using the opposite procedure.

Locking tab Remove the shelf after lifting

Defrosting the refrigerator

• Defrosting occurs automatically during operation in part of the refrigerator; water flows into the evaporation channel and is automatically evaporated.
• The evaporator channel and the hole for collecting water (in the rear part of the shelf for fresh foods) should be periodically cleaned. This will prevent the accumulation of water in the lower part.

Breakdown of operation

• In the case of a power outage, the food will remain cool for several hours. During an outage, fully limit opening the door and do not place any uncooled food into the refrigerator.
  • In the case of a long-term power outage, disconnect and clean the refrigerator.
• Before moving the refrigerator, remove all food and items from the refrigerator and secure the glass parts and drawers against movement using adhesive tape. When handling or moving, do not tilt the refrigerator more than 45^ .

Defrosting

The refrigerator is automatically defrosted when in operation. Allow any frost to melt after disconnecting the power and opening the door. Wipe the surface after defrosting.

TROUBLESHOOTING

If the refrigerator does not work correctly, before calling a service technician, check the appliance according to the following instructions:

The refrigerator does not work

Check that:

• The electricity supply is not interrupted.
• The main switch for the electric current is not off.
- The electricity socket is working. To check, plug another appliance that you know is working into the same socket.

A smell appears

• Carefully pack any food that can cause a smell.
• Check that none of the food is spoiled.
• Clean the refrigerator.

The compressor does not turn off for a long time

• In summer, at high room temperatures, it is common for the compressor to run for a long time.
• We recommend not to place large amounts of uncooled food all at once into the refrigerator.
• We recommend to place only pre-cooled foods.
• The door of the refrigerator is frequently open.

The lighting does not work

• Check that the refrigerator is correctly connected to the socket.
• In the case of failure, contact the service department.

The door cannot be closed

• The shelves on the door are overloaded.
• The refrigerator is tilted. Level the position of the refrigerator.

The refrigerator is noisy

Check that:

• The appliance is in a horizontal and stable position.
• It is not in contact with the rear side.
• Parts of the appliance do not vibrate.

The seals in the door do not fit tightly

• Clean any dirt from the seals.
• By warming and then cooling the sealing, the sealing capability should be restored. Use a hairdryer or a warm towel to warm the sealing.

Water is in the lower part of the refrigerator

• There is too much food in the cooler part.
• The door is not correctly closed and does not fit tightly, which causes freezing of the rear part of the cooler compartment.

High temperature in the rear part of the refrigerator

- Increased temperature in the heat exchanger and in the surrounding part of the refrigerator and the compressor is normal. In the case of excessive heating in the summer months, reduce the temperature in the room by ventilation and do not place a large amount of uncooled food all at once in the refrigerator.

Water condensation on the surface

- In the case of an increase of the moisture in the room, water may condense on the surface of the refrigerator and on the sealing. Wipe away the condensed water with a cloth.

The refrigerator is noisy

Cooling gas, which circulates in the refrigerator, may cause a slight noise (bubbling sound) even when the compressor is not running. The compressor vibrates when in operation. Do not worry, this is completely normal.

INFORMATION SHEET ACCORDING TO EU DIRECTIVE 1060/2010

Trademark ECG ECG ECG
Model ERS 21780 NIXA+ ERS 21780 NWA+ ERS 21781 NIXA++
Appliance type3	7	7	7
Energy efficiency class A+ A+ A++
Energy consumption in 365 days1 (kWh) 424 405 329
Star designation of the freezing compartment	* * * * * * * * *	* * * *
Total usable volume (l) 510 510 510
of which the volume of the cooling section (l) 335 335 335
of which the volume of the freezing section (l)	175 175 175
of which the “frost-free” refrigeration/freezing section	1/1	1/1	1/1
Storage time when power off (hrs.)	10	10	10
Freezing capacity (kg/24 hrs.)	10	9	10
Climate class2	SN/N/ST/T	SN/N/ST	SN/N/ST/T
Noise level4 dB (re 1 pW)	43	43	43
Voltage	220–240 V ~ 50 Hz	220–240 V ~ 50 Hz	220–240 V ~ 50 Hz
Dimensions in cm (h × w × d)	178.8 × 89.5 × 74.5	178.8 × 89.5 × 74.5	178.8 × 89.5 × 74.5
Weight kg	89.5	89.5	89.5
Built-in appliance	NO	NO	NO

1. Energy consumption in kWh / year based on standard test results for 24 hours. The actual energy consumption depends on how the appliance is used and the location of the appliance.
2. SN: ambient temperatures from +10 °C to +32 °C

ST: ambient temperatures from +18 °C to +38 °C

N: ambient temperatures from +16 °C to +32 °C

T: ambient temperatures from +18 °C to +38 °C

GT: ambient temperatures from - 43 °C to 16 °C

1. 1 = Refrigerator without low temperature compartment

7 = Refrigerator/freezer with low temperature compartment * (* * *)

8 = Upright freezer

9 = Chest freezer

10 = Refrigerator with compartment near 0^ C

1. Noise level according to European standard EN 60704.

NOTE:

The above mentioned data are subject to change.

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

08/05

GB

The instruction manual is available at website www.ecg-electro.eu.

Changes in text and technical parameters reserved.

www.ecg-electro.eu

CZ

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Kličany e-mail: [e-mail]

SK

Distribútor pre SR: K+B Progres, a. s., organizacná zložka Mlynské Nivy 71

821 05 Bratislava e-mail: [e-mail]

DE
