Product Type	Steam Cleaner
Model	003-284
Brand	Menuett
Power Supply	220-240 VAC, 50/60 Hz
Power Output	1050 W
Working Pressure	3 bar
Water Reservoir Capacity	400 ml
Steam Temperature	135°C (for disinfection)
Cable Length	5 m
Weight	10.7 kg
Dimensions (W x H x D)	15 x 31 x 24 cm
Safety Features	Overheating protection, safety valve, auto shut-off when empty
Intended Use	Household cleaning: floors, windows, textiles, and hard surfaces
Included Accessories	Floor nozzle with microfibre cloth, extension tubes (3), jet nozzle, angle nozzle, brush nozzle, window cleaner, textile nozzle, cleaning cloth, funnel, measuring cup
Heating Time	Approximately 4 minutes
Maximum Tilt Angle	45 degrees
Earthed Connection	Yes, requires 10 A fuse
Maintenance	Empty reservoir after use, wipe dry; descaling not mentioned, but use clean water

Frequently Asked Questions - 003-284 Menuett

How do I fill the water reservoir?

Place the steam cleaner on a level surface. Push down the safety cap and twist anticlockwise. Use the funnel and measuring cup to fill with fresh water up to 400 ml. Do not overfill. Replace and tighten the cap.

How long does it take to heat up?

The steam cleaner is ready for use after approximately 4 minutes of heating.

Can I use it on carpets?

Yes, for carpets and sensitive textiles, set the lever on the brush nozzle to the shortest bristle position to avoid damage.

How do I clean windows with this steam cleaner?

Fit the window nozzle onto the textile nozzle. Point the nozzle at the window and press the steam button. Move the nozzle up and down and side to side to remove stains.

What should I do if the steam cleaner stops producing steam?

The steam cleaner has overheating protection and will automatically shut off if the reservoir is empty. Unplug, let cool, and refill with water.

Is it safe to use on electrical appliances?

No, do not point the steam jet at equipment containing electrical components, such as the inside of an oven. Avoid electrical devices.

How do I attach accessories?

Align the catches on the extension tubes or nozzles and press into place. To remove, press the catches and pull apart. For the connector, twist clockwise to attach and anticlockwise to remove.

Can I use detergent or chemicals in the reservoir?

No, do not pour rust remover, odour remover, alcohol, or detergent into the reservoir, as this could damage it. Only use clean water.

How do I store the steam cleaner after use?

Unplug the unit, press the steam button until no more steam comes out, slowly release the safety cap, allow it to cool for 5 minutes, then empty the reservoir and wipe dry. Tighten the cap before storing.

What is the maximum tilt angle during use?

The steam cleaner must not be tilted more than 45 degrees to prevent boiling water from spraying out with the steam.

USER MANUAL 003-284 Menuett

Black handheld vacuum cleaner with yellow clamps and small accessories (no text or symbols visible)

SE ÅNGTVÄTT

Operating instructions (Translation of the original instructions) Important! Read the user instructions carefully before use. Save them for future reference.

Värna om miljön!

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

Jula reserves the right to make changes. In the event of problems, please contact our service department.

www.jula.com

Tillverkare/ Produsent/ Producenci/ Manufacturer

Jula AB, Box 363, 532 24 SKARA

Distributör/ Distributør/ Dystrybutor/ Distributor

Jula Poland Sp. z o.o., ul.

Diagram of a robotic arm with multiple articulated arms and a connecting rod, showing motion paths (no text or symbols)

Close-up of a black mechanical component with a dotted arrow indicating assembly or insertion (no text or symbols visible)

Diagram of a conical object with an arrow indicating rotation, no text or symbols present

Close-up of a black plastic mechanical component with a threaded end and internal slots, showing a rotation arrow (no text or symbols)

Black plastic mechanical component with two curved arrows indicating rotational motion (no text or symbols)

SÄKERHETSANVISNINGAR

- This steam cleaner can be used by children from eight years and upwards and by persons with physical, sensorial or mental disabilities, or persons who lack experience or knowledge, if they are supervised or receive instructions concerning the safe use of the steam cleaner and understand the risks involved with its use. Do not allow children to play with the steam cleaner. Cleaning and maintenance must not be carried out by children unless they are more than eight years old, and are kept under supervision.

• Keep the steam cleaner and its power cord out of the reach of children under eight years of age.
• Keep children under supervision to make sure they do not play with the steam cleaner.
• Do not expose the power cord or plug to water or

other liquids – risk of electric shock.

- Check that the power cord and plug are intact and undamaged. Do not use the steam cleaner if the power cord or plug are damaged. If the power cord or plug are damaged they must be replaced by a qualified technician to ensure that the appliance is safe to use.

• The steam cleaner is only intended for household use. It is not intended for industrial use.
• Do not start the steam cleaner without water in the reservoir.
• Check that the mains voltage corresponds to the rated voltage on the type plate.
• During use the opening for the reservoir must be sealed and the safety cap must be properly tightened.
• The steam cleaner only be connected to an earthed power point.
• An extension cord must be

earthed and double insulated.

• The steam cleaner must not be tilted more than 45 degrees during use. Otherwise there is a risk of boiling water spraying out with the steam.
• Do not point the nozzle at people, animals or electrical equipment.
• Pull out the plug before filling with water. Always unplug the plug after use and before cleaning and repairs.
• Do not pour rust remover, odour remover, alcohol or detergent in the reservoir – this could damage it.
• Do not use the steam cleaner to clean swimming pools, or the equivalent.
• Do not point the jet at equipment that contains electrical components, such as the inside of an oven.
• Do not overfill the reservoir – risk of overpressure.
• Never leave the steam

cleaner unattended when it is connected to the mains.

- Do not use the steam cleaner if it has been dropped, if it is visibly damaged, or is leaking.

SYMBOLS

	WARNING: Risk ofscalding
	WARNING: Hotsurface

TECHNICAL DATA

Power supply 220-240 VAC, 50/60 Hz
Earthed connection 10 A fuse
Working pressure 3 bar
Volume 400 ml
Output	1050 W
Range 5 m
Dimensions W15xH31xL24 cm
Weight 10.7 kg

DESCRIPTION

1. Window cleaner
2. Cleaning cloth for textile cleaner
3. Textile nozzle
4. Funnel
5. Measuring cup
6. Connector for nozzle
7. Lid
8. Steam button
9. Power switch
10. Status light
11. Nozzle for extension tube
12. Extension tube x 3

EN

1. Floor nozzle with microfibre cloth
2. Connector for nozzle (for extension tube)
3. Jet nozzle
4. Angle nozzle
5. Brush nozzle
6. Steam cleaner
7. Flexible nozzle

FIG. 1

ASSEMBLY

Unpack the steam cleaner, check that all the accessories are included and that the steam cleaner and accessories are undamaged.

FITTING ACCESSORIES

Fitting options.

FIG. 2

Extension tube

1. Connect the extension tubes together or with the floor nozzle by aligning the catches and pressing into place.

FIG. 3

1. Release by pressing in the catches and pulling apart.

Connect the nozzle to the connector.

1. Fit the nozzle on the connector by aligning the pins in the connector and twisting it in place clockwise.

FIG. 4

1. Remove the nozzle by twisting it anticlockwise and pulling loose.

Angle or brush nozzle

1. Press the nozzle on the jet nozzle or the flexible hose.
2. Twist the nozzle to the required angle.
3. Remove the nozzle by pulling it straight out.

Window cleaner

1. Hook the textile nozzle to the window nozzle hooks and click the nozzles together.

FIG. 5

USE

NOTE:

• Protection from overheating with empty reservoir. When all the water in the reservoir has evaporated the power supply is automatically cut to prevent the empty reservoir heated up more.
• The steam cleaner has a thermostat to ensure that the steam stays at 135^ C when disinfecting and sterilising.
• The safety valve automatically relieves any overpressure. The valve opens automatically and relieves the overpressure when there is high steam pressure in the reservoir.

INTENDED USE

The steam cleaner can be used for cleaning doors, windows, floors and clothes.

FILLING WITH WATER

WARNING!

- The safety cap must not be opened when the reservoir is pressurised.

NOTE:

- The reservoir holds 400 ml. Do not pour in too much water as there must be some space left in the reservoir.

1. Place the steam cleaner on a level surface.
2. Push down the safety cap and twist it anticlockwise.
3. Fill the beaker with fresh water and use the funnel to fill the reservoir.
4. Replace the safety cap and tighten it firmly.

STARTING

1. Plug the plug into a power point.
2. The steam cleaner is ready to use after four minutes.
3. Push the start inhibitor forward and carefully press the steam button and check that steam comes out from the nozzle.
4. If steam comes from the nozzle release, the steam button and fit the required accessory.
5. Press the steam button to do the job.

Filling with water during use

1. Pull out the plug from the power point.
2. Press the steam button until steam no longer comes out.
3. Slowly release the safety cap, but let it remain in place until steam no longer comes out.
4. Place the steam cleaner in a cool place for about five minutes to cool. Now remove the safety cap.
5. Use the funnel and measuring cup to fill the reservoir with cold or warm water.
6. Replace the safety cap and tighten it firmly.

FUNCTIONS

Disinfection and sterilisation

1. Fit the jet nozzle or the flexible nozzle on the connector.
2. Point the nozzle at the surface to be disinfected.
3. Start the steam cleaner according to the instructions.

Cleaning textiles

1. Fit the textile nozzle on the connector and slip on the cleaning cloth.

2. Point the nozzle at a hung garment.

3. Start the steam cleaner according to the instructions.

4. Move the brush nozzle up and down and side to side to remove stains from the clothes.

Cleaning windows

1. Fit the window nozzle onto the textile nozzle.
2. Start the steam cleaner according to the instructions.
3. Point the nozzle at the window, and start the steam cleaner according to the instructions.
4. Move the nozzle up and down and side to side to remove stains.

Cleaning floors

Floor nozzle

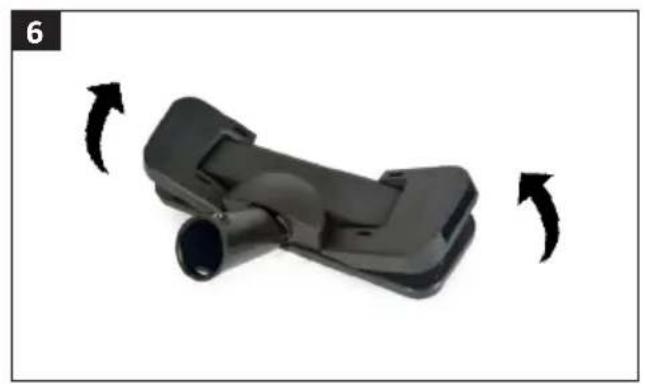

1. Lift up the short sides on the floor nozzle and slip on or remove the microfibre cloth.
2. Push down the short sides.

FIG. 6

• The microfibre cloth can used on the brush nozzle for cleaning hard surfaces.

• To clean carpets, curtains and sensitive textiles, set the lever on the brush nozzle to the position where the bristles are shortest.

• Start the steam cleaner according to the instructions.

• Point the nozzle at the floor and press the steam button to remove dirt and stains from the floor and corners.

Angle or brush nozzle

1. Fit the angled nozzle or the round brush nozzle on the extension nozzle.
2. Start the steam cleaner according to the instructions.

AFTER USE

1. Pull out the plug when the steam cleaner is not in use.
2. Press the steam button until steam no longer comes out.
3. Slowly release the safety cap, but let it remain in place until steam no longer comes out.
4. Place the steam cleaner in a cool place for about five minutes to cool. Now remove the safety cap.
5. Empty the reservoir and wipe the steam cleaner with a dry cloth.
6. Replace the safety cap and tighten it firmly.
