Product Type	Microwave Oven with Grill
Model	L20GSS10E
Brand	Logik
Power Input	230-240 V~ 50 Hz
Microwave Output Power	700-800 W
Grill Power	950-1050 W
Microwave Frequency	2450 MHz
External Dimensions (W x D x H)	452 x 370 x 262 mm
Capacity	20 Liters (approx.)
Control Type	Button and Dial
Display Type	LED
Child Lock	Yes
Clock Setting	Yes (12 / 24 hour)
Auto Cook Programs	9 programs (Milk/Coffee, Rice, Spaghetti, Potatoes, Reheat, Fish, Chicken, Beef/Mutton, Skewered Meat)
Defrost Function	By weight (100-1800 g)
Quick Start	30-second increments up to 10 minutes
Grill Function	Yes
Combination Cooking	Two modes: C-1 (30% micro + 70% grill), C-2 (55% micro + 45% grill)
Delay Start	Yes (preset)
Included Accessories	Glass Turntable, Turntable Ring, Grill Rack, Instruction Manual
Safety Features	Door safety interlock, overheat protection, earthing required
Cleaning	Wave guide cover cleaning, enamel interior, door seal maintenance
Heating Category	E (800 W)
Compliance	EEC directives 89/336/EEC, 92/31/EEC

Frequently Asked Questions - L20GSS10E Logik

Why doesn't my food seem to cook?

Check that the cooking time has been set, the door is closed, and the power socket is not overloaded causing the fuse to blow.

Why is my food undercooked or overcooked?

Verify that the correct cooking time and power level have been selected. Adjust according to the food type and quantity.

How can I prevent eggs from popping in the microwave?

Pierce the yolk with a toothpick before cooking. Never cook eggs in their shells as pressure can cause them to explode.

Why is standing time important after microwave cooking?

Standing time allows the heat to distribute evenly, cooking the centre of the food without overcooking the outside. This is especially important for dense or large items.

Why does my microwave sometimes take longer than the recipe suggests?

Cooking times vary based on food weight, size, shape, and starting temperature. Use recipe times as a guide and adjust as needed.

Why do I get condensation on the inside of the door?

Condensation is normal, especially when cooking high-moisture foods like potatoes. Wipe dry after use to prevent moisture buildup.

Can microwave energy escape through the window on the door?

No. The door has a metal screen with perforations that allow light to pass but block microwave energy from escaping.

What happens if I switch on the microwave empty?

Operating the microwave without food can damage the magnetron. To prevent accidental operation, keep a cup of water inside when not in use.

Why is there light showing through the vents and door?

This is the interior light and is normal. The vents and door are designed to allow light to be visible while containing microwave energy.

How do I set the child lock?

Press and hold the Stop/Clear button for 3 seconds until the display shows [::]. To release, press and hold the Stop/Clear button again for 3 seconds.

USER MANUAL L20GSS10E Logik

Logik microwave oven with control panel and display screen (no visible text or symbols on main body)

Contents

GB

Unpacking ....3

Product Overview 4

Using Aluminium Foil in Your Microwave ....5

Getting Ready 6

Introducing Microwave Cooking ....7

Cooking with a Microwave 7

Checking your Cooking Utensils 8

Microwave Heating Categories 9

Steam 10

Condensation 10

Checking your Microwave 10

Clock Setting 11

Setting the Child Lock 12

Microwave Cooking ....13

Grill or Combination Cooking....14

Delay Start Cooking (Programme Set in Advance) 16

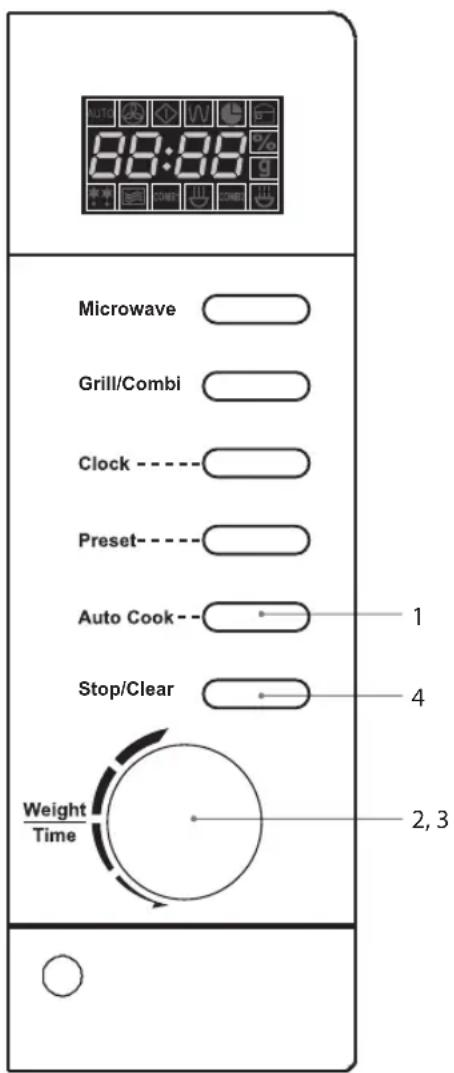

Auto Cooking ....17

Quick Start Cooking ....19

Defrosting 20

Defrost by Weight 20

Querying the Cooking Function 21

Cleaning your microwave 22

Frequently Asked Questions 23

Specification 24

Safety First! 91

Indice

IT

Disimballaggio 25

Congratulations on the purchase of your new Logik Microwave.

These operating instructions will help you use it properly and safely.

Before using your Logik Microwave

• Read these instructions carefully and retain for future reference.
• Remove all packaging labels. Please dispose of them properly.

Before calling for service

- Review the section on Troubleshooting. This will help you to solve some general problems by yourself and reduce the need to ask for the help of professional technicians.

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

The Main Unit

Simple diagram of two concentric ovals with no text or symbols

Glass Turntable x 1 P.N.: XGALK20MBP11

Turntable Ring x 1 P.N.: XGALK20MBP12

Grill Rack x 1 P.N.: XGALL20GSS10P41

Instruction Manual x 1 P.N.: L20GSS10E-001

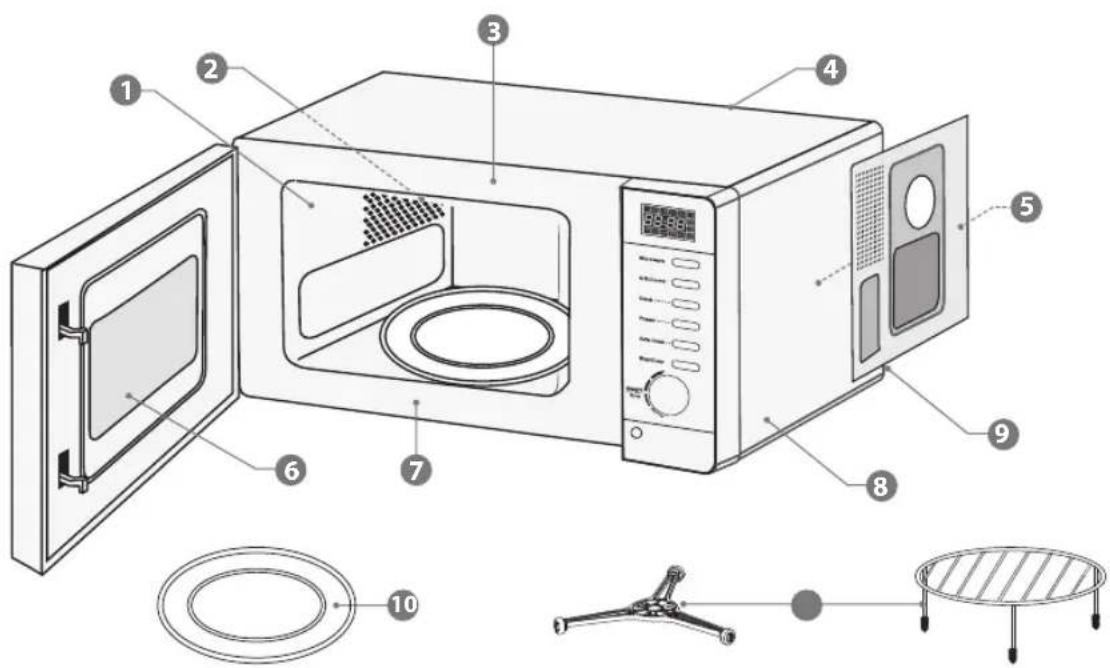

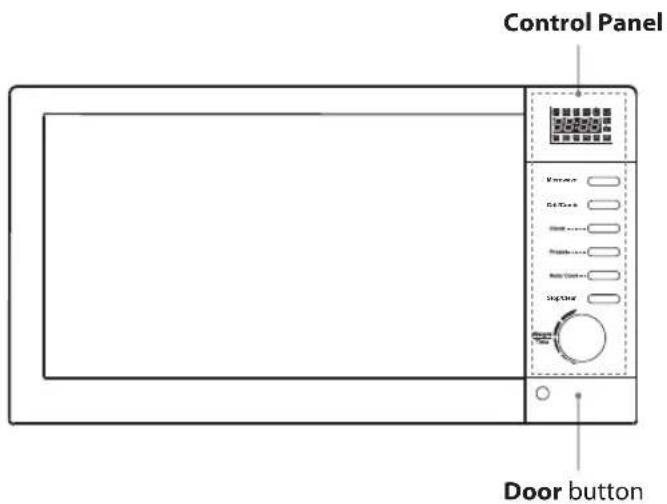

The Main Unit

GB

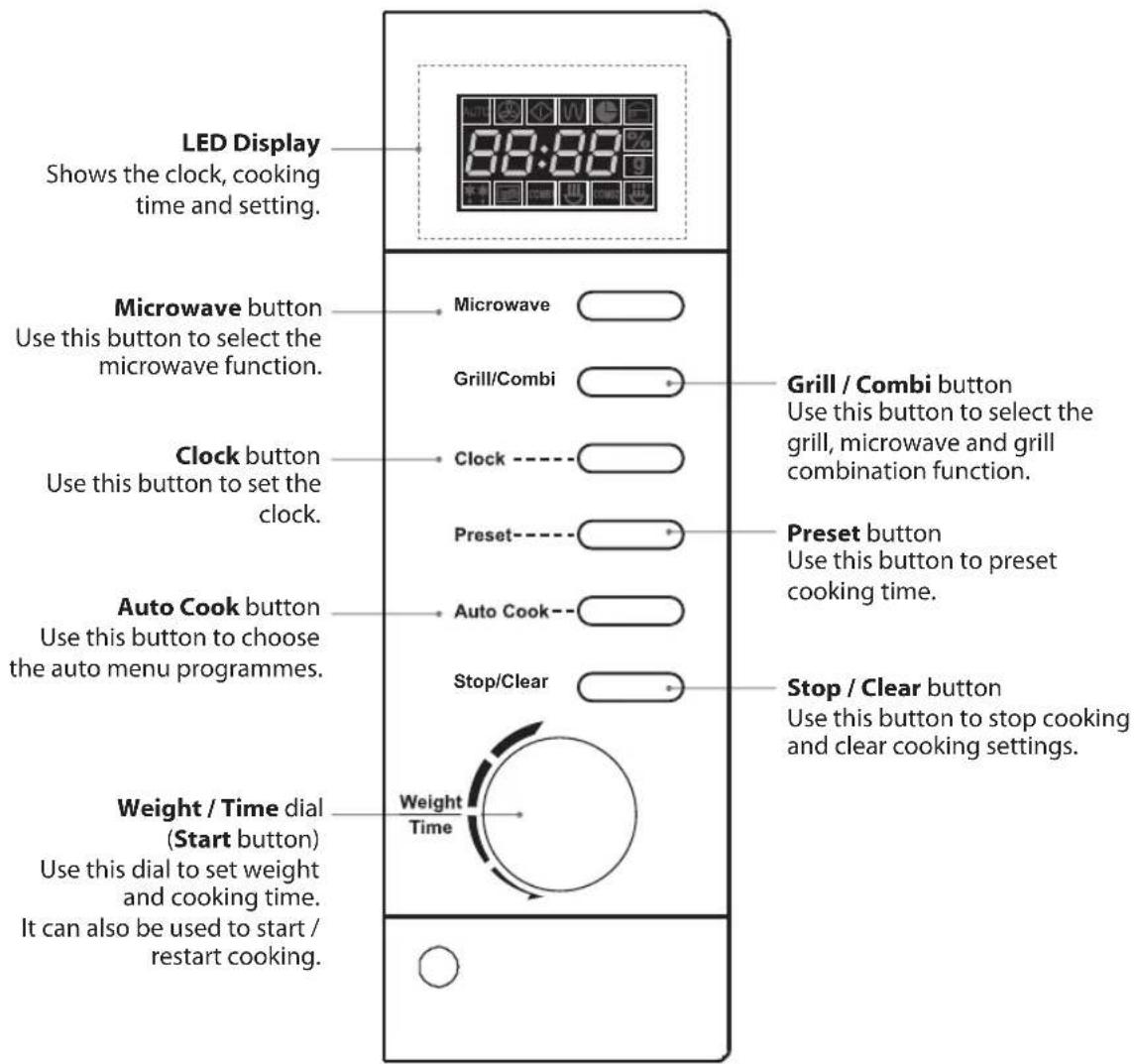

The Control Panel

Using Aluminium Foil in your Microwave

It is safe to use aluminium foil in your microwave as long as you follow these safety guidelines.

As with all metal, microwave energy cannot pass through foil, but provided that you keep the foil away from the side of the microwave it will not cause sparks and there will not be any damage to your microwave.

Using foil is a good way of shielding parts of food that you do not want to cook as quickly as others – perhaps where the food is narrower and would otherwise overcook.

Place the foil over the area you want to shield, taking care that the foil will not touch the sides of the microwave when the turntable rotates. Only use one piece of foil at a time so that you do not get sparks between the separate pieces.

Follow these guidelines when using foil in your microwave:

• Remove foil lids from containers before using in the microwave. Some lids are made of card with a foil covering – these should be removed too. Use a microwave safe transparent lid if possible.
  • Stir food during cooking if the container has a lid or film cover.
  • Always use the glass turntable.
• Use shallow containers with a large surface area. Do not use containers that are more than 1.25in (3.5cm) deep.
  • Use gloves when handling hot foil containers.
• Do not completely cover food with foil. The microwave energy cannot pass through the foil so the food will not cook.
• Do not let aluminium foil touch the inside of the microwave.
• Do not use more than one piece of foil in the microwave at the same time.

Getting Ready

This microwave is designed for home use. It should not be used for commercial catering.

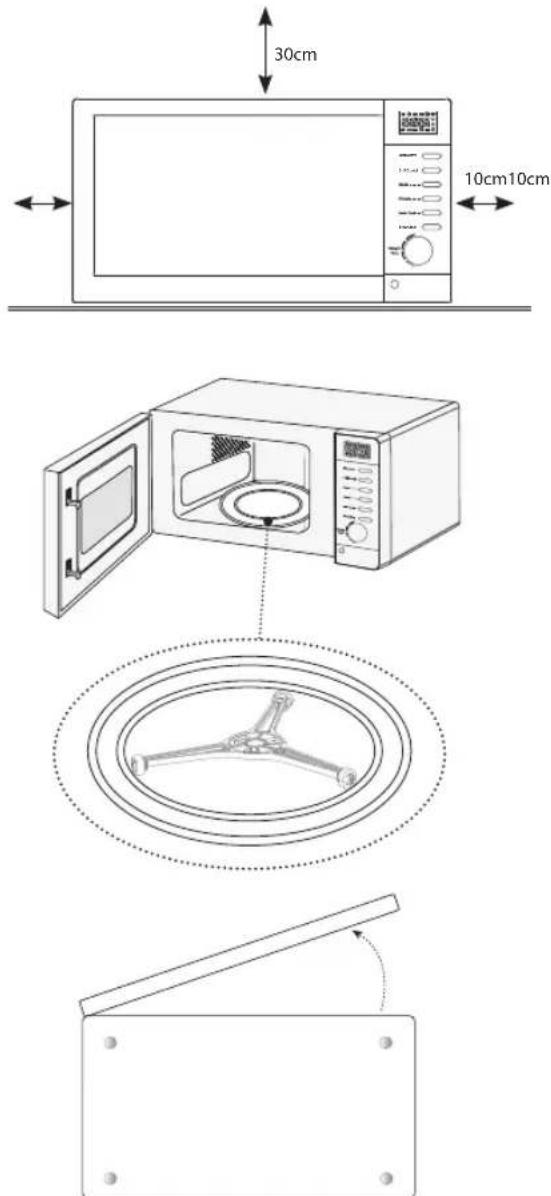

1. After unpacking your microwave, check that it has not been damaged whilst in the box. Make sure there are no dents, and the door closes properly. A damaged microwave could allow microwave energy to escape. Make sure that you have taken out all of the packaging from the inside of the microwave. Please dispose of the plastic wrappings/ bags safely and keep out of the reach of babies and young children.

2. Choose a flat work surface for your microwave away from heat sources such as radiators or fires and away from cold areas. You should allow a 10cm space all around the microwave and 30cm above so that warm air can escape from the vents during cooking – This microwave is not designed to be built in.

3. Plug your microwave into a standard household electrical socket (230 volt, 13 amp rated). Avoid using a socket that also has an adaptor and other equipment plugged in. Do not use a multi adaptor.

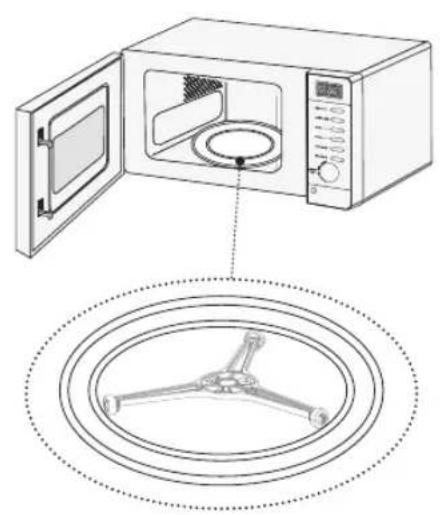

4. Put the turntable ring inside the microwave and place the glass turntable on top of the ring. The turntable is shaped to sit securely on the spindle. You must always use the turntable and ring whenever you use the microwave.

5. To protect your work surface, we recommend that you fix some non-slip cushion pads (not included) to the underside of the microwave.

Underside View

GB

Always remember the basic safeguards you should follow when using any cooking equipment or handling hot food.

See below for basic guidelines in microwave cooking.

Cooking with a Microwave

• Cooking with a microwave is much faster than conventional cooking and, whilst you should make sure that food is fully cooked, you should be careful not to overcook it.
• Microwave energy can heat unevenly so stirring to distribute heat is very important. Always stir from the outside, inwards.
• If you are cooking a number of individual foods at the same time, such as baked potatoes or small cakes, arrange them evenly on the turntable so that they cook evenly. Never stack food in your microwave.
• Turn larger foods such as meat roasts and poultry during cooking so that the top and bottom cook evenly. It is also recommended to turn pieces of meat or poultry, especially if they have not been deboned.
• Meat and poultry which is cooked for 15 minutes or more will brown lightly in it's own fat. Anything cooked for a shorter time can be brushed with a browning sauce to give an appetising colour.
• Strips of aluminium foil can be used to cover the thinner pieces of food to stop them overcooking before the thicker parts of the food have had a chance to cook. Use the foil sparingly and wrap around the food or container carefully to stop it touching the inside of the microwave which could cause sparks.
• Microwave cook food using microwave energy that is similar to naturally occurring radio waves. Normally, these "waves" would fade as they dispersed into the atmosphere but in a microwave they are concentrated onto food causing it to heat up.
• Microwave energy cannot pass through metal – so it cannot escape from inside your microwave – but it can pass through materials like glass, porcelain, plastic and paper.
  These materials are used in the manufacture of microwave safe cooking equipment.
• Microwave safe cooking equipment will still get hot as the food it contains heats up.

The microwave energy focuses on the moisture in the food causing lots of tiny vibrations. The vibrations get so great that the moisture – and the food – heat up.

Simple line drawing of a bowl with steam rising from its side, no text or symbols present

GB

Checking your Cooking Utensils

Most heat-resistant, non-metallic cooking utensils are safe to use in your microwave. If you are not sure if you can use a utensil in your microwave, follow this simple test:

1. Put the utensil into the microwave next to a cup of water – use a cup that you know is microwave safe. Close the door.
2. Turn the microwave on for 30 seconds only.
3. After 30 seconds, carefully check to see if the water has warmed up.
4. If the water has not warmed up but the utensil has, the utensil is not microwave safe and should not be used in the microwave.
5. Do not use your hands to touch the utensils as it may already be hot.

Microwave Heating Categories

Your microwave has been tested and labelled to meet the government's voluntary agreement on the reheating of pre-cooked food.

The heating characteristics and output power levels of microwave are usually calculated using a relatively large portion of food (a 1000 gram load, IEC 705) but many packs of pre-cooked food are sold in smaller packs, often about 350 grams.

The government, in partnership with food companies and microwave manufacturers, have set up a system of heating categories to help you choose the reheating time for pre-cooked food.

800W is the output power of the microwave.

E is the heating category for your microwave. Check the cooking times for category E on the food's packaging to see how long it should be cooked for. Please see below example for reference.

To Microwave:

1. Remove outer packaging.
2. Pierce film lid SEVERAL TIMES.
3. Place on a microwaveable plate.
4. Heat on full power.
5. Turn halfway through heating.

	Heating Category		Wattage (IEC705)
	B D 6	50W 750W
Full power (in minutes)	2 2 2	2
Turn Turn Turn
Full power (in minutes)	2 1.5	2 1.5
Standing time (in minutes)	1 1 1	1

To Microwave from frozen:

1. Remove outer packaging.
2. Pierce film lid SEVERAL TIMES.
3. Place on a microwaveable plate.
4. Heat on full power.
5. Turn halfway through heating.

	Heating Category		Wattage (IEC705)
	B D 6	50W 750W
Full power (in minutes)	3 2.5	3 2.5
Turn Turn Turn
Full power (in minutes)	4 3.5	4 3.5
Standing time (in minutes)	1 1 1	1

Steam

When you microwave food, steam is created as water in the food heats up and evaporates.

The steam formed during microwave cooking is entirely safe. It has to escape from the microwave to prevent pressure from building up inside the microwave. It does this through the vents on the back of the microwave and from around the door.

Condensation

As the steam cools, you may find the condensation gathers in small pools inside your microwave and on the work surface beneath the door and vents. Always dry the microwave after cooking foods with a high moisture content.

Your microwave is designed to let steam escape from the vents and around the door without microwave energy escaping. There is no danger of microwave energy escaping with the steam.

Line drawing of a microwave oven with cloud shapes above it (no text or symbols)

Checking your Microwave

Check your microwave after unpacking.

For your safety, the microwave stops if the door is opened during cooking. Close the door and press the Start button to continue the cooking cycle.

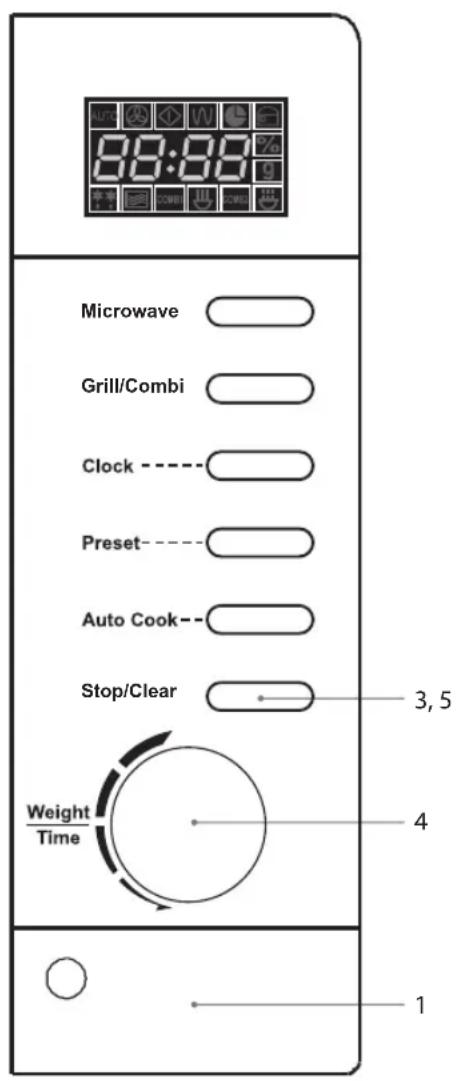

1. Press the Door button to open the door.
   Place a cup of water on the glass turntable.
   Make sure the cup is microwave safe (it should not have any decorative metal trim).
2. Close the door.
3. Press the Stop / Clear button to clear any settings that have already been made.

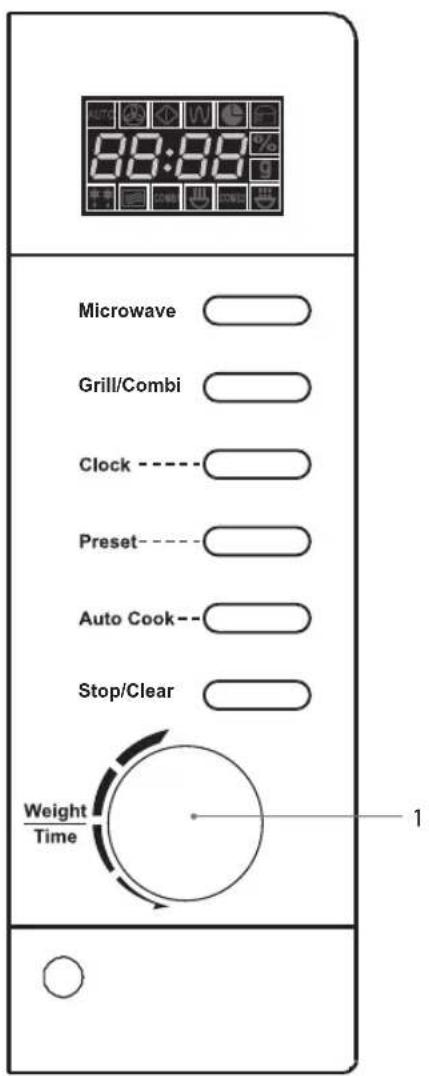

4. Press the Weight / Time dial once to start a simple 30-second microwave cooking cycle. This allows you to check the operation of the microwave.
5. When the cooking cycle has finished, the water should be hot (be careful when you take the cup out of the microwave). Press the Stop / Clear button to clear any settings.

When the microwave is connected to the mains power, the LED display will show 1:01, and the microwave will sound once. Please ensure you have set the clock prior to use.

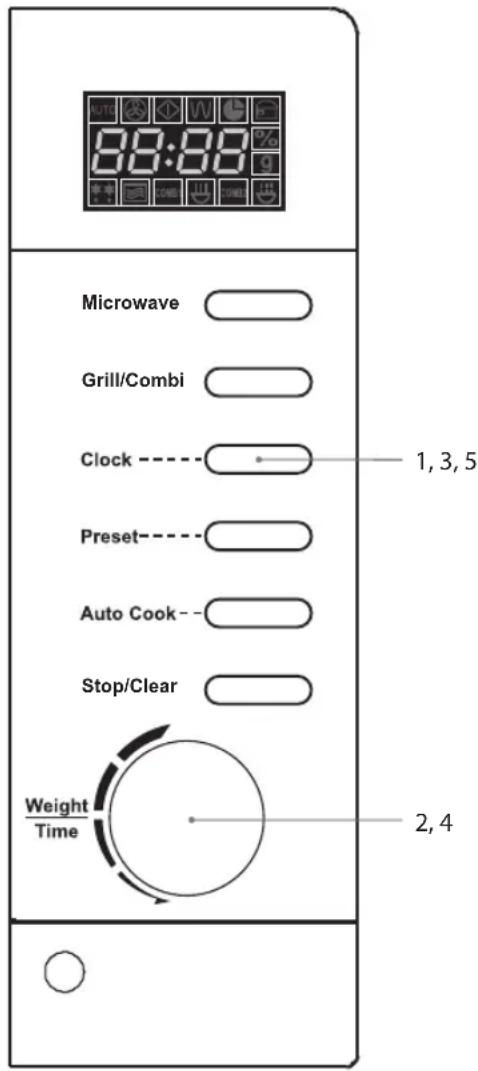

Please follow the steps below to set the clock.

1. Press the Clock button once and the LED display will also show Hr:12. Press it again and the LED display will show Hr:24. This indicate it is in clock setting mode.
2. Turn the Weight / Time dial to adjust the hour figures. For 12-hour clock (Hr:12), the input time has to be within 1-12. For 24-hour clock (Hr:24), the input time has to be within 0-23.
3. Press the Clock button and the minute figures will flash.
4. Turn the Weight / Time dial to adjust the minute figures. The input time has to be within 00-59.
5. Press the Clock button again to complete the clock setting. ":" will start flashing and the time will illuminate to confirm that the clock setting is completed.

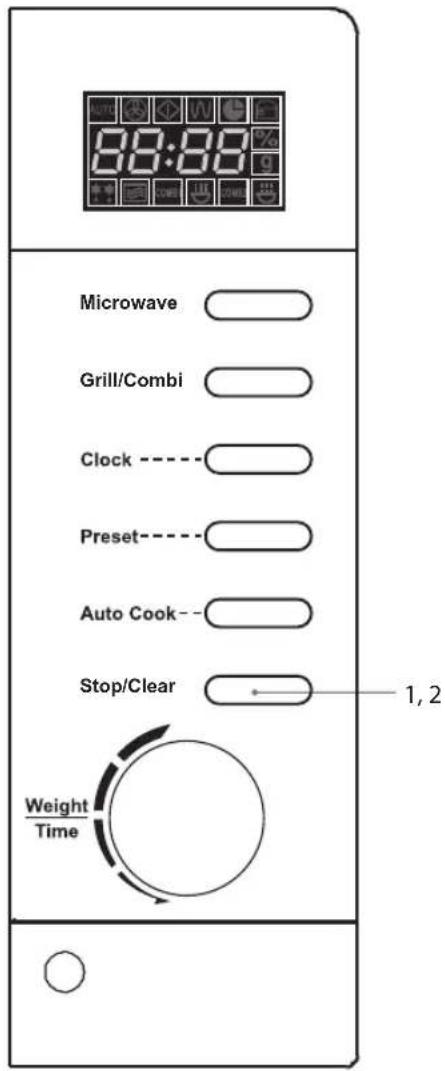

Setting the Child Lock

This feature prevents the electronic operation of the microwave by locking the operation of the control panel until you have cancelled it.

Please follow the steps below to set the child lock.

1. Press the Stop / Clear button for 3 seconds and microwave will sound. The LED display will also show [::] to indicate that the microwave has set the child lock.
2. To release the child lock, press the Stop / Clear button again for 3 seconds and the microwave will sound to indicate that the microwave has released the child lock.

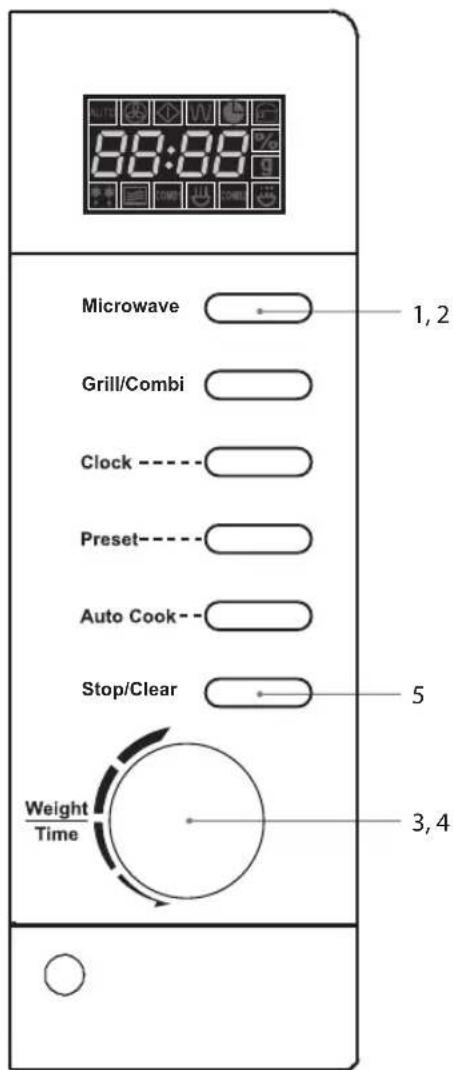

For simple Microwave Cooking, follow the steps below. For instance, If you want to use 80% microwave power to cook for 20 minutes.

1. Press the Microwave button once and the LED display will show 100%, and 🎨 and 🌐
2. Press the Microwave button again to change the power level to 80%.
3. Turn the Weight / Time dial to adjust the cooking time until the LED display shows 20:00.
4. Press the Weight / Time dial once to confirm and start cooking.
5. Press the Stop / Clear button once to stop and hold the cooking. Press again to cancel the setting.

Power Level Control(For Microwave Cooking)
Order LED Display		Microwave Power
1	100%	100%
2	80%	80%
3	60%	60%
4	40%	40%
5	20%	20%
6	00%	00%

When removing food from the microwave, please ensure that the power is switched off. Operating the microwave without food in it can result in overheating and damage the magnetron.

For Grilling, follow the steps below.

GB

1. Press the Grill / Combi button once and the LED display will show W.
2. Turn the Weight / Time dial to adjust the cooking time.
3. Press the Weight / Time dial to confirm and start the cooking.
4. Press the Stop / Clear button once to stop and hold the cooking. Press it again to cancel the setting.

For Combination Cooking, follow the steps below.

1. Press the Grill / Combi button till the LED display will show COMB1 or COMB2.
2. Turn the Weight / Time dial to adjust the cooking time.
3. Press the Weight / Time dial to confirm and start the cooking.
4. Press the Stop / Clear button once to stop and hold the cooking. Press it again to cancel the setting.

Grill / Combination Button Control(For Grill and Combination Cooking)
Order	LED Display	Microwave Power	Grill Power
1 G 0%	100%
2 C-1	30% 70%
3 C-2	55% 45%

Please note there are only 2 modes of combination cooking and their microwave and grill powers are shown in the table above.

For instance: If you want to do 55% microwave power and 45% grill power cooking (C-2) for 10 minutes, please follow the steps below.

1. Press the Grill / Combi button till the LED display will show COMB2.
2. Turn the Weight / Time dial to adjust the cooking time until the LED display shows 10:00.
3. Press the Weight / Time dial to confirm and start the cooking.
4. Press the Stop / Clear button once to stop and hold the cooking. Press again to cancel the setting.

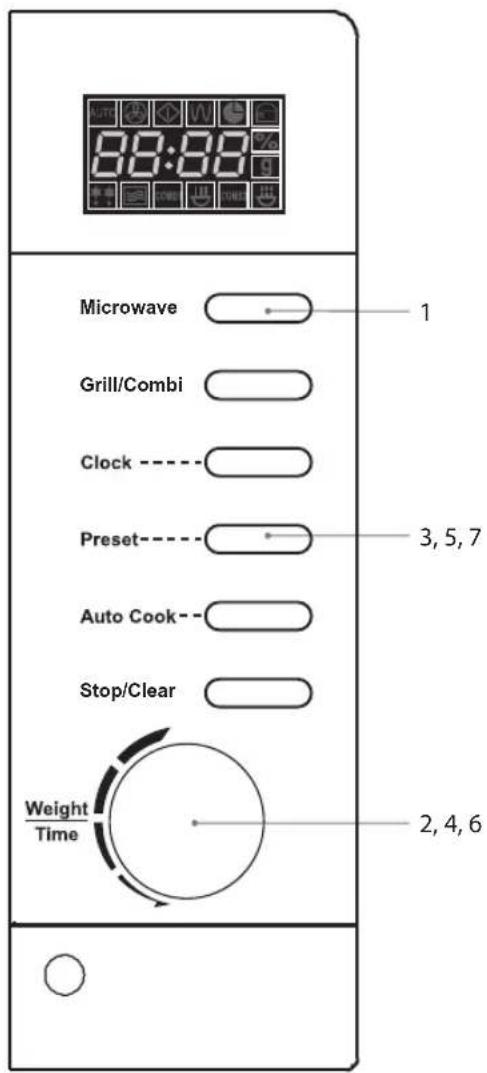

Delay Start Cooking (Programme Set in Advance)

For Delay Start Cooking, follow the steps below.

For instance: The current time is 7 o'clock (morning) and you want to cook with 100% microwave power for 5 minutes at 6 o'clock and 30 minutes (afternoon).

Defrost programme cannot be set in Delay Start Cooking. Ensure the door is closed prior to setting the programme.

1. Press the Microwave button once and the LED display will show 100%, and
2. Turn the Weight / Time dial to adjust the cooking time until the LED display shows 5:00.
   Do not press the Weight / Time dial to confirm and start cooking at this point.
3. Press the Preset button to preset the starting time for the cooking. The hour figure will flash first.
4. Turn the Weight / Time dial to adjust the starting time until the LED display shows 6:00 (for 12-hour clock) or 18:00 (for 24-hour clock).
5. Press the Preset button to preset the starting time for the cooking. The minute figure will flash first.
6. Turn the Weight / Time dial to adjust the starting time until the LED display shows 6:30 (for 12-hour clock) or 18:30 (for 24-hour clock).
7. Press the Preset button to complete the setting. The microwave will sound when the count down reaches the starting time and cooking will start automatically.

This feature allows you to cook most of your food based on the food category and the weight.

Select the category and choose the default weight of the food. For quick reference of the cooking time and the default weight, please refer to the Auto Menu table.

Auto Menu

1. Press the Auto Cook button to select Auto Menu cooking function. The LED display will show AUTO 01, AUTO 02, AUTO 03 etc.
2. Turn the Weight / Time dial to choose the default weight for your chosen programme. Please refer to the Auto Menu table for information.
3. Press the Weight / Time dial to confirm and start the cooking.

For AUTO 07-09 programmes, the microwave will pause and sound after 2/3 of the cooking time has elapsed. simply, open the door and rotate the food for better grilling effect. Then, close the door and press the Weight / Time dial to continue the cooking.

1. Press the Stop / Clear button once to stop and hold the cooking. Press it again to cancel the setting.

For example if you want to cook 300g of fish using Auto Menu programme. Please follow the steps below.

• Press the Auto Cook button to select Auto Menu programme for fish. The LED display will show AUTO 06.
• Turn the Weight / Time dial to choose the default weight until the LED display shows 300.
• Press the Weight / Time dial to confirm and start the cooking.
• Press the Stop / Clear button once to stop and hold the cooking. Press it again to cancel the setting.

Auto Menu Table

Menu Weight Display			Cooking Time	Comments
AUTO 01 Milk / Coffee	1 - cup (~200ml)	1 1'30"		Only use suitable microwavable containers and cling film in the microwave. Pierce the film with a fork before cooking.Check cooking regularly to make sure the water does not boil over.
	2 - cup (~400ml)	2 2'40"
	3 - cup (~600ml)	3 3'50"
AUTO 02 Rice	150g 150g 19'00"			150g of rice + 300ml of cold water	Only use suitable microwavable containers and cling film in the microwave. Pierce the film with a fork before cooking.Check cooking regularly to make sure the water does not boil over.
	300g 300g 22'00"			300g of rice + 600ml of cold water
	450g 450g 25'00"			450g of rice + 900ml of cold water
	600g 600g 28'00"			600g of rice + 1200ml of cold water
AUTO 03 Spaghetti	100g 100g 22'00"			100g of spaghetti + 800 ml of cold water	Only use suitable microwavable containers and cling film in the microwave. Pierce the film with a fork before cooking.Check cooking regularly to make sure the water does not boil over.
	200g 200g 27'00"			200g of spaghetti + 1600 ml of cold water
	300g 300g 32'00"			300g of spaghetti + 2400 ml of cold water
AUTO 04 Potatoes	1 - potato (~230g)	1 5'00"		For best results, pierce the potatoes' skin before cooking.Once the potatoes are cooked, wrap them in aluminium foil for at least 5 minutes to ensure they are cooked thoroughly.
	2 - potato (~460g)	2 9'00"
	3 - potato (~690g)	3 13'00"
AUTO 05 Auto reheat	200g 200g 1'30"			Make sure food is cooked thoroughly before consuming.Additional cooking time may be required for thicker pieces.
	300g 300g 2'00"
	400g 400g 2'30"
	500g 500g 3'00"
	600g 600g 3'30"
	700g 700g 4'00"
	800g 800g 4'30"
AUTO 06 Fish	200g 200g 3'00"			Make sure food is cooked thoroughly before consuming.Additional cooking time may be required for thicker pieces of fish.
	300g 300g 4'20"
	400g 400g 5'40"
	500g 500g 7'00"
	600g 600g 8'20"
AUTO 07 Chicken	800g 800g 33'00"			The microwave will pause and sound after 2/3 cooking time. Open the door and rotate the chicken for better grilling effect. Press theWeight / Timedial to continue the cooking.Make sure food is cooked thoroughly before consuming.Additional cooking time may be required for thicker pieces of chicken.
	1000g 1000g 36'00"
	1200g 1200g 39'00"
	1400g 1400g 42'00"
AUTO 08 Beef / Mutton	200g 200g 12'00"			The microwave will pause and sound after 2/3 cooking time. Open the door and rotate the beef/mutton for better grilling effect. Press theWeight / Timedial to continue the cooking.Make sure food is cooked thoroughly before consuming.Additional cooking time may be required for thicker pieces of beef/mutton.
	300g 300g 15'00"
	400g 400g 18'00"
	500g 500g 21'00"
	600g 600g 24'00"
AUTO 09 Skewered Meat	100g 100g 9'00"			The microwave will pause and sound after 2/3 cooking time. Open the door and rotate the skewered meat for better grilling effect. Press theWeight / Timedial to continue the cooking.Make sure food is cooked thoroughly before consuming.Additional cooking time may be required for thicker pieces of skewered meat.
	200g 200g 12'00"
	300g 300g 15'00"
	400g 400g 18'00"
	500g 500g 21'00"

Quick Start Cooking

This feature allows you to quickly cook your food for 30 seconds with 100% microwave power.

Please follow the steps below.

1. Press the Weight / Time dial to start the quick start cooking. Press the button again to add another 30 seconds. You may increase the cooking time up to 10 minutes.

You may wish to place the frozen food on a microwave safe plate or dish before placing it on the defrost rack (not supplied in this microwave package). This is to ensure that any liquids released during defrosting will not spill and dirty the interior of the microwave.

Defrost by weight

1. Turn the Weight / Time dial anticlockwise to set the weight of your food. The default range is 100g to 1800g.
2. Press the Weight / Time dial to confirm and start defrosting.

TIPS: Large items may be icy in the centre.

Therefore, to ensure even thawing, turn them over from time to time and break them into smaller pieces during defrosting.

The microwave will sound and pause after 2/3 running time. Open the door and rotate the food. Close the door and then press the Weight / Time dial to restart defrosting.

Place roasts fat-side down or whole poultry breast side down.

Drain liquids during defrosting as the juices from food can get hot and cook the food.

1. Press the Stop / Clear button once to stop and hold the defrosting. Press again to cancel the setting.

This feature allows you to check and view the current power, time and pre-set time of your selected cooking program.

To find out the current cooking power

1. Press the Microwave button once and the LED display will show the current cooking power while the microwave is in microwave cooking. However, this function will not be working in It will last for 3 seconds and then return to its original display.

To find out the time

1. Press the Clock button once and the LED display will show the time while the microwave is in microwave cooking. It will last for 3 seconds and then return to its original display.

To find out the pre-set time

1. While the microwave is still in the pre-set state, press the Preset button once and the LED display will show the pre-set time. It will last for 3 seconds and then return to its original display.

Cleaning Your Microwave

Cleaning your microwave each time you use it will help to prevent a build up of stubborn marks that can be difficult to clean.

Unplug your microwave from the mains and wait for it to cool down completely before cleaning.

On the right hand side wall of the cavity is the wave guide cover, microwaves are passed though this to enable your food to cook. It is important that this wave guide cover is kept clean at all times.

Wipe it with mild detergent and water and leave to dry.

1 The microwave walls have a special enamel coating which makes cleaning very easy. Use a soft damp cloth to wipe off any splashes or a paper towel to mop up any spills. Wipe off grease with a damp cloth and a little detergent. Dry thoroughly. As with any, if grease is left to accumulate, it can smoke and even catch fire.

2 Make sure you keep the outlet grids clean.

3 Keep the front of the microwave clean so that the door can close properly.

4 Be careful not to spill water into the vents.

5 Do not remove wave guide cover: It is important to keep the cover clean in the same manner as the inside of the microwave. If grease is left to accumulate, it can smoke and even catch fire.

6 Keep the inside of the door clean with a damp cloth. Use warm soapy water for stubborn marks and dry thoroughly.

The inside of the door has a special coating and must not be cleaned with abrasive pads or cleaning powders.

7 Clean behind the door ledge.

8 Use warm soapy water to clean the outside of the microwave. Do not use abrasive pads or powders that could scratch the surface.

9 Unplug the microwave before cleaning the power lead and the microwave.

Wipe with a damp cloth and leave to dry before plugging it back in.

10 Treat the glass turntable as you would any glass plate. After you have used it for more than 15 minutes, allow it to cool down before you use it again. Do not wash the turntable in very hot water, doing so could crack it.

Make sure the glass turntable is dry before you put it back in the microwave.

11 Wash rack and turnable ring in warm water. Do not use very hot water on them which could make them warp.

Do not remove any fixed parts from the inside of your microwave during cleaning or at any other time.

Frequently Asked Questions

If a problem does occur, it may often be due to something very minor. The following Q & A may be able to resolve the problem.

Questions Answers
Why doesn't the food seem to cook?	Check that:• the cooking time has been set• the door is closed• the power socket is not overloaded causing the fuse to blow.
Why does the food seem undercooked or overcooked?	Check that:• the correct cooking time has been set• the correct power setting has been used.
How can I stop eggs from popping?	When you bake or poach eggs in the microwave, the yolk can sometimes pop as steam builds up inside it. You can stop the egg from popping by piercing the yolk with a toothpick before cooking.Never cook eggs that are still in their shells.
Why is it so important that I allow standing time after cooking?	With microwave cooking, many foods build up enough heat inside them to continue cooking even after they've been taken out of the microwave. Because microwave cooking works from the outside of food inwards, standing time lets you cook the centre of the food without the outside being overcooked.
Why does my microwave sometimes take longer to cook than it says in the recipe?	First check that the microwave was set just as the recipe said. Cooking times and heat settings are suggestions to help prevent overcooking but differences in the weight, size, shape and starting temperature of food will all affect how long it takes to cook – just as it does with a conventional microwave. Use your judgement along with the recipe to check whether the food has been cooked properly.
Why do I get condensation on the inside of the door?	Condensation is perfectly normal, especially when you are cooking food with a high moisture content such as potatoes.
Does the microwave energy get through the window on the door?	No. The door has a special metal screen with holes in that lets you see inside but stops microwave energy from getting out.
Steam comes out of the side of the door and vents. Can microwave energy get out too?	No. The door and vents are carefully designed to let steam out during cooking but keep microwave energy in. The gaps are not big enough for microwave energy to escape.
What happens if the microwave is switched on while the microwave is empty?	The microwave will be damaged. Do not switch the microwave on when there's nothing inside the microwave. It is a good idea to keep a cup of water in the microwave just in case someone accidentally starts the microwave.
Why doesn't the microwave's light illuminate?	Open the door. If the light does not illuminate, the bulb has probably blown. Call a qualified technician – do not try to change the bulb yourself.
There are sparks inside the microwave when I use the microwave. Will this cause any damage?	Yes. Make sure that you are not using any metal utensils and that your containers don't have a metal trim. You must not use metal in your microwave when you cook (except aluminium foil).
Light is showing through the vents and door. Does this mean the microwave energy can escape?	No. It is normal for the light to be visible and is nothing to be concerned about.
Why do I get interference on my TV and radio when I use the microwave?	Microwaves use radio waves similar to those received by TVs and radios. You can lessen the interference by moving your microwave further away from the TV or radio.

Specification

GB

Model L20GSS10E
Input 230 - 240V~ 50Hz
Microwave Output 700 - 800 Watts
Microwave Frequency 2450MHz
Outside Dimensions(width x deep x height)	452mm x 370mm x 262mm
Power consumption
Microwave Input 1250 - 1350 Watts
Grill 950 - 1050 Watts

Complies with EEC directives 89/336/EEC and 92/31/EEC.

Because we continually strive to improve our products, we may change specifications without prior notice.

Unità principale

Simple diagram of two concentric ovals with no text or symbols

Simple line drawing of a bowl with steam rising from its side, no text or symbols present

IT

Line drawing of a microwave oven with cloud shapes above it (no text or symbols)

Hlavní jednotka

Simple diagram of two concentric ovals with no text or symbols

Pohled zdola

Simple line drawing of a bowl with steam rising from it, no text or symbols present

Line drawing of a microwave oven with cloud shapes above it (no text or symbols)

Hlavná jednotka

Simple diagram of two concentric ovals with no text or symbols

Line drawing of a microwave oven with open door and circular fan, showing internal components (no text or symbols)

Simple line drawing of a rectangular block with a diagonal beam and a rotation arrow, no text or symbols present.

Pohl'ad zdola

Simple line drawing of a bowl with steam rising from its side, no text or symbols present

Kontrola riadov na varenie

Line drawing of a microwave oven with cloud shapes above it (no text or symbols)

• Switch off and unplug before fitting or removing tools/attachments, after use and before cleaning.
• Keep your fingers away from moving parts and fitted attachments.
  • Never use a damaged machine.
  • Never operate the machine when it is empty.
• Keep mains cable out of reach from children.
• Keep power unit, mains cable or plug away from water.
  • Never exceed the maximum capacities.
• When using an attachment, read the accompanying safety instructions.
  • Take care when lifting this appliance as it is heavy.
• You should always have your microwave checked by a qualified technician if it has been dropped or damaged to ensure it is safe to use.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Only use the appliance for its intended domestic use. We will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.

Maintenance of your microwave

WARNING: It is hazardous for anyone other than a qualified technician to carry out any service or repair operation which involves the removal of a cover that gives protection against exposure to microwave energy.

WARNING: If the door or door seals are damaged, the microwave must not be operated until it has been repaired by a qualified technician.

• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to contain any flames.
• If the mains cable is damaged, it must be replaced by a service agent or a qualified technician.
• If you have a pacemaker, please contact your doctor before using a microwave.

Microwave use

• This microwave is not intended for commercial use.
- It should never be used for drying clothes or for other non-food purposes.
- The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• The microwave should not be left unattended when in use.
- The temperature of accessible surfaces may be high when the appliance is operating.
- To prevent high moisture content gathering inside the microwave cavity, open the door immediately after the cooking function has stopped to allow steam to escape.
• Only use utensils that are suitable for microwave use.
- Care should be taken when using paper, plastic, wooden or other combustible materials in the microwave as they can catch fire.
• Oil & fat for deep frying should not be heated in the microwave.
- Only use cling film designed for microwave use and take extra care when removing the film to avoid steam burns.
• Only heat popcorn that has been designed for microwave use.

Cooking Use

As the power of different microwave ovens can vary considerably, care must be taken when first using this appliance as it may cook faster than expected.

• Do not leave the appliance unattended during use.

• Take care when cooking food with a high sugar or fat content, such as Christmas pudding or fruitcake. The sugar or fat can overheat and in some cases catch fire.

Fire!

In the event of fire:

• Keep the microwave door closed.
  • Turn off the power.
  • Unplug the appliance from the mains power.

First Aid

Treat scalding by:

• Quickly placing the scald under cold running water for at least 10 minutes.
  • Cover with a clean dry dressing. Do not use creams, oils or lotions.

Cleaning your Microwave

- The microwave should be cleaned regularly and food deposits removed. Failure to maintain the microwave in a clean condition can affect the life of the appliance and possibly result in a hazardous situation. (See cleaning your microwave)

Do not use these in your Microwave

• Metal objects are not to be used in the microwave. This include:

• Metal cooking utensils. - Metal plates or trays
• Wine twist ties - Crockery with metal trims
• Meat thermometer

- Never use equipment made of metal, except foil in your microwave. The microwave energy cannot pass through the metal so it bounces off and sparks against the inside of the microwave.

• Stop the microwave straight away if any equipment is causing sparks.
• Remember that some crockery has a metal trim around the edge. Even this trim can cause sparks.

Containers

WARNING: Pressure will build up in sealed containers and can cause them to explode. Therefore, do not use the following in your microwave:

- Sealed containers - Capped bottles

• Vacuum containers - Sealed jars
• Hard-boiled eggs - Eggs in their shells
• Nuts

• Always pierce the skin of fruit and vegetables, such as potatoes.

- Never use scratched, cracked or damaged glass in a microwave. Damaged glass can explode.

Delayed Boiling

Liquids heated in a microwave can boil up when removing them from the microwave.

Take the following precautions :

• Always stir liquids, before and after cooking.
- Allow them to stand.
• Use containers that are wider at the top than at the bottom.

Preparing food for Babies

Extra care must be taken when preparing food or drink for babies and small children.

• Always test the food or liquid temperature before feeding it to the baby.
- When using a baby bottle, ensure the teat is removed before heating.
- When warming milk, ensure the bottle is shaken.

Caution!

During cooking the outer surface will become hot. Do not touch the outer casing of the microwave. Care should be taken not to store any items on top of your microwave.

Earthing Instructions

WARNING: THIS APPLIANCE MUST BE EARTHED.

• This appliance is equipped with a mains cable having an earthed plug.
• The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local standard and requirements.

Warning!

• Improper connection of the appliance-earthing conductor can result in a risk of an electric shock.
• Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly earthed.
  • Never modify the plug provided with the appliance.
• If the plug does not fit properly in the mains socket, have a qualified electrician to install a proper mains socket.

Sicurezza generale

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.

IT

DSG Retail Limited is responsible for after sales service.

If you have a query about the product please contact our product support line 0844 561 6263 (Currys) and 08700 118 117 (Pixmania).

IT
