Product Type	Built-in Dishwasher
Brand	Whirlpool
Model	ADP 321 IX
Color	Stainless Steel (IX)
Dimensions (H x W x D)	85 x 60 x 60 cm
Weight	45 kg
Capacity	13 place settings
Energy Efficiency Class	E (EU 2019)
Energy Consumption per Cycle	0.95 kWh
Water Consumption per Cycle	12 L
Noise Level	49 dB(A)
Number of Programs	5
Programs	Eco, Intensive, Normal, Quick (45 min), Rinse & Hold
Drying System	Condensation drying
Control Type	Electronic push buttons
Display	LED indicators
Water Supply	Cold water
Maximum Water Temperature	60 °C
Adjustable Rinse Aid	Yes
Salt Refill Indicator	Yes
Rinse Aid Indicator	Yes
Delay Start	Yes (up to 24 hours)
Child Lock	Yes
Cutlery Basket	Yes, removable
Upper Rack Adjustment	Height adjustable

Frequently Asked Questions - ADP 321 IX WHIRLPOOL

How do I install the dishwasher?

The Whirlpool ADP 321 IX must be installed by a qualified technician. It requires a cold water connection (3/4 inch), a drain hose, and a power supply (220-240V, 50Hz). Ensure the appliance is level and securely fitted in the cabinet.

What detergents should I use?

Use any standard dishwasher detergent (powder, gel, or tablets). For best results, use a combined detergent with salt and rinse aid. Do not use hand dishwashing liquid.

How do I clean the filters?

Turn off the dishwasher and remove the lower rack. Unscrew the cylindrical filter assembly. Rinse under running water and use a soft brush if needed. Replace and secure tightly. Clean filters monthly.

Why is my dishwasher not draining?

Check if the drain hose is kinked or blocked. Clean the filters and the pump impeller. Ensure the sink drain is not clogged. If the problem persists, contact a service technician.

What does the salt indicator mean?

The salt indicator lights up when the water softener salt needs refilling. Open the salt compartment, use a funnel to add salt (coarse grains only), and wipe away any spills.

Can I put pans in the dishwasher?

Yes, but avoid non-stick pans, wooden items, and delicate glassware. Place pans on the lower rack with the soiled surface facing the spray arms. Use the intensive program for heavily soiled pans.

How do I use the delay start?

Select a program, then press the delay button repeatedly to set the delay time (up to 24 hours). Close the door; the dishwasher will start after the set delay.

What does the rinse aid indicator mean?

When the rinse aid indicator lights up, open the rinse aid dispenser and fill it with rinse aid until the level indicator turns black. Adjust the dosage using the setting dial.

How do I activate the child lock?

Press and hold the 'Child Lock' button (if available) for 3 seconds until the indicator lights up. To deactivate, repeat the process. This prevents accidental program changes.

Where can I find replacement parts?

Replacement parts can be ordered from authorized Whirlpool service centers or online retailers. Use the model number ADP 321 IX to ensure compatibility. Common parts include filters, spray arms, and detergent dispensers.

USER MANUAL ADP 321 IX WHIRLPOOL

Operating instructions DISHWASHER - Contents

Operating instructions, 1

Important Safety Instructions, 2-3

Assistance, 11

Product Data, 12

Installation, 14-15

Description of the appliance, 16

Refined salt and rinse aid, 17

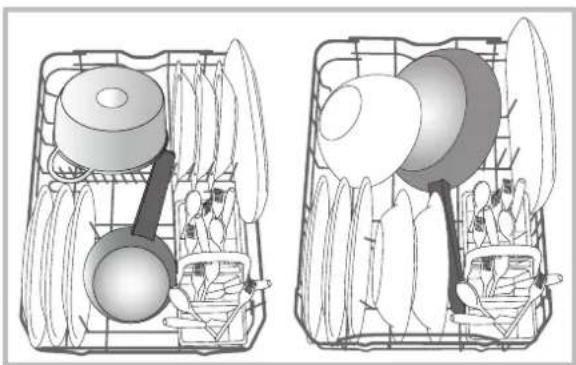

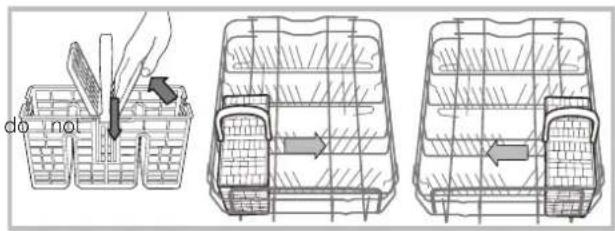

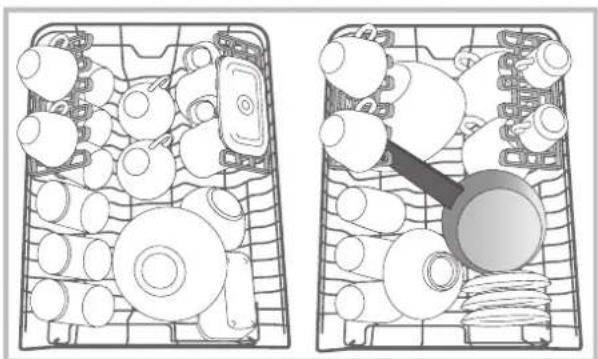

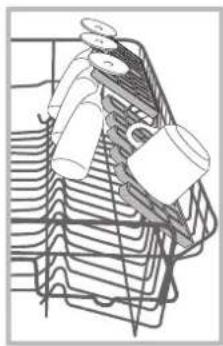

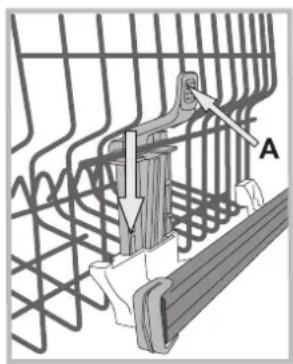

Loading the racks, 18-19

Detergent and dishwasher use, 20

Wash cycles, 21

Special wash cycles and options, 22

Care and maintenance, 23

Troubleshooting, 24

CS

Česky

HU

Magyar

IMPORTANT SAFETY INSTRUCTIONS

Read the instructions carefully before ng, as they include important information safe installation, use and maintenance. ep this instruction manual in a safe place future reference. If the appliance is sold, ven away or moved, make sure the manual kept with the machine.

Remove the appliance from all packaging and make sure it was not damaged during transportation, if it was damaged contact the retailer and do not proceed any further with the installation process.

When using your dishwasher, follow the precautions listed below:

• The appliance must be used to domestic crockery in accordance with the instructions in this manual.
• This appliance can be used by cl aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• The appliance must not be instal outdoors, even in covered areas. It is extremely dangerous to leave the machine exposed to rain and storms.
• Do not store flammable materials in close proximity to the appliance.
• The water in the appliance is not potable.
• Do not use solvents inside the appliance: risk of explosion!
  • The door should not be left in the

position since this could present a tripping hazard.

• Do not rest objects on the open door or sit or stand on it since the appliance could trip forward.
• The open appliance door can only support the weight of the loaded rack when pulled out.
• The water supply tap must be shut off and the plug should be removed from the electrical socket at the end of every cycle and before cleaning the appliance for carrying out any maintenance work also disconnect in the event of any malfunction.
• Repairs and technical modifications must be carried out exclusively by a qualified technician.
• When unplugging the appliance always pulls the plug from the mains socket. Do not pull on the cable.

In order to avoid laceration hazard, usage of special gloves is needed during the assembling of the appliance.

• During use, the access to the rear wall should be limited in a sustainable manner such as approaching the device to the wall or furniture board.
• Keep packaging materials out of the reach of Children, packaging materials should not be used as a toy.
• Children must not be allowed to play with the appliance.
  Store the detergent, rinse aid and salt out of the reach of children.
• Appliance is dedicated only for household use.
• Appliance can not be operated until installation process is complete.

GROUNDING INSTRUCTIONS

- Open appliance must be grounded. In the

event of a malfunction or breakdown, grounding will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug.

• The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

• Extension cord, adapters and convert plugs must not be used to connect the appliance to the outlet.

• Improper connection of the equipment-grounding conductor can result in the risk of an electric shock.

• Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance; If it does not fit the outlet. Have a proper outlet installed by a qualified electrician.

PROPER USE

• Access to disconnection of the appliance (main plug) shall be ensured after installation.
• When loading items to be washed:

1 - Locate sharp items so that they are not likely to damage the door seal;

2 - WARNING: Knives and other utensils with sharp points must be loaded in the cutlery basket with their points/blades down placed in a horizontal position with the sharp end facing away from the front of the appliance.

• Use only detergent and rinse additive designed for an automatic dishwasher.
• WARNING: Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with the skin and eyes and keep children away from the dishwasher when the door is open. Check that the detergent receptacle is empty after completion of the wash cycle.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

- During installation, the power supply must not be excessively or dangerously bent or flattened. Do not tamper with controls.

• The appliance is to be connected to the water mains using new hose sets. The old hose-sets should not be reused.
• The maximum number of place settings is shown in the product sheet.

SAFEGUARDING THE ENVIRONMENT

• This appliance has been made of recyclable or re-usable material. Scrapping must be oncarried out in compliance with local waste disposal regulations. Before scrapping it, make sure to cut off the mains cord so that the appliance cannot be re-used.
• For more detailed information on handling and recycling of this product, contact your local authorities who deal with the separate collection of rubbish or the shop where you bought the appliance.

SCRAPPING OF PACKAGING

• The packaging can be 100% recycled as confirmed by the recycling symbol. The various parts of the packaging must not be dispersed in the environment, but must be scrapped in line with local authority regulations.
  • The European Directive 2012/19/EU relating to Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of reusing and recycling the materials inside the machine, while preventing potential damage to the atmosphere and public health. The crossed-out dustbin symbol shown on all products reminds the owners of their obligations regarding separated waste collection. For further information relating to the correct disposal of household appliances, owners may contact the relevant public authority or the local appliance dealer.

CS DŮLEŽITÉ BEZPEČNOSTNÍPOKYNY

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

Before contacting Assistance:

• Check whether the problem can be resolved using Troubleshooting guide (see Troubleshooting).
• Restart the programme to check whether the problem has ceased to exist.
• If the problem persists, contact the Authorised Technical Assistance Service.

HU

Szerviz

Never use the services of unauthorised technicians.

Please have the following information to hand:

• The type of malfunction.
• The appliance model (Mod.).
• The serial number (S/N).
This information can be found on the appliance data plate (see Description of the appliance).

Product Fiche
Brand	WHIRLPOOL
Model	ADP 321
Rated capacity in standard place settings (1)	10
Energy efficiency class on a scale from A+++ (low consumption) to D (high consumption)	A+
Energy consumption per year in kWh (2)	237
Energy consumption of the standard cleaning cycle in kWh	0.83
Power consumption of the off-mode in W	0.5
Power consumption of the left-on mode in W	5.0
Water consumption per year in litres (3)	2800
Drying efficacy class on a scale from G (low efficacy) to A (high efficacy)	A
Programme time for standard cleaning cycle in minutes	180
The duration of the left-on mode in minutes	12
Noise in dB(A) Re 1pW	49
Built-in model	No
NOTES
1) The information on the label and fiche relates to the standard cleaning cycle, this programme is suitable to clean normally soiled tableware and it is the most efficient programme in terms of combined energy and water consumption. The standard cleaning cycle corresponds to the Eco cycle.
2) Based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes. Actual energy consumption depends on how the appliance is used.
3) Based on 280 standard cleaning cycles. Actual water consumption depends on how the appliance is used.

If the appliance must be moved at any time, keep it in an upright position; if absolutely necessary, it may be tilted onto its back.

Connecting the water supply

Adaptation of the water supply for installation should only be performed by a qualified technician.

The water inlet and outlet hoses may be positioned towards the right or the left in order to achieve the best possible installation. Make sure the dishwasher does not bend or squash the hoses.

Connecting the water inlet hose

• To a 3/4" gas cold or hot water connection point (max. 60°C)
• Run the water until it is perfectly clear.
• Screw the inlet hose tightly into position and turn off the tap

⚠️ If the inlet hose is not long enough, contact a specialist store or an authorised technician (see Assistance).

The water pressure must be within the values indicated in the Technical Data table - otherwise the dishwasher may be function properly.

Make sure the hose is not bent or compressed.

Connecting the water outlet hose

Connect the outlet hose to a drain duct with a minimum diameter of 2 cm. (A)

The outlet hose connection must be at a height ranging from 40 to 80 cm from the floor or surface where the dishwasher rests.

Before connecting the water outlet hose to the sink drain, remove the plastic plug (B).

Anti-flooding protection

To ensure floods do not occur, the dishwasher:

- is provided with a special system which blocks the water supply in the event of anomalies or leaks from inside the appliance.

Some models are also equipped with the supplementary safety device New Acqua Stop, which guarantees anti-flooding protection even in the event of a supply hose rupture.

WARNING: HAZARDOUS VOLTAGE!

Under no circumstances should the water inlet hose be cut s it contains live electrical parts.

Electrical connection

Before inserting the plug into the electrical socket, make sure that:

• The socket is earthed and complies with current regulations;
• the socket can withstand the maximum load of the appliance as shown on the data plate located on the inside of the door (see chapter Description of the appliance);
• The power supply voltage falls within the values indicated on the data plate on the inside of the door.
• The socket is compatible with the plug of the appliance. If this is not the case, ask an authorised technician to replace the plug (see Assistance). Do not use extension cables or multiple sockets.

Once the appliance has been installed, the power supply cable and the electrical socket should be easily accessible.
The cable should not be bent or compressed.
If the power supply cable is damaged, have it replaced by the manufacturer or its authorised Technical Assistance Service in order to prevent all potential hazards. (See Assistance)
The Company shall not be held responsible for any incidents, if these regulations are not observed.

Positioning and levelling

1. Position the dishwasher on a level sturdy floor. If the floor is uneven, the front feet of the appliance may be adjusted until it reaches a horizontal position. If the appliance is levelled correctly, it will be more stable and much less likely to move or cause vibrations and noise while it is operating.
2. Before recessing the dishwasher, stick the adhesive transparent strip under the wooden shelf in order to protect it from any condensation which may form.
3. Place the dishwasher so that its sides or back panel are in contact with the adjacent cabinets or the wall. This appliance can also be recessed under a single worktop (see the Assembly instruction sheet).
4. To adjust the height of the rear foot, turn the red hexagonal bushing on the lower central part at the front of the dishwasher using a hexagonal spanner with an opening of 8 mm. Turn the spanner in a clockwise direction to increase the height and in an anticlockwise direction to decrease it. (see Building-in instruction sheet attached to the documentation)

Advice regarding the first wash cycle

After the installation, remove the stoppers from the racks and the retaining elastic elements from the upper rack (if any).

Water softener settings

Before starting the first wash cycle, set the hardness level of the water from the mains supply. (see chapter Rinse aid and refined salt).

First load the softener tank with water, then introduce about 1 kg of salt. It is perfectly normal for water to flow out.

As soon as this procedure is complete, run a wash cycle.

Only use salt that has been specifically designed for dishwashers.

After the salt has been poured into the machine, the LOW SALT indicator light switches off.

If the salt container is not filled, the water softener and the heating element may be damaged as a result.

Technical data
Dimensions	width 45 cmheight 85 cmdepth 60 cm
Capacity 10 standard place-settings
Water supply pressure	0,05 ÷ 1MPa (0.5 ÷ 10 bar)7,25 psi – 145 psi
Power supply voltage See appliance data plate
Total absorbed power See appliance data plate
Fuse See appliance data plate
	This dishwasher conforms to the following European Community Directives:-93/68/EEC (CE Marking)-2006/95/EC (Low Voltage)-2004/108/EC (Electromagnetic Compatibility)-2009/125/EC (Comm. Reg. 1016/2010) (Ecodesign)-2010/30/EC (Energy Labelling)-2011/65/EC (RoHS)-2012/19/CE Waste Electrical and Electronic Equipment (WEEE)

The machine has a buzzer/set of tones to inform the user that a command has been implemented: power on, cycle end etc.

The symbols/indicator lights/LEDs on the control panel/display may vary in colour and may have a flashing or fixed light.

The display provides useful information concerning the type of wash cycle, drying/wash-cycle phase, remaining time, temperature etc.

Description of the appliance

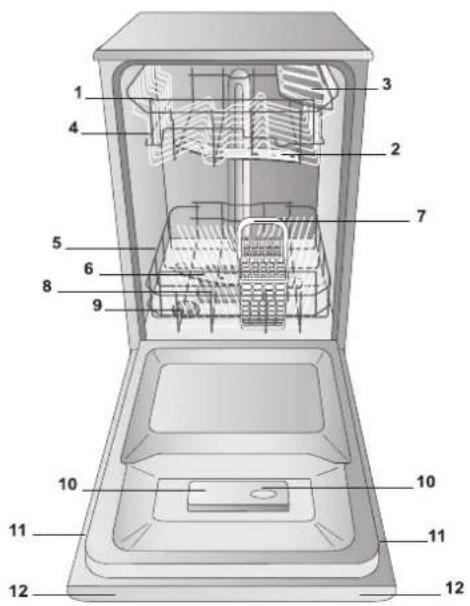

Overall view

1. Upper rack
2. Upper spray arm
3. Tip-up compartments
4. Rack height adjuster
5. Lower rack
6. Lower spray arm
7. Cutlery basket
8. Washing filter
9. Salt dispenser
10. Detergent and rinse aid dispensers
11. Data plate
12. Control Panel

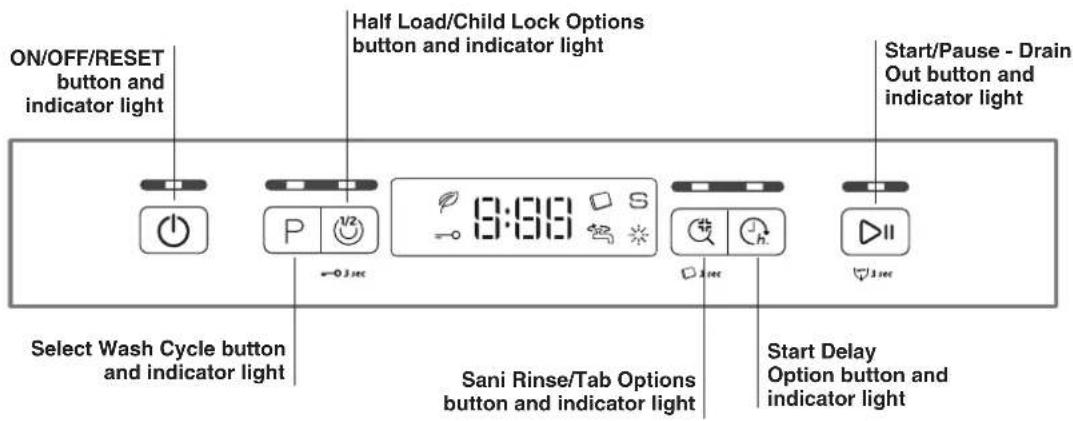

Control panel

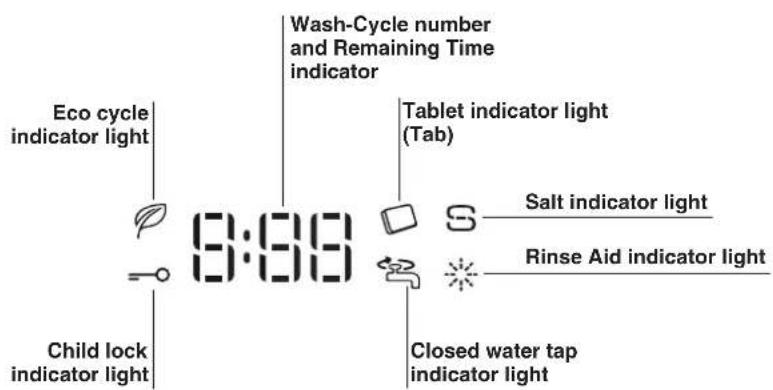

Display

Only use products which have been specifically designed for dishwashers. Do not use table salt or industrial salt.

(Follow the instructions given on the packaging.)

If you are using a multi-function product, we recommend that you add salt in any case, especially if the water is hard or very hard. (Follow the instructions given on the packaging.)

⚠️ If you do not add salt or rinse aid, the LOW SALT and LOW RINSE AID indicator lights will remain lit.

Measuring out the refined salt

The use of salt prevents the formation of LIMESCALE on the dishes and on the machine's functional components.

• It is important that the salt dispenser be never empty.
• It is important to set the water hardness.
  The salt dispenser is located in the lower part of the dishwasher (see Description) and should be filled:
• When the LOW SALT indicator light in the control panel is lit;
  • See autonomy in the water hardness table.

1. Remove the lower rack and unscrew the container cap (anticlockwise).
2. Only the first time you do this: fill the water dispenser up to the edge.
3. Position the funnel (see figure) and fill the salt container right up to its edge (approximately 1

kg); it is not unusual for a little water to leak out.

1. Remove the funnel and wipe any salt residue away from the opening; rinse the cap under running water and then screw it on. It is advisable to perform this procedure every time you add salt to the container.
   Make sure the cap is screwed on tightly, so that no detergent can get into the container during the wash cycle (this could damage the water softener beyond repair).
   Whenever you need to add salt, we recommend carrying out the procedure before the washing cycle is started.

Setting the water hardness

For perfect water softener operation, it is essential adjustment be based on the water hardness in your house. Ask your local water supplier for this information. The factory setting is for medium water hardness.

• Switch the dishwasher on using the On/Off button.
• Switch it off using the On/Off button ⏻
• Hold down button Start/Pause ▷ for 5 seconds until you hear a beep.
• Switch it on using the On/Off button
• The display shows the current selection level number and the salt indicator light.
• Press button P to select the desired hardness level (see hardness table).
• Switch it off using the On/Off button
• Setting is complete!

Water Hardness Table				Average autonomy salt dispenser with 1 wash cycle per day
level °dH °fH mmol/l months
1	0 - 6	0 - 1	0 - 1 7 months
2	6 - 11	11	- 20 1.1 - 2	5 months
3	12 - 17		21 - 30	2.1 - 3
4	17 - 34		31 - 60	3.1 - 6
5	34 - 50		61 - 90	6.1 - 9
For values between 0°f and 10°f, we do not recommend the use of salt. A setting of 5 may increase cycle duration. (°dH = hardness measured in German degrees - °f = hardness measured in French degrees – mmol/l = millimoles per litre)

(°dH = hardness measured in German degrees - °f = hardness measured in French degrees - mmol/l = millimoles per litre)

Measuring out the rinse aid

Rinse aid makes dish DRYING easier. The rinse aid dispenser should be filled:

• When the LOW RINSE AID indicator light on the panel/display is lit;
• When the dark optical indicator on the dispenser door "E" becomes transparent.

1. Open the dispenser by turning the cap "G" in an anticlockwise direction.
2. Pour in the rinse aid, making sure it does not overflow from the dispenser. If this happens, clean the spill immediately with a dry cloth.
3. Screw the cap back on.

NEVER pour the rinse aid directly into the tub.

Adjusting the amount of rinse aid

If you are not completely satisfied with the drying results, you can adjust the quantity of rinse aid used. Turn the adjuster "F". that maximum of 4 levels can be set according to the dishwasher model. The factory setting is for a medium level.

• If you see bluish streaks on the dishes, set a low number (1-2).
- If there are drops of water or limescale marks on the dishes, set a high number (3-4).

Tips

Before loading the racks, remove all food residues from the crockery and empty liquids from glasses and containers. No preventive rinsing is needed under running water.

Arrange the crockery so that it is held in place firmly and does not tip over; and arrange the containers with the openings facing downwards and the concave/convex parts placed obliquely, thus allowing the water to reach every surface and flow freely.

Make sure that the lids, handles, trays and frying pans prevent the spray arms from rotating. Place any small items in the cutlery basket.

Since plastic dishes and non-stick frying pans usually retain more water drops, their drying will be not so good as that of ceramic or stainless-steel dishes.

Lightweight items such as plastic containers should be placed in the upper rack and arranged so that they cannot move.

After loading the appliance, make sure that the spray arms can rotate freely.

Lower rack

The lower rack can hold pans, lids, dishes, salad bowls, cutlery etc. Large plates and lids should ideally be placed at the sides.

Two identical line drawings of a kitchen appliance with cutlery and dish items, no text or symbols present.

Very soiled dishes and pans should be placed in the lower rack because in this sector the water sprays are stronger and allow a higher washing performance.

Cutlery basket

The basket is equipped with top grilles for improved cutlery arrangement. The cutlery basket should be positioned only at the front of the lower rack.

Upper rack

Load this rack with delicate and lightweight crockery such as glasses, cups, saucers and shallow salad bowls.

Two technical diagrams showing a grid of circular components and a magnified view of a cylindrical object (no text or symbols present)

Adjustable position tip-up compartments

The side tip-up compartments can be positioned at three different heights to optimize the arrangement of the crockery inside the rack.

Line drawing of a shopping cart filled with items, no text or symbols present

Wine glasses can be placed safely in the tip-up compartments by inserting the stem of each glass into the corresponding slot.

For optimum drying results incline the tip-up compartments more. To change the inclination, pull up the tip-up compartment, slide it slightly and position it as you wish.

Adjusting the height of the upper rack

The height of the upper rack can be adjusted: high position to place bulky crockery in the lower rack and low position to make the most of the tip-up compartments by creating more space upwards.

It is strongly recommended to never adjust height position when the rack is loaded.

NEVER raise or lower the rack on one side only.

Technical diagram of a mechanical assembly with spring-loaded components and labeled section A (no text or symbols beyond label)

If the rack is equipped with a Lift-Up device (see figure), lift it up by holding its sides. To restore the lower position, press the levers (A) at the sides of the rack and follow the rack down.

Unsuitable crockery

• Wooden crockery and cutlery.
• Delicate decorated glasses, artistic handicraft and antique crockery. Their decorations are not resistant.
• Parts in synthetic material which do not withstand high temperatures.
  • Copper and tin crockery.
  • Crockery soiled with ash, wax, lubricating grease or ink.

The colours of glass decorations and aluminium/silver pieces can change and fade during the washing process. Some types of glass (e.g. crystal objects) can become opaque after a number of wash cycles too.

Damage to glass and crockery

Caused by:

• Type of glass and glass production process.
• Chemical composition of detergent.
• Water temperature of rinse cycle.

Tips:

• Only use glasses and porcelain guaranteed by the manufacturer as dishwasher safe.
  • Use a delicate detergent suitable for crockery.
• Collect glasses and cutlery from the dishwasher as soon as the wash cycle is over.

Measuring out the detergent

Good washing results also depend on the correct amount of detergent being used. Exceeding the stated amount does not result in a more effective wash and increases environmental pollution.

The amount can be adjusted to the soil level.

In the case of normally soiled items, use approximately either 25g (powder detergent) or 25ml (liquid detergent). If tablets are used, one tablet will be enough.

If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the dishwasher, reduce the amount of detergent used accordingly.

For good washing results also follow the instructions shown on the detergent box.

For further questions please ask the detergent producers.

Open the detergent dispenser using button D and measure out the detergent according to the Table of wash cycles:

- powder or liquid: compartments A (wash detergent) and B (pre-wash detergent)

- tablet: when the cycle requires 1 tablet, place it in compartment A and close cover C.

Remove detergent residues from the edges of the compartment and close cover C until it clicks.

The detergent dispenser automatically opens up at the right time according to the wash cycle.

If all-in-one detergents are used, we recommend using the TAB option, because it adjusts the cycle so that the best washing and drying results are always achieved.

Only use detergent which has been specifically designed for dishwashers.

DO NOT USE washing up liquid.

Using excessive detergent may result in foam residues remaining in the machine after the cycle has ended.

To achieve the best washing and drying results, the combined use of detergent, rinse aid liquid and refined salt is required.

We recommend using detergents that do not contain phosphates or chlorine, as these products are harmful to the environment.

Starting the dishwasher

1. Press ON-OFF button.
2. Open the door and measure out the detergent (see detergent information).
3. Load the racks (see Loading the racks) and shut the door.
4. Select the wash cycle in accordance with the type of crockery and its soil level (see table of wash cycles) by pressing the P button.
5. Select the wash options (see Special wash cycles and options)
6. Start the wash cycle by pressing the START/PAUSE button.
7. The end of the wash cycle is indicated by beeps and the display shows END. Open the door, switch off the appliance by pressing the ON/OFF button.
8. Wait for a few minutes before removing the crockery, in order to avoid burns. Unload the racks, beginning with the lower level.

The machine will switch off automatically during certain extended periods of inactivity, in order to minimise electricity consumption.

If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the dishwasher, reduce the amount of detergent used accordingly.

Changing a wash cycle in progress

If a mistake was made in the wash-cycle selection process, it is possible to change the cycle provided that it has only just begun: Once the wash cycle has started, in order to change the wash cycle switch off the machine by pressing and holding the ON/OFF/Reset button. Switch it back on using the same button and select the desired wash cycle and options.

Adding extra crockery

Press the Start/Pause button and open the door, taking care to avoid the escaping steam. Then place the crockery inside the dishwasher. Press the Start/Pause button: The cycle will start again after a long beep has been emitted.

If the delayed start has been set, at the end of the countdown the wash cycle will not start. It will stay in Pause mode.

Press the Start/Pause button to pause the machine; the wash cycle is stopped.

At this stage the wash cycle cannot be changed.

Accidental interruptions

If the door is opened during the wash cycle or there is a power cut, the cycle stops. It starts again from the point at which it was interrupted once the door has been shut or the electricity supply restored.

Wash-cycle data is measured under laboratory conditions according to European Standard EN 50242. Based on the different conditions of use, the wash-cycle duration and data can change.

Wash cycle		Wash cycle which include drying	Options	Approximate duration of wash cycles h:min.	Water consumption (l/cycle)	Energy consumption (kWh/cycle)
1. Eco Yes			Start Delay - Half Load - Tab - Sani Rinse	03:00 10 0,83
2. Intensive Yes St		- Half Load - Tab	02:30 14 1,3
3. Normal Yes Sta		Half Load - Tab	02:00 13,5 1,15
4. Fragile Yes Sta		Half Load - Tab	01:40 10 0,95
5. Rapid No Start		00:25	8,5 0,5
6. PreWash		No	Start Delay - Half Load	00:10	4	0,01

Instructions on wash-cycle selection and detergent dosage

1. Normally soiled crockery. Standard program, the most efficient in terms of its combined energy and water consumption. 4 gr/ml** + 21 gr/ml - 1 Tab ( ^** Quantity of pre-washing detergent)
2. Recommended program for heavily soiled crockery, specially suitable for pans and saucepans (not to be used for delicate items). 25 gr/ml – 1 Tab
3. Normally soiled pans and dishes. 4 gr/ml** + 21 gr/ml - 1 Tab
4. Cycle for delicate items, which are more sensitive to high temperatures, for example glasses and cups. 25 gr/ml – 1 Tab
5. Fast cycle to be used for slightly dirty dishes, with no dried-on food. (ideal for 2 place settings) 21 gr/ml – 1 Tab
6. Crockery to be washed later. No detergent

Standby consumption: Left-on mode consumption: 5 W - Off mode consumption: 0.5 W.

Notes:

Optimum performance levels when using the "Rapid" cycles can be achieved by respecting the specified number of place settings.

To reduce consumption even further, only run the dishwasher when it is full.

Note for Test Laboratories: for information on comparative EN testing conditions, please send an email to the following address: [e-mail]

Wash options

The OPTIONS may only be set, changed or reset after the wash cycle has been selected and before the Start/Pause button has been pressed.

Only the options which are compatible with the type of wash cycle set may be selected. If an option is not compatible with the selected wash cycle (see Table of wash cycles), the corresponding led/symbol flashes rapidly 3 times.

If an option is selected which is not compatible with another (previously selected) option, it will flash 3 times and switch off, while the most recently selected option will remain active.

To deselect an option which has been set by mistake, press the corresponding button again.

Delayed start

The start of the program may be delayed for a period of time between 0:30 and 24 hours.

1. Select the program and any desired options. Press the DELAYED START button (repeatedly) to delay the start of the program. Adjustable from 0:30 to 24 hours.

With each press of the button, the delay start increases by: 0:30 if selection below 4 hours, 1:00 if selection is below 12 hours, 4 hours if selection is above 12 hours. If 24 hours reached, and the button is pressed, the delayed start is deactivated.

1. Press the START/PAUSE button: the timer will begin counting down;

2. Once this time has elapsed, the indicator light switches off and the program begins automatically. If at the time of the countdown the START/PAUSE button is pressed again the DELAYED START option is cancelled and the selected program starts automatically.

The Start Delay function cannot be set once a wash cycle started.

Drain out

To stop and cancel the active cycle, the DRAIN OUT

function can be used.

A long press of START/PAUSE button, will activate the DRAIN OUT function. The active cycle will be stopped and the water in the dishwasher will be drained out.

Half Load option/Child lock

If there are not many dishes to be washed, a half load cycle may be used in order to save water, electricity and detergent. Select the wash cycle and press the HALF LOAD button: the indicator light will illuminate.

Press the HALF LOAD button to deselect this option.

Remember to halve the amount of detergent.

Child lock

A long press of HALF LOAD button, will activate the CHILD LOCK function. The CHILD LOCK function will block the control panel. To deactivate the CHILD LOCK, long press again.

Sani Rinse option/Tab

This option allows higher temperatures to be used. Select the washing program, press the SANI RINSE button and the indicator light will switch on. To deselect the option, press the same button again. Ideal to clean crockery and feeding bottles.

Warning: the crockery and plates could be extremely hot at the end of the cycle.

The SANI RINSE option results in lengthening of the wash cycle.

Tablet option (Tab)

A long press of Sani rinse button, will activate the TAB function. This option optimises washing and drying results.

To deactivate the TAB option, long press again.

The TAB option results in a longer wash cycle.

Shutting off the water and electricity supplies

• Turn off the water tap after every wash cycle to avoid leaks.
  • Always unplug the appliance when cleaning it and performing maintenance work.

Cleaning the dishwasher

• The external surfaces of the machine and the control can be cleaned using a non-abrasive cloth which has been dampened with water. Do not use solvents or abrasive products.
• Any marks on the inside of the appliance may be removed using a cloth dampened with water and a little vinegar.

Preventing unpleasant odours

• Always keep the door of the appliance ajar in order to avoid moisture from forming and being trapped inside the machine.
• Clean the seals around the door and detergent di regularly using a damp sponge. This will avoid food becoming trapped in the seals, which is the main cause behind the formation of unpleasant odours.

Cleaning the spray arms

Food residue may become encrusted onto the spray and block the holes used to spray the water. It is therefore recommended that you check the arms from time to time and clean them with a small non-metallic brush. The two spray arms may both be removed.

Illustration of a hand using a tool to interact with a mechanical device (no text or symbols visible)

To remove the upper spray arm, turn the plastic locking ring in an anti-clockwise direction. The upper spray arm should be replaced so that the side with the greater number of holes is facing upwards.

Diagram of a mechanical assembly with a rotating component and an upward arrow indicating motion (no text or symbols)

The lower spray arm can be removed by pressing on the side tabs and pulling it upwards.

Cleaning the water inlet hose

If the water hoses are new or have not been used for an extended period of time, let the water run to make sure it is clear and free of impurities before performing the necessary connections. If this precaution is not taken, the water inlet could become blocked and damage the dishwasher.

Clean the water inlet filter at the tap outlet regularly.

• Turn off the water tap.
• Unscrew the end of the water inlet hose, remove the filter and clean it carefully under running water.
• Re-place the filter and screw the water hose back into position.

Cleaning the filters

The filter assembly consists of three filters which remove food residues from the washing water and then recirculate the water. When They must be cleaned if you wish to achieve the best results in every wash.

Clean the filters regularly.

The dishwasher must not be used without filters or if the filter is loose.

- After several washes, check the filter assembly and if necessary clean it thoroughly under running water, using a non-metallic brush and following the instructions below:

1. Turn the cylindrical filter C in an anti-clockwise direction and pull it out (fig. 1).

2. Remove the cup filter B by exerting a slight pressure on the side flaps (fig. 2);
   c3s6ride out the stainless-steel plate filter A. (fig. 3).

3. Inspect the trap and remove any food residues. NEVER REMOVE the wash-cycle pump protection (black detail) (fig. 4).

arms

Diagram of a mechanical assembly with a rotating component and labeled parts (no readable text or symbols)

After cleaning the filters, re-place the filter assembly and fix it in position correctly; this is essential for maintaining the efficient operation of the dishwasher.

Leaving the machine unused for extended periods

• Disconnect the appliance from the electricity supply and shut off the water tap.
• Leave the door of the appliance ajar.
• When you return, run a wash cycle when the dishwasher is empty.

Whenever the appliance fails to work, check for a solution from the following list before calling for Assistance.

Problem: Possible causes / Solutions:
The dishwasher does not start or cannot be controlled.	· The water supply tap is not turned on.· Switch off the appliance by pressing the ON/OFF button, switch it back on after approximately one minute and reset the wash cycle.· The appliance has not been plugged in properly or another electricity socket should be used.· The dishwasher door has not been closed properly.
The door won't close.	· Make sure that the racks were inserted all the way.· The lock was released. Strongly push the door until a “clacking” noise is heard.
No water drain out of the dishwasher.	· The wash cycle has not finished yet.· The water drain hose is bent (see Installation).· The drain duct is clogged up.· The filter is clogged up with food residues.· Check the height of the drain hose.
The dishwasher makes excessive noise.	· The dishes are rattling against each other or against the spray arms. Place the dishes properly and make sure the spray arms can rotate freely.· Too much foam: the detergent has not been measured out correctly or it is not suitable for use in dishwashers. (See Detergent and dishwasher use.) Do not prewash the dishes by hand.
The dishes and glasses are covered in a white film or limescale deposits.	· No refined salt.· Water hardness adjustment is not suitable: increase the relevant values. (See Refined Salt and Rinse Aid.)· The salt and rinse-aid dispenser cap has not been closed properly.· The rinse aid has been used up or the dosage is too low.
The dishes and glasses are streaked or have a bluish tinge.	· The rinse aid dosage is too high.
The crockery has not been dried properly.	· A wash cycle without a drying programme has been selected.· The rinse aid has been used up. (See Refined Salt and Rinse Aid.)· The rinse aid dispenser setting is not suitable.· The crockery is made from non-stick material or plastic; the presence of water drops is normal.
The dishes are not clean. · The crockery has not been arranged properly.· The spray arms cannot rotate freely, being hindered by the dishes.· The wash cycle is too gentle (see Wash Cycles).· Too much foam: the detergent has not been measured out correctly or it is not suitable for use in dishwashers. (See Detergent and dishwasher use.)· The lid on the rinse aid compartment has not been closed correctly.· The filter is dirty or clogged up (see Care and maintenance.)· The refined salt level is low (See Refined Salt and Rinse Aid.)· Make sure that the height of the dishes is compatible with the rack adjustment.· The holes in the spray arms are clogged up. (See Care and maintenance.)
The dishwasher won't load any water.It is blocked with flashing lights.	· There is no water in the mains supply or the tap is shut off.· The water inlet hose is bent (see Installation).· The filters are clogged up: they need cleaning. (See Care and maintenance.)· The drain duct is clogged up: it needs cleaning.· After checking and cleaning, switch the dishwasher on and off and start a new wash cycle.· If the problem persists, turn off the water tap, remove the plug and call the Service Centre.

Two technical line drawings of a kitchen appliance basket with cutlery and utensils (no text or symbols)

Three-step diagram showing a hand using a tool to cut a basket into a wireframe grid, with arrows indicating direction of movement (no text or symbols present)

Horní koš

Two identical diagrams showing a grid of circular objects inside the compartments, with one containing a magnifying glass (no text or symbols)

Line drawing of a mechanical component with multiple cylindrical parts and a handle, no text or symbols present

Technical diagram of a mechanical assembly with spring-loaded components and labeled parts A and Y (no text or symbols beyond labels)

Illustration of a hand holding a tool interacting with a mechanical device (no text or symbols visible)

Mechanical component diagram showing a lever pressing into a base with a valve and nut (no text or symbols)

Mechanical diagram showing a rotating component with a curved arrow and label 'C', no readable text or symbols present.

Two identical diagrams of a kitchen sink with cutlery and food items, no text or symbols present.

Three technical diagrams showing a hand using a tool to cut a basket into a grid, with arrows indicating direction of movement (no text or symbols present)

Horný kôš

Two identical line drawings of a kitchen appliance basket with various items, one showing a magnifying glass and the other a tray (no text or symbols)

Sklopné držiaky s možnostou zmeny polohy

Line drawing of a person sitting on a chair with a bag, no text or symbols present

Technical diagram of a mechanical assembly with spring-loaded components and labeled section A (no text or symbols beyond label)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a mechanical device with a handle and baseplate, no visible text or symbols

Mechanical diagram showing a rotating component with arrows indicating motion (no text or symbols)

Two identical line drawings of a kitchen sink with cutlery and food items inside (no text or symbols)

Three-step diagram showing a hand using a tool to cut a basket into three different storage compartments (no text or symbols present)

Felső kosár

Two identical wireframe diagrams showing a grid of circular objects, one with a magnifying glass overlay (no text or symbols)

Line drawing of a mechanical component with gears and housing (no text or symbols)

Technical diagram of a mechanical assembly with spring-loaded components and a labeled section A (no text or symbols beyond label)

Diagram of a hand operating a mechanical device with a rotating lever and handle (no text or symbols)

Mechanical component diagram showing a piston and nut assembly with an arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a rotating component with a handle and gear (no text or symbols)

Two identical line drawings of a kitchen sink with cutlery and food items, no text or symbols present.

Three-step diagram showing a hand using a tool to cut a basket into three views (no text or symbols present)

Верхній короб

Two identical wireframe diagrams showing a grid of circular objects, possibly kitchen utensils or containers, with no text, numbers, or symbols present.

Line drawing of a shopping cart filled with items, no text or symbols present

Technical diagram of a mechanical assembly with spring-loaded components and labeled section A (no text or symbols beyond label)

Illustration of a hand operating a mechanical device with a handle and lever mechanism (no text or symbols)

Mechanical assembly diagram showing a hand pressing a component onto a base plate (no text or symbols visible)

Mechanical diagram showing a rotating component with a curved arrow and label 'C', no readable text or symbols present.

- 21025 Comerio (Varese) Italy

www.whirlpool.eu
