| Product Type | Single-hole kitchen faucet |
| Brand | Schütte |
| Model | Orinoco |
| Material | Brass body, stainless steel handle |
| Finish | Chrome-plated |
| Mounting Type | Deck mount, single hole |
| Number of Handles | Single lever |
| Spout Type | High arc, swivel spout |
| Spout Reach | 8.5 inches (216 mm) |
| Spout Height | 15.75 inches (400 mm) |
| Overall Height | 16.5 inches (419 mm) |
| Flow Rate | 1.8 GPM (6.8 L/min) at 60 psi |
| Number of Spray Modes | 2 (stream and spray) |
| Connection Size | 3/8 inch compression |
| Maximum Pressure | 80 psi (5.5 bar) |
| Temperature Range | 40°F to 140°F (4°C to 60°C) |
| Valve Type | Ceramic disc cartridge |
| Warranty | Limited lifetime warranty |
| Care Instructions | Clean with mild soap and water; avoid abrasive cleaners |
| Safety Features | Lead-free construction |
| Spare Parts Availability | Replaceable cartridge and aerator |
| Installation | DIY-friendly with included hardware |
| Certifications | cUPC and NSF 61 certified |
Frequently Asked Questions - Orinoco Schütte
How do I install the Orinoco faucet?
Installation is straightforward. Mount the faucet through a single 1-1/8 inch hole in the sink or countertop. Connect the supply lines to the stop valves using 3/8 inch compression fittings. Tighten the mounting nut from below. No plumber required.
What should I do if the faucet leaks from the base?
A leak at the base usually indicates a loose mounting nut or worn O-ring. Tighten the nut with a basin wrench. If the leak persists, replace the O-ring. For leaks from the spout, the ceramic cartridge may need replacement.
How do I change the spray mode?
The Orinoco features a pull-down spray head. Press the button on the head to toggle between stream and spray modes. The lever controls temperature and flow.
Can the faucet be used with a water filter?
Yes, the faucet has a standard aerator that can be replaced with a filter adapter. Ensure the filter system is compatible with 3/8 inch supply lines.
How do I clean the faucet without damaging the finish?
Use a soft cloth dampened with mild soap and water. Rinse thoroughly and dry. Avoid abrasive cleaners, scouring pads, or harsh chemicals that can dull the chrome finish.
What is the warranty on the Orinoco faucet?
Schütte offers a limited lifetime warranty covering defects in materials and workmanship. It does not cover damage from improper installation or cleaning. Register your product online for full warranty details.
How do I replace the aerator?
Unscrew the aerator from the spout tip with a pliers (wrap with tape to avoid scratches). Clean or replace the aerator. Ensure the rubber washer is seated properly before reattaching.
Why is the water pressure low?
Low pressure may be due to a clogged aerator or supply lines. Remove and clean the aerator. Check that the stop valves are fully open. If the problem persists, inspect the cartridge.
Does the faucet come with supply lines?
Yes, the Orinoco includes two 3/8 inch compression supply lines (hot and cold). They are pre-attached to the faucet for easy installation.
How do I adjust the temperature limit?
The faucet has a temperature limit stop. Remove the handle, adjust the set screw on the cartridge to limit hot water flow, then reattach the handle. This prevents scalding.
User questions about Orinoco Schütte
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Faucet in PDF format for free! Find your manual Orinoco - Schütte and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Orinoco by Schütte.

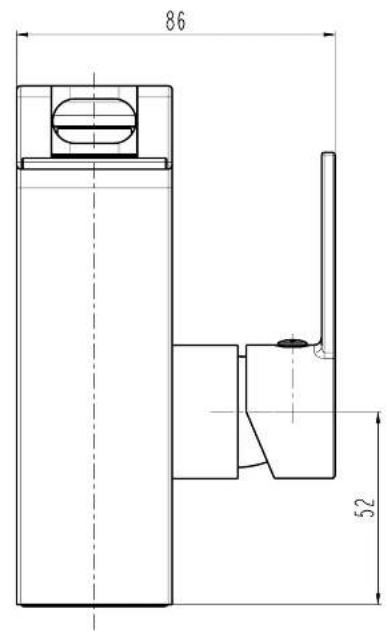

USER MANUAL Orinoco Schütte

