Product type	Bathtub mixer
Brand	Schütte
Model	Idrovia
Recommended flow pressure	1.5 bar
Maximum allowable pressure	6 bar (with pressure reducer above)
Maximum water temperature	80 °C
Hot water connection	Left
Cold water connection	Right
Material	Chrome-plated brass (estimate)
Dimensions (L x W x H)	20 x 15 x 10 cm (estimate)
Weight	1.5 kg (estimate)
Power supply	Connection to hot and cold water
Usage	Private, indoor at temperature above 0 °C
Wear parts	Cartridge (replace every 1 to 2 years)
Maintenance	Clean with clean water and a soft cloth
Warranty	2 years (1 year for non-chrome surfaces)
Safety	Cut off water supply before assembly/disassembly

Frequently Asked Questions - Idrovia Schütte

How to install the Idrovia Schütte mixer?

Before installation, cut off the main water supply. Screw the connecting hoses by hand without using pliers. After assembly, rinse the pipe by unscrewing the mixer nozzle. Check the tightness of all connections after initial use.

What is the recommended water pressure?

The recommended flow pressure is 1.5 bar. If the pressure exceeds 6 bar, install a pressure reducer.

How to clean the mixer without damaging it?

Clean only with clean water and a soft cloth. Never use limescale dissolving products, acidic or corrosive cleaners, or abrasive detergents on chrome or colored surfaces.

What to do if flow rate drops?

Regularly unscrew the mixer nozzle (aerator) and remove limescale deposits or foreign bodies. If heavily soiled, replace with a new one.

What is the lifespan of the cartridge?

The cartridge is a wear part. In very hard or dirty water, replace it every 1 to 2 years. Purchase the cartridge from a nearby retailer.

How to maintain the warranty?

Follow the maintenance and assembly instructions. Keep the original proof of purchase. The warranty does not cover damage due to incorrect assembly, lack of maintenance, or use of unsuitable products.

Can the mixer be used with a low-pressure water heater?

No, these fittings are not designed for use with small electric tanks or low-pressure systems.

What to do in case of frost?

If the mixer is at risk of freezing, cut off the water supply and drain the fitting. It is designed for indoor use at temperatures above 0 °C.

What to do if a leak appears?

Check the tightness of connections. If a leak persists or visible damage occurs, have the parts checked and replaced by a professional.

How to dispose of packaging and the old product?

The packaging is made of recyclable materials: dispose of it in an environmentally friendly manner. At the end of its life, do not throw the product with household waste. Ask your local authority for recycling procedures.

USER MANUAL Idrovia Schütte

Line drawing of a symmetrical abstract shape resembling a stylized bird or flower (no text or symbols)

62

Line drawing of a faucet with handle and base (no text or symbols)

67

GB Installation instructions 18

Guarantee card / Replacing the cartridge 19/74

GB Installation instructions

Dear customer,

You have purchased a high-quality and long-lasting product from our line of goods. Please read these instructions carefully before assembling and observe the notes.

These instructions contain important information on installation, adjustment, care, and spare parts.

Therefore, keep the instructions in a safe place and pass them on to possible subsequent owners.

Safety notes

• Only allow experts carry out the installation work.
  • CAUTION DAMAGE BY WATER!

Prior to installation please turn the general water supply off.

• Ensure that all gaskets have the correct fit.
  • These taps are not suitable for use on low pressure and small electrical storage heaters.
• We recommend the installation of a filter into the appliance or at least the use of angle valves with filter, in order to avoid the inflow of foreign matter, which could damage the cartridge.
• This tap is only intended for use in private households! Only suitable for use in rooms with a temperature over 0^ C , when there is danger of frost, sut off the water supply and empty the tap.
• If the tap not used for a longer period, we recommend to initially let a larger quantity of water flow through before withdrawing drinking water.
  • Take care when adjusting the warm water. Danger of scalding!
• Incorrectly installed fittings can cause water damages!
• Please ensure that no caustic or corrosive products such as detergents or household

cleaning products make contact with the connection hoses; this can lead to water damages.

- Despite careful production, sharp edges can occur. Please exercise caution!

Disposal

Your washbasin tap is delivered in a solid packaging, in order to protect it against transport damages. The packaging consists of recyclable materials. Dispose it in an environmentally suitable manner.

Do not throw the product into the normal domestic waste at the end of its service life, but ask your municipal administration about the possibility of an environmentally friendly disposal.

Technical data

• Flow pressure: recommended 1.5 bar; install a pressure reducer at more than 6 bar
  • Water temperature: max. 80 °C
  •Waterconnection: warm - left/cold - right

⚠️ Installation Instructions

• Shut off the water supply before beginning installation
• Only hand-screw the connecting pipes, do not use pliers or a wrench!

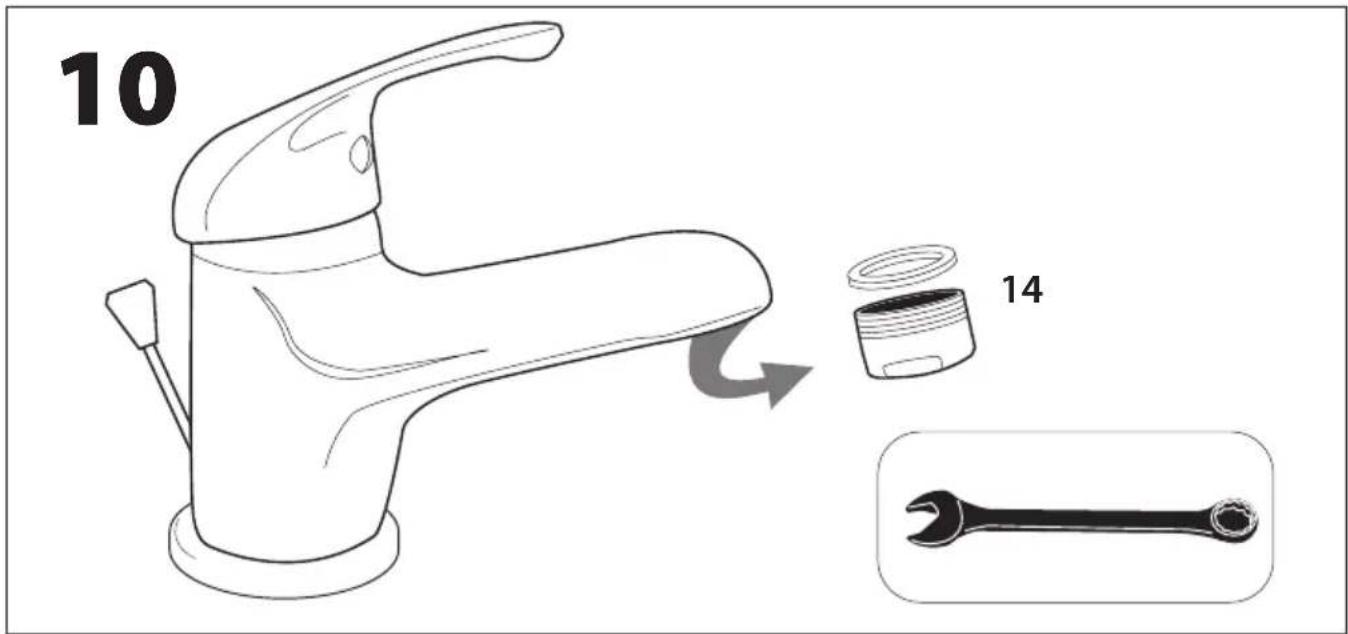

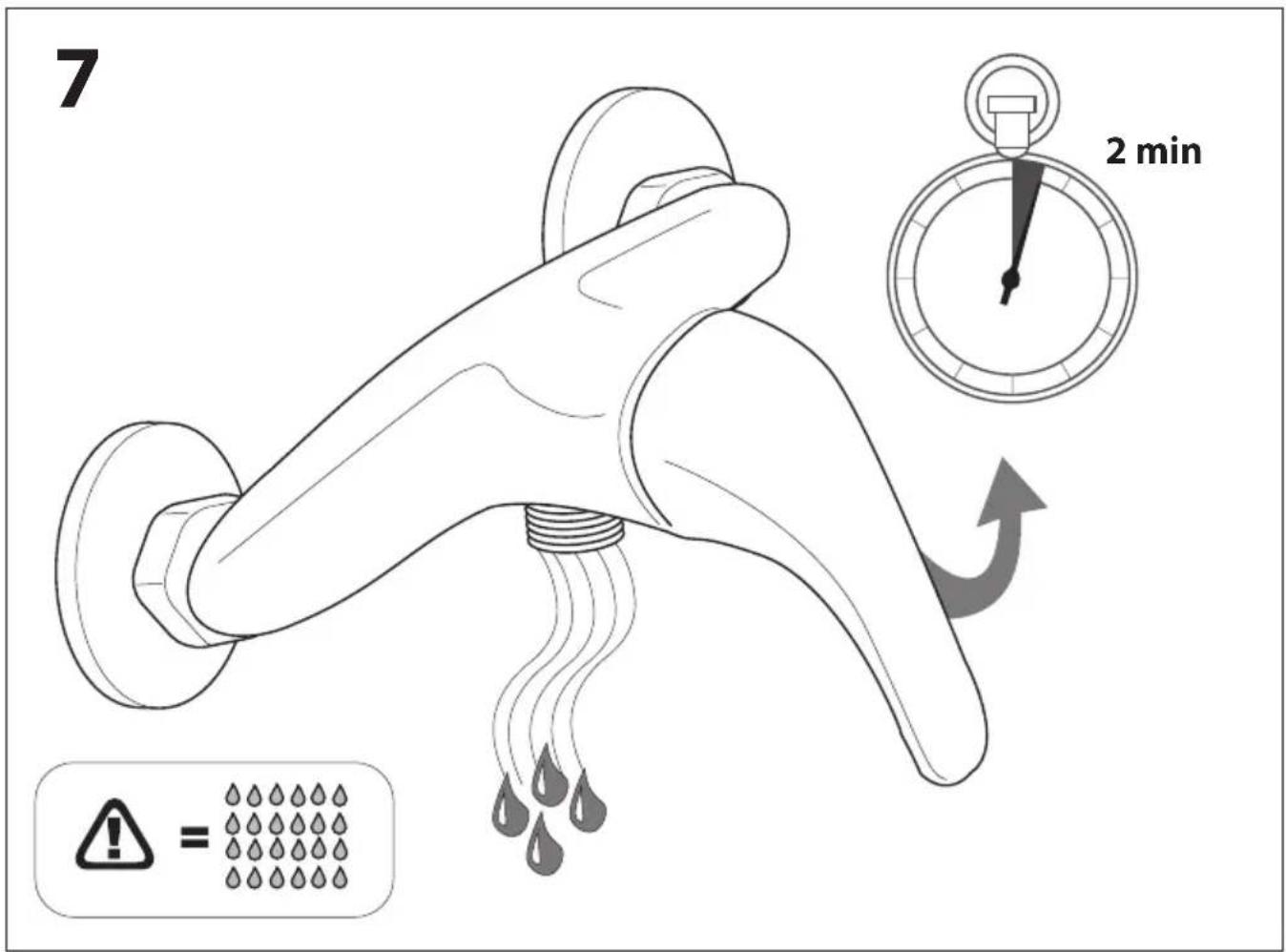

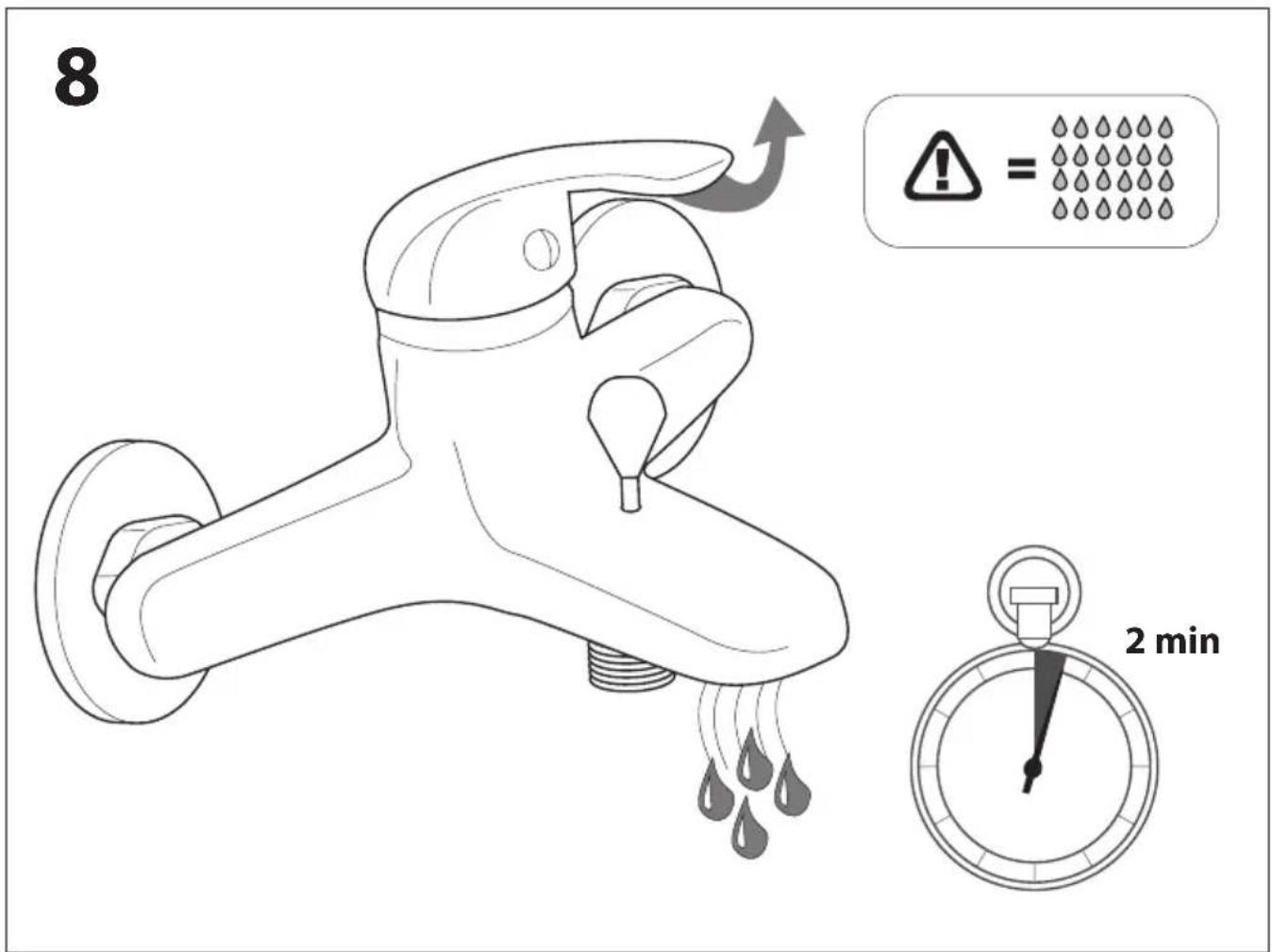

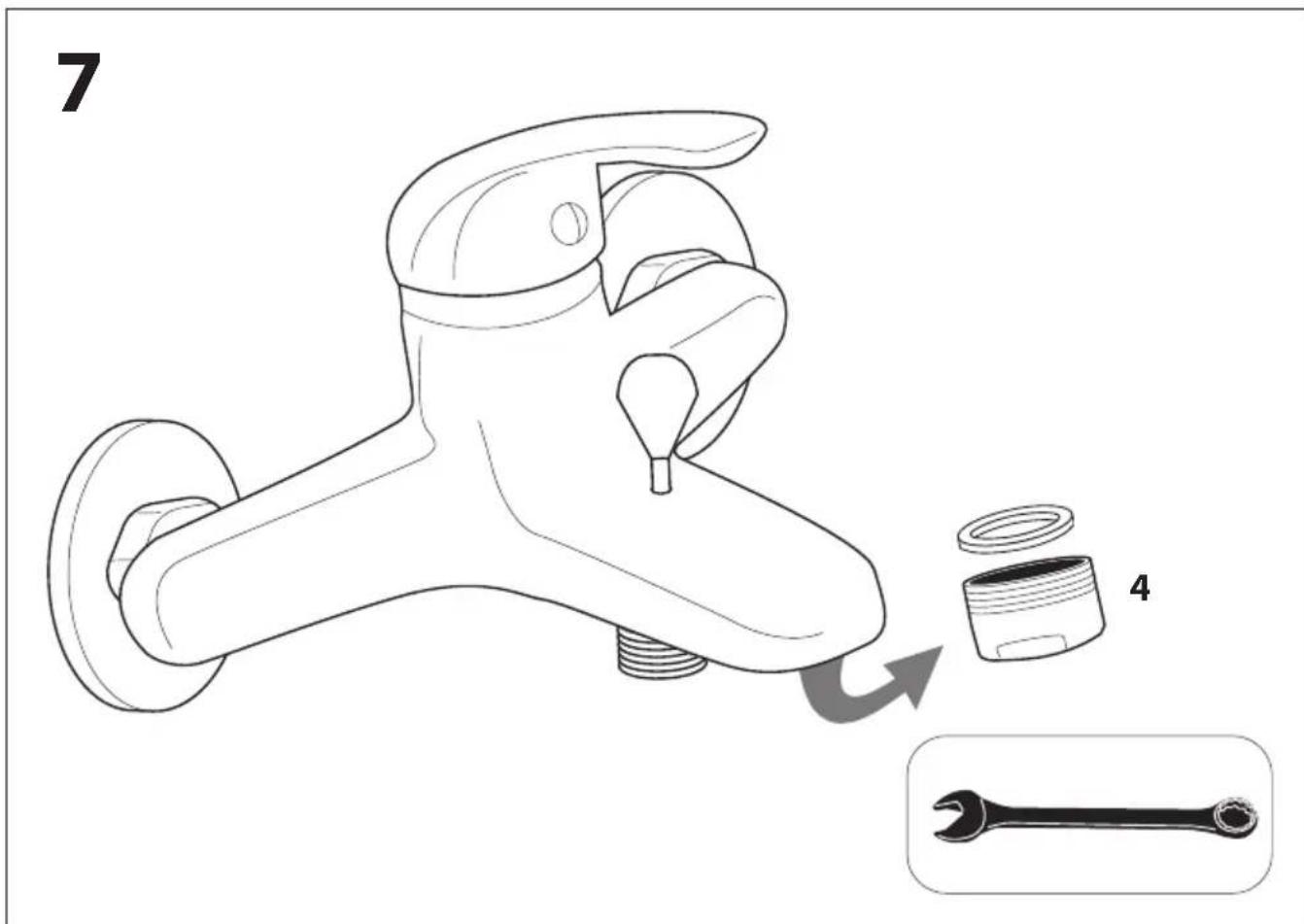

• After installing the tap please unscrew the mixer nozzle, flush the pipeline and the tap thoroughly for a longer time, in order to flush out contaminations and residues.
• Do not twist or tension pipes! At first use check connections for leaktightness!
• Check all connections carefully after first-time use to make sure that they are tight.

- We do not assume any warranty for incorrect installation - in particular for subsequent damages!

Instructions for care

Sanitary taps require special care. Therefore, please observe the following instructions:

• Chrome-plated surfaces are sensitive to lime-dissolving agents, acidic cleaning agents and all kinds of abrasives.
• Never clean coloured surfaces with abrasive, corrosive, or alcoholic agents.
• Only clean your taps with clear water and a soft cloth or a shammy.

Surface damage is to be expected, if the care instructions are not observed. This makes any warranty claims invalid.

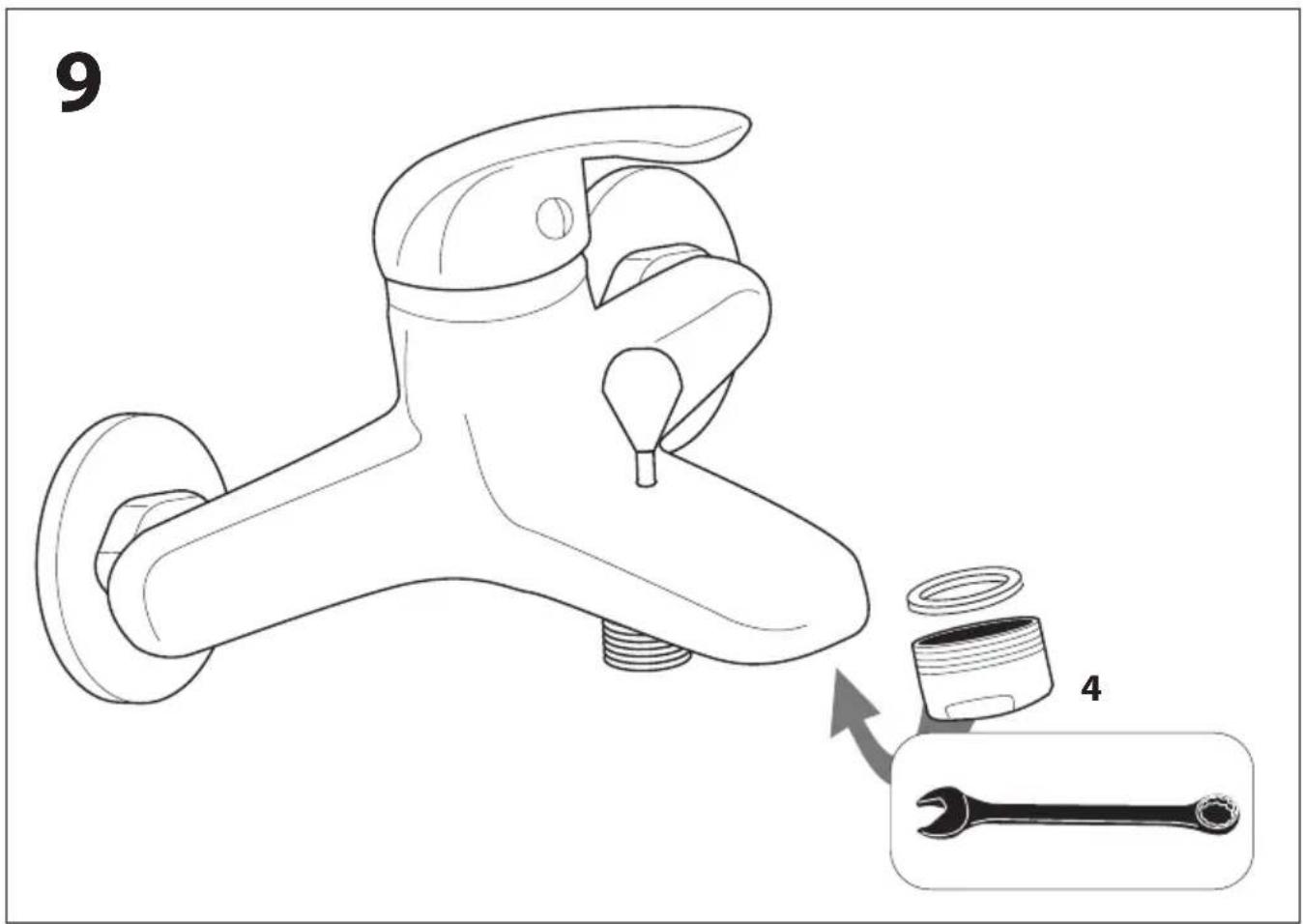

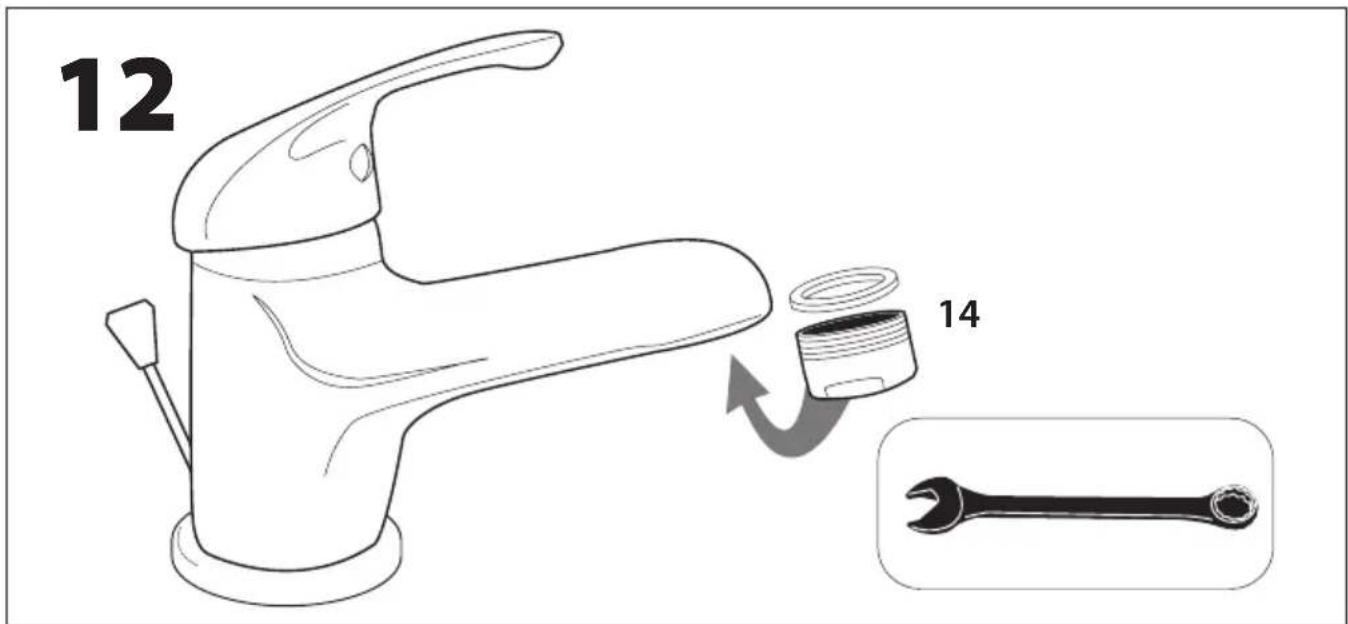

Do not forget to unscrew the mixing nozzle in regular intervals and to remove possibly calcareous residues or foreign matter. It is advisable to replace the mixing nozzle with a new one in the case of extreme contamination.

Maintenance

• Please note that a cartridge is an expendable part and that the cartridge may need to be replaced every 1-2 years if the water has high levels of limescale or dirt. Please purchase them from your local retailer.
• Please check all joints and connections for leaks or visible damages at regular intervals.
• In case of any leaks or visible damages to the fitting or connection hoses, these should be immediately checked by a specialist and replaced if necessary.

Decommissioning

• Cut off the water supply before dismantling the product.
• Pay attention to escaping residual water.
• Disassemble the product in the reverse order of the assembly instructions.

The illustrations are to be considered as figurative representations, deviations of the product are possible. Subject to technical modifications.

GUARANTEE CARD

The Franz Joseph Schütte GmbH grants a manufacturer guarantee for the tap you have acquired according to the following guarantee conditions. This guarantee does not limit your warranty claims resulting from the sales contract with the vendor as well as your statutory rights.

Guarantee conditions:

1. Scope of the guarantee

The Franz Joseph Schütte GmbH guarantees for perfect, material condition and processing suitable for the intended purpose, professional assembly, leaktightness, and function of the single lever mixing technology.

The guarantee does not cover:

• Corrosion in the mixing nozzles (aerator)
- Cartridge
- Damage by inappropriate installation, start-up and handling
- Damage by outside effects, such as fire, water, abnormal environmental conditions
- Mechanical damage by accident, fall, impact
- Negligent or intentional destruction
- Normal wear or malfunctions due to lack of maintenance

• Damages due to repairs by non-qualified persons
• Inappropriate handling, insufficient care as well as the use of unsuitable cleaning agents
• Chemical or mechanical effects during transport, storage, connection, repair and use of the tap

2. Guarantee

The guarantee covers at our discretion free repair, delivery of spare parts free of charge or of an equivalent tap against return of the faulty part and/or faulty tap. If the model concerned should not be manufactured any longer, we reserve the right to supply a replacement tap from our product range at our discretion, which complies to the returned model as far as possible. Replaced taps or parts there of become our property. The buyer bears the transport costs as well as the transport risk, if a tap is returned.

Refunding of expenditures for disassembly and assembly, examination, claims for loss of profit and compensation are likewise excluded from the guarantee, as well as all further claims for damages and losses, which are caused by the tap or its use.

3. Asserting of the warranty claim

The warranty claim must be asserted within the guarantee period in regard to the Franz Joseph Schütte GmbH by submitting the original sales slip and only applies to the country, in which the tap was bought.

4. Guarantee period

The valid guarantee period is indicated on the packaging label. If no guarantee period is imprinted there, then a guarantee period of 2 years applies starting from purchase date. The date on the original sales slip is decisive.

For all not high-gloss chrome-plated surfaces, e.g. bronzed or coloured surfaces, the guarantee period is 1 year irrespective of the label on the packaging starting from purchase as spe-

cified by the purchase date, whereby the date on the original sales slip is also relevant here. The guarantee period for the tap is neither extended nor renewed by guarantee performances.

5.

This guarantee is governed by German law under exclusion of the United Nations Convention on Contracts for the International Sale of Goods (CISG).

This guarantee card is only valid with the pertinent original sales slip.

Service address

49134 Wallenhorst (NEMECKO)

+49 (0) 54 07 / 87 07-0

[e-mail]

www.fjschuette.de

Montaj kılavuzu

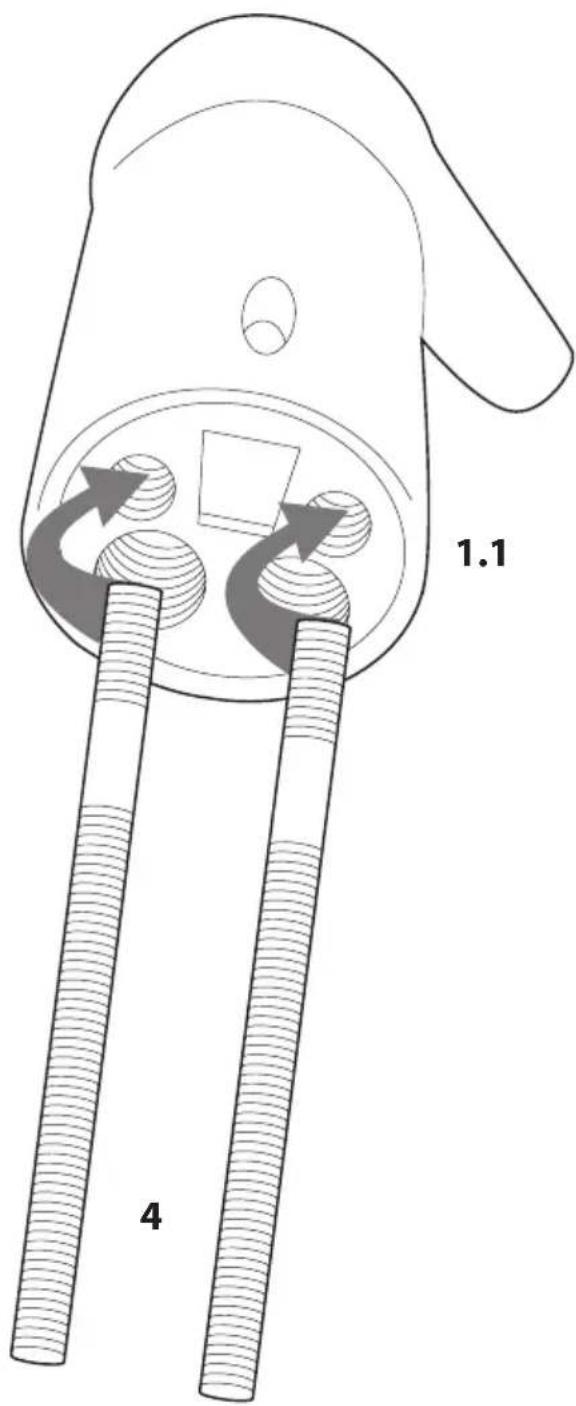

GB Either 1 or 2 threaded rods are included in delivery!

They are mounted in exactly the same way.

Subject to technical deviations from mounting material shown.

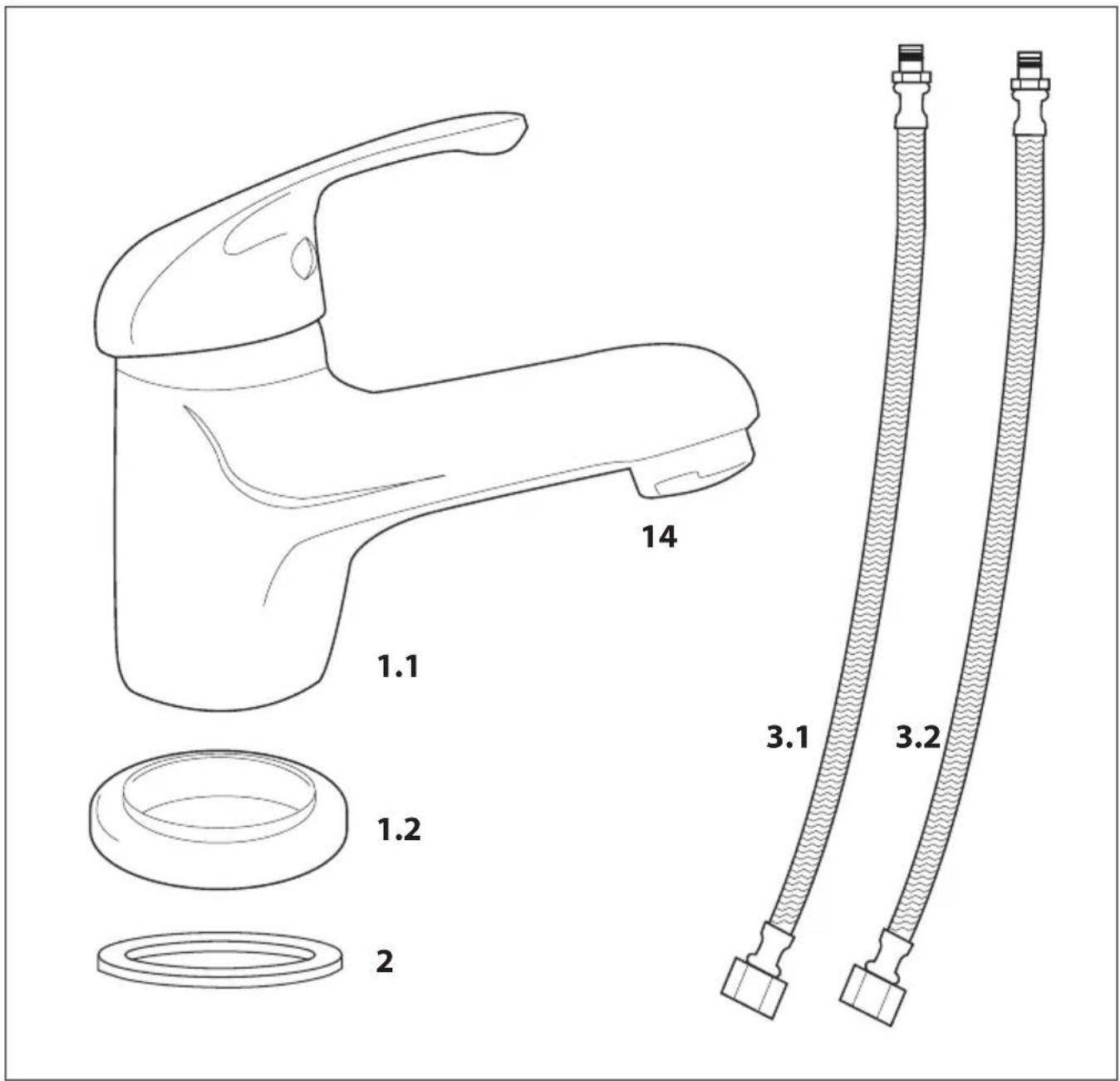

Line drawings of three wrenches: a flat screwdriver, a wrench with a circular hole, and a standard wrench (no text or symbols present)

14 1.1 1.2 2 3.1 3.2

Two vertical cylindrical objects with textured surfaces, each with a small rectangular base (no text or symbols)

Two mechanical component diagrams labeled 5 and 6, showing curved and angular features (no text or symbols beyond labels)

Simple 3D illustration of a ring shape with the number 7 below it (no text or symbols on the ring itself)

Simple line drawing of a ring shape with the number 8 below (no text or symbols on the shape itself)

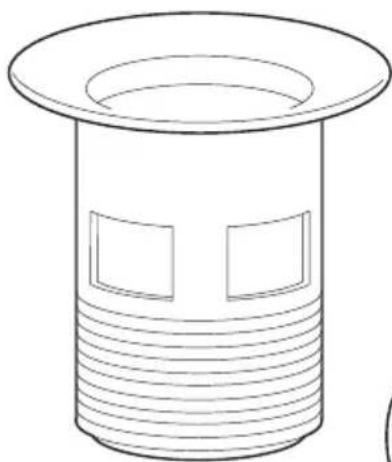

Line drawing of a cylindrical container with a flanged top and base (no text or symbols)

9

Line drawing of a cylindrical object with a flared rim and two square cutouts on its side (no text or symbols)

9

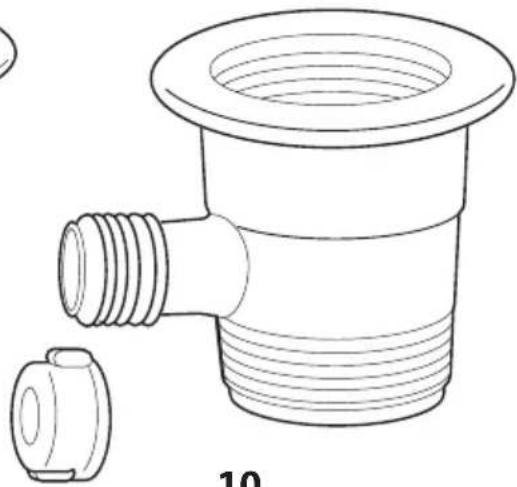

Technical line drawing of a mechanical component with threaded ports and a separate inset view labeled '10' (no text or symbols on the diagram itself)

10

Technical line drawing of a medical or laboratory instrument with labeled parts (11 and 12), no text or symbols present.

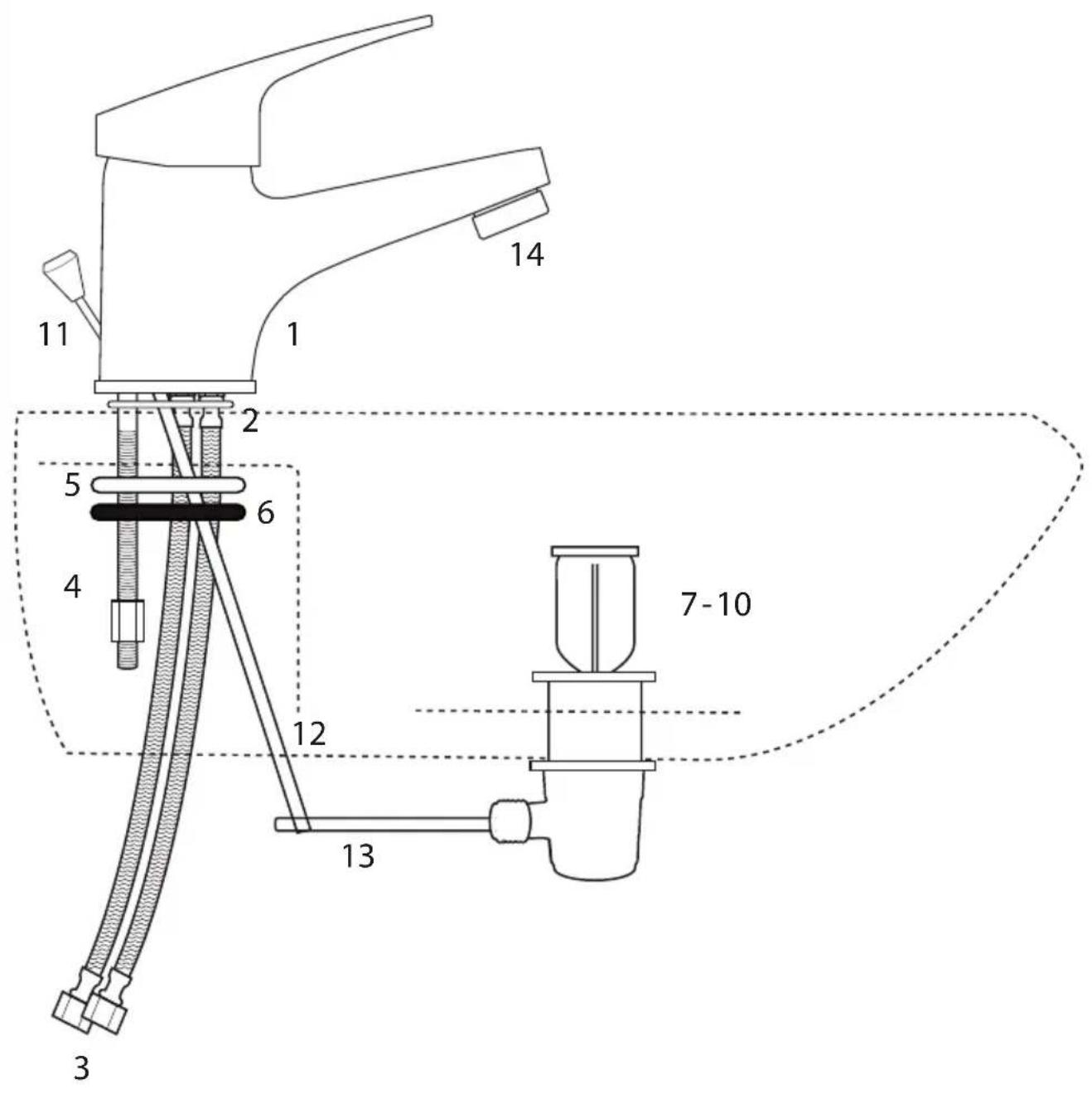

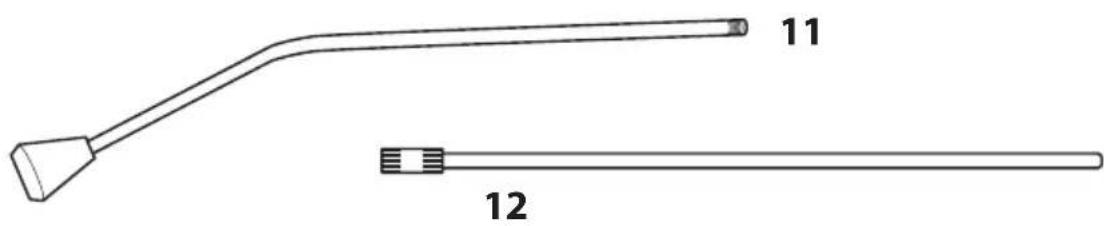

Pure mechanical diagram showing a rod with two circular ends and a curved bracket, no text or symbols present.

1 2 3 4 5 6 7-10 11 12 13 14

1

1.1 4

3 1.1 1.2 2 1

4

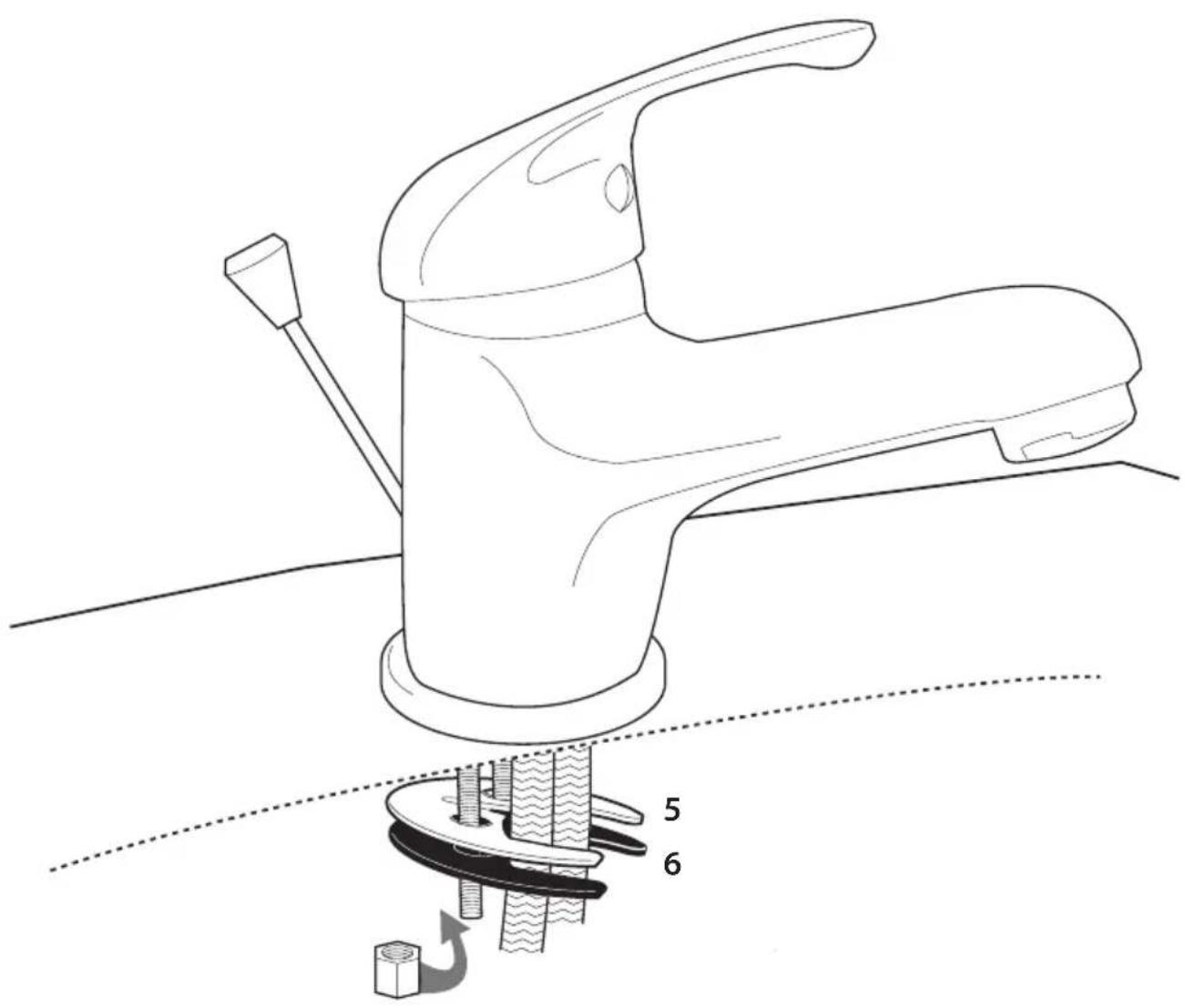

Technical diagram of a bathroom sink with numbered parts and directional arrows indicating movement or assembly.

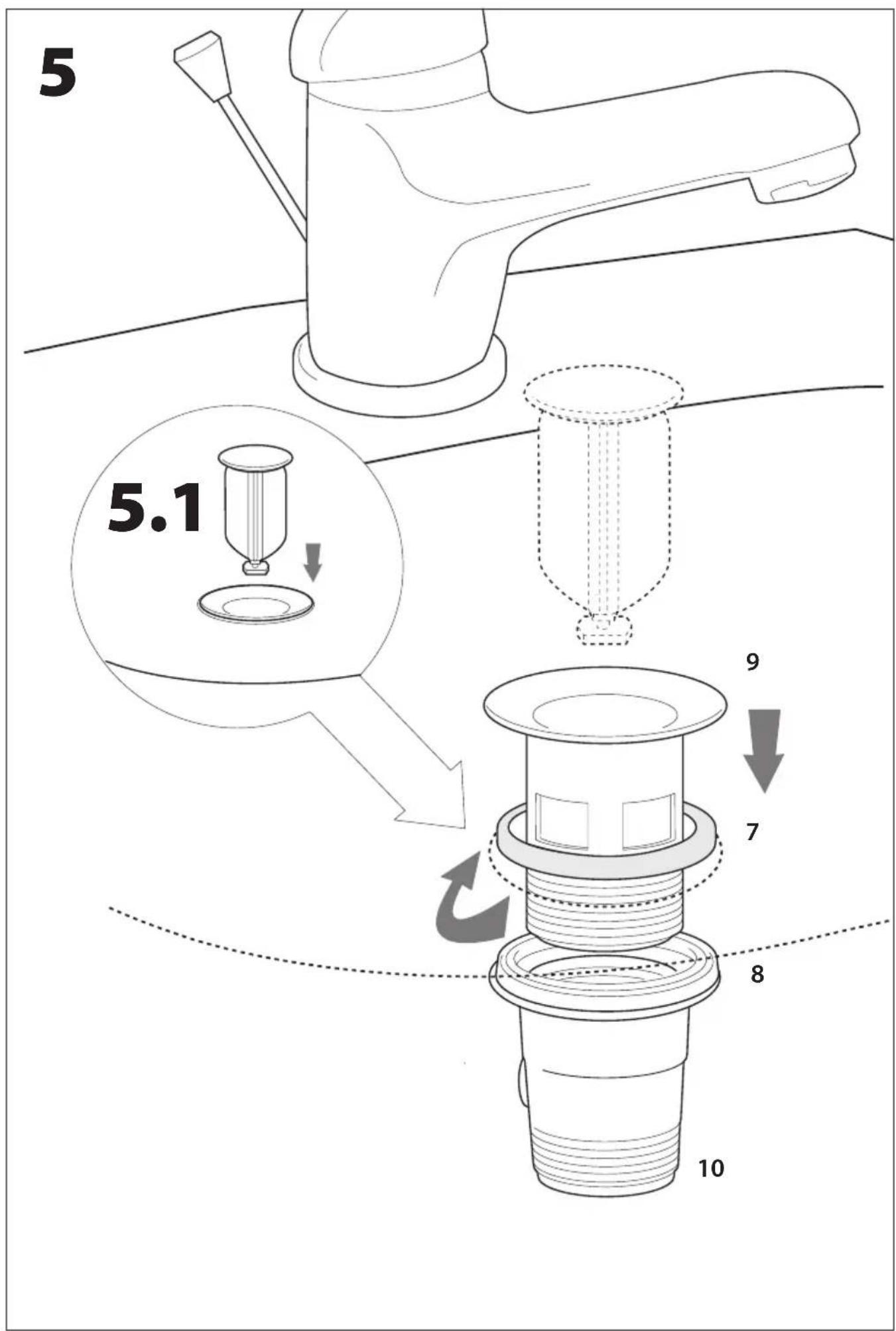

Pure diagram of a mechanical component with dashed outline and internal lines, no text or symbols present

5 5.1 9 7 8 10

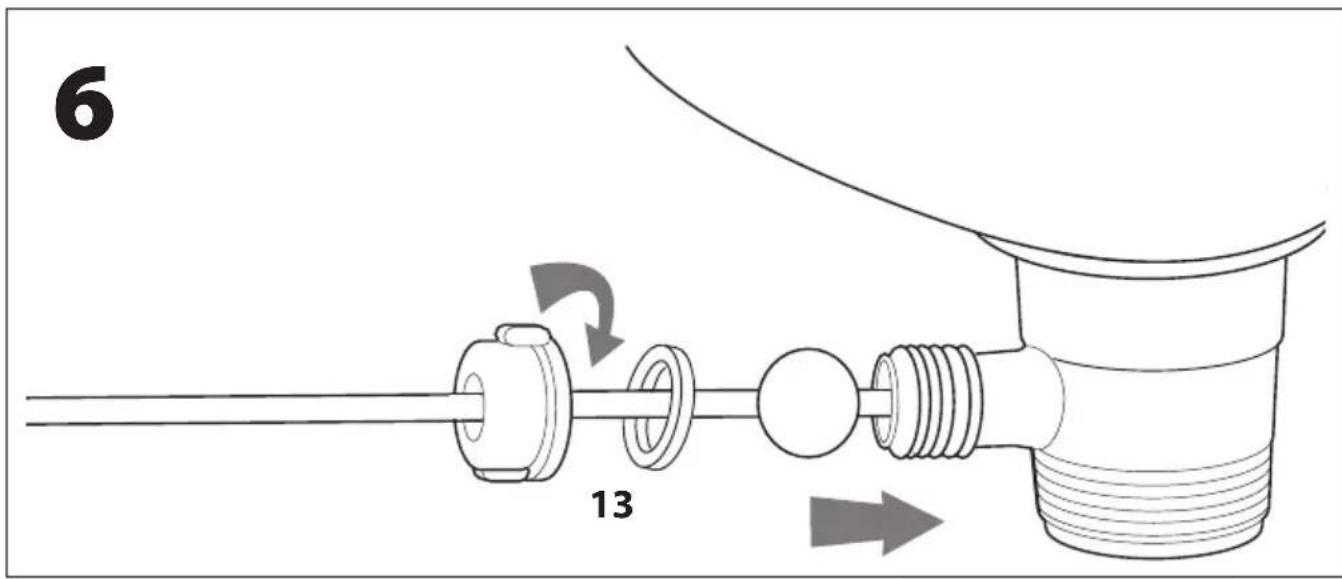

6 13

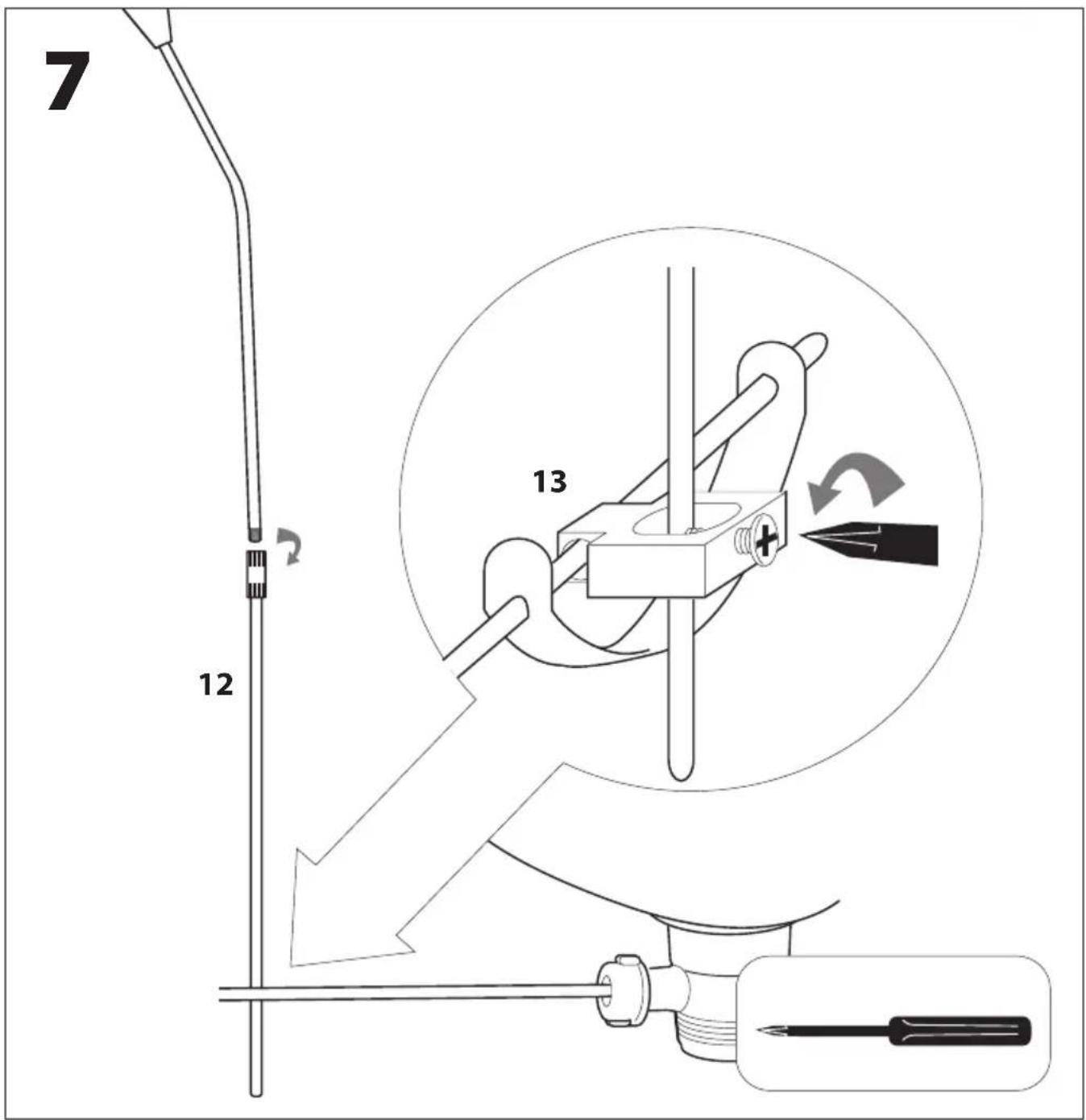

7 12 13

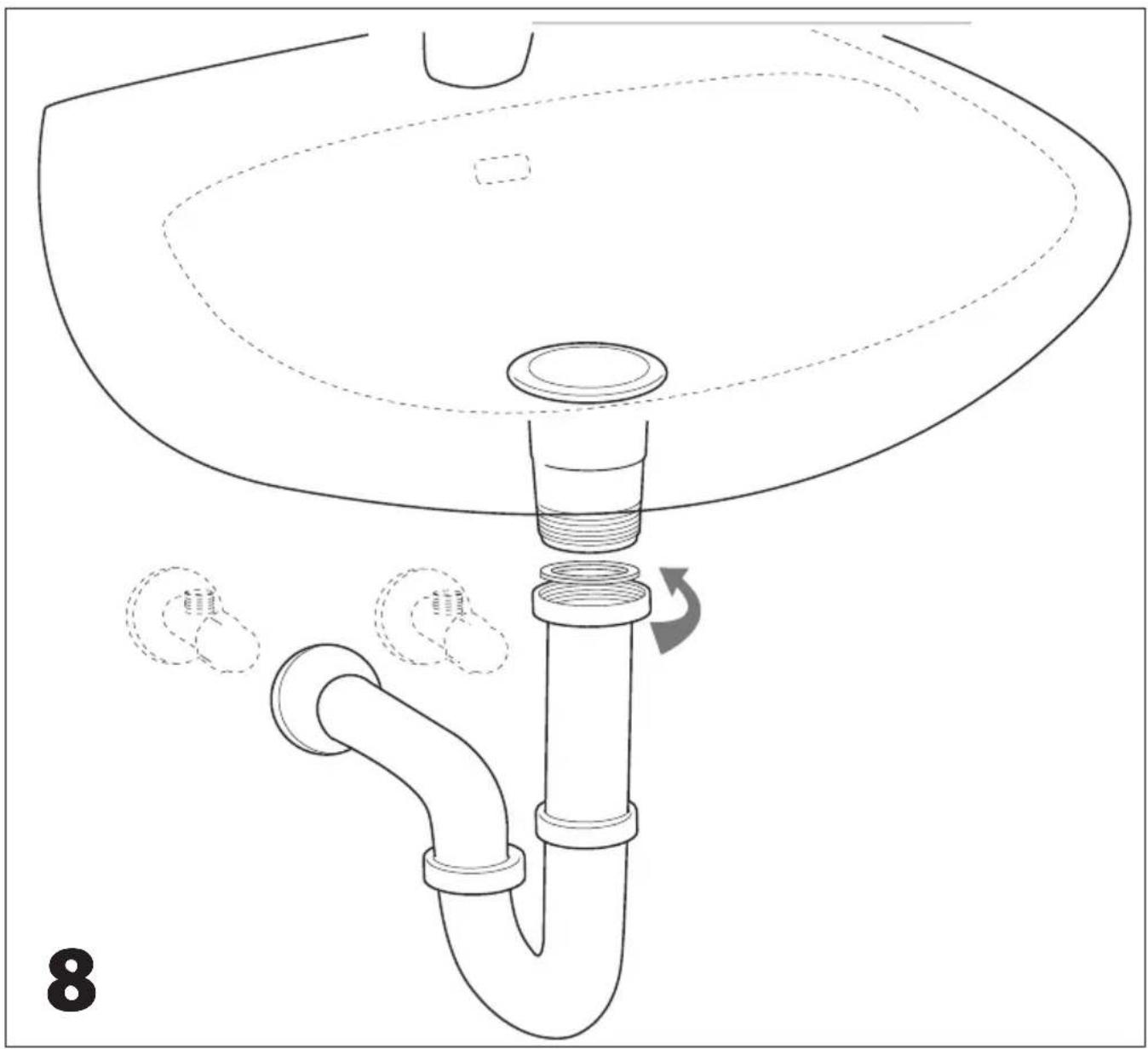

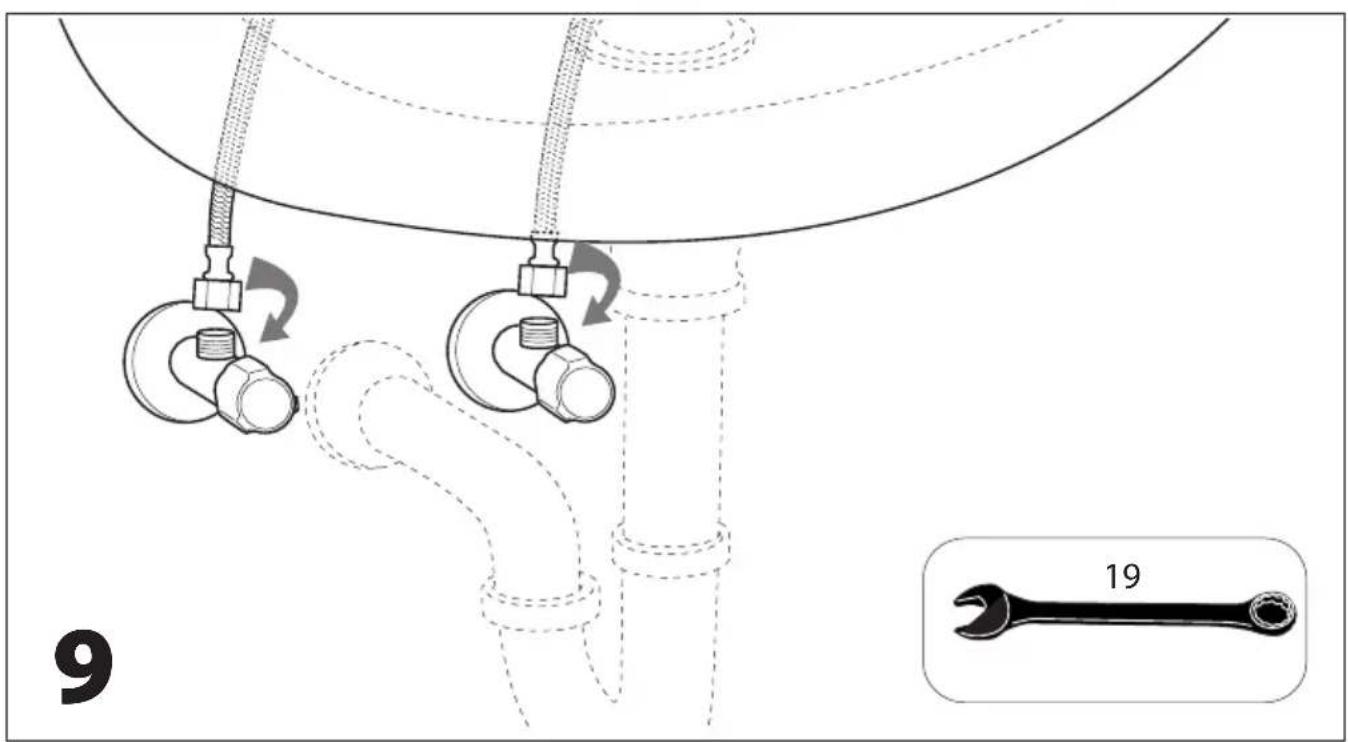

Line drawing of a sink with a pipe fitting and a circular component inserted into the sink (no text or symbols)

9 19

10 14

11 2 min

12 14

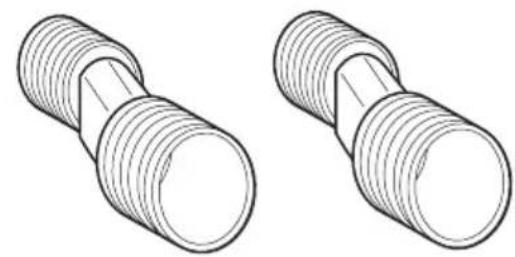

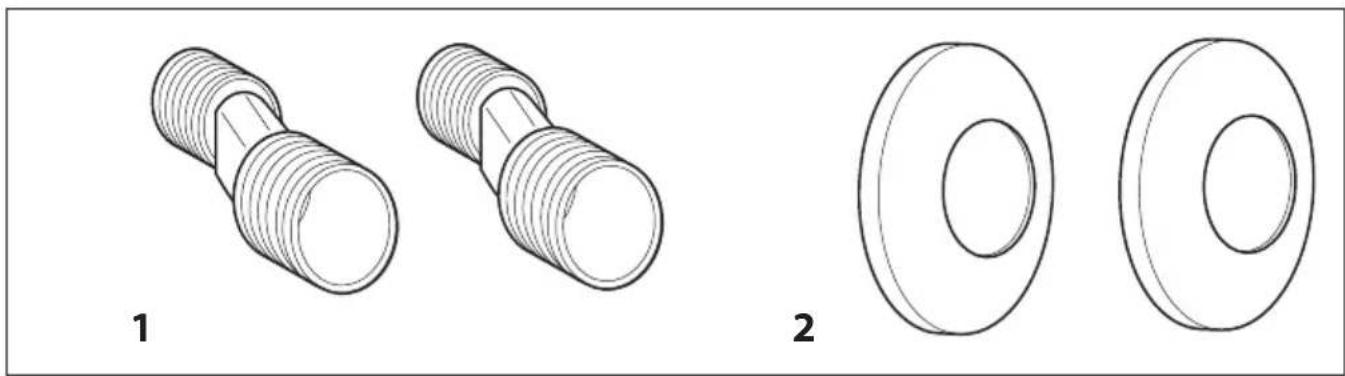

Two identical mechanical components with threaded ends, shown from different angles (no text or symbols)

2

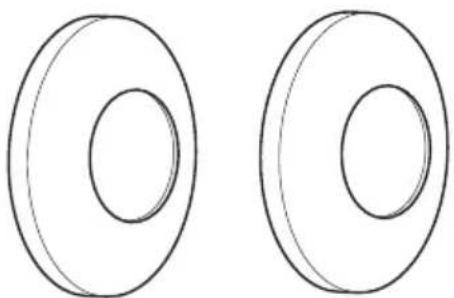

Two identical 3D-rendered circular objects with concentric rings, no text or symbols present

1
3

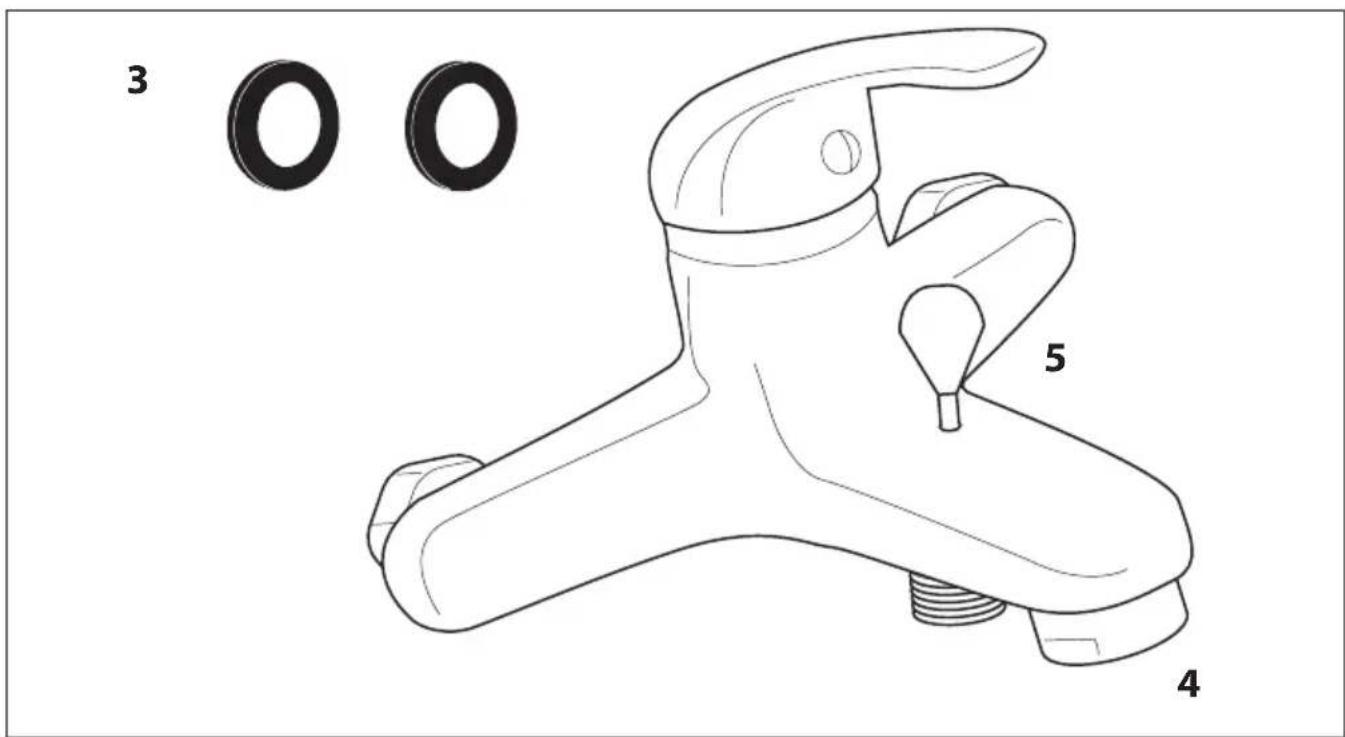

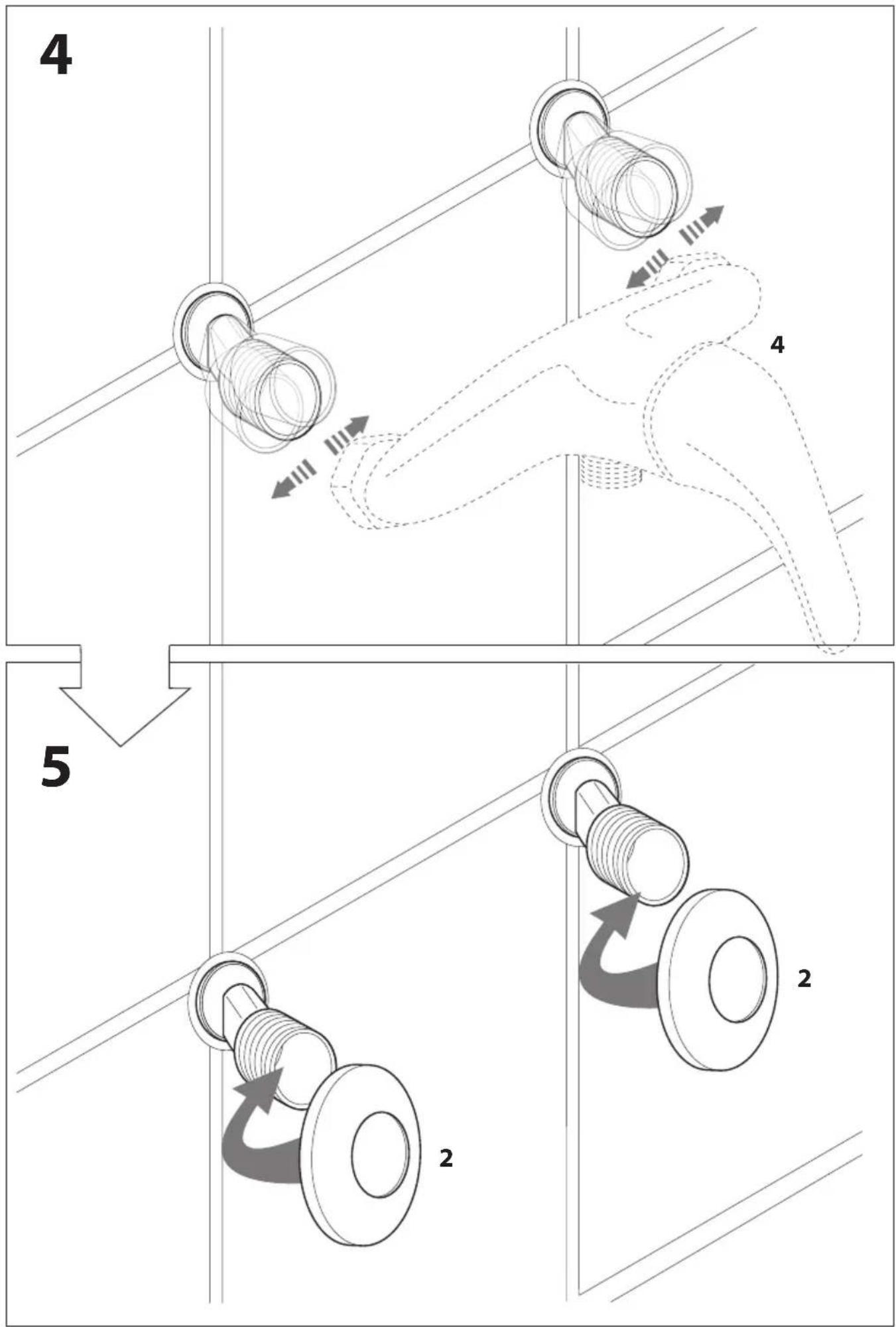

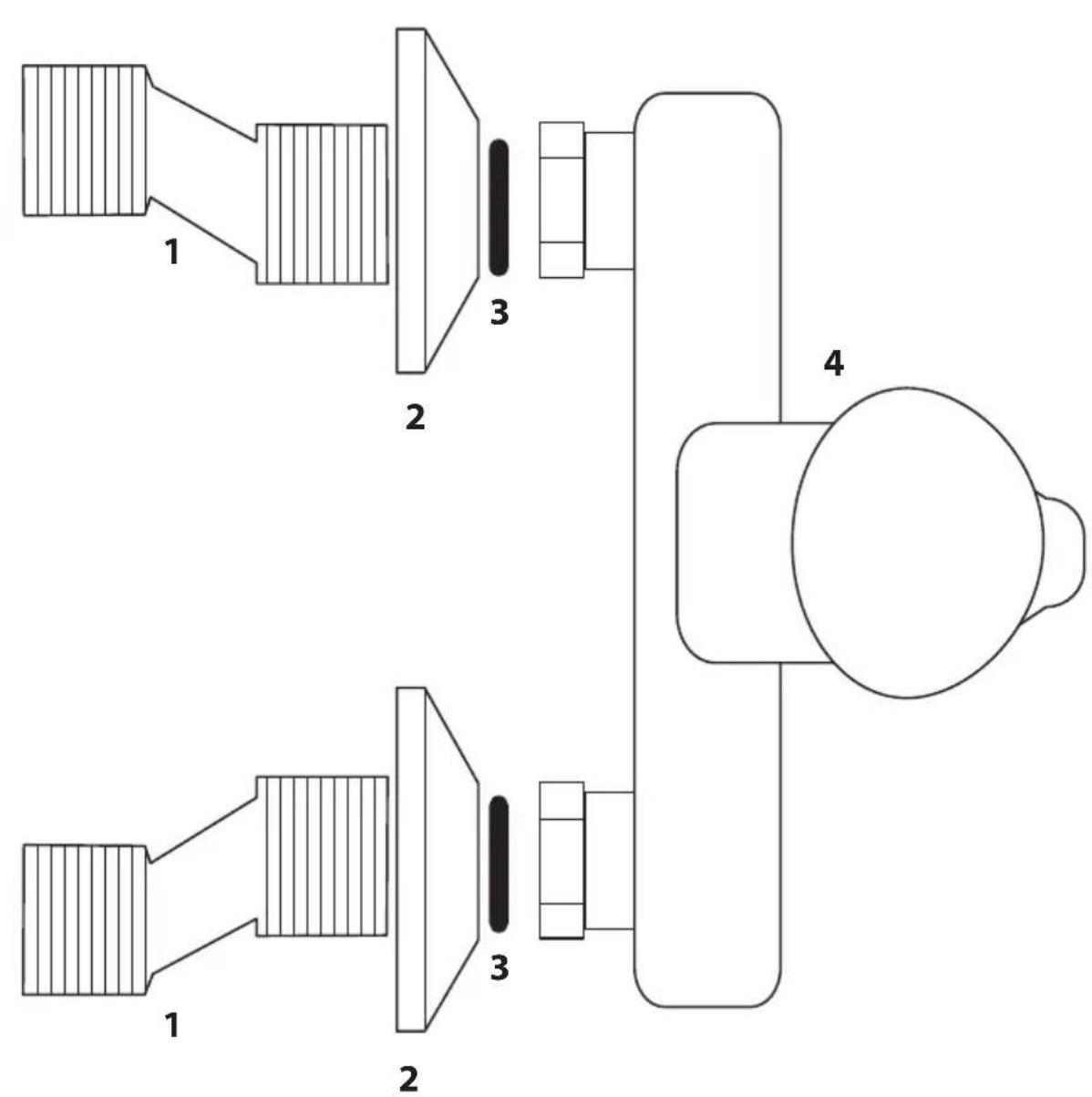

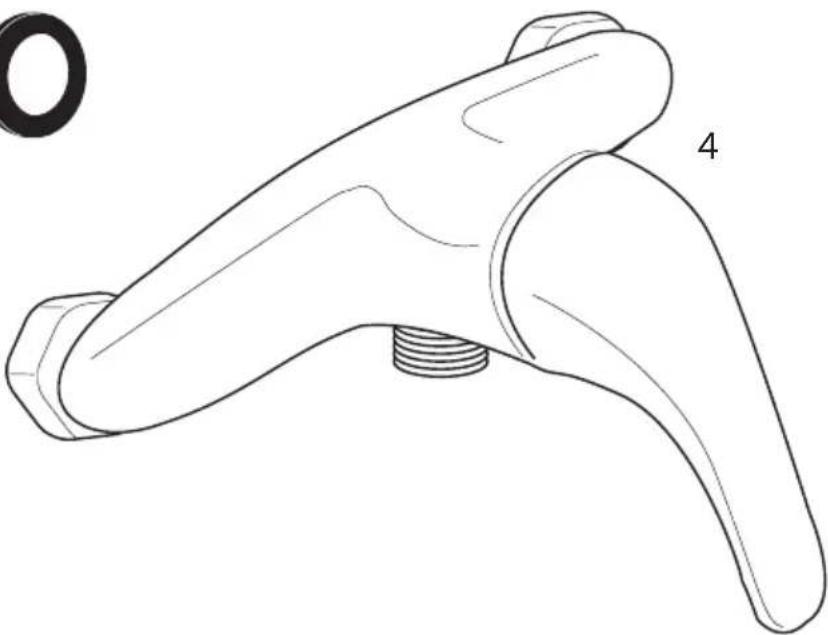

Line drawing of a shower faucet with a threaded base and labeled part '4' (no text or symbols beyond label)

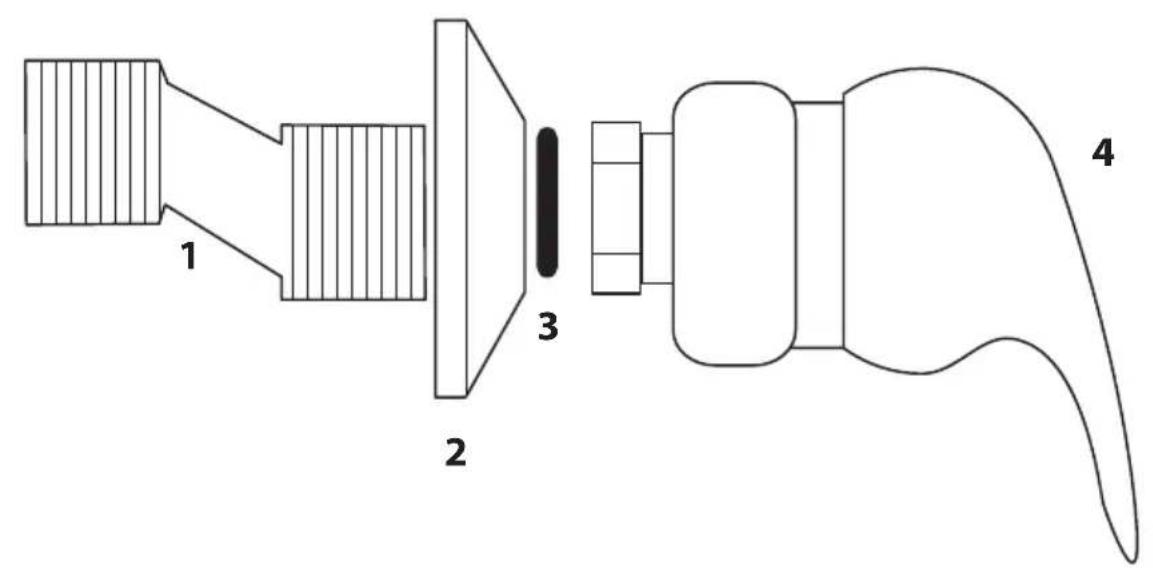

1 2 3 4

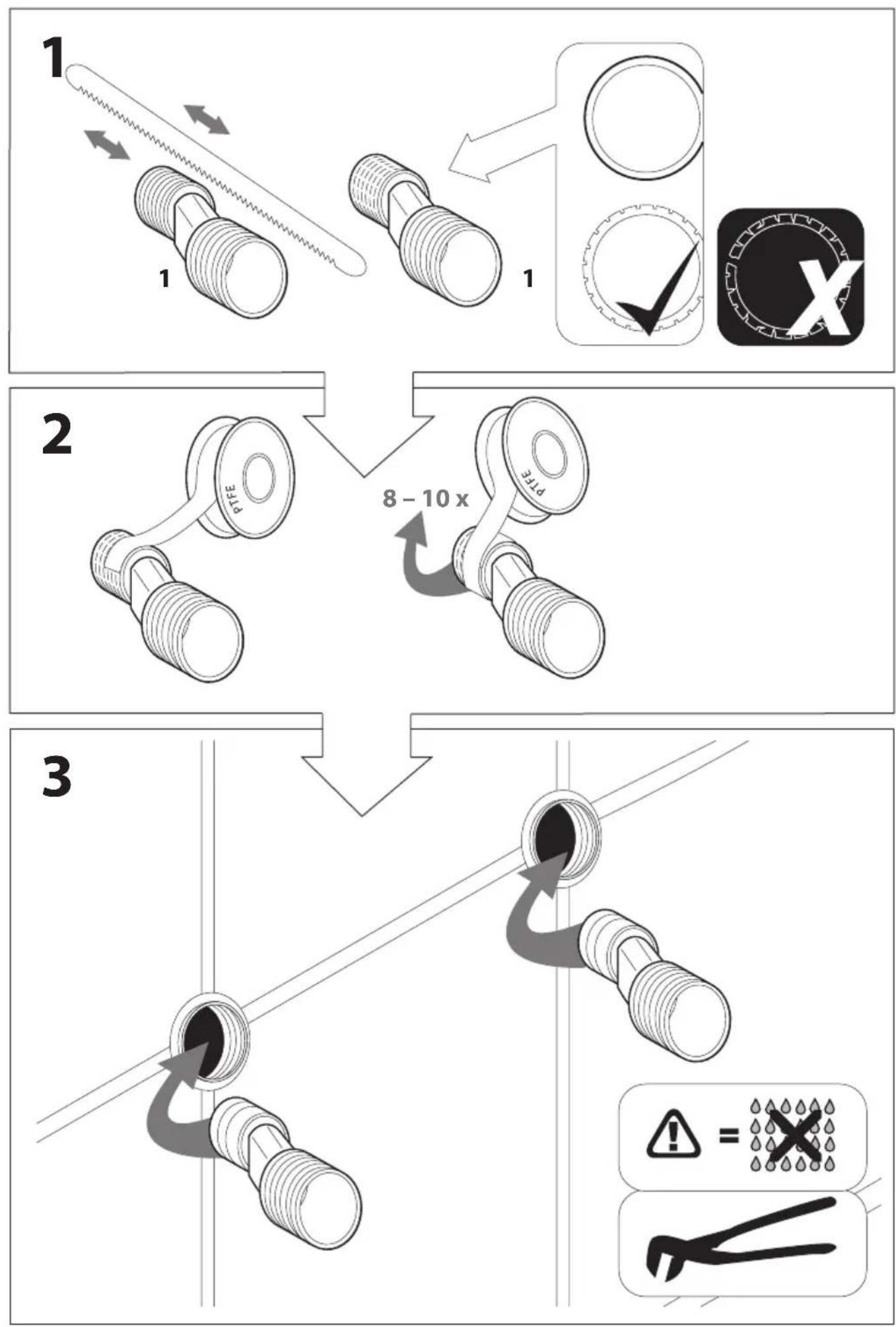

1 2 3 4 1 2 3

4 5 2 2

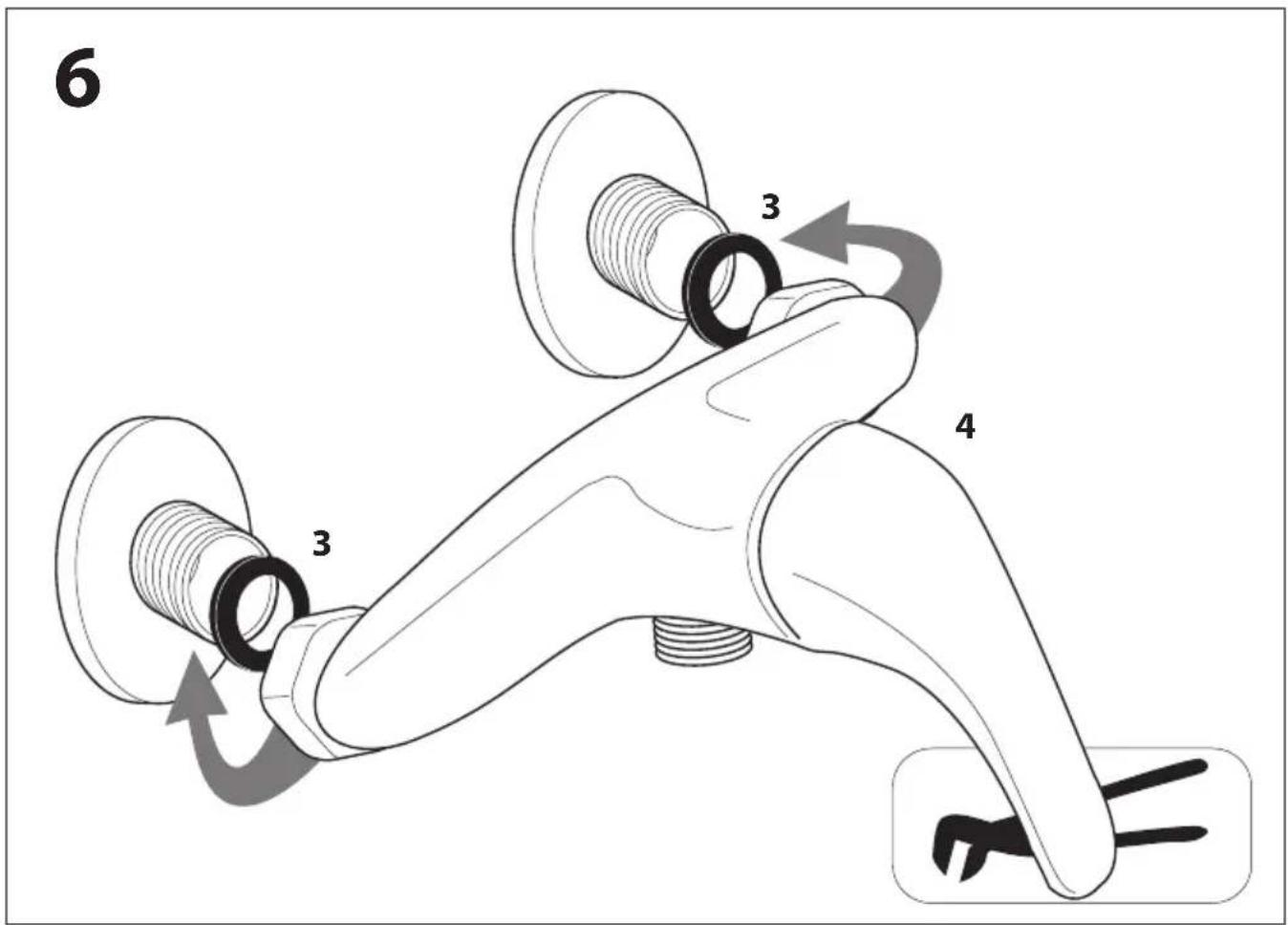

6 3 4 3

7 2 min ! =

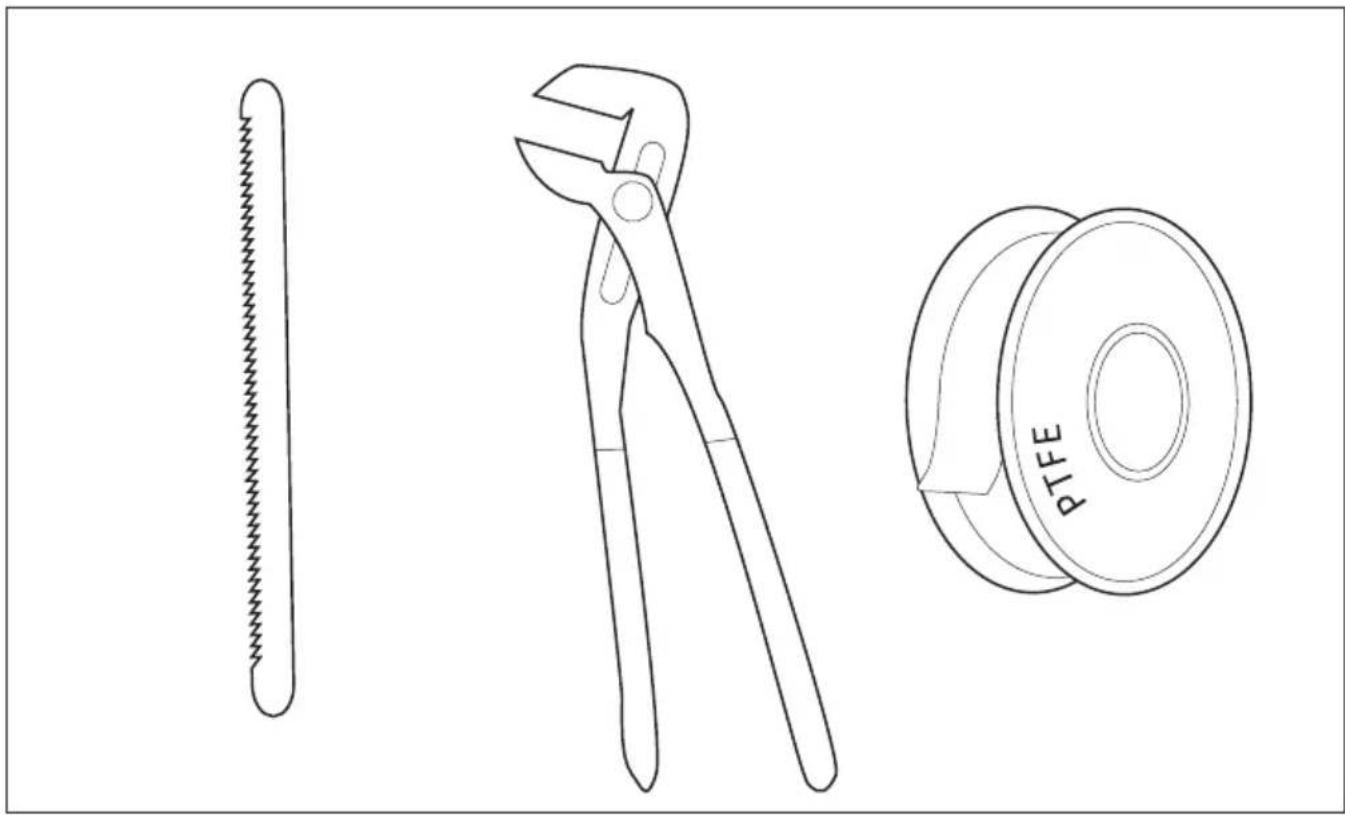

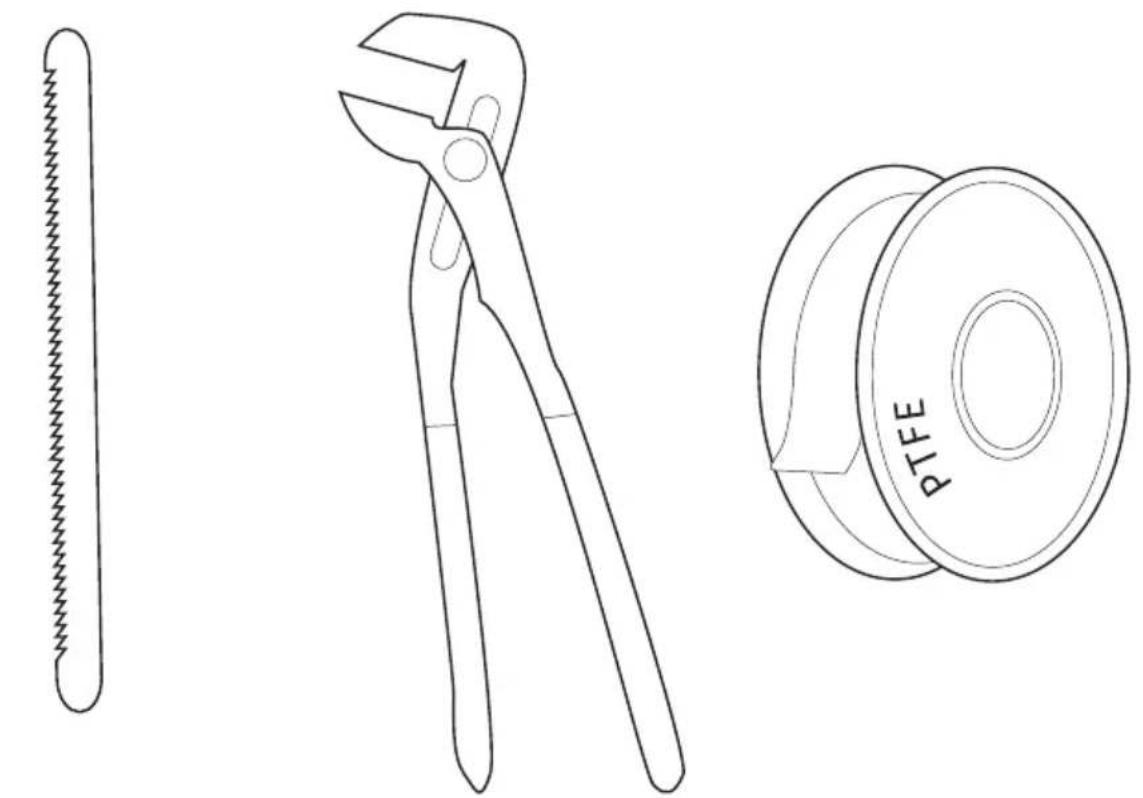

Line drawings of three different tools: a zigzag saw, a pliers, and a spool labeled 'PTFE' (no text or symbols on the tools themselves)

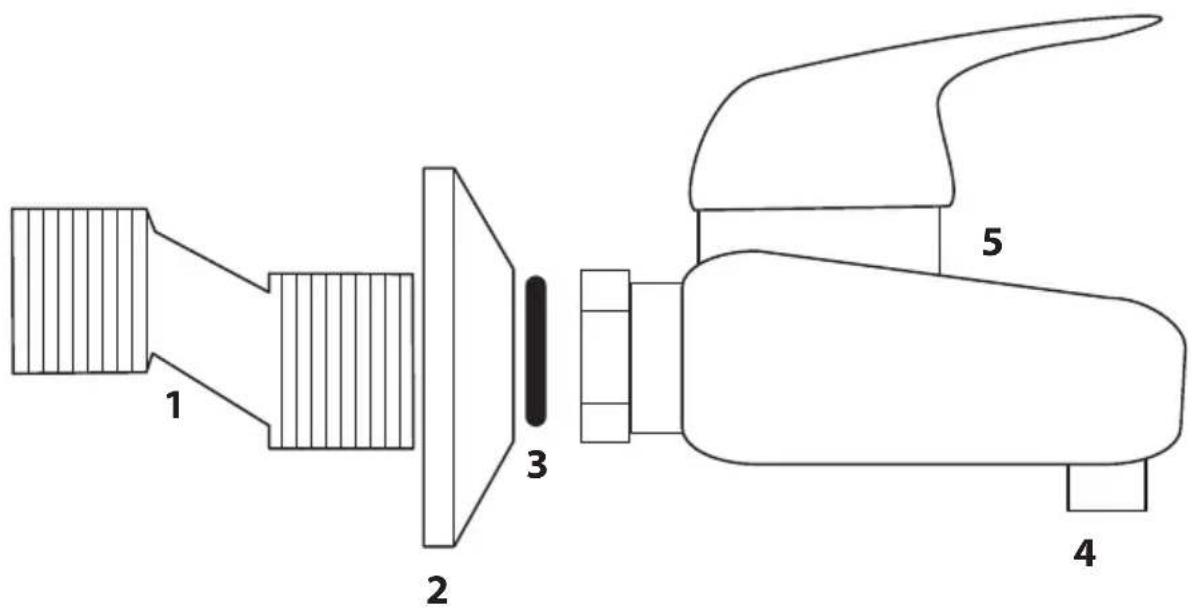

Three technical line drawings of mechanical components: threaded bolt, flanged bolt, and washer (no text or symbols)

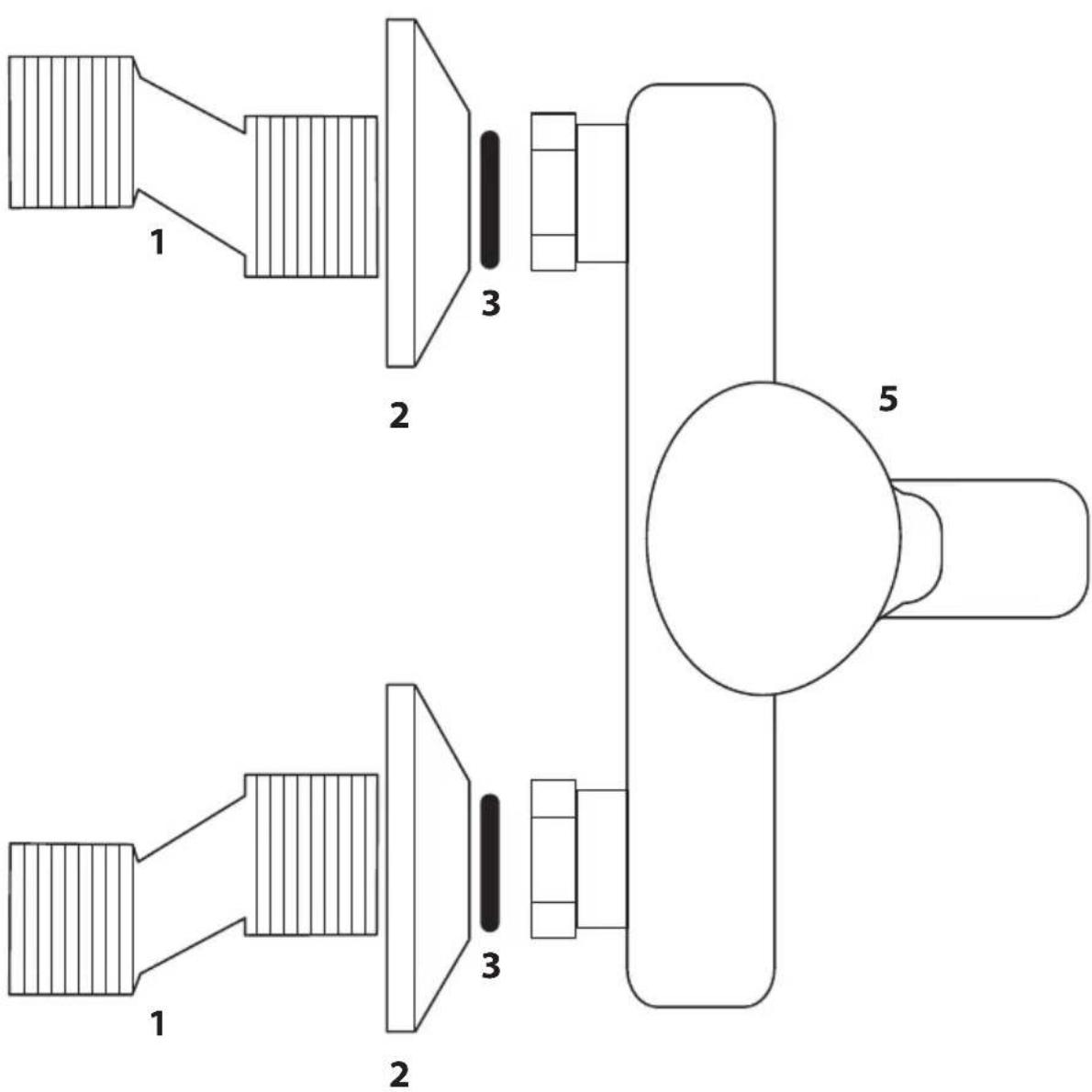

3 O O 5 4

1 2 3 4 5

1 2 3 5 1 2 3

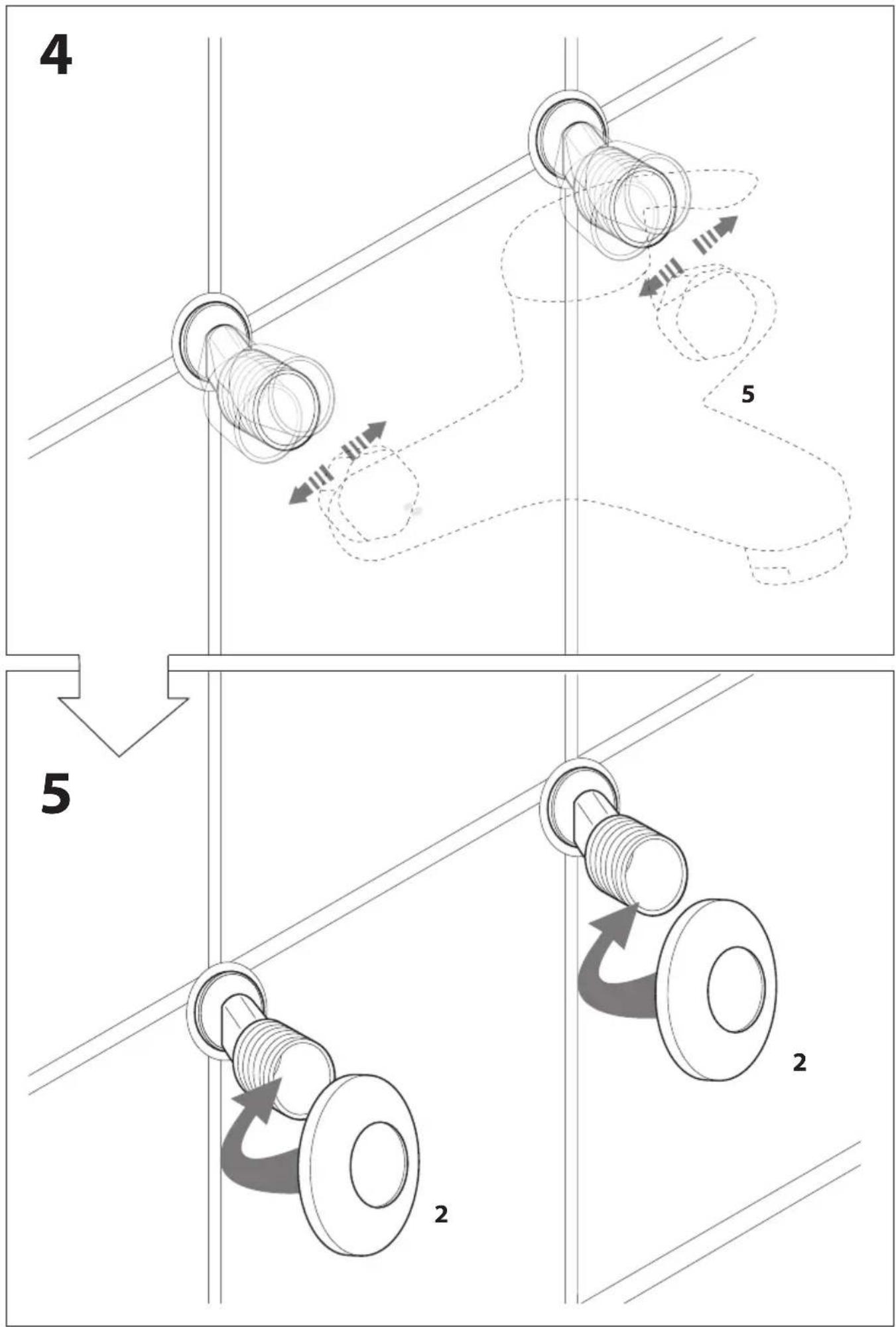

4 5 5 2 2

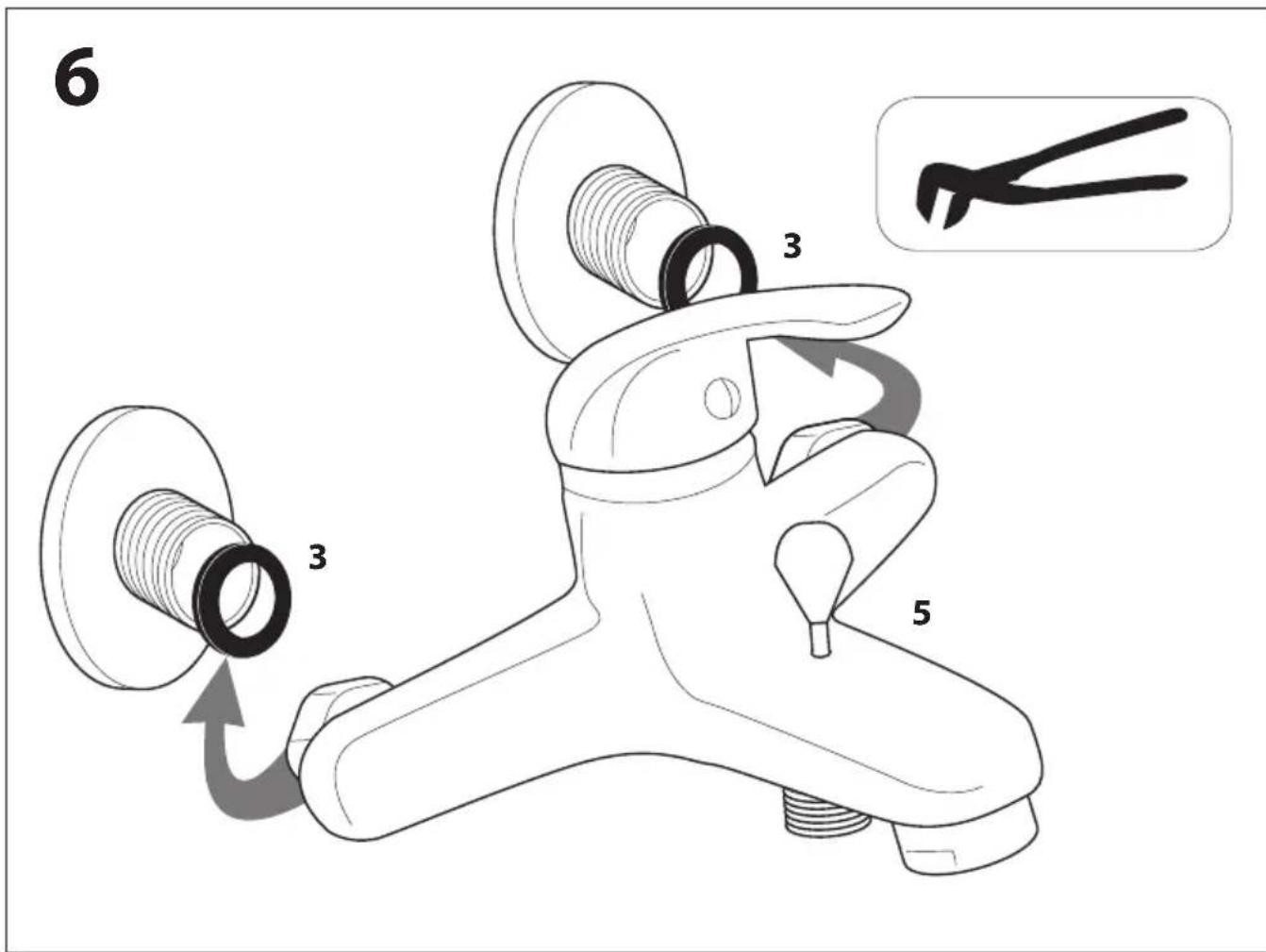

6 3 3 5

7 4

8 1 = 2 min

9 4

10

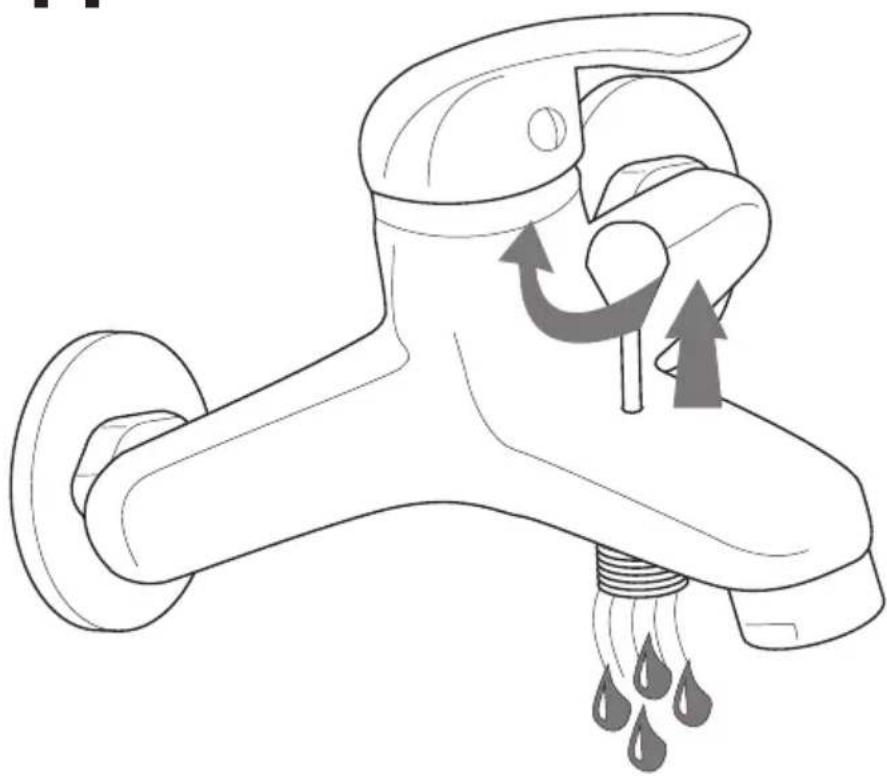

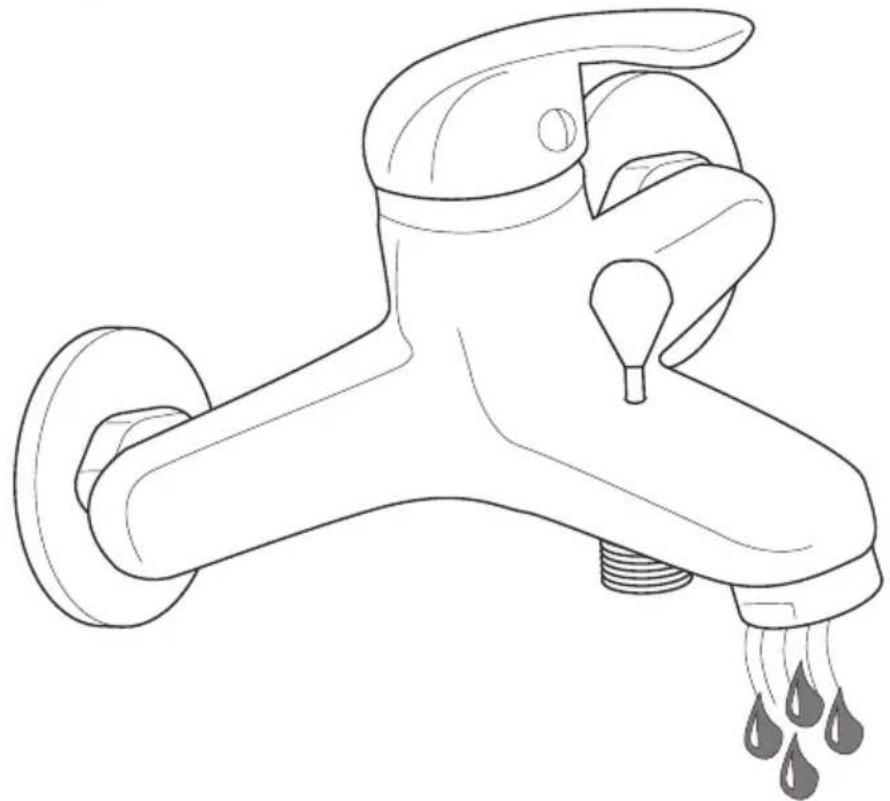

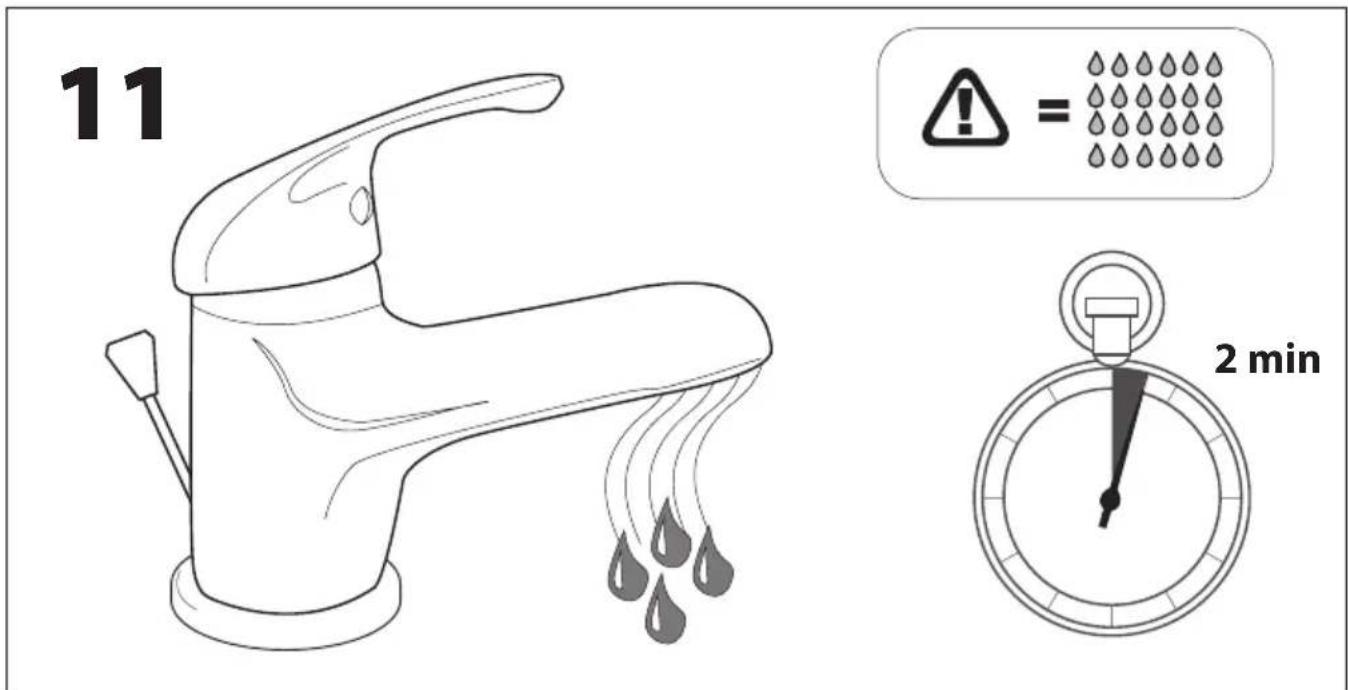

Line drawing of a faucet with water droplets falling (no text or symbols)

11

Line drawing of a faucet with water flow indicators (no text or symbols)

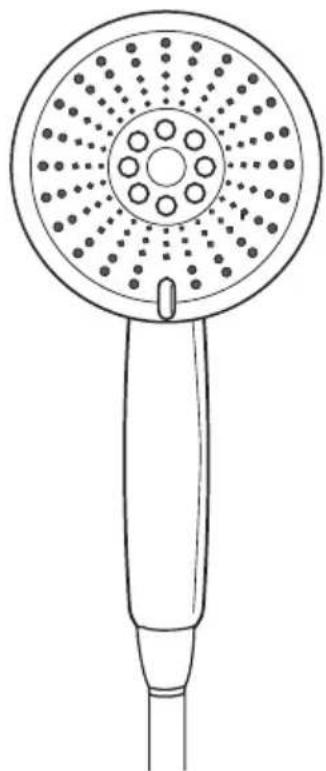

Line drawing of a showerhead with circular vent and handle (no text or symbols)

DE Austausch der Kartusche
©Výměna kartuše
DK Udskiftning af patronen
© Intercambio del cartucho
Remplacement de la cartouche

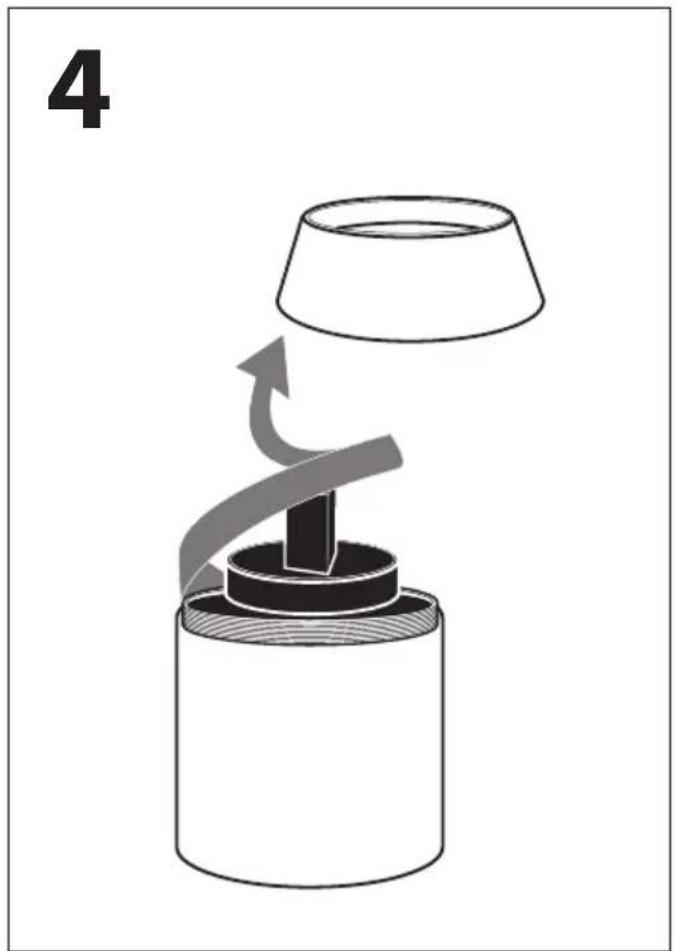

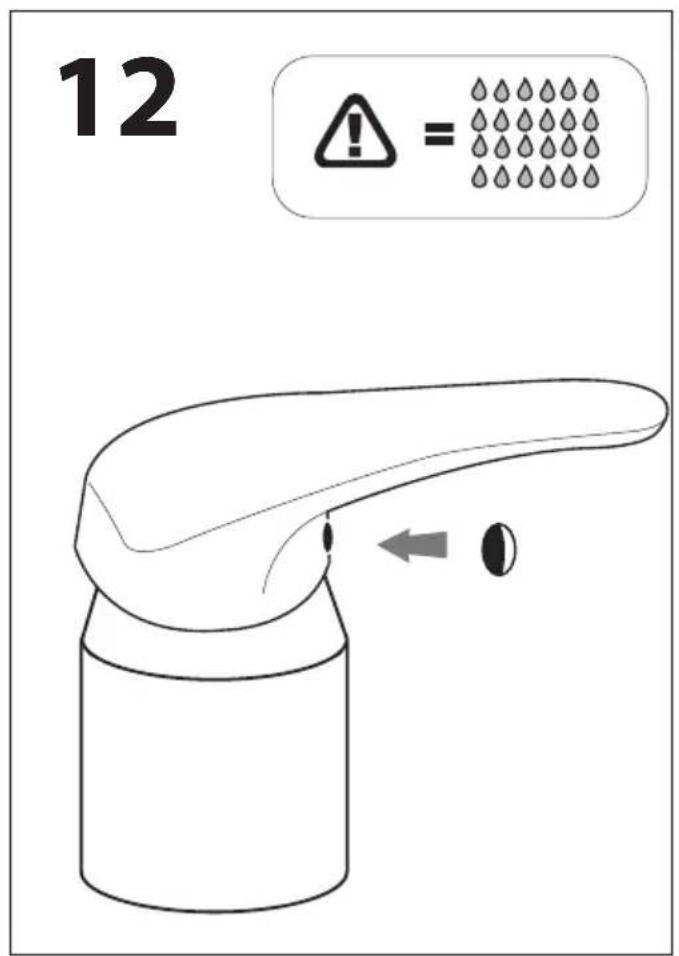

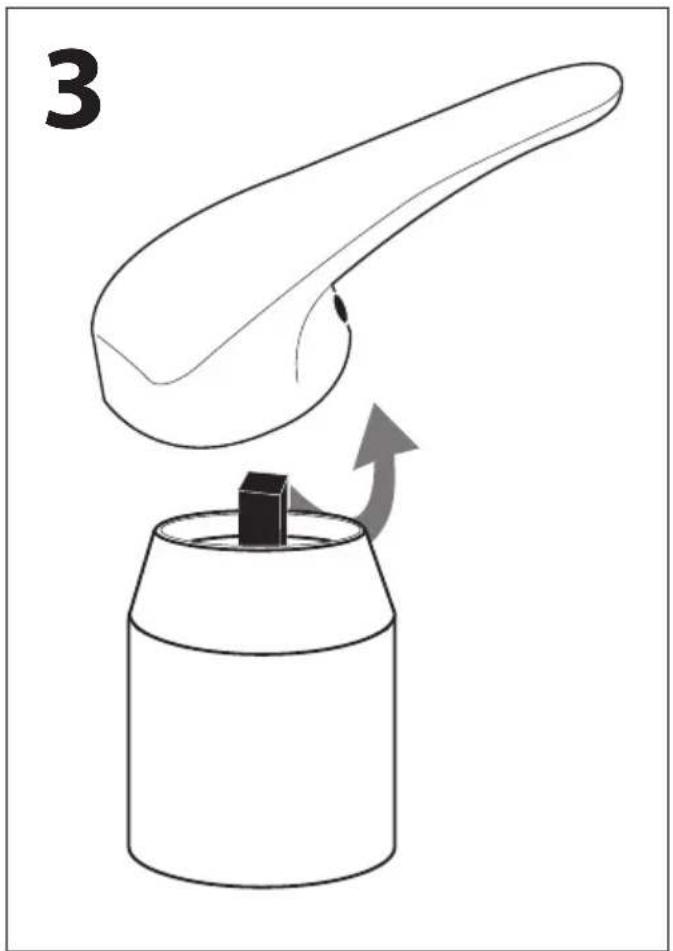

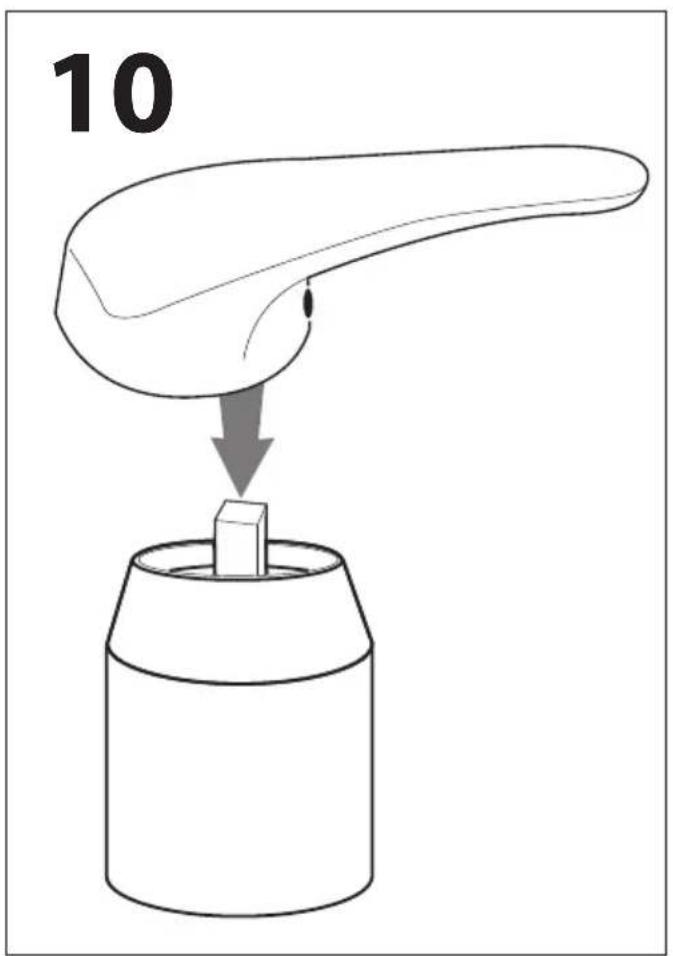

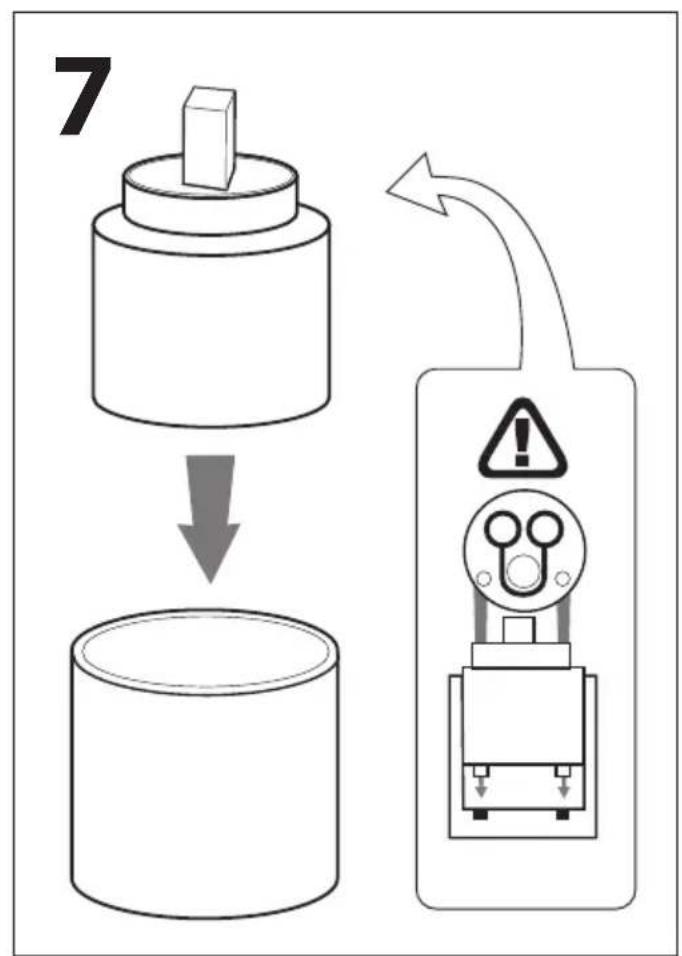

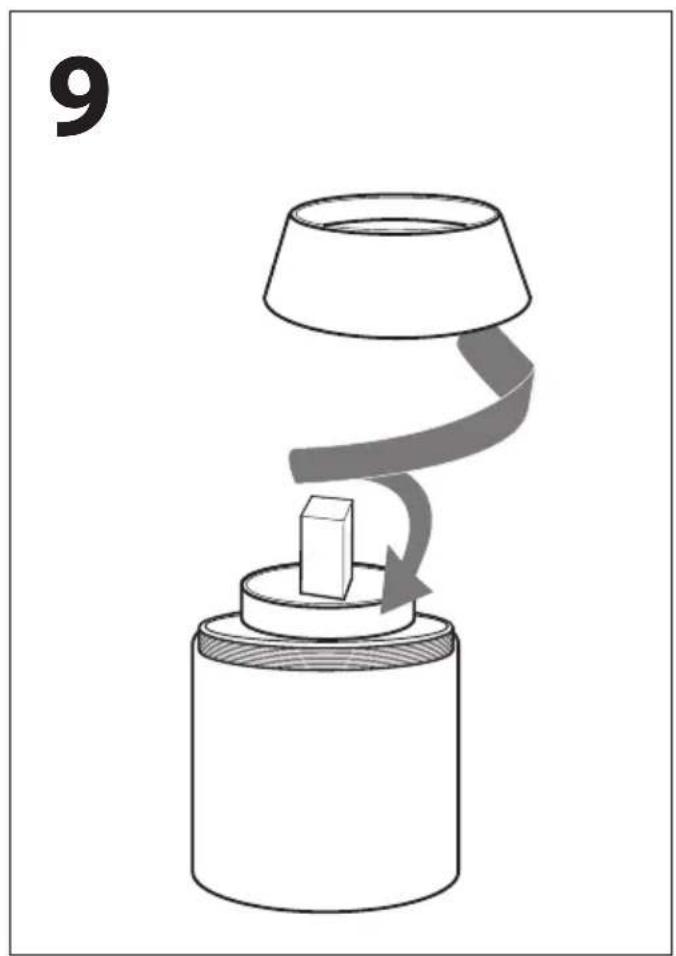

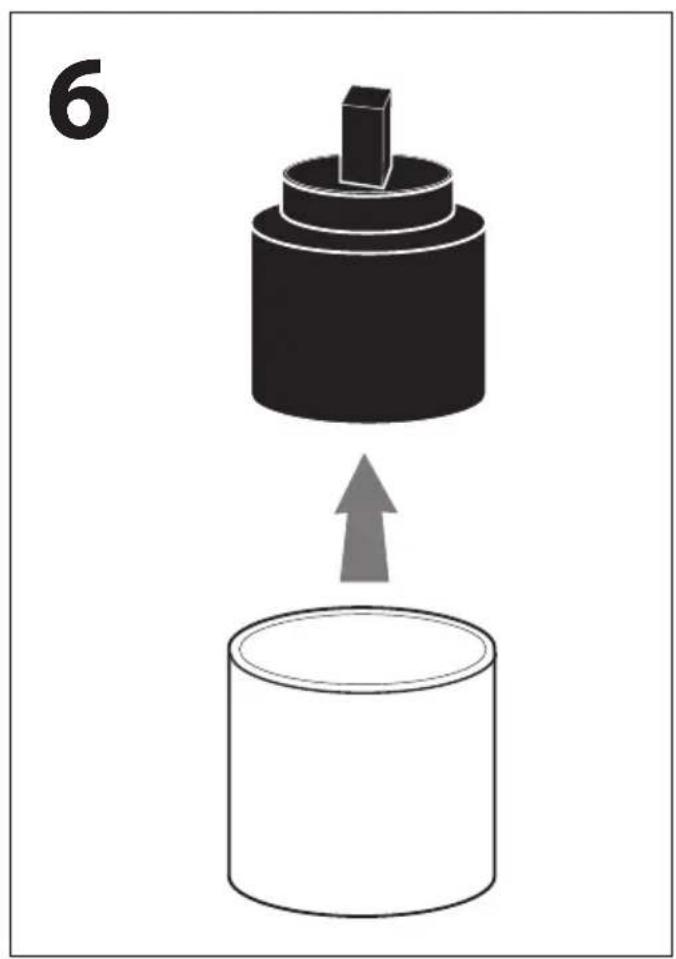

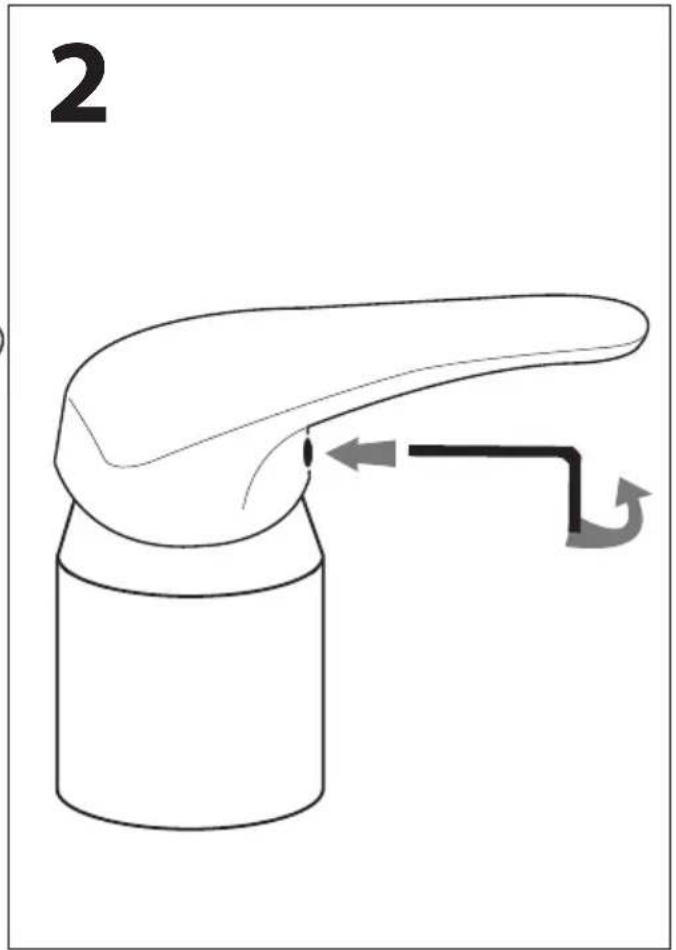

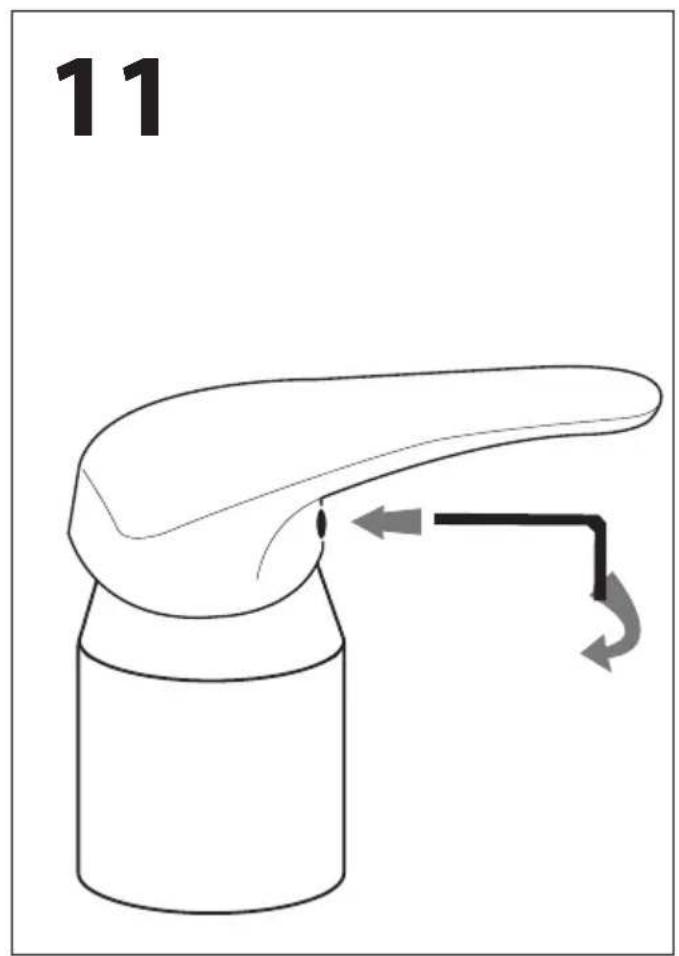

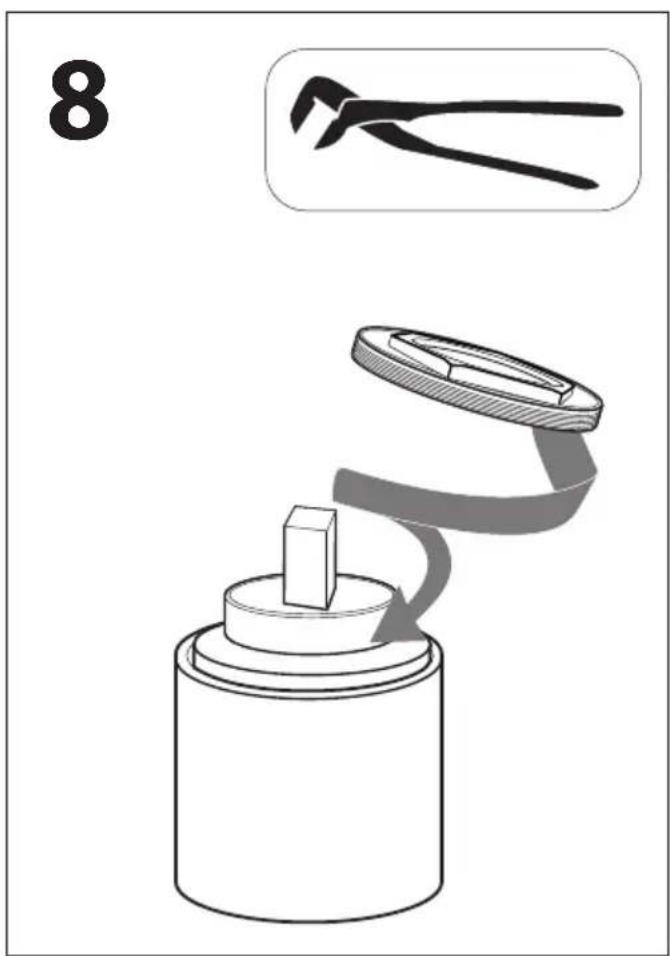

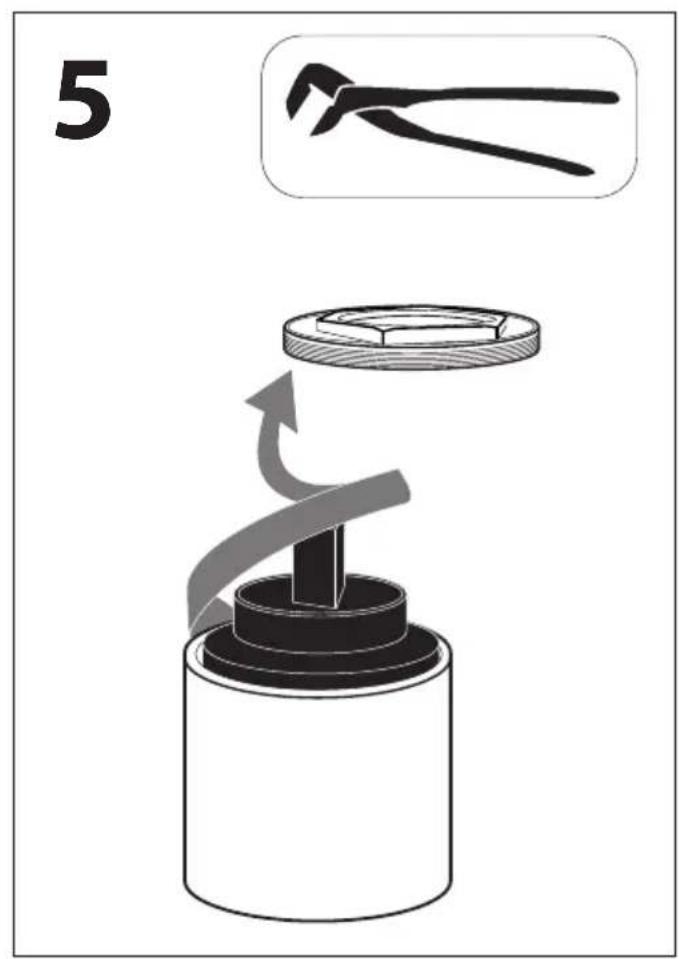

GB Replacing the cartridge
HR Zamjena kartuše
HU A betét kicserélése
IT Sostituzione delle cartucce
NL Patroonwissel
RO Schimbarea cartușului
RU Замена гильзы
SE Byta patron
SI Zamenjava kartuše
SK Výmena kartuše
TR Kartuşların değiştirilmesi

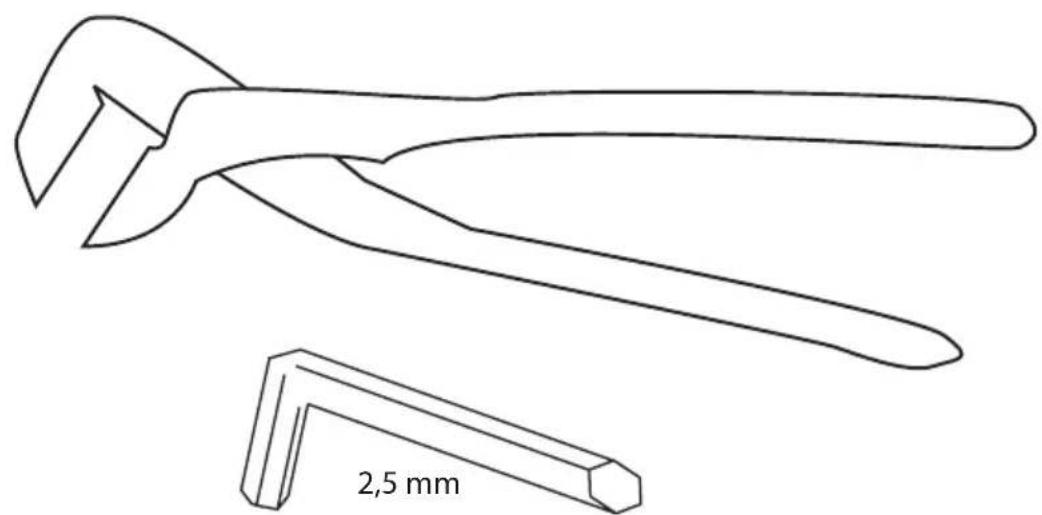

Line drawing of a adjustable wrench and a separate L-shaped tool with 2.5 mm thickness label (no text or symbols on the tools themselves)

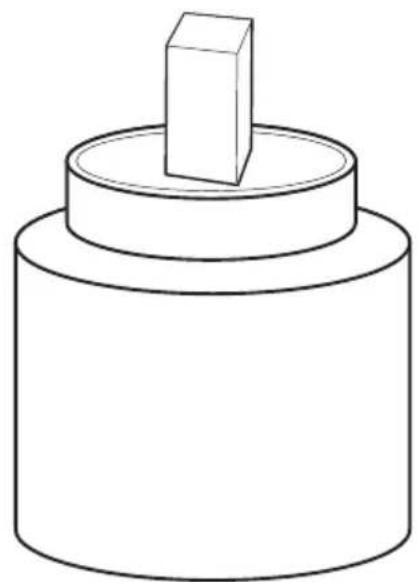

Simple line drawing of a cylindrical object with a rectangular protrusion on top (no text or symbols)

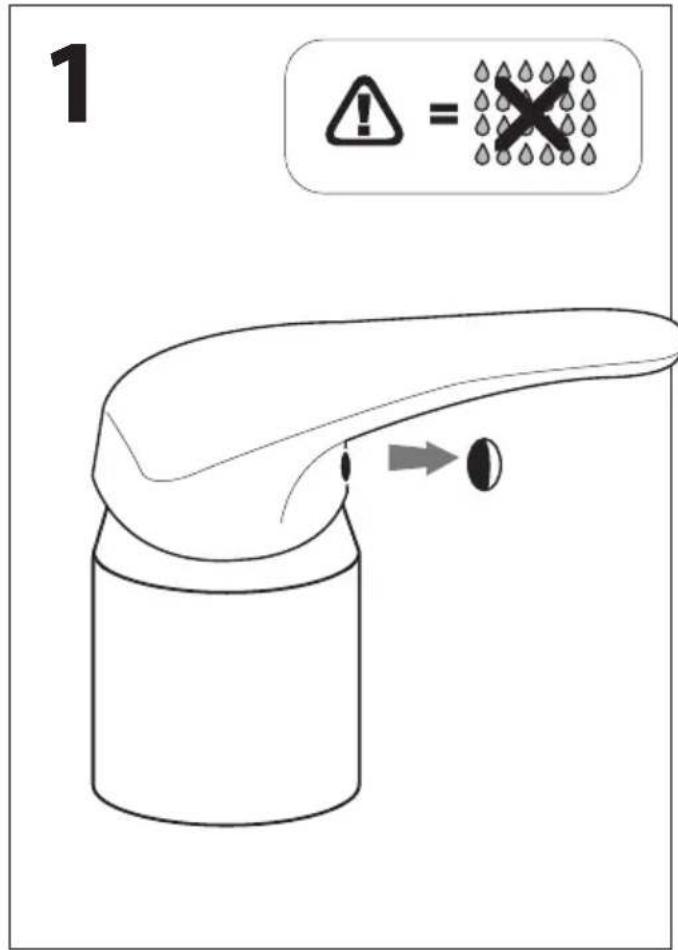

1 ⚠ = ✗

2

Line drawing of a hand tool pressing down on a cylindrical container with an arrow indicating motion (no text or symbols)

Diagram of a lamp with a rotating base and clamped top, labeled '4' (no text or symbols on the diagram itself)

5

Diagram showing a mechanical assembly with a cylindrical component and an upward arrow, no text or symbols present

7

8

Diagram of a mechanical device with a conical top and base, showing a curved arrow indicating motion or force (no text or symbols)

10

11

12 ! =
