Professional Serie BL - Blender IMETEC - Free user manual and instructions

Product Type	Blender
Brand	Imetec
Model	Professional Serie BL
Type	L2301
Power Supply	220-240 V ~ 50 Hz, 300 W
Capacity	800 ml
Speeds	2 speeds (low/high) + pulse function
Continuous Operation	Maximum 3 minutes; allow 1 minute cooling before next cycle
Blade Material	Stainless steel
Jug Material	Plastic
Dishwasher Safe Parts	Lid, jug, blade assembly, gasket, ring nut (max 55°C)
Motor Casing Cleaning	Wipe with damp sponge; do not immerse
Safety Features	Automatic shut-off when lid removed (not specified), but manual advises never remove lid during operation
Spare Parts Availability	Contact authorized service center via toll-free number or website
Warranty	Manufacturer's warranty; details on attached warranty sheet
Intended Use	Household blending only
Liquid Temperature	Do not pour hot liquids (to avoid explosion from sudden vaporization)
Ice Crushing	Use pulse mode with plenty of liquid

Frequently Asked Questions - Professional Serie BL IMETEC

What is the maximum capacity of the blender jug?

The maximum capacity is 800 ml. Do not exceed this amount to avoid spillage or motor overload.

How long can I operate the blender continuously?

Continuous operation must not exceed 3 minutes. Before repeating a cycle, let the appliance cool down for 1 minute.

Can I put hot liquids in the blender?

No, never pour hot liquids into the blender. The sudden vaporization can cause an explosion and serious injury. Always blend room temperature or cold ingredients.

Why does my ice not crush properly?

Always crush ice in pulse mode with plenty of liquid. If ice remains on top of the blades, turn off the appliance, stir the contents with a spatula, close the lid, and continue with pulse mode.

Why are there lumps in my pesto?

Increase the amount of basil and oil. Grate the Grana cheese separately using an electrical grater and add it at the end to avoid lumps.

How do I clean the blender?

Remove the plug from the socket. Wash removable parts (lid, jug, blades, gasket, ring nut) by hand or in the dishwasher at a maximum temperature of 55°C. Clean the motor casing with a damp, well-wrung sponge; never immerse it in water.

Can I put the blender parts in the dishwasher?

Yes, the lid, jug, blade assembly, gasket, and ring nut are dishwasher safe, but ensure the water temperature does not exceed 55°C.

What should I do if the blender malfunctions?

Switch off the appliance and do not tamper with it. Contact an authorized technical service centre for repairs. The power cord must be replaced only by an authorized service centre.

Can children use this blender?

The blender may be used by children aged 8 years and above only if they have received prior instructions on safe use and are aware of the dangers. Cleaning and maintenance must not be done by children without adult supervision. Keep the appliance and cord away from children under 8.

What is the pulse function for?

The pulse function (position P) is used for short bursts of power to add volume to processed contents or to crush ice. It helps control texture and prevent over-processing.

USER MANUAL Professional Serie BL IMETEC

Tel. +39.035.688.111 Fax +39.035.320.149

Operating instructions

Bedienungsanleitung

Simple diagram showing a curved arrow labeled 'J100' pointing left, adjacent to a vertical line (no text or symbols beyond the label)

[A]

GUIDA ILLUSTRATIVA

ILLUSTRATIVE GUIDE

Line drawing of a mechanical component with a ring and three triangular blades (no text or symbols)

Technical line drawing of a mechanical component with a three-blade top and central circular base (no text or symbols)

Illustration of a hand holding a cylindrical object with an arrow indicating rotation or movement (no text or symbols)

||

DATI TECNICI

TECHNICAL DATA

TECHNISCHE DATEN

DATOS TÉCNICOS

DADOS TÉCNICOS

MÜSZAKI ADATOK

TEXNIKA ΣΤΟΙΧΕΙΑ

TEHNIČNI PODATKI

IMETEC

TYPE L2301

220-240 V 50 Hz

300 W

www.imetec.com

CE

III

IT

MANUALE DI ISTRUZIONI PER L'USO DEL FRULLATORE

Dear customer, IMETEC thanks you for purchasing this product. We are certain you will appreciate the quality and reliability of this appliance, designed and manufactured with customer satisfaction in mind. These instructions for use have been drawn up in accordance with European standard EN 62079.

Before using this appliance, carefully read the instructions and in particular the safety warnings, which must be complied with. Keep this manual and illustrative guide with the appliance for future consultation. Should you pass the appliance on to another user, make sure to also include this documentation. Should certain parts of this user manual be difficult to understand or should doubts arise, contact the company before using the product, at the address indicated on the last page.

CONTENTS

SAFETY WARNINGS Page 5

SYMBOLS Page 6

DESCRIPTION OF THE APPLIANCE AND ACCESSORIES Page 7

CLEANING BEFORE FIRST USE Page 7

ASSEMBLY Page 7

OPERATION Page 7

USE Page 7

CLEANING AND MAINTENANCE

PROBLEMS AND SOLUTIONS

DISPOSAL

ASSISTANCE AND WARRANTY

Illustrative guide

Technical data

Page 8

Page 8

Page 8

Page 8

I-II

III

SAFETY WARNINGS

• After having removed the appliance from its packaging, verify its integrity based on the drawing and check for any damage caused during transport. If in doubt, do not use the appliance and contact the authorised service centre.
- Do not let children play with the packaging! Keep the plastic wrapping out of the reach of children; risk of suffocation!
- Before connecting the appliance, check that the mains voltage data reported on the identification plate corresponds to that of the available electric mains. The identification plate is attached to the appliance.

GB

• This appliance must be used only for the purpose for which it was designed, that is as a BLENDER for home use. Any other use is improper and potentially dangerous.
• The appliance may be used by children who are at least 8 years old, by persons with reduced physical, sensorial or mental abilities or persons lacking experience only if they have received prior instructions concerning its safe use and if they are informed about the dangers associated with this product. Children may not play with the appliance. The appliance cannot be cleaned or serviced by children without adult supervision. Keep the appliance and power cord away from children under 8 when the appliance is on or cooling down.
• DO NOT use the appliance with damp or wet hands or feet.
• DO NOT pull the power cord or appliance to unplug the latter from the socket.
• DO NOT expose the appliance to humidity or weather conditions (rain, sun, etc.).
• Always disconnect the appliance from the mains before cleaning or performing maintenance and when the appliance is not in use.
• In case of a fault or malfunctioning of the appliance, switch it off and do not tamper with it. If the appliance needs to be repaired, contact an authorised technical service centre.
• If the power cord is damaged, it must be replaced by an authorised technical service centre, so as to prevent all risks.
• NEVER submerge the appliance in water and never place it under running water.
• The appliance is not intended to be operated by an external timer or through a separate remote control or similar systems.
• DO NOT use the appliance near a washbasin full of water. During use, the appliance must be placed in such a way that it cannot fall in the washbasin.
• DO NOT use near a hob. Pay attention that the cable does not come into contact with hot, incandescent surfaces, open flames, pots and other utensils.
  • DO NOT touch moving parts.
• DO NOT remove the blender's lid during operation.
• Failure to follow these instructions or misuse of the product lead to injuries.
• DO NOT pour hot liquids in a food processor/blender, to prevent generating an explosion caused by sudden vaporisation.
• Pay special attention when handling sharp blades when processed material is removed from the bowl for cleaning purposes.

SYMBOLS

Warning.

Prohibited.

DESCRIPTION OF THE APPLIANCE AND ACCESSORIES

Look at Figure [A] in the illustration section to check the content of the packaging. All figures are found in the inside pages.

1. Lid.

2. Ring nut.

3. Jug.

4. LED.

5. Blades.

6. Motor casing.

7. Gasket.

8. On/off control.

CLEANING BEFORE FIRST USE

• Unpack the appliance.
• Wash the removable components: lid (1), jug (2), blades (3) gasket (4) by hand or in the dishwasher.
• In the dishwasher, make sure the maximum temperature of the water does not exceed 55^ C.

ASSEMBLY

ATTENTION!

• Do not use the appliance with no ingredients in it.
• Do not introduce more than 800 ml of ingredients.
  • Always close the jug (2) with the lid (1) when the appliance is in operation.
• Continuous operation must not exceed 3 minutes. Before repeating this cycle, let the appliance cool down for one minute.
• Do not leave any food inside the jug (2) beyond the time required for preparation.

• Place the appliance on a flat and firm surface.

• Place the gasket (4) onto the blade plate (3) [Fig. B].

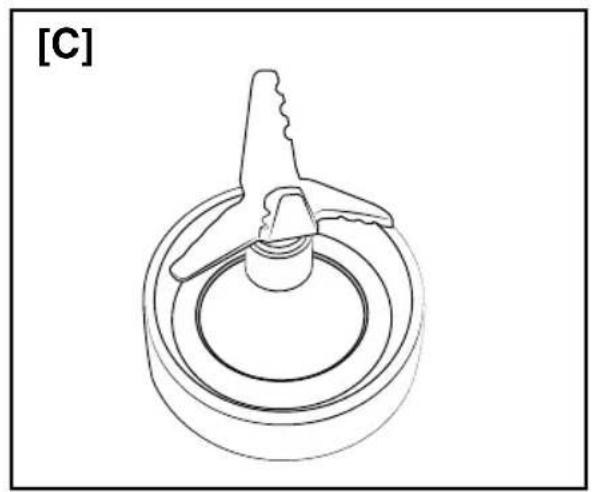

• Insert the blades (3) inside the ring nut (5) [Fig. C].

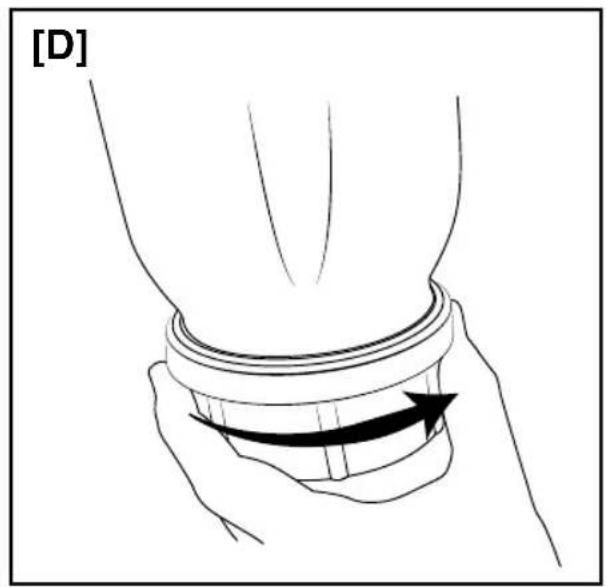

• Turn the ring nut (5) clockwise onto the jug (2) [Fig D].

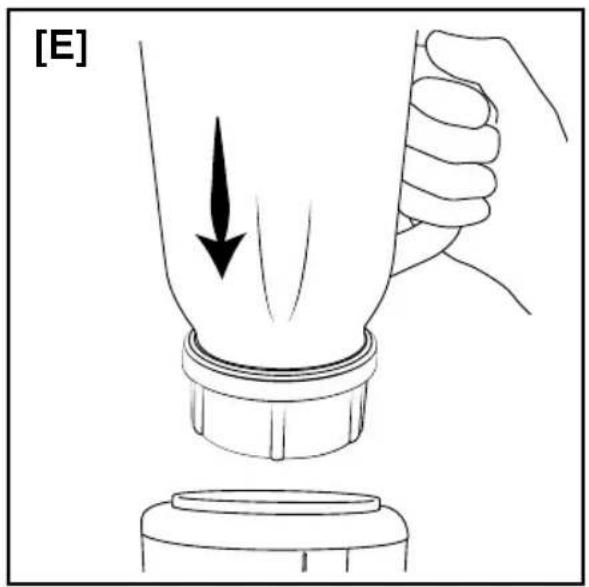

• Insert the jug (2) onto the motor unit (7) [Fig. E].
• Add the fruit or vegetables into the jug (2) with a high percentage of liquids.
• Close the jug (2) with the lid (1).

OPERATION

The on/off control (8) has the following two positions:

0 Appliance OFF. 2 High speed.
1	Low speed.	P	Pulse function to add volume to the processed contents.

The LED (6) lights up in positions 1-2-P.

USE

Proceed as follows after having assembled the appliance:

- Insert the plug in the socket.

GB

• Start the blender by setting the on/off control (8) to the desired position.
• If necessary, pour more liquid through the hole in the lid (1).

CLEANING AND MAINTENANCE

Clean the appliance after having used it.

Remove the plug from the socket.

Wash the removable components: lid (1), jug (2), blades (3) gasket (4), ring nut (5) by hand or in the dishwasher.

• In the dishwasher, make sure the maximum temperature of the water does not exceed 55^ C.
• Clean the motor casing (7) with a damp, well-wrung sponge.

PROBLEMS AND SOLUTIONS

Should one of the indicated problems occur, adopt the proposed solution:

Problem Solution
The ice has not been crushed properly.	Always crush ice in pulse mode with plenty of liquid.
	Should the ice remain on top of the blades, turn the appliance off and use a spatula to mix the content again.Close the lid (1) and continue with pulse mode operation.
There are lumps in the pesto.	Increase the amount of basil and oil.
	Use the electrical grater to grate the Grana cheese separately and add it at the end.

DISPOSAL

The packaging is made up of recyclable material. Dispose of it in compliance with the environmental protection standards.

The appliance must be disposed of properly, in accordance with the provisions of European standard 2002/96/EC. The recyclable materials contained in the appliance must be recovered so as to prevent environmental pollution. For further information, contact the local disposal body or the appliance dealer.

ASSISTANCE AND WARRANTY

To request repairs or purchase spare parts, please contact IMETEC's authorised customer service centre on the Toll-Free Number below or via the website. The appliance is covered by the manufacturer's warranty.

For details, read the attached warranty sheet. Failure to comply with the instructions for use and maintenance provided in this manual will render the manufacturer's warranty null and void.

IMETEC

www.imetec.com

Tenacta Group S.p.A. Via Piemonte 5/11 24052 Azzano S. Paolo (BG) ITALY Tel. +39.035.688.111 Fax +39.035.320.149
