Product Type	Solo Microwave
Brand	Electrolux
Model	EMS20400K
Capacity	20 Liters
Microwave Power	800 W
Power Levels	5 levels
Control Type	Digital with buttons and dial
Display	LED digital display
Door Opening	Push-button release
Dimensions (W x D x H)	455 x 320 x 265 mm
Net Weight	10.5 kg
Power Supply	230 V ~ 50 Hz
Power Consumption	1150 W
Child Safety Lock	Yes
Auto Cook Programs	8 preset menus
Defrost Function	By weight or time
Timer	Up to 95 minutes
Interior Light	Yes
Cleaning	Easy-clean enamel interior
Turntable	Glass turntable, diameter 245 mm
Spare Parts Availability	Glass tray, roller ring, fuse via authorized service
Repairability Index	7.5 / 10

Frequently Asked Questions - EMS20400K ELECTROLUX

How do I set the cooking time on the Electrolux EMS20400K?

Press the Time button, then use the dial to set the desired cooking time. Press Start to begin.

What is the maximum capacity of this microwave?

The EMS20400K has a capacity of 20 liters, suitable for medium-sized dishes.

Can I use metal containers in the microwave?

No, metal containers can cause sparks and damage the appliance. Use only microwave-safe glass or plastic containers.

How do I defrost food using the defrost function?

Press the Defrost button, enter the weight of the food, and the microwave will automatically set the time and power level.

What does the child safety lock do and how to activate it?

The child lock prevents accidental operation. Press and hold the Stop button for 3 seconds to lock/unlock.

Why is my microwave not heating?

Check if the door is fully closed, the timer is set, and the power cord is plugged in. If issues persist, contact Electrolux service.

How do I clean the interior of the microwave?

Wipe with a damp cloth and mild detergent. Avoid abrasive cleaners. The easy-clean enamel surface resists stains.

Can I use the microwave without the turntable?

No, the turntable ensures even cooking. Using without it may result in uneven heating.

What are the auto cook programs?

Presets for common foods like popcorn, pizza, beverages, etc. Select the program and weight, and the microwave adjusts settings automatically.

Where can I find spare parts or service for my EMS20400K?

Visit the Electrolux website or contact authorized service centers. Common spare parts include the glass tray, roller ring, and fuse.

USER MANUAL EMS20400K ELECTROLUX

2. ⚠ SIGURNOSNE UPUTE

2.1 Postavljanje

UPOZORENJE

Technical line drawing of two circular components with rings and a small knob (no text or symbols)

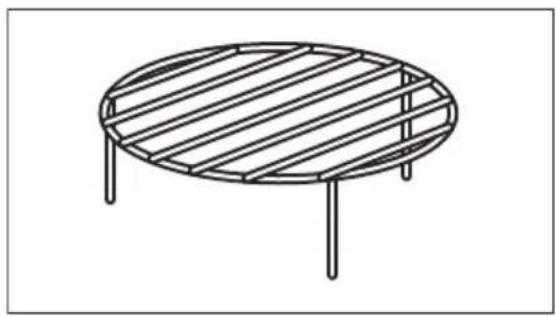

Line drawing of a circular metal grate with three legs (no text or symbols)

1 Žarulja
2 Sustav za sigurnosno zaključavanje
3 Zaslon
4 Upravljačka ploča
5 Mehanizam za otvaranje vrata
6 Štitnik vodilice mikrovalova
7 Roštilj
8 Osovina okretnog tanjura

Komplet s okretnim tanjurom

Staklena plitica za kuhanje i okretna vodilica.

6. SVAKODNEVNA UPORABA

UPOZORENJE

Pogledajte poglavlja Sigurnost.

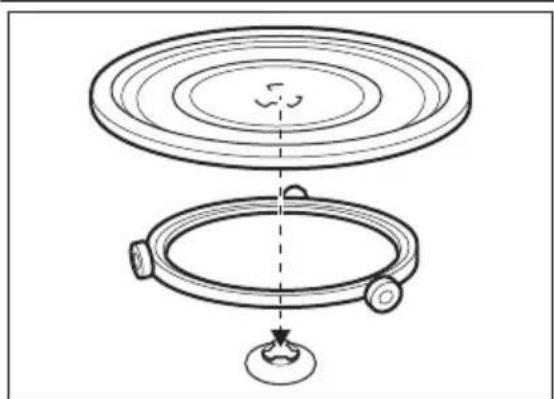

Technical line drawing of a circular mechanical component with a base and top view, showing internal structure and mounting point (no text or symbols)

1. Postavite okretnu vodilicu oko osovine okretnog tanjura.
2. Stavite staklenu pliticu za kuhanje na okretnu vodilicu

POZOR

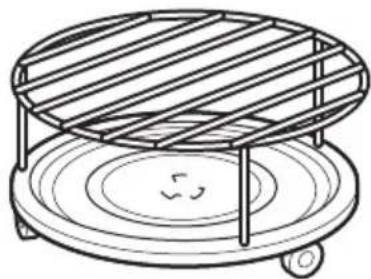

Line drawing of a circular metal grate with a circular base and wheels, no text or symbols present

Postavite stalak za roštiljanje na komplet s okretnim tanjurom.

9. KORISNI SAVJETI I PREPORUKE

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com

Register your product for better service: www.electrolux.com/productregistration

Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

1.1 Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised by an adult or a person who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, we recommend that you activate it.
• Cleaning and user maintenance shall not be made by children without supervision.
• Keep the appliance and its cord out of reach of children less than 8 years.

1.2 General Safety

- This appliance is intended to be used in household and similar applications such as:

– staff kitchen areas in shops, offices and other working environments;
- farm houses;

– by clients in hotels, motels and other residential environments;

- bed and breakfast type environments.

- Internally the appliance becomes hot when in operation. Do not touch the heating elements that are in the appliance. Always use oven gloves to remove or put in accessories or ovenware.

- Do not use a steam cleaner to clean the appliance.

- Before maintenance cut the power supply.

- If the door or door seals are damaged, the appliance must not be operated until it has been repaired by a competent person.

- Only a competent person can carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

- Do not heat liquids and other foods in sealed containers. They are liable to explode.

- Only use utensils that are suitable for use in microwave ovens.

- When heating food in plastic or paper containers, keep an eye on the appliance due to the possibility of ignition.

- The appliance is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

- If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

- Microwave heating of beverages can result in delayed eruptive boiling. Care must be taken when handling the container.

- The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

• Eggs in their shell and whole hard-boiled eggs should not be heated in the appliance since they may explode, even after microwave heating has ended.
• The appliance should be cleaned regularly and any food deposits removed.
• Failure to maintain the appliance in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.
• If the supply cord is damaged, it must be replaced by the manufacturer, an authorized Service or similarly qualified persons in order to avoid a hazard.

2. ⚠️ SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied with the appliance.

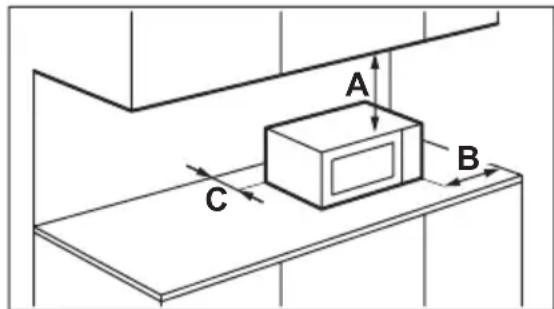

• The appliance can be placed almost anywhere in the kitchen. Make sure the oven is placed on a flat, level surface and that vents as well as the surface underneath the appliance are not blocked (for sufficient ventilation).

Electrical connection

WARNING!

Risk of fire and electrical shock.

• All electrical connections should be made by a qualified electrician.

• The appliance must be earthed.

• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.

• If the appliance is connected to the socket via an extension cord, make sure the cord is earthed.
• Make sure not to cause damage to the mains plug and to the mains cable. Contact the Service or an electrician to change a damaged mains cable.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

2.2 Use

WARNING!

Risk of injury, burns or electric shock or explosion.

• Use this appliance in a household environment.
• Do not change the specification of this appliance.
• Make sure that the ventilation openings are not blocked.

ENGLISH 21

• Do not let the appliance stay unattended during operation.
• Do not apply pressure on the open door.
• Do not use the appliance as a work surface and do not use the cavity for storage purposes.

2.3 Care and Cleaning

WARNING!

Risk of injury, fire or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• Clean regularly the appliance to prevent the deterioration of the surface material.

• Do not allow food spills or cleaner residue to accumulate on door sealing surfaces.

• Remaining fat or food in the appliance can cause fire.

• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• If you use an oven spray, obey the safety instructions on the packaging.

2.4 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.

3. PRODUCT DESCRIPTION

3.1 Accessories

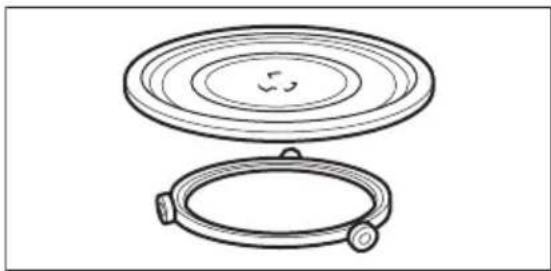

Line drawing of two circular objects with concentric rings, one above a smaller ring (no text or symbols)

1 Lamp
2 Safety interlock system
3 Display
4 Control panel
5 Door opener
6 Waveguide cover
7 Grill
8 Turntable shaft

Turntable set

Glass cooking tray and roller guide.

Always use the turntable set to prepare food in the appliance.

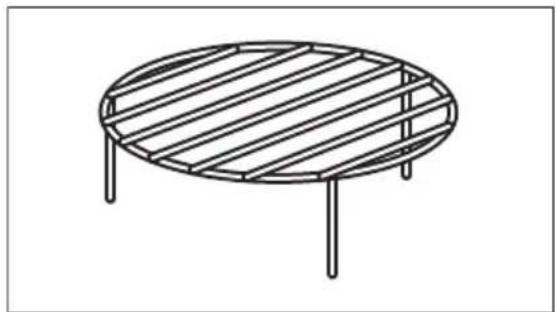

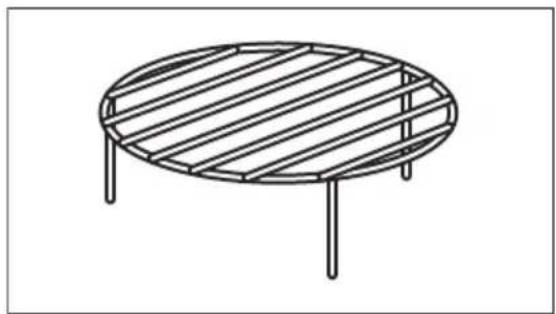

Line drawing of a circular metal grate with three legs (no text or symbols)

Grill Rack

For grilling food and combi cooking.

4. BEFORE FIRST USE

WARNING!

Refer to the Safety chapters.

4.1 Initial Cleaning

• Remove all parts from the appliance.
• Clean the appliance before first use.

Refer to chapter "Care and Cleaning".

4.2 Setting the time

When you connect the appliance to the electrical supply or after a power cut, the display shows 0:00 and an acoustic signal sounds. Set the time to operate the appliance.

You can set the time in 24 hour clock system.

1. Press ⏱️
2. Turn the Setting knob to enter the amount of hours.
3. Press ⓣ to confirm.
4. Turn the Setting knob to enter the amount of minutes.
5. Press to confirm.

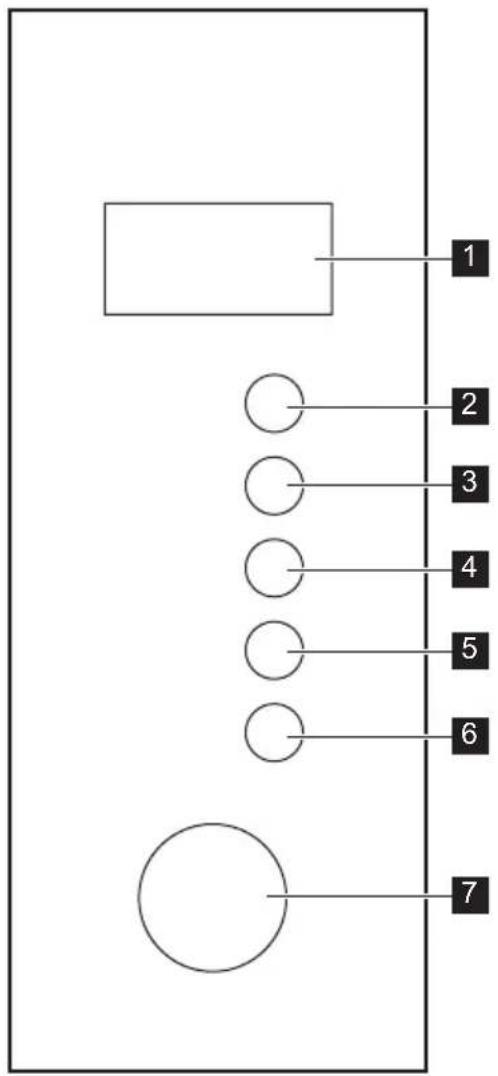

5. CONTROL PANEL

Symbol Function Description
1	— Display		Shows the settings and current time.
2		Function button	To set the microwave / grill / combi cooking function.
3		Defrosting button To defrost food by weight or time.
4		Clock button To set the clock.
5		Stop / Clear button	To deactivate the appliance or delete the cooking settings.
6		Start / +30 sec button	To start the appliance or increase the cooking time for 30 seconds at full power.The cooking time increases by 30 seconds with each additional press of the button.
7	— Setting knob		To set the cooking time, weight or function. To use Auto cooking.

6. DAILY USE

WARNING!

Refer to the Safety chapters.

6.1 Activating and deactivating the appliance

1. Press the button with the function you want to activate.
2. Repeatedly press the button or turn the Setting knob to set the desired function.
3. Press to confirm.
4. Turn the Setting knob to set the desired time.
5. Press to confirm and activate the appliance.
6. To deactivate the appliance you can:
7. wait until the appliance deactivates automatically when the time comes to an end.
8. open the door. The appliance stops automatically. Close the door to continue cooking. Use this option to inspect the food.
9. press ▽.

CAUTION!

Do not let the appliance operate when there is no food in it.

6.2 General information about using the appliance

General:

• After you deactivate the appliance, let the food stand for some minutes.

- Remove the aluminium foil packaging, metal containers, etc. before you prepare the food.

Cooking:

• If possible, cook food covered with material suitable for use in the microwave. Only cook food without a cover if you want to keep it crusty
• Do not overcook the dishes by setting the power and time too high. The food can dry out, burn or catch fire in some places.
• Do not use the appliance to cook eggs or snails in their shells, because they can explode. With fried eggs, pierce the yolks first.
• Prick food with "skin" or "peel", such as potatoes, tomatoes, sausages, with a fork several times before cooking so that the food does not explode.
• For chilled or frozen food, set a longer cooking time.
• Dishes which contain sauce must be stirred from time to time.
• Vegetables that have a firm structure, such as carrots, peas or cauliflower, must be cooked in water.
• Turn larger pieces after half of the cooking time.
• If possible, cut vegetables into similar-sized pieces.
• Use flat, wide dishes.
• Do not use cookware made of porcelain, ceramic or earthenware with small holes, e. g. on handles or unglazed bottoms. Moisture going into the holes can

cause the cookware to crack when it is heated.

- The glass cooking tray is a work space for heating food or liquids. It is necessary for the operation of the microwave.

Defrosting meat, poultry, fish:

• Put the frozen, unwrapped food on a small upturned plate with a container below it so that the defrosting liquid collects in the container.
• Turn the food after half of the defrosting time. If possible, divide and then remove the pieces that started to defrost.

Defrosting butter, portions of gateau, quark:

- Do not fully defrost the food in the appliance, but let it defrost at room temperature. This gives a more even result.

Fully remove all metal or aluminium packaging before defrosting.

Defrosting fruit, vegetables:

• Do not fully defrost fruit and vegetables, which are to be further prepared while raw, in the appliance. Let them defrost at room temperature.
• You can use a higher microwave power to cook fruit and vegetables without defrosting them first.

Ready meals:

• You can prepare ready meals in the appliance only if their packaging is suitable for microwave use.
• You must follow the manufacturer's instructions printed on the packaging (e.g. remove the metal cover and pierce the plastic film).

Suitable cookware and materials

Cookware / Material Microwave Grilling
	Defrost-ing	Heating	Cook-ing
Ovenproof glass and porcelain (with no metal components, e. g. Pyrex, heat-proof glass)	XXXX
Non-ovenproof glass and porcelain 1)	X--- -- --
Glass and glass ceramic made of ovenproof / frost-proof material (e. g. Arcoflam), grill shelf	XXXX
Ceramic 2), earthenware 2)	XXXX--
Heat-resistant plastic up to 200 °C 3)	XXXX--
Cardboard, paper X--- -- --
Clingfilm	X--- -- --
Roasting film with microwave safe closure 3)	XXXX--
Roasting dishes made of metal, e. g. enamel, cast iron	--- -- -- X
Baking tins, black lacquer or silicon-coated 3)	--- -- -- X
Baking tray--- -- -- X
Browning cookware, e. g. Crisp pan or Crunch plate	--XX--
Ready meals in packaging 3)	X X X X

1) With no silver, gold, platinum or metal plating / decorations
2) Without quartz or metal components, or glazes which contain metals
3) You must follow the manufacturer's instructions about the maximum temperatures.

X suitable -- not suitable

6.3 Power setting table

Press the Function button	Power setting Approximate Percentage of Power
1 time P100 100 %
2 times P 80 80 %
3 times P 50 50 %
4 times P 30 30 %
5 times P 10 10 %

Other functions

Press the Function button	Power setting Function mode
6 times G Full Grill
Combi Cooking
7 times	C – 1	Microwaves 55%, Grill 45%
8 times	C – 2	Microwaves 36%, Grill 64%

6.4 Defrosting

You can choose between 2 defrosting modes:

• Weight defrosting
• Time defrosting

Weight and time defrosting

1. Press ☑ once to set the weight defrosting or twice for time defrosting.
2. Turn the Setting knob to input the desired weight or time.
3. Press 1^+30 to confirm and start the appliance.

For weight defrosting the time is set automatically. Weight defrosting should not be used on food that is left out of the freezer for more than 20 min, or for frozen ready-made food.

To activate weight defrosting you must use more than 100 g of food and less than 2000 g.

To defrost less than 200 g of food place it on the edge of the turntable.

6.5 Cooking

You can cook food in maximum 2 stages. If one stage is defrosting, set it as the first stage.

Multi-stage cooking:

1. Press ⚫ and set the defrosting mode.
2. Turn the Setting knob to set defrosting time or food weights.
3. Press the Function button.
4. Repeatedly press the Function button or turn the Setting knob to select the desired power level.
5. Press ^+30 to confirm.
6. Turn the Setting knob to input the time.
7. Press ^+30 to confirm and start the appliance.

After each stage an acoustic signal sounds.

6.6 Grilling or Combi Cooking

1. Press the Function button.
2. Turn the Setting knob to set the desired function.
3. Press 1^+30 to confirm.
4. Turn the Setting knob to input the time.
5. Press ◇+30 to confirm and start the appliance.

6.7 Child Safety Lock

The Child Safety Lock prevents an accidental operation of the appliance.

To activate or deactivate the Child Safety Lock press and hold ▼ for 3 seconds, until an acoustic signal sounds.

When the Child Safety Lock is on, display shows ☐.

7. AUTOMATIC PROGRAMMES

WARNING!

Refer to the Safety chapters.

7.1 Auto Cooking

You can use Auto Cooking function to easily cook food.

1. In standby mode, turn the Setting knob clockwise to choose the desired menu.

2. Press ^+30 to confirm.

3. Turn the Setting knob to set the weight of the menu.
4. Press ^+30 to confirm and start the appliance.

Menu Weight
A1	200 g
Reheat	400 g
	600 g
A2	200 g
Vegetable	300 g
	400 g
A3	250 g
Fish	350 g
	450 g
A4	250 g
Meat	350 g
	450 g
A5	50 g (add 450 ml of water)
Pasta	100 g (add 800 ml of water)
A6	200 g
Potato	400 g
	600 g
A7	200 g
Pizza	400 g
A8	200 g
Soup	400 g

7.2 Delayed Start

You can programme the appliance for 2 stages maximum.

1. Press the Function button and set the power level.
2. Press 1^+30 to confirm.
3. Turn the Setting knob to set the cooking time.

4. Press ⏻ to programme the start of the appliance.

5. Turn the Setting knob to enter the amount of hours.

6. Press ⏻ to confirm.
7. Turn the Setting knob to enter the amount of minutes.
8. Press ^+30 to end the settings.

The appliance starts automatically when the set time is reached.

8. USING THE ACCESSORIES

WARNING!

Refer to the Safety chapters.

8.1 Inserting the turntable set

Technical line drawing of a circular mechanical component with a base and top view, showing internal structure and alignment (no text or symbols)

1. Place the roller guide around the turntable shaft.
2. Place the glass cooking tray on the roller guide

CAUTION!

Do not cook food without the turntable set. Use only the turntable set provided with the appliance.

Never cook food directly on the glass cooking tray.

8.2 Inserting the grill rack

Line drawing of a circular metal grate with a circular base and wheels (no text or symbols)

Place the grill rack on the turntable set.

9. HELPFUL HINTS AND TIPS

9.1 Tips for the microwave

Problem Remedy
You cannot find details for the amount of food prepared.	Look for a similar food. Increase or shorten the length of the cooking times according to the following rule: Double the amount = almost double the time, Half the amount = half the time
The food got too dry. Set shorter cooking time or select lower microwave power.
The food is not defrosted, hot or cooked after the time came to an end.	Set longer cooking time or set higher power. Note that large dishes need longer time.
After the cooking time comes to an end, the food is overheated at the edge but is still not ready in the middle.	Next time set a lower power and a longer time. Stir liquids halfway through, e.g. soup.
To get better results for rice use a flat, wide dish.9.2 DefrostingAlways defrost roast with the fat side down.Do not defrost covered meat because this may cause cooking instead of defrosting. Always defrost whole poultry breast side down.9.3 CookingAlways remove chilled meat and poultry from the refrigerator at least 30 minutes before cooking.	Let the meat, poultry, fish and vegetables stay covered after cooking.Brush a little oil or melted butter over the fish.Add 30 - 45 ml of cold water for every 250 g of vegetables. Cut the fresh vegetables into even size pieces before cooking.Cook all vegetables with a cover on the container.9.4 ReheatingWhen you reheat packed ready meals always follow the instruction written on the packaging.

9.2 Defrosting

9.3 Cooking

9.5 Grilling

Grill flat food items in the middle of the grill rack.

Turn the food over halfway through the set time and continue grilling.

9.6 Combi Cooking

Use the Combi Cooking to keep the crispness of certain foods.

At the half of the cooking time, turn over the foods then continue.

There are 2 modes for Combi Cooking.

Each mode combines the microwave and the grill functions at different time periods and power levels.

10. CARE AND CLEANING

WARNING!

Refer to the Safety chapters.

Notes on cleaning:

• Clean the front of the appliance with a soft cloth with warm water and a cleaning agent.
• To clean metal surfaces, use a usual cleaning agent.

• Clean the appliance interior after each use. Then you can remove dirt more easily and it does not burn on.

• Clean stubborn dirt with a special cleaner.

• Clean all accessories regularly and let them dry. Use a soft cloth with warm water and a cleaning agent.
• To soften the hard to remove remains, boil a glass of water at full microwave power for 2 to 3 minutes.
• To remove odours, mix a glass of water with 2 tsp of lemon juice and boil at full microwave power for 5 minutes.

11. TROUBLESHOOTING

WARNING!

Refer to the Safety chapters.

Problem Possible cause Remedy
The appliance does not operate.	The appliance is deactivated.	Activate the appliance.
The appliance does not operate.	The appliance is not plugged in.	Plug in the appliance.
The appliance does not operate.	The fuse in the fuse box is blown.	Check the fuse. If the fuse blows more than one time, contact a qualified electrician.
The appliance does not operate.	The door is not closed properly.	Make sure that nothing blocks the door.
The lamp does not operate.	The lamp is defective. The lamp has to be replace.
There is sparking in the cavity.	There are metal dishes or dishes with metal trim.	Remove the dish from the appliance.
There is sparking in the cavity.	There are metal skewers or aluminium foil that touches the interior walls.	Make sure that the skewers and foil does not touch the interior walls.
The turntable set makes scratching or grinding noise.	There is an object or dirt below the glass cooking tray.	Clean the area below the glass cooking tray.
The appliance stop to operate without a clear reason.	There is a malfunction. If this situation repeats call the customer service center.
If you cannot find a solution to the problem yourself, contact your dealer or the customer service centre.		The necessary data for the customer service center is on the rating plate on the appliance.
We recommend that you write the data here:Model (MOD.) ......Product number (PNC) ......Serial number (S.N.) ......

12. INSTALLATION

CAUTION!

Do not block the air vents. If you do that, the appliance can overheat.

CAUTION!

Do not connect the appliance to adapters or extension leads. This can cause overloading and risk of fire.

• The appliance is for a kitchen counter top use only. It must be placed on a stable and flat surface.
• Put the appliance far away from steam, hot air and water splashes.
• If you transport the appliance in cold weather, do not activate it immediately after the installation. Let is stand in the room temperature and absorb the heat.

12.1 Electrical installation

WARNING!

Only a qualified person must do the electrical installation.

The manufacturer is not responsible if you do not follow the safety precautions from the chapter "Safety Information".

This appliance is supplied with a main cable and main plug.

CAUTION!

Minimum installation height is 85 cm.

Minimal distances

Dimension mm
A 300
B 200
C	0

13. ENVIRONMENT CONCERNS

Recycle the materials with the symbol

. Put the packaging in applicable

containers to recycle it.

Help protect the environment and human

health and to recycle waste of electrical

and electronic appliances. Do not dispose

appliances marked with the symbol

with the household waste. Return the product to your local recycling facility or

contact your municipal office.

SISUKORD

1. OHUTUSINFO 34
2. OHUTUSJUHISED 36
3. SEADME KIRJELDUS 37
4. ENNE ESIMEST KASUTAMIST 37
5. JUHTPANEEL 38
6. IGAPÄEVANE KASUTAMINE 39
7. AUTOMAATPROGRAMMID 42
8. TARVIKUTE KASUTAMINE 43
9. VIHJEID JA NÄPUNÄITEID 44
10. PUHASTUS JA HOOLDUS 44
11. VEAOTSING 45
12. PAIGALDAMINE 45

SULLE MÕELDES

Technical line drawing of two circular components with rings and a small protrusion (no text or symbols)

Line drawing of a circular metal grate with three legs (no text or symbols)

Technical line drawing of a circular mechanical component with a base and top view, showing internal structure and mounting point (no text or symbols)

Line drawing of a circular metal grate with a base and wheels, no text or symbols present

Paigutage grillrest pöördaluse komplektile.

9. VIHJEID JA NÄPUNÄITEID

Technical line drawing of two circular components with rings and a small knob (no text or symbols)

Line drawing of a round metal grate with three legs (no text or symbols)

Technical line drawing of a circular mechanical component with a central hub and base mount (no text or symbols)

Line drawing of a circular metal grate with a circular base and wheels, no text or symbols present

WE'RE THINKING OF YOU

Technical line drawing of two circular components with concentric rings and a small protrusion (no text or symbols)

Line drawing of a circular metal grate with three legs (no text or symbols)

Grillgaller

Technical line drawing of a circular mechanical component with a central hub and base mount (no text or symbols)

1. Placera rotationsringen runt axeln.
2. Placera tillagningstallriken på rotationsringen

FÖRSIKTIGHET

Line drawing of a circular metal grate with a base and wheels, no text or symbols present
