USER MANUAL Schneeflöckchen Klarstein

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENT

Safety Instructions 14

Product Overview 16

Operation 17

Control Panel and Programs 18

Cleaning and Care 19

Troubleshooting 19

Disposal Considerations 20

Manufacturer & Importer (UK) 20

TECHNICAL DATA

Item number 10031663
Power supply 100-240 V ~ 50-60 Hz
Power consumption 90 W
Weight 2.55 kg
Dimensions (W x H x D) 185 mm x 238 mm x 265 mm

SAFETY INSTRUCTIONS

• Read all the safety and operating instructions carefully and retain them for future reference.
• Ensure the voltage is compliant with the voltage range stated on the rating label, and ensure the earthing of the socket is in good condition.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• Do not upend this product or incline it over a 45^ angle.
• To protect against risk of electric shock, do not pour water on cord, plug and ventilation, immerse the appliance in water or any other liquid.
• Unplug the appliance after using or before cleaning.
• Keep the appliance 8 cm from other objects to ensure the good heat releasing.
• Do not use the accessories which are not recommended by Manufacturer.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children should be supervised to ensure that they do not play with the appliance.
• Do not use the appliance close by flames, hot plates or stoves.
• Do not switch on the power button frequently (ensure 5 min. interval at least) to avoid the damage of compressor.
• Metal sheet or other electric objects are not allowed to be inserted into the appliance to avoid fire and short circuit.
• When take out the ice cream, do not knock the barrel or edge of barrel to protect the barrel from damage.
• Do not switch on the power before install well the barrel or blender blade.
• The initial temperature of the ingredients is 25 ± 5^ . Do not put the ingredients into freezer for pre-freeze, as it will easily make the blender blade blocked before the ice cream is in good condition.
• Do not remove the blender blade when the appliance is on working.
• Do not use outdoors.
• Never clean with scouring powders or hard implements.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
  • This appliance is intended to be used in household and similar applications.

Special Notes

• When positioning the unit, make sure that the power cord is not pinched or damaged.
• Make sure that there are no multiple sockets or power supplies on the back of the unit.

To avoid contamination of food, please follow the instructions below:

• Regularly clean surfaces that may come into contact with food.

WARNING

When using, servicing and disposing of the unit, pay attention to the left symbol on the rear of the unit or on the compressor. This symbol warns of possible fires. There are flammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fire during use, maintenance and disposal.

PRODUCT OVERVIEW

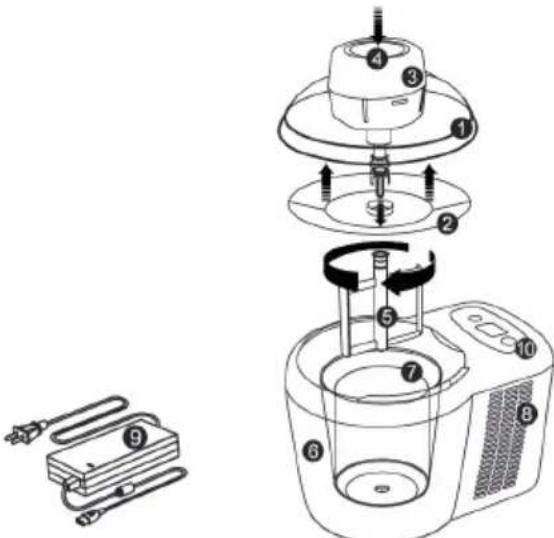

Overview1 Top lid2 Top lid lining3 Mixing motor4 Unlock button5 Ice cream paddle6 Housing7 Aluminum bowl8 Back cover9 AC adaptor10 Control panel

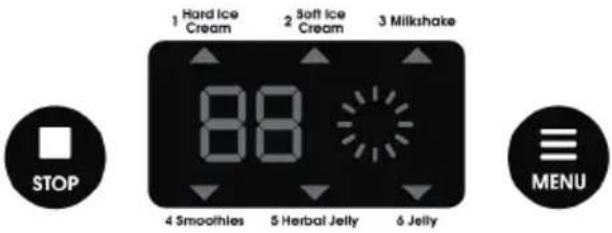

Controls and Programs1 Hard Ice Cream2 Soft Ice Cream3 Milkshake4 Smoothies5 Herbal Jelly6 Jelly

OPERATION

General Operation

1	After removing all interior and exterior packaging materials, use hot water to clean the aluminum bowl and top lid of ice cream maker before using.
2	Please correctly connect the input connector clip of the adaptor into the ice cream maker, and then insert the power plug into the power socket. Make sure the power socket is 100-240 V 50/60 Hz AC.
3	For good taste, by using measuring cup or spoon to ensure that you get the correct dose for each ingredient with your choice.
4	Pour all the ingredients into the bowl of ice cream maker, do not exceed the maximum limit of 300 ml marked on the bowl, stir them well and then close the lid.
5	Allow 1-2 hours of operation, the maker beeps once done.
6	Unplug ice cream maker the wall outlet if it is not to be used for an period of time.

Cooling Performance

• The temperature at the aluminum bowl be cooled to minus 15^ C in 2 hours (with the unit empty).
• Inside the ice cream maker with full load, It will take about 2 hours to finish the ice cream if the appliance are stabilized at a room temperature of 25^ .

CONTROL PANEL AND PROGRAMS

• After close the lid well and turn on the power, the mode number will appear on LCD screen once hit the menu button, and you can switch to the mode by selecting your menu button, once the mode is fixed, after 5 seconds the maker will enter the specified mode automatically.
• The maker stop Switch controls the cooling system stop.
• If you want to choose the other mode during the running of the maker, please hit the stop button and then go into the mode you need by selecting the menu button.

Programs and Basic Recipes

1	Hard Ice Cream	Pour 300 ml juice into the bowl.
2	Soft Ice Cream	Pour 100 ml milk, 100 ml cream and three tablespoons sugar into the bowl of ice cream maker. Do not exceed the maximum limit of 300 ml marked on the bowl.
3	Milkshake	Only pour 300 ml fruit- milk mixture into the bowl, making time is about 90 minutes.
4	Smoothies	Only pour 300 ml fruit and water mixture into the bowl, making time is about 30 minutes.
5	Herbal Jelly	After take out the paddles In the lid, only pour 300 ml herbal jelly mixture into the bowl, making time is about 96 minutes.
6	Jelly	After take out the paddles in the lid, only pour 300 ml jelly mixture into the bowl, making time is about 30 minutes

CLEANING AND CARE

Cleaners: Never use harsh, abrasive cleaners, heavy-duty cleaners, or solvents on any surface.

Exterior: Wipe with damp, sudsy cloth, rinse and dry. For stubborn stains and for periodic waxing, use silicon wax.

Top lid: Wash the lid and other removable parts in warm sudsy water, rinse and dry. Wash interior with baking soda solution (3 tablespoons to liter of water) or warm sudsy water, rinse and dry.

Aluminum bowl: Wash with warm sudsy water.

The Finishing Touch: Replace all parts.

TROUBLESHOOTING

Problem Possible Cause Solution
The ice cream maker does not work.	There is a power failure. A house fuse has blown.	Ensure the maker is plugged in and the power socket is turned on.
	Overload fuse on the power supply board is not connected properly.	Replace the broken fuse in your meter box. Ensure the fuse is connected properly.
Ice cream maker can not finish the ice cream.	The maker is placed too close to a heat source. No sufficient ventilation.	Keep the cooler away from sunshine or other heat sources.Place the ice cream maker in good ventilation and keep any items away from the fans.
	The lid is opened too frequently or for a long period of time.	Close the lid tightly and do not open the lid too frequently in operation.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom
