USER MANUAL LMB400-Li18V SCHEPPACH

Black and red lawn mower with '36V Lithium' label, no visible text or symbols on the motor itself

LMB400-Li18V

DE	Akku - RasenmäherOriginalbetriebsanleitung	4 - 12
GB	Battery-powered lawn mowerTranslation from the original instruction manual	13 - 20
FR	Tondeuse électrique à batterieTraduction des instructions d'origine	21 - 29
IT	Tosaerba a batteriaTraduzione delle istruzioni per l'uso originali	30 - 38
NL	Accu - grasmaaierVertaling van de originele handleiding	39 - 47
ES	Cortacésped por bateríaTraducción de las instrucciones originales de funcionamiento	48 - 56
PL	Akumulatorowa kosiarka do trawnikówTlumaczenie oryginalnej instrukcji obsługi	57 - 65
FI	Akkukäyttöinen ruohonleikkuriKäännös alkuperäisestä käyttöohjeesta	66 - 73

CAUTION: Read the manual carefully before operating this machine!

Top-down view of a black industrial vacuum cleaner with attached cable and wheels (no visible text or symbols)

4 9 10 11 12 13 8 14

3 8 11

4 1 10 9/12/13 8

5 5 4

6 7 15

Close-up of a mechanical component with a lever mechanism and mounting holes (no visible text or symbols)

Günzburger Straße 69

D-89335 Ichenhausen

VEREHRTER KUNDE,

Explanation of the symbols on the equipment

	Observe all safety instructions before use!
	Read the operating instructions to reduce the risk of inquiry!
	Wear ear-muffs!
	Switch off and disconnect plug before cleaning / maintenance or if extension cord is dam- aged or entangled.
	Protect the tool from getting wet.
	There is a risk of debris being ejected when the engine is running. Make sure you keep a safe distance. Caution thrown objects when operating
	Keep bystanders away!
	Warning! Do not let your hands or feet come in contact with the blades when the motor is running. Never put your hands close to the blades. Never touch the blades when turning the tool on or using it.
	Old devices must not be disposed of with household waste!
	Protection class II
	The product complies with the applicable European directives and an evaluation method of conformity for this directives was done.
	Guaranteed sound power
	Length of knife. Max. Cutting width

Introduction

MANUFACTURER:

scheppach

Günzburger Straße 69

D-89335 Ichenhausen

DEAR CUSTOMER,

We hope your new tool brings you much enjoyment and success.

NOTE:

According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to:

• Improper handling,
  • Non-compliance of the operating instructions,
  • Repairs by third parties, not by authorized service technicians,
• Installation and replacement of non-original spare parts,
  • Application other than specified,
• A breakdown of the electrical system that occurs due to the non-compliance of the electric regulations and VDE regulations 0100, DIN 57113 / VDE0113.

We recommend:

Read through the complete text in the operating instructions before installing and commissioning the device. The operating instructions are intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations. The operating instructions contain important information on how to operate the machine safely, professionally and economically, how to avoid danger, costly repairs, reduce downtimes and how to increase reliability and service life of the machine.

In addition to the safety regulations in the operating instructions, you have to meet the applicable regulations that apply for the operation of the machine in your country. Keep the operating instructions package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. Read the instruction manual each time before operating the machine and carefully follow its information. The machine can only be operated by persons who were instructed concerning the operation of the machine and who are informed about the associated dangers. The minimum age requirement must be complied with.

In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules for operating woodworking machines must also be observed.

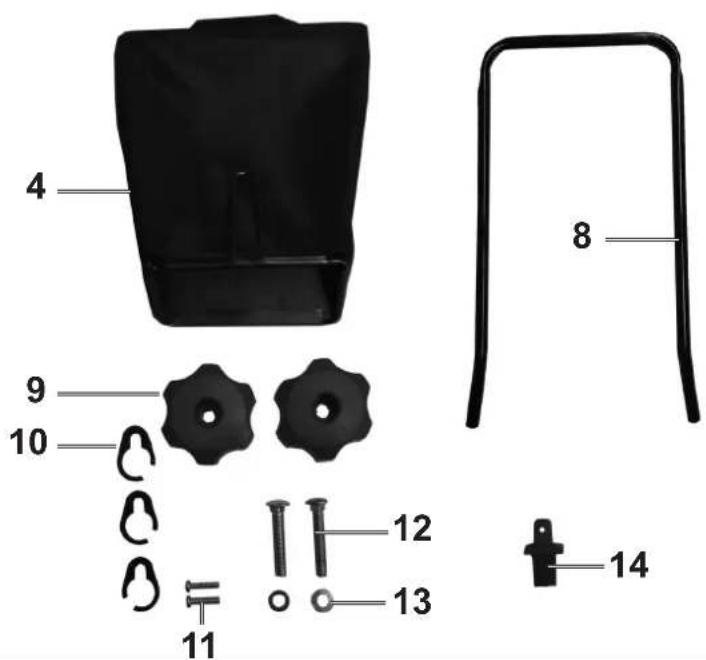

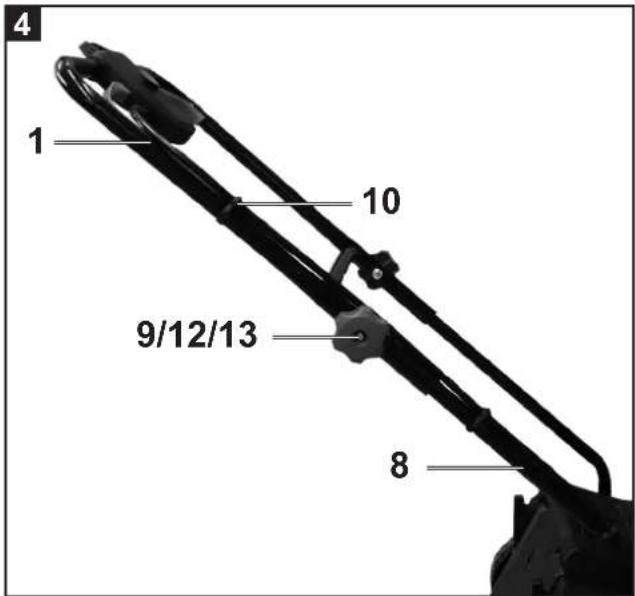

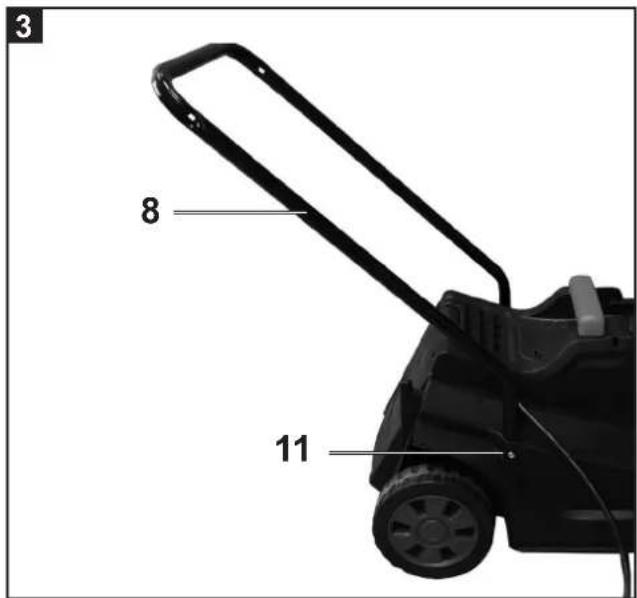

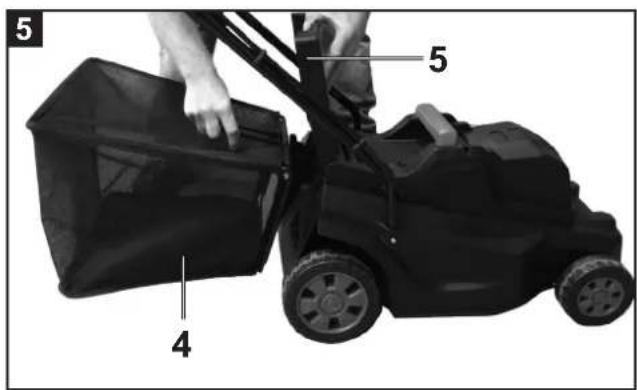

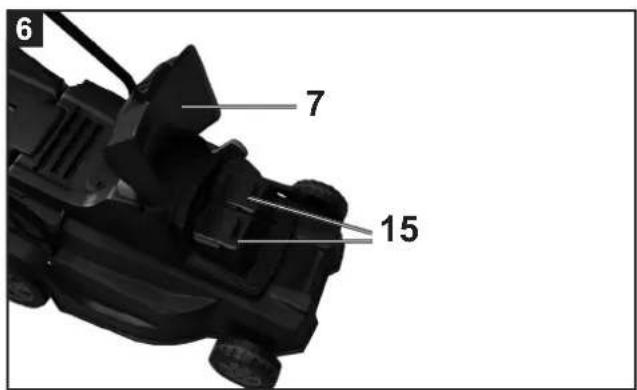

Layout (Fig. 1-6)

1. Upper push bar
2. Safety lock button
3. Dead man's switch
4. Grass box
5. Discharge flap
6. Cutting height adjustment
7. Battery compartment lid
8. Push bar mount
9. Star knob nut
10. Cable bracket
11. Mounting screws for push bar mount
12. Mounting screws for upper push bar
13. Washers
14. Safety plug
15. Battery*
16. Carrying handle
    *Optional. Depending on delivery contents

Scope of delivery

• Open the packaging and remove the device carefully.
• Remove the packaging material as well as the packaging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport damage.
• If possible, store the packaging until the warranty period has expired.

ATTENTION

The device and packaging materials are not toys! Children must not be allowed to play with plastic bags, film and small parts! There is a risk of swallowing and suffocation!

Safety information

WARNING! Read all safety directions and instructions. Omissions in the compliance with safety directions and instructions can cause electrical shock, fire and/or severe injuries. Retain all safety directions and instructions for future use. Read these instructions before using the charger and follow them:

• operating instructions provided,
- rules and regulations for accident prevention applicable to the operating site.

This gardening tool is not intended for use by people (including children) with limited physical, sensory or mental abilities or with a lack of experience and/or lack of knowledge, unless they are supervised by a person responsible for their safety or they receive instructions from such a person on how to use this gardening tool.

Never let children or people unfamiliar with these instructions use this gardening tool. Children must be supervised to ensure that they do not play with the device.

Safety notices for the charger

⚠ WARNING! Carefully read all safety notices and instructions. Failure to comply with safety notices and instructions can cause electric shock, fire and/or severe injuries.

Store all safety notices and instructions for future reference.

The term “power tool” used in the safety instructions refers to mains-powered tools (with a mains cable) and to battery-powered tools (without a mains cable).

Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Personal safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention white operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
• If a grass box can be attached, ensure that it is installed and used properly.

Power tool use and care

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjust -ments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect
• the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Careful handling and use of Battery devices

• Charge the batteries only in chargers that are recommended by the manufacturer. Risk of fire if a charger that is suitable for a specific type of battery is used with other batteries
• In the power tools, use only the batteries designed for the purpose. The use of other batteries may result in injuries and risk of fire
• Keep the unused battery away from paper clips, coins, keys, nails, screws and other small metal objects, which could cause bridging of the contacts. A short circuit between the battery contacts may cause burns or fire
• If used incorrectly, liquid may leak from the battery. Avoid contact with this. In the event of accidental contact, rinse off with water. If the liquid gets into eyes, seek medical assistance. Leaking battery fluid may cause skin irritations or burns

Service

- Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained

Safety notices for lawn mowers General safety notices

• For your safety and the safety of others, read these operating instructions and the safety notices before using the product. Safely store the operating instructions and safety notices for future use and keep them available for every use.
• Pass along the operating instructions if ownership of the machine changes.
• Users of the machine must not be under the influence of intoxicants (e.g. alcohol, drugs or medication).
• Only ever use the machine in the technical condition stipulated and supplied by the manufacturer. Unauthorised changes to the machine negate the manufacturer's liability for damages resulting from this.
• Use the machine in day light only or under good artificial lighting.
• Use the machine in dry weather conditions only. Keep it away from rain and wet conditions. Water ingress into the machine increases the risk of an electric shock
• Turn the machine off and remove the safety key under the following conditions:
• when the machine is left unattended;
  – before checking, cleaning or other work on the machine;
  – before removing blockages;
• if an obstacle was hit. Check the lawn mower for damage and take it to a specialist service centre if it is damaged;
• if the machine starts to vibrate excessively.

Before use

• Before starting the work, make yourself familiar with the lawn mower and its functions as well as its operating elements.
• Check the machine for signs of wear or damage before use. Never use a lawn mower with damaged or missing safety devices such as discharge flap and/or grass box, casing etc. Have these repaired or, if applicable, replaced by a qualified expert.
• Do not use a machine that has a faulty switch and cannot be turned on or off.
• When working with the machine, always wear sturdy footwear and long trousers. Do not use the lawn mower when you are bare foot or wearing sandals.
• Check the area where you are using the machine and remove all stone, sticks, wires, bones and other objects that can be “snatched” so there is no danger to bystanders.

During use

• Do not use the machine when there are people (especially children) or animals close by.
• Stop the work when you notice that people (especially children) or pets are close by.
• Working on steep slopes can be dangerous.

• Ensure secure footing and mow slowly.

• Always mow across the slope rather than up and down.

• Be especially careful when changing direction. Risk of tripping!

• Do not mow steep hillsides.

• Be particularly careful when going backwards whilst mowing and pulling the mower towards you.

• Do not tilt the lawn mower when turning on the motor.
• Maintain the safety distance specified by the handle frame.
• Only turn on the motor when your feet are at a safe distance from the cutter bar.
• Be careful and do not put your hands into the rotating cutter bar.
• Turn off the lawn mower when you want to tilt or transport it, e.g. from/to the lawn across paths.
• Never go across gravel with the motor running. Risk of stones being ejected!
• Before lifting or carrying the lawn mower, turn the motor off and wait until the cutter bar has come to a standstill.
• Only ever change the cutting height when the motor is turned off and the cutter bar is not moving.
• Never open the discharge flap when the motor is running.
• Before removing the grass box, turn off the motor and wait for the cutter bar to stop moving. After emptying the grass box, carefully re-attach it and ensure it fits securely.
• If possible, do not cut wet grass.
• Do not use this gardening machine in explosive environments with flammable liquids, gases or dust. The machine can generate sparks that may ignite the dust or fumes.
• When taking a break from your work, do not leave the machine unattended but store it in a safe place.
• Turn off the machine, remove the safety key and store the lawn mower in a safe place.
• Do not store the machine within the reach of children.
• Ensure that the ventilation slots are clean.
• Check the tightness of all screws, nuts and bolts to guarantee that the lawn mower is in a safe condition.
• Regularly check the grass box for wear and tear.
• Exclusively use cutter bars intended for this lawn mower.
• Spare parts must comply with requirements specified by the manufacturer. Therefore, only ever use original spare parts or spare parts approved by the manufacturer. During replacement, remove the battery and observe the installation instructions supplied.
• Have repairs carried out exclusively by a qualified expert or specialist service centre.

After use

Safety notices for the charger

• Keep the charger away from rain and wet conditions. Water ingress into the charger increases the risk of an electric shock.
• Keep the charger clean. Dirt increases the risk of an electric shock.
• Before every use, check the charger, cable and plug. Do not use the charger if you notice any damage. Do not open the charger yourself but have it repaired exclusively by qualified specialists and only with original spare parts. Damaged chargers, cables and plugs increase the risk of electric shock. Do not place objects on the charger and do not put the charger on soft surfaces. Risk of fire
• Always check if the mains voltage corresponds with the voltage specified on the rating plate of the charger.
• Never use the charger if the cable, plug or the charger itself have been damaged by external influences. Take the charger to the nearest specialist service centre
• Do not open the charger under any circumstances. In the event of a fault, take it to a specialist service centre.

Safety notices for Li-Ion batteries

• Do not open the battery. Risk of short-circuiting!
• Protect the battery from heat, e.g. from constant sun exposure, and from fire, water and humidity. Risk of explosion.
• When the battery has been damaged or it is being used inappropriately, fumes can be released. Let fresh air in and consult a doctor if the fumes cause you any problems. The fumes can irritate the respiratory tract.
• Only use original batteries with the voltage specified on the rating plate of your power tool. If other batteries are used, e.g. imitations, reconditioned batteries or products from third party manufacturers, there is a risk of personal injury as well as property damage based on exploding batteries.
• The battery voltage must correspond with the battery charging voltage of the charger. Otherwise, there is a risk of fire and explosion.
• Charge the batteries only in chargers that have been recommended by the manufacturer. There is a risk of fire if a charger for a particular type of battery is used for another type of battery.
• The battery can be damaged by sharp objects such as a nail or screwdriver or by external application of force. The battery may short-circuit and start burning, smoking, exploding or overheating.

Warning! This electric tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the electric tool.

Intended use

This gardening machine is exclusively intended to

• to cut grass in a private setting
- in accordance with descriptions and safety notices specified in these operating instructions.

The equipment may be used only for the tasks it is designed to handle. Any other use is deemed to be a case of misuse. The user/operator and not the manufacturer will be liable for any damage or injuries of any kind resulting from such misuse.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.

Remaining hazards

The machine has been built using modern technology and in accordance with recognized safety rules.

Some hazards, however, may still remain.

• There is a risk of injury from rotating parts.
• There is a danger from items being ejected.
• Wear regulation safety gear such as safety boots and tight work clothing.
• Electrical hazards exist when unsuitable electric connections are used.
• Although having regarded all considerable rules there may still remain not obvious remaining hazards.
• Minimize remaining hazards by following the instructions in "Safety Rules", "Use only as authorized" and in the entire operating manual.

Technical data

Nominal voltage 36 (2x18) V
Cutting width 400 mm
Cutting height 25 - 65 mm
Grass box capacity 40 l
Idle speed 3500 1/min
Weight (with battery)	14,7 kg

Noise and vibration

The noise and vibration values were developed using a standardised measuring process.

Sound pressure L_pA	84,3 dB(A)
Sound power L_wA (measured)	92,82 dB(A)
Sound power L_wA (guaranteed)	96 dB(A)
Uncertainty K_WA	2,13 / 2,5 dB(A)
Vibration a_h	<2,5 m/s ^2
Uncertainty K 1,5 m/s ^2

Wear ear-muffs.

The impact of noise can cause damage to hearing..

Reduce noise generation and vibration to a minimum!

• Use only equipment that is in perfect condition.
• Maintain and clean the equipment regularly.
• Adopt your way of working to the equipment.
• Do not overload the equipment.
• Have the equipment checked if necessary.
• Switch off the equipment when not in use.
• Wear gloves

Assembly

Push bar mount assembly (Fig. 3)

• Insert the push bar mount (8) into the guides in the lawn mower casing.
• Secure the push bar mount (8) with the mounting screws (11).

Upper push bar assembly (Fig. 4)

• Attach the upper push bar (1) to the push bar mount (8) using mounting screw (12), washer (13) and star knob nut (9).
• You can attach the upper push bar (1) at three different heights. This depends on the height of the user.
• Using the cable brackets (10), attach the cable of the upper push bar (1) on the shafts.

Mounting the grass box (Fig. 5)

• Flip open the discharge flap (5).
• Mount the grass box (4) on the lawn mower.

Battery assembly (Fig. 6)

Open the battery compartment lid (7). Then insert the two batteries (15/optional, depends on delivery contents) into the holder as shown.

Note:

Only ever use batteries with the same level of charge. Do not combine full and half full batteries. Always charge both batteries at the same time.

The machine's runtime depends on the battery with the lower charge. Both batteries have to be fully charged before use. Close the battery compartment lid.

Commissioning

Safety plug (Fig. 1)

The lawn mower can only be started if the safety plug (14) is inserted into the machine.

After the work has been completed, the plug must be removed from the machine.

Turning on the machine (Fig. 1)

• Press and hold the safety lock button (2).
• Squeeze any safety handle (3). The motor will start.

Turning off the machine (Fig. 1)

- Release the dead man's switch (3).

⚠️ Risk of injury!

The cutter bar will continue to run for a short time after releasing the dead man's switch (3).

Changing the cutting height (Fig. 1)

Warning! Do not change the cutting height until the motor has stopped and the safety plug has been removed. Before starting to mow, check that the cutting tools are not blunt and the fastening elements are not damaged. Replace blunt and/or damaged cutting tools so no imbalance is created. Before checking this, turn the motor off and remove the safety plug. Push the cutting height adjustment lever (6) outwards. Select the required cutting height by moving the lever (6) right or left, then let the lever (6) click into one of the slots.

Ensure the lever (6) clicks into position

Removing and emptying the grass box

If cut grass remains on the ground, the grass box is full and you need to empty it straight away.

• Turn off the motor.
• Wait until the cutter bar has come to a standstill.
• Lift the discharge flap.
• Remove the grass box.
• Lower the discharge flap.
• Empty the grass box.
• Before returning the grass box, remove any potential blockages in the cutting area.

Working without a grass box

When you remove the grass box, the discharge flap flicks down. When working without a grass box, the cut grass is ejected backwards.

Lawn care advice

Some advice so your lawn grows healthily and evenly:

- A lawn consists of different types of grass. If you cut frequently, grass that has strong roots and forms a firm grass cover will mainly grow. If you mow infrequently, tall grass and other weeds will grow (e.g. clover, daisies).

• The normal height of a lawn is around 4 - 5 cm. You should only cut a third of the overall height, i.e. 7 - 8 cm to the normal height.
• We recommend not cutting the lawn shorter than 4 cm because the grass cover can be damaged when it's dry.
• If the grass grows to an excessive height (e.g. after a holiday), cut it down to the normal height in phases.
  • Always let the cutting lanes overlap a little.

Maintenance and care

⚠ WARNING!

Remove the battery from the machine before any maintenance and repair work on the lawn mower. The cutting tools are sharp! Wear safety gloves.

Lawn mower

⚠ WARNING!

Regularly check the machine before starting work. Damaged parts must be repaired or replaced by an authorised service centre before you start work with the machine. Only ever use original accessories and spare parts.

If possible, always clean the machine straight after mowing.

• Remove the battery.
• Remove the grass box.
• After every mowing, clean the lawn mower with a hand brush.
• Carefully remove grass residue from the cutting area. Loosen stuck grass residue with a wooden stick.
• Keep the ventilation slots clean and free from dust.
• Keep the ventilation slots clean and free from dust.
• Never use water to clean or spray the machine. Clean the motor casing with a damp cloth and never use detergents or solvents!
• This may damage the machine's plastic parts. Carefully dry the motor casing afterwards.
• Check the condition of the blades.

Grass box

- You can use a hose to thoroughly clean the grass box.

Removing/sharpening the cutter bar

If the blades' cutting performance decreases, you can remove the blades and have them sharpened by a certified specialist.

During assembly, thoroughly clean the area of contact of the flange and the blades.

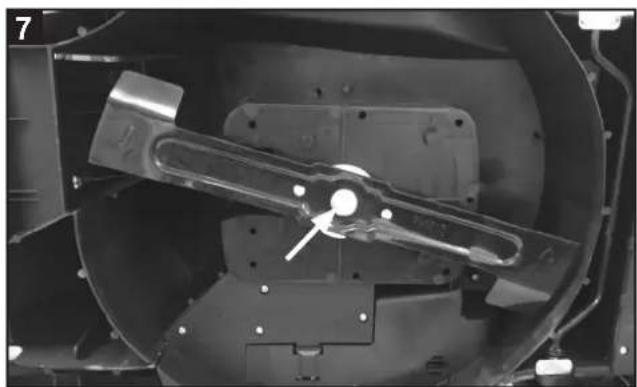

Tighten the clamp screw firmly, Fig. 7.

Spare parts must comply with requirements specified by the manufacturer. Therefore, only ever use original spare parts or spare parts approved by the manufacturer.

Repairs

Check the machine for damage. Have repairs carried out exclusively by a service centre authorised by the manufacturer.

Service information

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Wear parts*: Knives, wheels

* Not necessarily included in the scope of delivery!

Storage

Note

• Store the device in a dry and frost-free (10-25 °C) place.
• Store the battery and the device separately from each other.
• Charge the battery before storing it for the winter.
• Keep the device, and its plastic components in particular, away from brake fluid, petrol, products containing oil, penetrating oil etc. They contain chemical substances that may damage or destroy the plastic parts of the device.
• Fertilisers and other garden chemicals contain substances which can have a heavily corrosive effect on metal parts. Do not store the device close to these substances.

Transport

• When changing working areas, remove the battery from the lawn mower.
• The upper push bar (1) can be folded by loosening the two star knob nuts (9).
• You can transport the lawn mower using the carrying handle (16).

Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

Old devices must not be disposed of with household waste!

This symbol indicates that this product must not be disposed of together with domestic waste in compliance with the Directive (2012/19/EU) pertaining to waste electrical and electronic equipment (WEEE). This product must be disposed of at a designated collection point. This can occur, for example, by handing it in at an authorised collecting point for the recycling of waste electrical and electronic equipment. Improper handling of waste equipment may have negative consequences for the environment and human health due to potentially hazardous substances that are often contained in electrical and electronic equipment. By properly disposing of this product, you are also contributing to the effective use of natural resources. You can obtain information on collection points for waste equipment from your municipal administration, public waste disposal authority, an authorised body for the disposal of waste electrical and electronic equipment or your waste disposal company.

Troubleshooting

Problem Possible cause Solution
The device does not start.	The battery is flat.The safety lock button (2) is faulty.The motor is faulty.The safety plug (14) is missing.	Check the battery. If required, arrange repair by an authorised electrician.Repair by an authorised service centreRepair by an authorised service centreInsert the safety plug (14).
The motor stops during operation.	The battery is flat.The battery is not inserted correctly.The battery is faulty.	Charge the battery.Re-insert the battery.Clean the terminals, replace with an original battery.
Decreased performance	The battery is exhausted.The battery is not fully charged.The grass is too long.	Replace the battery.Charge the battery.Cut it in phases.
Excessive vibration • The blades are installed incorrectly.Foreign object impeding the bladesThe blades are damaged.		Check the blades' positioning.Clean the blades.Replace the blades.
Inadequate grass intake	The grass box is full.The ejection opening is obstructed.The cutting height is set too low.	Empty the grass box.Remove the grass.Change the cutting height.
Lawn is cut irregularly.	The blades are blunt.The grass is too long.	Have the blades sharpened/replaced.Cut it in phases.

Günzburger Straße 69

D-89335 Ichenhausen

CHER CLIENT,

Günzburger Straße 69

D-89335 Ichenhausen

EGREGIO CLIENTE,,

Günzburger Straße 69

D-89335 Ichenhausen

GEACHTE KLANT,

Günzburger Straße 69

D-89335 Ichenhausen

ESTIMADO CLIENTE,

Günzburger Straße 69

D-89335 Ichenhausen

SZANOWNY KLIENCIE,

Exploded view diagram of a vehicle's internal components with numbered parts for identification

CE - Declaration of Conformity

X 2000/14/EC\_2005/88/EC

Annex V

Annex VI

Noise: measured L_wA = xx dB(A); guaranteed L_wA = 96 dB(A)

P = xx KW; L/∅ = cm

Notified Body: TÜV Rheinland

Notified Body No.:

2010/26/EC

Emission. No:

Standard references:

EN 60335-1:2012+A11:2014; EN 60335-2-77:2010; EN 62233:2008; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registar: Stefan Hartinger

Günzburger Str. 69, D-89335 Ichenhausen

Garantie DE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time.

With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
