USER MANUAL DCBL570 DEWALT

WARNING: Read all safety warnings, instructions, illustrations, and specifications in this manual, including the battery and charger sections provided in an original tool manual or the separate Batteries and Chargers manual.

Manuals can be obtained by contacting Customer Service as described elsewhere in this manual. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

Indicates an

imminently hazardous situation which, if not avoided, will result in death or serious injury.

Indicates

a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Indicates a

potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

without word) Indicates a related message.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

English (original instructions)

4

1 Joystick
2 Variable speed trigger
3 Speed lock button
4 Cable
5 Powerhead
6 Air intake
7 Flexible tube
8 Tube clamp
9 Hook and loop strap
10 Joystick tube
11 Joystick lock lever
12 Blower tube
13 Concentrator tip
14 Speed control button
15 State of charge indicator
16 Speed indicator
17 Speed lock indicator
18 Backpack
19 Backpack handle
20 Tube storage mount
21 Shoulder harness
22 Waist strap
23 Chest strap
24 Battery ports

Diagram illustrating a mechanical or fluidic component with numbered parts and directional arrows indicating flow or movement.

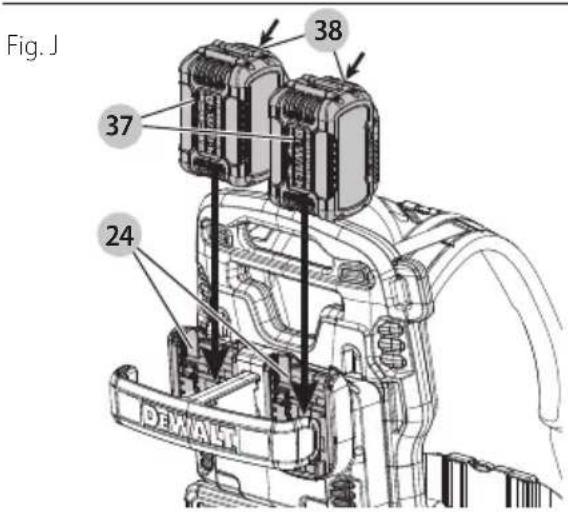

Fig. J 38 37 24 DEWALER

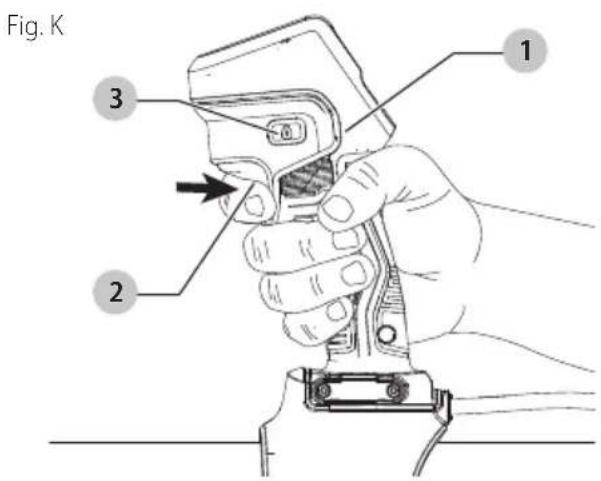

Fig. K 1 2 3

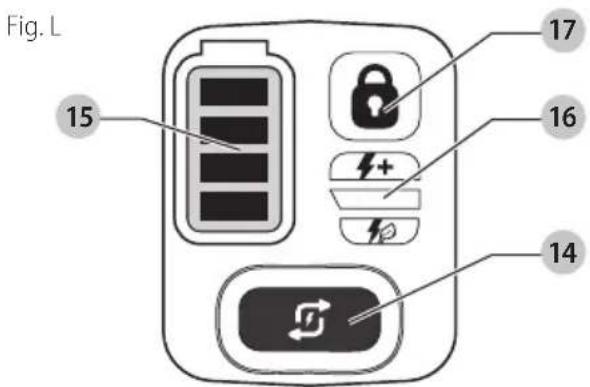

Fig. L 15 17 16 14

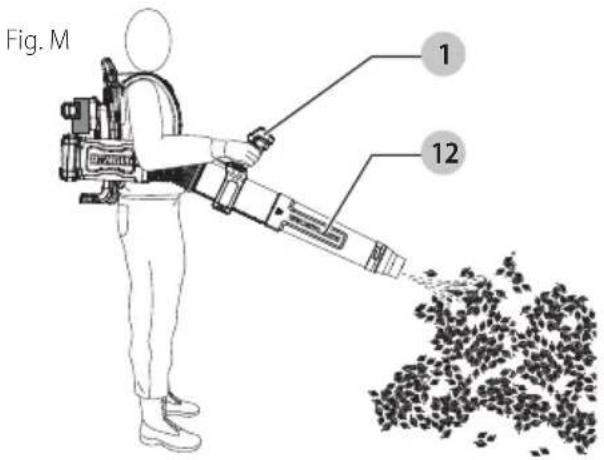

Fig. M 1 12

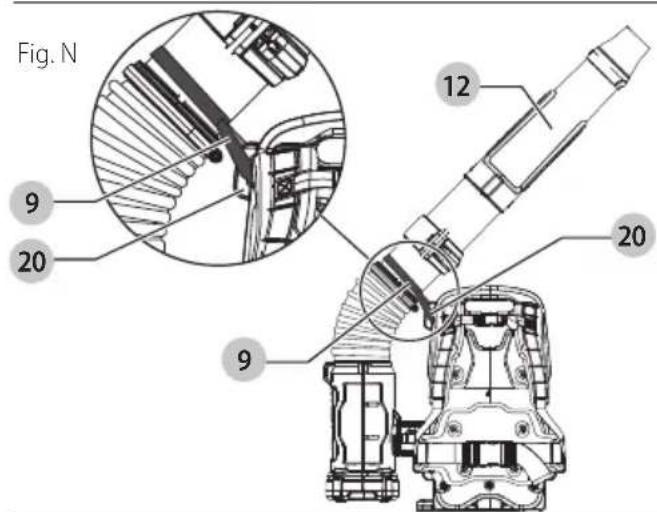

Fig. N 9 20 12 20 9

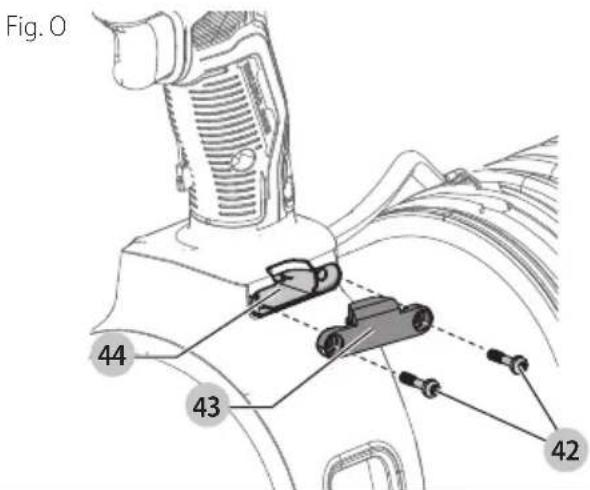

Fig. O 44 43 42

Intended Use

This backpack blower is designed for professional blowing applications.

DO NOT use under wet conditions or in presence of flammable liquids, gases or combustible, finely divided dusts.

DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.

Static shocks are possible in dry areas or when relative humidity of air is low. This is only temporary and does not affect performance of the product. To reduce the frequency of static shocks, avoid using when humidity is low.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING:

Read all safety warnings,

instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work Area Safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical Safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.

Personal Safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power Tool Use and Care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the

power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Battery Tool Use and Care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 265 °F (130 °C) may cause explosion.
g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions.

Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

Garden Blower Safety Warnings

a) Do not use the machine in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.
b) Wear eye protection and ear protection. Adequate protective equipment will reduce the risk of personal injury.
c) While operating the machine, always wear non-slip and protective footwear. Do not operate the machine when barefoot or wearing open sandals. This reduces the risk of injury to the feet.
d) Do not wear loose fitting clothing or articles such as scarves, strings, chains, ties, etc., that could get drawn into the air inlets. Tie back or cover long hair to make sure it does not get drawn into the air inlets. If any of these items are drawn into the air inlets, it can increase the risk of personal injury.
e) Keep bystanders away while operating the machine. Thrown debris can increase the risk of personal injury.
f) Never point the blower nozzle in the direction of people or pets or in the direction of windows. Use extra caution when blowing debris near solid objects, such as trees, automobiles and walls that can cause debris to ricochet. Thrown objects can damage property and increase the risk of personal injury.
g) Do not use the machine to blow anything that is burning or smoking, such as cigarettes, matches or hot ashes. These ignition sources may increase the risk of fire.
h) Do not touch the fan while still in motion. Turn off the machine and wait until the fan stops before removing any part that may give access to the fan. This reduces the risk of injury from moving parts.
i) When clearing jammed material or servicing the machine, make sure the power switch is off. Unexpected starting of the machine while clearing jammed material or servicing may result in serious personal injury.

Additional Safety Instructions

WARNING:

When using an electric precautions should always k of fire, electric shock, and g the following.

WARNING:

Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING:

Never allow children, persons

with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions to use the machine, local regulations may restrict the age of the operator.

English

To Reduce Risk of Injury:

• Avoid accidental starting. Turn off all controls before removing the battery pack. Be sure switch is in the locked or off position before inserting battery pack. Carrying units with your finger on the switch or inserting the battery pack into a unit with the switch on invites accidents.
• Avoid dangerous environmental conditions – Do not use electric units in damp or wet locations. Don't use the unit in the rain.
• USE SAFETY EQUIPMENT. Always wear eye protection and hearing protection. Wear a filter mask if operation is dusty. Non-skid safety shoes must be used for appropriate conditions.
• Use the right unit – Do not use this unit for any job except that for which it is intended.
• Inspect the area before using the unit. Remove all debris and hard objects such as rocks, glass, wire, etc., that can ricochet, be thrown, or otherwise cause injury or damage during operation.
• Use only as described in this manual.
• Keep children, bystanders and animals away from the work area a minimum of 30 feet (10 meters) when starting or operating the unit.
• Maintain unit with care. Keep unit clean for best and safest performance. Follow instructions for proper maintenance.
• Stay alert - Watch what you are doing. Use common sense. Do not operate unit when you are tired.
• Do not place outlet of blower near eyes or ears when operating.
• Do not operate the machine while people, especially children, or pets are nearby.
• Do not touch moving hazardous parts before the machine is disconnected from the battery packs and the moving hazardous parts have come to a complete stop.
• If the machine starts to vibrate abnormally, remove the battery packs and immediately check.
• Do not attempt to clear clogs from unit without first removing the battery packs.
• Do not immerse any part of the unit in liquid.
• Do not use unit if switch does not turn it on or off. A unit that cannot be controlled with the switch is dangerous and must be repaired.
• Do not allow debris to be ingested into blower intake.
• Do not point unit discharge at self, bystanders or pets.
• Do not use to blow explosive dust, or in areas where air contains explosive dust such as coal, grain, or other combustible material.
• Do not attempt to repair the blower. To assure product safety and reliability, repairs, maintenance, and adjustments should be performed by authorized service centers.
• Do not operate blower in a gaseous or explosive atmosphere. Motors in these units normally spark, and the sparks might ignite fumes.
• Do not overreach. Keep proper footing and balance at all times.
• Never leave blower running unattended. Turn power off.

• Remove the battery packs before connecting the tube.

• Store idle units. When not in use, the unit should be stored in a dry, high or locked-up place out of reach of children.

• Instructions for compatible batteries and chargers are included for reference in this manual. Read all instruction manuals included with your battery pack or charger. Read all cautionary markings on the charger and battery packs.
• Disconnect the battery packs from the blower before making any adjustments, changing accessories, servicing, moving or storing the unit. Such preventative safety measures reduce the risk of starting the appliance accidentally.
• Do not use if appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.

SAVE THESE INSTRUCTIONS

Additional Safety Information

WARNING: Never modify the power tool or any part of it. Damage or personal injury could result.

WARNING: ALWAYS use safety glasses.

Everyday eyeglasses are NOT safety glasses. Also use face or dust mask if operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:

• ANSI Z87.1 eye protection (CAN/CSA Z94.3),
• ANSI S12.6 (S3.19) hearing protection,
• NIOSH/OSHA/MSHA respiratory protection.

WARNING: Some dust contains chemicals

known to State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• compounds in fertilizers,
• compounds in insecticides, herbicides and pesticides,
• arsenic and chromium from chemically treated lumber. To reduce your exposure to these chemicals, wear approved safety equipment such as dust masks that are specially designed to filter out microscopic particles.

- Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lie on the skin may promote absorption of harmful chemicals.

WARNING: Use of this tool can generate and/or disperse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection.

WARNING: Always wear proper personal hearing protection that conforms to ANSI S12.6 (S3.19) during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss.

AUTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools with a large battery pack will stand upright but may be easily knocked over.

• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in moving parts.

The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V....volts

Hz......hertz

min......minutes

or DC.....direct current

Class I Construction (grounded)

.../min.....per minute

BPM.....beats per minute

IPM.... impacts per minute

OPM.... oscillations per minute

RPM .... revolutions per minute

sfpm surface feel per minute

SPM ...... strokes per minute

A.....amperes

W.....watts

Wh.....watt hours

Ah.....amp hours

\~ or AC......alternating current

or AC/DC....alternatingor direct current

Class II Construction (double insulated)

n_0 ...... no load speed

n......rated speed

PSI..... pounds per square inch

± earthing terminal

⚠️ ......safety alert symbol

▲......visible radiation—do not stare into the light

E....wearrespiratory protection

...... wear eye protection

○....wearhearing protection

read all documentation

do not expose to rain

UNBOXING THE BLOWER

The powerhead 5 and joystick tube 10 are attached with a cable 4 when shipped. Trying to pull one side from the box without the other may result in damage to the cable 4.

1. Grab the backpack handle 19 and the joystick tube 10 and remove from the box together.

2. Unpack the remaining parts and assemble as instructed below.

ASSEMBLY AND ADJUSTMENTS

ANGER: To reduce the risk of serious personal injury, turn unit off and remove the battery packs before making any adjustments or removing/installing attachments or accessories.

An accidental start-up can cause injury.

WARNING: Do not operate blower without tubes securely held in place. Never reach down into housing through tube hole.

WARNING: Always remove the batteries when you leave the blower unattended or when storing, checking, adjusting, cleaning, or working on the blower.

Attaching the Joystick Tube to the Flexible Tube (Fig. A, B)

1. Place the tube clamp 8 onto the flexible tube 7 with the bolt assembly 25 positioned on the bottom side of the flexible tube as shown in Fig. B.

2. Insert the tube collar 26 at the end of the joystick tube 10 into the end of the flexible tube 7 as shown in Fig. B.

3. Position the tube clamp 8 so it wraps around the flexible tube 7 where it overlaps the tube collar 26.

4. Insert and thread the clamp screw 27 into the bolt assembly 25.

5. Using a cross head screwdriver (not included), tighten the clamp screw 27 until the tube clamp 8 holds the flexible tube 7 securely to the tube collar 26 and joystick tube 10.

NOTE: Do not overtighten. Overtightening the clamp could result in damage to the clamp and will restrict the movement of the joystick tube.

1. Secure the cable 4 by pushing it into the cable clip 28 located on the tube clamp 8 as shown in Fig. B.

Attaching the Blower Tube to the Joystick Tube (Fig. C)

1. To attach the blower tube 12 to the joystick tube 10, align the tab 29 located on the bottom of the joystick tube 10 with the notch 30 located on the bottom of the blower tube opening as shown in Fig. C.

2. Push the blower tube 12 onto the joystick tube 10 until the two tube locks 31 engage the blower tube 12 and an audible click is heard.

3. Pull on the blower tube 12 to ensure it is securely held in place.

Concentrator Tip Assembly (Fig. D)

WARNING: Always remove the batteries before you leave the blower unattended or when storing, checking, adjusting, cleaning, removing/installing attachments or accessories or working on the blower.

The concentrator tip 13 will increase air flow velocity. It will improve removal of stubborn debris such as wet leaves. The concentrator tip 13 can also target air flow to a tighter area.

1. Position the concentrator tip 13 with the blower tube 12 as shown in Fig. D.

2. Align the locking tabs 32 on the blower tube 12 with the locking slots 33 on the concentrator 13 and slide the concentrator 13 onto the blower tube 12.

3. Slide and twist the concentrator 13 clockwise onto the blower tube 12 until you hear an audible click. Pull on the concentrator tip 13 to ensure it is securely held in place.

4. To remove the concentrator tip 13, twist and slide the concentrator 13 counterclockwise away from the blower tube 12.

English

Installing and Removing the Backpack (Fig. A, E–G)

WARNING:

Do not wear multiple

harnesses at a time. When wearing the shoulder harness, no other wearable shall interfere with the release and removal of the shoulder harness.

CAUTION:

When twisting or bending over

the backpack may shift its position on your back.

1. Grab the shoulder harness 21 and slide your arms through each one of the shoulder harnesses ensuring each one hangs on your shoulders as shown in Fig. E.
   NOTE: Ensure the backpack 18 is positioned on your back.
2. Buckle the waist strap 22 and chest strap 23. Tighten the shoulder 34, upper shoulder 35, chest 23, and waist straps 22 until they fit securely against your body as shown in Fig. E–G.
3. To remove the backpack 18, unbuckle the chest strap 23 and waist strap 22. Loosen the shoulder straps 34 and upper shoulder straps 35. Pull your arms through each one of the shoulder harnesses 21 and carefully lower the backpack 18 to a secure flat surface.

Adjusting the Position of the Joystick (Fig. H)

1. Pull the joystick lock lever 11 down to unlock the position of the joystick 1.
2. Slide the joystick 1 up or down the joystick tube 10 until it is in a comfortable working position as shown in Fig. H.
3. Return the joystick lock lever 11 to the locked position to lock the joystick 1 into position.

Adjusting Lock Lever Tightness (Fig. I)

The joystick lock lever screw 36 comes set to a default tightness, but over time and continued use, the screw may loosen and will need to be adjusted.

nOTE: The joystick lock lever 11 may be open or closed when adjusting.

1. To adjust the joystick lock lever 11 tightness, use a cross head screwdriver (not included):

- To tighten, turn the joystick lock lever screw 36 clockwise and then test if the tightness is correct.

- To loosen, turn the joystick lock lever screw 36 counterclockwise and then test if the tightness is correct.

ASSEMBLY AND ADJUSTMENTS

DANGER:

To reduce the risk of serious

personal injury, turn unit off and remove the battery packs before making any adjustments or removing/installing attachments or accessories.

An accidental start-up can cause injury.

WARNING:

Do not operate blower

without blow tubes securely in place. Never reach down into housing through tube hole.

WARNING:

Always wear safety glasses.

Always wear respiratory protection. Always wear hearing protection. Use of rubber gloves and substantial footwear is recommended when working outdoors. Keep long hair and loose clothing away from openings and moving parts. For household use only.

WARNING:

Cut Hazard. When turning the

tool off, wait ten seconds for the fan to stop rotating before removing the blower tubes.

• Always ensure the blower is powered OFF and the batteries are removed when:

• You leave blower unattended.
• Clearing a blockage.
• Checking, adjusting, cleaning or working on blower.

- Only use blower in daylight or good artificial light.

Installing and Removing the Battery Packs (Fig. J)

The blower can operate with a single, fully charged battery but it is not recommended as it will result in less run time and reduced performance. Use two battery packs of equal capacity when possible.

NOTE: For best results, make sure the battery pack(s) 37 are fully charged.

nOTE: When using only one battery pack 37 the blower will not operate in turbo mode 41.

To Install the Battery Packs

1. Slide a battery pack into the battery port 24 until an audible click is heard. Repeat for the second battery.
   NOTE: Ensure that both battery packs 37 are fully seated and fully latched into position before starting blower.

To Remove the Battery Packs

1. Depress the battery release buttons 38 on the battery packs 37 and pull the battery packs 37 out of the battery ports 24.

Proper Hand Position (Fig. K)

WARNING:

To reduce the risk of serious

personal injury, ALWAYS use proper hand position as shown.

WARNING:

To reduce the risk of serious

personal injury, ALWAYS hold securely in anticipation of a sudden reaction.

Proper hand position requires one hand on the joystick 1.

Switching On (Fig. A, K, L)

WARNING: Grip tool firmly when switching on.

CAUTION: Do not point unit discharge at self, bystanders or pets.

CAUTION: Always wear safety glasses and hearing protection. Wear a filter mask if the operation is dusty. Use of gloves, long pants and substantial footwear is recommended. Keep long hair and loose clothing away from openings and moving parts.

1. To power the blower on, squeeze the variable speed trigger 2. The blower runs at higher speeds the more the the lever is squeezed.
2. Release the variable speed trigger 2 to stop the blower. NOTE: To power the blower off, press and hold the speed button 14 as shown in Fig. L, or after sitting idle for twenty seconds the blower will automatically power off.
3. To lock the blower at the desired performance level, squeeze the variable speed trigger 2 to the desired performance level and then press and then release the speed lock button 3 and then release the variable speed trigger 2, as shown in Fig. K. To unlock the set speed and stop the blower, press and release the trigger switch 2 or the speed lock button 3.

State of Charge Indicator (Fig. A, L)

The DCBL570 is equipped with a state of charge indicator 15. This will display the current level of charge in the battery during use. It does not indicate tool functionality and is subject to variation based on product components, temperature and end-user application.

• The state of charge indicator LEDs 15 will illuminate, indicating the percent of charge in the battery.
• When all four state of charge indicator LEDs illuminate, the battery is fully charged.
• When one state of charge indicator LED 15 illuminates, charge is low and then it will flash when the battery is discharged. Remove the battery and charge it.

State of Charge Indicator LED Status

	LEVEL OF CHARGE	CHARGE INDICATORLED COLOR
	100% - 75% White
	50% - 75% White
	20% - 50% White
	≤20% White
	Low battery shutdown White and blinking.
	Battery too hot All four, red and blinking.

Adjusting Blower Speed (Fig. L)

The DCBL570 is equipped with a speed indicator 16. The speed indicator 16 will display the chosen speed of the blower. There are three speed setting LEDs, ECO mode 39, standard mode 40 and turbo mode 41. The speed indicator 16 helps you to optimize the tool's performance and runtime needed for each job.

1. To set the blower speed, switch the blower on by briefly squeezing the variable speed trigger 2.
2. Press the speed button 14, located on the tool handle, until the desired speed LED is illuminated.
   NOTE: ECO mode 39, standard mode 40 or turbo mode 41.
   NOTE: The blower defaults to ECO mode 39.
3. Operate in ECO mode 39 or standard mode 40 speed for most blowing needs.
   NOTE: Longer runtime will be achieved.
4. Choose turbo mode 41 as needed to clear heavy debris. NOTE: Runtime will be reduced.
   NOTE: When using only one battery pack 37 the blower will not operate in turbo mode 41.

Speed Setting LED Colors

SPEED SPEED SETTING LED COLOR
	— 39	ECO Mode White
	— 40	Standard Mode	White
	— 41	Turbo Mode White

Speed Lock (Fig. K)

The DCBL570 is equipped with a speed lock button 3 for continuous use without needing to hold the variable speed trigger 2.

1. Squeeze the variable speed trigger 2 to the desired speed.
2. To lock the blower at the desired performance level, press the speed lock button 3 and release the variable speed trigger 2. Release the speed lock button 3. The DCBL570 will automatically maintain the desired performance level.
3. The speed lock indicator 17 will illuminate.
4. To discontinue using speed lock mode, squeeze the variable speed trigger 2 or press the speed lock button 3. The speed lock indicator 17 will turn off. The variable speed trigger 2 now controls the unit.

Use (Fig. J, K, M)

WARNING: The blower is intended to be used at only at ground level and is not to be used on ladders or other unstable support.

CAUTION: Do not point unit discharge at self, bystanders or pets.

1. Install the battery packs 37 into the battery ports 24.
2. Place the backpack 18 on your back and adjust the harnesses to fit.
3. Power the blower on and hold the joystick 1 with one hand as shown in Fig. K.
4. Power the blower on.
5. With the blower tube 12 positioned several inches above the ground, and using a sweeping motion from side to side, advance slowly keeping the accumulated debris/leaves in front of you as shown in Fig. M.

MAINTENANCE

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery packs before making any adjustments or removing/installing attachments or accessories.

An accidental start-up can cause injury.

Your DEWALT power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Clearing Blockages

If your DCBL570 air intake 6 becomes blocked:

1. Switch tool off and remove the batteries.
2. Inspect the air intake 6 for debris and remove any loose debris.
3. If there is debris in the fan, point the air intake 6 towards the ground and gently shake the debris out.

Cleaning

WARNING: Blow dirt and dust out of all air vents with clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing this procedure.

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Transportation and Storage (Fig. A, N)

CAUTION: To prevent accidental starting, always transport your tool with the batteries removed!

CAUTION: Do not expose to rain or other precipitation if stored outdoors or on a vehicle, or if transported in an open vehicle.

• Always store DCBL570 with the batteries removed.
- STORE INDOORS. Store in a dry, covered location with above freezing temperatures.
- The backpack and tube assembly can be stored vertically or horizontally, do not stack things on top of unit.
- The tube 12 can be secured to the backpack frame using the hook and loop strap 9. Loop the loose end of the hook and loop strap through the strap mount 20 on the backpack frame as shown in Fig. N. Ensure the tube is secured before leaving unattended to avoid possible tripping hazards.
• Always carry the DCBL570 using the backpack handle 19.

Accessories

WARNING: Since accessories, other than those offered by DEWALT, have not been tested with this product, use of such accessories with this product could be hazardous. To reduce the risk of injury, only DEWALT-recommended accessories should be used with this product.

Recommended accessories for use with your product are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact DEWALT. Call 1-800-4-DEWALT (1-800-433-9258) or visit our website: www.dewalt.com.

Tool Connect™ Chip (Fig. O)

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories.

An accidental start-up can cause injury.

Your tool is Tool Connect™ Chip ready and has a location for installation of a Tool Connect™ Chip.

Tool Connect™ Chip is an optional application for your smart device (such as a smart phone or tablet) that connects the device to utilize the mobile application for inventory management functions.

Refer to Tool Connect™ Chip Instruction Sheet for more information.

Installing the Tool Connect™ Chip

1. Remove the retaining screws 42 that hold the Tool Connect™ Chip protective cover 43 into the tool.

2. Remove the protective cover and insert the Tool Connect™ Chip into the empty pocket 44.

3. Ensure that the Tool Connect™ Chip is flush with the housing. Secure it with the retaining screws and tighten the screws.

4. Refer to Tool Connect™ Chip Instruction Sheet for further instructions.

Repairs

The charger and batteries are not serviceable. There are no serviceable parts inside the charger or battery pack.

WARNING:

To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a factory service center or an authorized service center. Always use identical replacement parts.

Register Online

Thank you for your purchase. Register your product now for:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
• CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.
  • FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.

Register online at www.dewalt.com/account-login.

Three-Year Limited Warranty

For warranty terms, go to

www.dewalt.com/support/warranty.

To request a written copy of the warranty terms, contact: Customer Service at DEWALT Industrial Tool Co., 701 East Joppa Road, Towson, MD 21286 or call 1-800-4-DEWALT (1-800-433-9258).

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country-specific warranty information contained in the packaging, call the local company or see website for warranty information.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-800-4-DEWALT (1-800-433-9258) for a free replacement.

FRANÇAIS

Utilisation prévue

Eje Central Lázaro Cárdenas No. 18 - Local (55) 5588 9377 D, Col. Obrera

MERIDA, YUC

Calle 63 #459-A - Col. Centro [phone]

MONTERREY, N.L.

Av. Francisco I. Madero 831 Poniente - Col. (818) 375 23 13 Centro

PUEBLA, PUE

17 Norte #205 - Col. Centro [phone]

QUERETARO, QRO

Av. San Roque 274 - Col. San Gregorio (442) 2 17 63 14

SAN LUIS POTOSI, SLP

Col. Santa Fe Alvaro Obregon,

Ciudad de Mexico, Mexico.

C.P 01210

TEL[phone]

R.F.C.BDE8106261W7

Registro en Línea

Use of any other battery packs may create a risk of injury and fire.

AVERTISSEMENT :

NOTE: DO NOT charge when the battery pack is below 40 °F ( 4.5 °C ) or above 104 °F ( 40 °C ). Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104 °F ( 40 °C ).

QR code image containing encoded data, no visible human-readable text

PART NUMBER
