USER MANUAL Bolero CoolMarket UF 273 CECOTEC

Exterior view of a modern white refrigerator with handle and side panel (no visible text or symbols)

Safety instructions 9

1. Parts and components 60
2. Before use 60
3. Installation 60
4. Operation 64
5. Instructions on food storage 65
6. Cleaning and maintenance 66
7. Troubleshooting 67
8. Technical specifications 69
9. Disposal of old electrical and electronic appliances 70
10. Technical support and warranty 70
11. Copyright 70

SOMMAIRE

Read the instructions carefully before using the device for the first time and keep this instruction manual for future reference or new users.

• It is important to make sure all users are familiar with the device's operation and safety features to prevent faults and unnecessary accidents.
• Make sure that the mains voltage in your house matches the voltage stated on the rating label of the product.
• This appliance can be used by children aged 8 and above, and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. The cleaning and maintenance of the appliance should not be carried out by children without supervision.

- Keep the packaging materials away from children, as there is a risk of suffocation.

- WARNING: if the interior light is damaged, contact the Cecotec Technical Support Service. Do not try to repair it on your own.

- WARNING: when positioning the appliance, make sure the power cord is not trapped or damaged. A crushed or damaged connector may heat up and cause a fire.

- Make sure you can access the device's main connector after installation.

- Do not place food directly against the air outlet on the interior of the device.

- Keep the ventilation openings clear from obstructions.

- Do not place carbonated or fizzy drinks inside the device when the freezer mode is active, as it could create pressure in the container, and it may explode and damage the device.

• WARNING: do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by Cecotec.
• WARNING: do not damage the refrigeration circuit.
• If the cable is damaged, it must be replaced by the manufacturer, the supplier, or qualified personnel to avoid a hazard.
• WARNING: do not use electrical appliances inside the device.
• We recommend you check the power cord regularly to detect any sign of possible damage. Do not use the device if the cord is damaged. Contact the Technical Support Service of Cecotec.
• To avoid injuries or death caused by electric shock, do not use the device with your hands wet or over a wet surface.
• You should never use this device with an extension cord or a multi-socket adaptor. Make sure the device is plugged in directly to a power supply.
• When installing the appliance, make sure that there is free space in the rear part, as this is the main heat outlet. This will allow for adequate ventilation.
• Do not place hot food or drinks in the device, allow them to cool to room temperature.
• Do not place any other appliance on the freezer and do not wet it.
• Do not store explosive substances such as aerosols or flammable propellants in this appliance.
• This product is exclusively designed for household use. Do not use it for commercial purposes, outdoors, or in damp environments.

• WARNING: to avoid any risk due to the instability of the freezer, you must install it according to the instructions.

• This device has a built-in earthed plug. Make sure the power supply in your house is properly grounded.

• Wait 5 minutes after a power failure before turning the appliance back on. Otherwise, the compressor may get damaged.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Always handle the device carefully to avoid any damage.
• Frozen food can cause ice burns if it is consumed right after removing it from the freezer.
• Do not remove or touch freezed items with your hands wet, as it could cause skin abrasions or frost/freeze burns.
• Never use the base, drawers, or door as support.
• Do not overload the door shelves or place too much food on the drawers to prevent items from falling off and damaging the device.
• WARNING: do not attach multi-socket adaptors or multiple power supplies to the rear part of the device.
• To avoid food contamination, please respect the following instructions:
• Opening the door for a long period of time may cause a significant increase in temperature in the device's compartments.
• Regularly clean the surfaces that come into contact with food and with the accessible draining systems.
• Store raw meat and fish in suitable containers in the appliance so that they do not come into contact with or drip onto other food.

• The two-star compartments are suitable for storing pre-frozen food, storing, or making ice cream and making ice cubes.

• Compartments with one, two, or three stars are not suitable for freezing fresh food.

• Before carrying out any maintenance and cleaning task, turn off the device and unplug it from the main power socket.
• After installation, it is advisable to wait at least two hours before switching on the unit to allow the oil to flow into the compressor.
• Air must flow around the device: lack of air leads to overheating. To achieve good ventilation, follow the installation instructions.
• Whenever possible, the rear part of the product should not be too close to the wall to prevent it from touching or reaching the hot parts (the compressor and the condenser). To avoid the risk of fire, follow the installation instructions.
• This appliance is not intended for use as a built-in appliance.
• All electrical work required to maintain this appliance must be carried out by a qualified electrician.

Refrigerant

• Isobutane refrigerant (R600a) is contained within the refrigeration circuit of the appliance; it is a natural gas with a high level of environmental compatibility; however, it is flammable. Make sure that no components of the refrigeration circuit have been damaged during the transport and installation of the appliance.
• WARNING: the refrigerant and the insulator gas are flammable. When disposing of the device, only dispose of it at an authorised waste disposal facility. Do not expose it to flames.
• WARNING: the device contains refrigerant and gases in the insulation. The device and gases must be disposed of

professionally as they may cause injuries to eyes or ignition. Make sure the refrigeration circuit pipe is not damaged before disposing of it correctly.

• WARNING: risk of fire. If the refrigeration circuit is damaged:
• Avoid open flames and sources of ignition.
• Completely air the room where the device is located.

INSTRUCTIONS DE SÉCURITÉ

1. Lid
2. Shelf
3. Lid
4. Shelf
5. Lid
6. Shelf
7. Drawers
8. 2-star compartment

Note:

• The graphics in this manual are schematic representations and may not exactly match the product.
• To make the most out of the freezer in terms of energy, place all the shelves and drawers in their original position, that is, as shown in figure 1.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent product damage when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Technical Support Service of Cecotec immediately.

3. INSTALLATION

The location you choose for the freezer must be properly ventilated and far from heat sources. Do not place the freezer near heat sources, like a hob, and avoid direct sunlight to ensure the cooling effect and save on energy consumption. It is not recommended to place the freezer in a wet place, as it may rust and cause electrical leakage.

Fig. 2

Height Width Depth		(with-out door)	Depth (with door)	Depth (with handle)	Width (doors opened 90°)	Depth (doors opened 135°)	Width (open doors 135°)
A (mm) B	(mm) C (mm) D (mm)			E (mm)	F (mm)	G (mm) H	(mm)
1850	595	545	618	657	1175	1025	1017

During operation, the freezer releases heat into the environment. Therefore, you should leave at least 30 mm of free space at the top and more than 100 mm around the freezer. Fig. 3

Please note

Figure 2 only illustrates the space required for the freezer.

Stable surface

Place the freezer on a solid, flat surface to keep it stable, otherwise vibrations and noises will occur.

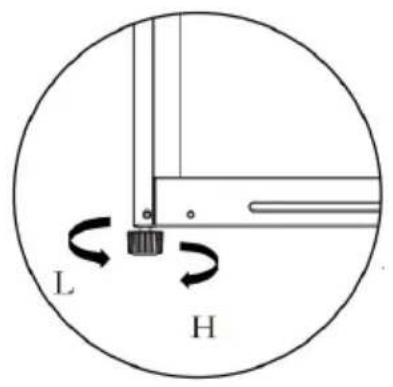

Feet levelling. Fig. 4

- Before setting the feet, make sure the freezer is not connected to a power socket.

- To raise the freezer, turn its feet clockwise.

- To lower the freezer, turn its feet counterclockwise.

Take precautions to prevent the handle from falling.

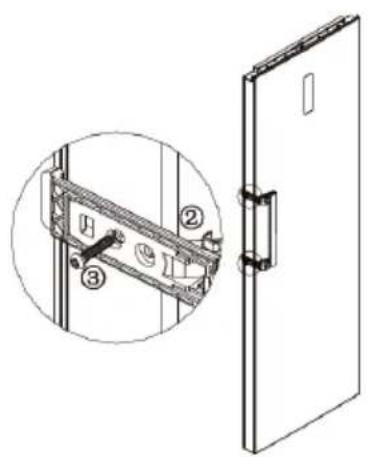

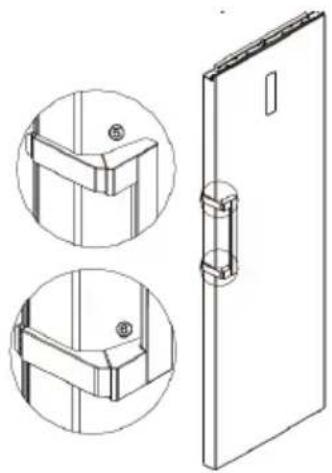

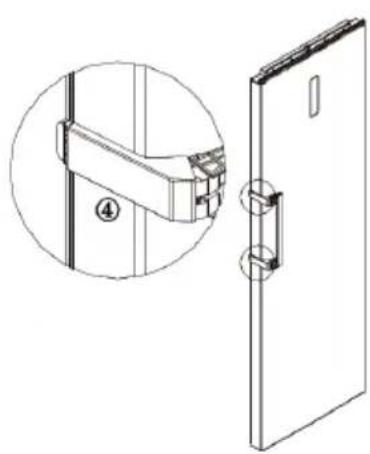

To fit the door handle, follow the steps below:

1. Remove the screw hole covers from the door and use a crosshead screwdriver to firmly secure the screws in the holes.

2. Place the screw hole cover on the screw hole of the handle.

For disassembly, carry out the reverse procedure.

Changing the opening direction of the door

WARNING:

The freezer must not be connected to the power socket when you change the opening direction of the door. Make sure to disconnect the plug from the power socket.

Check figure 6 to check the tools you need.

Changing the opening direction of the door must be carried out by two people.

Tools not supplied Fig. 6

1. Crosshead screwdriver
2. 8-mm tube wrench
3. Flat-head screwdriver
4. Tape

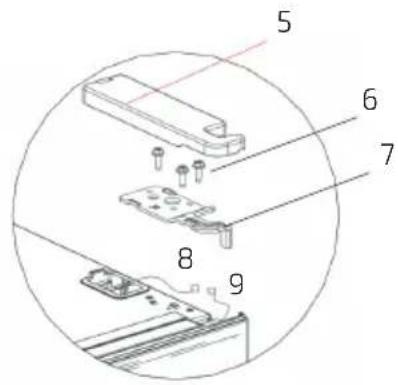

Fig. 7 key:

1. Upper-right hinge cover

2. Screws

3. Upper-right hinge

4. Attachment

5. Attachment

6. Gap cover

7. Attachment

Fig. 8 key:

1. Hinge shaft

2. Lower hinge

3. Screws

4. Adjustable leg

ENGLISH

Fig. 9 key:

1. Upper door cover

2. Attachment

3. Sleeve

Fig. 10 key:

1. Sleeve

2. Stop

3. Screw

Fig. 11 key:

1. Upper-left hinge cover

2. Screws

3. Upper-left hinge

4. Attachment

5. Gap cover

6. 1. Attachment

To change the door opening direction, follow the steps below:

1. Unplug the freezer and remove all food inside.

2. Remove the door handle by performing the reverse process described in the section "Installing the door handle". Fig. 5

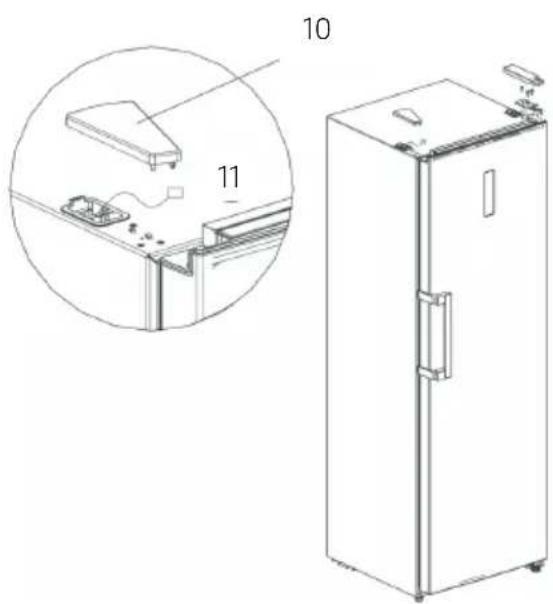

3. Remove the upper cover on the left side (10). Fig. 7

4. Remove the upper-right hinge cover (5). Fig. 7

5. Unscrew the screws (6). Fig. 7

6. Remove the upper-right hinge (7). Fig. 7

Note:

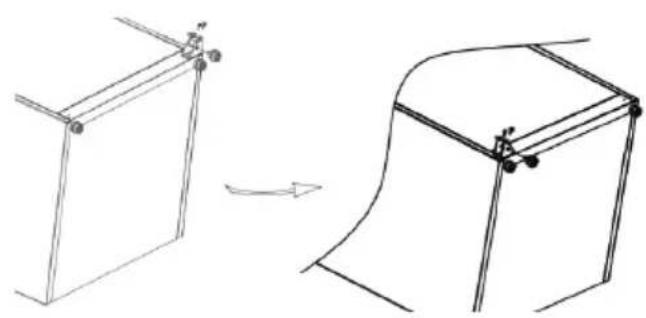

At this point, the door will not be attached to the freezer. Be careful, as it may fall off.

1. Unplug the wiring connectors (8 and 9) on the freezer's top-right side.

2. Remove the door from the bottom hinge by pushing it upwards. Leave the door on a soft, smooth surface so as not to damage it.

3. Remove the bottom hinge assembly (hinge shaft and adjustable leg) by unscrewing the screws (14) that hold it to the freezer. Fig. 8

4. Unscrew the hinge shaft (12).

5. Rotate the lower hinge (13) and screw the hinge shaft (12) into the upper gap. Fig. 8

6. Screw (14) the lower hinge assembly on the opposite side, with the hinge shaft at the top. Fig. 8

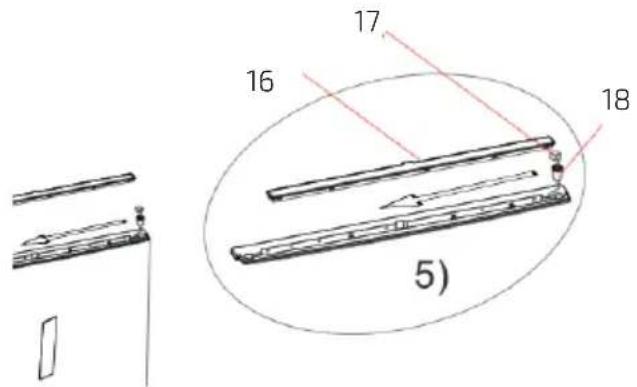

7. Remove the upper door cover (16) by sliding it to the left. Fig. 9

8. Remove the sleeve (18) and the right connector (17) and install them on the other side. Replace the upper door cover (16) by sliding it to the right. Fig. 9 Fig. 9

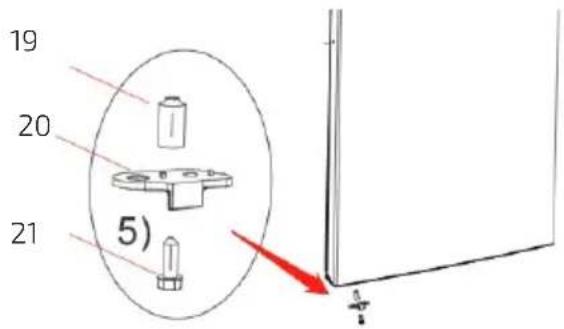

9. Unscrew the screw (21) at the bottom of the door, remove the right door stop (20) and the sleeve (19). Fig. 10

10. Insert the sleeve (19) on the other side of the door, remove the left door stop from the accessory bag, and screw it with the screw (21) on the bottom-left side of the door. Put the right door stop (20) back in the accessory bag. Fig. 10

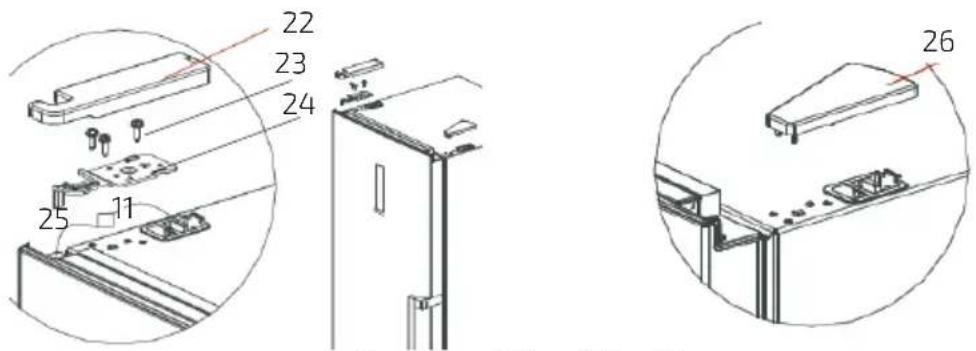

11. Remove the upper-left hinge (24) and the upper-left hinge cover (22) from the accessory bag.

12. Place the door on the lower hinge, opposite to step 8.
13. Assemble the upper-left hinge (24), as opposed to removing the upper-right hinge (7).
14. Plug the connectors.
15. Assemble the upper-left hinge cover (22) and the gap cover (26). Fig. 11

Side-by-side kit

This freezer comes with a side-by-side kit which allows you to connect it to a refrigerator.

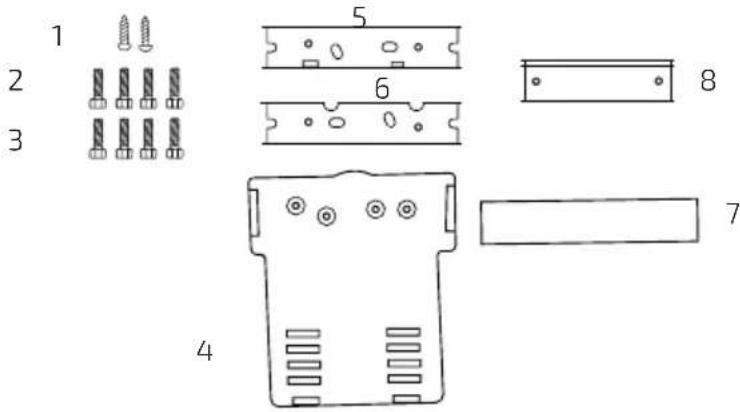

Fig. 12 key:

1. Screws
2. Screws
3. Screws
4. Upper connection-block cover
5. Upper connection block
6. Lower connection block
7. Lower connection-block cover

8. Rear connection block

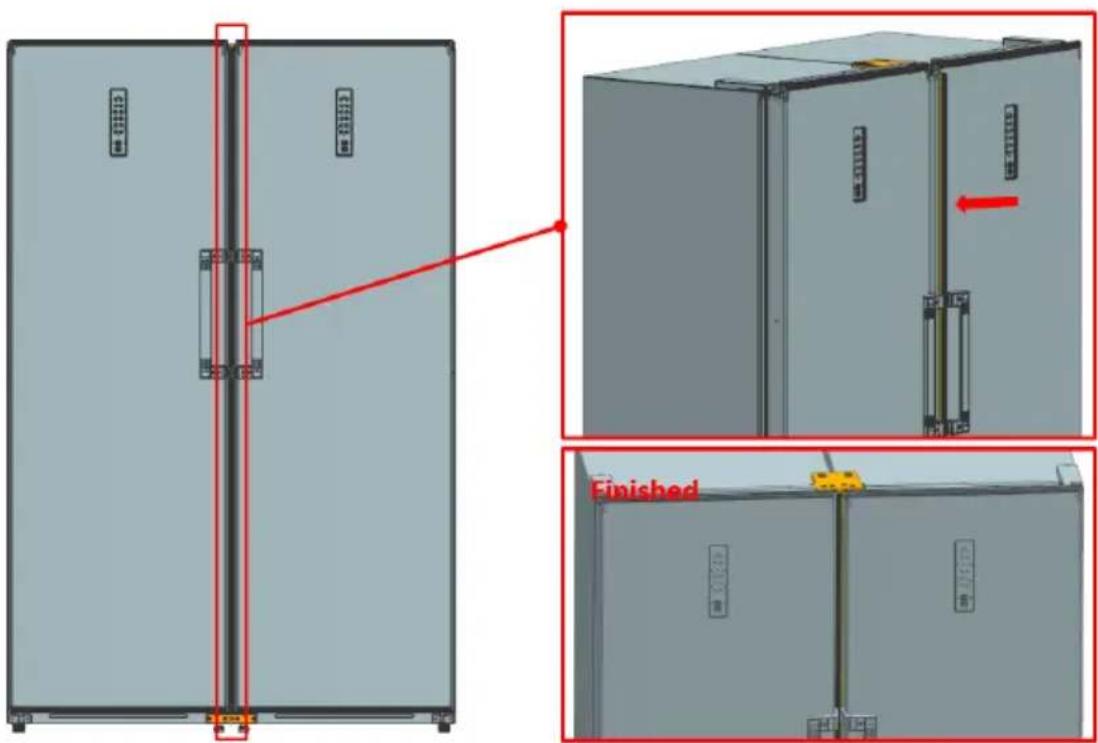

9. Place the freezer next to the refrigerator you want to connect it to.

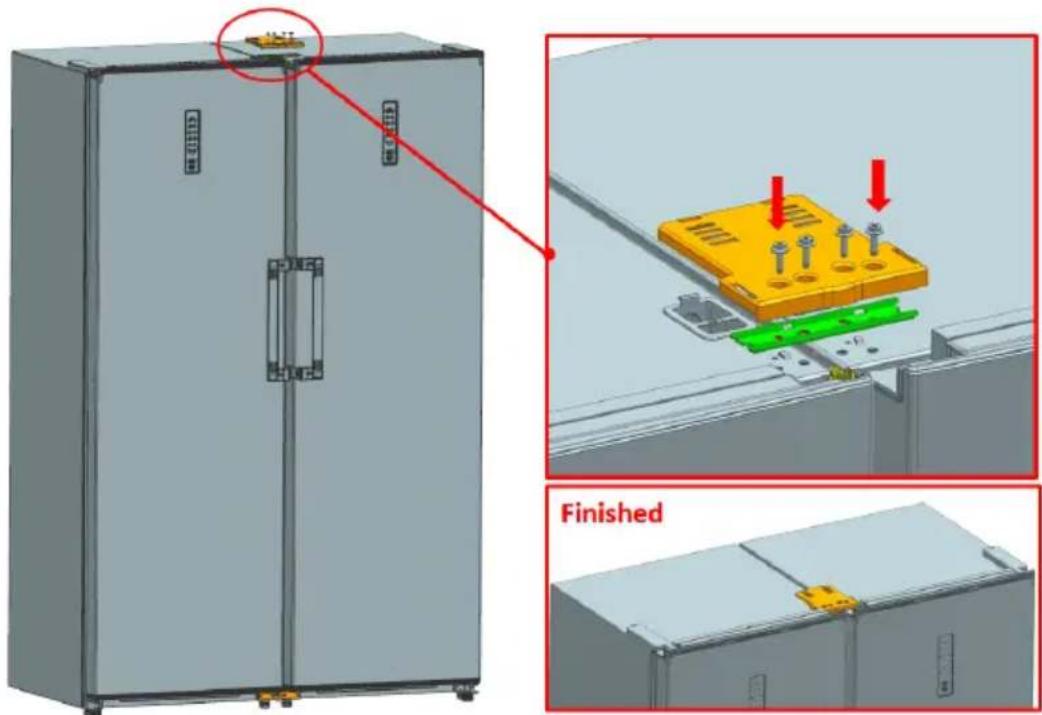

10. Install the upper connection-block cover (4) over the upper connection block (5), press firmly until you hear a click.
11. Install and screw (2) the assembly on the top between both devices as shown in figure 13.
12. Insert the tie bar between the two devices as shown in figure 14.

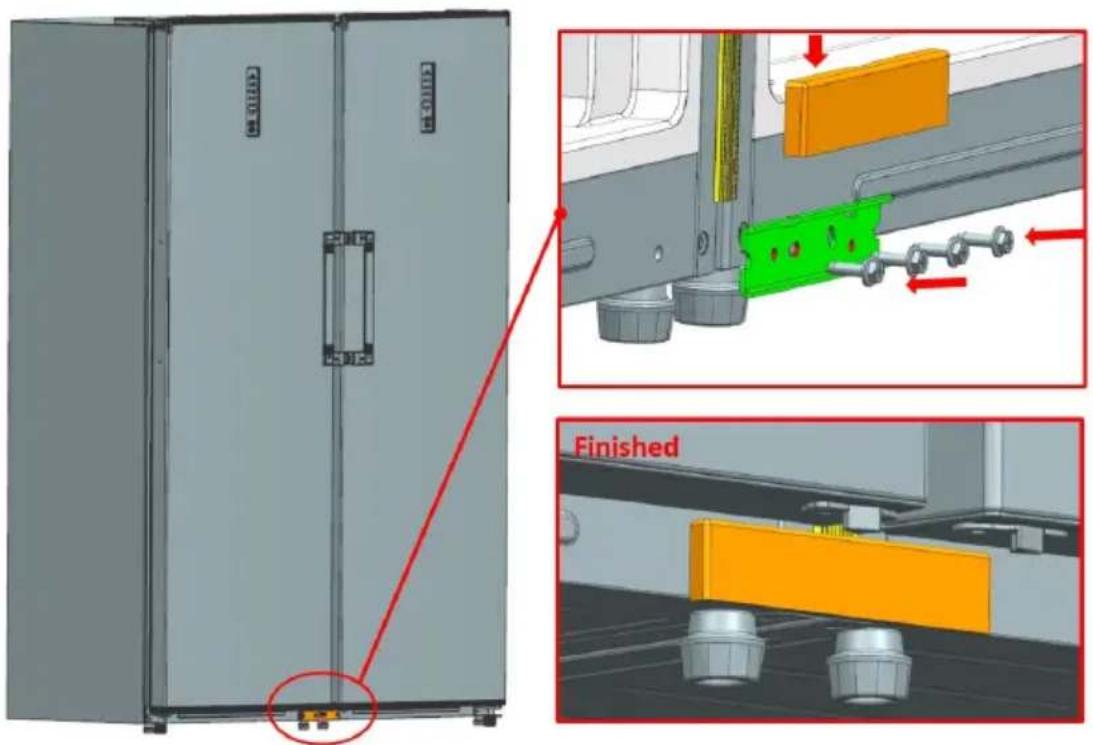

13. Install and screw (3) the lower connection block (6) on the bottom between both devices as shown in figure 15.
14. Place the lower connection-block cover (7) over the lower connection block, press firmly until you hear a click.

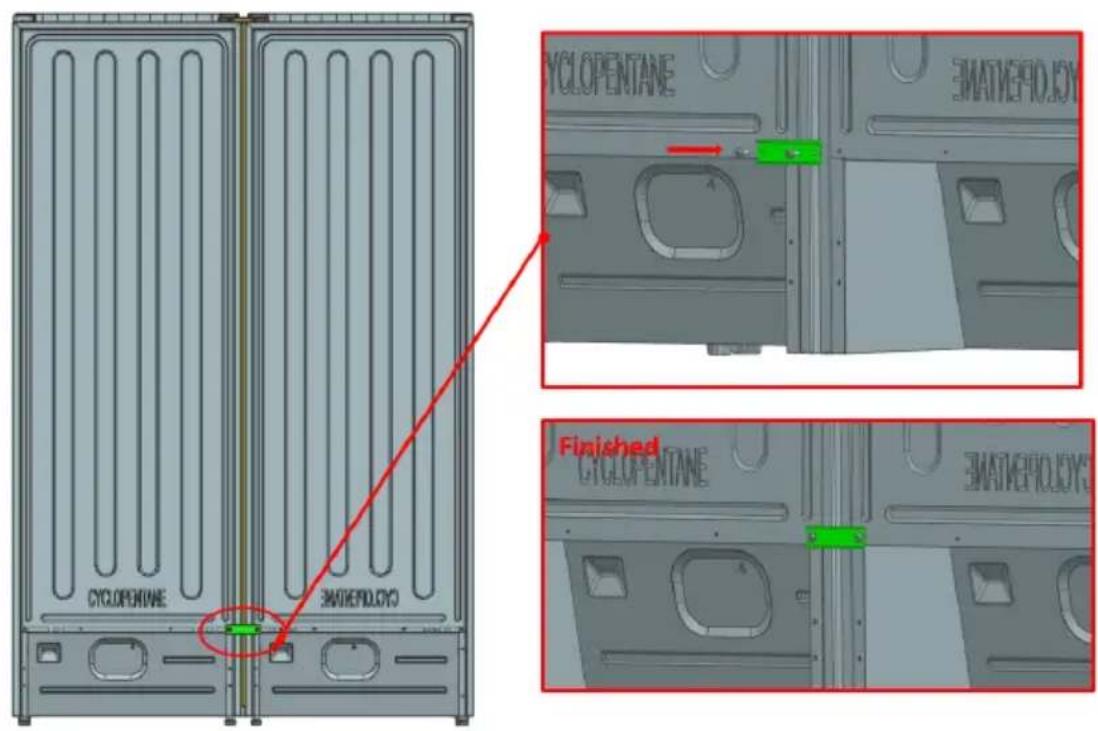

15. Install and screw (1) the rear connection block (8) as shown in figure 16.

Preparing for use

Waiting time

Once the freezer is installed and clean, do not turn it on immediately. Wait at least 2 hours before connecting it to the power supply.

On

• Connect the plug into a power socket to switch on the freezer.
• Once the freezer is operating and the temperature inside has considerably decreased, you can store food. It is advisable to wait 2 to 3 hours before placing fresh food in the appliance.
• If the freezer is installed in a wet place, you must check the earthed cord and the leakage breaker are working normally. If vibration noises occur due to contact of the freezer with the wall or if the wall turns black due to air convection around the compressor, remove the freezer from the wall.

ENGLISH

- The installation of the freezer may cause interference in mobile phones, landline phones, radio receivers, or televisions near the refrigerator, so in this case, keep the freezer as far away from these objects as possible.

4. OPERATION

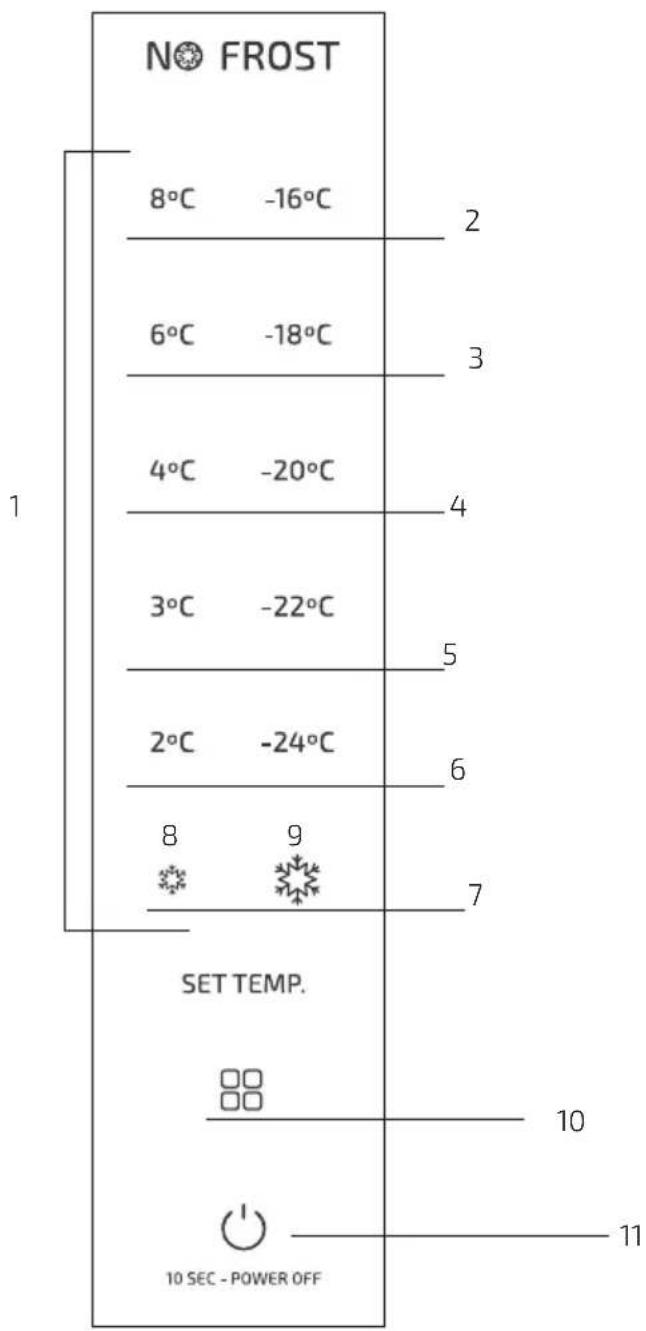

Fig. 17. Control panel

1. Temperature setting indicators
2. Setting 1 (8°C or -16°C)
3. Setting 2 (6°C or -18°C)
4. Setting 3 (4°C or -20°C)
5. Setting 4 (3°C or -22°C)
6. Setting 5 (2°C or -24°C)
7. Setting 6 (Fast cooling or fast freezing)
8. Fast cooling icon
9. Fast freezing icon
10. Setting/Mode button
11. Alarm/Standby button

When you connect the freezer to a power outlet, the temperature setting indicators will blink for 3 seconds and the temperature will be set to -20^ . After that, every time you switch on the freezer, the last temperature settings will be reset.

After 30 seconds without pressing any buttons, the temperature-setting indicators will turn off. When you want to change a setting, you must press the Setting/Mode button, then the temperature-setting indicators will light up, and pressing this button again will allow you to adjust the temperature.

Functions

1. Change between the refrigerator and freezer modes

Press and hold the Setting/Mode button for 3 seconds to switch between refrigerator mode and freezer mode.

2. Standby

Press and hold the Alarm/Standby button for 10 seconds to pause the freezer. The appliance will stop operating. Press any button to change mode.

3. Temperature setting

Press the Setting/Mode button to change the temperature setting. The temperature adjustment cycle is as follows:

Adjustment 1→ Adjustment 2→ Adjustment 3→ Adjustment 4→ Adjustment 5→ Adjustment 6→ Adjustment 1

4. Fast cooling

With refrigeration mode activated, press the Setting/Mode button repeatedly until the fast-cooling icon lights up.

When you activate the fast-cooling function, the temperature of the appliance will be set at 2^ C for 150 minutes or until the temperature or mode changes. A fast decrease of the temperature is useful to prevent nutritional loss and favours freshness preservation.

5. Fast freezing

With freezer mode activated, press the Setting/Mode button repeatedly until the fast-freezing icon lights up.

When you activate the fast-freezing function, the temperature will be set to -24^ for 24 hours or until the temperature or mode is changed.

6. Door warning

If the door remains open for more than 3 minutes, the freezer will emit an alarm sound, which can be stopped by pressing the alarm/standby button but will sound again if the door still stays open 3 minutes later.

5. INSTRUCTIONS ON FOOD STORAGE

Use precautions

• The freezer may not operate consistently (there may be some defrosting of the contents, or the temperature may become too hot) if placed in locations with a temperature out of the temperature range for which they are designed for a long period of time.
• The internal temperature may be affected by factors such as the location of the freezer, room temperature and the door opening frequency, etc., and you should take these factors into account if you decide to use any temperature control devices.
• Do not store effervescent or carbonated drinks inside the device when the freezer mode is active.

How to use refrigerator mode

• This mode is suitable to store food that does not need to be frozen, cooked food, soft drinks, eggs, milk, juice, etc.
• Clean and dry food completely before storing it in the device. Before introducing food in the device, it is advisable to seal it to prevent water evaporation and thus keep fruit and vegetables fresh on the one hand, and to prevent odours on the other.
• Leave enough space between foods; if they are too close together, they will block the flow of cold air, which will affect the cooling effect. Do not store too much or too heavy food to prevent the shelves from bending. When storing food, keep it at some distance from the inside wall; do not place water-rich food too close to the rear wall of the appliance to prevent it from freezing.
• Food storage by category: place daily food items at the front of the shelf so that you can reduce the door opening time and avoid food spoilage due to shelf life.
• Energy saving tips: let hot food cool to room temperature before storing it.
• In refrigerator mode, you can set the temperature between 2°C and 8°C. Lower temperatures help keeping food fresher for longer. However, you should always pay attention to the expiration or best-before dates marked by the manufacturer.

ENGLISH

- Please note that some foods are sensitive to cold and are therefore not suitable for storage in the appliance.

Use of the freezer mode

• This mode is advisable for storing food that you wish to keep for a long period of time, always respecting the storage time indicated on the food packaging.
• It is advisable to divide large-sized food into smaller pieces and put them in freezer bags before placing them in the freezer-compartment drawers.
• Let hot food cool down to room temperature before introducing it in the freezer.
• Do not place glass containers with liquid or sealed canned liquid in the freezer to prevent them from exploding due to volume expansion after freezing the liquid.
• Food should be packed or covered with suitable materials that are firm, tasteless, impermeable to air and water, non-toxic, and non-polluting, to avoid cross-contamination and odour transfer.
• In freezer mode, you can set the temperature between -16 °C and -24 °C. Lower temperatures help keeping food fresher for longer. However, you should always pay attention to the expiration or best-before dates marked by the manufacturer.
• Please note that some foods are sensitive to cold and are therefore not suitable for freezing.

6. CLEANING AND MAINTENANCE

If the freezer is not to be used for a long period of time:

• Switch off the freezer and unplug it from the power outlet.
• Empty the freezer.
• Clean and dry the interior completely. To prevent mould or unpleasant odours from forming, leave the door slightly open: lock it open or remove it if necessary.
• Store the appliance in a ventilated and dry place, away from heat sources; place the appliance carefully and do not place heavy objects on it.
• The device must be kept out of the reach of children to prevent them from playing with it.

Before cleaning, disconnect the power plug; do not connect or disconnect the power plug with your hands wet, as there is a risk of electric shock and injury. Do not spill water directly on the freezer to avoid rust, electrical leakage, and accidents.

Interior and exterior cleaning

• Food residues in the appliance can cause unwanted odours, so it should be cleaned at least once a month.
• Remove all drawers and clean them with a soft cloth or sponge dampened with warm water or neutral detergent.
• Clean the dust that accumulates on the rear panel and side panels of the freezer regularly.
• After using detergent, make sure you rinse it with clean water, and then dry it with a cloth.
• Do not use bristle brushes, steel wire brushes, detergent, soap powder, alkaline detergent, benzine, petrol, acid, hot water, or other corrosive elements to clean the freezer surface, door gasket, plastic decorative parts, etc., to avoid damage.

- Carefully dry the door gasket and clean the slot with a wooden stick wrapped with cotton. After cleaning, fix the four corners of the door gasket and then gradually push it into the slot in the door.

Power failure or cooling system fault

If you receive an early power failure warning:

- Activate the fast freezing or fast cooling function (depending on the previously set mode), for food to be completely frozen/cooled-down. Set the temperature back to the original setting when the power supply returns to normal.

Note:

It is advisable to run the freezer uninterruptedly once you start using it.

Defrost

This freezer includes an automatic defrost function, so there is no need to defrost it manually.

Light bulb substitution

The freezer has a LED light with low consumption and a long shelf life. In case of malfunction, contact the official Technical Support Service of Cecotec. The light bulb can only be substituted by the manufacturer.

Note:

If the power cord and/or plug are damaged or dusty, electric shock and fire may occur. If there is any malfunction, disconnect the cord and contact the Technical Support Service of Cecotec.

7. TROUBLESHOOTING

For the following minor malfunctions, please try to solve the problem yourself before contacting Cecotec Technical Support Service.

Fault Possible causes Possible solutions
The freezer does not work.	The freezer is not connected to the mains.The circuit breakers or fuses are damaged.There is no power or the fuse trips.The voltage is too low.Standby Mode is active.	Connect the freezer to a power supply.Open the door and check the light is on.Check that the socket is compatible and works properly.Check that Standby mode has not been activated.
Abnormal noise	The freezer is not stable.The freezer is in contact with the wall.	Adjust the feet.Remove the freezer from the wall.

ENGLISH

Low cooling efficiency	The food introduced is hot or there is too much food.You open the door too often.The door gasket has objects that do not allow to close it completely.The freezer receives direct sunlight or is close to a heat source.The freezer is not well ventilated.The selected temperature is too high.	Introduce food in the freezer when it is at room temperature.Check and close the door.Remove the freezer from the heat source.Keep the recommended distances in the installation section so the freezer is well ventilated.Adjust to a suitable temperature.
Undesired odours in the freezer.	There is spoiled food inside.The freezer is dirty.You introduced food with strong smells.	Dispose of spoiled food.Clean the freezer.Pack food, especially if it has a strong smell.
the water tray overflows	There is too much food inside or the food itself contains too much water.The door is not closed properly.	Close the door properly.
Condensation on the surface	This is normal with high ambient humidity	Wipe the surface with a soft cloth.

Note:

If none of these situations match your problem, do not attempt to disassemble or repair the freezer yourself. Repairs carried out by unqualified persons may result in injury or serious malfunctions. Please contact the place where you bought the appliance or the Cecotec Technical Support Service. The repair must be carried out by an authorised technician, and you must use only original spare parts.

Should they occur, malfunction types and codes are displayed are follows:

Refrigerator mode:

Error codes Error description D	splay
E1 Fault of the temperature sen-sor in refrigerator mode		Icon * and icon 2 flashing simultaneously.
E5 Compartment defrost sensor failure in refrigerator mode		Icon * and icon 3 flashing simultaneously.
E6	Communication fault	Icon 2 and icon 4 flash simul-taneously
E7 Fault of the room tempera-ture sensor		Icon * and icon 4 flashing simultaneously.
E10 Control panel error Icon 2 and icon 3 flash simul-		taneously

Freezer mode:

Error codes Error description D	splay
E1 Fault of the temperature	sensor in freezer mode	Icon *nd -24 icon flashing simultaneously
E5 Compartment defrost sensor	failure in freezer mode	Icon *nd -22 icon flashing simultaneously
E6 Communication fault Icon -24 and icon -20 flashing		simultaneously
E7 Fault of the room	temperature sensor	Icon *nd -20 icon flashing simultaneously
E9 High-temperature	alarm inside the freezer compartment	Icon -24 and icon -18 flashing simultaneously
E10 Control panel error Icon -24 and icon -22 flashing		simultaneously

If any of these codes is shown, contact the Technical Support Service of Cecotec.

8. TECHNICAL SPECIFICATIONS

You can access the product database where the information for this model is stored by scanning the QR code on the energy label.

Product Bolero CoolMarket UF 273 Inox E
Reference 02399
QR code
Voltage 220-240 V
Rated frequency 50 Hz
Rated current	0.5 A
Climate class	SN/ N/ ST/ T
Refrigerant	R600a (40g)
Insulation	Cyclopentane

ENGLISH

(*) Refrigeration appliance intended for use at ambient temperatures between 10 °C and 43 °C. This product features a light source with an energy efficiency grade G.

Made in China | Designed in Spain

9. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

10. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec official Technical Support Service at [phone].

11. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording, or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1

7. PROBLEEMOPLOSSING

A B C D E F G H

Fig. / Img. / Rys. / Obr. 2

300mm 100mm 100mm

L H

Fig. / Img. / Rys. / Obr. 3 Fig. / Img. / Rys. / Obr. 4

Technical line drawing of a door with an inset showing a close-up of a circular component and a separate view of the door (no text or symbols)

1

Technical line drawing of a door hinge assembly with numbered components (no text or symbols)

2

Technical line drawing of a door with an inset showing a bracket detail (no text or symbols)

3

Technical line drawing of a door with two circular insets showing internal structural components (no text or symbols)

4
Fig. / Img. / Rys. / Obr. 5

Two types of screwdriver tools shown: one with a threaded end and the other with a base mount (no text or symbols present)

Illustration of four different screwdriver and washer components (no text or symbols)

Fig. / Img. / Rys. / Obr. 6

Line drawing of a refrigerator with an inset showing internal components and a close-up view of the cabinet (no text or symbols)

Technical diagram of a mechanical assembly with numbered parts labeled 5 through 9

Fig. / Img. / Rys. / Obr. 7

Diagram showing a structural change from a frame to a curved panel, with no text or symbols present.

12 14 13 15

Fig. / Img. / Rys. / Obr. 8

16 17 18 5)

Fig. / Img. / Rys. / Obr. 9

19 20 21 5)

Fig. / Img. / Rys. / Obr. 10

22 23 24 25 11 26

Fig. / Img. / Rys. / Obr. 11

1 2 3 5 6 8 4 7

Fig. / Img. / Rys. / Obr. 12

Technical diagram showing a 3D cabinet with a highlighted component and its finished assembly, including labeled arrows and annotations.

Fig. / Img. / Rys. / Obr. 13

Finished

Fig. / Img. / Rys. / Obr. 14

Finished

Fig. / Img. / Rys. / Obr. 15

CYCLOPENTANE FINISHED CYCLOPENTANE FINISHED CYCLOPENTANE

Fig. / Img. / Rys. / Obr. 16

NO FROST 8°C -16°C 6°C -18°C 4°C -20°C 3°C -22°C 2°C -24°C 8 9 SET TEMP. 10 11 10 SEC - POWER OFF

Fig. / Img. / Rys. / Obr. 17

www.cecotec.es
