Product Type	Baby Bouncer (rocker chair)
Brand	Luvion
Model	Baby Bouncer
Dimensions (highest position)	62.5 x 71 x 47 cm
Dimensions (transport position)	48 x 10 x 72 cm
Weight	3.2 kg
Maximum load	9 kg
Recommended age	From birth until the child can sit up alone (approximately 9 months)
Frame material	Aviation aluminum
Chassis material	Metal, plastic (PP, TPR)
Cover material	100% polyester
Recline positions	4 positions (3 adjustable + transport)
Main function	Baby rocking
Safety	3-point safety harness, non-slip base
Frame maintenance	Clean with a damp cloth and mild detergent
Cover maintenance	Machine wash at 30°C, separately, do not tumble dry
Assembly	Requires an adult, unfolding via button
Storage	Foldable into transport position (48 x 10 x 72 cm)
Included accessories	Chair cover, harness, frame, chassis
Warranty	Contact Luvion retailer (see manual)
Repairability	Spare parts available from the manufacturer

Frequently Asked Questions - Baby Bouncer Luvion

How to assemble the Baby Bouncer Luvion?

Place the frame into the base of the bouncer, then attach the fabric seat to the base. Press the folding button to unfold. Assembly must be done by an adult.

What is the maximum weight supported by this bouncer?

The maximum weight is 9 kg. Stop using the product when baby reaches this weight or starts to sit up alone, whichever comes first.

How to clean the chair cover?

Detach the lower elastic bands and slide the fabric along the frame. Wash separately at 30°C and do not tumble dry.

Is the Baby Bouncer safe for my baby to sleep in?

No, this product is not safe for sleep. If the baby falls asleep, remove them as soon as possible and place them on a firm, flat surface like a crib. Always supervise your baby.

What are the available recline positions?

There are 4 positions: the lowest position (recommended for newborns, up to 7 kg) and positions 1, 2, and high (up to 9 kg). Use higher positions when baby can hold their head up well.

How to properly use the safety harness?

Place the baby in the bouncer, ensure the crotch strap is between the legs, pull it up, then adjust and fasten the belt on both sides. Unbuckle before removing the baby.

Can I use the bouncer on a table or bed?

No, always place the bouncer on the floor. Never use on an elevated surface (bed, sofa, cushion) due to risk of fall or suffocation.

How to store the Baby Bouncer when not in use?

Fold the bouncer into transport position by pressing the folding button. Store in a cool, dry place away from moisture and heat sources.

What safety risks should I be aware of?

Risks of strangulation from straps, fall if not strapped in, suffocation on soft surfaces or if head falls forward. Always use the harness and supervise the child.

How to maintain the aluminum frame?

Clean the frame with a damp cloth and mild detergent. Wipe the rubberized base occasionally to optimize grip. Do not use corrosive products.

USER MANUAL Baby Bouncer Luvion

Line drawing of a mechanical device with a curved top and base plate (no text or symbols)

HANDLEIDING

INSTRUCTION MANUAL

MANUEL D'INSTRUCTIONS

BENUTZERHANDBUCH

NEDERLANDS....4

ENGLISH 10

FRANÇAIS....16

DEUTSCH....22

VERPAKKINGSINHOUD

Technical diagram of a car seat assembly with numbered parts labeled 1, 2, 3, and 4

INTRODUCTIE

Technical diagram showing a mechanical assembly with a red circle highlighting a component and a numbered label (2) at the bottom.

POSITIES

Technical line drawing of a mechanical device with a magnified inset showing a hand adjusting a component (no text or symbols present)

Technical diagram showing a device with numbered components and a magnified view of the internal component, likely for assembly or inspection.

• Connecting elements of the frame
• Fabric seat
• Bouncer base
• Safety harness
• Instruction manual

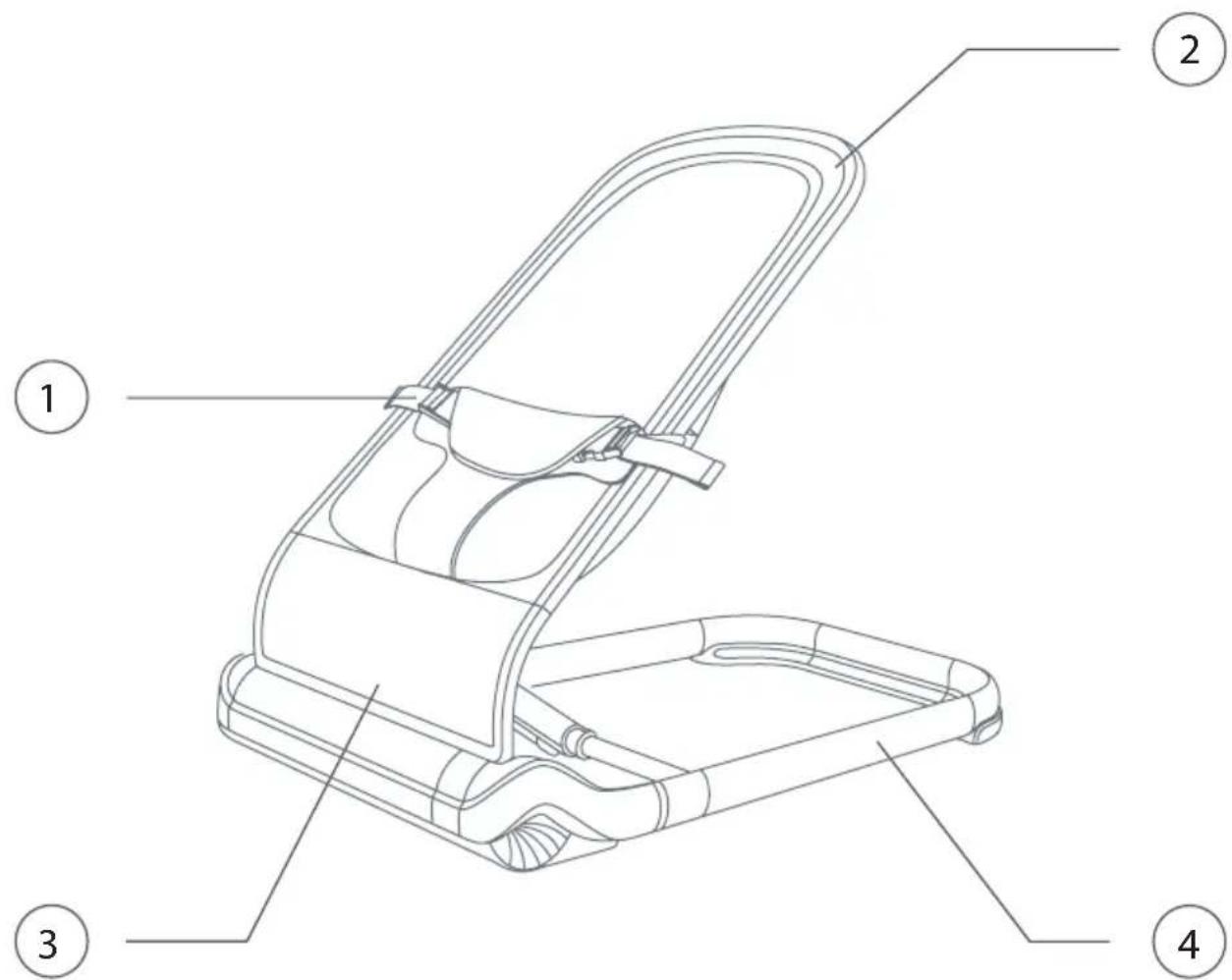

PRODUCT OVERVIEW

Baby Bouncer

1. Safety harness
2. Connecting elements of the frame
3. Fabric seat
4. Bouncer base

Technical diagram of a car seat assembly with numbered parts labeled 1, 2, 3, and 4

INTRODUCTION

Thank you for purchasing this Luvion Baby Bouncer. Make sure you always keep your original proof of purchase. For warranty cases you will always be asked to show a copy of your proof of purchase. For warranty claims you can contact the Luvion dealer or the local Luvion representative. More information can be found at www.luvion.com This manual contains all the information you need to be able to use this Luvion Baby Bouncer safely and with pleasure. Before using the Baby Bouncer, we recommend that you read this manual carefully. We ask for your extra attention for the safety instructions. The bouncer has many features, and you will learn how to use it best by reading the following pages.

IMPORTANT SAFETY PRECAUTIONS

• Please read the instruction carefully before use;
• If you do not understand the instructions for use or precautions listed in this manual, do not use the device.

WARNING!

• Strangulation Hazards: Babies have been strangled in safety belts.
  • FALL HAZARD: Babies have suff ered skull fractures falling while in and from bouncers
• Choking Hazard: Babies have suff ocated if Baby Swings tipped over on a soft surface.

• Choking Hazard: Young babies have limited head and neck control. If the seat is too upright, the baby's head may fall forward and compress the airway.

• Use the safety belts. Make sure the safety belts fit properly.

• Stop using the product if the baby tries to climb out (approximately from 9 months).
• Stay close and watch the baby during use. This product is not safe for sleeping or unattended use, NEVER leave your baby unattended.
• If the baby falls asleep, remove the baby as soon as possible and place the baby on a firm, flat at surface such as a crib or cot.
  • Never lift or carry the baby in the Baby Swing.
• Stop using the product when baby begins to sit up or reaches 9 kg, whichever comes first.
  • Always place the Baby Swing on the floor. Never use on an elevated surface.
• Never use on a bed, sofa, cushion or other soft surface.
• Stay close and watch the child during use. This product is not safe for unattended use or unattended sleeping.
• Ensure that children are kept away when assembling or unfolding this product to avoid injury.
• Do not let children play with this product.
  • Powerful sway: Make sure that older children are not allowed to rock the baby too forcefully.
• Do not disassemble any screws or nuts on the product.
• Do not use the product if any parts are broken or missing.
• Do not use accessories or replacement parts other than those approved by the manufacturer.
• The product contains wooden elements - use and store the product away from fire, sources of heat, moisture and liquids.
  • This product does not replace a crib or cot.

MAINTENANCE AND CLEANING

Maintenance

• Check this baby bouncer regularly. Make sure each component is properly connected and properly installed. Do not use the Baby bouncer if it is not installed correctly.
• Make sure the product is dry and store it in a cool and dry place.
• Do not expose this product to direct sunlight.

Cleaning

Frame and stand:

• Clean the stand and seat frame with a wet cloth and mild detergent. Dry the frame thoroughly. Do not use corrosive, chemical or abrasive cleaning agents.
• Wipe the rubber strips underneath the bouncer with a damp cloth from time to time, in order to guarantee that it is fixed as firmly as possible to the floor.

Fabric seat, safety harness:

To wash the fabric seat and the safety harness, loosen the two elastic loops at the bottom and pull it off the frame. Wash separately, warm/30°C. Do not tumble-dry.

30

INSTALLATION

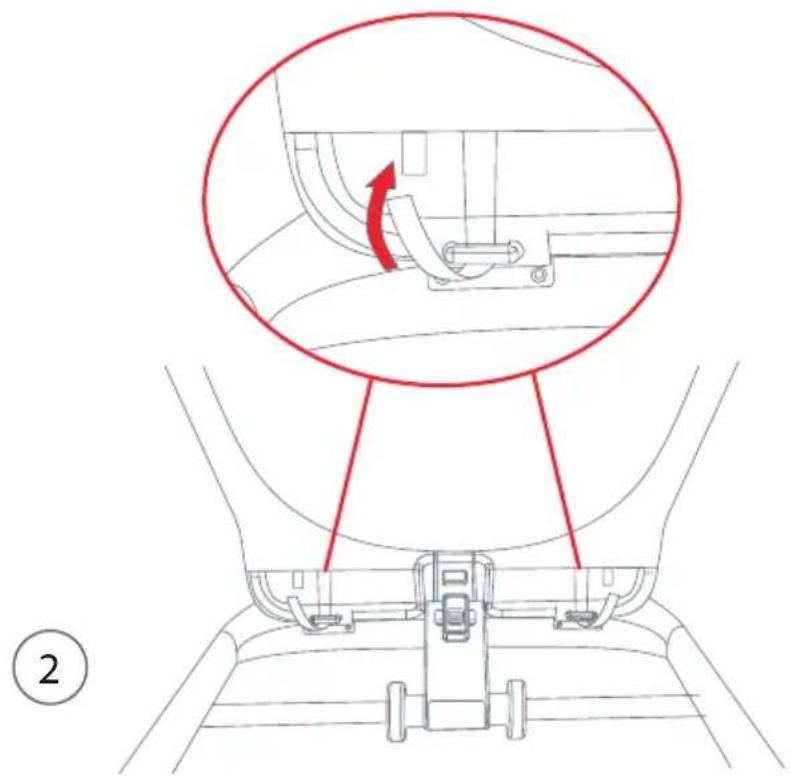

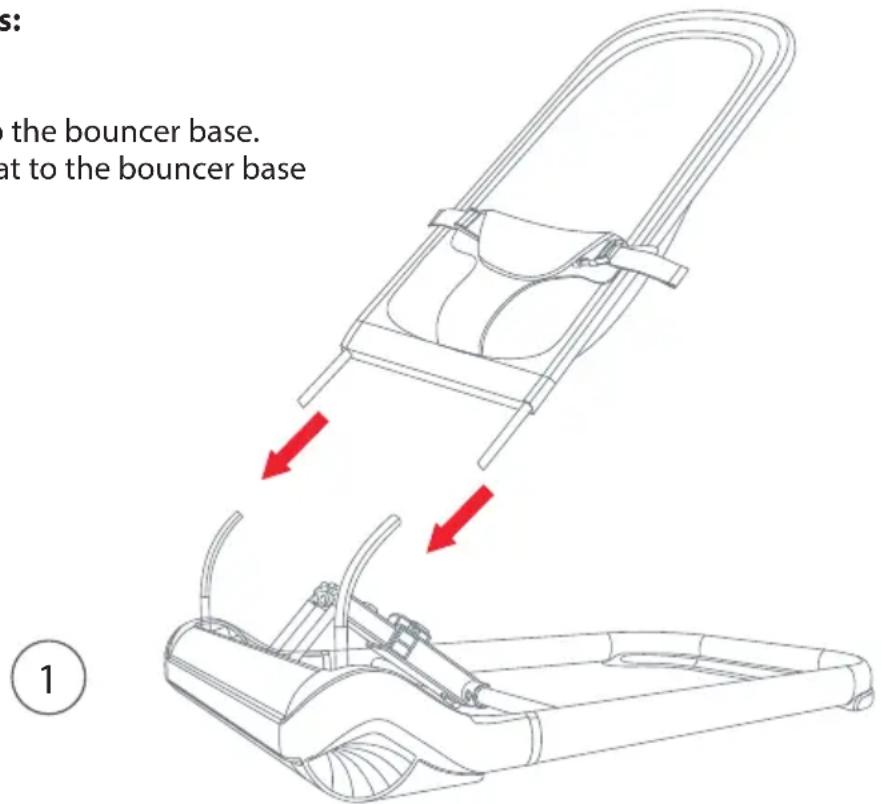

Assembly instructions:

1. Place the frame into the bouncer base.
2. Attach the fabric seat to the bouncer base

s: on the bouncer base. at to the bouncer base ①

Technical diagram showing a mechanical assembly with a red circle highlighting a component and a numbered label (2) in the corner.

POSITIONS

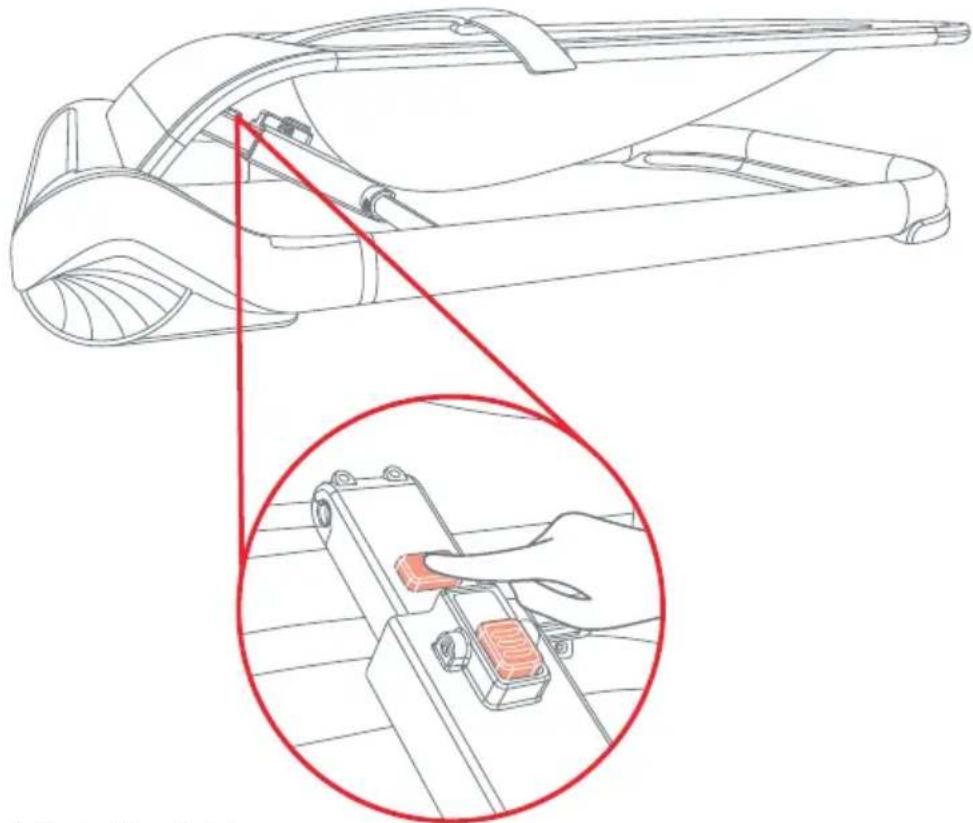

Press the fold button to unfold the baby bouncer or to fold the baby bouncer back into the storage/transport position.

Technical line drawing of a mechanical device with a magnified inset showing a hand holding a component (no text or symbols present)

Important! Only an adult shall unfold.

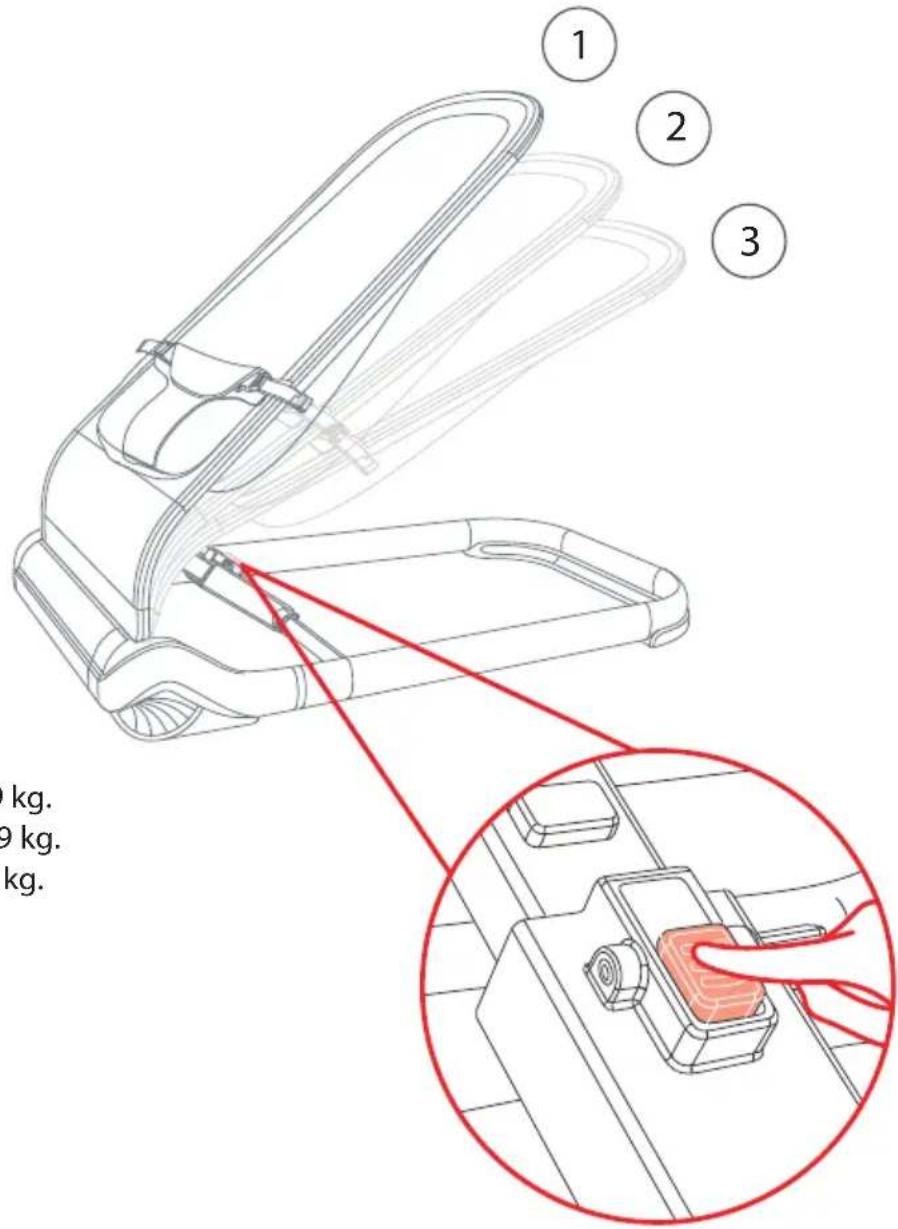

This LUVION® Baby Bouncer has four positions. The lowest position, 3, is recommended for newborns sitting in the baby bouncer. Positions 1 and 2 can be used when the child can hold his or her back and head upright in these positions without a problem. It is not dangerous to exceed the recommended maximum weight for te lowest position, but the rocking function will not work as well.

kg. 9 kg. kg.

1. Highest position up to 9 kg.
2. Medium position up to 9 kg.
3. Lowest position up to 7 kg.

SAFETY BELT INSTRUCTIONS

Place the baby in the baby bouncer, make sure the crotch strap is between the baby's legs and flip the crotch strap up. Adjust the safety belt on both sides and fasten the safety belt.

Note: Make sure you use the safety belt correctly when the baby is in the baby bouncer for the safety of the baby. Unfasten the safety belt before taking the baby out of the baby bouncer.

SPECIFICATIONS

Weight: 3,2 kg

Height/length/width: Highest position: 62.5 x 71 x 47 cm

Transport mode: 48 x 10 x 72 cm

Application: Children up to 9 kg who cannot sit independently

Material: Fabric: 100% polyester

		Frame:	aviation	aluminum
		Onderstel:	Metal, Plastic	(PP, ASTM)
Certifi	cates:		EN12790-1:2023,

T

CONTENU DE L'EMBALLAGE

Technical diagram of a car seat assembly with numbered parts labeled 1, 2, 3, and 4

INTRODUCTION

Technical diagram showing a mechanical assembly with a red circle highlighting a component and a numbered label (2) at the bottom.

POSITIONS

Line drawing of a cleaning machine with a hand operating the switch, showing a close-up inset (no text or symbols)

Certifi cats : EN12790-1:2023, ASTM

PACKUNGSINHALT

Technical diagram of a car seat assembly with numbered parts labeled 1, 2, 3, and 4

EINFÜHRUNG

Technical diagram showing a mechanical assembly with a red circle highlighting a component and a numbered label (2) at the bottom.

POSITIONEN

Line drawing of a hair dryer with a magnified inset showing the hand interacting with a device (no text or symbols present)

Technical diagram of a device with numbered components and a magnified inset showing a highlighted internal component.

Transport mode: 48 x 10 x 72 cm

Material: Fabric: 100% polyester

Zertifi kate: EN12790-1:2023, ASTM

LUVION PREMIUM BABYPRODUCTS

Kleveringweg 7

2616 LZ Delft

The Netherlands

www.luvion.com
