USER MANUAL Baby Swing Luvion

Line drawing of a car steering wheel with blue musical notes floating around it (no text or symbols)

hANdleIdING

INStructIoN mANuAI

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

Technical line drawing of a car interior with a curved mechanical component and an inset showing a close-up of the interior detail (no text or symbols)

Kussen en Stoelhoes

Line drawings of two different types of baby seat covers, showing front and side views with no text or symbols.

Speeltjesbeugel

Diagram illustrating the use of a bird's seatbelt mechanism, showing components like a leaf, star, and umbrella with directional arrows.

Stroomvoorziening

Diagram showing a cable being inserted into a spherical device with a pointer and arrow indicating direction (no text or symbols present)

WAARSCHUWING

Line drawing of a baby in a baby Bahrain seat with a mobility device attached (no text or symbols)

Diagram of a mechanical assembly inside a circular frame, showing a piston and directional arrow (no text or symbols)

BedleNINGSPANeel

1 2 3 4 5 + - + - 15 30

PROBLEEM & OPLOSSING

• LUVION® Baby Swing
• Chair cover
• 2x Pluche Toy
• Remote control
• Pillow
• Adapter (USB)
• Screwdriver and 4 screws

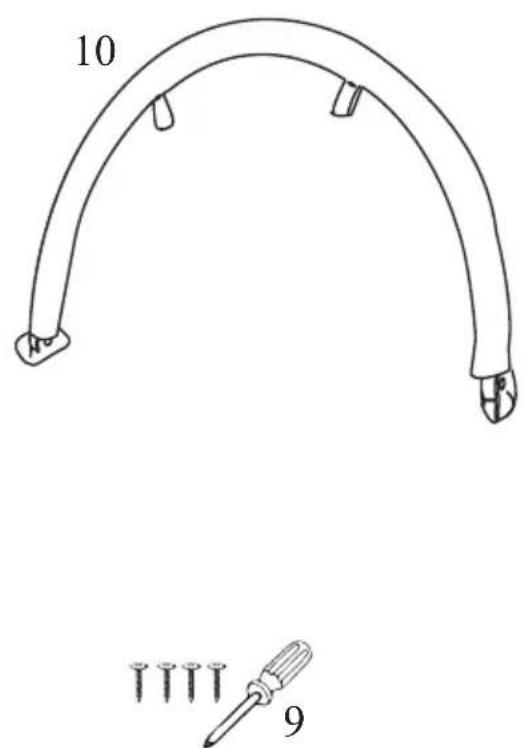

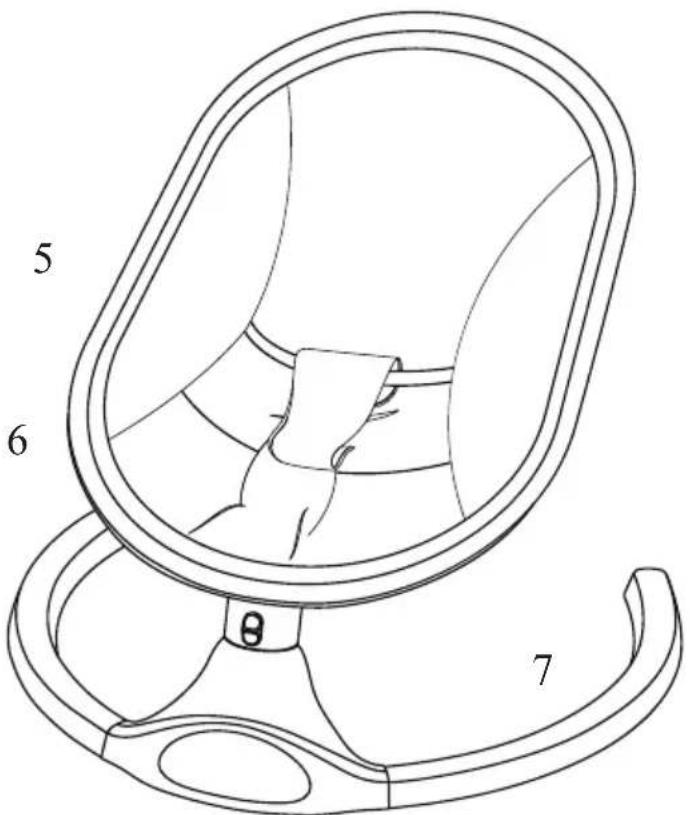

Product oVerVleW

Electric Baby Swing

1. Toys
2. Pillow
3. Remote control
4. Adapter (USB)
5. Seat cover
6. Seat frame
7. Stand
8. Control panel
9. Screwdriver and 4 screws
10. Toy bar

Simple line drawing of two decorative shapes: a striped leaf and a starfish (no text or symbols)

10 9

5 6 7

8

INTRODUCTION

Thank you for purchasing this Luvion Baby Swing. Make sure you always keep your original proof of purchase. For warranty cases you will always be asked to show a copy of your proof of purchase. For warranty claims you can contact the Luvion dealer or the local Luvion representative.

More information can be found at www.luvion.com

This manual contains all the information you need to be able to use this Luvion Baby Swing safely and with pleasure. Before using the Baby Swing, we recommend that you read this manual carefully. We ask for your extra attention for the safety instructions.

IMPORTANT SAFETY PRECAUTIONS

• Please read the instruction carefully before use;
• If you do not understand the instructions for use or precautions listed in this manual, do not use the device.
• Strangulation Hazards: Babies have been strangled in safety belts.
  • Fall Hazard: Babies have suff ered head injuries when falling from Baby Swings.
• Use the safety belts. Make sure the safety belts fit properly.
• Stop using the product if the baby tries to climb out (approximately from 9 months).
• Stay close and watch the baby during use. This product is not safe for sleeping or unattended use, NEVER leave your baby unattended.
• If the baby falls asleep, remove the baby as soon as possible and place the baby on a firm, fl at surface such as a crib or cot.
• Never lift or carry the baby in the Baby Swing.
• Stop using the product when baby begins to sit up or reaches 9 kg, whichever comes first.
  • Always place the Baby Swing on the floor. Never use on an elevated surface.
• Choking Hazard: Babies have suff ocated if Baby Swings tipped over on a soft surface.
• Never use on a bed, sofa, cushion or other soft surface.
• Stay close and watch the child during use. This product is not safe for unattended use or unattended sleeping.
• Ensure that children are kept away when assembling or unfolding this product to avoid injury.
• Do not let children play with this product.
• If the Baby Swing is connected to a music player, make sure the volume of the music player is set to the correct volume.
• Do not use the product if any parts are broken or missing.
• Do not use accessories or replacement parts other than those approved by the manufacturer.
• Choking Hazard: Young babies have limited head and neck control. If the seat is too upright, the baby's head may fall forward and compress the airway.
• This product does not replace a crib or cot.

MAINTENANCE AND CLEANING

Maintenance

• Check this baby swing regularly. Make sure each component is properly connected and properly installed. Do not use the Baby Swing if it is not installed correctly.
• This product contains electronic components that should not be used in water or in a hu-

mid environment. Make sure the product is dry and store it in a cool and dry place.

- Do not expose this product to direct sunlight.

Cleaning

Frame and stand:

- Clean the stand and seat frame with a wet cloth and mild detergent. Dry the frame thoroughly. Do not use corrosive, chemical or abrasive cleaning agents.

Chair cover, cushion and toys:

• Chair cover: Machine washable at 30 degrees on a gentle cycle.
• Cushion: Machine washable at 30 degrees on a gentle cycle.
  • Toys: Machine washable at 30 degrees on a gentle cycle.

INSTALLATION

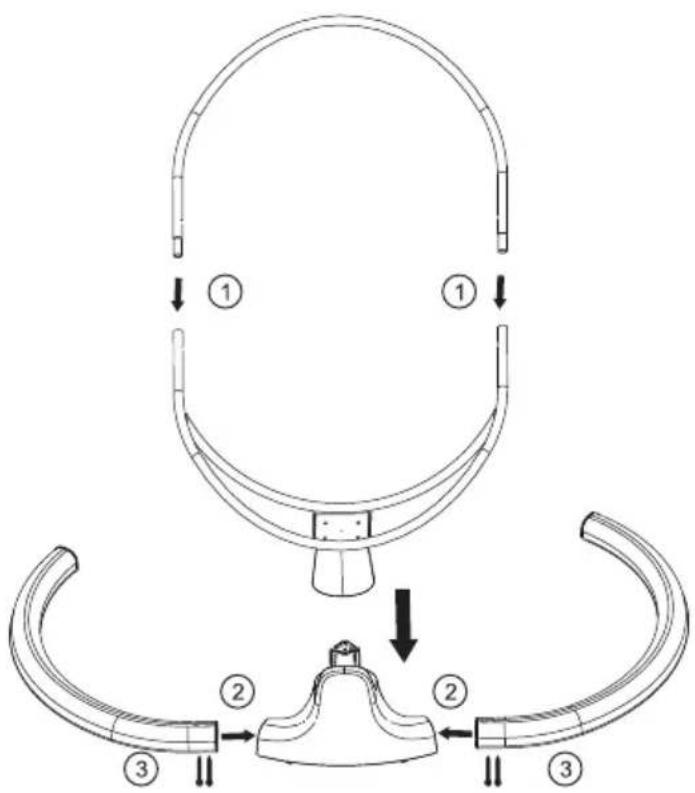

Assembly instructions:

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

1. Press the steel clips, insert the upper seat frame into the hole of the lower frame, make sure the clips pop back up, a distinct "click" will be heard when correctly positioned.
2. Insert the left and right tube into the main motor, make sure the foot tubes are aligned with the screw holes of the main motor at the bottom.
3. Fix the foot tubes with the 4 screws.

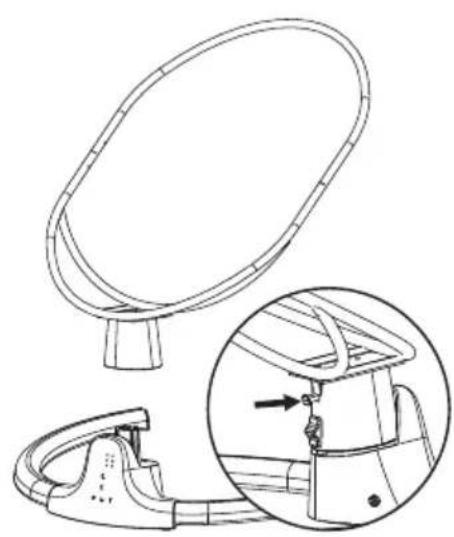

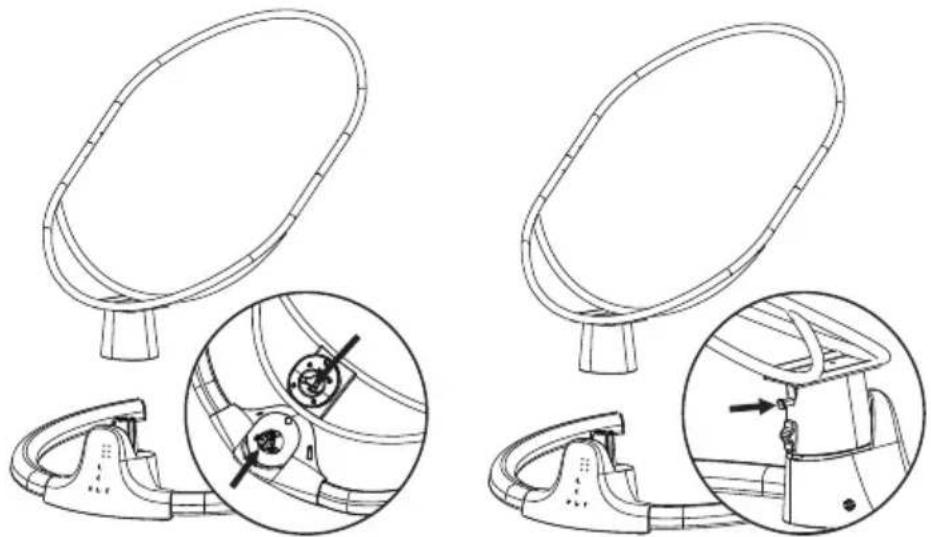

Placement on the stand

• Assembly: Place the seat frame in the stand, a clear click will be heard when correctly placed.
- Disassembly: Pull back the metal tab at the rear and pull the seat frame up.

Technical line drawings of a mechanical component with two views (top and side), showing internal components and assembly details (no text or symbols)

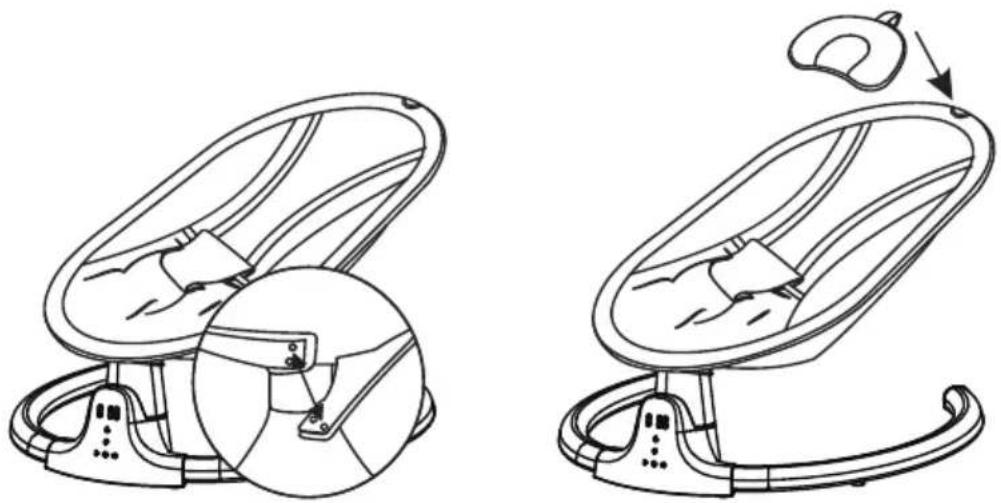

Cushion and Chair Cover

• Pull the seat cover over the seat frame and fasten the press studs at the back.
• Attach the cushion to the loop at the top of the seat cover and press the Velcro.
• To remove: Pull the Velcro to remove the cushion and undo the snaps to remove the seat cover.

Line drawings of two baby seat configurations, one open and one closed, with no text or symbols present.

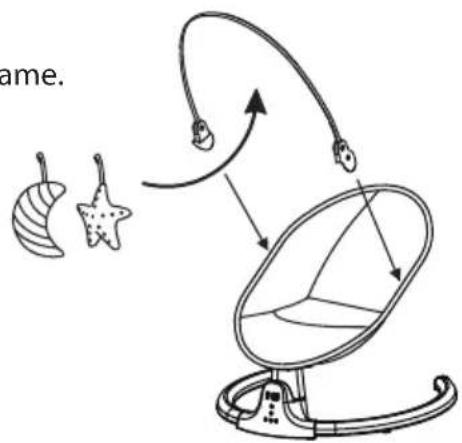

Toy bar

- Attach the toys to the toy bar and click the bar to the chair frame.

ame.

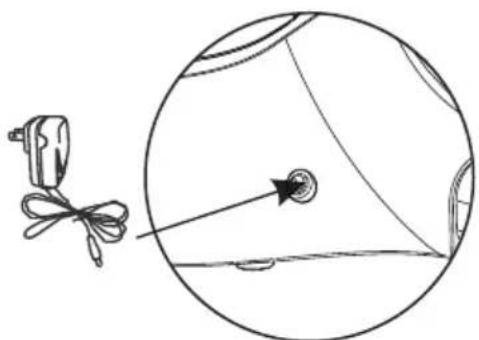

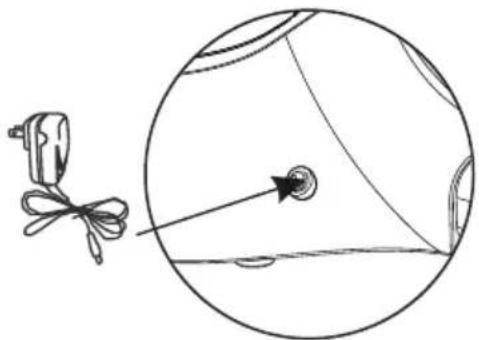

Power supply

- Connect the adapter cable to a wall socket (100-240V \~ 50/60Hz AC) and the adapter input on the back of the motor unit (5V, 1A).

Diagram showing a cable and a magnified view of a spherical object with an arrow pointing to a circular feature (no text or symbols present)

WARNING

• Only use the original supplied adapter and adapter cable
• Keep the adapter and adapter cable out of the reach of children

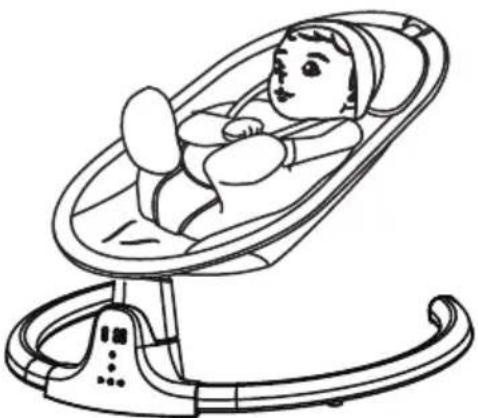

SAFETY BELT INSTRUCTIONS

Place the baby in the baby swing, make sure the crotch strap is between the baby's legs and flip the crotch strap up. Adjust the safety belt on both sides and fasten the safety belt.

Line drawing of a baby in a baby Bahrain seat with a swimming pool (no text or symbols)

Note: Make sure you use the safety belt correctly when the baby is in the Baby Swing for the safety of the baby. Unfasten the safety belt before taking the baby out of the Baby Swing.

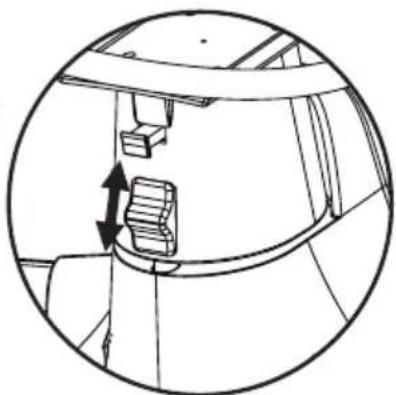

motIoN locK

Push down on the motion lock to lock the seat frame and stop the motion.

Pull up the motion lock to unlock the seat frame and the Baby Swing will start rocking again.

Technical line drawing of a mechanical component inside a circular frame, showing internal components and directional arrows (no text or symbols)

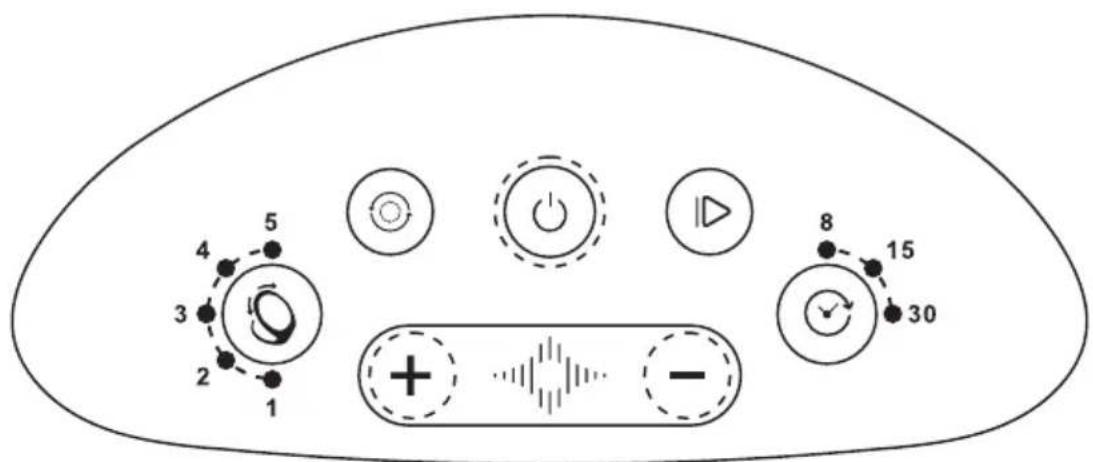

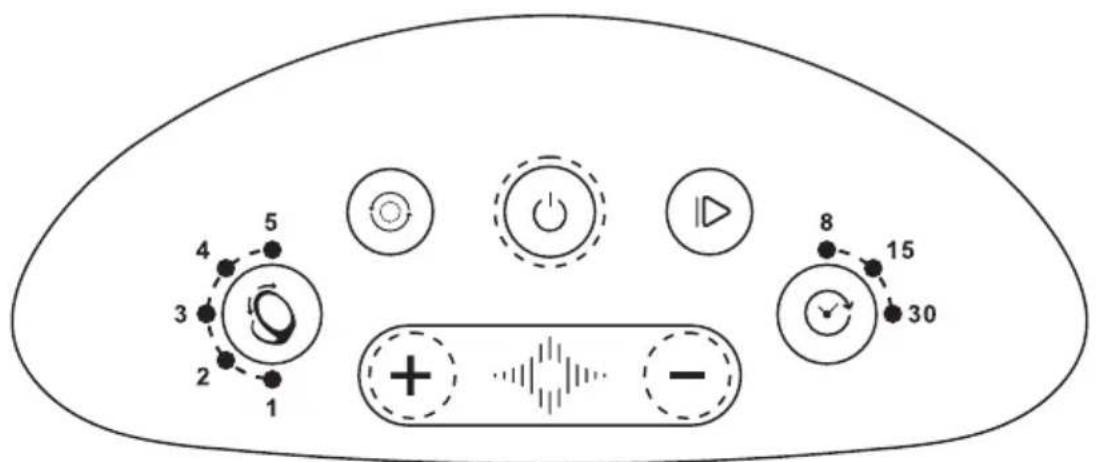

coNtrol PANel

1 2 3 4 5 + - 8 15 30

Press this button to turn the swing on or off.
Press this button to play the built-in music. Press again to stop the music.

Turn on bluetooth on the smartphone or tablet and connect to "BT-BA BY006". The swing beeps when it is properly connected via bluetooth. You can now play music through the speaker in the swing.

Music priority: Bluetooth > Built-in music

Press this button to set the speed of swing movement, there are 5 different swing speeds indicated by lights

Press this button to set the timer. Choose between 8, 15 and 30 minutes.
Press this button to play the next track.
+ Press this button to increase the volume.
— Press this button to decrease the volume.

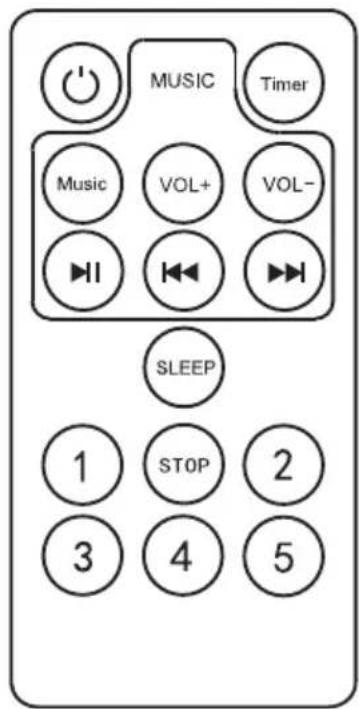

REMOTE CONTROL

Turn on / off

Play music / Pause

Previous song

Next song

Set timer, 8 min, 15 min, 30 min

Turn on / off music

Volume up

Volume down

②

③

④

⑤

Five swing speeds

Sleep mode (swing speed 2 with 15 minute timer)

Stop Swing: Press to stop swinging and press any Swing Speed button to resume swinging.

MUSIC Timer Music VOL+ VOL- SLEEP 1 STOP 2 3 4 5

TROUBLESHOOTING

Problem Solution

Does not turn on. Check whether the adapter and adapter cable are properly connected. The adapter cable may be damaged, please contact customer service.

The power light continues to blink. Only use the original adapter with an output voltage of 5V and 1A

Doesn’t swing. Check the Motion Lock, push it up to unlock the seat frame.

Crashes / Freezes. Switch off the Baby Swing and restart it.

SPecIFlcAtIoNS

Input voltage: 100 - 240V

Output voltage: 5V

Output Current: 1A

Frequency: 50/60Hz

Application: Children up to 9 kg or not able to sit independently.

Material: 100% polyester fi ber, soft fl annel, cotton, aviation aluminum base bracket.

Certificates: EN 12790, EN 16232
