HBQW5518D - Refrigerator HAIER - Free user manual and instructions

Product type	Built-in refrigerator-freezer
Brand	Haier
Model	HBQW5518D
Energy class	D (old scale)
Total volume	251 L
Fridge volume	178 L
Freezer volume	73 L
Dimensions (H x W x D)	1773 x 540 x 555 mm
Weight	Approximately 70 kg
Power supply	220-240 V ~, 50 Hz
Current	1.3 A
Refrigerant	R600a (isobutane)
Freezing capacity	6 kg/24h
Autonomy in case of power failure	8 to 9 hours
Climate class	SN/N/ST/T (10°C to 43°C)
Number of freezer stars	4
Special functions	Wi-Fi, Holiday, Super Cool, Super Freeze
Lighting	LED
Defrosting	Automatic
Cooling system	Multi-airflow
Special drawers	Humidity Zone, Fresh Box
Safety	Panel lock, open door alarm
Cleaning	Mild detergent, do not use steam
Spare parts	Available 7 years (thermostats, circuits, etc.), door seals 10 years

Frequently Asked Questions - HBQW5518D HAIER

How to adjust the refrigerator temperature?

Make sure the screen is unlocked. Press the K6 key (select refrigeration/freezing zone) until the refrigerator indicator lights up. Use the K4 (-) or K5 (+) keys to adjust the temperature from 1°C to 9°C. The default temperature is 5°C.

How to activate the Wi-Fi function?

Make sure the screen is unlocked. Press the K1 key (Wi-Fi) to activate Wi-Fi. The Wi-Fi icon flashes slowly. To enter configuration mode, press K1 for 3 seconds until the icon flashes rapidly. Then follow the instructions of the hOn app.

What to do in case of an audible alarm?

The alarm sounds if the refrigerator door remains open. Close the door. If the alarm persists, check that nothing prevents full closure. The beep stops automatically after a few minutes.

How to use the Super Freeze function?

To quickly freeze large quantities of food, activate the Super Freeze function 24 hours in advance. Press the K3 key (Super Freeze) when the screen is unlocked. The corresponding indicator lights up. The function stops automatically after 50 hours.

The refrigerator makes noise, is this normal?

Yes, some noises are normal: a slight hum from the compressor, a sound of water circulation (refrigerant gas) and a click during defrosting. If the noise is abnormal, check that the appliance is level and not touching furniture.

How to clean the inside of the refrigerator?

Unplug the appliance. Use a soft cloth dampened with warm water and mild detergent. Never use a steam cleaner, hard brushes or solvents. Rinse with clean water and dry thoroughly. Do not clean hot glass shelves with hot water.

What does the Holiday indicator mean?

The Holiday function keeps the refrigerator at about 17°C to save energy during your absences. Empty the refrigerator before activating it. To activate or deactivate, press the K7 key (Holiday) when the screen is unlocked.

How to unlock the control panel?

If the panel is locked (lock icon lit), press the K8 key (lock/unlock) for 3 seconds. A countdown 3-2-1 appears, then a beep sounds and the icon turns off. The panel is then unlocked.

What is the freezing capacity?

The freezer can freeze up to 6 kg of fresh food in 24 hours. For optimal freezing, use the Super Freeze function 24 hours in advance and do not exceed the capacity.

What to do in case of a power outage?

Food stays cold for about 5 hours if the door remains closed. Avoid opening the door and do not add fresh food. After power returns, check the condition of thawed food: consume or refreeze quickly.

USER MANUAL HBQW5518D HAIER

WARNING: Risk of fire/flammable material

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by igniting flammable material.

21 Care and cleaning

23 Troubleshooting

27 Installation

34 Technical data

36 Customer service

Before first use 5

Installation 5

Daily use 6

Refrigerant gas information 8

Lock/unlock panel 13

Adjust the temperature for fridge 13

Adjust the temperature for freezer 14

Wi-Fi function 15

Holiday function 15

Super Cool function 16

Super Freeze function 16

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.

Accessories

Check the accessories and literature in accordance with this list:

Ice cube tray

Egg tray

Energy label

Warranty card

Safety Warning Manual

Screw Cover

Sponge block Slide guide Slide asm.

Fixed plate Hinge cover Fixed plate II

Bottom fixed plate

Top fixed plate

Bottom cover

Bottom side cover

Seal strip

Seal sponge

Bottom hinge cover

WARNING – Important Safety information

NOTICE-General information and tips

Environmental information

Disposal

Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

WARNING!

Risk of injury or suffocation!

Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets from getting closed in the appliance.

Before switching on the appliance for the first time, read the following safety hints!

WARNING!

Before first use

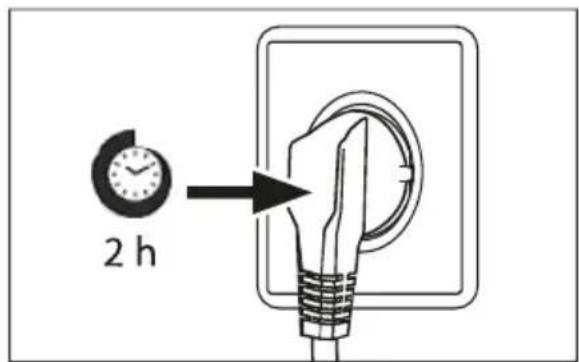

▶ Make sure there is no transport damage. - Wait at least two hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient. ▶ Handle the appliance always with at least two persons because it is heavy. Remove all packaging materials, keep them out of children's reach and dispose of them in an environmentally friendly manner. ▶ Clean the inside and outside of the appliance with water and a mild detergent before putting any food in it. ▶ After the appliance has been levelled and cleaned, wait for at least 2-5 hours before connecting it to the power supply. See Section INSTALLATION. ▶ Precool the compartments at high settings before loading with food. The function Power-Freeze helps to cool down the compartments quickly. The refrigerator temperature and freezer temperature are automatically set to 5°C and -18°C respectively. These are the recommended settings. If desired, you can change these temperatures manually. Please see ADJUST THE TEMPERATURE.

Installation

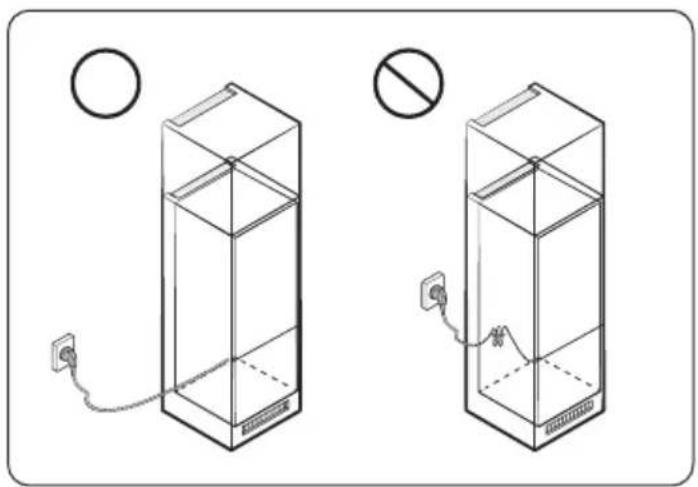

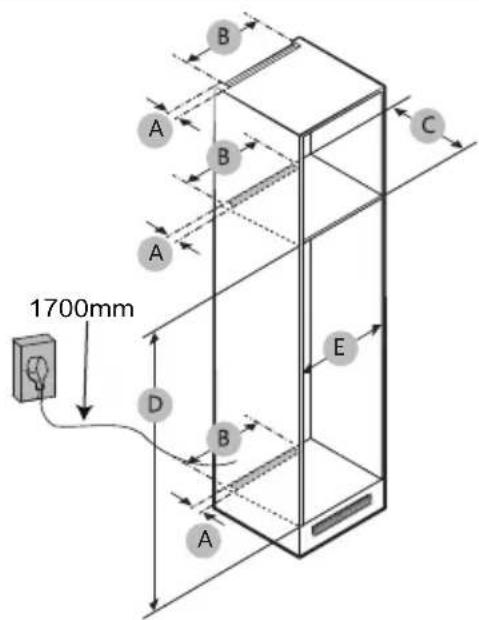

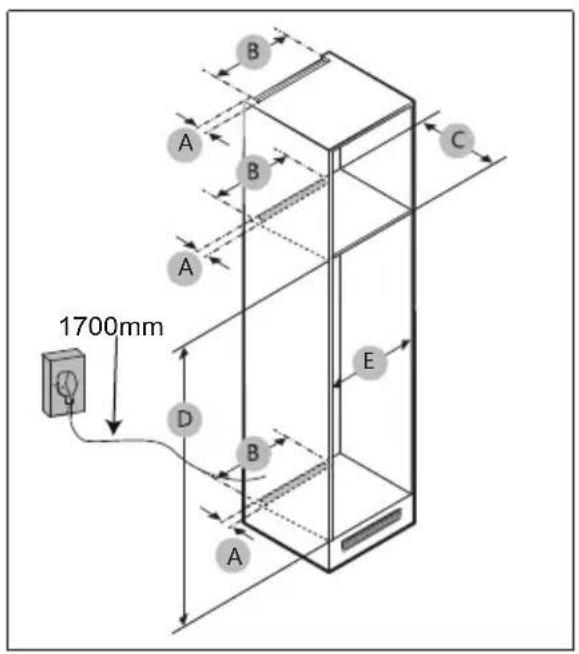

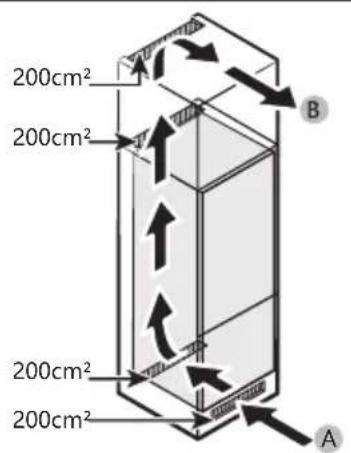

The appliance should be placed in a well-ventilated place. Ensure a space of at least 10 cm above and around the appliance. ▶ Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth. ▶ Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters). ▶ Install and level the appliance in an area suitable for its size and use. - Keep ventilation openings in the appliance or in the in-built structure clear of obstruction. ▶ Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician. The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted. ▶ Do not use multi-plug adapters and extension cables. ▶ Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. ▶ Ensure that the power cable is not trapped by the refrigerator. Do not step on the power cable.

WARNING!

Use a separate earthed socket for the power supply which is easily accessible. The appliance must be earthed. Only for UK: The appliance's power cable is fitted with a 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible. Do not damage the refrigerant circuit.

Daily use

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 to 8 years are allowed to load and unload, but not allowed to clean or install the refrigerating appliances. Keep away children under 3 years of age from the appliance unless they are constantly supervised. Children shall not play with the appliance. If cool gas or other inflammable gas is leaking in the vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows and do not unplug a plug in the power cable of the refrigerator or any other appliance. Notice that the appliance is set for operation at a specific ambient range between 10 and 43°C. The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range. Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator, to avoid personal injury caused by falling or electric shock caused by contact with water. Do not pull on the door shelves. The door may be pulled slant, the bottle rack may be pulled away, or the appliance may topple. Open and close the doors only with the handles. The gap between the doors and between the doors and the cabinet is very narrow. Do not extend your hands in these areas to avoid pinching your fingers. Open or close the refrigerator doors only when there are no children standing within the range of door movement.

WARNING!

▶Do not store or use inflammable, explosive or corrosive materials in the appliance or in the vicinity. ▶Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures. ▶Never store liquids in bottles or cans (besides high percentage spirits) especially carbonated beverages in the freezer, as these will burst during freezing. ▶Check the condition of food if a warming in the freezer has taken place. ▶Do not set unnecessarily low temperature in the refrigerator compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst ▶Do not touch frozen goods with wet hands (wear gloves). Especially do not eat ice lollies immediately after removal from the freezer compartment. There is the risk to freeze or the formation of frost blisters. FIRST aid: keep immediately under running cold water. Do not pull away! ▶Do not touch the inside surface of the freezer storage compartment when in operation, especially with wet hands, as your hands may freeze onto the surface. ▶Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor. ▶Do not use electrical devices inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Maintenance / cleaning ▶Make sure children are supervised if they carry out cleaning and maintenance. ▶Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 5 minutes before restarting the appliance, as frequent starting may damage the compressor.

WARNING!

▶Hold the plug, not the cable, when unplugging the appliance. ▶Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage. ▶Do not scrape off frost and ice with sharp objects. Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts.

▶ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

▶If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

▶Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service.

Eliminate the dust on the back of the unit at least once in the year to avoid hazard by fire, as well as increased energy consumption.

▶Do not spray or flush the appliance during cleaning.

▶Do not use water spray or steam to clean the appliance.

Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.

Refrigerant gas information

WARNING!

The appliance contains the flammable refrigerant ISOBUTANE (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away open fire sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service.

In case of eyes get into contact with the refrigerant, rinse immediately it under running water and call immediately the eye specialist.

Intended use

This appliance is intended for cooling and freezing food. It has been designed exclusively for use in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments as well as in bed-and-breakfast and catering business. It is not intended for commercial or industrial use. Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims.

Standards and directives

This product meets the requirements of all applicable EC directives with the corresponding harmonised standards and UK standards, which provide for CE or UKCA marking.

NOTICE

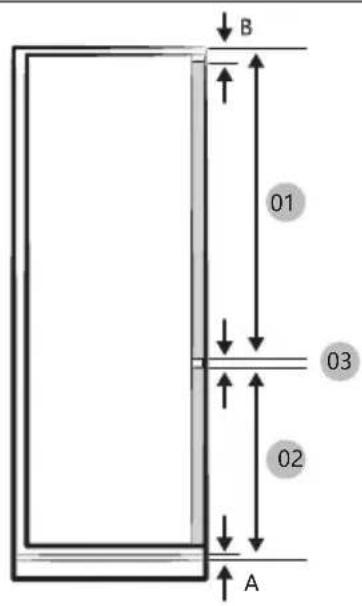

Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

Class E:HBQW5518E/HBQW5518E/HBQW5518EK/HQE1855BCMW/HQE1855BCMWIT Class D:HBQW5518DK/HBQW5518D/HBQW7518D

A: Refrigerating chamber

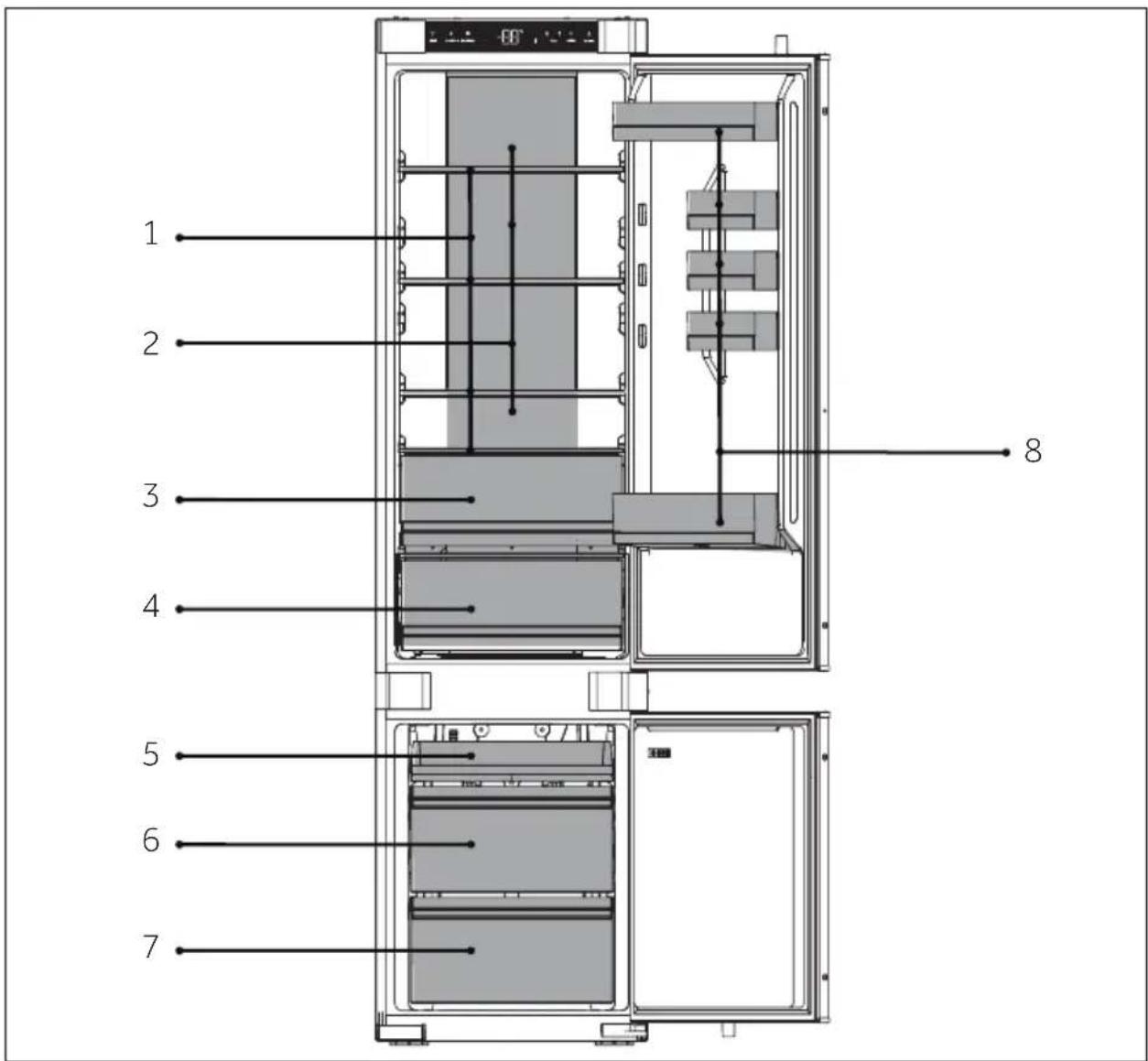

1 Ordinary shelves 2 Refrigerated air duct 3 Humidity Zone drawer 4 Fresh Box drawer 8 Bottle holder

B: Freezing chamber

5 Upper freezer tray 6 Middle freezer drawer 7 Lower freezer drawer

NOTICE

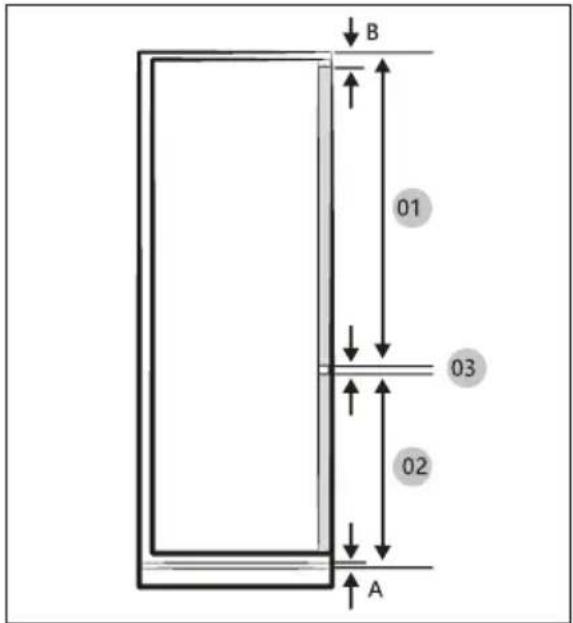

Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

Class E:HBQW5519E/HBQW5519EK/EHBQW5519E/EHBQW5519ECM

Class D:HBQW7519D

A: Refrigerating chamber

1 Ordinary shelves 2 Refrigerated air duct 3 Humidity Zone drawer 4 Fresh Box drawer 8 Bottle holder

B: Freezing chamber

5 Upper freezer tray 6 Middle freezer drawer 7 Lower freezer drawer

Control panel

Indicators:

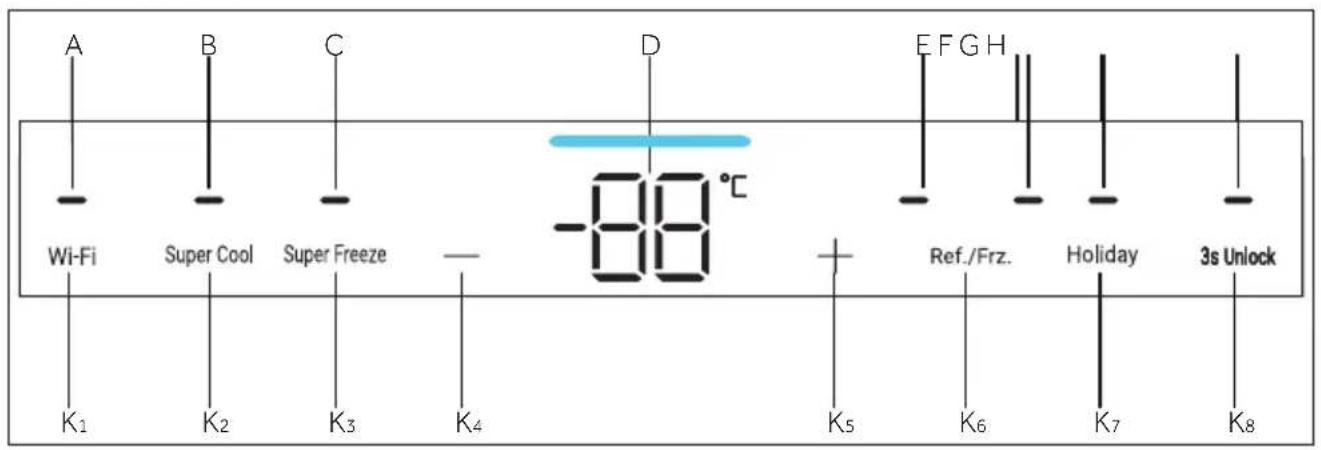

A Wi-Fi function Indicators B Super Cool function Indicators C Super Freeze function Indicators D Refrigeration/Freeze temperature display Indicators E Refrigeration temperature zone Indicators F Freeze temperature zone Indicators G Holiday function Indicators H Lock function Indicators

Buttons:

K1 Wi-Fi setting button K2 Super Cool function button K3 Super Freeze function button K4 Temperature adjustment button "-" K5 Temperature adjustment button "+" K6 Refrigeration/Freeze temperature zone select button K7 Holiday function button K8 Lock and Unlock button

Sensor keys

The buttons on the control panel are sensor keys, which already respond when lightly touched with the finger.

Switch on/off the appliance

The appliance is in operation as soon as it is connected to the power supply.

When the refrigerator is first powered on, the indicator lights on from left to right. The fridge temperature and freezer temperature are automatically set to 5°C and -18°C respectively.

NOTICE

When the appliance is switched on after disconnection from the main power supply, it may take up to 12 hours for the correct temperatures to be reached.

Empty the appliance before switching off. To switch off the appliance, pull the power cord out of the power socket.

Lock/unlock panel

Automatic lock: There is no key operation within 30 seconds, the display screen will be automatically extinguished and locked.

Manual lock: When the display screen is unlocked, press the button "K8" (Lock and Unlock) and hold for 3 seconds, countdown 3-2-1, the buzzer rings once, the indicator "H" (Lock function) illuminates, and the display is locked.

Unlock: When the display screen is locked, press the button "K8" (Lock and Unlock) and hold for 3 seconds, countdown 3-2-1, the buzzer rings once, the indicator "H" (Lock function) goes off, and the display is unlocked.

Adjust the temperature

The indoor temperatures are influenced by the following factors:

Ambient temperature, frequency of door opening, amount of stored foods, and installation of the appliance.

Adjust the temperature for fridge

When the display screen is unlocked, press the button "K6" (Refrigeration/Freeze temperature zone select button). The buzzer rings once, the indicator "E" (Refrigeration temperature zone) illuminates, and then the temperature setting mode of the fridge is entered.

Press the button "K4" (Temperature adjustment button "-") each time; the buzzer rings once, and the set temperature of the fridge decreases by 1. The fridge temperature will display in the sequence of "9°C->8°C->7°C->6°C->5°C->4°C->3°C->2°C->1°C".

Press the button "K5" (Temperature adjustment button "+") each time; the buzzer rings once, and the set temperature of the fridge increases by 1. The fridge temperature will display in the sequence of "1°C->2°C->3°C->4°C->5°C->6°C->7°C->8°C->9°C".

NOTICE

After setting the temperature, if there is no operation within 5 seconds, the system will automatically confirm and save the set temperature.

Adjust the temperature for freezer

When the display screen is unlocked, press the button "K6" (Refrigeration/Freeze temperature zone select). The indicator "F" (Freeze temperature zone indicator) illuminates, and then the temperature setting mode of the freezer is entered. Press the button "K4" (Temperature adjustment button "-") each time; the set

temperature of the freezer decreases by 1. The freezer temperature will display in the sequence of "-14°C->-15°C->-16°C->-17°C->-18°C->-19°C->-20°C->-21°C->-22°C->-23°C->-24°C".

Press the button "K5" (Temperature adjustment button "+") each time; the set temperature of the freezer increases by 1. The freezer temperature will display in the sequence of "-24°C->-23°C->-22°C->-21°C->-20°C->-19°C->-18°C->-17°C->-16°C->-15°C->-14°C".

NOTICE

After setting the temperature, if there is no operation within 5 seconds, the system will automatically confirm and save the set temperature.

Step 1: Download the hOn-App from the app stores.

Step 2: Create your account in the hOn-App or log in if you already have an account.

Step 3: Follow the pairing instructions in the hOn-App.

Wi-Fi function

1. Follow the instructions in the app to configure the Wi-Fi.
2. Once the Wi-Fi is configured and the connection is established, the Wi-Fi icon "A" is bright and fixed.
3. If the Wi-Fi has already been configured, it will automatically reconnect according to the configuration information when the Wi-Fi is turned on.
4. To turn off the Wi-Fi, press the Wi-Fi button "K1" and the Wi-Fi icon "A" turns off.
5. To turn on the Wi-Fi and start the configuration, press the Wi-Fi button "K1" and the Wi-Fi icon "A" starts flashing slowly. If you want to configure the Wi-Fi function, press the button "K1" for 3 seconds; the Wi-Fi icon flashes quickly and enters the configuration mode. If you want to turn off the Wi-Fi function, press button "K1" once. The above steps are repeated.
6. If the product has been configured and the Wi-Fi function was turned off, the refrigerator will not enter the configuration mode after reconnecting the power.

Holiday function

1. When the display screen is unlocked, press the button "K7" (Holiday function button); the buzzer rings once, the indicator "G" (Holiday function) illuminates, and then the Holiday function will be turned on.
2. When the display screen is unlocked, press the button "K7" (Holiday function button); the buzzer rings once, the indicator "G" (Holiday function) goes off, and then the Holiday function will be turned off.

NOTICE

1. The Holiday function is mainly used for short-term travel and other life scenes, and the fridge room must be emptied when using the holiday function.
2. In the Holiday function, the temperature of the fridge room will be higher (about 17°C). Please pay attention to empty the food in the fridge room to avoid food deterioration.

Super Cool function

1. When the display screen is unlocked, press the button "K2" (Super Cool selector); the buzzer rings once, the indicator "B" (Super Cool function) illuminates, and then the Super Cool function will be turned on.
2. When the indicator "B" (Super Cool function) illuminates, press the button (Super Cool function); the buzzer rings once, the indicator "B" (Super Cool function) goes off, and then the Super Cool function will be turned off.
3. After the Super Cool function is turned on, the refrigerator will automatically turn off the function when it reaches the set temperature. If you want to exit manually, you can press the button "K₂" (Super Cool selector) to turn it off.

NOTICE

1. Under Super Cool state, the fridge temperature cannot be adjusted. If either button "K4" ("Temperature adjustment button "-") or button (Temperature adjustment button "+") is pressed to adjust the temperature of fridge, the indicator "B" (Super Cool indicator) will flash with a prompt sound to indicate that this operation cannot be carried out.
2. In the state of Super Cool function, the Auto-set function cannot be turned on at the same time due to different modes. When you choose one function that conflicts with another function, the original function will automatically exit.
3. This function will be automatically disabled after 6 hours.

Super Freeze function

1. When the display screen is unlocked, press the button "K3" (Super Freeze selector), the buzzer rings once, the indicator "C" (Super Freeze function) illuminates, and then the Super Freeze function will be turned on.
2. When the indicator "C" (Super Freeze function) illuminates, press the button (Super Freeze selector), the buzzer rings once, the indicator "C" (Super Freeze function) goes off, and then the Super Freeze function will be turned off.
3. After the Super Freeze function is turned on, the refrigerator will automatically turn off the function when it reaches the set temperature. If you want to exit manually, you can press the button "K3" (Super Freeze selector) to turn it off.

NOTICE

1. Under Super Freeze state, the freezer temperature cannot be adjusted. If either button "K4" (Temperature adjustment button "-") or button "K5" (Temperature adjustment button "+") is pressed to adjust the temperature of freezer, the indicator "C" (Super Freeze function) will be issued a prompt to indicate that this operation cannot be carried out.
2. Super Freeze function is designed to keep the nutritional value of frozen food; it will freeze food in the shortest time. If large quantities of frozen food are to be frozen at one time, the Super Freeze function should be set 24 hours in advance to make the freezer have a relatively low temperature and then put the food in. At this time, the freezing speed of the freezer is improved, food can be frozen quickly, the nutrition of food is effectively kept, and the storage becomes quite convenient.
3. The Super Freeze function will automatically switch off after 50 hours. The appliance is then operated at the previously set temperature.

Humidity Zone drawer

In this compartment, the humidity level is higher than in the fridge compartment. It is controlled automatically by the system and is suitable for storing fruits, vegetables, salads, etc.

NOTICE

1. Do not remove the plastic cover inside the zone.
2. They maintain the humidity.
3. Clod-sensitive fruits like pineapple, avocado, bananas, grapefruits are not recommended to be stored in the drawer.

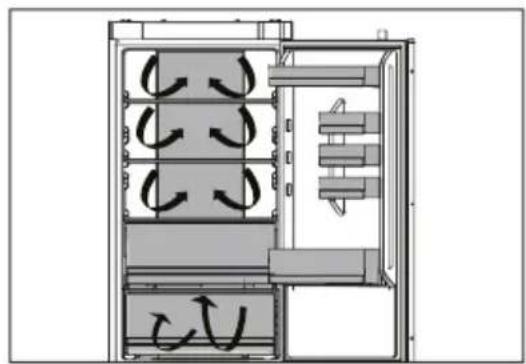

Multi-air-flow

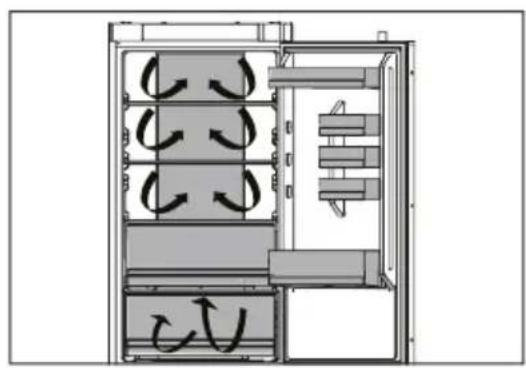

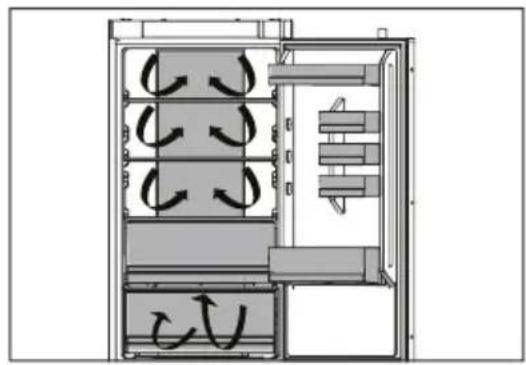

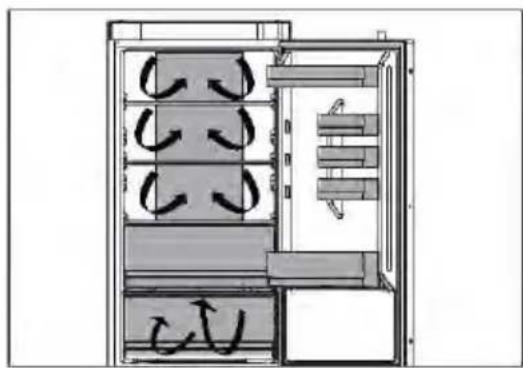

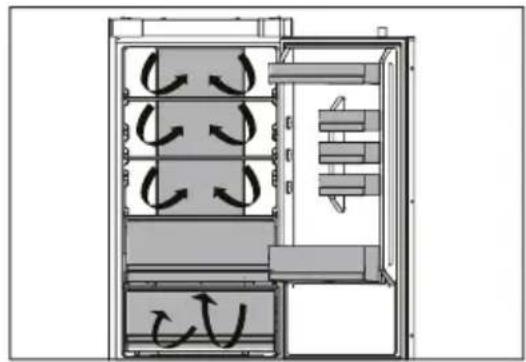

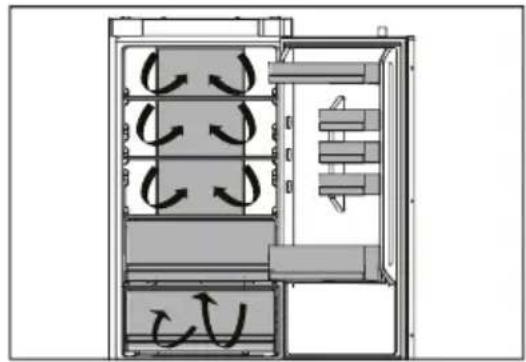

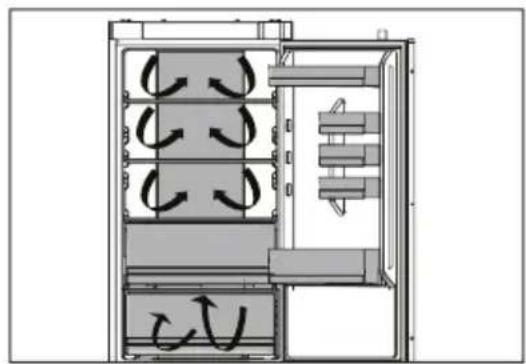

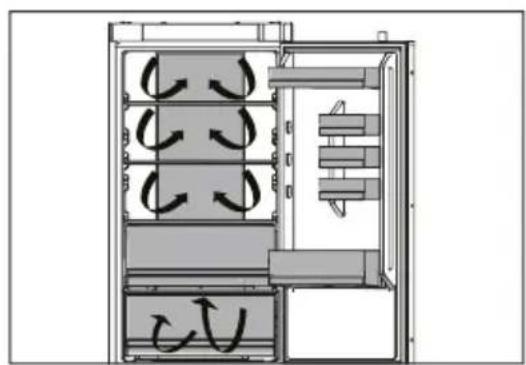

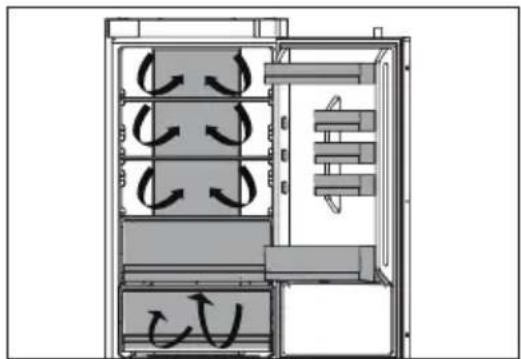

1. The refrigerator is equipped with a multi-air-flow system, with which cool air flows are located on every shelf level. This helps to maintain a uniform temperature to ensure that your food is kept fresher for longer.

Adjustable shelves

1. The height of the shelves can be adjusted to fit your storage needs.

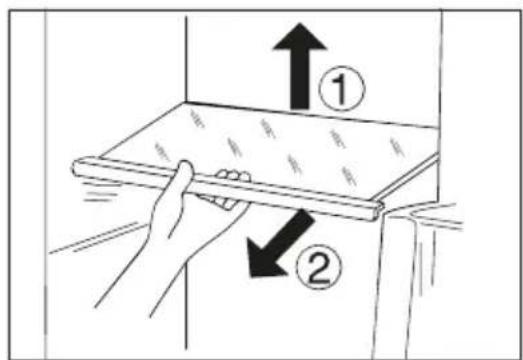

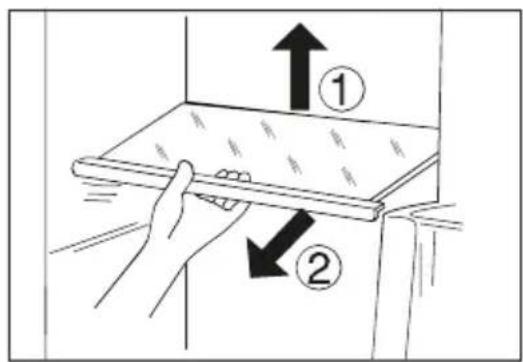

2. To relocate a shelf, remove it first by uplifting its hind edge ① and pulling it out ②
3. To reinstall it, put it on the lugs on both sides and push it to the most rearward position until the rear of the shelf is fixed inside the slots in the sides

NOTICE

Ensure that all ends of a shelf are level.

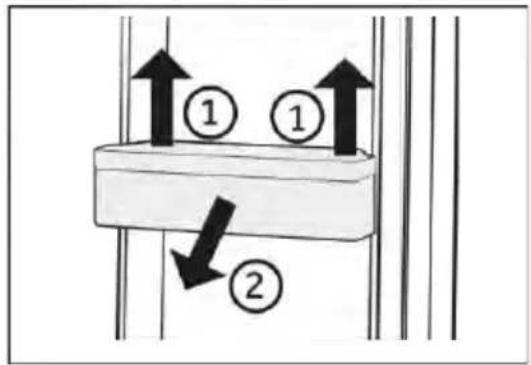

Removable door racks/bottle holder

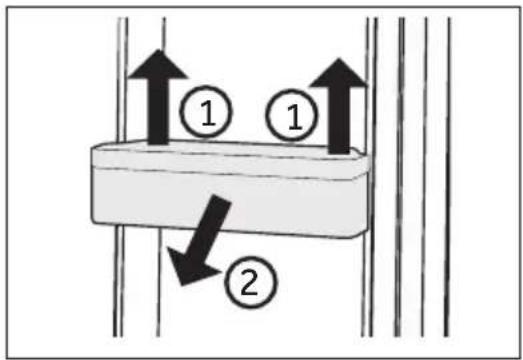

1. The door racks can be removed for cleaning:
2. Place hands on each side of the rack, lift it upwards ① and pull it out ②.
3. To insert the door rack, perform the above steps in reverse order.

NOTICE

When the appliance is switched on, it may take up to 12 hours for the correct temperatures to be reached.

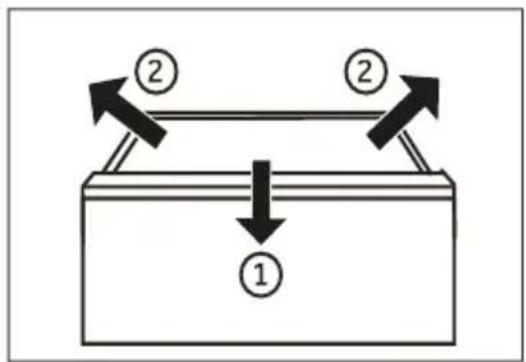

Removable drawer

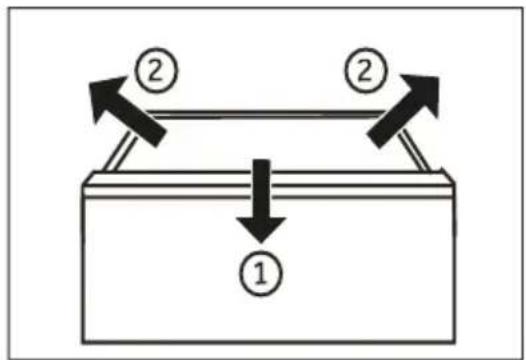

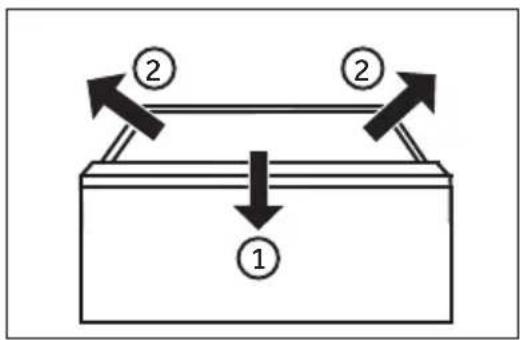

To remove the drawer, pull it out to the maximum extent ①, then lift and remove it ②.

To insert the drawer, perform the above steps in reverse order.

The Light

The LED interior light comes on when the door is opened. The performance of the lights is not affected by any of the appliance's other settings.

Energy saving tips

▶ Make sure the appliance is properly ventilated (see INSTALLATION). ▶ Do not install the appliance in direct sunlight or near heat sources (e.g., stoves, heaters). ▶ Avoid unnecessarily low temperature in the appliance. The energy consumption increases the lower the temperature is set. ▶ Functions like Super Freeze consume more energy. ▶ Allow warm food to cool down before placing it in the appliance. ▶ Open the appliance door as little and as briefly as possible. ▶ Do not overfill the appliance to avoid obstructing the air flow. ▶ Avoid air within the food packaging. ▶ Keep seals clean so that the door always closes correctly. ▶ Defrost frozen food in the fridge storage compartment. The most energy-saving configuration requires the appliance to keep drawers, food boxes, and shelves in factory-fresh condition, and food should be placed as far as possible without blocking the air outlet of the duct.

WARNING!

Disconnect the appliance from the power supply before cleaning.

Cleaning

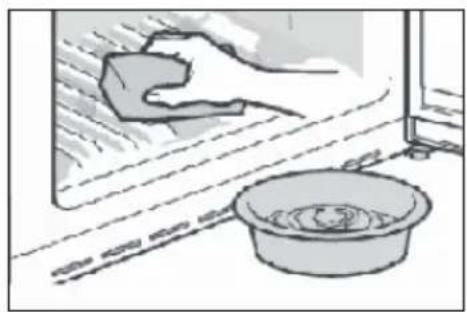

Clean the appliance when only little or no food is stored.

The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odors.

WARNING!

▶ Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage. ▶ Do not spray or flush the appliance during cleaning. ▶ Do not use water spray or steam to clean the appliance. ▶ Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break. ▶ Do not touch the inside surface of the freezer storage compartment, especially with wet hands, as your hands may freeze onto the surface. ▶ In case of heating, check the condition of frozen goods.

▶ Always keep the door gasket clean. - Clean the inside and housing of the appliance with a sponge dampened in warm water and neutral detergent. ▶ 1. Please scrub the interior and exterior of the refrigerator, including door sealing, door rack, glass shelves, boxes and so on, with a soft towel or sponge dipped in warm water (you may add neutral detergent into the warm water).

▶ 2. If there is liquid spilled, remove all the contaminated parts, directly rinse with the flow water, dry and place it back into the fridge. ▶ 3. If there is spilled cream (such as the cream, melting ice cream), please remove all the contaminated parts, put into the warm water with about 40 °C for some time, then rinse with the flow water, dry and place it back into the fridge. ▶ 4. In case some small part or component gets stuck inside of the fridge (between shelves or drawers), use small soft brush to release it. If you could not reach the part, please contact Haier service. ▶ Rinse and dry with soft cloth. ▶ Do not clean any of the parts of the appliance in a dishwasher. ▶ Allow at least 5 minutes before restarting the appliance as frequent starting may damage the compressor.

Defrosting

The defrosting of the refrigerator and the freezer compartment are done automatically; no manual operation is needed.

Replacing the LED-lamps

WARNING!

Do not replace the LED lamp yourself, it must only be replaced by either the manufacturer or the authorised service agent.

The lamps adopt LED as their light source, featuring low energy consumption and long service life. If there is any abnormality, please contact the customer service. See CUSTOMER SERVICE.

Parameters of the lamps:

Refrigerator compartment: 12 V max 2W

Non-use for a longer period

If you do not use the appliance for a long time, AND you do not want to use the Holiday-function:

Take out the food.

Unplug the power cord.

Clean the appliance as described above.

Keep the doors open to prevent the creation of bad odours inside.

NOTICE

Turn the appliance off only if strictly necessary.

Moving the appliance

1. Remove all food and unplug the appliance.
2. Secure shelves and other moveable parts in the fridge and the freezer with adhesive tape.
3. Do not tilt the refrigerator more than 45° to avoid damaging the refrigerating system.

WARNING!

▶ Do not lift the appliance by its handles.

▶ Never place the appliance horizontally on the ground.

Many occurring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE.

WARNING!

▶ Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket. Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages. ▶ A damaged supply should only be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Problem Possible Cause Possible Solution
The compressor does not work.	Mains plug is not connected in the mains socket.The appliance is in the defrosting cycle	Connect the mains plug.This is normal for an automatic defrosting
The appliance runs frequently or runs for a too long period of time.	The indoor or outdoor temperature is too high.The appliance has been off power for a period of time.A door of the appliance is not tightly closed.The door has been opened too frequently or for too long.The temperature setting for the freezer compartment is too low.The door gasket is dirty, worn, cracked or mis-matched.The required air circulation is not guaranteed.	In this case, it is normal for the appliance to run longer.Normally, it takes 8 to 12 hours for the appliance to cool down completely.Close the door/drawer and ensure the appliance is located on a level ground and there is no food or container jarring the door.Do not open the door/drawer too frequently.Set the temperature higher until a satisfactory refrigerator temperature is obtained. It takes 24 hours for the refrigerator temperature to become stable.Clean the door/drawer gasket or replace them by the customer service.Ensure adequate ventilation.
The inside of the refrigerator is dirty and/or smells.	The inside of the refrigerator needs cleaning.Food of strong odour is stored in the refrigerator.	Clean the inside of the refrigerator.Wrap the food thoroughly..
It is not cold enough inside the appliance.	The temperature is set too high.Too warm goods has been stored.Too much food has been stored at one time.The goods are too close to each other.A door/drawer of the appli-ance is not tightly closed.The door/drawer has been opened too frequently or for too long.	Reset the temperature.Always cool down goods be-fore storing them.Always store small quantities of food.Leave a gap between several foods allowing air flowing.Close the door/drawer.Do not open the door/drawer too frequently.
It is too cold inside the appli-ance.	The temperature is set too low.The Super Freeze/Su-per Cool function is activated or is running too long.	Reset the temperature.Switch off the Super Freeze/Su-per Cool function
Moisture forma-tion on the inside of the refrigerator compartment.	The climate is too warm and toodamp.A door/drawer of the appli-ance is not tightly closed.The door/drawer has been opened too frequently or for too long.Food containers or liquids are left open.	Increase the temperature.Close the door/drawer.Do not open the door/drawer too frequently.Let hot foods cool to room temperature and cover foods and liquids.
Moisture accumulates on the refrigerators outside surface or between the doors/door and drawer.	The climate is too warm and too damp.The door is not closed tightly. The cold air in the appliance and the warm air outside it condensates.	This is normal in damp climate and will change when the hu -midity decreases.Ensure that he door/drawer is tightly shut.
Display light work, but do not feel cool.	It is in the demo mode.	Please note what condition it is in,if it is in Demo mode, exit it.Exit:Open the refrigerator door, in the locked state, press the second button on the right for 8S within 12 hours of power-on.
Strong ice and frost in the freezer compartment.	The goods were not adequately packaged.A door/drawer of the appliance is not tightly closed.The door/drawer has been opened too frequently or for too long.The door/drawer gasket is dirty, worn, cracked or mismatched.Something on the inside prevents the door/drawer to close properly.	Always pack the goods well.Close the door/drawer.Do not open the door/drawer too frequently.Clean the door/drawer gasket or replace them by new ones.Reposition the shelves, door racks, or internal containers to allow the door/drawer to close.
The sides of the cabinet and door strip get warm.	This is normal.
The appliance makes abnormal sounds.	The appliance is not located on level ground.The appliance touches some object around it.	Adjust the feet to level the appliance.Remove objects around the appliance.
A slight sound is to be heard similar to that of flowing water.	This is normal.
You will hear an alarm beep.	The fridge storage com- partment door is open.	Close the door.This prevents condensation and is normalConnect the mains plug.Check the electrical supply to the room. Call the local electricity company!Please call the service for changing the lamp.
You will hear a faint hum.	The anti-condensation system is working
The interior lighting or cooling system does not work.	Mains plug is not connected in the mains socket.The power supply is not intact.The LED-lamp is out of order.

To contact technical assistance, visit our website: https://corporate.haier-europe.com/en/

Under the "website" section, choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact technical assistance.

Power interruption

In the event of a power cut, food should remain safely cold for about 5 hours. Follow these tips during a prolonged power interruption, especially in summer:

▶ Open the door/drawer as few times as possible. ▶ Do not put additional food into the appliance during a power interruption. ▶ If prior notice of a power interruption is given and the interruption duration is longer than 5 hours, make some ice and put it in a container in the top of the refrigerator compartment. ▶ An inspection of the goods is required immediately after the interruption. As temperature in the refrigerator will rise during a power interruption or other failure, the storage period and edible quality of food will be reduced. Any food that defrosts should be either consumed, or cooked and refrozen (where suitable) soon afterwards in order to prevent health risks.

Memory function during power interruption

After restoration of power, the appliance continues with the settings that were set before the power failure.

Unpacking

WARNING!

The appliance is heavy. Always handle with at least two persons.

- Keep all packaging materials out of children's reach and dispose of them in an environmentally friendly manner.

▶ Take the appliance out of the packaging.

▶ Remove all packaging materials.

Environmental conditions

The room temperature should always be between 10°C and 43°C, since it can influence the temperature inside the appliance and its energy consumption. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation.

Space requirement

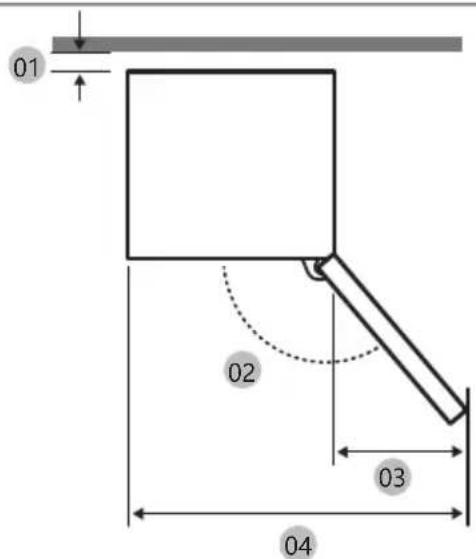

Required space when door is opened (Without cabinet door panel)

Model	HBQW5518E/HBQW5518E/HBQW5518EK/ HQE1855BCMW/HQE1855BCMWIT HBQW5518DK/HBQW5518D/HBQW7518D	HBQW5519E/HBQW5519EK/ EHBQW5519E/EHBQW5519ECM/ HBQW7519D
01 *	10 (Min.) / 30 (Recommended)	10 (Min.) / 30 (Recommended)
02	95°(Recommended)	95°(Recommended)
03	43	43
04	583	583
05	515	515
06	-3	-3
07	1060	1060

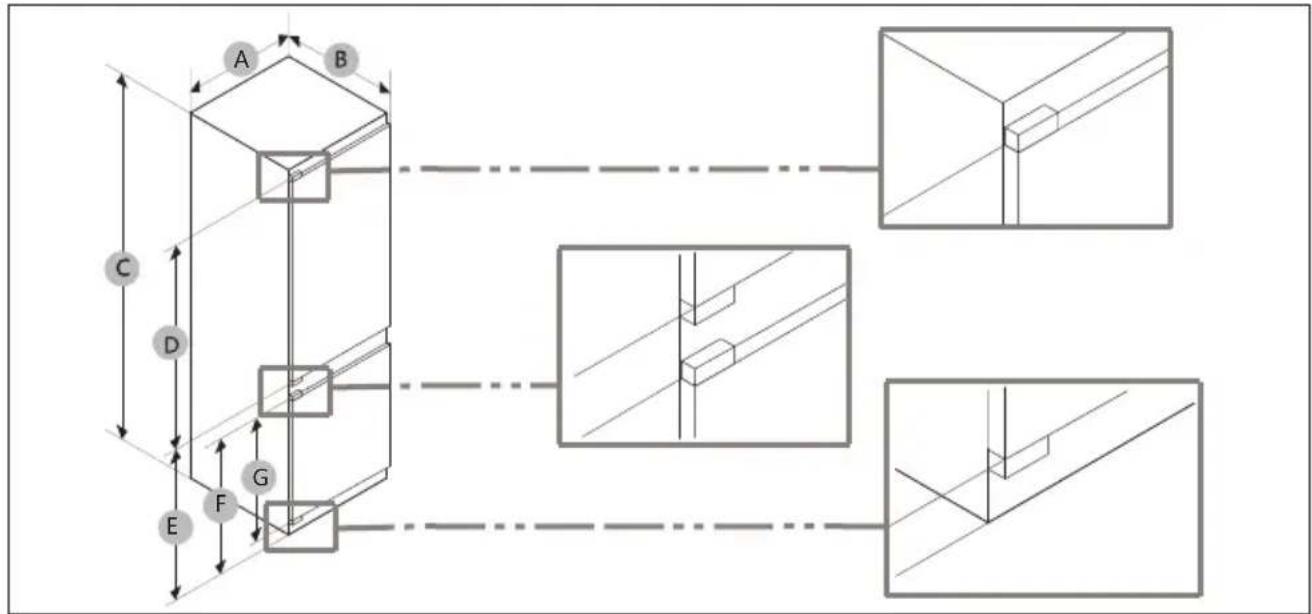

Product dimension

Model	A(mm) B(mm)		C(mm) D(mm)		E(mm) F(mm) G(mm)
HBQW5518E/HBQW5518E/ HBQW5518EK/ HQE1855BCMW/ HQE1855BCMWIT HBQW5518DK/HBQW5518D/ HBQW7518D	540 ± 2\ 550	± 2\ 1772 ± 2\ 745	662	970			618
HBQW5519E/ HBQW5519EK/ EHBQW5519E/ EHBQW5519ECM/ HBQW7519D	540 ± 2\ 550	± 2\ 1935 ± 2\ 1133	745 662				618

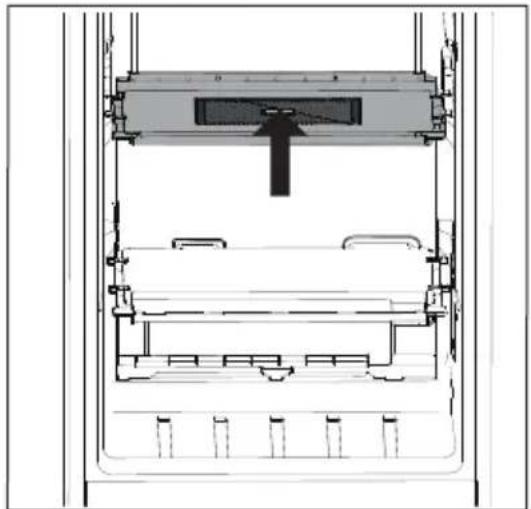

NOTICE

• The specified energy consumption is based on the condition of a 10 mm gap from cabinet to rear of product. The product will work properly even with a gap which is less than 10 mm but it consumes slightly more energy. • We recommend using a cabinet that is 18mm thick with hinges less than 20mm thick. • The measurements in the above table may differ, depending on the measuring method.
• For built-in installation, the Installation Guide.

Ventilation cross-section

To achieve sufficient ventilation of the appliance for safety reasons, the information of the required ventilation cross sections must be observed.

A: Ventilation Options B: Air outlet ≥200cm²; Ventilation options

Cabinet dimension

CAUTION!

Any product failure due to the following is not covered by the Warranty.

1. Improper site conditions or incorrect cabinet sizes.
2. Defective cabinet.
3. Mistakes by the installer or the user.

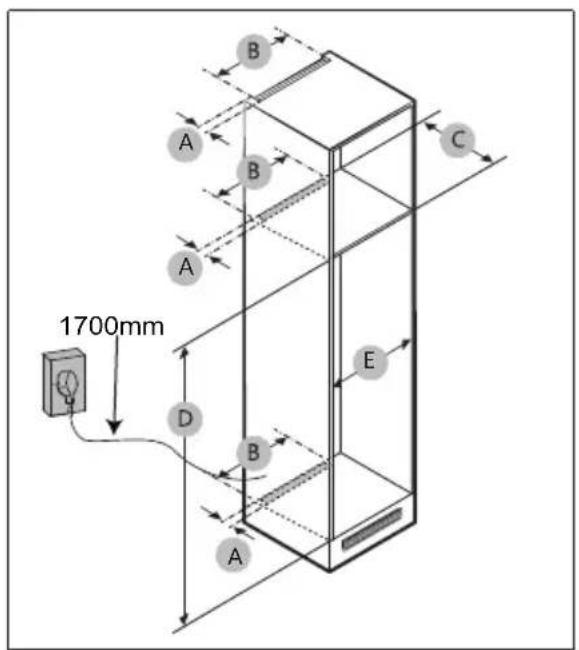

Clearance

See the pictures and tables below for space requirements for installation.

Model		A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	Remark
HBQW5518E/HBQW5518E/HBQW5518EK/HQE1855BCMW/HQE1855BCMWITHBQW5518DK/HBQW5518D/HBQW7518D	Min.	50 400		560 177	8	560	Hinge 7mm
	Recommend			580	1780	562
	Max.			-	1782	568
HBQW5519E/HBQW5519EK/EHBQW5519E/EHBQW5519ECM/HBQW7519D	Min.	50 400		560	1940	560	Hinge 7mm
	Recommend			580	1943	562
	Max.			-	1945	568

NOTICE

• If the width of a cabinet is larger than 568 mm, the gasket (between the refrigerator and the cabinet) can become loose.
• If the cabinet is higher than the maximum dimension (1782 mm), you must use other finishing materials to fill the gap. (for EHBQW5518E/HBQW5518E/EK/EHQE/HQE1855BCMW)
• If the cabinet is higher than the intrusion dimension (1945 mm), use other finishing materials to fill the gap. (for HBQW5519E/EK/EHBQW5519E/ECM)

NOTICE

To install a cabinet requiring a 4 mm gap (0.3), see the cabinet reference table below.

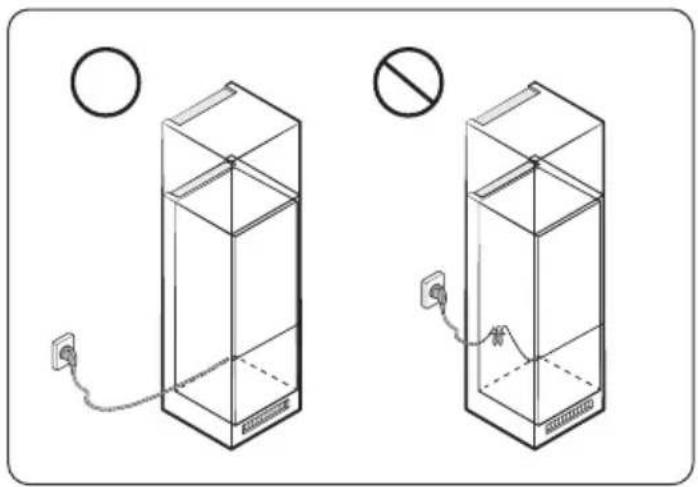

Consideration for socket outlet location and required space

NOTICE

If you install the refrigerator in a cabinet, make sure the power cord is arranged on a side of the refrigerator before plugging into a power socket. If the power cord is in the rear of the refrigerator, it could decrease the energy efficiency.

Waiting time

The maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during slanting transport. Before connecting the appliance to the power supply, you have to wait at least 2 hours so that the oil runs back into the capsule.

Electrical connection

Before each connection, check if:

▶ power supply, socket and fusing are appropriate to the rating plate. ▶ the power socket is earthed and no multi-plug or extension. ▶ the power plug and socket are strictly according.

Connect the plug to a properly installed household socket.

WARNING!

To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).

Product fiche according to regulation EU No. 2019/2016

Brand	Haier
Model name/identifier	* 5518* * 7518*	* 5519* * 7519*
Category of the model	Refrigerator freezer	Refrigerator freezer
Energy efficiency class	E/D	E/D
Annual energy consumption(kWh/year)(1)	229/183	229
Total volume(L)	251	285
Volume refrigerator(L)	178	211
Volume freezer(L)	73	74
Volume chiller section(L)	/	/
Volume auto ice maker(L)	/	/
Star rating	4	4
Temperature of other compartments>14°C	Non applicable	Non applicable
Frost-free system	Yes	Yes
Freezing capacity(kg/24h)	6	6
Climate rating(2)	SN/N/ST/T	SN/N/ST/T
Noise emission class and airborne acoustical noise emissions(db(A)re1pW)	B(35/33)	B(35/33)
Temperature rise time(h)	8/9	8/9
Ice making capacity	/	/
Type of appliance	Built-in	Built-in

Model name	Energy efficiency class
EHBQW5518EHBQW5518EHBQW5518EKHQE1855BCMWEHQE1855BCMW	E
HBQW5519EHBQW5519EKEBHQW5519EEHBQW5519ECM	E

Explanations:

- Yes, featured

(1) Based on the results of the standards conformance test over 24 hours. The actual consumption depends on the use and the location of the appliance. (2) Climate rating SN: This appliance is intended for use in an ambient temperature of between +10°C and +32°C Climate rating N: This appliance is intended for use in an ambient temperature of between +16°C and +32°C Climate rating ST: This appliance is intended for use in an ambient temperature of between +16°C and +38°C Climate rating T: This appliance is intended for use in an ambient temperature of between +16°C and +43°C

Additional technical data

Voltage / Frequency	220-240V ~/ 50Hz
Input current (A)	1.3
Main fuse (A)	16
Coolant	R600a
Dimensions (H/W/D in mm)	EHBQW5518E/HBQW5518E/EKEHQE/HQE1855BCMW: 1773/540/555
	HBQW5519E/EK/EHBQW5519E/ECM: 1935/540/555

We recommend our Haier Customer Service and the use of original spare parts. If you have a problem with your appliance, please first check section TROUBLE-SHOOTING.

If you cannot find a solution there, please contact

▶ your local dealer or ▶ our European Call Service-Center (see listed phone numbers below) or ▶ the Service & Support area at www.haier.com where you can activate the service ▶ claim and also find FAQs.

To contact our Service, ensure that you have the following data available. The information can be found on the rating plate.

Model ____

Serial No. ____

Also check the Warranty Card supplied with the product in case of warranty.

European Call Service-Center
Country*	Phone number Costs
Haier Italy (IT)	199 100 912
Haier Spain (ES)	902 509 123
Haier Germany (DE)	0180 5 39 3999	• 14 Ct/Min Landline• max 42 Ct/Min Mobile
Haier Austria (AT)	0820 001 205	• 14,53 Ct/Min Landline• max 20 Ct/Min all others
Haier United Kingdom (UK)	0333 003 8122
Haier France (FR)	0980 406 409

* For other countries please refer to www.haier.com

Haier Europe Trading S.r.l

Branch UK

Westgate House, Westgate, Ealing

London, W5 1YY

*Duration of the guarantee of the refrigerating appliance:

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

*The period of spare parts for the repair of the appliance:

Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market.

Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market.

*For further information about the product, please consult https://eprel.ec.europe.eu/ or scan the QR on the energy label supplied with the appliance.

Haier

2024 Version A

Haier

User Manual

Freezer - triangle

EHBQW5518E

HBQW5518E

HBQW5518D

HBQW5518EK

HQE1855BCMW

EHQE1855BCMW

HBQW5519E

HBQW5519EK

EHBQW5519E

EHBQW5519ECM

HBQW7518D

HBQW7519D

Bottom cover

Upper fixed plate

Lower hinge cover

Sealing sponge

Sealing strip

Warning

Note

Environmental information

Product disposal

Warning!

."1°C -> 2°C -> 3°C -> 4°C -> 5°C -> 6°C -> 7°C -> 8°C -> 9°C"

Notice

.Holiday (Holiday "G" function) (Holidays) (Holidays) (Holidays) (Holidays) (Holidays) (Holidays) (Holidays) (Holidays) (Holidays) (Holidays) (Holidays) (Holidays) (Holidays) (Holidays) (Holidays) (Holidays) (Holidays) (Holidays) (Holidays) (Holidays) (Holidays) (Holidays) (Holidays) (Holidays) (Holidays) (H weekends)

Notice

Notice

G)ρ	F)ρ	E)ρ	D)ρ	C)ρ	B)ρ	A)ρ	الطراز
618	662	745	970	1772 ± 2	550 ± 2	540 ± 2	HBQW5518E/HBQW5518E/HBQW5518EK/HQE1855BCMW/HQE1855BCMWIT/HBQW5518DK/HBQW5518D/HBQW7518D
618	662	745	1133	1935 ± 2	550 ± 2	540 ± 2	HBQW5519E/HBQW5519EK/EHBQW5519E/EHBQW5519ECM/HBQW7519D

Notice

NOTICE

Westgate House, Westgate, Ealing

London, W5 1YY

Haier

Haier

Bottom cover

Bottom side cover

Sealing strip

Sealing sponge

Disposal

Wi-Fi function

NOTE

Cabinet size

WARNING!

NOTE

Westgate House, Westgate, Ealing

London, W5 1YY

Haier

2024, Version A

Haier

Refrigerator-freezer

EHBQW5518E

HBQW5518E

HBQW5518D

HBQW5518EK

HQE1855BCMW

EHQE1855BCMW

HBQW5519E

HBQW5519EK

EHBQW5519E

EHBQW5519ECM

HBQW7518D

HBQW7519D

Lower cover

Lower side cover

Sealing strip

Sponge gasket

Lower hinge cover

Disposal

Wi-Fi function

Adjustable shelves

WARNING

Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
* 5518** 7518*	540±2	550±2	1772±2	970	745	662	618
* 5519** 7519	540±2	550±2	1935±2	1133	745	662	618

WARNING

WARNING

Westgate House, Westgate, Ealing

London, W5 1YY

Haier

Version A 2024

Haier

User Manual

Refrigerator-Freezer

EHBQW5518E

HBQW5518E

HBQW5518D

HBQW5518EK

HQE1855BCMW

EHQE1855BCMW

HBQW5519E

HBQW5519EK

EHBQW5519E

EHBQW5519ECM

HBQW7518D

HBQW7519D

Disposal

Multi-airflow

Adjustable shelves

NOTE

The light

Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
* 5518** 7518*	540±2	550±2	1772±2	970	745	662	618
* 5519** 7519*	540±2	550±2	1935±2	1133	745	662	618

NOTE

NOTICE

Westgate House, Westgate, Ealing

London, W5 1YY

Haier

2024 version A

Haier

User Manual

Disposal

When the display screen is unlocked, press the button "K6" (Refrigeration/Freeze temperature zone select button). The buzzer rings once, the indicator "E" (Refrigeration temperature zone) illuminates, and then here comes the temperature setting mode of the fridge.

Press the button "K4" (Temperature adjustment button "-") every time, the buzzer rings once, the set temperature of the fridge will be reduced by 1. The fridge temperature will display in the sequence of "9°C->8°C->7°C->6°C->5°C->4°C->3°C->2°C->1°C".

Press the button "K5" (Temperature adjustment button "+") every time, the buzzer rings once, the set temperature of the fridge will be increased by 1. The fridge temperature will display in the sequence of "1°C->2°C->3°C->4°C->5°C->6°C->7°C->8°C->9°C".

NOTE

Wi-Fi Function

Multiple Air Flow

NOTE

Modell	A (mm)	B (mm)	C (mm)	T (mm)	E (mm)	F (mm)	G (mm)
* 5518* * 7518*	540 ±2	550 ±2	1772 ±2	970	745	662	618
* 5519* * 7519*	540 ±2	550 ±2	1935 ±2	1133	745	662	618

NOTE

NOTICE

Westgate House, Westgate, Ealing

London, W5 1YY

Haier

2024 Version A

Haier

User Manual

Refrigerator-Freezer

EHBQW5518E

HBQW5518E

HBQW5518D

HBQW5518EK

HQE1855BCMW

EHQE1855BCMW

HBQW5519E

HBQW5519EK

EHBQW5519E

EHBQW5519ECM

HBQW7518D

HBQW7519D

Bottom cover

Sealing strip

Sealing sponge

Disposal

Wi-Fi function

NOTICE

Movtėλo	A (mm)	B(mm)	C(mm)	D(mm)	E (mm)	F (mm)	G (mm)
* 5518* * 7518*	540±2	550±2	1772±2	970	745	662	618
* 5519* * 7519*	540±2	550±2	1935±2	1133	745	662	618

NOTICE

NOTICE

Westgate House, Westgate, Ealing

London, W5 1YY

Haier

2024 Edition A

Haier

User manual

Bottom cover

Lower side cover

Sealing strip

Sealing sponge

Lower hinge cover

Removal

Wi-Fi function

Adjustable shelves

WARNING

Modelo	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
* 5518* * 7518*	540±2	550±2	1772±2	970	745	662	618
* 5519* * 7519*	540±2	550±2	1935±2	1133	745	662	618

WARNING

NOTICE

Westgate House, Westgate, Ealing

London, W5 1YY

Haier

2024 version A

Haier

User manual

Fridge-freezer

EHBQW5518E

HBQW5518E

HBQW5518D

HBQW5518EK

HQE1855BCMW

EHQE1855BCMW

HBQW5519E

HBQW5519EK

EHBQW5519E

EHBQW5519ECM

HBQW7518D

HBQW7519D

4 Safety information

9 Intended use

10 Product description

12 Control panel

13 Operation

18 Device introduction

Disposal

Wi-Fi function

Note.

Mudel	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
* 5518* * 7518*	540±2	550±2	1772±2	970	745	662	618
* 5519* * 7519*	540±2	550±2	1935±2	1133	745	662	618

Note.

Cabinet dimensions

CAUTION!

NOTICE

Westgate House, Westgate, Ealing

London, W5 1YY

* Warranty period for the refrigeration unit:

Haier

1. Version A

Haier

User Manual

Refrigerator-Freezer

EHBQW5518E

HBQW5518E

HBQW5518D

HBQW5518EK

HQE1855BCMW

EHQE1855BCMW

HBQW5519E

HBQW5519EK

EHBQW5519E

EHBQW5519ECM

HBQW7518D

HBQW7519D

Wi-Fi function

Multi-airflow

Adjustable shelves

NOTE

Malli	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
* 5518* * 7518*	540 ± 2	550 ± 2	1772 ± 2	970	745	662	618
* 5519* * 7519*	540 ± 2	550 ± 2	1935 ± 2	1133	745	662	618

NOTE

Cabinet dimensions

CAUTION!

NOTICE

Westgate House, Westgate, Ealing

London, W5 1YY

Haier

2024 Version A

Haier

Lower cover

Sealing strip

Sealing foam

Disposal

Wi-Fi function

Multi-air flow

INFORMATION

Modèle	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
* 5518** 7518*	540±2	550±2	1772±2	970	745	662	618
* 5519** 7519*	540±2	550±2	1935±2	1133	745	662	618

INFORMATION

NOTICE

Westgate House, Westgate, Ealing

London, W5 1YY

Haier

2024 version A

Haier

Lower cover

Sealing strip

Sealing sponge

Lower hinge cover

WARNING - important safety information

Disposal

Helps protect the environment and human health. Place packaging in appropriate containers for recycling. Help recycle waste from electrical and electronic devices. Do not dispose of devices marked with this symbol together with household waste. Return the product to a local recycling facility or contact your municipal office.

WARNING!

Wi-Fi function

1. Follow the instructions in the app to configure the Wi-Fi network.
2. Once the Wi-Fi network is configured and the connection is established, the Wi-Fi icon "A" will remain lit.
3. If the Wi-Fi network has already been configured, it automatically reconnects according to the configuration information when Wi-Fi is turned on.
4. To turn off the Wi-Fi function, press the Wi-Fi button "K ₁" and the Wi-Fi icon "A" will turn off.
5. To turn on the Wi-Fi function and start configuration, press the Wi-Fi function button "K ₁" and the Wi-Fi icon "A" will start blinking slowly. To reconfigure the Wi-Fi function, press and hold the "K ₁" button for 3 seconds - the Wi-Fi icon will start blinking rapidly and enter configuration mode. To turn off the Wi-Fi function, press the "K ₁" button once. The above steps are repeated.
6. If the device is configured and the Wi-Fi function is turned off, the refrigerator will not enter configuration mode after reconnecting to power.

Holiday function

Adjustable shelves

NOTICE

When the appliance is switched on, it may take up to 12 hours to reach the appropriate temperatures.

Removable drawer

To remove the drawer, pull it out all the way ①, lift it up and take it out ②.

To replace the drawer, follow the steps in reverse order.

Light

▶ The door gasket must always be clean. ▶ Clean the interior and exterior of the appliance with a sponge moistened with warm water and a neutral detergent. ▶ 1. Clean the interior and exterior surfaces of the refrigerator, including door gaskets, door shelves, glass shelves, drawers, and so on. Use a soft towel or sponge soaked in warm water (you can add neutral detergent to the warm water).

Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
* 5518* * 7518*	540 ± 2	550 ± 2	1772 ± 2	970	745	662	618
* 5519* * 7519*	540 ± 2	550 ± 2	1935 ± 2	1133	745	662	618

NOTICE

• The stated energy consumption is based on a gap of 10 mm between the cabinet and the back of the product. The product will operate correctly even if the gap is less than 10 mm, but it will consume slightly more energy.
• We recommend using a cabinet with a thickness of 18 mm and hinges with a thickness of less than 20 mm.
• Measurements in the table above may vary depending on the method.
• For instructions on the built-in version, refer to the Installation Guide.

NOTICE

Westgate House, Westgate, Ealing

London, W5 1YY

Haier

Version A for 2024

Haier

Bottom cover

Bottom side panel

Sealing strip

Sealing foam

Bottom hinge cover

Disposal

Wi-Fi function

Adjustable shelves

NOTE

Modell	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
* 5518*	540 ± 2	550 ± 2	1772 ± 2	970	745	662	618
* 7518*
* 5519*	540 ± 2	550 ± 2	1935 ± 2	1133	745	662	618

NOTE

NOTICE

Westgate House, Westgate, Ealing

London, W5 1YY

Haier

2024, Version A

Haier

User Manual

Refrigerator-Freezer

EHBQW5518E

HBQW5518E

HBQW5518D

HBQW5518EK

HQE1855BCMW

EHQE1855BCMW

HBQW5519E

HBQW5519EK

EHBQW5519E

EHBQW5519ECM

HBQW7518D

HBQW7519D

Disposal

Wi-Fi function

NOTICE

Modello	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
* 5518** 7518*	540±2	550±2	1772±2	970	745	662	618
* 5519** 7519*	540±2	550±2	1935±2	1133	745	662	618

NOTICE

NOTICE

Westgate House, Westgate, Ealing

London, W5 1YY

Haier

2024 Version A

Haier

User manual

Bottom cover

Bottom side cover

Sealing strip

Sealing foam

Disposal

Wi-Fi function

NOTE

Modelis	A (mm)	B (mm)	C (mm)	G (mm)	E (mm)	F (mm)	G(mm)
* 5518** 7518*	540 ± 2	550 ± 2	1772 ± 2	970	745	662	618
* 5519** 7519*	540 ± 2	550 ± 2	1935 ± 2	1133	745	662	618

NOTE

NOTE

Westgate House, Westgate, Ealing

London, W5 1YY

Haier

2024 Version A

Haier

Bottom cover

Sealing strip

Sealing sponge

Disposal

Wi-Fi function

Adjustable shelves

NOTICE

Modelis	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
* 5518* * 7518*	540±2	550±2	1772±2	970	745	662	618
* 5519* * 7519*	540±2	550±2	1935±2	1133	745	662	618

NOTICE

NOTICE

Westgate House, Westgate, Ealing

London, W5 1YY

Haier

1. Version A

Haier

Disposal

Wi-Fi function

Adjustable shelves

CAUTION

Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
* 5518* * 7518*	540±2	550±2	1772±2	970	745	662	618
* 5519* * 7519*	540±2	550±2	1935±2	1133	745	662	618

CAUTION

CAUTION

Westgate House, Westgate, Ealing

Haier

2024 Version A

Haier

User manual

Refrigerator-freezer

EHBQW5518E

HBQW5518E

HBQW5518D

HBQW5518EK

HQE1855BCMW

EHQE1855BCMW

HBQW5519E

HBQW5519EK

EHBQW5519E

EHBQW5519ECM

HBQW7518D

HBQW7519D

D Refrigeration/Freeze temperature display indicators

K₂ Super Cool button

K₃ Super Freeze button

K₄ Temperature adjustment button “-”

K₅ Temperature adjustment button “+”

Wi-Fi function

Multi-air flow

Adjustable shelves

OBS

Modell	A (mm)	B (mm)	C(mm)	D (mm)	E (mm)	F (mm)	G (mm)
* 5518* * 7518*	540±2	550±2	1772±2	970	745	662	618
* 5519* * 7519*	540±2	550±2	1935±2	1133	745	662	618

OBS

OBS

Westgate House, Westgate, Ealing

London, W5 1YY

Haier

2024 version A

Haier

User manual

Bottom cover

Side bottom cover

Disposal

Wi-Fi function

CAUTION

Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
* 5518*	540 ± 2	550 ± 2	1772 ± 2	970	745	662	618
* 7518*
* 5519*	540 ± 2	550 ± 2	1935 ± 2	1133	745	662	618

CAUTION

NOTE

Westgate House, Westgate, Ealing

London, W5 1YY

Haier

2024 Version A

Haier

User Manual

Bottom cover

Lower side cover

Sealing strip

Sealing sponge

Disposal

Wi-Fi function

WARNING

Replace the LED lamps

WARNING!

Modelo	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
* 5518*	540 ± 2	550 ± 2	1772 ± 2	970	745	662	618
* 7518*
* 5519*	540 ± 2	550 ± 2	1935 ± 2	1133	745	662	618

WARNING

WARNING

Westgate House, Westgate, Ealing

London, W5 1YY

Haier

2024 Version A

Haier

User Manual

Refrigerator

EHBQW5518E

HBQW5518E

HBQW5518D

HBQW5518EK

HQE1855BCMW

Lower capacity

Lower side capacity

Sealing strip

Sealing sponge

Removal

Wi-Fi function

Humidity Zone drawer

Multiple airflow

OBSERVATION

Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
* 5518* * 7518*	540±2	550±2	1772±2	970	745	662	618
* 5519* * 7519*	540±2	550±2	1935±2	1133	745	662	618

OBSERVATION

OBSERVATION

Westgate House, Westgate, Ealing

London, W5 1YY

Haier

2024 Version A

Haier

Bottom cover

Disposal

Wi-Fi function

Multi-airflow

NOTE

Cabinet dimensions

WARNING!

NOTE

Westgate House, Westgate, Ealing

London, W5 1YY

Haier

2024 Version A

Haier

Refrigerator with freezer

EHBQW5518E

HBQW5518E

HBQW5518D

HBQW5518EK

HQE1855BCMW

EHQE1855BCMW

HBQW5519E

HBQW5519EK

EHBQW5519E

EHBQW5519ECM

HBQW7518D

HBQW7519D

Bottom cover

Bottom side cover

Sealing strip

Sealing sponge

Disposal

Wi-Fi function

Adjustable shelves

NOTICE

Cooling compartment: 12V max 2W

Long-term shutdown

Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
* 5518* * 7518*	540±2	550±2	1772±2	970	745	662	618
* 5519* * 7519*	540±2	550±2	1935±2	1133	745	662	618

NOTICE

NOTICE

Westgate House, Westgate, Ealing

London, W5 1YY

Haier

2024 Version A

Haier

User Manual

Refrigerator-Freezer

EHBQW5518E

HBQW5518E

HBQW5518D

HBQW5518EK

HQE1855BCMW

EHQE1855BCMW

HBQW5519E

HBQW5519EK

EHBQW5519E

EHBQW5519ECM

HBQW7518D

HBQW7519D

Bottom cover

Bottom side cover

Sealing strip

Sealing sponge

Removal

Wi-Fi function

Humidity Zone drawer

Multiple air flows

Adjustable shelves

NOTICE

Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
* 5518** 7518*	540±2	550±2	1772±2	970	745	662	618
* 5519** 7519*	540±2	550±2	1935±2	1133	745	662	618

NOTICE

NOTICE

Westgate House, Westgate, Ealing

London, W5 1YY

*Duration of the refrigerator warranty:

Haier

2024, version A

Haier

Bottom cover

Sealing strip

Sealing sponge

Hinge cover on the bottom side

Disposal

Help protect the environment and preserve human health. Dispose of packaging in the appropriate recycling container. Help recycle waste from electrical and electronic devices. Do not dispose of devices marked with this symbol together with household waste. Return the product to a local recycling facility or contact your municipal office.

WARNING!

Wi-Fi function

Multi-airflow

Adjustable shelves

1. The shelf height can be adjusted to suit your food storage needs.
2. To move a shelf, first remove it by lifting the rear edge ① and pulling it out ②.
3. To put it back, place it on the supports on both sides and push it in as far as possible until the rear part of the shelf is secured within the side notches.

NOTE

Make sure all ends of the shelf are level.

Removable door shelves / bottle holders

1. The door racks can be removed for cleaning:
2. Place your hands on both sides of the shelf, lift it upwards ① and pull it out ②.
3. To put the door rack back, follow the above steps in reverse order.

NOTE

When the appliance is switched on, it may take up to 12 hours to reach the correct temperatures.

Removable drawer

To remove the drawer, pull it out as far as possible ①, then lift and remove it ②.

To insert the drawer, perform the above steps in reverse order.

Light

The internal LED light turns on when the door is opened. No device setting affects the light output.

Energy saving tips

▶ Make sure the appliance has proper ventilation (see INSTALLATION). ▶ Do not install the appliance in direct sunlight or near heat sources (e.g., oven, heater). Avoid unnecessarily low temperatures in the appliance. Energy consumption increases the lower the temperature is set in the appliance. ▶ Functions like Super Freeze consume more energy. ▶ Wait for hot food to cool down before placing it in the appliance. ▶ Open the appliance door as little and as briefly as possible. ▶ Do not overfill the appliance to avoid obstructing air flow. ▶ Avoid trapping air when packing food. ▶ Keep the door seals clean so they always close properly. ▶ Defrost frozen food in the refrigerator. The most energy-saving configuration requires keeping the appliance's drawers, food box, shelves, etc. in their factory-fresh state, and food should be placed as deep as possible without blocking the air duct outlet.

WARNING!

Disconnect the appliance from the power supply before cleaning.

Cleaning

▶ Always keep the door seal clean. ▶ Clean the interior and exterior of the appliance with a sponge soaked in warm water and neutral detergent. 1. Scrub the inside and outside of the refrigerator, including the door seal, door shelf, glass shelves, drawers, etc., using a soft cloth or sponge dipped in warm water (you can add neutral detergent to the warm water).

1. If liquid is spilled, remove all soiled parts, rinse directly under running water, dry, and put them back in the refrigerator.
2. If a thick liquid is spilled (e.g., whipped cream, melted ice cream), remove all soiled parts, place them in warm water at about 40 °C for a while, then rinse under running water, dry, and put them back in the refrigerator.
3. If a small part or component gets stuck inside the refrigerator (between shelves or drawers), free them with a small brush. If you cannot reach the part, contact Haier's service department. ▶ Rinse and dry with a soft cloth. ▶ Do not clean any part of the appliance in a dishwasher. ▶ Wait at least 5 minutes before reconnecting the appliance, as frequent switching on can damage the compressor.

Defrosting

Defrosting of the refrigerator and freezer is done automatically, so you do not need to do it manually.

Replacing LED lamps

WARNING!

Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
* 5518** 7518*	540±2	550±2	1772±2	970	745	662	618
* 5519** 7519*	540±2	550±2	1935±2	1133	745	662	618

NOTE

• The stated energy consumption is based on a gap of 10 mm between the cabinet and the back of the product. The product will operate correctly even with a gap smaller than 10 mm, but it consumes slightly more energy.
• We recommend using a cabinet with a thickness of 18 mm and hinges with a thickness of less than 20 mm.
• The measurements in the table above may vary depending on the measurement method.
• Instructions for the built-in version are in the Installation Guide.

Cross-section for ventilation

Cabinet dimensions

CAUTION!

Any product failure due to the following is not covered by the warranty.

1. Incorrect site conditions or incorrect cabinet sizes.
2. Defective cabinet.
3. Installer or user errors.

Gap

Refer to the figures and tables below for installation space requirements.

Model		A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	Napomena
* 5518** 7518*	Min.	50	400	560	1778	560	Šarka: 17 mm
	Preporučeno			580	1780	562
	Maks.			-	1782	568
* 5519** 7519*	Min.	50	400	560	1940	560	Šarka: 17 mm
	Preporučeno			580	1943	562
	Maks.			-	1945	568

NOTE

• If the cabinet width is greater than 568 mm, the gasket (between the refrigerator and the cabinet) may become loose.
• If the cabinet is larger than the maximum dimension (1782 mm), you must use other finishing materials to fill the gap. (for EHBQW5518E/HBQW5518E/EK/EHQE/HQE1855BCMW)
• If the cabinet is larger than the maximum dimension (1945 mm), you must use other finishing materials to fill the gap. (for HBQW5519E/ EK/ EHBQW5519E/ ECM)

NOTE

To install a cabinet that requires a 4 mm gap (03), refer to the cabinet reference table below.

A Lower edge of the front panel above the air vent B Front panel overhangs excessively

(unit: mm)

Model	* 5518** 7518*	* 5519** 7519*
01	Min. 1028+BMaks. 1106+B	Min. 1191+BMaks. 1269+B
02	Min. 662+AMaks. 740+A	Min. 662+AMaks. 740+A
03	4 mm (razmak između vrata frižidera i zamrzivača)

Consideration of outlet location and required space

NOTE

If you are installing the refrigerator in a cabinet, make sure the power cord is placed on the side of the refrigerator before plugging it into the outlet. If the power cord is at the back of the refrigerator, it may reduce energy efficiency.

Waiting time

Maintenance-free lubricating oil is located in the compressor capsule. This oil may pass through the closed piping system during transport on an incline. Before connecting the appliance to the mains power supply, you must wait 2 hours so that the oil flows back into the capsule.

Electrical connection

Before any connection, check the following:

the power supply, socket, and fuses are in accordance with the rating plate, ▶ the socket is grounded and there are no multiple sockets or extension cords, ▶ the plug and socket are strictly in accordance with the rules.

Connect the plug to a properly installed household socket.

WARNING!

To avoid risks, the customer service must replace a damaged power cord (see the warranty card).

Technical data of the product in accordance with EU Regulation No. 2019/2016

Marka	Haier
Naziv/identifikator modela	* 5518* * 7518*	* 5519* * 7519*
Kategorija modela	Frižider i zamrzivač	Frižider i zamrzivač
Klasa energetske efikasnosti	E/D E/D
Godišnja potrošnja energije (kWh/godišnje) (1)	229/183	229
Ukupna zapremina (l)	251	285
Zapremina frižidera (l)	178	211
Zapremina zamrzivača (l)	73	74
Zapremina rashladnog odeljka (L)	/	/
Zapremina automatskog ledomata (L)	/	/
Ocena u zvezdicama	4	4
Temperatura ostalih odeljaka >14 °C	Nije primenljivo	Nije primenljivo
Sistem bez mraza	Da	Da
Kapacitet zamrzavanja (kg/24 h)	6	6
Klimatska ocena (2)	SN/N/ST/T	SN/N/ST/T
Klasa emisija buke i emisija akustične buke koje se prenose vazduhom (dB(A)re1pW)	B(35/33) B(35/33)
Vreme porasta temperature (h)	8/9	8/9
Kapacitet izrade leda	/	/
Tip uređaja	Ugradni	Ugradni

Naziv modela	Klasa energetske efikasnosti
EHBQW5518EHBQW5518EHBQW5518EKHQE1855BCMWEHQE1855BCMW	E
HBQW5519EHBQW5519EKEBHQW5519EEHBQW5519ECM	E

Explanations:

- Yes, part of the equipment

(1) Based on the results of compliance testing with standards over 24 hours. Actual consumption depends on the use and location of the device. (2) Climate rating for SN: This device is intended for use at ambient temperatures between +10 °C and +32 °C

Westgate House, Westgate, Ealing

London, W5 1YY

Haier

1. Version A

Haier

Bruksanvisning

Refrigerator-freezer

EHBQW5518E

HBQW5518E

HBQW5518D

HBQW5518EK

HQE1855BCMW

EHQE1855BCMW

HBQW5519E

HBQW5519EK

EHBQW5519E

EHBQW5519ECM

HBQW7518D

HBQW7519D

4 Safety information

9 Intended use

Lower guard

Lower side guard

Sealing strip

Foam seal

Lower hinge cover

WARNING - Important safety information

Disposal

Unlock: When the display screen is locked, press the button "K8" (Lock and Unlock) and hold for 3 seconds. A countdown of 3-2-1 will appear, the buzzer will ring once, the indicator "H" (Lock function) will go off, and the display will be unlocked.

Adjust the temperature

Wi-Fi function

Multiple airflows

NOTE!

Modell	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
* 5518** 7518*	540±2	550±2	1 772±2	970	745	662	618
* 5519** 7519*	540±2	550±2	1 935±2	1 133	745	662	618

NOTE!

NOTE!

Westgate House, Westgate, Ealing

London, W5 1YY

Haier

2024 version A

Haier

User Manual

Refrigerator-Freezer

EHBQW5518E

HBQW5518E

HBQW5518D

HBQW5518EK

HQE1855BCMW

EHQE1855BCMW

HBQW5519E

HBQW5519EK

EHBQW5519E

EHBQW5519ECM

HBQW7518D

HBQW7519D

Bottom cover

Bottom side cover

Seal strip

Seal sponge

Bottom hinge cover

Disposal
