USER MANUAL 67693 Lund

Exterior view of a modern stainless steel LUND brand brush (no text or symbols visible on body)

CE

PL EN DE RU UA LT LV CZ SK HU RO ES FR IT NL GR BG PT HR AR

Labeled diagram of laboratory equipment with numbered parts for identification

Technical line drawing of a mechanical device with two views (left and right) showing a step change, no text or symbols present.

Diagram illustrating three stages of a hairdryer with downward force arrows, showing step-by-step removal and retraction.

Diagram illustrating three-step laboratory procedure for liquid transfer, showing step-by-step addition and removal of a beaker.

Technical diagram showing three stages of a mechanical device with labeled components and a checkmark indicating adjustment.

Diagram illustrating a three-step chemical process involving a funnel, a syringe, and a reaction vessel with black particles.

Three technical diagrams showing mechanical components with arrows indicating motion, no text or symbols present.

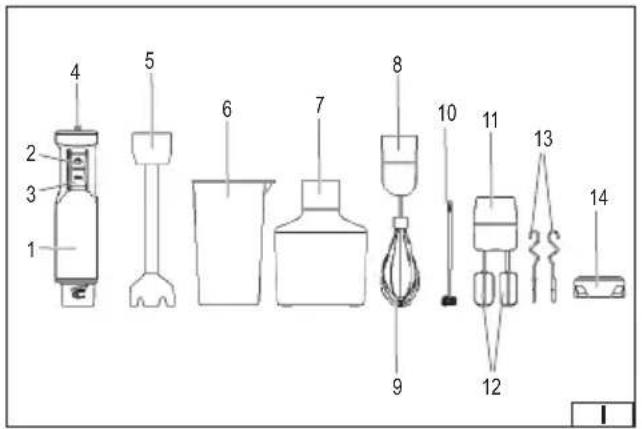

1. drive housing

2. low speed switch

3. high speed switch

4. speed controller

5. blending attachment

6. graduated container

7. chopping attachment

8. beater attachment

9. whisk mixer

10. foaming mixer

11. mixing attachment

12. mixing stirrer

13. spiral mixer

14. silicone blender cover

DE

Read the operating instruction

Safe contact with food

Second class of insulation

This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.

PRODUCT CHARACTERISTICS

blender is used for food preparation. Its extensive range of accessories allows for easy and efficient preparation of food that needs to be blended, mixed, or chopped. This product is intended for home use only and is not intended for commercial use. Proper, reliable, and safe operation of the device depends on proper use, therefore:

Before using the product, please read the entire manual and keep it.

The supplier is not liable for any damage resulting from failure to comply with the safety regulations and recommendations of this manual.

EQUIPMENT

The product is delivered complete, but requires preparatory activities before starting work, described later in the manual. The accessories shown in the illustration (I) are supplied with the product.

SAFETY INSTRUCTIONS

Warning! Read all instructions below. Failure to follow them may result in electric shock, fire, or personal injury.

FOLLOW THE INSTRUCTIONS BELOW

Do not use the product in environments with an increased risk of explosion, containing flammable liquids, gases, or vapors. Before operation, check the product, its accessories, and the connecting cable for damage. If any damage is detected, do not attempt to use the product. The power cable must not be repaired; it must be replaced with a new one. Any replacement of damaged components, including the power cable, must be performed by authorized repair shops. Do not attempt to repair the product yourself. The product is intended for indoor use only. Do not expose the product to precipitation or moisture. Water or moisture entering the product increases the risk of electric shock. Do not immerse the product in water or any other liquid. The product should only be connected to a power supply with the voltage and frequency indicated on the device's rating plate. The power cable plug must match the power outlet. Do not modify the plug. Do not use any adapters to adapt the plug to the outlet. An unmodified plug that fits the outlet reduces the risk of electric shock. After each use, disconnect the power cord from the wall outlet. Always unplug the product from the power supply if it is left unattended and before assembling, disassembling, or cleaning. Keep the power cord away from product attachments. This reduces the risk of the power cord being caught, cut, or otherwise damaged. Do not overload the power cord. Do not use the power cord for carrying, connecting, or disconnecting the plug from the wall outlet. Avoid contact between the power cord and heat, oil, sharp edges, or moving parts. Damage to the power cord increases the risk of electric shock. If the power cord is damaged (e.g., cut, melted insulation), immediately disconnect the power cord from the outlet and take the product to an authorized repair center. Do not use the product with a damaged power cord. The power cord must not be repaired; it must be replaced by an authorized service center. Before assembling, disassembling, or adjusting product accessories, disconnect the power plug from the power outlet. Use extreme caution when handling sharp parts of the product. Do not touch the moving blades. The blades are very sharp, and even when the blades are stationary, there is a risk of injury. Use extreme caution when handling any accessories containing blades. Before using the product, ensure that the selected accessory is properly installed. Do not place the

EN

containers supplied with the product on hot surfaces. This may cause the containers to melt. Do not overload the product. The housing temperature must not exceed 60^ C. Overloading the product will cause faster wear and tear, may cause damage, and increases the risk of electric shock. Do not use the product to prepare hot food. Food may splatter during preparation. Splashing of hot food can cause burns. This product is not intended for use by children. Keep the product and its cable out of the reach of children. Ensure that children do not use the product as a toy. Children should not clean or maintain this product without supervision. This product is not intended for use by persons with reduced physical or mental capabilities, or by persons lacking experience and knowledge of the appliance, unless supervision or instruction is provided regarding the safe use of the product so that the hazards involved are understood.

PRODUCT SERVICE

Preparing for work

The product should be unpacked, completely removing all packaging components. It is recommended that you retain the packaging; it may be helpful for future transportation and storage of the product.

Inspect the product for damage. If any damage is found, do not use the product until the damage is repaired or the damaged components are replaced with new, damage-free components.

Wash the product according to the instructions in the „Product Maintenance" section.

Note! Before attaching or removing the attachment, ensure that the product's power cord plug has been disconnected from the mains socket.

Install the selected attachment as intended, as shown in the following illustrations:

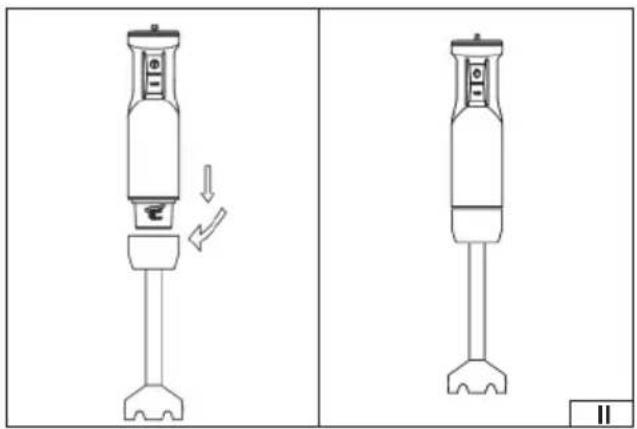

(II) - Blending attachment

Place the attachment housing onto the drive housing mount, ensuring the attachment mounting edge is flush with the entire circumference, and then turn it until it stops. It's recommended to work in a tall container; preferably, use a graduated container.

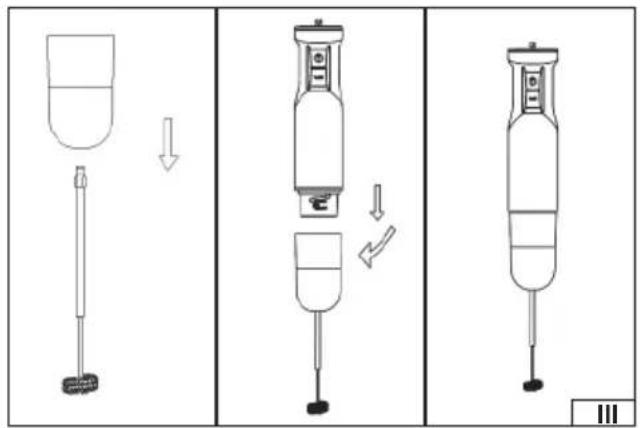

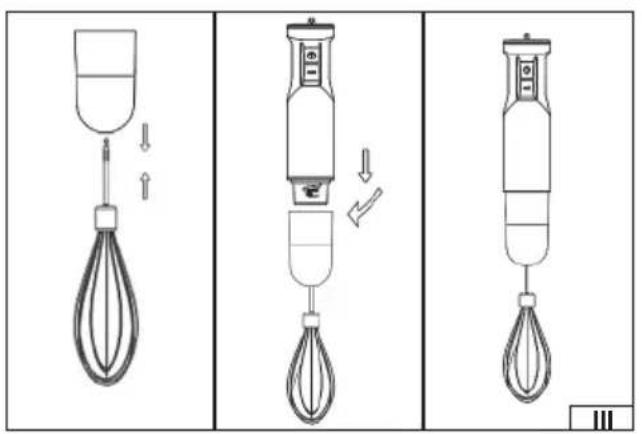

(III) – Beater attachment

Insert the beater or foaming beater into the beater attachment slots until you feel a click. Then, place the beater housing onto the drive housing mount, ensuring the edge fits snugly around its entire circumference, and then turn it until it stops.

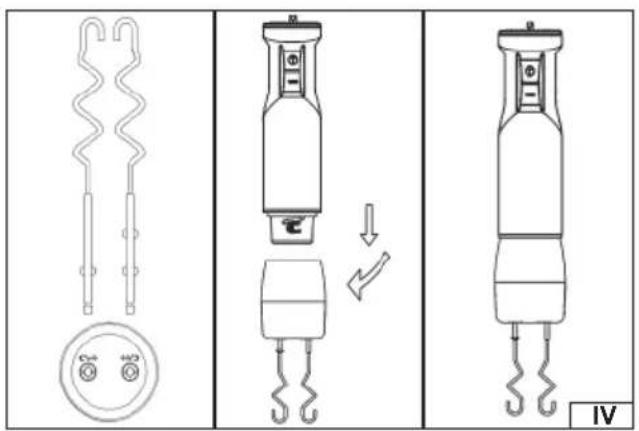

(IV) - Mixing attachment

Insert the mixing paddles or spiral mixers into the appropriate slots on the mixing attachment until they click into place. Then, place the attachment housing onto the drive housing mount, ensuring the edge fits snugly around its entire circumference, and then turn it until it stops.

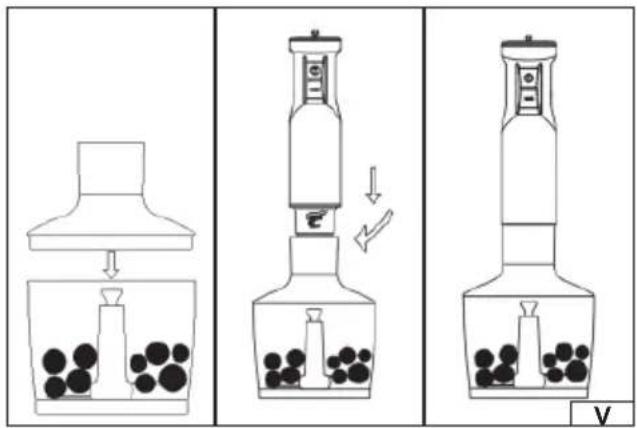

(V) - Shredder attachment

The blender attachment can only be used with the provided container. Place the container on a flat, even, and hard surface, place the ingredients inside, and then ensure the lid is properly seated. The lid should be attached similarly to the attachment to the drive housing – guides facilitate proper fit. A properly installed lid fits snugly around the entire circumference of the container. Place the drive housing on the lid and turn it until it stops. The connection between the lid and the container is not completely airtight – if a leak occurs, reduce the amount of ingredients in the container.

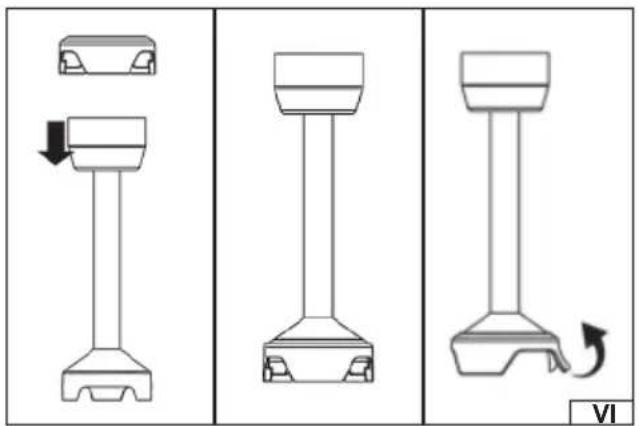

(VI) - Silicone blender cover

The silicone cover should be placed over the blender attachment foot.

Check that the attachment does not disconnect spontaneously during operation. If the attachment cannot be disconnected by pulling away from the drive housing, and its edge is flush with the drive housing along its entire circumference, this indicates correct assembly.

Application of attachments

Blender attachment

It's used for chopping fruits and vegetables, blending soups and sauces, and preparing smoothies and creams. It's recommended to use a tall, narrow container to reduce splashing.

Beater attachment

With a whisk attachment, it is used for preparing egg whites, whipping cream and mixing light and thin batters, e.g. pancake batter.

With a frothing stirrer, it is used for frothing milk, drinks and quickly mixing light liquids.

Mixing attachment with mixing or spiral beaters

Designed for working with doughs and masses of various consistencies.

- With mixing paddles, it is used to prepare light cakes, creams and for grinding ingredients.

- With spiral mixers, it is designed for kneading thick and medium-heavy doughs, e.g. yeast or bread dough.

EN

Grinding attachment

It's used for chopping herbs, nuts, onions, cooked meat, and preparing pastes and stuffings. Products should be placed directly into the container before closing the lid. The lid-to-container connection is not completely airtight – if a leak occurs, reduce the amount of product.

Container with scale

It can be used as a work container with the blender attachment, whisk attachment, and foaming beater. The scale makes measuring ingredients easy.

Silicone blender cover

Protects delicate surfaces of dishes from scratches when using the blender attachment.

Product support

Install the selected attachment.

Without touching the switch, connect the power cord plug to the mains socket.

If a blender, whisk or mixer attachment is fitted, insert the end of the attachment into the food container and then turn on the product by pressing and holding the switch.

The product is equipped with two switches: the upper one allows operation at the speed set using the controller, and the lower one allows operation at maximum speed. The product must be turned on for no longer than 1 minute, after which the drive must be allowed to cool for at least 4 minutes.

To turn off the product, release the switch. Allow the moving parts of the attachments to stop rotating, then unplug the power cord from the outlet and remove the attachment from the food container and/or disassemble the attachment.

If using attachments equipped with blades (blender, chopping), it is recommended to start at a lower speed and gradually increase it until satisfactory results are achieved. A lower speed for all attachments will reduce splashing of liquid foods and spilling of bulk foods.

Product maintenance

CAUTION! Before each cleaning, turn off the product, disconnect the power cord from the socket, wait for it to cool down and only then proceed with maintenance.

NOTE: It's recommended to clean attachments immediately after cooking. This will prevent food residue from drying on and make cleaning easier.

If the drive housing becomes contaminated with processed food during operation, stop working, clean the product and only then resume operation.

To clean this product, use only mild cleaning agents intended for kitchenware. Do not use abrasive cleaning agents (e.g., scouring powder or cream) or agents containing caustic substances. Do not use solvents, gasoline, or alcohol.

Dilute the cleaning agent with water according to the instructions provided with it, then apply it to a soft cloth and clean the outside of the drive housing.

Remove any remaining cleaning agent with a soft cloth lightly dampened with clean water. Then dry all surfaces with a soft, dry cloth. CAUTION! The drive housing is not intended to be cleaned with a water jet. Do not immerse the drive housing in water.

blender silicone cover, and mixing paddles can be cleaned with a water jet or by immersion in water, after first disconnecting them from the attachments. Clean other product components only with a damp cloth.

The blender blade can be cleaned with a jet of water after disconnecting the attachment from the drive and taking care not to allow the parts connecting to the drive to get wet.

Dry all components thoroughly before using the product again.

None of the product components are intended for washing in dishwashers or with a high-pressure jet.

NOTE: When preparing different dishes in succession using the same attachment, you can remove food residue by immersing the blender or mixing blade and briefly running the attachment in a container of clean, lukewarm water.

When cleaning the blades, avoid contact with the human body. Clean them using brushes or sponges.

Product transportation and storage

Before storing or transporting the product, thoroughly clean it of any food residue.

During storage, store the product indoors, protecting it from dust, dirt, and moisture. It is recommended to store the product in its original packaging.

TECHNICAL DATA

Parameter Unit of measurement Value
Catalog number 67693
Nominal voltage [V~] 220-240
Nominal frequency [Hz] 50 / 60
Rated power [W] 1000
Insulation class II
Net weight	[kg]	0.7
Degree of protection		IPX0
