USER MANUAL YT-82894 Yato

YATO 18V power tool with black hose and metal connector (no visible text or symbols on body)

CE

PL DE RU UA LT LV CZ SK HU RO ES FR IT NL GR

10 TATO 32 4 8 3 6 7 1 2 5 9

Close-up of hands using a power drill to adjust cable (no visible text or symbols)

Close-up of a black and metallic cable with threaded end (no text or symbols visible)

Close-up of a gray electric drill putter with attached hose and cooling fins (no visible text or symbols)

Three-panel black-and-white photo showing hands using a battery pack and a charging device, no visible text or symbols.

YATO 18V Union YATO 18V Union VI

Close-up of a pressure gauge with dial and probe (no visible text or symbols)

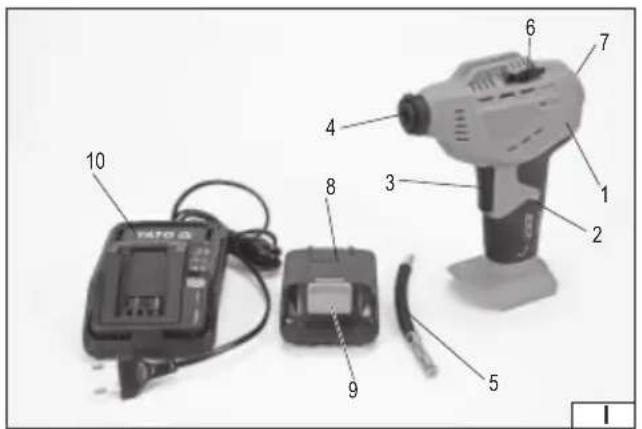

1. housing
2. handle
3. ON/OFF switch
4. hose connector
5. hose
6. hose adapter
7. pressure gauge
8. battery
9. battery clamp
10. battery charger

UA

Read the operating instruction

Wear protective goggles

Schutzbrille tragen

Wear hearing protectors

Gehörschutz tragen

This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.

WYPOSAŻENIE PRODUKTU

PRODUCT CHARACTERISTICS

The cordless pump is a cordless power tool which allows you to inflate tyres and other items such as balls and mattresses, with compressed air. The battery power supply increases the mobility of the product. The correct, reliable, and safe operation of the appliance depends on its proper use, therefore:

Read and keep the entire manual before the first use of the appliance.

The supplier shall not be held liable for any damage resulting from failure to observe the safety regulations and recommendations specified in this manual.

ACCESSORIES

The factory packaging should contain:

• cordless pump,
• hose,
• hose adapter,
• battery (only for YT-82894),
• battery charger (only for YT-82894).

SPECIFICATION

Parameter Unit Value
Catalogue No. YT-82894, YT-82895
Rated voltage [VDC] 18
Rated pressure [MPa / bar / PSI] 1.04 / 10.4 / 150
Pumping capacity [l/min.] 14
Hose length [cm] 50
Weight [kg] 0.8
Noise level
- Sound Pressure L_pA ± K	[dB(A)]	77,1 ± 3,0
- power L_wA ± K	[dB(A)]	85,1 ± 3,0
Vibration level [m/s]	^2	2,33 ± 1,5
Protection class		III
Battery type		Li-ion
Battery capacity*	[Ah]	2
Charger*
Input voltage	[V~]	220 – 240
Power frequency	[Hz]	50 / 60
Rated power	[W]	60
Output voltage	[VDC] 21
Output current	[A]	2.4
Charging time**	[h]	~1

* only for models equipped with a battery and charger
** the specified charging time applies only to the battery with the capacity listed in the table
The declared noise emission values have been measured using the standard test method and can be used to compare one tool to another. The declared noise emission values can also be used for preliminary exposure assessment.
Warning! Noise emissions during the correct operation of a power tool may differ from the declared values depending on the manner in which the tool is used, in particular the type of the workpiece.
Warning! Operator protection measures must be determined based on an approximation of exposure under current conditions of use. All stages of the work cycle must be taken into account. In addition to the working time, other factors must be taken into account, such as the time when the tool is switched off and when it is idle.

GENERAL WARNINGS FOR THE SAFETY OF POWER TOOLS

Warning! Read all safety warnings, illustrations and specifications provided with this power tool. Failure to do so may result in electric shock, fire or serious injury.

Keep all warnings and instructions for future reference.

EN

The term “power tool” used in warnings applies to all tools driven by power both wired and wireless.

Workplace safety

Keep the workplace well-lit and clean. Disorder and poor lighting can be causes of accidents.

Do not work with power tools in an environment with an increased risk of explosion, containing flammable liquids, gases or vapors. Power tools generate sparks that can ignite dust or fumes.

Children and third persons should not be allowed to enter the workplace. Loss of concentration can result in loss of control.

Electrical safety

The plug of the electric cable must match the power socket. You must not modify the plug in any way. Do not use any plug adapters with earthed power tools. An unmodified plug that fits the outlet reduces the risk of electric shock.

Avoid contact with earthed surfaces such as pipes, radiators and coolers. Grounding the body increases the risk of electric shock.

Do not expose power tools to contact with atmospheric precipitation or moisture. Water and moisture that gets inside the power tool increases the risk of electric shock.

Do not overload the power cable. Do not use the power cord to carry, pull or unplug the power plug from the power outlet.

Avoid contact of the power cable with heat, oils, sharp edges and moving parts. Damage or entanglement of the power cord increases the risk of electric shock.

In the case of working outside closed rooms, use extension cords intended for work outside closed rooms. The use of an extension cord adapted for outdoor use reduces the risk of electric shock.

When using a power tool in a humid environment is unavoidable as a protection against supply voltage use a residual current device (RCD). The use of RCD reduces the risk of electric shock.

Personal safety

Stay alert, pay attention to what you do and keep common sense while working with the power tool. Do not use a power tool when you are tired or under the influence of alcohol or medication. Even a moment of inattention while working can lead to serious personal injury.

Use personal protective equipment. Always wear eye protection. The use of personal protective equipment such as dust masks, anti-slip safety shoes, helmets and hearing protection reduce the risk of serious personal injury.

Prevent accidental operation. Make sure that the electric switch is in the “off” position before connecting to the power supply and / or battery, lifting or moving the power tool. Moving the power tool with the finger on the switch or powering the power tool, when the switch is in the “on” position can lead to serious injuries.

Before turning on the power tool remove any keys and other tools that were used to adjust it. The key left on the rotating parts of the power tool can lead to serious injuries.

Do not reach and do not lean too far. Keep the right attitude and balance all the time. This will allow easier control over the power tool in case of unexpected work situations.

Dress accordingly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts of the power tool. Loose clothing, jewelry or long hair can be caught by moving parts.

If the devices are fitted for the connection of dust extraction or dust collection, make sure that they are connected and used properly. The use of dust extraction reduces the risk of dust hazards.

Do not let the experience acquired from frequent use of the tool resulted in carelessness and ignoring safety rules.

Carefree action can cause serious injuries in a fraction of a second.

Use and care of the power tool

Do not overload the power tool. Use the power tool appropriate for the selected application. The right power tool will provide a better and safer job if used according to the designed load.

Do not use the power tool, if the electric switch does not allow switching on and off. Power tool, which cannot be controlled by means of a power switch is dangerous and must be returned for repair.

Disconnect the plug from the power socket and / or remove the battery if it is detachable from the power tool before adjusting, changing accessories or storing the tool. Such preventive measures will allow you to avoid accidentally turning on the power tool.

Keep the tool out of the reach of children, do not let people who do not know how to operate the power tool or these instructions use a power tool. Power tools are dangerous in the hands of untrained users.

Maintain power tools and accessories. Check the tool for mismatches or jams of moving parts, damage to parts and any other conditions that may affect the operation of the power tool. Damage must be repaired before using the power tool. Many accidents are caused by incorrectly maintained tools.

Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp edges are less prone to jamming and are easier to control when working.

Use power tools, accessories and inserted tools etc. in accordance with these instructions, taking into account the type and conditions of work. The use of tools for work other than designed is likely to result in a dangerous situation.

Handles and gripping surfaces must be dry, clean and free from oil and grease. Slippery handles and gripping surfaces do not allow for safe operation and control of the tool in dangerous situations.

EN

Repairs

Repair the power tool only in authorized facilities using only original spare parts. This ensures proper operation safety of the power tool.

SAFETY INSTRUCTIONS FOR THE CORDLESS PUMP

Learn how to use the tool. Do not start working, charging or connecting the battery before reading the operating instructions.

Following the instructions reduces the risk of injury, electric shock or fire.

Observe the maximum pressure of the pumped products. Use a pressure gauge (built-in or separate) to control the pressure inside the pumped product. Exceeding the maximum pressure may cause damage to the pumped product or even its rupture. Rupturing the product can cause serious injuries.

Periodically check that the readings of the pressure gauge built into the tool match those of the calibrated pressure gauge.

Check the tool for damage before each use. If you notice any cracks, abrasions or other damage, do not use the tool until the defects are removed.

Check the pumping hose for damage. If abrasions, cracks or air leaks are discovered, stop using the damaged hose and replace it with a new hose before continuing work.

Never bend or twist the hose during operation. Bending the hose can reduce its inside diameter even to the point where the air flow stops. This can lead to damage to the hose or even to its rupture, which can result in serious injuries. Bending and twisting the hose also speeds up hose wear. Never carry the tool holding it by the hose. Do not overtension the hose during operation.

Do not use the tool as a blow gun, artificial respiration device, for spraying any substance or any other application not described in the instructions.

Never point the air stream towards yourself, other people or animals. Do not use your finger or any other part of the body to check if the pump is pumping air.

Make sure that the battery pack has been disconnected from the tool before connecting the hose to the pump.

PRODUCT OPERATION

Preparing for operation

Unpack the product by removing all packaging components.

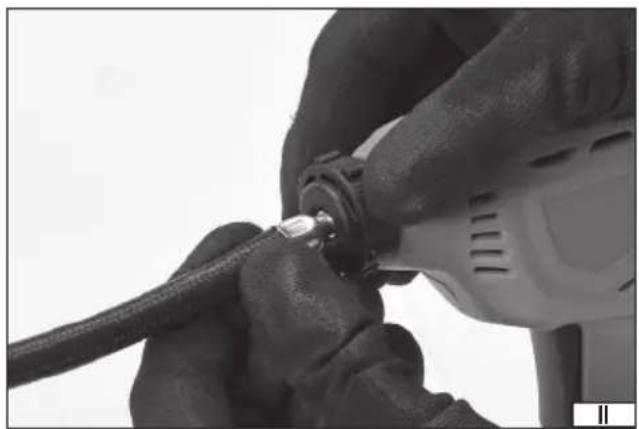

Loosen the ring around the hose connector but do not unscrew it completely. Insert the hose end equipped with an external thread into the hose connector and tighten the ring until resistance is felt (II). Slide the end of the hose into the connector as far as possible. Otherwise, the hose can be pulled out of the connector while pumping.

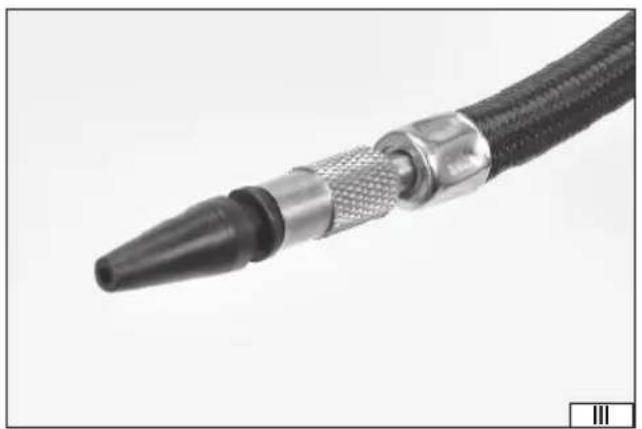

The free end of the hose is designed to be screwed onto the so-called "car" valve or to mount the adapter. Screw the adapter into the end of the hose (III).

The end of the hose to be screwed onto the valve rotates independently of the hose. This allows the end to be easily screwed onto the valve without the risk of twisting the hose. The end must be screwed on as far as possible to ensure a tight connection. Do not use any tools for screwing. Screwing on too tightly can damage the valve, hose or seals.

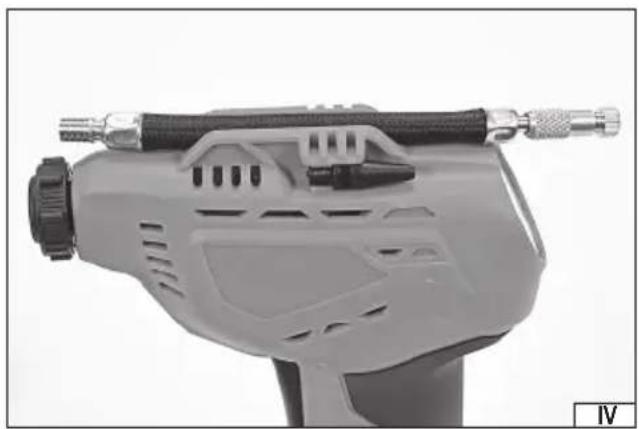

The upper part of the pump housing is equipped with handles which allow the hose and adapter to be stored together with the pump (IV).

Safety recommendations for battery loading

Attention! Before loading may start make sure the body of the charger, the cable and the plug are not broken or damaged. It is prohibited to use a damaged loading dock and charger! For the purpose of loading batteries only the charging dock and the charger provided may be used. Using another charger may be a cause of fire or damage the tool. Batteries may be charged only in a dry room, protected from unauthorised persons, particularly children. Do not use the charging dock and the charger without permanent supervision of an adult! If it is necessary to leave the room where loading is taking place, it is required to disconnect the charger from the mains, removing the charger from the mains socket. In case when smoke comes out of the charger, or a strange smell is emitted, etc., it is required to immediately remove the plug of the charger from the mains socket! The drill and automatic return screwdriver is provided with an unloaded battery, so before work may commence, it is required to charge it following the procedure below, using the charger and charging dock provided. Li-ION batteries do not show the so called “memory effect”, so it is allowed to charge them at any moment. However, it is recommended to discharge them during normal work, and then load them to their full capacity. If due to the nature of the task it is not possible to do so each time, then it is required to do it at least from time to time. Under no circumstances is it allowed to discharge the batteries short-circuiting the electrodes, since this would cause irreversible damage! It is also prohibited to check the load of the batteries, short-circuiting the electrodes for sparking.

Storage of the battery

In order to prolong the life of the battery, it is required to provide adequate storage conditions. The batteries can go through approximately 500 „loading - discharging” cycles. The battery must be stored between 0 and 30°C, at the relative humidity of 50%. In order to store the battery for a prolonged period, it is required to charge it to approximately 70% of its capacity. In case of prolonged storage, it is required to recharge the battery once a year. Do not permit excessive discharging of the battery, since this would reduce its life and may cause irreversible damage. During storage, the battery will be gradually unloading due to leakage conductance. The process of automatic unloading depends on the temperature of storage, since the higher the temperature, the

EN

fastest the process. In case of incorrect storage of batteries, there is a danger of electrolyte leakage. In case of leakage, it is required to protect the leakage with neutralizing agent. In case of contact of electrolyte with the eyes, it is required to rinse the eyes abundantly, and then immediately seek medical assistance. It is prohibited to use a tool with a damaged battery. In case the battery is completely worn out, it is required to deposit it at a special point dedicated to disposal of such waste.

Transport of the batteries

Lithium-ion batteries are in accordance with legal regulations treated as dangerous waste. The user of the tool may transport the tool with the battery or only batteries by land. Then no additional conditions must be complied with. In transport is realised by third parties (for example dispatch through courier service), then it is required to proceed in accordance with regulations for transport of dangerous materials. Before shipment, contact an authorised person.

It is prohibited to transport damaged batteries. During transport the battery must be removed from the tool, and the exposed contacts protected, e.g. with insulating tape. Protect the batteries so that they do not move inside the package during transport. It is also required comply with the national regulations for transport of dangerous materials.

Charging the Battery

Caution! Before charging, disconnect the charger from the power supply by removing the plug from the power supply socket. In addition, clean the battery and battery clamps of dirt and dust with a soft, dry cloth.

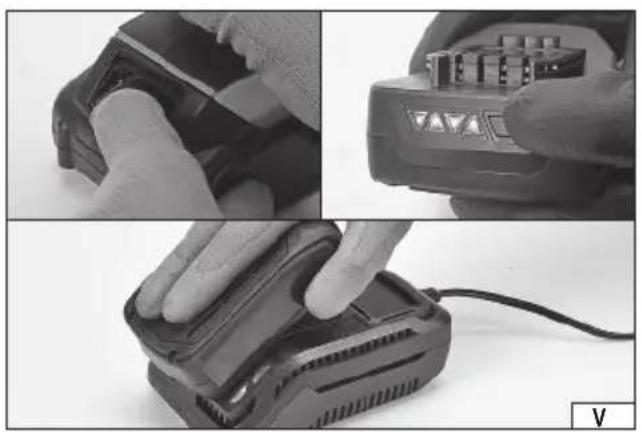

The battery has a built-in charge indicator. The LEDs will light up by pressing the power button (V), the more of them come on, the more charged the battery is. If the LEDs do not light up when the button is pressed, the battery is discharged.

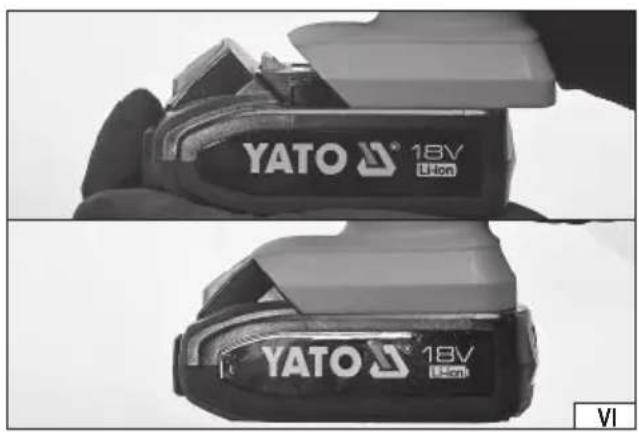

Disconnect the battery from the tool. The battery is secured in the tool socket by means of a latch. The battery can be removed by pressing and holding the latch and then pulling the battery out of the socket. A battery which is correctly installed in the tool socket cannot be removed other than by pressing the latch.

Slide the battery into the charger socket (V).

Plug the charger into a mains socket.

The red LED will light up, which indicates the charging process.

When charging is complete, the red LED will turn off and the green LED will light up to indicate that the battery is fully charged.

Pull the charger plug out of the mains socket.

Pull the battery out of the charger socket by pressing the battery clamp button.

Caution! If the green LED lights up when the charger is connected to the mains, the battery is fully charged. In this case, the charger will not start the charging process.

Residual risks

The machine has been designed and built according to good construction practices and safety principles. However, there may be residual risks when using the product.

Health hazard related to the electric power supply due to the use of improper power cords.

Noise hazard related to failure to use hearing protection.

Residual risks can be minimised by strictly following the safety instructions.

Pumping

After attaching the hose to the pump and to the product to be pumped, insert the battery into the pump base (VI). Make sure that the battery is locked in the pump base and does not slide out of the socket on its own.

Then press and hold the switch. The pump will start pumping.

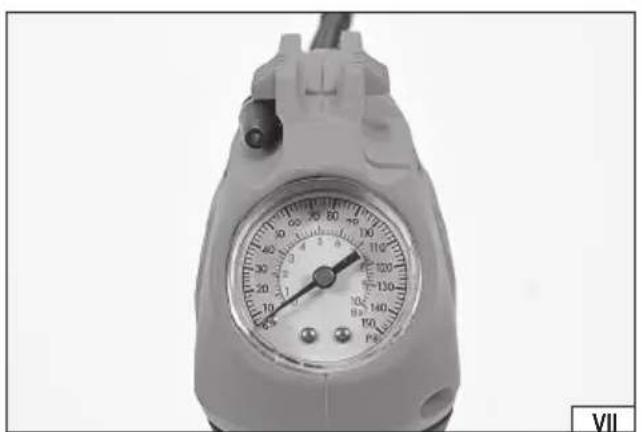

Observe the pressure gauge display (VII). Once the pointer indicates the intended pressure, release the switch. The pump will stop pumping.

Disconnect the battery from the tool base by pressing the latch button and then pulling it out of the base.

Disconnect the hose from the pumped product. A short hiss of expanding air may be heard when disconnecting the hose. This is a normal phenomenon of expansion of the air in the hose.

Attention! Due to the risk of overheating, do not pump for longer than 5 minutes, then let the tool cool down for at least 5 minutes.

MAINTENANCE AND OVERHAUL

CAUTION! Remove the battery from the machine's socket before performing adjustment, technical service or maintenance activities. Having finished working, check the power tool for damage by visually inspecting the exterior and the body and the handle, the functioning of the electric switch, the vents for clogging, the motor brushes for sparking, the noise level of the bearings and the drive transmission, and how the power tool starts and runs. During the warranty period, the user is not allowed to disassemble the tool or replace any components or parts, as this will void the warranty rights. Any irregularities found during overhaul or the operation signal the need for repair at a service centre. For this purpose, contact the manufacturer. Having finished your work, clean the housing, the vents, all switches, all handles and guards with compressed air (at 0.3 MPa maximum), a brush or a dry cloth. Do not use any chemicals or cleaners. Do not use sharp tools for cleaning. Remove the circular saw and clean the inside of the guards, the fixing of the circular saw, as well as the saw itself from dust and other impurities generated during operation. Clean handles, knobs and other adjusting parts with a dry, clean cloth.

GERÄTEBESCHREIBUNG

INSTRUCTIUNI DE SIGURANTĂ PENTRU POMPA FĂRĂ CABLU

CARACTÉRISTIQUES DU PRODUIT

Transport van accu's

DEKLARACJA ZGODNOŚCI DECLARATION OF CONFORMITY DECLARATIE DE CONFORMITATE

0425/YT-82895/EC/2025

We declare and guarantee with full responsibility that the following products:

meet requirements of the following European Standards / Technical Specifications:

and fulfill requirements of the following European Directives:

Machinery and safety elements

Restriction of the Use of Certain Hazardous Substances

Serial number: concern all serials numbers of item(s) mentioned in this declaration

The person authorized to compile the technical file:
