USER MANUAL FlatOne 6000 IX T.I.P.
Translation of original operating instructions
Submersible pump
GB EC declaration of conformity
We, T.I.P. Technische Industrie Produkte GmbH, Siemensstr. 17, D-74915 Waibstadt, declare in our sole responsibility that the products identified below comply with the basic requirements imposed by the EU directives specified below including all subsequent amendments: 2006/42/EC, 2014/30/EU, 2011/65/EU.
Like all our products, this one, too, was developed using the latest technological knowledge. The device was manufactured and assembled on the basis of state-of-the-art pump technology using most reliable electrical or electronic components which ensure a high level of quality and a long life of your new product.
Please read through these operating instructions carefully to make sure that you can fully benefit from all features.
Some explanatory illustrations can be found at the end of these operating instructions.
We hope you will enjoy your new device!
Table of contents
- General safety information....1
- Range of use.... 2
- Technical Data 2
- Scope of delivery 2
- Installation....3
- Electrical connection 4
- Putting into operation 4
- Maintenance and troubleshooting 5
- Warranty 6
- How to order spare parts....7
- Service 7
Annex: Illustrations
1. General safety information
Please read through these operating instructions carefully and make yourself conversant with the control elements and the proper use of this product. We shall not be liable in the case of damage caused as a result of the non-observance of instructions and provisions of the present operating instructions. Any damage caused as a result of the nonobservance of the instructions and regulations contained in the present operating instructions shall not be covered by the warranty terms. Please keep these operating instructions in a safe place and hand them on together with the device should you ever dispose of it.
Persons not conversant with the contents of these operating instructions must not use this device.
This appliance shall not be used by children. Cleaning and User maintenance shall not be carried out by children. Always disconnect the appliance from the supply before assembling, disassembling or cleaning. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children. Pumps without indication that they are protected against the effect of freezing shall not be left outside during freezing weather conditions.
The pump must not be used when people or animals are in the water.
The pump must be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30mA.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Notes and instructions with the following symbols require particular attention:
Any non-observance of these instructions involves the danger of bodily harm to people and/or damage to property.
Any non-observance of this instruction bears the risk of an electrical shock which may cause damage to persons or property.
Please inspect the device for damage occurred during transportation. In case of damage, the retailer has to be informed immediately, at the latest within 8 days after the date of purchase.
2. Range of use
These for special applications developed flat suction submersible pumps from T.I.P. are highly efficient electrical pumps for discharging clear, clean or moderately dirty water containing solids up to the maximum size specified in the technical details. These high-quality products with their convincing performance data were developed for the multiple purposes involved with irrigation, draining and pumping liquids from one place to another.
The typical ranges of application of FlatOne pumps include: draining of pools, basins and storage containers thanks to low suction function the draining from rooms.
This product is intended for private use in the home area and not for commercial or industrial purposes or for continuous circulating. The device is not suitable for use in swimming pools when people or animals are in the water or for installation in public water mains. The pump is not suitable for use in table-top fountains, aquariums or similar ranges of use.
The pump is not suited to discharge saltwater, faeces, inflammable, etching, explosive or other hazardous liquids. Please observe the max. temperature of the liquids to be discharged stated in the technical data.
Inside the pump, lubricants are used which may contaminate the liquids being discharged in case of any improper operation or damage of the device. The lubricants used are biologically degradable and non-hazardous to health.
3. Technical Data
| Model | FlatOne 6000 IX |
| Mains voltage / frequency | 230 V~ / 50 Hz |
| Nominal performance | 300 Watt |
| Protection type | IPX8 |
| Pressure port | IG 39,59 mm (1 1⁄4") |
| Max. flow rate (Qmax)1) | 6.000 l/h |
| Max. pressure | 0.6 bar |
| Max. delivery height (Hmax)1) | 6 m |
| Max. submersion depth ∇ | 7 m |
| Max. size of the solids being pumped | 1 mm |
| Max. fluid temperature (Tmax) | 35 °C |
| Max. cut-in frequency in one hour | 30, evenly distributed |
| Length of connection cable | 10 m |
| Cable type | 05RN8-F |
| Weight (net) | ~ 4.3 kg |
| Min. self-priming level in manual operation (A)2) | 40 mm |
| Min. evacuation level in manual operation (B)2) | 1 mm |
| Starting level in automatic operation (C)2) | 420-270 mm |
| Cut-out level in automatic operation (D)2) | 30-160 mm |
| Dimensions (L x D x H) | 15.5 x 15.5 x 25 cm |
| Item no. | 30440 |
1) The values were determined with free, unreduced outlet.
2) The values between brackets refer to the illustrations given at the end of these operating instructions.
4. Scope of delivery
The scope of the delivery of this product includes:
One pump with connection cable, one multi-dimensional connection port, one check valve (non-return valve) pre-mounted to the pressure port, one operating manual.
Please verify that the scope of delivery is complete. Depending on the purpose of the application, additional accessories may be necessary (please refer to the chapters titled "Installation" and "How to order spare parts"). If possible, keep the packing until the warranty period has expired. Please dispose of the packing materials in an environmental-friendly manner. The materials used are completely recyclable.
5. Installation
5.1. General installation information
During the entire process of installation, the device must not be connected to the electrical mains.
The pump and the entire connection system have to be protected from frost.
All connection lines have to be perfectly tight since leaking lines may affect the performance of the pump and cause considerable damage. If required, please use a suitable sealant to make the installation airtight.
When tightening threaded connections, please do not apply excessive force which may cause damage.
When laying the connection pipes, you should make sure that the pump is not exposed to any form of weight, vibration or tension. Moreover, the connection lines must not contain any kinks or an adverse slope.
5.2. Installation of the pressure line
The pressure line will convey the liquid from the pump to the point of withdrawal. To avoid friction losses, please use a possibly large pressure line - ideally, its diameter should match that of the pump outlet.
To facilitate installation, the scope of delivery includes a multi-dimensional connection port (10) offering the following connection options: male thread connector 33.25 mm (AG 1") hose connector with 25 and 35 mm internal diameter.
When using the external thread or hose connection of 35 mm, separate the unneeded narrower parts of the multidimension connector at the intended cutting points as follows (a, b).
To remove the unnecessary parts, please use a household saw.
If you actually have to proceed to this adaptation, then please do it before you attach the multi-dimensional connection port to the pump.
If the check valve was removed, it has to be refitted to the pressure port for the installation of the pressure line and the operation of the pump. To install the check valve, please start by placing the valve with the snap closure loosely on top of the pressure port of the pump. The "TOP / OBEN" inscription is found on top of the snap closure, which must be able of being opened upwards - i.e. towards the pressure line. Subsequently, please fasten the multi-dimensional connection port to the pressure port of the pump. Thus, the loosely positioned check valve is fixed.
5.3. Stationary installation
If the unit is used in a stationary installation, rigid pipes have proven to be the ideal choice for the pressure lines. With this type of installation, the pressure line should be equipped with a check valve immediately downstream the pump outlet to prevent liquid flowing back into the pump after it has cut out. The standard scope of delivery of the FlatOne series comes with such a check valve which is already pre-mounted to the pressure port. To facilitate maintenance work, we also recommend the installation of a stop cock valve downstream of the pump and check valve. This arrangement is beneficial in that closing the stop cock will prevent the pressure line from running dry after the disassembly of the pump.
5.4. How to set the floating switch
Please make sure that the pump will cut out as soon as the water level decreases and the floating switch has reached the cut-out level.
Also, it must be made sure that the floating switch can move freely.
In the manual operation mode the pump (with adjusted float switch) must be constantly monitored to avoid dry running.
The pump is equipped with a floating switch (2) causing the unit to cut in or out automatically as a function of the water level as soon as the water level has reached, or dropped below, the cut-out level, the pump will cut out. When the water level reaches or raises above the cut-in level, the pump will resume operation. The cut-in and cut-out levels can be adjusted by shortening or lengthening the freely movable cable (3) of the floating switch. The length of the cable can be set at the cable duct (4) located at the carrying handle (5) of the pump. In this regard, the relevant part is the freely movable part of the cable leading from the cable duct to the floating switch. If this length increases, the cut-out level will decrease, and the cut-in level will augment. Vice versa, if its length decreases, the cut-in level will increase whereas the cut-out level will be lowered.
Shall the pump continue to suck beyond the automatic cut-out-level the float switch hast to be operated manually, e.g. by holding it in upright position. To do this, you must remove the cable of the floating switch from the cable guide (4) at the side. Then adjust the floating switch to the intended holder (11) underneath the cable guide by sliding the switch vertically into the holder from above so that the cable pointes downside. Just in this operation mode the min. suction level given in the technical data chart can be achieved. However, the pump must be constantly monitored to avoid dry running.
5.5. Use as low suction pump
If you want to use the excellent low suction function of the pump (minimal suction level 1 mm) - for example, for drainage of rooms or for the complete pumping out of pools - the pump must be placed directly on the ground and the check valve have to be installed.
a) To reach the minimum suction level the pump must operate in manual mode; this means the float switch must be fixed in upright position (see above). This means that the pump will run permanently as long as it is connected to the electrical mains. This increases the risk of dry running which may cause severe damage to the unit as a result of overheating. So please do make sure that the pump is only operating as long as there is enough liquid left to be discharged by it.
b) When starting the pumping-out the water level must be at least 40 mm (see min. self priming level) so that the pump housing is vented.
5.6. How to position the pump
When positioning the pump, please make sure that the max. submersion depth indicated in the technical data will not be exceeded. Likewise, please make sure that the minimum self-priming level is not fallen short of. If everything is properly set, the water level may decrease down to the minimum suction level once the pump is operating.
Please position the pump on solid ground. Avoid placing it on lose stones or sand. When positioning the pump, please do make sure that the pump cannot tip over or sink into the ground with its intake openings. The penetration of sand, mud or comparable matters is to be avoided.
To position, lift up or carry the pump, please use only the carrying handle. If required for lowering or raising the pump, you may connect a suitable lowering rope to the carrying handle. In no case must the pressure hose, the mains cable or the cable of the floating switch be used to position, to lift up or to carry the pump. The specially designed pump foot of the FlatOne pumps is designed for extreme flat suction. If this function is not required it is advisable to install the pump with a little distance to the ground in order to use the full capacity. This can be done by supporting a stone as distance holder or by using a water resistant rope to fix above the ground.
6. Electrical connection
The unit is equipped with a mains connection cable and a mains plug. It must only be replaced by qualified staff to avoid any danger. Please do not use the mains connection cable to carry the pump, and do not use this cable to pull off the plug from the socket, either. Protect the mains connection cable and mains plug from heat, oil or sharp edges.
The values stated in the technical details have to correspond to the mains voltage. The person responsible for the installation has to make sure that the electrical connection is earthed in compliance with the applicable standards.
The electrical connection has to be equipped with a highly sensitive residual current circuit-breaker (FI switch): = 30 mA (DIN VDE 0100-739).
If extension cables are used, their cross-section must not be smaller than that of rubber-sheathed cables of the H07RN-F (3 x 1,0 mm²) short code. The mains socket and the plug have to be in splashwater-proof design.
7. Putting into operation
Nobody must be in the water while the pump is running.
The pump must only be operated in the performance range indicated on the type plate.
Dry-running - i.e. operating the pump without discharging water - is to be avoided since the absence of water may cause the pump to run hot. This may cause considerable damage on the device.
Please make sure that the electrical plug connections are in the flood-proof area.
As long as the device is connected to the electrical mains, one must never reach with one's hands into the opening of the pump.
Please inspect the pump visually prior to each use. This applies in particular to the mains connection line and the mains plug. Make sure that all screws are firmly tightened, and verify the perfect condition of all connections. A damaged pump must not be used. In any case of damage, the pump has to be inspected by qualified service staff.
Each time the pump is put into operation, please make sure that the pump is set up securely and firmly standing. To put the unit into operation, please plug the mains plugs into a 230 V AC socket. If the water level has reached or exceeded the cut-in level, the pump will start to run immediately.
To stop the operation of the pump, please pull the mains plug off the socket.
The electrical pumps of the T.I.P. FlatOne series are equipped with an integrated thermal motor protection feature. In the case of overload, the motor will switch off independently and on again after cooling down. For possible causes and their elimination, please refer to the “Maintenance and troubleshooting” section.
8. Maintenance and troubleshooting
Prior to carrying out any maintenance work, the pump must be separated from the electrical mains. If you fail to separate the unit from mains, there is a risk of an inadvertent start of the pump.
We decline any liability for damage caused by inappropriate repair attempts. Any damage caused by inappropriate repair attempts will avoid all warranty claims.
Observing the conditions of use and the ranges of application of the present device will reduce the risk of possible operational malfunction and contribute to extend the lifetime of your unit. Sand and other abrasive matters contained in the liquid discharged will speed up the process of wearing and tearing and accelerate the drop in performance.
If the unit is operated properly, it will not require any maintenance. Where applicable, you may clean the hydraulic part from sediments and dirt. This can be done by counter-flushing the unit with clear water using a hose to be connected through the pressure port of the pump. To remove tenacious dirt, the foot of the pump (8) can be removed by loosening the screws located at the bottom of the pump. To avoid any hazard, any further disassembly as well as the replacement of parts must only be done by the manufacturer or a by an authorized service provider. Water left in the pump may freeze in case of frost and thus cause considerable damage.
Therefore, the pump must be removed from the liquid being discharged and fully drained when temperatures are below the freezing point of the liquid. Please store the pump in a dry, frost-protected place. In the case of malfunction, you should first of all check whether it was caused by an operating error or some other reason which cannot be attributed to a defect of the device - for instance a power failure. The list below shows some possible malfunctions of the device, possible causes and tips on their elimination. All the measures referred to may only be carried out with the pump being separated from the electrical mains. If you yourself feel unable to eliminate any of these malfunctions, please contact the customer service department or your point of sales. Any repair beyond the scope specified below must only be performed by qualified staff. Please bear in mind that all warranty claims will become void in the case of damage caused by inappropriate repair attempts, and that we decline any liability for any ensuing damage.
| MALFUNCTION | POSSIBLE CAUSE | ELIMINATION |
| 1. The pump is not discharging any liquid, the motor is not running. | 1. No current.2. Thermal motor protection feature has triggered.3. The capacitor is defective.4. The pump wheel is blocked.5. The floating switch is defective. | 1. Please use a device complying with GS (German technical supervisory authority) to check for the presence of voltage (safety information to be observed!). Please verify the correct position of the plug.2. Separate the pump from the electrical mains, allow the system to cool down, eliminate cause.3. Please contact the customer service department.4. Eliminate blocking of pump wheel.5. Please contact the customer service department. |
| 2. The motor is running, but the pump is not discharging any liquid. | 1. The intake openings are clogged.2. The pressure line is clogged.3. Air penetrates into the pump body.4. The min. suction level was fallen short of; possibly incorrect setting of the floating switch, motion of floating switch restricted, floating switch defective.5. Check valve (non-return valve), if present, is blocked or defective. | 1. Remove possible congestion.2. Remove possible congestion.3. Start pump several times so that the entire air will be driven out.4. Make sure that the minimum suction level is not fallen short of; if necessary, adjust floating switch properly or make sure that it can move freely; in the case of a defective floating switch, please contact customer service.5. Eliminate blocking of the check valve (non-return valve) or replace, if damaged. |
| 3. The pump stops after a short time of operation because the thermal motor protection feature has triggered. | 1. The electrical supply does not correspond to the information given on the type plate.2. Pump or intake openings are blocked by solids.3. Liquid is too viscous.4. Temperature of the liquid is too high.5. Pump is running dry. | 1. Please use a device complying with GS (German technical supervisory authority) to check the voltage of the lines of the connection cord (safety information to be observed!).2. Remove possible congestion.3. Pump may not be suitable for this liquid. If feasible, the liquid should be thinned.4. Make sure that the temperature of the liquid being pumped does not exceed the max. admissible value.5. Eliminate causes of dry-running. |
| 4. Intermittent or irregular operation. | 1. Pump wheel obstructed by solid matters.2. Refer to section 3.3.3. Refer to section 3.4.4. Mains voltage out of tolerance.5. Motor or pump wheel defective. | 1. Remove solids.2. Refer to section 3.3.3. Refer to section 3.4.4. Make sure that mains voltage matches that indicated on the type plate.5. Please contact the customer service department. |
| 5. Water quantity discharged by pump is inadequate. | 1. Refer to section 2.1.2. Refer to section 2.2.3. Worn pump wheel. | 1. Refer to section 2.1.2. Refer to section 2.2.3. Please contact the customer service department. |
| 6. The pump does not cut in or out. | 1. Floating switch cannot move freely.2. Incorrect setting of floating switch.3. Floating switch defective. | 1. See that floating switch can move freely.2. Correct floating switch settings.3. Please contact the customer service department. |
9. Warranty
The present device was manufactured and inspected according to the latest methods. The seller warrants for faultless material and workmanship in accordance with the legal regulations of the country in which the device was purchased. The warranty period begins with the day of the purchase and is subject to the provisions below: Within the period of warranty, all defects which are to be attributable to defective materials or manufacturing will be eliminated free of charge. Any complaints are to be reported immediately upon their detection.
The warranty claim becomes void in the case of interventions undertaken by the purchaser or by third parties. Damage resulting from improper handling or operation, incorrect setting-up or storage, inappropriate connection or installation or Acts of God or other external influences are excluded from warranty.
Parts being subject to wear and tear, such as the pump wheel (impeller) and mechanical shaft seals are excluded from warranty.
All parts were manufactured using maximum care and high-quality materials and are designed for a long lifecycle. It should be understood, however, that the wear and tear depends on the kind of use, the intensity of use and the internals of maintenance. Complying with the installation and maintenance information contained in the present operating instructions will therefore considerably contribute to a long lifecycle of these wearing parts.
In case of complaints, we reserve the option of repairing or replacing the defective parts or replace the entire device. Replaced parts will pass into our property.
Claims for liquidated damages are excluded unless they are caused by wilful acts or negligence on the side of the manufacturer.
The warranty does not provide for any claims beyond those referred to above. The warranty claim has to be evidenced by the purchaser in the form of the submission of the sales receipt. The present warranty commitment is valid in the country in which the device was purchased.
Please note:
- Should your device fail to function properly, please verify first whether an operating error or another cause is present which cannot be attributed to a defect of the device.
- In case you have to take or send in your defective device for repair, please be sure to enclose the following documents:
– Sales receipt (sales slip).
- A description of the occurring defect (a description as accurate as possible will expedite the repair work).
- In case you have to take or send in your defective device for repair, please remove any attached parts which do not belong to the original condition of the device. If any attached parts of this kind should be missing upon the return of the device, we shall not be liable for them.
10. How to order spare parts
The fastest, most simple and cheapest way of ordering spare parts is through the internet. On our www.tip-pumpen.de website you will find a convenient spare part shop where you can order spare parts with just a couple of clicks. In addition, this is also the place where we publish comprehensive information and valuable tips on our products and accessories, introduce new devices and present current trends and innovations in the range of pump technology.
11. Service
In the case of warranty claims or malfunction, please contact your point of sale.
A current operating manual is available as required as a PDF file via e-mail: service@tip-pumpen.de.
For EC countries only
Please do not dispose of electrical appliances in the regular domestic waste!
According to the European Directive 2012/19/EU regarding waste electrical and electronic equipment and the implementation of that directive into national law, electrical devices have to be collected separately and disposed off in an environmental-suitable manner after the end of their life cycle. Should you have any questions, please contact your local waste disposal company.
Chère cliente, cher client,
Six triangular warning symbols with exclamation marks, likely indicating a hazard or alert scenario.text_image
Six warning symbols in black triangular shapes, each containing an exclamation marktext_image
Four warning symbols in triangular shapes, each containing an exclamation marknatural_image
Close-up of a mechanical component with curved and straight rods, no visible text or symbols


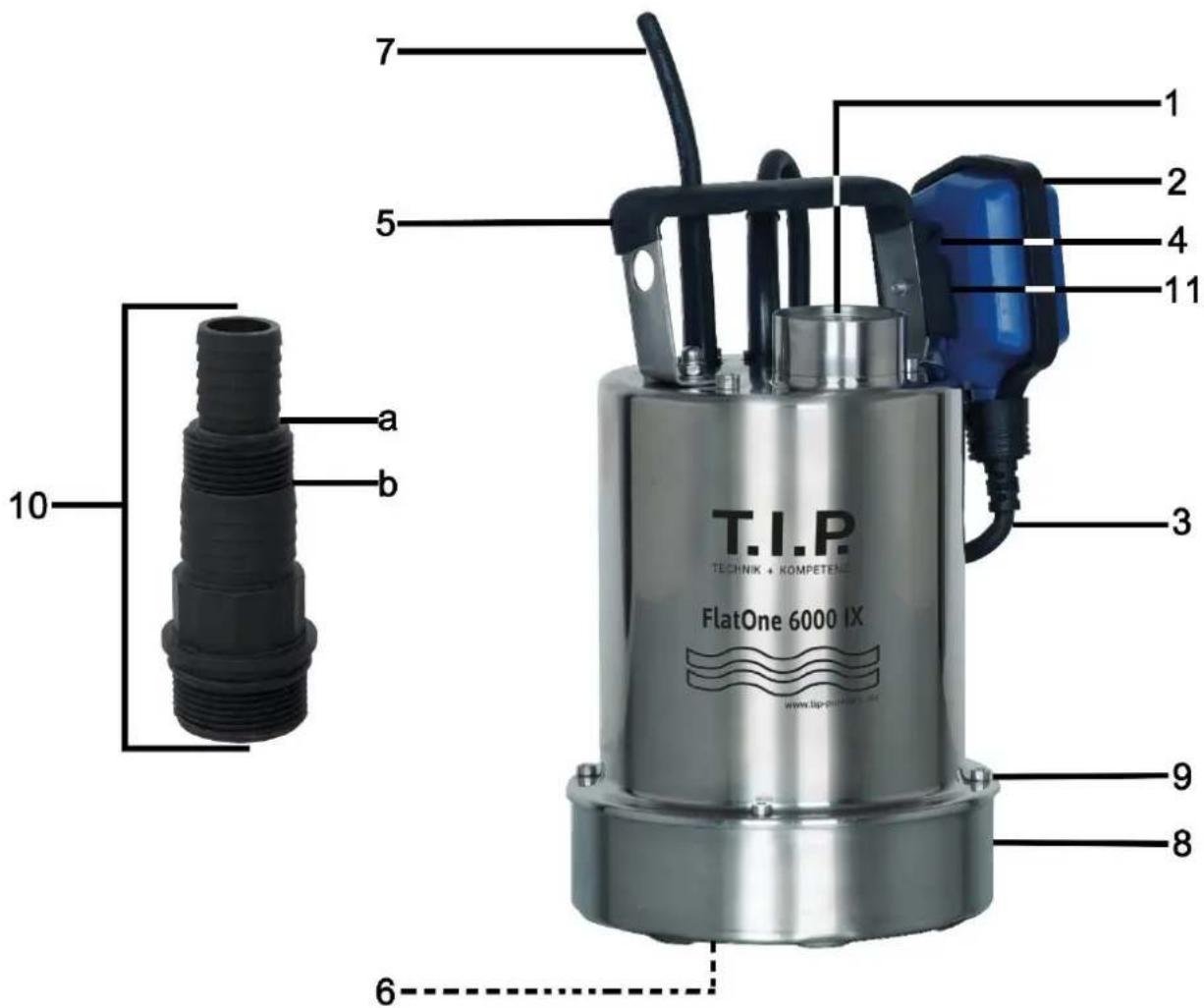

Functional parts / Details
1 Pressure port 7 Mains connection cable A Min. self-priming level *
2 Floating switch 8 Pump foot B Min. suction level *
3 Cable of floating switch 9 Pump foot screws C Cut-in level *
4 Cable duct of floating switch 10 multi-dimensional connecting piece D Cut-out level *
5 Carrying handle 11 Float holder a Cutting point
6 Intake openings b Cutting point
* The applicable values are specified in the "Technical details" section
