USER MANUAL DO943C DOMO

White refrigerator with open door showing three side compartments filled with vegetables and food items (no visible text or labels)

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

CONDICIONES DE GARANTÍA

RECYCLAGE-INFORMATIE

Symbol of a trash bin crossed with no visible text or labels

RECYCLING INFORMATIONEN

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat package ecologically.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

INFORMACE O RECYKLACI ODPADU

From now on, accessories and parts of Domo appliances can also be ordered online from the Domo webshop*:

http://webshop.domo-elektro.be

You can reach the webshop through the Domo website as well: www.domo-elektro.be. The accessories and parts can also still be obtained at the store where you bought the appliance.

CZ

Simple black line drawing of a power plug with a coiled cable (no text or symbols)

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

Warning sign depicting a flame symbol in yellow and black on white background

UW APPARAAT VERPLAATSEN

Diagram of a roof structure with upward arrows indicating ventilation or airflow direction (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly with a screwdriver inserted (no text or symbols)

Line drawing of a hand holding a small object with an arrow, next to a vertical line (no text or symbols)

Technical line drawing of a mechanical assembly with a screwdriver inserted (no text or symbols)

Line drawing of a hand holding a tool against a vertical pole (no text or symbols)

Simple line drawing of a tool with a handle and vertical axis (no text or symbols)

Warning sign depicting a flame symbol in yellow and black, indicating hazard or caution.

Hand holding a small object with an arrow, next to a vertical line (no text or symbols visible)

Technical line drawing of a mechanical assembly with a screwdriver inserted (no text or symbols)

Line drawing of a hand holding a tool against a vertical pole (no text or symbols)

Simple line drawing of a tool with a handle and lever (no text or symbols)

Warning sign depicting a flame symbol in yellow and black on white background

Simple line drawing of an open box with internal compartments and upward arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a hand holding a small object near a vertical panel (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly with a screwdriver inserted (no text or symbols)

Line drawing of a hand holding a tool against a vertical pole (no text or symbols)

This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision. Keep the appliance out of reach of children younger than 8 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or other similar professional surroundings
• Farms
• Hotel or motel rooms and other surroundings with a residential character
• Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

ALWAYS FOLLOW THE BASIC SAFETY PRECAUTIONS WHEN USING AN ELECTRICAL APPLIANCE, INCLUDING THE FOLLOWING:

• Read all instructions before use and save this instruction manual.
• Before use, check if the voltage indicated on the appliance corresponds with the voltage of your power net.
• Do not let the cord hang on a hot surface or over the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction of the appliance or when the appliance is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair. Never try to repair the appliance yourself.
• Strict supervision is necessary when the appliance is used near or by children.
• The use of accessories that are not recommended by the manufacturer could cause fire, electrical shock or injuries.
• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning. Unplug by pulling the plug itself. Never pull the electrical cord to remove the plug from the socket.
• Never place this appliance on or near a gas or electrical stove or in a place where it may come into contact with a warm appliance.

• Do not use the appliance outdoors.

• Only use the appliance for the purpose for which it is intended.

• Before the first use, remove all packaging materials and any promotional stickers.
• This appliance is heavy. Be careful when moving it.
• Do not make any adjustments to this appliance, this could be dangerous.
• If there is electrical work that needs to be carried out when installing the appliance, this should be done by a qualified electrician or skilled person.
• Only store edible foods into the freezer.
• The appliance may not be used with an extension lead or a multiple socket.

• Follow the instructions below to prevent contamination of food:

• Keeping the door open for long periods may cause the temperature in the compartments of the appliance to rise considerably.

• Clean the surfaces that could come into contact with food regularly. Keep the condensation channel and drainage hole at the back of the appliance clean.
• Store raw meat and fish in suitable containers in the refrigerator so that they do not come into contact with or drip onto other food.
• If the appliance is left empty for longer periods, it should be turned off, defrosted and cleaned. Allow it dry and leave the door ajar to prevent mould from growing in the appliance.

- WARNING! Never place this appliance on or in the neighbourhood of a gas or electric fire or in a place where it could come into contact with a heat source. There are flammable materials located on the back of the appliance.

Warning sign depicting a flame symbol in yellow and black on a white background

Pay attention to the symbol ‘Fire risk – flammable materials’ located on the back of the appliance.

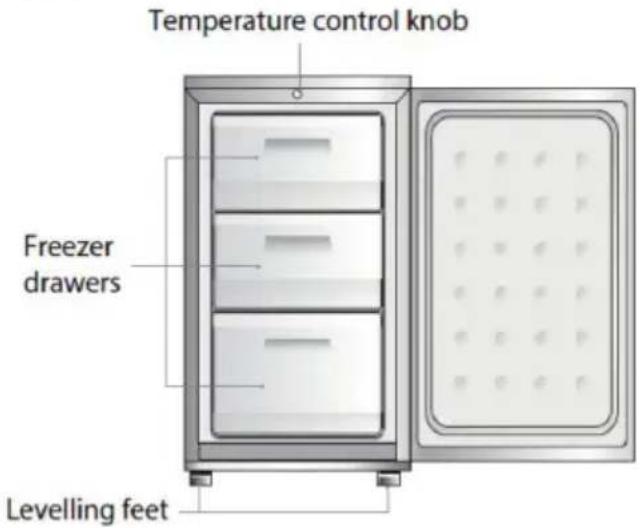

PARTS

Temperature control knob Freezer drawers Levelling feet

INSTALLATION

Caution:

• Make sure that the appliance does not stand on the electrical cord.
- Parts that become warm should not be exposed. If possible, place the back of the freezer close to a wall, but do keep the required distance for ventilation, as indicated with the pin at the back of the appliance.
• After installation, leave the freezer for 12 hours before turning it on. This way the refrigerant can settle.
- Before connecting your freezer to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A different voltage could damage the appliance.

USE

Caution:

• Do not freeze food again after it has been defrosted already.

• Do not place carbonated liquids such as fizzy drinks into the freezer.

• Be careful when consuming ice lollies straight from the freezer to avoid freeze burns.

• Do not take anything out of the freezer with wet hands.

Tips:

• The freezer produces sounds when the compressor pumps the refrigerant around. This is normal.
• Do not place any hot foods into the freezer.
• Make sure that all food in the freezer is covered.
• Do not press together the food. The air should be able to circulate around the food.
• Do not leave the door open for too long. Also make sure that the door is always properly closed.
• Label the food with the date to be able to check the expiration in the freezer.

AMBIENT TEMPERATURE

This appliance is designed to operate in ambient temperature between 10^ C and 43^ C. If these temperatures are exceeded, i.e. colder or warmer, the appliance will not operate correctly. If the ambient temperatures are exceeded for long periods, the temperature in the freezer will rise above -18^ C and food spoilage may occur.

In order to obtain a correct operation, the appliance should be installed:

• in a dry area
  • out of direct sunlight
• away from extreme temperatures (this also means away from a stove or other heat sources)
  • on a strong, stable floor

VENTILATION

Above the freezer, there should be a free, empty space of 50 mm.

If it is not possible to keep a free space above the freezer, then keep a free, empty space of 25 mm at both sides of the freezer.

LEVELLING

The freezer needs to be placed completely upright and level, so that it will not rock. Check if the 2 adjustable legs are firmly on the ground when the freezer is completely upright and level.

If not, adjust the legs by screwing or them in or out the freezer.

Caution: This appliance is heave. Be careful.

• Remove all packaging.
• Allow the appliance to run empty for 2 – 3 hours so the compartment can cool to the appropriate temperature.
• Clean the inside of the appliance with warm water and a little liquid detergent to remove manufacturing and transportation dust.

POWER FAILURE

If there is a power failure, do not open the door. Frozen food should not be affected if the power failure lasts for less than 15 hours.

Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.

TEMPERATURE CONTROL

The freezer is controlled with a temperature control knob located inside the appliance.

Adjust the control knob as desired to suit your individual preference.

- is warmest setting

4 is coldest setting

1- 4- -2 -3

- The running time and temperature are affected by where the freezer is located, how often the door is opened and the temperature of the room the freezer is located in.

- When you use the appliance for the first time or after defrosting, adjust the control knob to the coldest setting for at least 2 hours before introducing food to be stored, and then readjust to the middle setting.

MOVING YOUR APPLIANCE

If the appliance is turned off for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise before restarting.

- Turn off the appliance and unplug it from the mains socket. Remove all food. Also remove all mobile parts (drawers, etc.) or fix them into the freezer to avoid any shock.

- Relocate and install. If the appliance has been left on its side for any length of time, leave it standing upright for at least 10 minutes before turning on.

- Your appliance uses isobutane (R600a) as a refrigerant. Although R600a is an environmentally friendly and natural gas, it is explosive. Therefore you should be careful during shipment and installation to prevent your appliance's cooler elements from being damaged. In the event of a leak caused by damage to the cooler elements, move your freezer from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.

FREEZING AND STORING FOOD IN THE FREEZER

Use the freezer

• To store deep-frozen food.
- To make ice cubes.
- To freeze food.

Note: Ensure that the freezer door has been closed properly.

Purchasing frozen food

• Packaging must not be damaged.
• Use by the ‘use by /best before/best by/’ date.
• If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer.

Storing frozen food

Store at -18^ C or colder. Avoid opening the freezer drawers unnecessarily.

Freezing fresh food

Freeze fresh and undamaged food only. To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing.

Aubergines, peppers, zucchini and asparagus do not require blanching.

Note: Keep food to be frozen away from food which is already frozen.

- The following foods are suitable for freezing: Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese and butter, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts.

- The following foods are not suitable for freezing: Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, and mayonnaise.

Packing frozen food

To prevent food from losing its flavour or drying out, place food in airtight packaging.

1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents and dates of freezing.

Suitable packaging:

Plastic film, tubular film made of polyethylene, aluminium foil, freezer containers.

These products are available from specialist outlets.

Recommended storage times of frozen food in the freezer

These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C).

Food Storage time
Bacon, casseroles, milk 1 month
Bread, ice cream, sausages, pies, prepared shellfish, oily fish 2 months
Non-oily fish, shellfish, pizza, scones and muffins 3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces 4 months
Butter, vegetables (blanched), eggs whole and yolks, cooked cray-fish, minced meat (raw), pork (raw)	6 months
Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

Never forget:

• When you freeze fresh foods whit a ‘use by /best before/best by/’ date, you must freeze them before the expiry of this date.
• Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen.
• Once defrosted, food should be consumed quickly.

DEFROSTING

A layer of frost in the freezer will impair refrigeration of the frozen food and increases power consumption. Remove the layer of frost regularly. Do not scrape off frost or ice with a knife or pointed object. Doing this may damage the refrigerant tubes.

1. Remove the frozen food and place temporarily in a cool location.
2. Disconnect the appliance from the mains socket.
3. To accelerate the defrosting process, place a pan of hot water on a stand in the freezer.
4. Wipe up condensation with a cloth or sponge.
5. Wipe dry the freezer compartment.
6. Plug in the appliance and adjust the temperature control knob as desired.
7. Put the frozen food back in the freezer.

DOOR CONVERSION

If you need to hinge your door on the opposite side it is recommended that you call your local authorised service agent to make this conversion or ask a technician. Before you reverse the door, you should ensure the appliance is unplugged and empty. It is recommended to use a crosshead screwdriver and a spanner (both not supplied).

1. Remove the 2 screws on the back of the top cover.

1. Lift the top cover away from the fridge.

Simple line drawing of a roof structure with upward arrows indicating direction (no text or symbols)

1. Remove the three screws and then remove the top hinge that holds the door in place. Lift the door and place it on a padded surface to prevent it from being scratched.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

1. Remove the bottom screw, hinge bracket and adjustable foot from the bottom of the appliance.

Losschroeven Losschroeven

1. Remove the adjustable foot from another side of the bottom and transfer it to the corresponding position on the opposite side of the bottom.

Line drawing of a hand holding a small object near a vertical line (no text or symbols)

1. Attach the screws, hinge bracket and adjustable foot to the opposite side of the bottom. Loosely secure.

Vastschroeven Vastschroeven

1. Carefully set the door back into place. Ensure the door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge. Insert the hinge back and screw it to the top of the appliance.

Technical line drawing of a mechanical bracket with a screwdriver inserted (no text or symbols)

1. Use a spanner to tighten it if necessary.

Technical line drawing of a mechanical joint or bracket assembly (no text or symbols)

1. Put the top cover back and fix it in place with the screws.

Simple line drawing of a tool or bracket with a handle, no text or symbols present

1. With the door closed, check that the door is aligned horizontally and vertically and that the seals are closed on all sides before finally tightening the bottom hinge. Readjust the levelling feet as required.

CLEANING AND MAINTENANCE

Always unplug the freezer before cleaning it.

Inside

- Clean the inside and the accessories with warm water and bicarbonate or soda. Rinse and dry thoroughly.

- Do not use detergents, abrasive powders, perfumed cleaning products, wax polishes or cleaning products containing bleach or alcohol.

Outside

- Clean the outside with warm soapy water.

- Do not use any abrasive products.

- Be careful around the sharp edges at the bottom of the freezer.

- Once or twice a year, remove the dust from the compressor at the back using a brush or vacuum cleaner, as an accumulation of dust will affect the performance and the energy consumption of the appliance.

Defrost

1. Empty the freezer.

2. Unplug the appliance.

3. Open the door.

4. Place a suitable container to collect the defrost water.

5. After defrosting, thoroughly clean and dry the inside.

6. Plug in the appliance.

Caution: Do not use any sharp objects to scrape the ice from the freezer walls.

Not in use

When the appliance is not used for a long period of time: unplug, empty the freezer, defrost and leave the door ajar to prevent unpleasant smells.

PRECAUCIONES IMPORTANTES

Warning sign depicting a flame symbol in yellow and black on white background

Simple line drawing of a cabinet with an open lid and arrows indicating upward movement (no text or symbols)

Line drawing of a hand holding a small object with an arrow, next to a vertical line (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a tool interacting with a vertical rod (no text or symbols)

Simple line drawing of a tool with a handle and vertical axis (no text or symbols)

Warning sign depicting a flame symbol in yellow and black on white background

Line drawing of a hand holding a small object with an arrow, next to a bracket (no text or symbols)

Technical line drawing of a mechanical assembly with a screwdriver inserted into a bracket (no text or symbols)

Line drawing of a tool interacting with a vertical rod (no text or symbols)

Simple line drawing of a tool with a handle and lever (no text or symbols)

Nad mrazničkou by mal byt' vol'ný priestor (aspoň 50cm).

Ak nie je možné zaručit' aspoň 50 cm vol'ného priestoru nad mrazničkou, nechajte vol'no aspoň 25 cm po každej bočnej strane.

VYROVNANIE PRÍSTROJE

Simple line drawing of a mechanical tool or bracket with a handle (no text or symbols)

1. Horný kryt zložte.

Diagram of a device with an open lid and internal components, showing upward arrows indicating movement (no text or symbols present)

Technical line drawing of a mechanical assembly with a screwdriver inserted into a bracket (no text or symbols)

Line drawing of a hand holding a small object near a vertical line (no text or symbols)

Technical line drawing of a mechanical assembly with a screwdriver inserted (no text or symbols)

Line drawing of a tool interacting with a mechanical component (no text or symbols)

1. Pant prekryte krytom a opät' ho priskrutkujte.

Simple line drawing of a Y-shaped tool with a handle, no text or symbols present

Two cylindrical milk glasses on a plain white surface (no text or symbols visible)

Three product photos: a stack of yellow paper cards, a clear glass coffee maker with black lid, and a white rectangular container filled with dark liquid (no text or symbols visible)

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:

QR code image containing encoded data, no visible human-readable text
