USER MANUAL DO1004BL DOMO

Exterior view of a modern black and silver portable water heater (no visible text or symbols)

DO1004BL

Two black-and-white icons: a triangular warning triangle with an exclamation mark and an open book (no text or symbols)

Read all instructions carefully - save this instruction manual for future reference.

NL Nederlands 3
FR Français 12
DE Deutsch 22
EN English 32

GARANTIE

Geachte klant,

① ② ⑫ ⑬ ⑭

6 7 8 9 10 11 SMOOTH CHUNKY COMPUTE JUICE RE-HEAT BLIND MODE 13 START STOP 4 5 3

GEBRUIK

BASIS RECEPT: 400 g suiker, 500 g fruit, 50 ml water.

Reheat: heropwarmen

Prohibition sign with crossed-out trash bin and no text, likely indicating no waste or disposal.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Diagram of a mechanical assembly with a tool inserted into a housing (no text or symbols visible)

Technical line drawing of a mechanical component with directional arrows indicating movement (no text or symbols)

Simple line drawing of a bucket with floating blocks and a label '3' (no text or symbols on the objects)

Line drawing of a container being poured into a bucket, with a numbered label '4' in the corner (no text or symbols on the diagram itself)

Diagram of a blender with handle and control panel, no text or symbols present

Diagram of a mechanical component with a lever and pin, no text or symbols present

7

Simple line drawing of a container with liquid being poured into it, no text or symbols present

LES PROGRAMMES

Chunky: chauffer

Compote : chauffer + mixer

Prohibition sign with crossed-out trash bin and no text, likely indicating a waste sorting or disposal restriction.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Diagram of a mechanical component with a plug inserted into a housing (no text or symbols visible)

Diagram of a blender with directional arrows indicating sound or vibration components (no text or symbols)

Simple line drawing of a bucket with floating objects and a numbered label (3) in the corner (no text or symbols on objects)

Line drawing of a bucket being poured into a container with a small valve, no text or symbols present

Diagram of a kitchen mixer with a numbered label (5) and directional arrows indicating parts, no text or symbols present.

Diagram of a plug inserted into a socket, showing electrical connections (no text or symbols)

7

Simple line drawing of a container with liquid and a funnel, no text or symbols present

DIE PROGRAMME

Chunky: Erwärmen

Prohibition sign showing a trash bin crossed with diagonal lines and a blank rectangular base

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

· If the instructions in this manual have not been followed.
· In case of incorrect connection, e.g., electrical voltage that is too high.
· In case of incorrect, rough or abnormal use.
· In case of insufficient or incorrect maintenance.
- In case of repairs or alterations to the device by the consumer or non-authorised third parties.
- If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time.
  · Make sure children cannot play with the packaging material.

- This appliances is intended for use in household environment and commercial purpose such as :

· In staff kitchen areas, shops, offices and other similar working environments;

· In farm houses;

- By clients in hotels, motels and other residential environments;

- In bed and breakfast type environments.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

· Children should be supervised to ensure that they do not play with the appliance.

- This appliance shall not be used by children from 0 year to 16 years. This appliance can be used by children aged from 16 years and above if they are continuously supervised. This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Keep the appliance and its cord out of reach of children aged less than 16 years. Cleaning and user maintenance shall not be made by children.

- Keep the appliance and its cord out of reach of children.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- CAUTION: In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

- Care is needed when handling cutting blades, especially when removing the blade from the bowl, emptying the bowl and during cleaning.

- The surfaces of the appliance are likely to get hot during use. It is advised not to touch the surfaces of the appliance other than the handles to avoid burns.

- Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO

service department or its service agent for examination, repair, or electrical or mechanical adjustment.

- To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

- Do not let power cord supply hang over the edge of counter, or touch hot surfaces.

· Do not use this appliance for other than intended use.

· Never leave the appliance unattended while it is functioning.

· Do not place on or near a hot gas or electric burner, or in a heated oven.

· Do not use or store this appliance outdoors.

- Do not move the appliance while in use.

· Only use the utensils delivered with the appliance.

- Check carefully that the voltage and frequency match the indications on the rating label of the appliance.

- The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.

- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

SAVE THESE INSTRUCTIONS

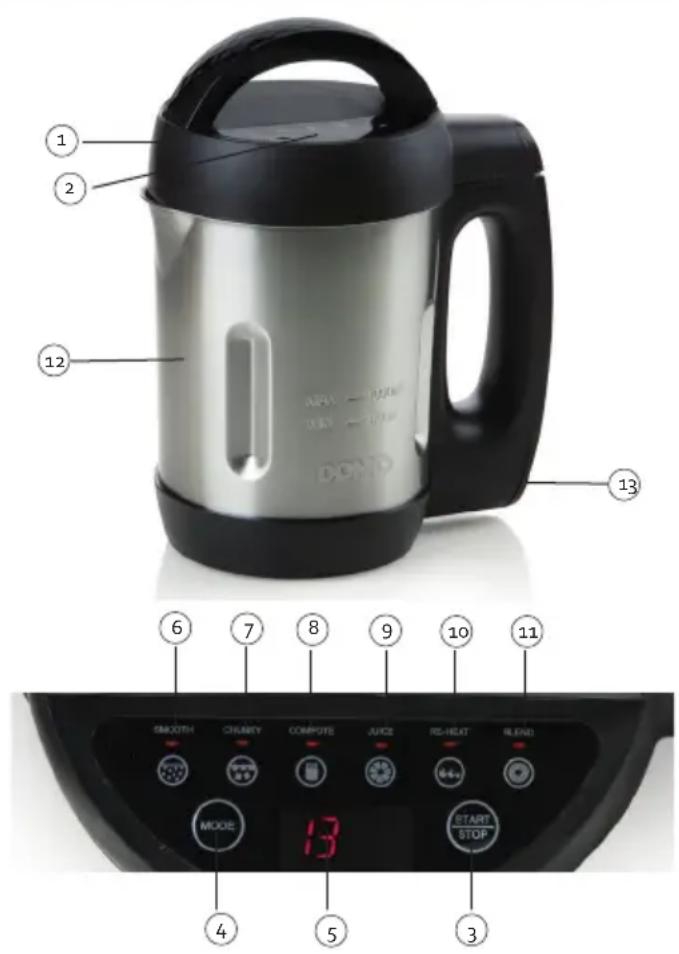

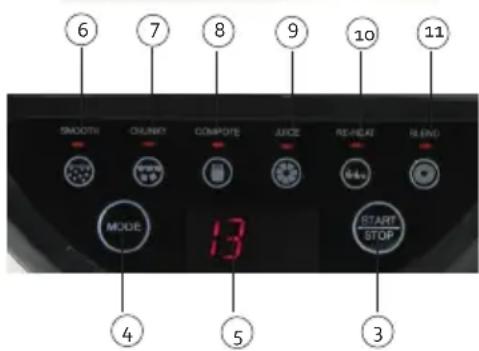

PARTS

1. Lid
2. Control panel
3. On-off button 'START/STOP'
4. Setting button 'MODE'
5. LED Display
6. Indication chunky-function
7. Indication smooth-function
8. Indication compote-function
9. Indication juice-function
10. Indication reheat-function
11. Indication blend/clean-function
12. Jug
13. Power socket

1 2 12 3 13 SMOOTH CHAIRY COMPONE JUICE RE-HEAT BLEND MODE 13 START STOP 4 5 6 7 8 9 10 11

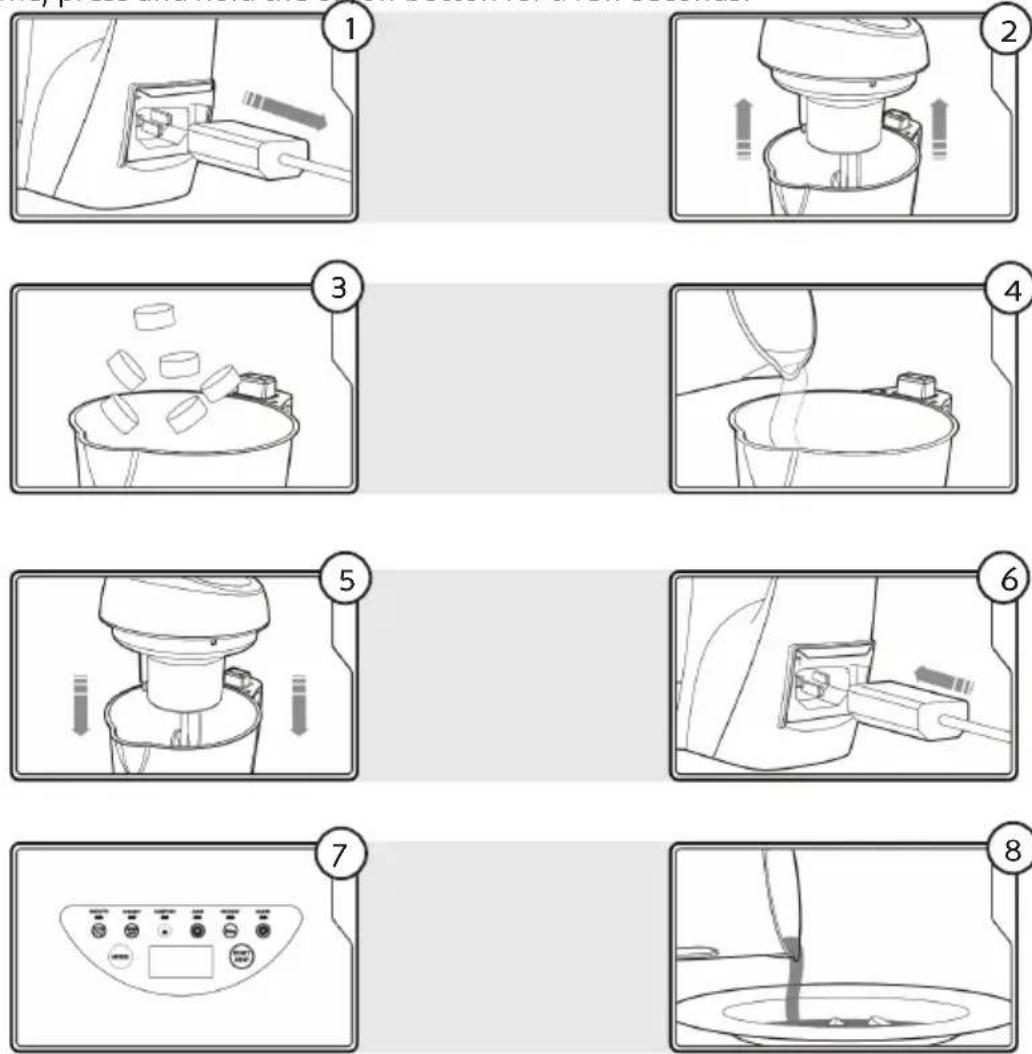

USE

Note: Before using the device, clean it with a moist cloth.

1. Ensure the soup maker is unplugged before adding the ingredients.

2. Remove the lid. Be careful not to touch the blade.

3. Place all the ingredients in the soup maker.

4. Add the water or broth last, filling it up to between the min and max indication lines. Make sure that the appliance is always filled between the minimum (700 ml) and maximum (1000 ml) indicators.

5. Place the lid back onto the jug. Ensure it is securely in place.

6. Plug the cable in the power socket at the bottom of the handle. The indicator lights will blink one by one.

7. Select the required program (chunky/smooth/juice/jam/blend) by pressing the setting button 'MODE'. Confirm with the start button 'START/STOP'. The LED screen has a countdown timer. Attention: the jug will heat up.

8. When the programme is finished, a signal will sound for one minute. Be careful when you pour out the soup!

Caution: if you want to turn the appliance off during the programme or want to change the programme, press and hold the on/off button for a few seconds.

SETTINGS

Chunky: heat

The chunky-function is perfect for soups requiring a chunkier consistency. For chunky soup there is no blending process, just heating. It is therefore recommended that you cut the vegetables into the desired size. The device does not mix the soup but only cooks it. The program lasts for 26 minutes. The programme is completed when the signal sounds for one minute. The program ensures the ingredients are heated for longer to ensure the ingredients are fully cooked. If you are not satisfied with the consistency of your soup; you can use the blend-function afterwards.

Smooth: heat + mix

The smooth-function is perfect for a soup with a smooth consistency. The program lasts for 19 minutes. The program ensures the ingredients are blended to the right consistency and gently cooked at the right temperature. At first the appliance will start heating, en the vegetables will be cooked. After 9 minutes the soup maker mixes the ingredients briefly. After this the soup will boil. After 12 minutes the appliance will mix the soup briefly for a second time. After 15 minutes the soup will be mixed to a smooth consistency. The programme is completed when a signal is sounded for one minute.

Juice: mix

The juice function is ideal for preparing a smoothie, milkshake or other cold drinks. The programme takes 2 minutes. When completed, a signal will sound for one minute. This programme mixes only and therefore does not heat up the ingredients.

Compote: warming + mixing

The compote function is perfect for preparing a delicious jam. The programme takes 20 minutes. During this time, the machine regularly heats and blends so you achieve the correct structure for a delicious jam. The programme is completed when a signal is sounded for one minute.

Note: This function is not suitable for making soup, because the mixing and heating time is set differently.

Basic recipe: 400 g sugar, 500 g fruit, 50 ml water.

Reheat: reheating

This function can be used for reheat already prepared soup up to 80^ C. The programm takes 13 minutes.

Blend: mix

If your soup does not have the desired consistency, you can continue to mix the soup with this function. Select the 'Blend' programme and confirm by pressing the start button. Press and hold the start button until you have the desired consistency. The blender does not heat with this programme. We advise you not to use the blend function for longer than 20 seconds at a time. This is also how you can clean the appliance after use.

CLEANING AND MAINTENANCE

• Do not place the appliance in the dishwasher.
• Remove the lid and clean with a damp cloth.
• Be careful when cleaning the blade.
• Fill the jug with warm water and a little bit of soap. Clean your appliance with the blend/clean function (see the section on use). Clean the inside of the jug with a soft sponge. Do not use a scouring pad as this will scratch the base.
  · After cleaning, dry all parts thoroughly.
• Do not immerse the appliance in water.

PROBLEMS AND SOLUTIONS

Problem Causse Solution
The lights on the display are off	There is a problem with the connection	Check if the power cord is properly connected
	There are too many ingredients in the jug, the lid is not in place	Remove some of the ingredients. Ensure the lid is in place
The light of the chosen setting is on, but the appliance doesn’t work	You didn’t confirm the setting with the start button	Press the start button
The appliance stops working	There is not enough liquid in the jug	The appliance has a boil dry protection. The appliance will shut down when there is not enough liquid used
You can hear several beeps and the light of the chosen program blinks	There is too much liquid in the appliance	The appliance has sensor to make sure it doesn’t overflow. Pour some of the liquid from the jug.
	The overfill sensor is dirty Clean	the sensor with a damp cloth
The food is burned The jug	g wasn’t filled between the min and max indication lines.	Ensure the base is always covered with liquid, between the min and max indication.

FREQUENTLY ASKED QUESTIONS

Can I make cold soups like Gazpacho in my soup maker?

Yes. First cook the soup using the chunky or smooth setting. Then simply let the soup cool or refrigerate. You can also make cold soups with the "juice" programme.

The soup maker stops working.

The appliance has a safety thermostat. When the appliance is overheated it stops working. This can happen when you use the soup maker multiple times in a row. If this problem occurs, remove the food and allow the appliance to cool for half an hour. It should now work correctly. If the blend function is used continuously for more than 20 sec., the safety will turn off the appliance. When this happens wait for 10 seconds before reusing the blend function.

What if food burns on the base of the appliance?

Always make sure you add water or broth to the ingredients. When the food is not in direct contact with the heating on the base it will not burn.

Does the appliance work when I remove the lid?

Yes, the appliance has a memory function for two minutes. This means that you have two minutes to, for example, add additional ingredients. Replace the lid on the appliance within the two minutes and the programme will simply continue.

Can I use the appliance to make anything other than soup?

Yes. You can also use the machine to make wonderful jams, smoothies, compotes, sauces or milkshakes with the jam, juice or blend function.

Can I add meat in the soup maker?

Yes. Only use the Chunky-function. The meat will be cooked together with the vegetables. Mince the meat in small pieces, max. 2 by 2 cm.

What is the capacity of the soup maker?

The maximum capacity you can make in one cycle is 1 l.

The min. and max. capacity are indicated on the inside of the jug. Do not fill the soup maker above the max. line. Otherwise the overfill sensor will go into safety and cut the power.

Can I change the times on the settings smooth, extra smooth, chunky and juice?

No. These times are preset and should give the best results.

ENVIRONMENTAL GUIDELINES

Prohibition sign with crossed-out trash bin and no text, indicating no waste or discharge

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.
