Product type	Soup maker
Brand	Domo
Model	DO1115BL
Color	Blue (according to reference BL)
Capacity	1.2 L (min) – 2 L (max)
Automatic programs	6: Chunky, Smooth, Extra smooth, Juice, Jam, Blend/Clean
Chunky function	Cooking without blending (chunky soup), duration 28 min
Smooth function	Cooking with progressive blending, duration 21 min
Extra smooth function	Cooking with fine blending, duration 30 min
Juice function	Cold blending (smoothies, milkshakes), duration 2 min
Jam function	Cooking and blending for jams, duration 25 min
Blend/Clean function	Manual blending (max 20 s) or cleaning
Screen	LED with timer
Overflow sensor	Yes, stops the appliance if overfilled
Dry cooking safety	Yes, automatic shut-off if too little liquid
Power supply	220-240 V ~ 50/60 Hz (estimated)
Power	Not specified (estimated 800-1000 W)
Container material	Stainless steel (deduction)
Blades	Stainless steel blades
Cleaning	Blend/Clean function; manual cleaning with damp cloth (not dishwasher safe)
Warranty	2 years
Included accessories	Blender, lid, power cord
Dimensions (approx.)	Height 35 cm, diameter 20 cm (estimated)
Weight (approx.)	2.5 kg (estimated)

Frequently Asked Questions - DO1115BL DOMO

Can I make cold soups with this appliance?

Yes, you can use the Chunky, Smooth or Extra smooth programs: the soup will first be cooked, then you can cool it in the refrigerator. You can also use the Juice program for cold preparations without cooking.

What to do if the blender stops during use?

The appliance is equipped with overheat protection. If you use it several times in a row without letting it cool down, it may stop. Let it cool down for about 30 minutes. Similarly, the Blend function should not be used for more than 20 consecutive seconds; wait 10 seconds before restarting.

How to prevent food from sticking to the bottom?

Always add one cup of water or broth to the ingredients. This prevents direct contact with the heating element. Make sure to respect the minimum (1.2 L) and maximum (2 L) levels.

Does the appliance work without the lid?

The appliance has a 2-minute memory. You can remove the lid to add ingredients, then put it back; the program automatically resumes within this time.

Can I use the appliance for other preparations besides soup?

Yes, you can make jams (Jam program), smoothies, milkshakes or compotes (Juice program), and even blend sauces with the Blend program.

Can I add meat to the soup?

Yes, use only the Chunky program. Cut the meat into pieces of maximum 2x2 cm. It will cook at the same time as the vegetables.

What is the maximum capacity of the blender?

The maximum capacity is 2 liters. The minimum and maximum levels are indicated inside the bowl. Do not exceed the maximum, otherwise the overflow sensor will stop the appliance.

Can I adjust the duration of the programs?

No, the durations are pre-programmed for optimal results: Chunky 28 min, Smooth 21 min, Extra smooth 30 min, Juice 2 min, Jam 25 min.

Can I use frozen vegetables?

Yes, but it is preferable to let them thaw or cut them into pieces smaller than 1 cm for even cooking.

How to clean the appliance properly?

Never put the appliance in the dishwasher. Fill the bowl with warm soapy water and run the Blend/Clean program. Clean with a soft sponge, then dry immediately. Be careful with the blades.

USER MANUAL DO1115BL DOMO

White and red stainless steel water heater with a handle, no visible text or symbols on the device itself.

DO1115BL

Two black-and-white icons: a warning triangle with an exclamation mark and an open book with stacked pages (no text or symbols)

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Technical line drawing of a mechanical component with a threaded fitting and directional arrow (no text or symbols)

Line drawing of a mechanical device with an upward arrow, no text or symbols present

Simple line drawing of a container with floating pills above it, no text or symbols present

Simple line drawing of a container being poured into a mixing bowl, no text or symbols present

Diagram of a kitchen mixer with a downward arrow indicating compression (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a portable electronic device with a circular button labeled '7' (no text or symbols on the device itself)

Simple line drawing of a funnel pouring liquid into a circular basin, with no text or symbols present.

GEHEUGENFUNCTIE

Blend/clean: mixen of reinigen

Prohibition sign with crossed-out trash bin and no text or symbols

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

⚠ AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols present)

Line drawing of a mechanical device with an upward arrow, no text or symbols present

Simple line drawing of a kitchen appliance with food items flying out (no text or symbols)

Line drawing of a container being lifted by a funnel, with no text or symbols present

Line drawing of a mechanical device with an arrow indicating downward motion, no text or symbols present

Technical line drawing of a mechanical component with an attached plug and directional arrow (no text or symbols)

Line drawing of a portable electronic device with a circular badge labeled '7' (no text or symbols on the device itself)

Illustration of a funnel pouring liquid into a circular basin, with a numbered circle (8) in the corner (no text or symbols on the diagram itself)

FONCTION MÉMOIRE

Blend/clean: mixer/nettoyage

Prohibition sign for a trash bin with crossed and unexposed lines, indicating no waste or disposal.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Technical line drawing of a mechanical component with directional arrow (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion, no text or symbols present

Simple line drawing of a kitchen pot with scattered food items (no text or symbols)

Simple line drawing of a container being lifted by a funnel, no text or symbols present

Diagram of a mechanical device with an arrow indicating downward motion, no text or symbols present

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a portable electronic device with a circular badge labeled '7' (no text or symbols on the device itself)

Simple line drawing of a container pouring liquid into a circular tank (no text or symbols)

SPEICHERFUNKTION

Prohibition sign depicting a trash bin crossed with no signage, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g. electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
  In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

- This appliance is intended to be used in household and similar applications such as:

· staff kitchen areas in shops, offices and other working environments;

· farm houses;
- by clients in hotels, motels and other residential type environments;
· bed and breakfast type environments.

- Children should be supervised to ensure that they do not play with the appliance.

• This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  · Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.
• Keep the appliance and its cord out of reach of children younger than 16 years.
• All repairs should be carried out by the manufacturer or its aftersales service.
• Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

▲ELECTRICAL WARNINGS

• In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected to a circuit that is regularly switched on and off by the utility.
• The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance. To disconnect, turn controls to “OFF” or “o” position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.
• Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.
• The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

• Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

• Keep the power cord away from hot parts and don’t cover the appliance.

• Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.
• The appliance may not be used with an extension lead or a multiple socket.
• Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

· Do not place near flammable materials, gases or explosives.
· Do not use or store this appliance outdoors.
· Always use the appliance on a steady, dry and level surface.
- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

· Do not use this appliance for other than intended use.
- Only use the appliance for domestic use. The manufacturer cannot be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
· Never leave the appliance unattended while it is functioning.
· Do not operate the appliance with wet hands.
- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCT-SPECIFIC WARNINGS

· Do not use the appliance without ingredients.

- Handle with great care when using sharp accessories like knives. Only touch the accessories when they stopped moving inside the appliance.

- The surfaces of the appliance are likely to get hot during use. It is advised not to touch the surfaces of the appliance other than the handles to avoid burns.

· Do not use the appliance to grind, chop, or powder dry ingredients. Always fill with enough liquid during use.

· Always use the appliance on a flat, stable, dry surface. Place the appliance at least 10 cm back from the edge of the table or kitchen counter.

- Do not place the device in a damp room or use it near a fire or heat source. The distance should be at least 30 cm.

- Do not move the appliance when in use or when the pitcher contains hot liquids.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

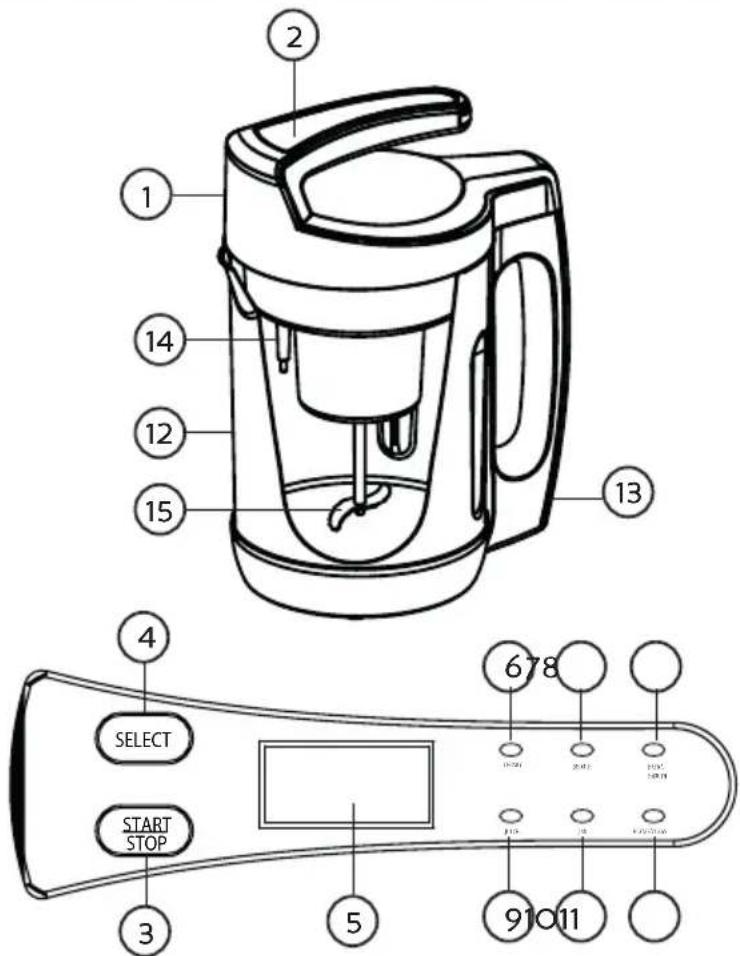

PARTS

1. Lid
2. Control panel
3. On-off button 'START/STOP'
4. Setting button 'SELECT'
5. LED Display
6. Indication chunky-function
7. Indication smooth-function
8. Indication extra smooth-function
9. Indication juice-function
10. Indication jam-function
11. Indication blend/clean-function
12. Jug
13. Power socket
14. Overfill sensor
15. Blade

1 2 14 12 15 13 4 SELECT START STOP 3 5 678 10.54 20.42 FOS 3.5mm 910 11

USE

Note: Before using the device, clean it with a moist cloth.

1. Ensure the soup maker is unplugged before adding the ingredients.

2. Remove the lid. Be careful not to touch the blade.

3. Place all the ingredients in the soup maker.

4. Add the water or broth last, filling it up to between the min and max indication lines. Make sure that the appliance is always filled between the minimum (1200 ml) and maximum (2000 ml) indicators. Make sure there is enough liquid so that the starch in the ingredients cannot burn. Take into account a ratio of 40% vegetables to 60% moisture.

5. Place the lid back onto the jug. Ensure it is securely in place.

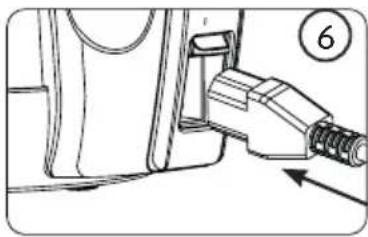

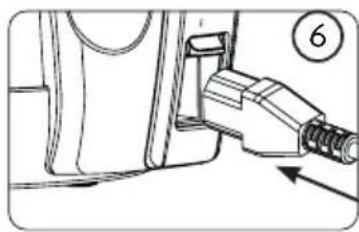

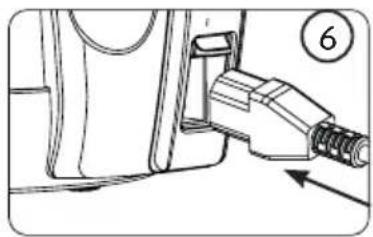

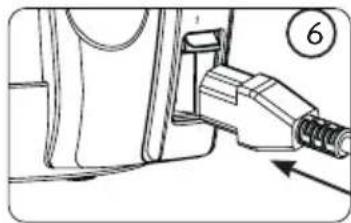

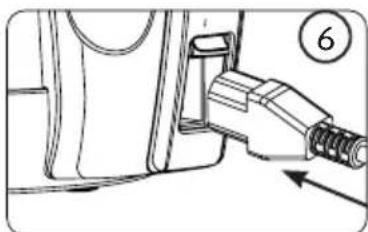

6. Plug the cable in the power socket at the bottom of the handle. The indicator lights will blink one by one.

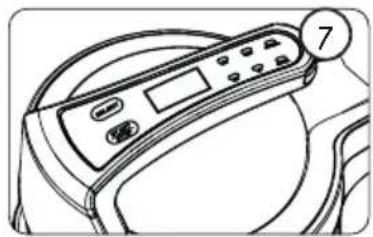

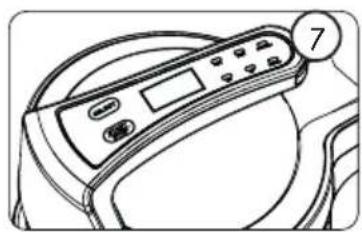

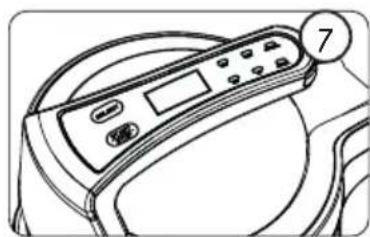

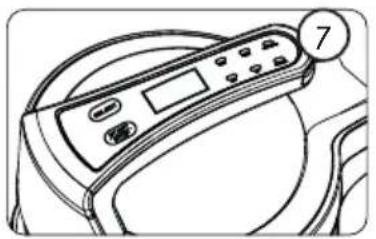

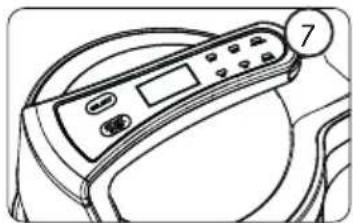

7. Select the required program (chunky/smooth/extra smooth/juice/jam/blend-clean) by pressing the setting button 'SELECT'. Confirm with the start button 'START/STOP'. The LED screen has a countdown timer.

Attention: the jug will heat up.

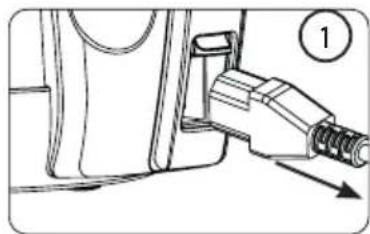

1. When the programme is finished, a signal will sound for one minute. Be careful when you pour out the soup!

Caution: if you want to turn the appliance off during the programme or want to change the programme, press and hold the on/off button for a few seconds.

Technical line drawing of a mechanical component with an attached connector (no text or symbols)

Line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

Simple line drawing of a kitchen appliance with food items flying out (no text or symbols)

Simple line drawing of a container being poured into a tank, no text or symbols present

Line drawing of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a remote control device with a circular button labeled '7' (no text or symbols on the device itself)

Illustration of a pouring liquid into a bowl with a handle, no text or symbols present

MEMORY FUNCTION

If you have forgotten to add an ingredient, you can still do this while the appliance is running by just removing the lid from the appliance. The soup maker will remember the current programme for 2 minutes. Add the forgotten ingredients and replace the lid. The programme will continue.

SETTINGS

Chunky: heat

The chunky-function is perfect for soups requiring a chunkier consistency. For chunky soup there is no blending process, just heating. It is therefore recommended that you cut the vegetables into the desired size. The device does not mix the soup but only cooks it. The program lasts for 28 minutes. The programme is completed when the signal sounds for one minute. The program ensures the ingredients are heated for longer to ensure the ingredients are fully cooked. If you are not satisfied with the consistency of your soup; you can use the blend-function afterwards.

Smooth: heat + mix

The smooth-function is perfect for a soup with a smooth consistency. The program lasts for 21 minutes. The program ensures the ingredients are blended to the right consistency and gently cooked at the right temperature. At first the appliance will start heating, en the vegetables will be cooked. After 11 minutes the soup maker mixes the ingredients briefly. After this the soup will boil. After 15 minutes the appliance will mix the soup briefly for a second time. After 18 minutes the soup will be mixed to a smooth consistency. The programme is completed when a signal is sounded for one minute.

Extra smooth: warm up + extra mixing

The extra smooth function ensures that you get a very finely blended soup. Using this function, you can easily whip up a velouté. The programme takes 30 minutes. In that time, the machine cooks the vegetables and regularly mixes them, so that the soup is finely blended when finished. The programme is completed when a signal is sounded for one minute.

Juice: mix

The juice function is ideal for preparing a smoothie, milkshake or other cold drinks. The programme takes 2 minutes. When completed, a signal will sound for one minute. This programme mixes only and therefore does not heat up the ingredients.

Jam: warming + mixing

The jam function is perfect for preparing a delicious jam. The programme takes 25 minutes. During this time, the machine regularly heats and blends so you achieve the correct structure for a delicious jam. The programme is completed when a signal is sounded for one minute.

Note: This function is not suitable for making soup, because the mixing and heating time is set differently.

Blend/clean: mix and cleaning

If your soup does not have the desired consistency, you can continue to mix the soup with this function. Select the 'Blend' programme and confirm by pressing the start button. Press and hold the start button until you have the desired consistency. The blender does not heat with this programme. We advise you not to use the blend function for longer than 20 seconds at a time. This is also how you can clean the appliance after use.

CLEANING AND MAINTENANCE

• Do not place the appliance in the dishwasher.
• Remove the lid and clean with a damp cloth.
• Be careful when cleaning the blade.

- Fill the jug with warm water and a little bit of soap. Clean your appliance with the blend/clean function (see the section on use). Clean the inside of the jug with a soft sponge. Do not use a scouring pad as this will scratch the base.

· After cleaning, dry all parts thoroughly.
- Do not immerse the appliance in water.

PROBLEMS AND SOLUTIONS

Problem Causse Solution
The lights on the display are off	There is a problem with the connection	Check if the power cord is properly connected
	There are too many ingredients in the jug, the lid is not in place	Remove some of the ingredients.Ensure the lid is in place
The light of the chosen setting is on, but the appliance doesn’t work	You didn’t confirm the setting with the start button	Press the start button
The appliance stops working	There is not enough liquid in the jug	The appliance has a boil dry protection. The appliance will shut down when there is not enough liquid used
You can hear several beeps and the light of the chosen program blinks	There is too much liquid in the appliance	The appliance has sensor to make sure it doesn’t overflow. Pour some of the liquid from the jug.
	The overfill sensor is dirty Clean the sensor with a damp cloth
The food is burned The jug wasn’t filled between the min and max indication lines.		Ensure the base is always covered with liquid, between the min and max indication.
The error message ‘E1’ appears on the display.	There are too many ingredients in the pitcher.	Make sure that the contents of the pitcher are between the minimum and maximum levels.

FREQUENTLY ASKED QUESTIONS

Can I make cold soups like Gazpacho in my soup maker?

Yes. First cook the soup using the chunky, smooth or extra smooth setting. Then simply let the soup cool or refrigerate. You can also make cold soups with the "juice" programme.

The soup maker stops working.

The appliance has a safety thermostat. When the appliance is overheated it stops working. This can happen when you use the soup maker multiple times in a row. If this problem occurs, remove the food and allow the appliance to cool for half an hour. It should now work correctly.

If the blend function is used continuously for more than 20 sec., the safety will turn off the appliance.

When this happens wait for 10 seconds before reusing the blend function.

What if food burns on the base of the appliance?

Always make sure you add water or broth to the ingredients. When the food is not in direct contact with the heating on the base it will not burn.

Does the appliance work when I remove the lid?

Yes, the appliance has a memory function for two minutes. This means that you have two minutes to, for example, add additional ingredients. Replace the lid on the appliance within the two minutes and the programme will simply continue.

Can I use the appliance to make anything other than soup?

Yes. You can also use the machine to make wonderful jams, smoothies, compotes, sauces or milkshakes with the jam, juice or blend function.

Can I add meat in the soup maker?

Yes. Only use the Chunky-function. The meat will be cooked together with the vegetables. Mince the meat in small pieces, max. 2 by 2 cm.

What is the capacity of the soup maker?

The maximum capacity you can make in one cycle is 2 l.

The min. and max. capacity are indicated on the inside of the jug. Do not fill the soup maker above the max. line. Otherwise the overfill sensor will go into safety and cut the power.

Can I change the times on the settings smooth, extra smooth, chunky and juice?

No. These times are preset and should give the best results.

Can I use frozen vegetables in the soup maker?

Thaw the vegetables before adding them to the soup maker or make sure the frozen pieces are no larger than 1 cm.

ENVIRONMENTAL GUIDELINES

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a mechanical device with an upward arrow, no text or symbols present

Simple line drawing of a kitchen appliance with food items flying out (no text or symbols)

Simple line drawing of a container being poured into a washing machine, no text or symbols present

Line drawing of a mechanical device with an arrow indicating downward motion, no text or symbols present

Technical line drawing of a mechanical component with a bolted connector and directional arrow (no text or symbols)

Line drawing of a portable electronic device with a circular label (7) on the top right, no text or symbols present.

Simple line drawing of a container pouring liquid into a bowl (no text or symbols)

FUNCIÓN DE MEMORIA

Prohibition sign depicting a trash bin crossed with no signage, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Technical line drawing of a mechanical assembly with directional arrows (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion, no text or symbols present

Simple line drawing of a kitchen appliance with food items flying out (no text or symbols)

Simple line drawing of a container being poured into a mixing bowl, with no text or symbols present.

Diagram of a mechanical device with an arrow indicating downward motion, no text or symbols present

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a portable electronic device with a keypad and control panel (no text or symbols)

Simple line drawing of a funnel pouring liquid into a bowl (no text or symbols)

PAMĚTOVÁ FUNKCE

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two cylindrical white objects with transparent caps, possibly milk or similar beverage (no text or symbols visible)

Three product photos: square tiles, a clear glass coffee maker, and a rectangular container (no text or symbols visible)

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:

QR code image containing encoded data, no visible human-readable text
