USER MANUAL DO7106S DOMO

White and purple steam iron with a cord, no visible text or symbols on the device body

DO7106S

Handleiding Strijkijzer met stoomgenerator

Mode d'emploi Fer à repasser avec centrale vapeur

Gebrauchsanleitung Bügeleisen mit dampfgenerator

Instruction booklet Iron with steam generator

Manual de instrucciones plancha con Generador de vapor

Návod k použití Žehlička s parným generátorom

Návod na použitie Žehlička s parním generátorem

Two black-and-white icons: a triangular warning symbol with an exclamation mark and an open book (no text or symbols present)

Technical diagram of a hand-operated air conditioner with numbered parts for identification

Close-up of a circular mechanical component with a black arrow pointing to it, no visible text or symbols.

6. Let op:

Close-up of a white and gray industrial machine with a black arrow pointing to its side panel (no visible text or symbols)

Warning sign with crossed lines and a trash can symbol, indicating no waste or discharge hazard

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Exploded view diagram of a hand washing machine with numbered parts for identification

Close-up of a circular mechanical component with a pointer and control buttons, no visible text or symbols.

Close-up of a white and gray industrial machine with a black arrow pointing to its side panel (no visible text or symbols)

Warning sign with crossed-out trash bin and no text, indicating no waste or discharge

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Exploded view diagram of a hair dryer with numbered parts for identification

Close-up of a circular mechanical component with concentric rings and a pointer arrow (no text or symbols visible)

Close-up of a steam iron with a partially open lid and handle, showing internal components (no text or symbols visible)

Prohibition sign with crossed-out trash bin and black rectangular symbol below

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g., electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
• In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

• When using electrical appliances, basic safety precautions should always be taken, including the following:
• Read all instructions carefully. Keep this manual for future reference.

• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.
  · This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.
• This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children younger than 16 years.
• The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• CAUTION: In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
• The iron must not be left unattended while it is connected to the supply mains.
• The filling aperture must not be opened during use. Follow the instructions of this booklet for safe refilling.
• The iron must be used and rested on a flat, stable surface and resistant to heat and hot steam.
• The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking. Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the

DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

- Keep the iron and its cord out of reach of children less than 16 years of age when it is energized or cooling down.

The surface(s) marked with this symbol are liable to get hot during use. It is advised not to touch the surfaces of the appliance other than the handles to avoid burns.

· Do not use or store this appliance outdoors.
- Do not move the iron while in use or when still hot. Allow to cool before moving the iron or before maintenance.
- Do not use this appliance for other than intended use.
· Do not fill the water reservoir with any other liquid than water.
- Do not use the steam function of the iron without water in the reservoir. This might cause damage to the iron.
- Check carefully that the voltage and frequency of the power net match the indications on the rating label of the appliance.
- The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.
- Only use the utensils delivered with the appliance.
- To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
· Do not operate the appliance with wet hands.
- Unwrap the cord completely to prevent overheating of the cord.
· Do not let the power supply cord touch hot surfaces.
- Only fill the water reservoir with no other liquid than water.
- Make sure the appliance is correctly assembled, then plug the cord in the wall outlet. To disconnect, turn controls to "OFF" or "o" position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.
- Make sure the appliance has cooled down before opening the boiler for cleaning. Make sure the bolt of the boiler is correctly and well fixed onto the appliance after maintenance.
- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.
· Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.
· SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

PARTS

1. Filling cap
2. Handle
3. Water tank
4. Steam release button
5. Soleplate
6. Temperature dial
7. Temperature indicator
8. Iron
9. Thermal insulation pads
10. Steam generator
11. Control panel
12. Cord clamp

13. Descaling cartridge

14. Trigger for removing the water tank

Technical diagram of a hair dryer with numbered parts for identification

Trigger

Grab the water tank by the handle and pull the trigger. You can now remove the water tank from the generator.

Filling cap

Open the filling cap and use the opening to fill the water tank.

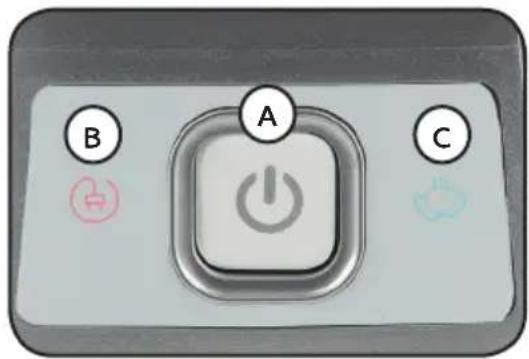

On/off button (A)

Plug in the appliance and press the on/off button. The on/off indicator (B) will light up. The appliance is now switched on. To turn the appliance off again, press the on/off button and hold. The indicators will go out and the appliance is now switched off.

A B C

Temperature indicator

When the iron is heating up, the temperature indicator will be lit up. When the set temperature has been reached, the light indicator will go out again. During ironing the indicator will alternately light up and go out again, as the iron is being kept at the right temperature.

Steam light (C)

When you turn on the device, the steam light will remain unlit. As soon as the device has

preheated, the steam light will light up blue, indicating you may start ironing.

Steam release button

When the light indicator lights up blue, you can start using steam. Press the steam release button on the inside of the handle of the iron to spray a continuous steam out of the soleplate. When you let go of the button, you will iron dry again, without steam.

Descaling cartridges

We advise you in changing the descaling cartridges after 3 months. In order to replace the descaling cartridge, you need to remove the water tank and remove the old cartridge and insert a new one in the same place.

Attention: A new descaling cartridge is best left soaking in a small container of water for an entire night. This ensures it's wet enough to allow you to iron immediately after changing the cartridges out.

Cord clamp

After use you can easily store the cord and steam hose by using the cord clamp. Pull out the clamp, lead the steam hose and the cord around the steam generator and push in the clamp to lock the cord and steam hose.

Temperature dial

Set the right temperature for the right fabric with the temperature dial.

For synthetic fabrics/silk: 70<T<120°

For wool: 100<T<160°

For cotton: 140<T<210^

For linnen: 170<T<225° MAX

BEFORE THE FIRST USE

1. Remove any stickers or protective foil from the soleplate.
2. Heat up the iron until the maximum temperature and iron on a damp cloth during a couple of minutes to remove any possible residues from the soleplate. Iron according to the instructions in the section «Steam ironing».

Caution:

• During the first use it is normal that a specific odeur escapes from the appliance. This odeur will disappear after a while.
• Some particles may come out of the soleplate during the first use. This is normal. The

particles are harmless and will disappear after a while.

• When turning on the appliance, the steam generator may produce a pumping sound. This is normal. This sound indicates that water is pumped into the steam generator.
• While the soleplate is heating up, some steam will be released automatically. This is also normal and will last for about 3 seconds.

USE

This steam generator offers 2 options: dry ironing or steam ironing. Follow the instructions below. Also carefully read the ironing tips at the end of this section before using the appliance.

DRY IRONING

1. Place the iron on the thermal insulation pads of the steam generator.
2. Plug in the appliance and press the on/off button.
3. Select the desired temperature with the temperature dial, according to the kind of fabric that needs to be ironed. The temperature indicator will light up and the iron will start heating up.
4. When the temperature indicator goes out, the selected temperature has been reached. You can now start ironing.

Caution: Never touch the hot soleplate!

STEAM IRONING

Caution: do not plug in the appliance yet at this point.

1. Grab the water tank of the steam generator by the handle and pull the trigger on the inside of the handle to pull the water tank out of the generator. Open the filling cap and fill the water tank with water. Make sure that you do not exceed the maximum level (1.2 L). Close the filling cap after filling the water tank.

2. Place the water tank back into the steam generator.

3. Place the iron on the thermal insulation pads of the steam generator.

4. Plug in the generator, press the on/off button. Set the temperature dial to the desired temperature, according to the kind of fabric, and the temperature indicator will light up.

5. The water in the water tank will start heating up and after a couple of minutes the temperature indicator will go out. This indicates that the soleplate has reached the set temperature. When the steam indication light colours blue, you may start ironing.

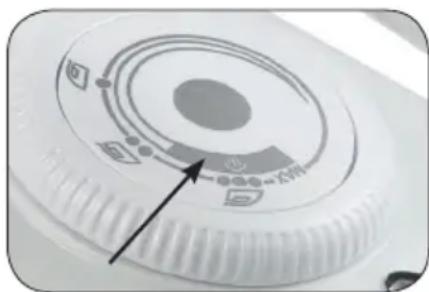

Attention: make sure that the temperature dial is positioned into the steam area (indicated by 🎨).

Close-up of a circular device dial with control buttons and an arrow pointing to the center (no readable text or symbols)

Caution:

Never touch the hot soleplate!

Never aim the steam at people!

1. After ironing, press and hold the on/off button. The appliance will shut off and all the light indicators will go out. Unplug the appliance. Place the iron on the thermal insulation pads of the generator and let the appliance cool down completely.

IRONING TIPS

• Always check first if there is a label on the garment with instructions for ironing. If this is the case, then always follow these instructions.
• The iron heats up faster than it cools down. Therefore, always iron the garments that require the lowest temperature first, like synthetic fabrics.
• If a fabric contains several types of fibres, always choose the lowest temperature to iron the combination of these fibres.
• Silk and other shiny fabrics should be ironed inside-out.
• Velvet and other fabrics that easily become shiny should be ironing with slight pressure, in one direction. Always keep the iron moving.
• Fabrics that are a 100% wool can be ironed with steam. Set the temperature to the maximum and use a dry cloth to place on the fabric.
• Never iron over zippers or other metal objects in a garment. This can damage the soleplate. Always iron around such objects.

Caution: if you iron woollen fabrics, the fabric may become shiny. That is why you should turn the garment inside-out for ironing.

IRONING TABLE

Symbol Fabric Variable steam
	synthetic fabric/silk	×
	wool	√
	cotton linnen	√
	This symbol means that the article can not be ironed!

CLEANING AND MAINTENANCE

1. Unplug the appliance and let it cool down before cleaning it.
2. Wipe residues from the soleplate with a damp cloth or with a non-abrasive (liquid) cleaner.

Caution: Do not use any chemical, steel, wooden or abrasive cleaners to scrape the soleplate.

1. Clean the upper part of the iron with a soft, damp cloth.
2. Wipe the water drops on the steam generator and the thermal insulation pads with a dry cloth.
3. When not using the steam generator for a long time, pour out the water from the water tank and place the iron on the thermal insulation pads to store the appliance.
4. Wind the steam hose and cord around the appliance and lock them into place with the cord clamp.

CAUTION: Only use tap water (or 50% tap water and 50% demineralized water in case of hard water) in your steam generator. Careful: softened water or demineralized water should be absolutely avoided! In case of use of a "softener" and/or perfumed water, brown stains could emerge, which would cause damage to the steam chamber.

DESCALING SYSTEM

· This device has an electronic system that checks the water hardness.
- The descaling cartridge will remove the hard water. Depending on how hard the water is and how the device is used, the descaling cartridge will need to be replaced after 3 months.

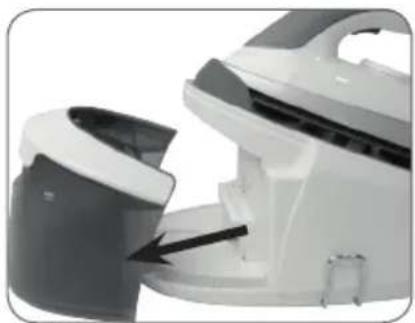

· Take the water reservoir out of the steam generator.
- Place a new descaling cartridge.

Close-up of a medical scanner device with a black and white casing, showing internal components and a close-up view of the device's handle (no text or symbols visible)

- Should you have no descaling cartridges handy, you may temporarily use a combination of 50% tap water and 50% distilled or purified water to fill the device. Afterwards you can continue ironing for a little while until your descaling cartridge arrives.

After you have replaced your descaling cartridge, it will take a little while before you get steam out of your iron. This is normal and happens because your cartridge is still completely dry and it takes a bit for all the water in the generator to pass through entirely. We advise you to replace the descaling cartridge the night before you plan on ironing, making sure it's drenched.

ENVIRONMENTAL GUIDELINES

Prohibition sign with crossed-out trash bin and no text, indicating no waste disposal or recycling.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows inside a rounded square (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Technical diagram of a hand-operated air conditioner with numbered parts for identification

Close-up of a circular mechanical component with concentric rings and a pointer arrow (no text or symbols visible)

Nota:

Close-up of a white and gray industrial machine with a black arrow pointing to its side panel (no visible text or symbols)

Prohibition sign with crossed-out trash bin and no text, indicating no waste disposal or recycling.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Technical diagram of a hair dryer with numbered parts for identification

Close-up of a circular mechanical component with a black arrow pointing to its center (no text or symbols visible)

Close-up of a white and gray industrial machine with a black arrow pointing to its side panel (no visible text or symbols)

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Warning sign with crossed-out trash bin and no text, indicating no waste or discharge

Recycling symbol icon with three chasing arrows inside a rounded square (no text or labels)

Labeled diagram of a hair dryer with numbered parts for identification

Close-up of a circular device component with an arrow pointing to it, no visible text or symbols.

Varovanie:

Close-up of a white and gray electric shaver with a black arrow pointing to the component (no text or symbols visible)

Warning symbol for a waste bin with crossed lines indicating no waste and a blank sign below

Recycling symbol icon with three chasing arrows inside a rounded square (no text or labels)

Two cylindrical white objects with clear caps, possibly milk or similar beverage (no text or symbols visible)

Three product photos: square tiles, a clear glass coffee maker with black handle, and a rectangular container filled with dark liquid (no text or symbols visible)

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:

QR code image containing encoded data, no visible human-readable text
