USER MANUAL Ecofrit Dual FG41 GIRMI

Exterior view of a Girmi air fryer with digital control panel (no text or symbols on device)

Ecofrit Dual

Safety Instructions.... p. 9

General information.... p. 11

FG41 p. 12

Cooking.... p. 12

Control panel.... p. 13

Functioning....p. 13

Settings.... p. 14

Cleaning....p. 14

Technical features.... p. 15

Waste of electric and electronic equipment (WEEE

Directive) p. 29

PORTUGUES:....p. 15

FRANCAIS ...... p. 19

DEUTSCH....p. 23

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class I Appliance symbol. This means the appliance must have the chassis connected to electrical earth/ground by an earth conductor.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

Exploded diagram of a food appliance with numbered parts for identification

PANNELLO DI CONTROLLO

A. Icone 9 programmi B. Tasto START C. Tasto ON/OFF
D. Tasto SYNC E. Tasto MATCH F. Tasto MESCOLA
G. Tasto ZONA 1 H. Tasto ZONA 2 I. Tasto TEMPERATURA
J. Tasto TEMPO K. Display ZONA 1 L. Display ZONA 2

FUNZIONAMENTO

COTTURA A UNA ZONA o A DUE ZONE CON STESSE IMPOSTAZIONI

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical

adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended.

Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

- Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.

- Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.

- Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.

- This appliance can be used by children of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of the appliance in a safe way and understand hazards involved; children shall not play with the appliance; cleaning and user maintenance shall not be made by children without supervision.

- Children must not play with the appliance.

- Keep the appliance and its cord out of reach of children less than 8 years.

If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise

the unit safety and invalidate the warranty.

WARNING: This appliance includes heating function.

Surfaces, other than functional surfaces may develop high temperatures. Since temperatures are perceived differently by different people, this device should be used with CAUTION. Hold the appliance exclusively to grip surfaces intended to be touched.

• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Before every use, unroll the power cord.
• Use original spare parts and accessories only.
• Do not subject the product to strong impacts, serious damages may result.
• Do not use near or under flammable materials (like curtains), heat, cold spots and steam.

GENERAL INFORMATION

The surfaces of appliance shall not be placed against a wall. Leave at least 10cm free space on the back and sides and 10cm free space above the appliance.

Never touch the inside of the appliance while it is operating. The appliance needs approximately 30 minutes to cool down for handle or cleaning safely.

Do not place anything on top of the appliance.

Handle with care cooked food to avoid risk of burning.

Never leave the appliance unattended while it is running. Remove the plug after each use.

Do not place the oven in water or other liquids and avoid splashing of liquids on the unit.

Do not fill the pan with oil as this may cause a fire hazard

During hot air frying, hot steam is released through the air outlet openings. Keep your hands and face at a safe distance from air outlet. Also be careful of hot steam when you remove the pan from appliance.

Before every use, unroll the power cord.

Do not cover the air inlet and the air outlet openings while the appliance is operating.

Do not use the appliance as a heating unit. Do not insert anything in the ventilation windows.

Before cleaning, always unplug the unit and wait for the complete cooling of each part of the appliance.

Remove all packaging materials from the cooking compartment. Put on solid and stable surfaces only.

Always leave enough space at every side of the oven when the unit is working.

Do not use the oven as shelf support for objects or as place to store food, pots, containers, etc..

Do not move if in function or if still hot.

FG41

1 Trays 2 Control panel 3 Housing

4 Container 5 Handles 6 Air outlet

COOKING

Carefully wash all accessories and the inner housing first. Allow to ventilate the internal compartment keeping the container (4) away for about 30 minutes. Before starting with the first cooking, turn on the appliance for 10 minutes at the maximum temperature.

• Connect to a suitable and earthed power socket. Extract with care one or both containers (4) and mount the holed tray (1) at the base of container. Put food in the container (4) over the tray.
• Replace the container into the housing (3). Insert correctly, or the product will not be able to start.
• Press ⏻ on the control panel (2). The display switches on and some icons flash.
• Set program, temperature and time as explained in following paragraphs. Press ▶ to start cooking.

Caution: Never use container (4) without tray. Do not touch container or inner parts of appliance during cooking and until complete cooling. Touch only the handle.

• Some foods should be mixed and shaken at half cooking. Take the handle (5) and extract container (4). Shake it, then replace in its position.
• When you ear the timer sound (5 beeps), cooking time is finished. Extract container and check if food is ready. If not ready, replace container in its position and set additional cooking of some more minutes.
• To remove food, take out container pour food in a dish.

Note: appliance can be switched off manually, pressing 3 seconds ⏻ on the control panel (2).

Be careful to the hot steam when you remove container after cooking. Don't turn the container upside down (4), because oil and cooking residues on the bottom of container could drip on the foods.

- Once cooking finished, if you want to start another one, air fryer is immediately ready.

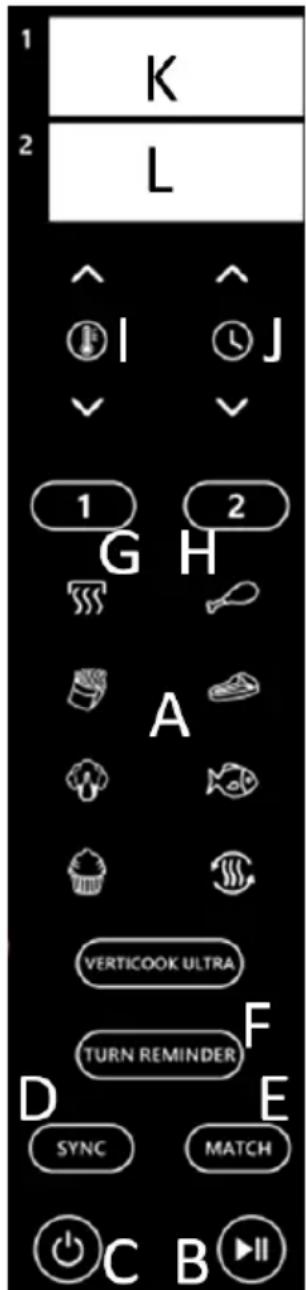

CONTROL PANEL

A. Icons 9 programs B. Button START C. Button ON/OFF

D. Button SYNC E. Button MATCH F. Button TURN

G. Button ZONE 1 H. Button ZONE 2 I. Key TEMPERATURE

J. Button TIME K. Display ZONE 1 L. Display ZONE 2

FUNCTIONING

ONE ZONE COOKING or DUAL ZONE WITH SAME SETTINGS

• Press (C) on the control panel (2). The display switches on.
• Press 1 (G) to set cooking of upper container, 2 (H) for lower.
• Press button (I) and set temperature with the buttons (+ and -).
• Press button (J) and set time with the buttons (+ and -).
• Press MATCH to set cooking of both sides with same time and temperature.
• Press TURN (F) to activate the signal that will remember to turn food in cooking.
• Press (B) to start cooking.
• The display shows the temperature and the time remaining. Some buttons stay on:

o 1: press 1 to set time and temperature of upper side during cooking.

- 2: press 2 to set time and temperature of lower side during cooking.

DUAL ZONE COOKING with INDIPENDENT SETTINGS

• Press (C) on the control panel (2). The display switches on.
• Press 1 (G) to set cooking of upper container.

o Press button (I) and set temperature with the buttons (+ and -).

o Press button (J) and set time with the buttons (+ and -).

- Press 2 (H) to set cooking of lower zone.

• Press button (I) and set temperature with the buttons (+ and -).
  ○ Press button (J) and set time with the buttons (+ and -).

• Press SYNC to activate the function “Sincro”. Enable this function if you want to make finish at the same time two recipes that have different times. In this way you will be able to bring 2 freshly cooked dishes together to the table.

• Press ▶(B) to start cooking. The display shows temperature and time remaining. Some buttons stay on:

o 1: press 1 to set time and temperature of upper side during cooking.
- 2: press 2 to set time and temperature of lower side during cooking.

PRESET PROGRAMS FUNCTION

Program		Time	Temperature	Program	Time	Temperature
	MANUAL	200	15		200	25
	FRIES	200	25		200	10
	VEGETABLES	160	15		180	10
	CAKE	160	25		60	30

• Press (C) on the control panel (2). The display switches on.
• Press 1 or 2 to set cooking of a container. Pressing one of the buttons (A), you can choose between 9 preset programs. Press Verticook to set the maximum temperature (not adjustable).

• Once the program is chosen, press (P) to start cooking, or:

• Press button (I) and set temperature with the buttons (+ and -).
  o Press button (J) and set time with the buttons (+ and -).
  o Press MATCH or SYNC to activate functions described before. Press ▶ to start cooking.

Note. Time and temperature set on each program are studied to have correct cookings for the relative food. It is advised to change time and temperature only based on experience (eg. Previous cookings not

1 K 2 L ^ I J 1 G H A VERTICOOK ULTRA TURN REMINDER D SYNC MATCH E C B

finished or too long). During cooking:

- Do not extract the container if not necessary to mix or check food cooking.

- You can stop appliance pressing button (☐). You can switch off pressing button (☐) for 3 seconds.

- You can change time and temperature. If you extract container (4), to mix as example, cooking of that container goes in standby and when you the replace container it restarts from the stopping point.

SETTINGS

This table below will help you to select the basic settings for the ingredients.

	Min-max Amount (g)	Time (min.)	Temp (/°C)	Shake
Potato & fries
Thin frozen fries	300-600	10-18	200	Yes
Thick frozen fries	300-600	12-20	200	Yes
Potato gratin	500	15-20	200	Yes
Meat
Steak	100-500	10-18	190	No
Pork chops	100-500	10-18	180	No
Hamburger	100-500	10-18	190	No
Chicken breast	100-500	12-18	180	No
Snacks
Frozen chicken nuggets	100-500	8-14	200	Yes
Frozen fish fingers	100-400	6-10	200	No
Frozen bread crumbed cheese snacks	100-400	8-10	180	No
Stuffed vegetables	100-400	20-25	180	No
Baking	Use additional baking tin/oven dish
Cake	300	20-25	180	No
Quiche	400	20-22	200	No
Muffins	300	20-25	180	No
Sweet snacks	400	20	180	No

Note: Add 3 minutes to the preparation time when you start frying while the Hot-air fryer is still cold.

Note: these settings are indications, as depend on personal taste, origin and type of food, ecc.

• Smaller ingredients usually require a slightly shorter preparation time than larger ingredients.
• A larger amount of ingredients only requires a slightly longer preparation time.
• Shaking smaller ingredients halfway through the preparation time optimizes the end result and can help prevent unevenly fried ingredients. Add some oil to fresh potatoes for a crispy result. Fry your ingredients in the Hot-air fryer within a few minutes after you added the oil.
• Do not prepare extremely greasy ingredients such as sausages in the Hot-air fryer.
• Place a baking tin or oven dish in the Hot-air fryer basket if you want to bake a cake or quiche or if you want to fry fragile ingredients or filled ingredients

CLEANING - Clean after every use. Unplug unit from the electrical outlet and allow each part to cool down before starting any cleaning procedure. Remove container to make the unit cool down faster

• Do not place oven in water. In any case prevent splashes of water or other liquids from reaching the unit.
• Wipe the outside of the appliance with a moist cloth.
• Clean the heating element with a cleaning brush to remove any food residues.
• Clean the inside of the appliance with hot water and non-abrasive sponge. Container and tray can be washed as normal non-stick pans, but we suggest to not use dishwasher. Do not use metal kitchen utensils or abrasive sponges or abrasive cleaning materials to clean them, as this may damage the non-stick coating

TECHNICAL FEATURES

• Power supply: AC 220-240V\~50-60Hz. Power: 2400W (1200+1200)
• Non stick containers and trays – Total capacity 9L (4.5+4.5)
- Adjustable temperature (60-200°C) - Timer 30 minutes - Digital Display - 9 preset programs
• Power consumption in standby mode: 0.4 W
- The product enters standby mode after 1 minute of inactivity

PORTUGUES: ADVERTÊNCIAS

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It’s our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.girmi.it TREVIDEA S.r.l.

TREVIDEA S.R.L. – Strada Consolare Rimini – San Marino n. 62 – 47924 – RIMINI (RN) - ITALY

MADE IN CHINA
